BLAZE, 16 ft., LED Tape Light, 2700K, 117 Lm/ft, 12V
Available in stock (200)
About this item
About this item
- Color Temperature: Provides a warm 2700K light, ideal for creating cozy atmospheres.
- Voltage: Operates on 12VDC, suitable for low-voltage applications.
- Max Run: Supports up to 27 ft. continuous run, minimizing voltage drop.
- Cuttable Increments: Field cuttable every 1.96 in., allowing for precise installations.
- IP Rating: Rated for indoor/damp locations (IP20), ensuring versatility in various environments.
We process payments securely and do not store credit card information.
Description
Description

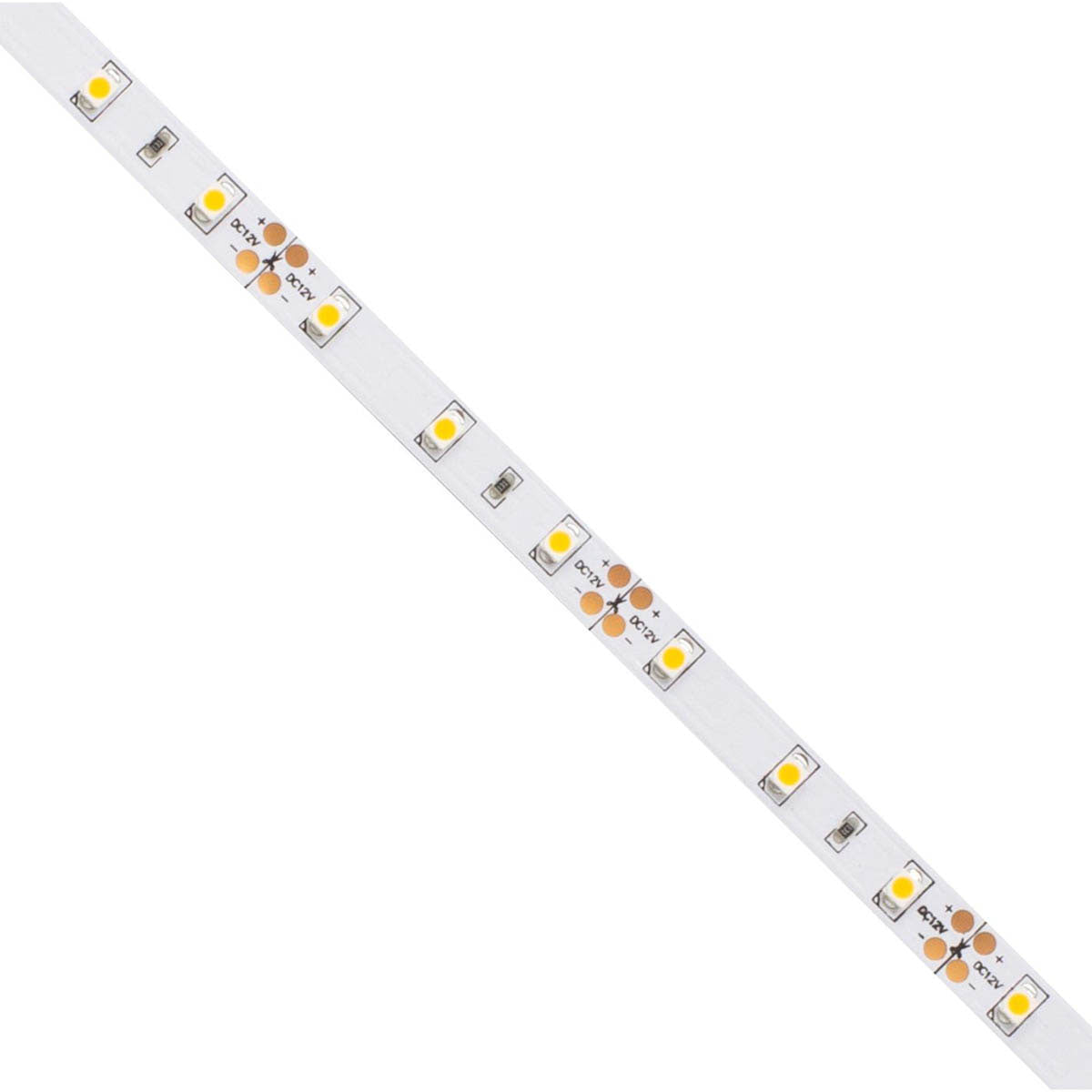

BLAZE LED Tape Light — 2700K & High CRI
The BLAZE DI-12V-BLBSC1-27-016 is a 16 ft. LED tape light designed for indoor applications. It features a 2700K color temperature, providing a warm and inviting light. Operating at 12VDC, this tape light is suitable for low-voltage environments and is rated for indoor/damp locations (IP20).
Key Features
- Voltage: 12VDC for low-voltage applications.
- Wattage: 1.46W/ft., ensuring energy efficiency.
- Lumens: 117 Lm/ft. for bright illumination.
- LEDs per Foot: 18/ft., providing consistent light distribution.
- Max Run: 27 ft. continuous run to minimize voltage drop.
- Cut Increments: Field cuttable every 1.96 in. for custom lengths.

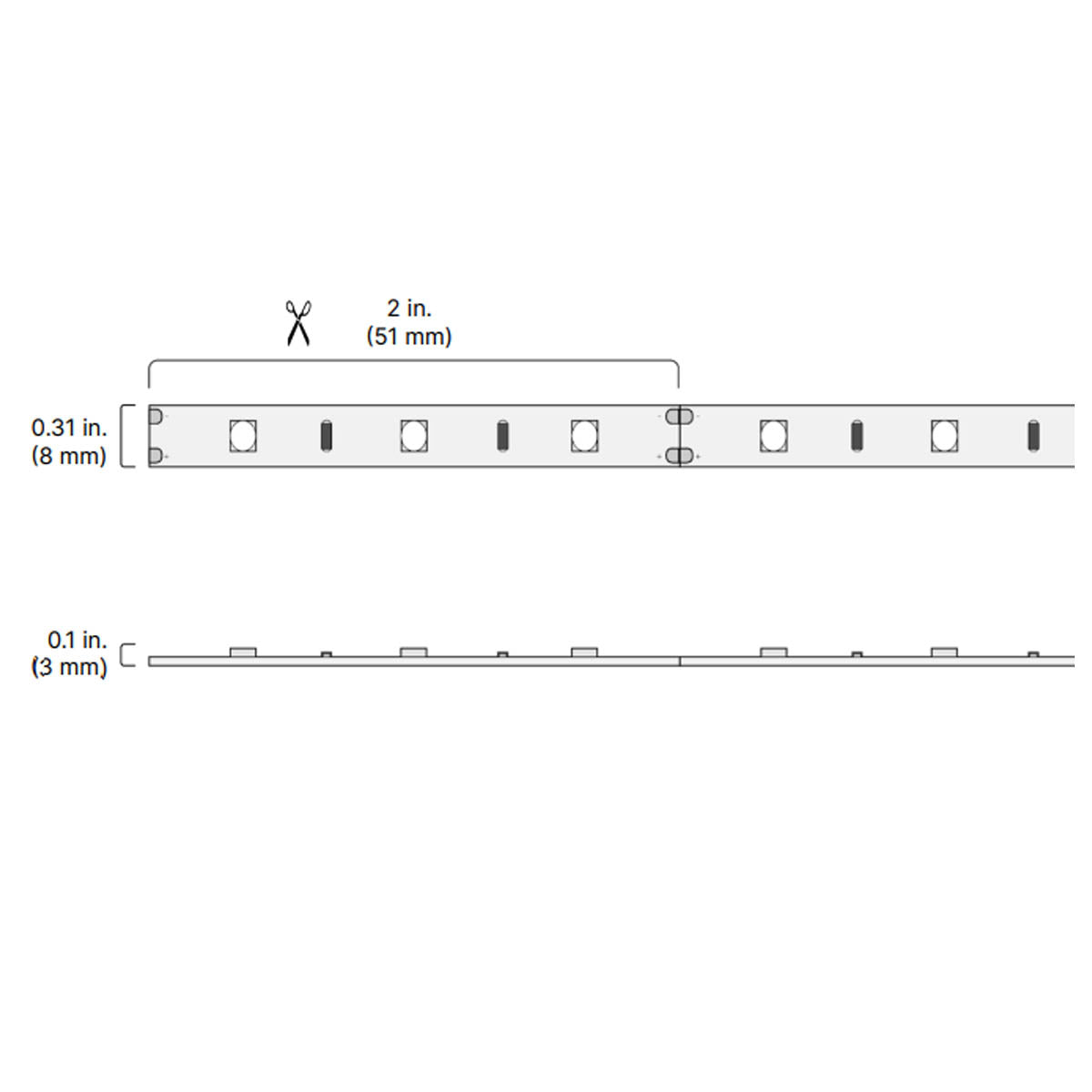

- PCB Width: 0.31 in., compatible with standard channels.
- Beam Angle: 120° for wide light distribution.
- IP Rating: IP20, suitable for indoor/damp locations.
- Certifications: UL Listed 2108, RoHS compliant.
Core Design & Construction
The BLAZE tape light features a 0.31 in. PCB width, making it compatible with most aluminum channels. It includes a durable adhesive backing for easy installation and is protected by a silicone coating for added durability.
LED Illumination & Performance
With 117 Lm/ft. and a 90+ CRI, this tape light ensures high-quality illumination with excellent color rendering. The light engine is based on standard SMD technology.
Power, Wiring & Installation
Requires a 12V power supply (sold separately). The tape light is field-cuttable every 1.96 in. and supports a maximum continuous run of 27 ft. It is dimmable for customizable lighting effects.

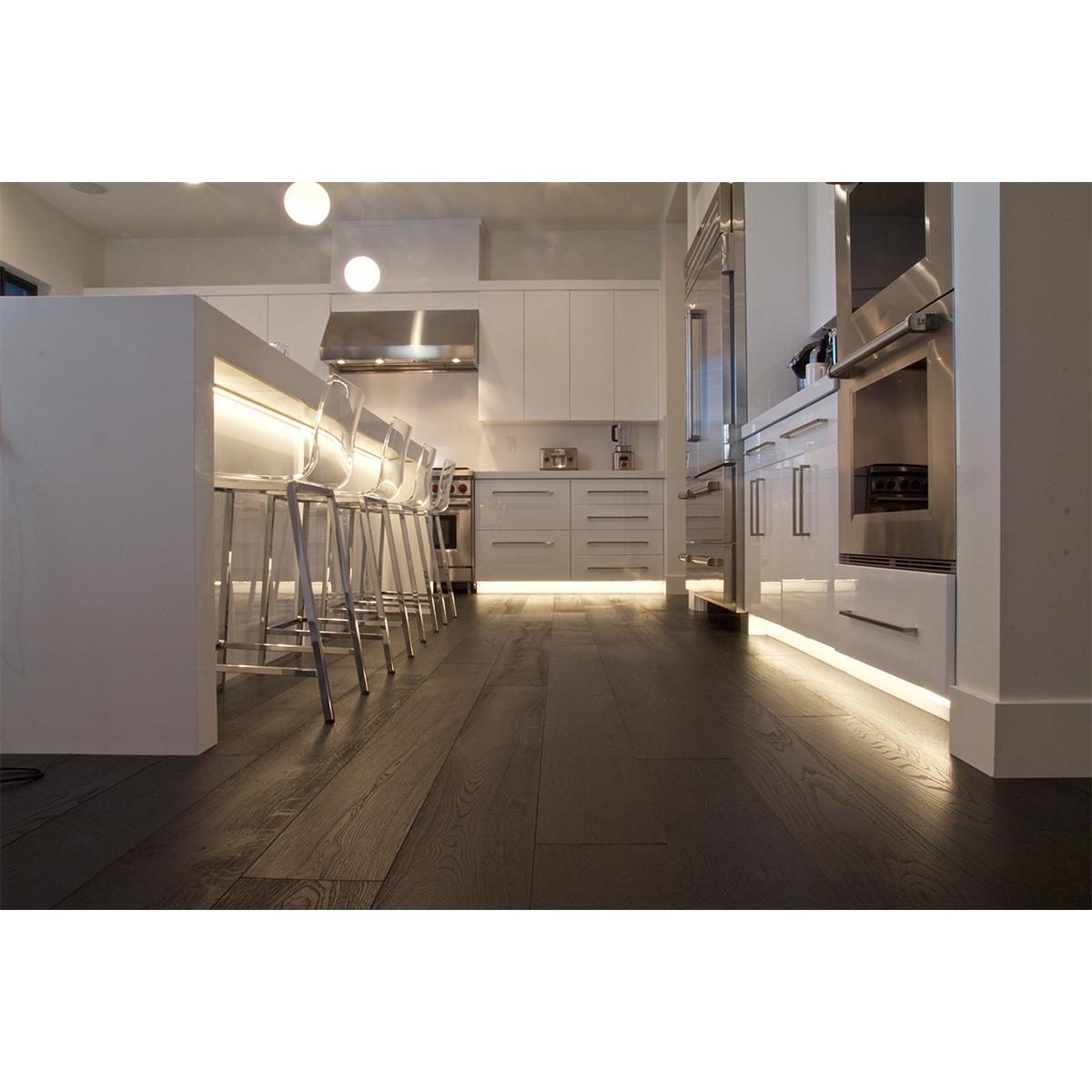

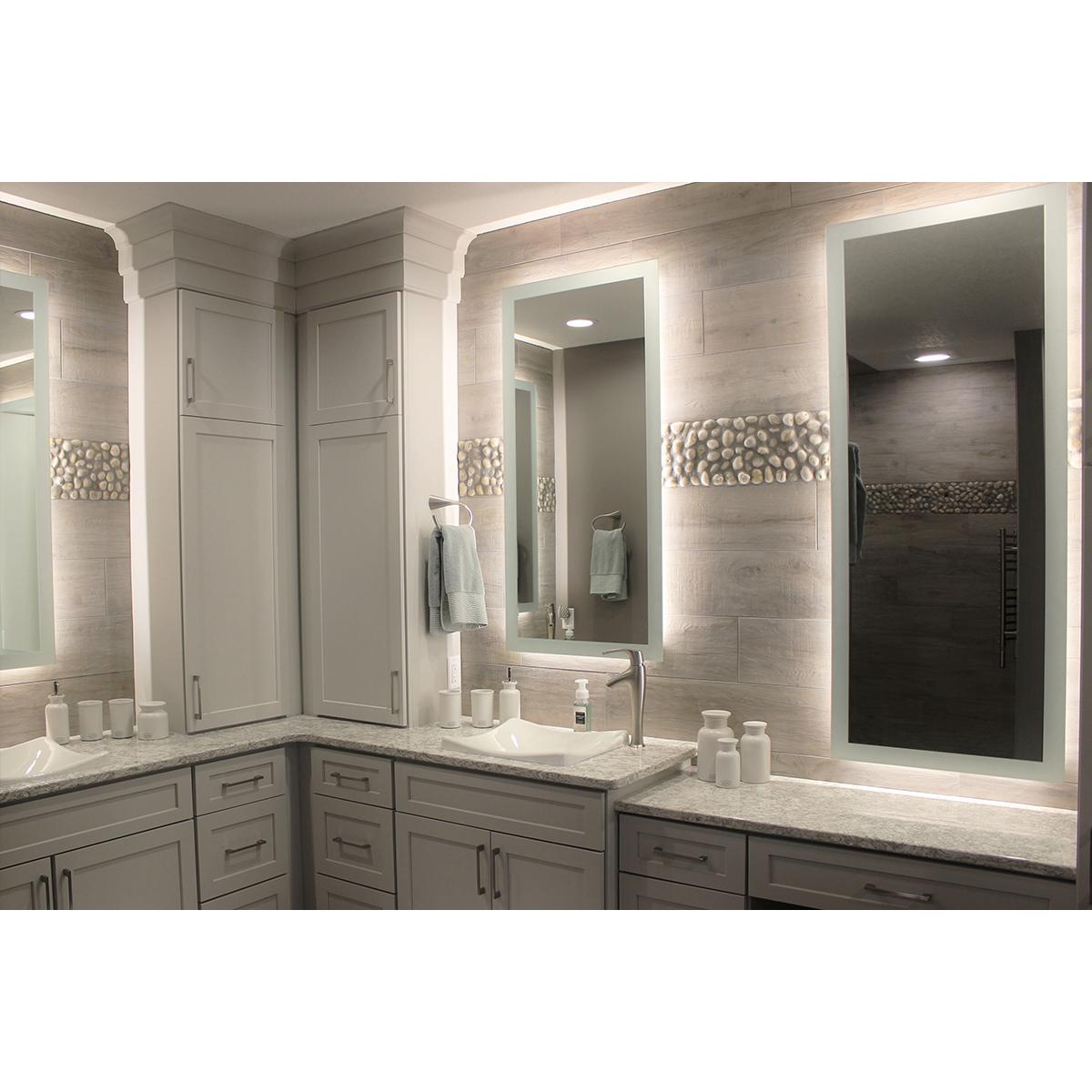

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16 ft. spool of LED tape light
- 36 in. bare lead wire with strain relief
- 2x White Tape-to-Wire Terminal Blocks (DI-TB-CONN-TTW-1)
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the BLAZE DI-12V-BLBSC1-27-016?
What is the maximum run length for the BLAZE DI-12V-BLBSC1-27-016?
How often can the tape light be cut?
How often can the tape light be cut?
What voltage is required for this tape light?
What voltage is required for this tape light?
Is the BLAZE tape light suitable for outdoor use?
Is the BLAZE tape light suitable for outdoor use?
What type of channels are compatible with this tape light?
What type of channels are compatible with this tape light?
