INFINILINE® 120V LED Strip Light | 3500K | 164ft | IP65 Wet Rated
INFINILINE® 120V LED Strip Light | 3500K | 164ft | IP65 Wet Rated
Regular price
$2,995.00
Sale price
$2,995.00
Regular price
$0.00
Shipping calculated at checkout.
Made to Order
Choose your location
enter a US zip code
Must be ordered in quantities of .
Couldn't load pickup availability
About this item
About this item
- Direct Plug-In: Plugs straight into a 120V outlet with no bulky external driver or transformer needed.
- Massive 164ft Run: Covers huge distances (up to 164 feet) on a single power connection without losing brightness.
- Weatherproof & Deep Cold Rated: IP65 wet-location rating allows it to work outdoors and in extreme cold down to -43°F.
- Pro-Grade Color: High 90 CRI ensures colors look natural and vibrant, making it ideal for high-end accent or cove lighting.
- Safety Sealed: The non-cuttable, factory-sealed design ensures a completely waterproof and UL-safe connection for the entire length.
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
Payment & Security
Payment methods
We process payments securely and do not store credit card information.
Description
Description
Overview

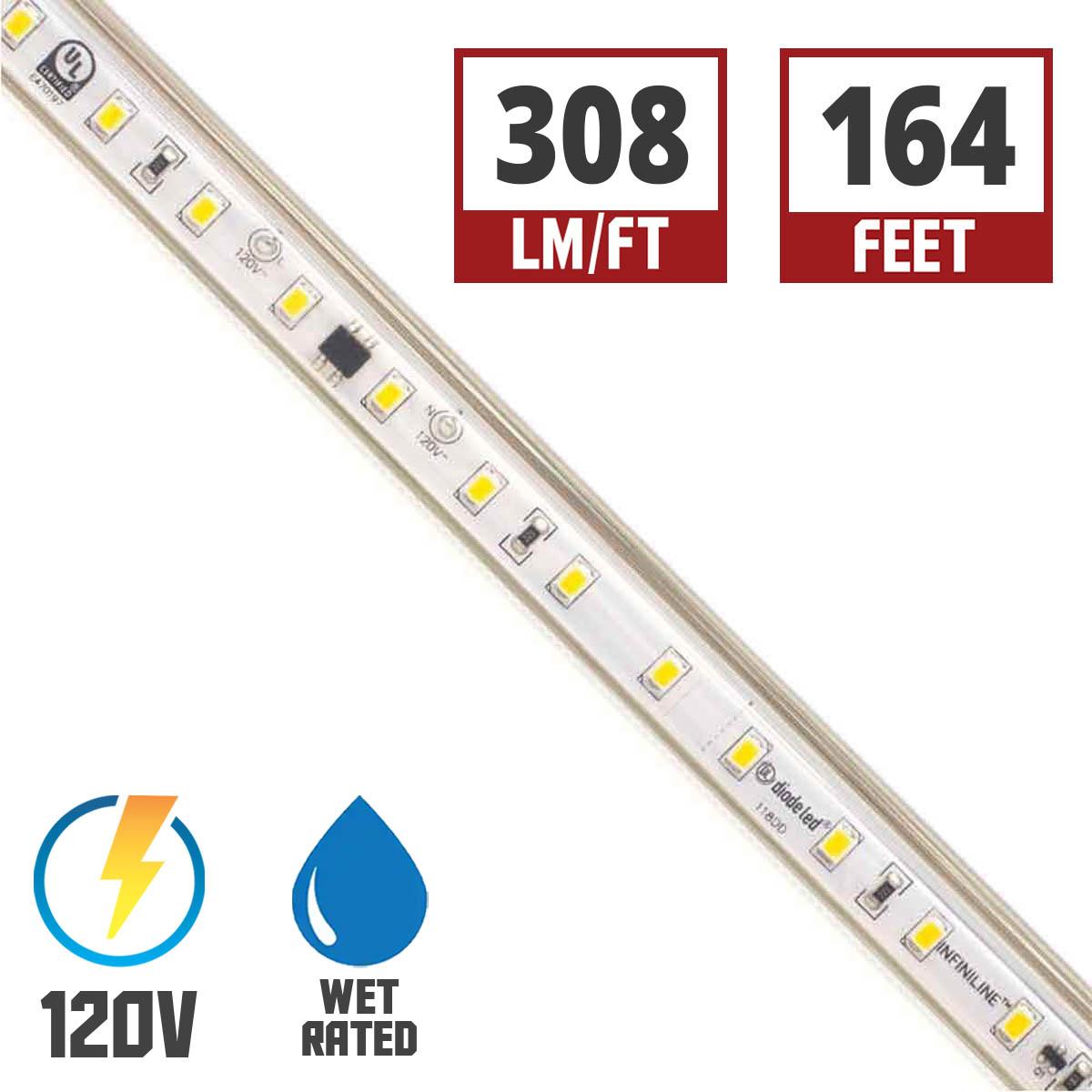

The INFINILINE® 120V LED Strip Light delivers driverless, plug-and-play linear lighting for runs up to 164 feet on a single power feed. Engineered for cost-effective installation in coves, under cabinets, and architectural applications, this flexible tape light eliminates the need for external drivers while providing consistent 3500K neutral white illumination. UL and ETL listed with IP65 wet location rating for indoor, outdoor, and deep cold environments. Non-cuttable design ensures continuous run integrity.
Features
- Driverless 120VAC operation – Direct line voltage connection eliminates external drivers and reduces installation complexity
- Extended run capability – Up to 164 feet maximum run on a single power feed with minimal voltage drop
- Premium light output – 308 lumens per foot with 90+ CRI and 120° beam angle for superior color rendering
- IP65 wet location rated – Suitable for outdoor, wet location, indoor, and deep cold environments down to -43°F

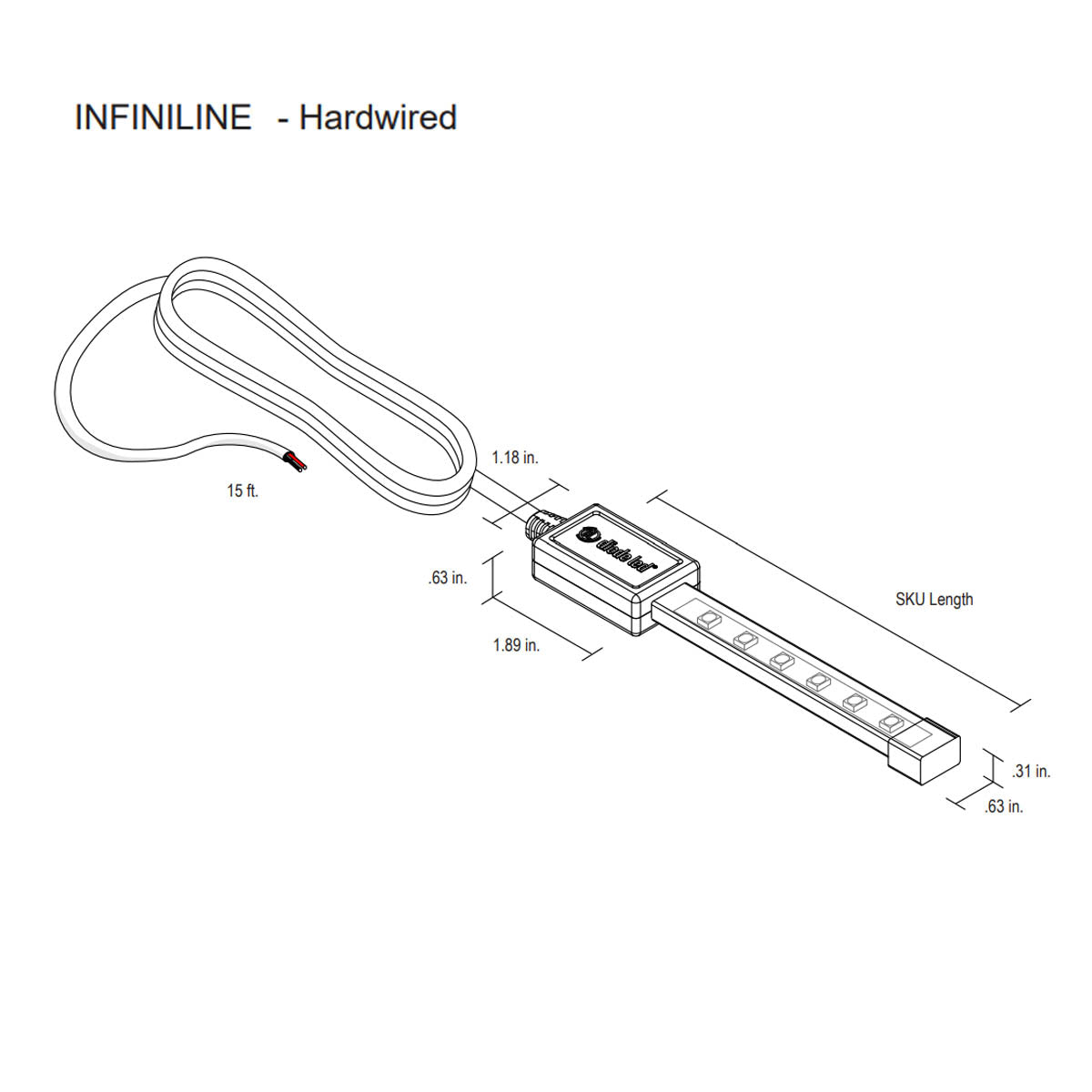

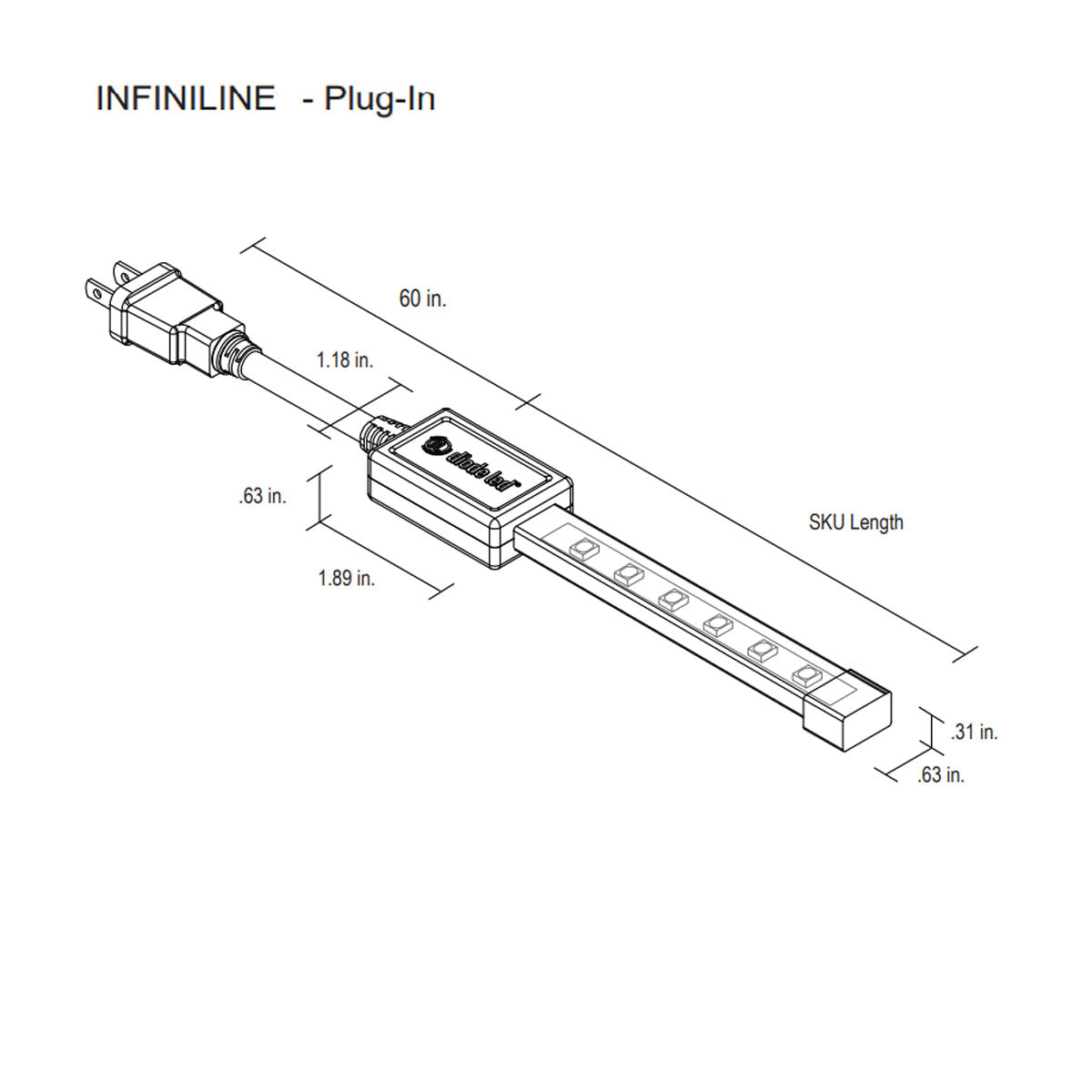

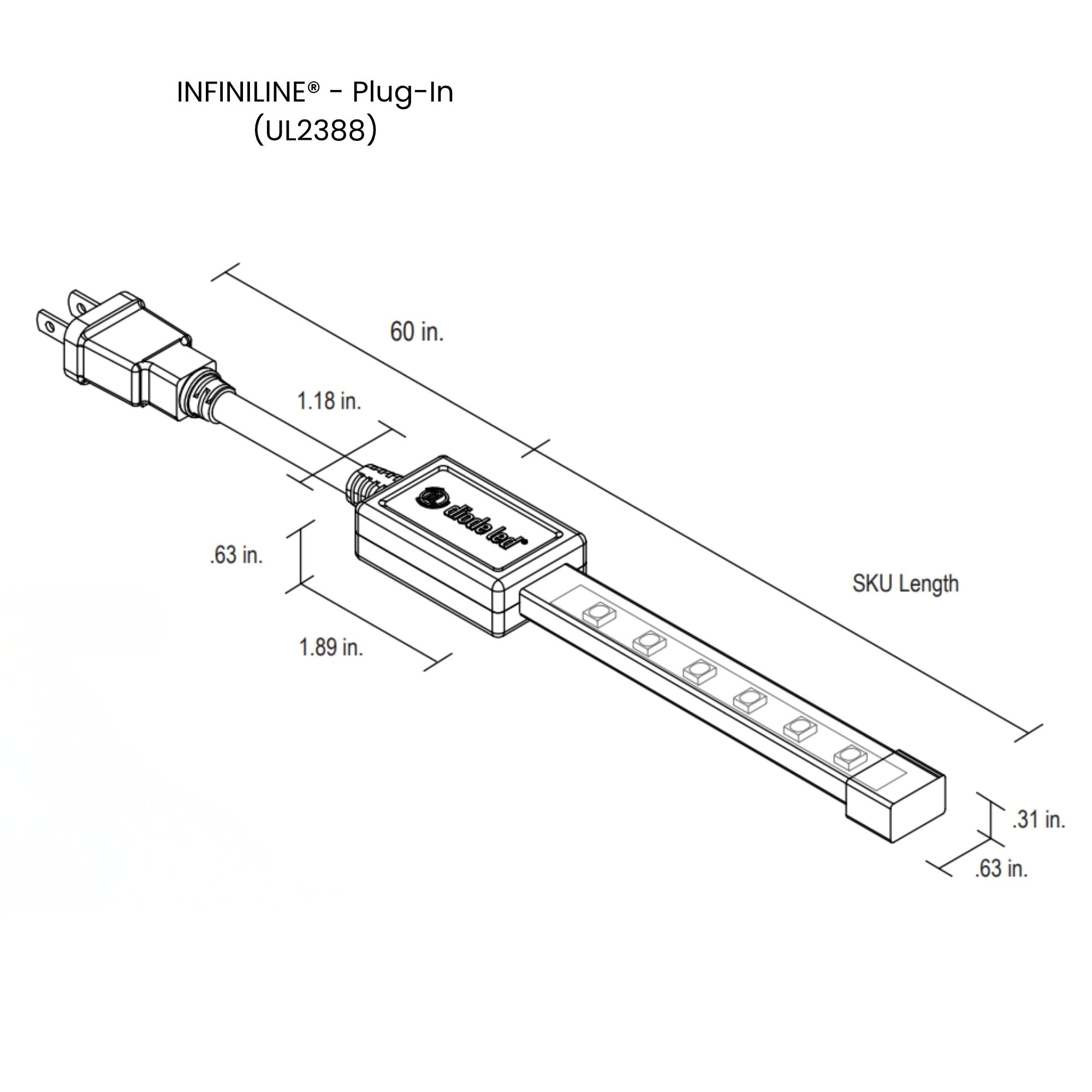

- Flexible mounting – 60-inch plug-in, 15-foot hardwired connections with optional jumpers for custom configurations

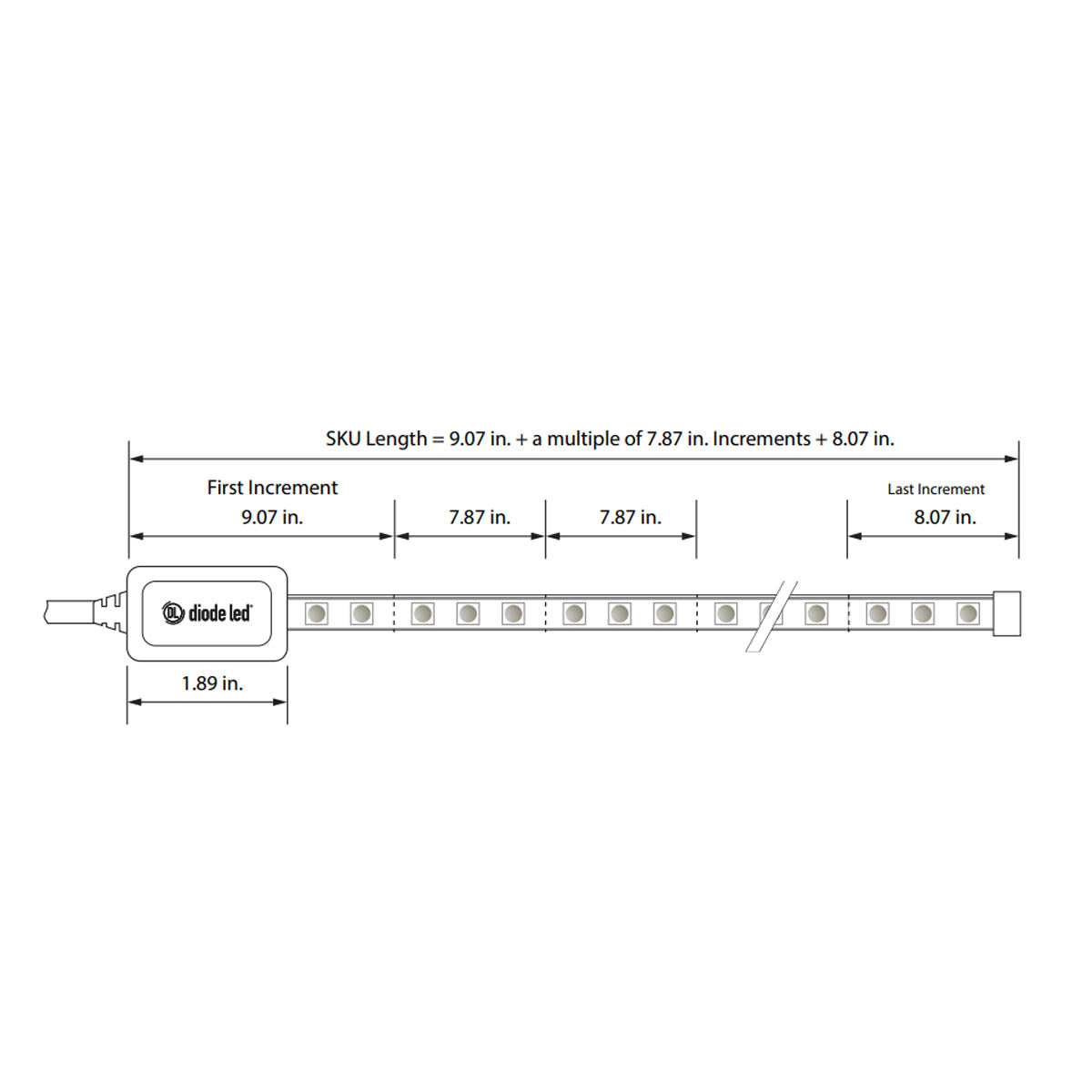

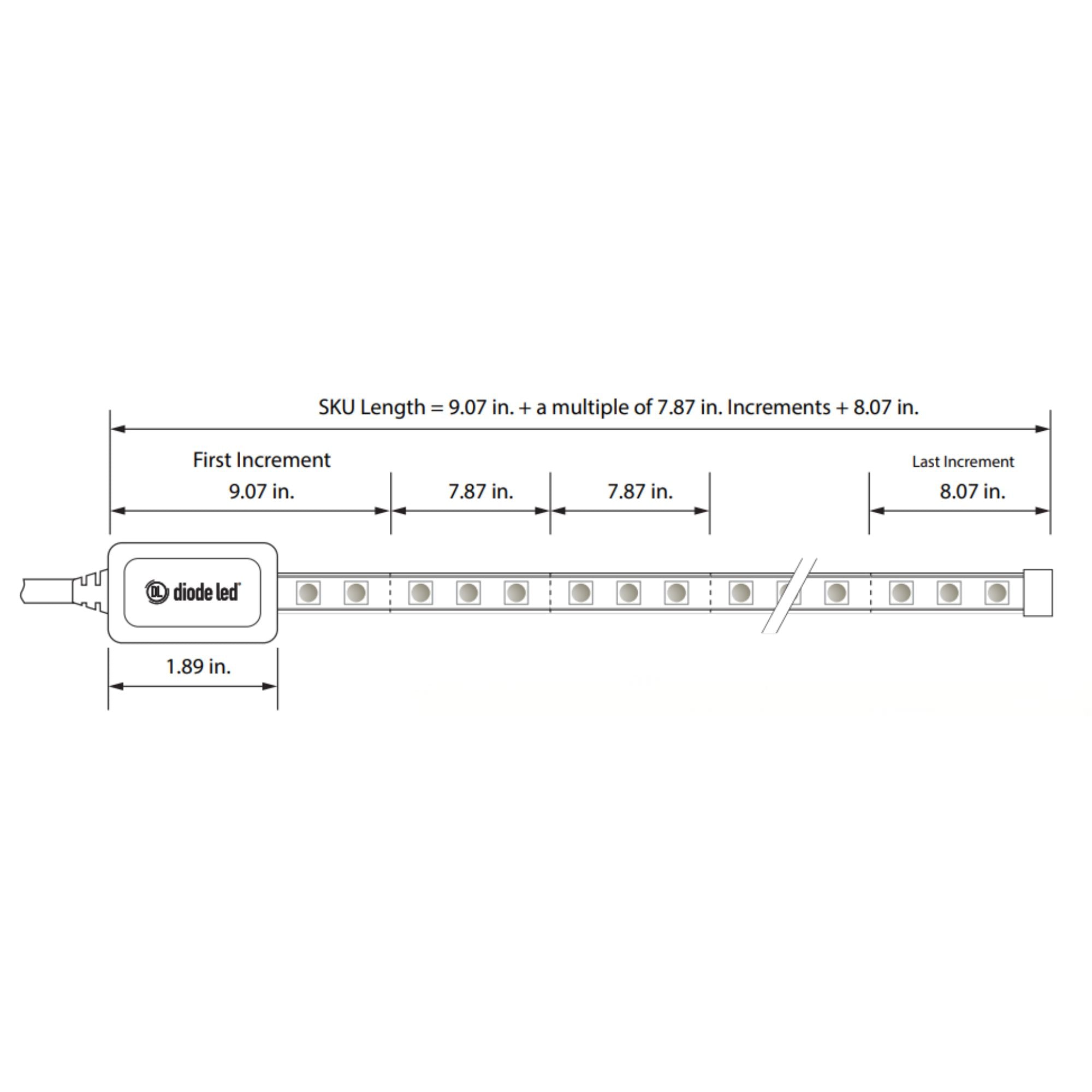

- Non-cuttable design – Factory-sealed continuous run ensures optimal performance and safety
- Dimmable – Compatible with Lutron DVELV-300P, NTELV-300, and NTF-10 dimmers (hardwire only, down to 10%)

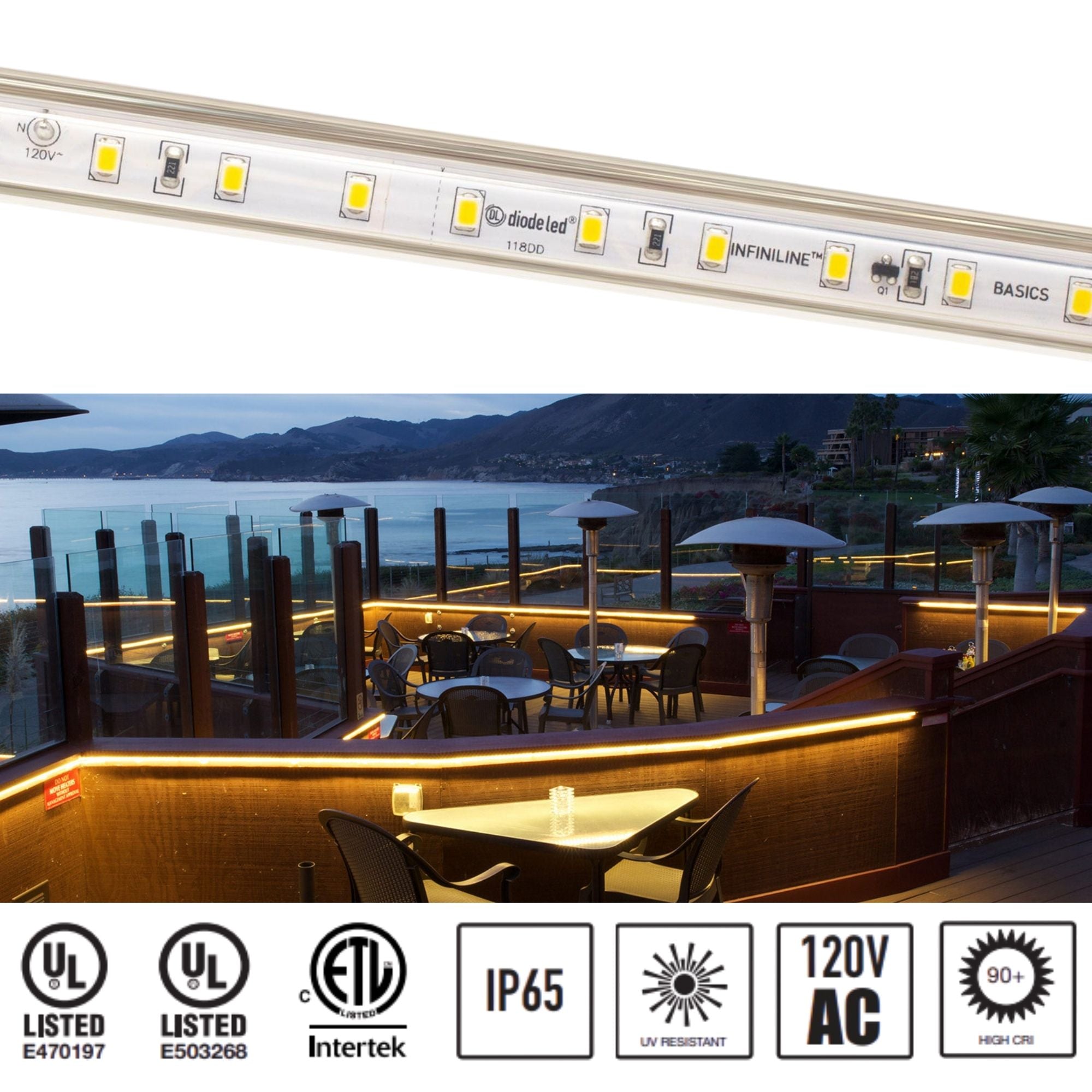

- Compliance certified – UL Listed (File #E470197, #E503268), ETL Listed Canada, meets Title 24 JA8 requirements
Specifications
- Voltage/Wattage: 120VAC / 3.7W per foot
- Color Temperature: 3500K Neutral White
- Lumen Output: 308 Lm/ft
- CRI: 90+

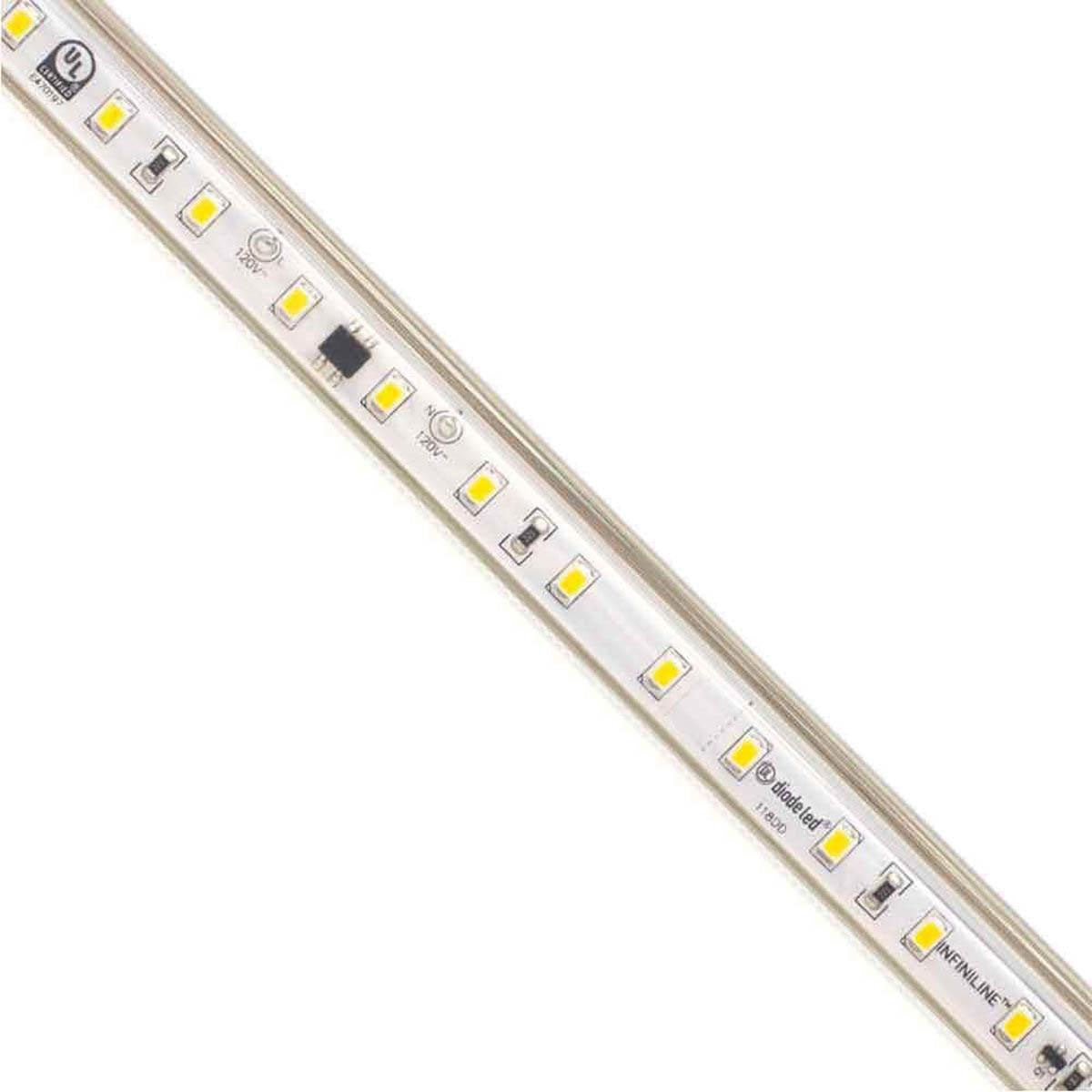

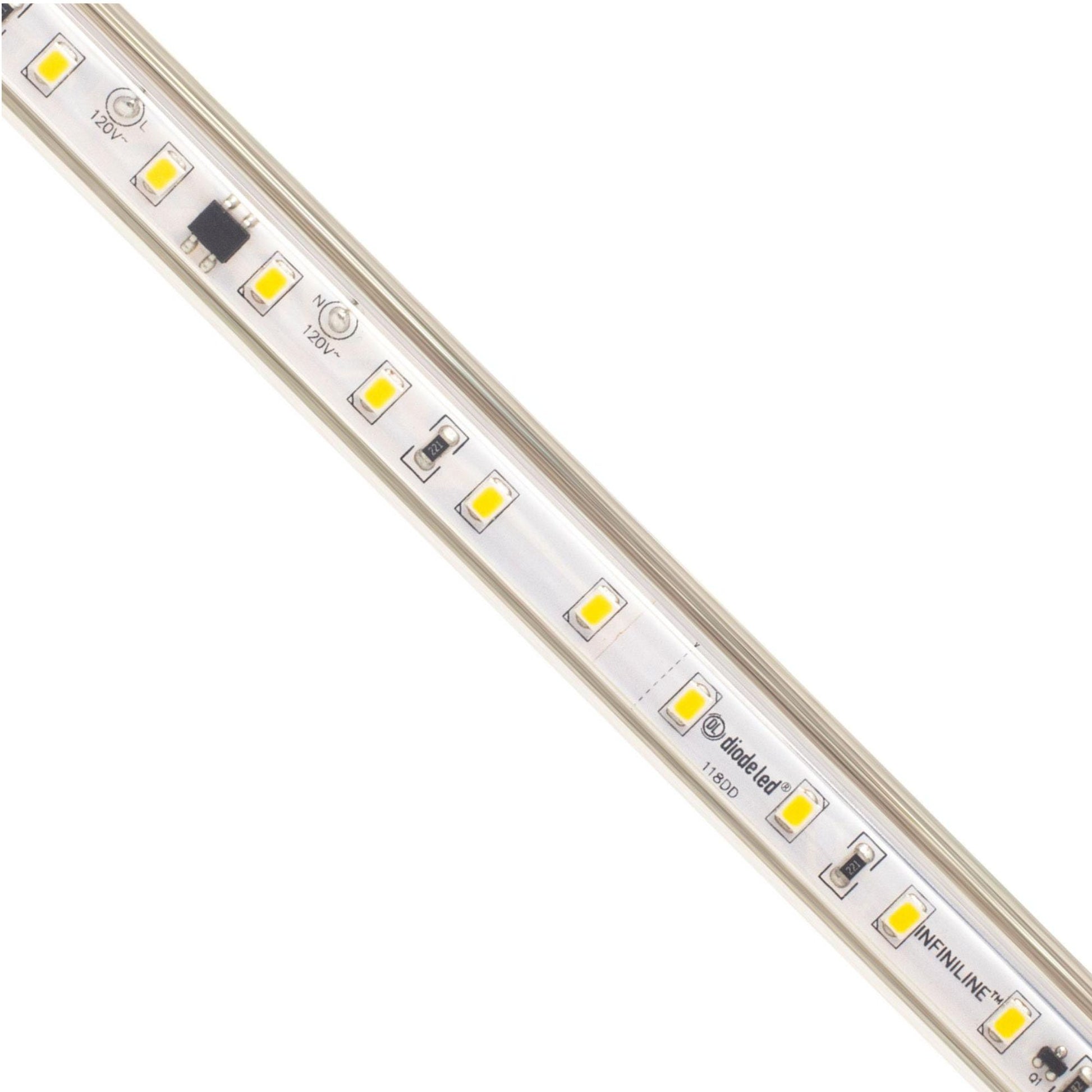

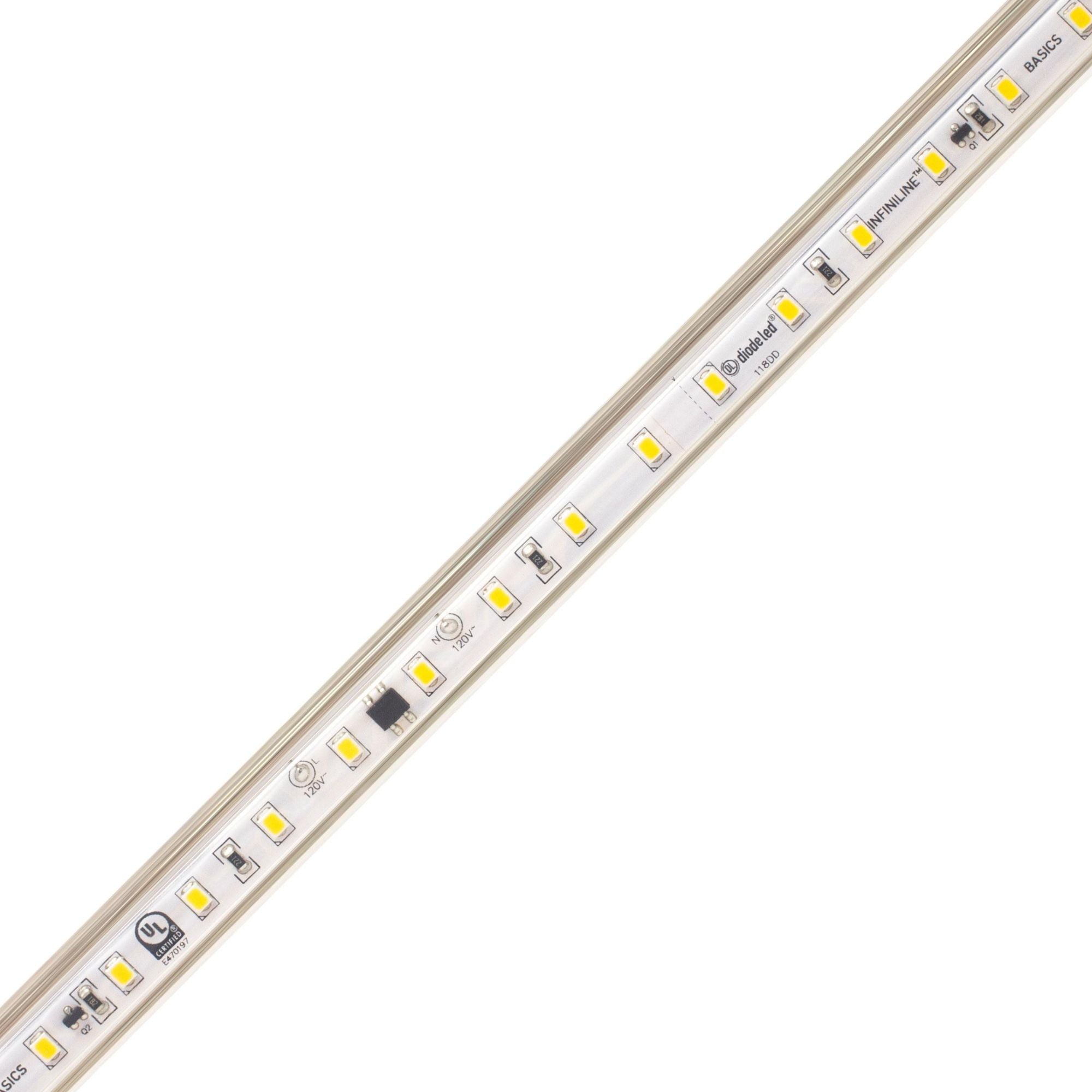

- LED Chip: 2835 with 120° beam angle
- Maximum Run: 164 feet
- Environment: IP65 – Outdoor / Wet location / Indoor / Deep Cold
- Operating Temp: -43°F to +122°F (-42°C to +50°C)
- Dimensions: 0.63 × 0.31 inches (W × H)
- Jacket Material: PVC, UL94 5VA Rated
- Certifications: UL Listed (US), ETL Listed (Canada), Title 24 JA8 compliant
- Warranty: 5-Year Standard, 2-Year Deep Cold
Applications

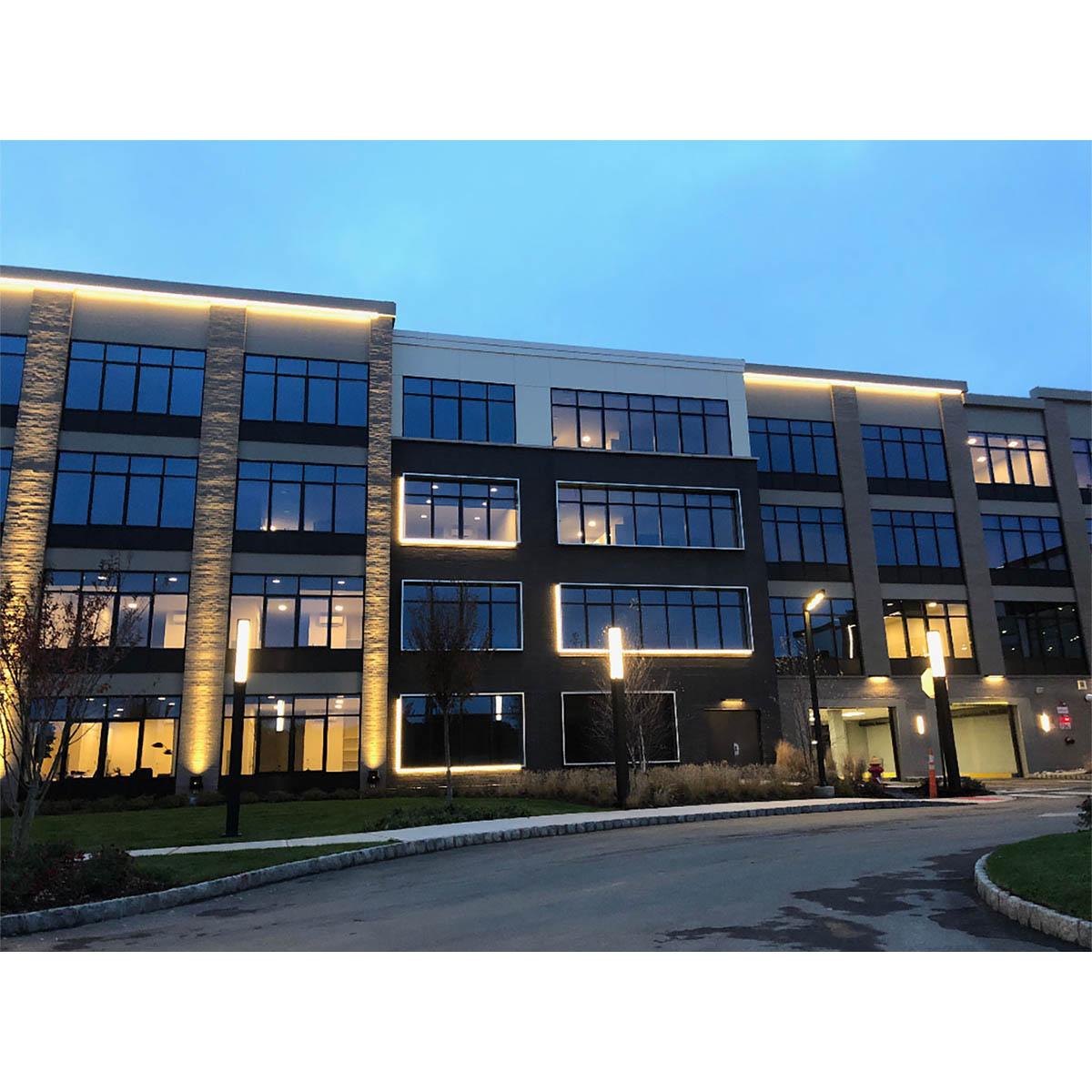

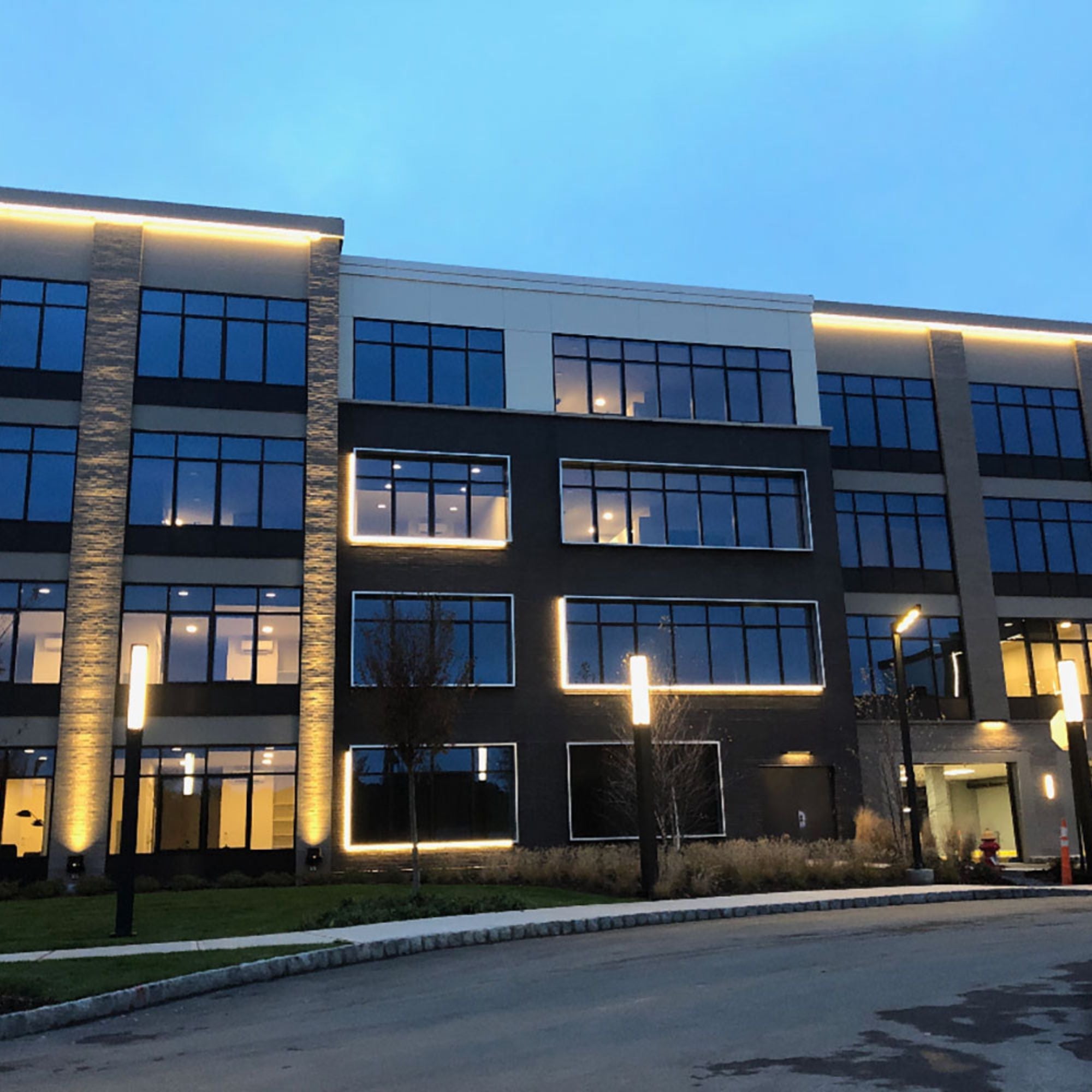

- Cove lighting and architectural accent lighting
- Under cabinet and task lighting in kitchens and workspaces
- Outdoor landscape and pathway illumination
- Retail display and merchandising lighting

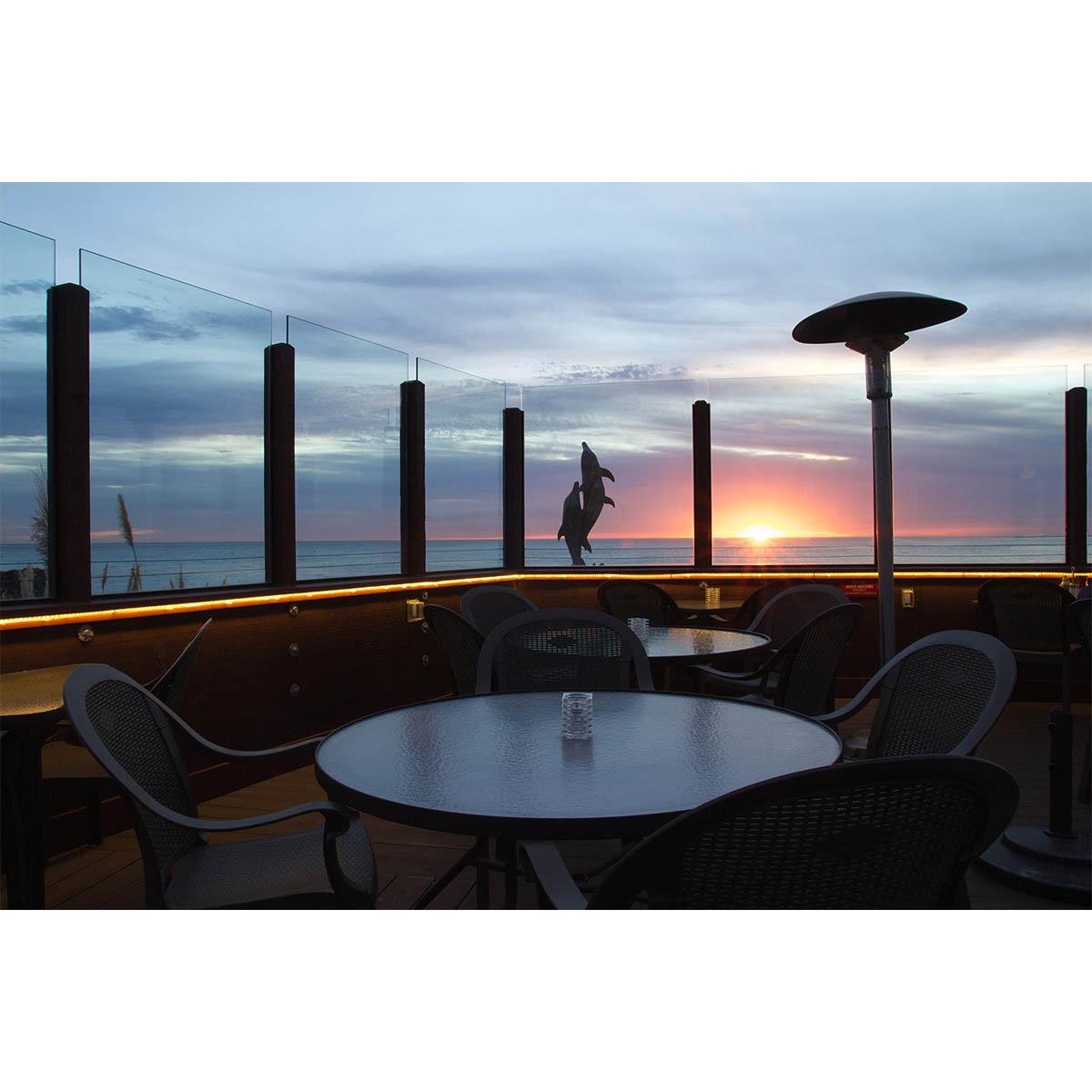

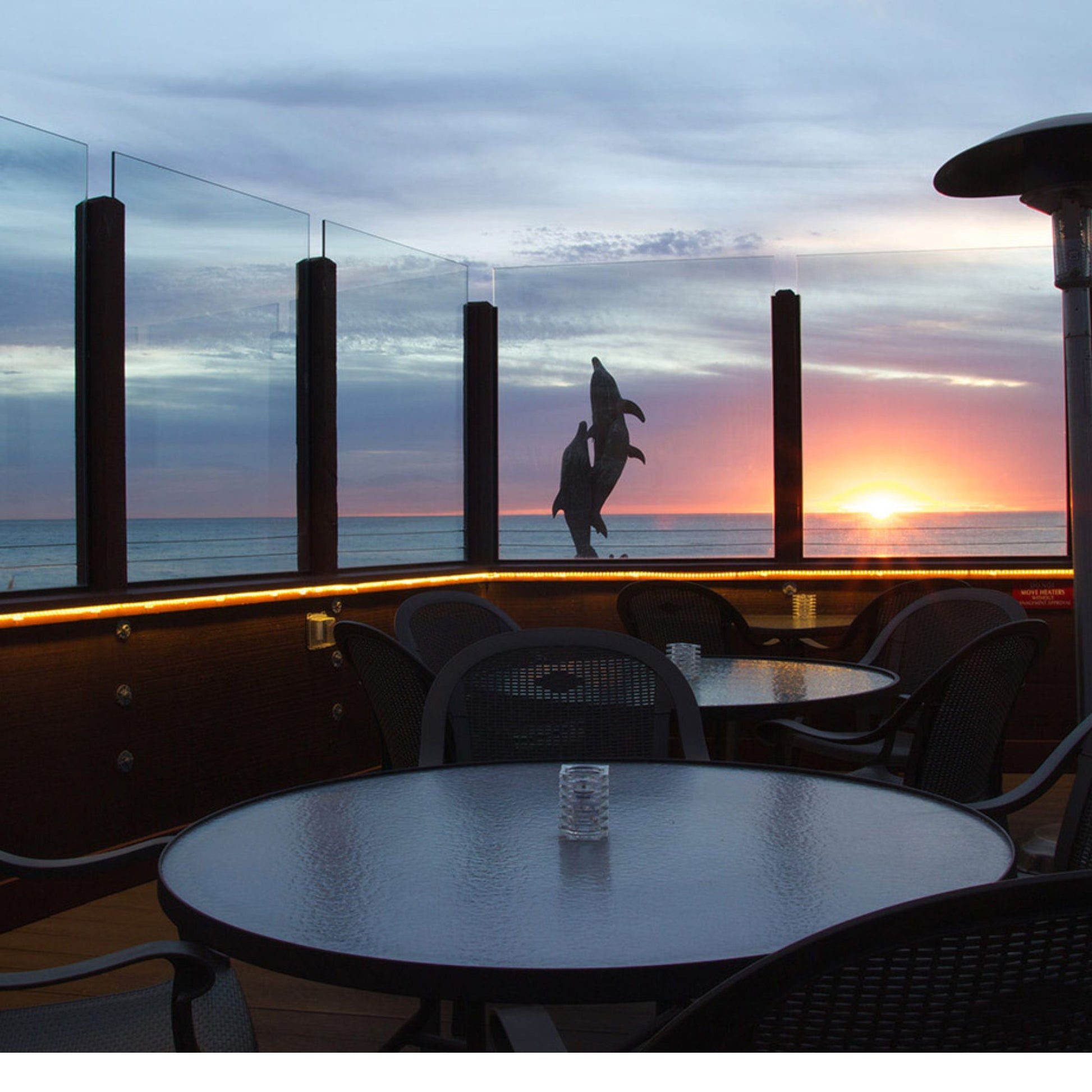

- Hospitality and commercial interior applications
- Cold storage and refrigeration environments
Specifications
Specifications
Dimensions
Length/Depth
1968 in
Width/Diameter
0.64 in
Height
0.32 in
Weight
1 lb
Documents
Characteristics & Features
Lamp Color
3500K
Color Rendering
90 CRI
Beam Angle
120
Electrical Information
Voltage
120V
Item Details
SKU
DI-120V-INFBSC3-35-164
Brand
Diode LED
Family
Infiniline Basics
Warranty & Certifications
Product Warranty
5 Years
Product Rating
IP65 Rated, Wet Rated
Frequently Asked Questions
Can I cut LED strip lights to a specific length?
Can I cut LED strip lights to a specific length?
Yes, LED strip lights are designed to be cut to length at designated points, typically marked by a small black line or scissor icon every few inches. Cutting at these marks will ensure the electrical circuit remains functional.
What is the main difference between 12V and 24V LED strip lights?
What is the main difference between 12V and 24V LED strip lights?
The main difference is the maximum run length. 24V LED strip lights can run longer distances (typically up to 60 feet) before experiencing noticeable voltage drop, while 12V LED strip lights are best used for shorter, simpler applications (up to 30 feet).
What is the benefit of COB LED Strip Lights over SMD strips?
What is the benefit of COB LED Strip Lights over SMD strips?
COB LED Strip Lights use Chip-on-Board technology, which packs the LEDs tightly together to produce a single, continuous line of light. This eliminates the individual "dots" or "hot spots" visible in standard SMD LED tape light, creating a cleaner aesthetic.
Do all LED strip lights require an external driver?
Do all LED strip lights require an external driver?
Only low-voltage LED strip lights (12V and 24V) require an external power supply or LED driver to convert 120V house power down to a safe working voltage. 120V LED Strip Lights connect directly to the wall outlet and do not require an external driver.
How do I install my flexible LED strip for a clean, professional look?
How do I install my flexible LED strip for a clean, professional look?
For the cleanest appearance, mount your flexible LED strip inside an aluminum channel with a frosted diffuser. This provides better heat dissipation, protects the strip, and turns the segmented light into a smooth, continuous line of strip lighting.
