Diode LED SWITCHEX R1 60W LED Driver & Dimmer Switch, 12VDC, Integrated Dimmer, Single-Pole/3-Way, 120VAC
Available in stock (197)
About this item
About this item
- Output Voltage & Power: Provides a stable 12VDC output with a maximum load of 60W to safely power low-voltage LED lighting systems .
- Integrated Dimming: Features a patented all-in-one design that combines a power supply and dimmer for smooth 100% to 1% dimming range .
- Input Voltage: Engineered for standard residential and commercial applications with 120VAC 50/60Hz input compatibility .
- Enclosure & Fit: Designed for easy installation within a standard electrical gang box to eliminate the need for remote driver placement .
- Protection: Built-in safeguards include short circuit, thermal runaway, overload, and over-voltage protection for long-term system reliability.
We process payments securely and do not store credit card information.
Description
Description

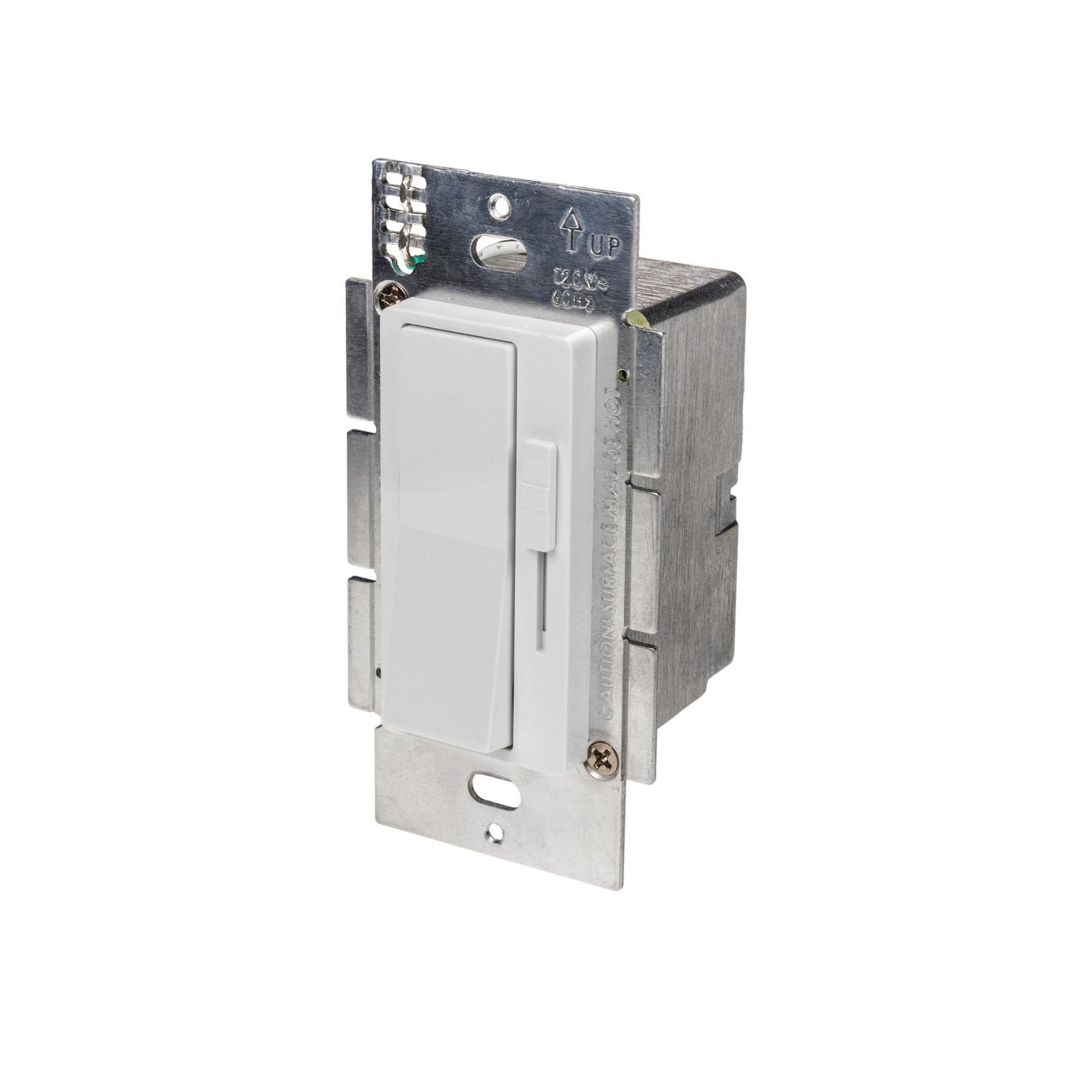

Diode LED SWITCHEX R1 DI-SXR1-12V60W 60W LED Driver — 12VDC DC
The Diode LED SWITCHEX R1 DI-SXR1-12V60W LED Driver and dimmer switch revolutionizes low-voltage lighting by merging a 60W power supply with a sleek in-wall dimmer. This patented 12VDC constant voltage solution simplifies Constant Voltage LED installations by fitting directly into a standard electrical gang box , removing the struggle of hiding bulky remote drivers. Ideal for under-cabinet or accent lighting , it offers a Class 2 rating for safety and superior performance in both residential and commercial spaces .
Key Features
- Power Output: Delivers a maximum of 60W for consistent low-voltage performance .
- Input Voltage: Operates on standard 120VAC 50/60Hz power lines .
- Output Voltage: Provides a precise 12VDC for compatible LED tape lights and fixtures .
- Dimming Range: Smooth architectural dimming from 100% down to 1% brightness .
- Minimum Load: Optimized performance with a recommended 5% minimum load requirement .

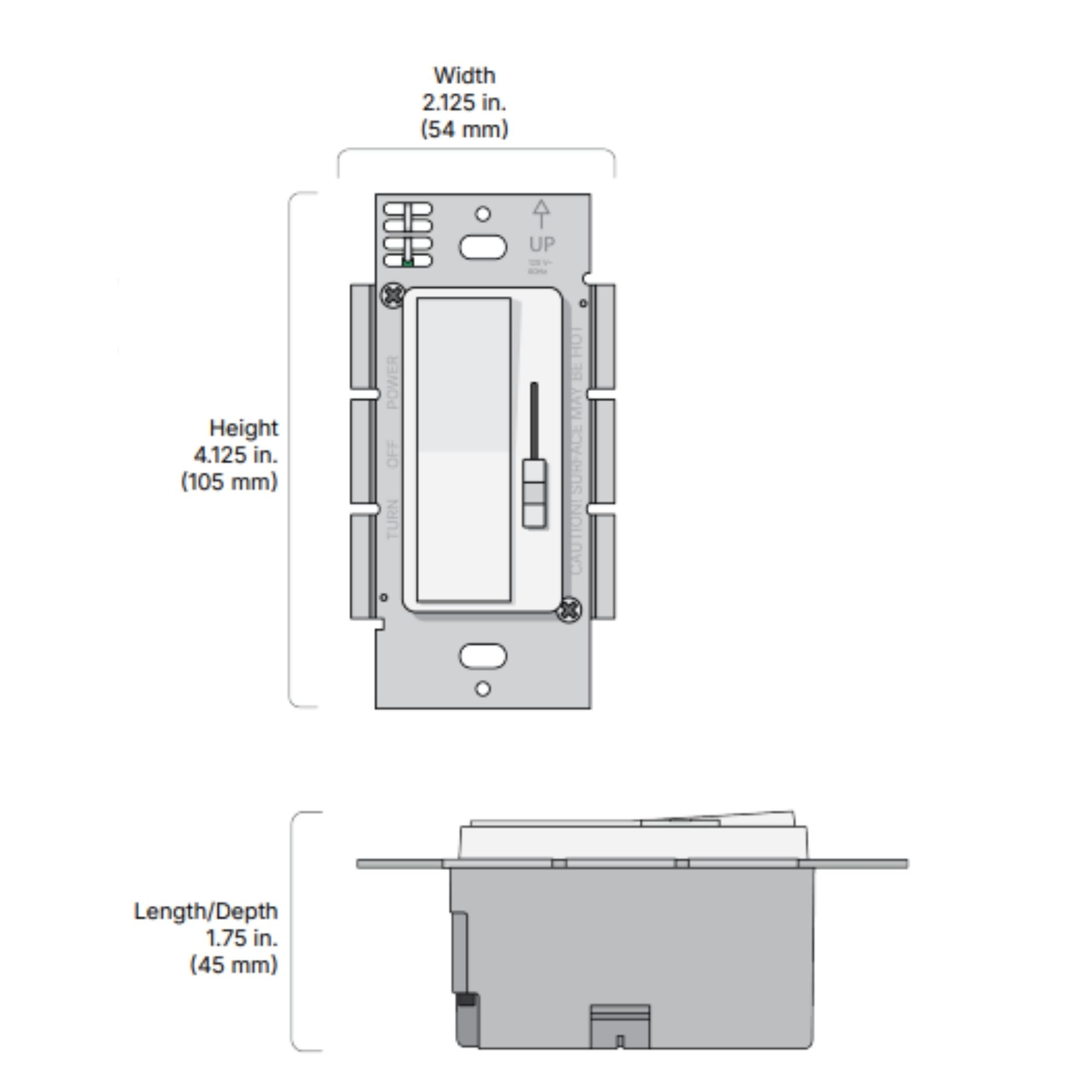

- Dimensions: Compact housing measuring 1.75 in. L x 2.125 in. W x 4.125 in. H .
- Enclosure Type: Integrated design installs in a standard electrical gang box with included faceplate .
- Class 2 Status: UL Listed Class 2 power supply for safe and compliant low-voltage wiring .
- Efficiency: High-efficiency operation at >91% at maximum load .
- Certifications: cULus Listed for US and Canada and FCC Part 15 Class B compliant .
Physical Design & Installation

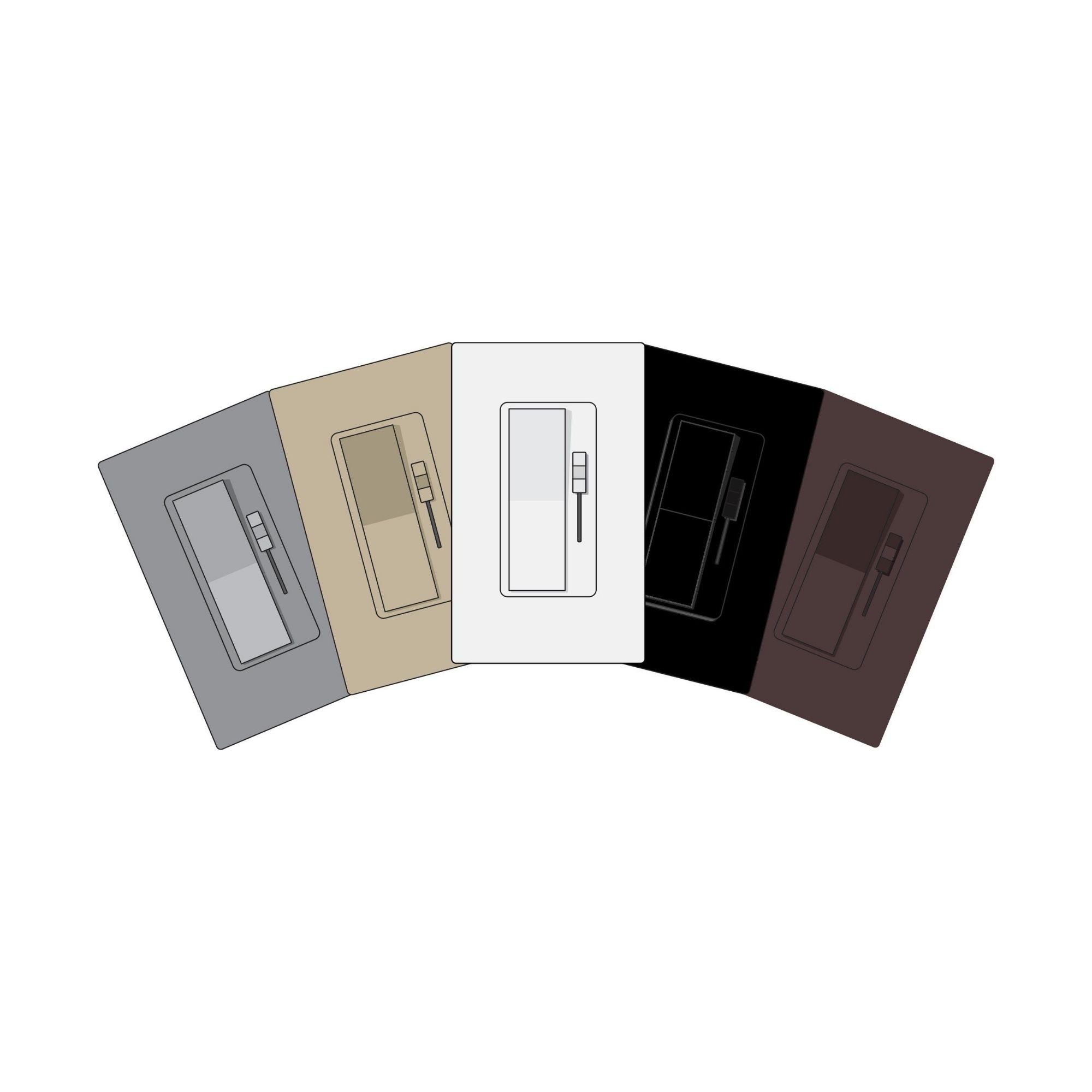

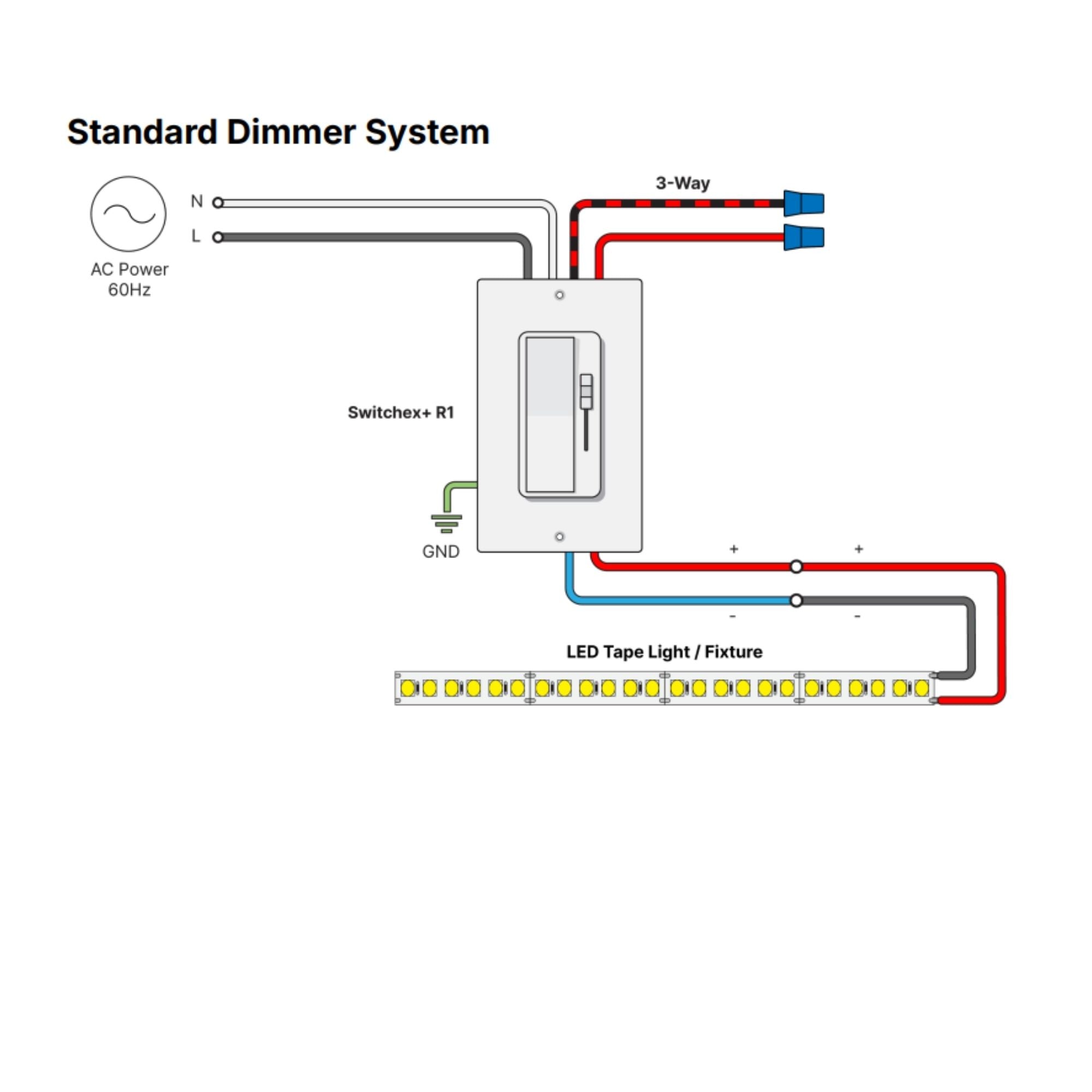

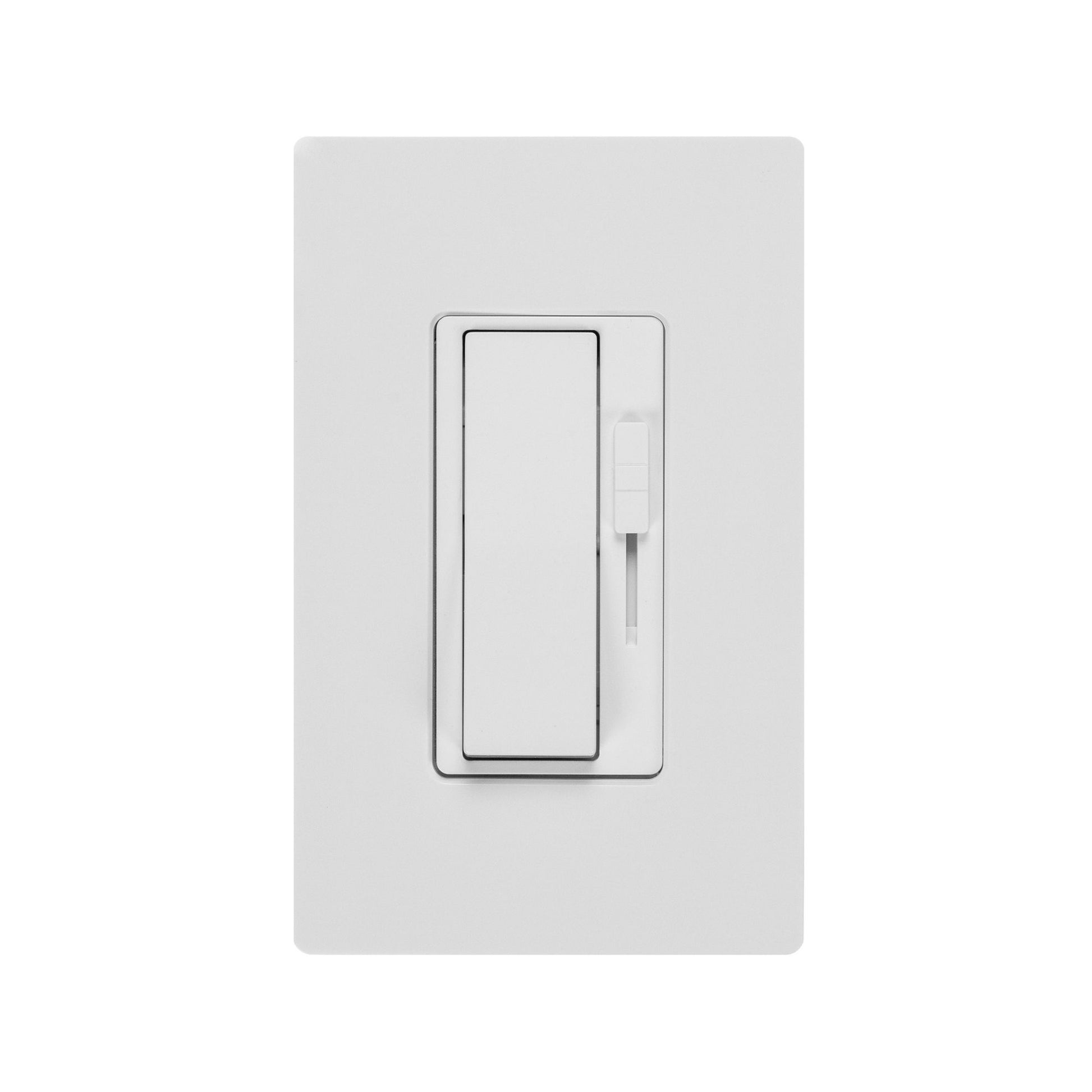

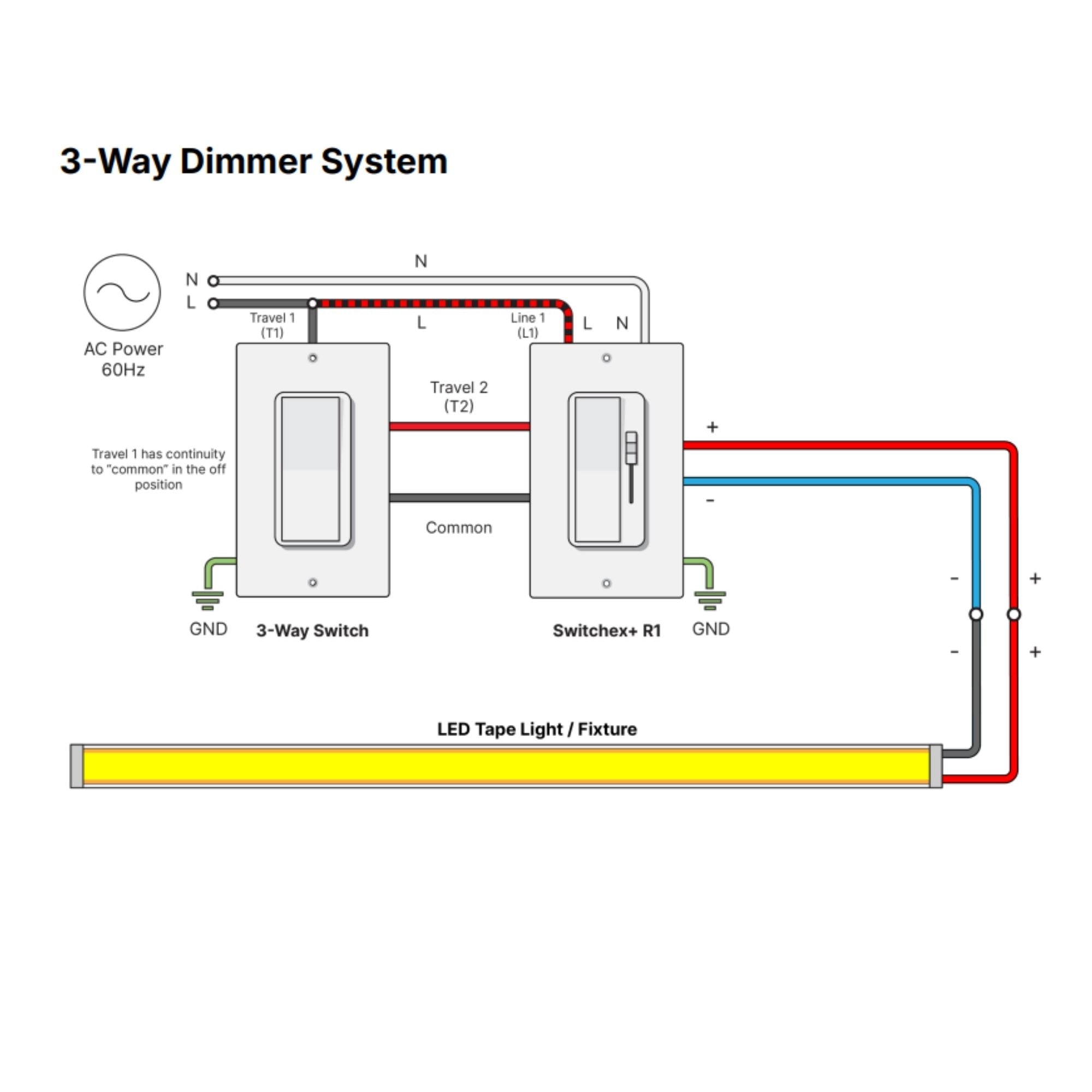

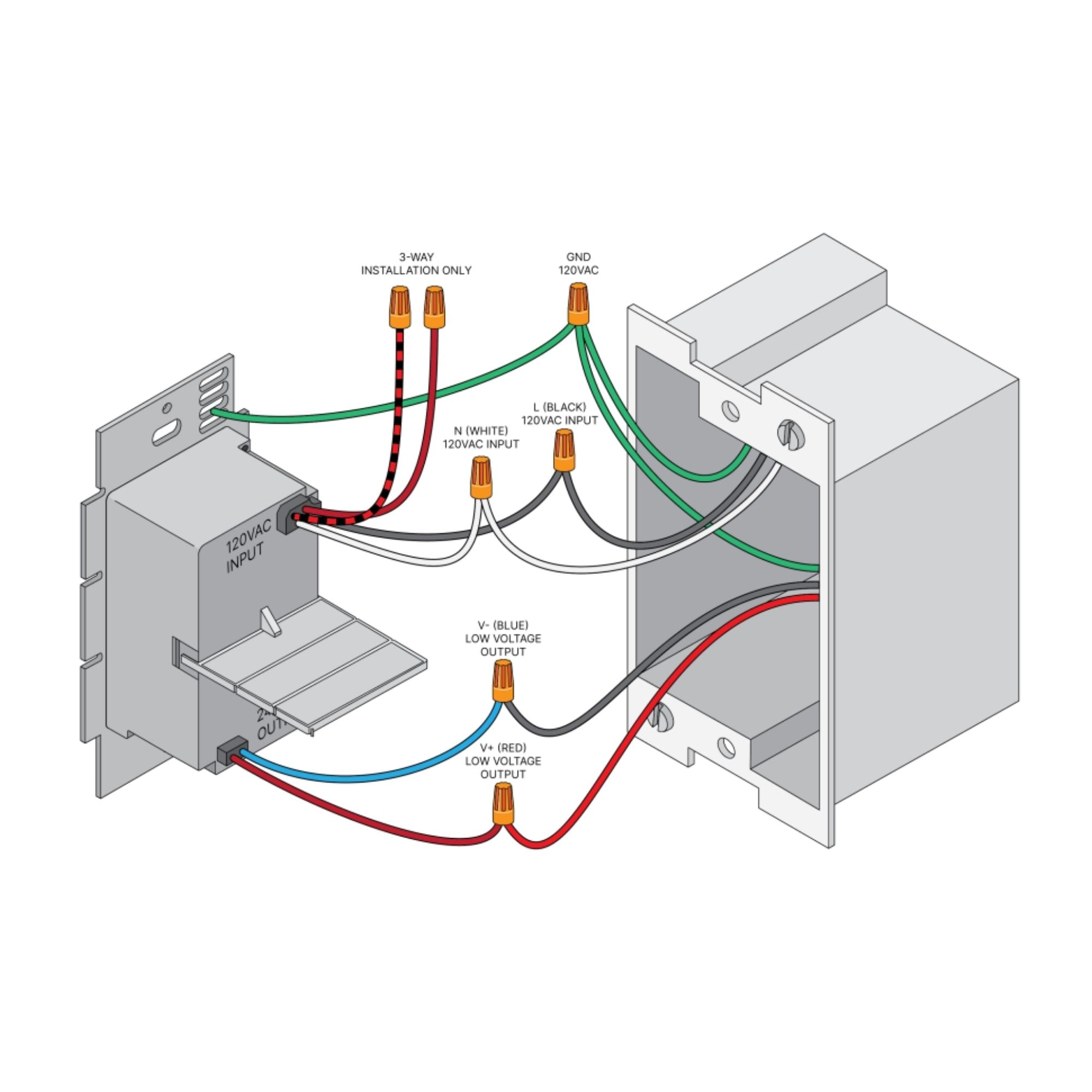

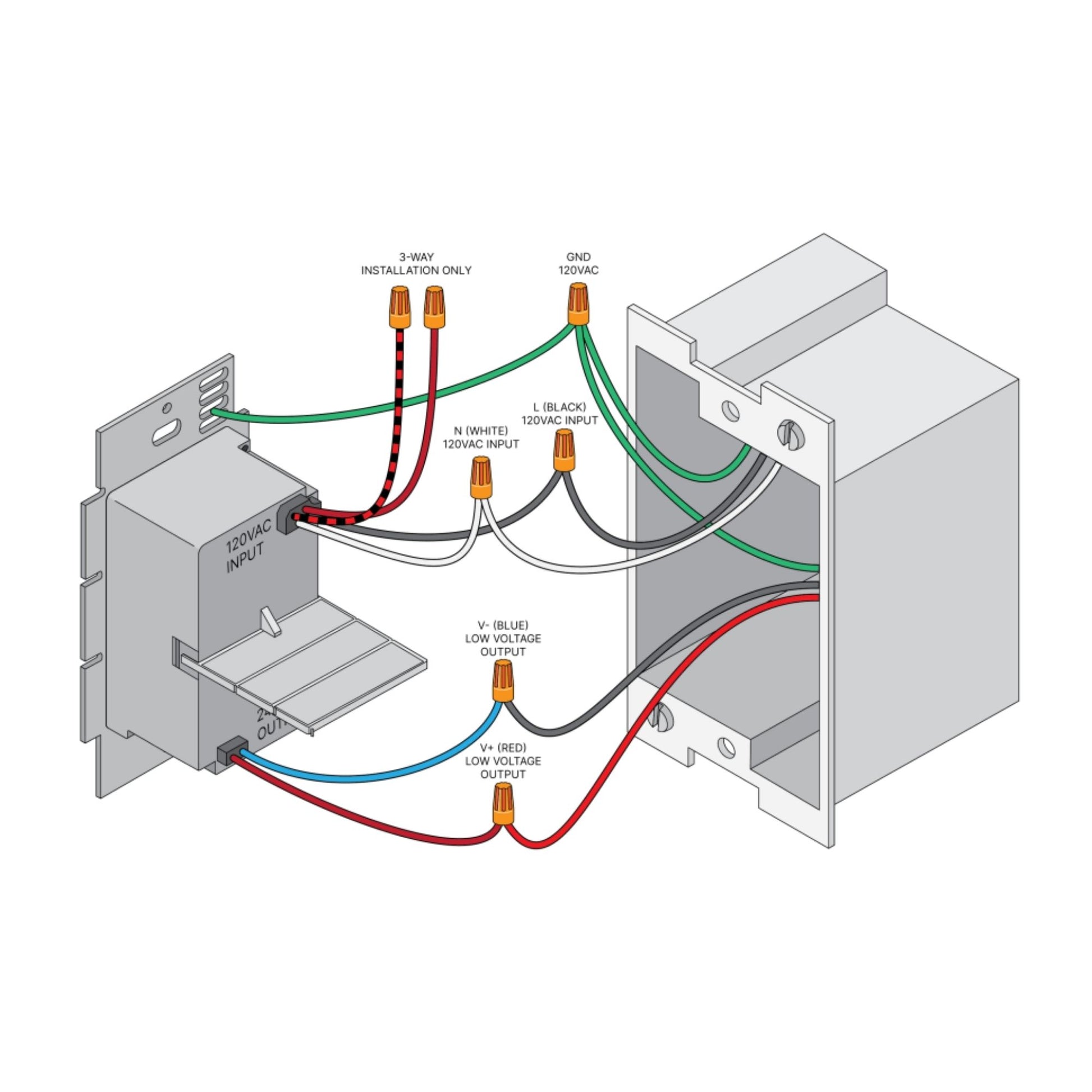

The SWITCHEX R1 features a robust mechanical design that fits seamlessly into single-pole or 3-way applications. The unit includes a white faceplate, voltage partition, and mounting screws , allowing it to blend with industry-standard trim plates. Its integrated construction eliminates the need for a separate junction box , as the wiring occurs directly within the wall switch box using the provided 6-inch 18AWG bare wire leads .
Dimming & Controls

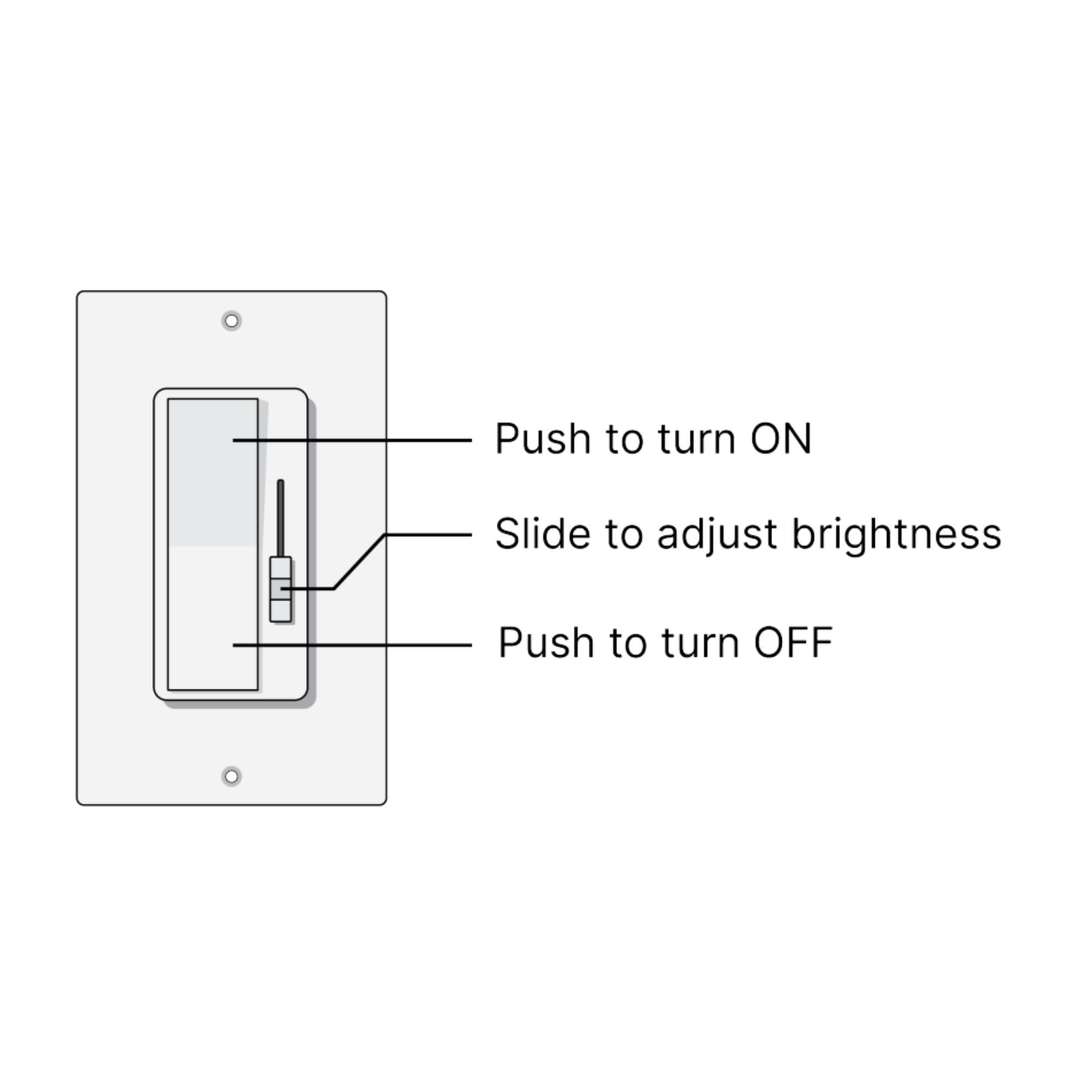

Equipped with load-sensing auto-trim technology , this driver ensures optimal dimming performance across its entire range. It supports 120VAC input and provides flicker-free control for 12VDC LED loads. The mechanical slider provides intuitive user control , while the advanced internal circuitry maintains a power factor of >0.97 , ensuring the system remains energy efficient even when dimmed .
Performance & Build
Engineered for durability , the DI-SXR1-12V60W is rated for indoor and damp locations with a working ambient temperature range of 32 to 104 degrees Fahrenheit. The unit is protected against common electrical faults, including short circuits and thermal runaway. It is also designed to comply with Title 24 Part 6 JA8 high efficacy requirements , making it a top choice for energy-conscious projects .
Typical Applications
- Under-cabinet task lighting in residential kitchens .
- Accent and cove lighting in damp-rated bathroom environments .
- Commercial retail display lighting requiring localized dimming control.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is an LED driver?
What is an LED driver?
An LED driver is the essential power supply for modern, energy-efficient LED lighting. It converts your building's high-voltage AC power into the low-voltage DC power that LEDs need to operate. It regulates the power, protecting the sensitive LED chips from fluctuations that could cause them to flicker or fail prematurely.
What is a light ballast?
What is a light ballast?
A light ballast is the traditional power supply for fluorescent and HID (High-Intensity Discharge) lamps. If you have older tube lighting, you have a ballast. It provides a burst of high voltage to get the lamp started and then controls the electrical current to keep it running steadily.
How do I choose the right wattage for my LED driver?
How do I choose the right wattage for my LED driver?
To ensure safety and longevity, it's best to follow the "80% Rule." Add up the total wattage of all the lights you will connect to the driver, then choose a driver with a maximum wattage rating that is at least 20% higher. For example, if your lights total 80 watts, you should select an LED driver rated for 100 watts or more.
What is the difference between a constant current and a constant voltage driver?
What is the difference between a constant current and a constant voltage driver?
The key difference is what they keep stable. A constant current driver maintains a fixed output current (e.g., 700mA) while letting the voltage change. A constant voltage driver maintains a fixed output voltage (e.g., 12V or 24V) while the current varies. Use constant current for high-power LEDs and constant voltage for fixtures like LED strip lights.
How do I know if I need to replace my fluorescent light ballast?
How do I know if I need to replace my fluorescent light ballast?
Common signs of a failing light ballast include your lights flickering, making an audible humming or buzzing sound, taking a long time to turn on, or not turning on at all. If you've already tried replacing the bulbs and the problem persists, the ballast is the most likely cause.
