Description

American Lighting Verge Aluminum Tape Light Channel Bundles create linear in-wall accent lighting with large flanges designed for 1/2 in drywall mud-in installation. Choose a Single or 5-Pack Bundle in anodized aluminum, with approximately 6.56 ft per channel.

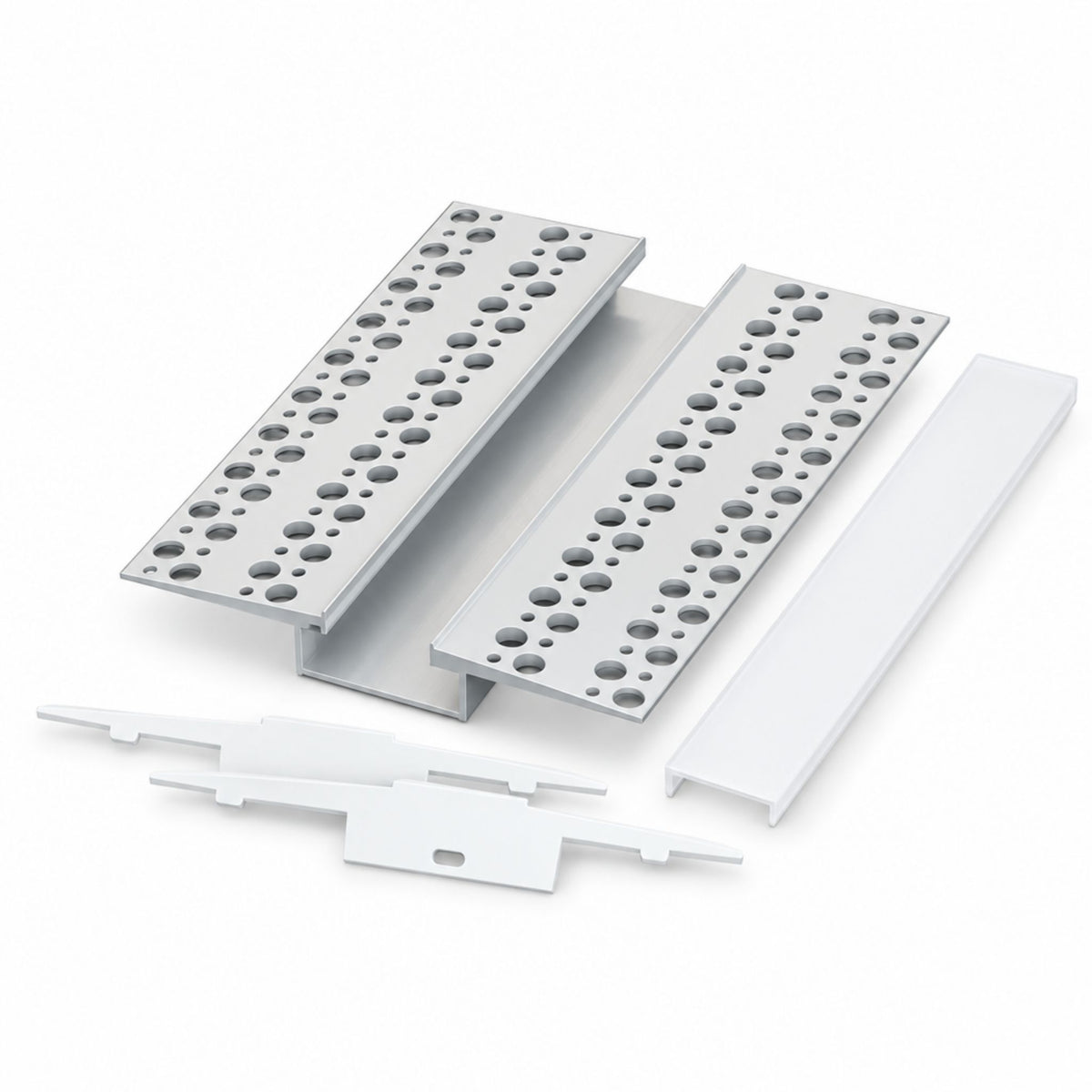

Lightweight anodized aluminum helps dissipate heat, while a frosted, UV- and flame-resistant lens protects the light source and diffuses light. The Single includes one channel, one matching High Grade Diffusion Lens, one end cap with a hole, one without a hole, and one extra installation lens. The 5-Pack provides five separate channels totaling approximately 32.81 ft and five extra installation lenses.

The channel and lens are field cuttable. Compatible tape types include single-color and tunable CCT approximately 0.394 in wide, and RGBW/RGBTW approximately 0.472 in wide. The manufacturer recommends tape loading below 7.3W/ft or two strips at 3.65W/ft each. Tape light is not included.

Frequently Asked Questions

What installation is the Verge channel designed for?

Verge is designed for 1/2 in drywall mud-in installation. Its large flanges support linear in-wall accent lighting, and each channel is approximately 6.56 ft long.

What is included in the Single and 5-Pack Bundle?

The Single, PE-VERGE-2M-BNDL1, includes one channel, one matching High Grade Diffusion Lens, one end cap with a hole, one without a hole, and one extra installation lens. The PE-VERGE-2M-BNDL5 entry confirms five channels and five extra installation lenses, but its component list is partially cut off in the sheet, so the remaining quantities cannot be fully verified.

Which tape lights and load limits are supported?

The sheet lists single-color and tunable CCT tape approximately 0.394 in wide and RGBW/RGBTW approximately 0.472 in wide. Recommended tape loading is below 7.3W/ft or two strips at 3.65W/ft each. Connector clearance is not specified.

Can the channel and lens be cut, and is the five-pack continuous?

Yes, both channel and lens are field cuttable, and the five-pack consists of five separate channels. Each is approximately 6.56 ft long, for approximately 32.81 ft total, not one continuous channel.

Is Verge waterproof, and what warranty applies?

The manufacturer sheet does not specify a waterproof rating or warranty. It describes the frosted lens as UV- and flame-resistant, which does not establish wet-location suitability.
