American Lighting LED Courant Plus Under Cabinet Light, White, Selectable CCT, 420 Lumens, 120V
Available in stock (272)
About this item
About this item
- Selectable CCT: Offers five color temperature options from 2700K to 5000K for versatile lighting applications.
- Dimmable: Compatible with most Triac and ELV dimmers when wired on separate circuits.
- Direct Wire Installation: Features a quick-access door and push-in wire connectors for easy setup.
- Low Profile Design: Less than 2 inches in height, ideal for discreet under cabinet installation.
- High CRI: Provides 90 CRI for accurate color rendering in task lighting environments.
Description
Description
American Lighting LED Courant Plus Under Cabinet Light — White & Feature Summary
The American Lighting UCRP-5CCT-8-WH is a white under cabinet light designed for task lighting applications. This fixture measures 8 inches in width and features a selectable CCT range from 2700K to 5000K, providing 420 lumens of illumination at 120V. It is constructed with a low-profile design, making it suitable for various under cabinet installations.
Key Features
- Selectable CCT: Offers five color temperature options: 2700K, 3000K, 3500K, 4000K, and 5000K.
- Dimensions: Measures 8 inches in width, 3.4 inches in length, and 1.9 inches in height.
- Voltage: Operates at 120V AC for direct wire installation.
- Wattage: Consumes 5 watts of power.
- Lumens: Delivers 420 lumens of bright, task-oriented light.
- CRI: High color rendering index of 90 for true color representation.
- Beam Angle: Wide 120-degree beam angle for broad light distribution.
- Dimming: Compatible with most Triac and ELV dimmers when wired on separate circuits.
- Rated Life: 35,000 hours of operational life.
- Installation: Direct wire with quick-access door and push-in wire connectors.
Core Design & Profile
This under cabinet light features a sleek, low-profile design with a height of less than 2 inches. It is constructed with a durable housing and a diffused lens to eliminate dotting, available in a white finish. The fixture is cETLus listed for indoor dry locations.
LED Illumination & Performance
Providing 420 lumens with a power consumption of 5 watts, this fixture offers a high CRI of 90. The selectable CCT feature allows users to choose from five different color temperatures, enhancing versatility in lighting design.

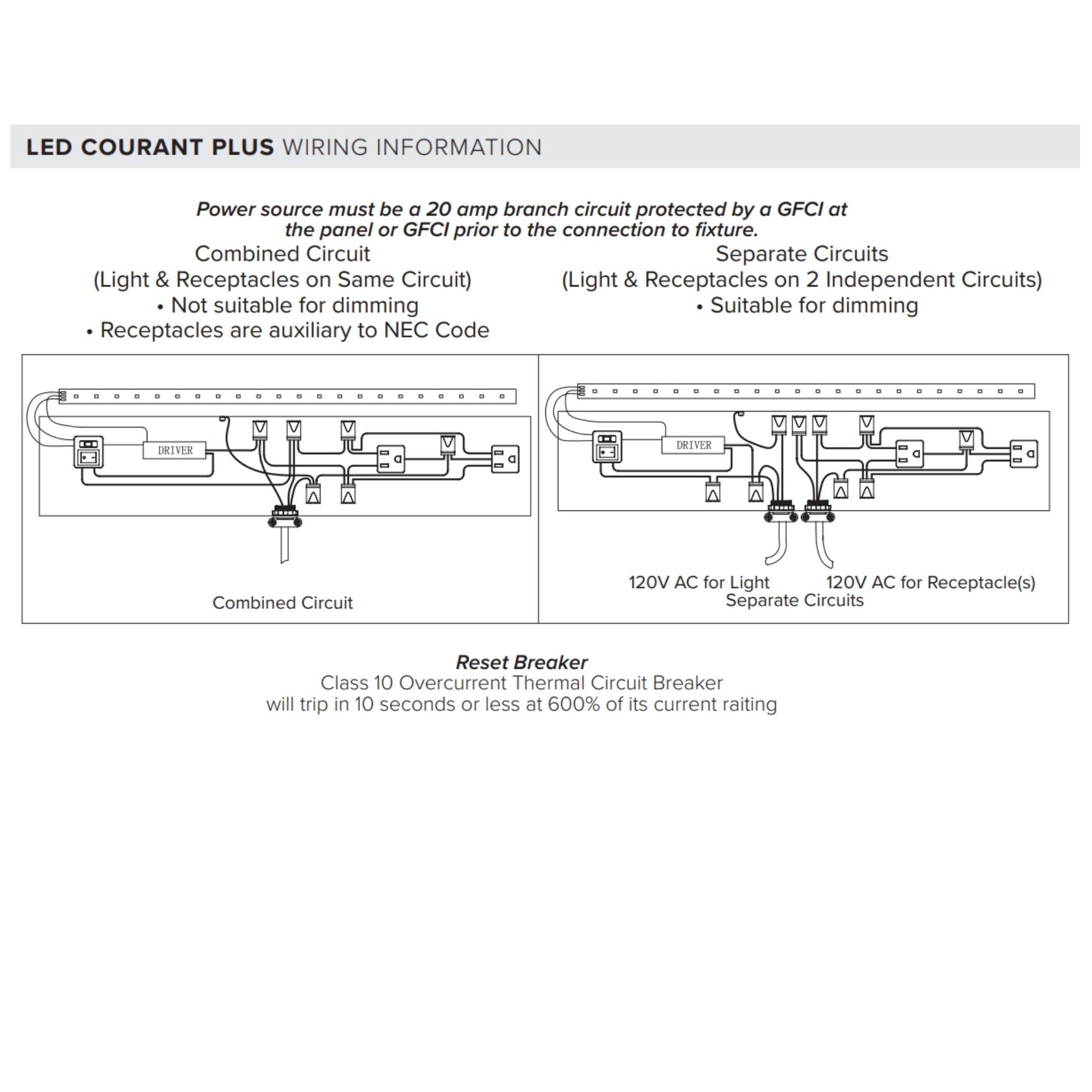

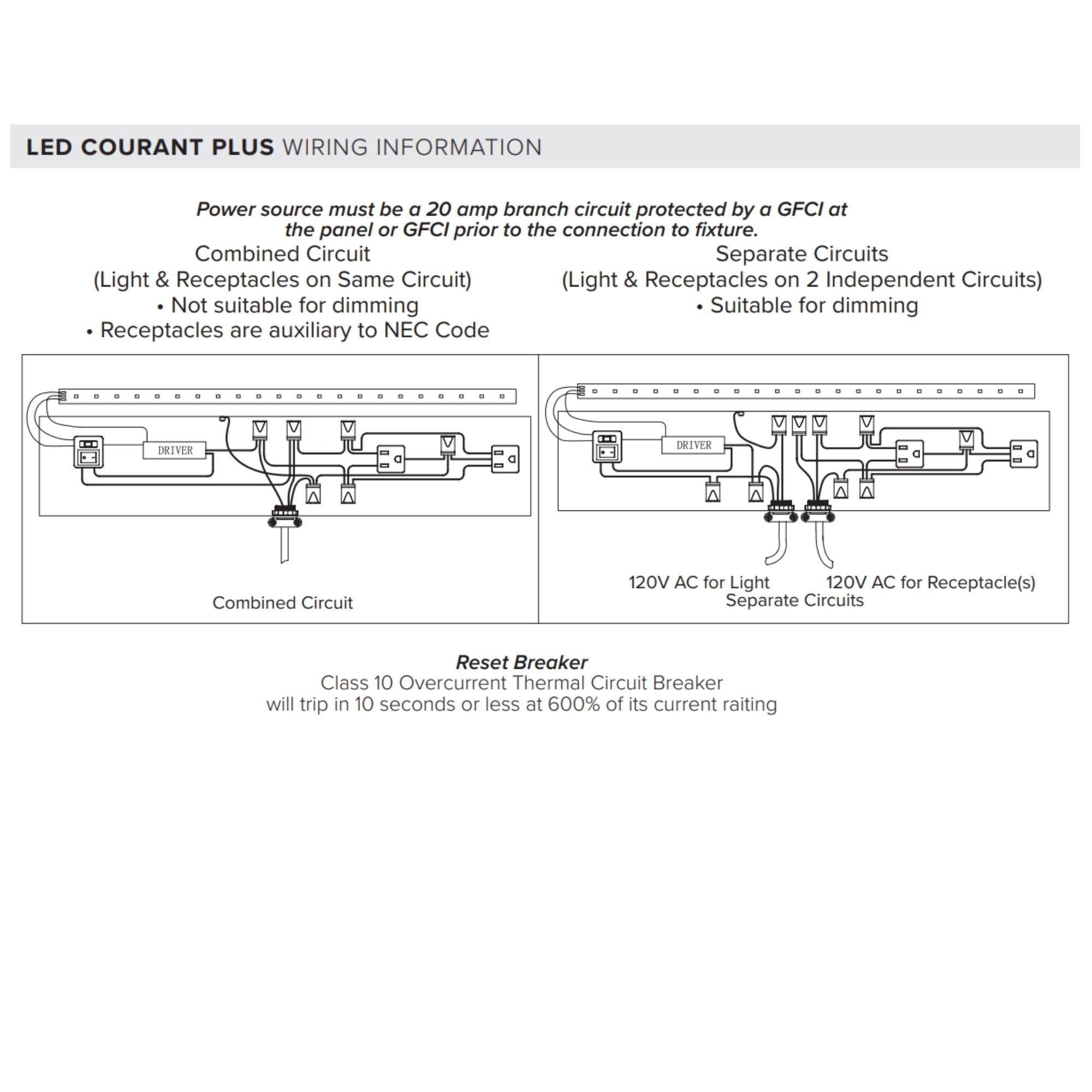

Power, Wiring & Linkability
The UCRP-5CCT-8-WH is designed for direct wire installation at 120V. It includes a universal central knockout for easy wiring access. The fixture supports dimming when the light and receptacles are wired on separate circuits.
Where This Fixture Works Best
- Kitchen under cabinets
- Office workstations
- Retail display shelves
- Workshop task areas
- Residential utility rooms
What's Included
- (2) 3/4 in. Cable Clamps
- (2) Push-In Wire Connectors
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the UCRP-5CCT-8-WH dimmable?
Is the UCRP-5CCT-8-WH dimmable?
What is the color temperature range of the UCRP-5CCT-8-WH?
What is the color temperature range of the UCRP-5CCT-8-WH?
How is the UCRP-5CCT-8-WH installed?
How is the UCRP-5CCT-8-WH installed?
Does the UCRP-5CCT-8-WH include any receptacles or USB ports?
Does the UCRP-5CCT-8-WH include any receptacles or USB ports?
What is the lifespan of the UCRP-5CCT-8-WH?
What is the lifespan of the UCRP-5CCT-8-WH?
