American Lighting LED Courant Under Cabinet Light — Black & Selectable CCT

The UCR-5CCT-8-BK is a black under cabinet light made from durable materials, featuring a compact size of 8 in. width and 3 in. length. This fixture integrates a 5W LED light source, operating at 120V, and offers selectable color temperatures ranging from 2700K to 5000K.

Key Features

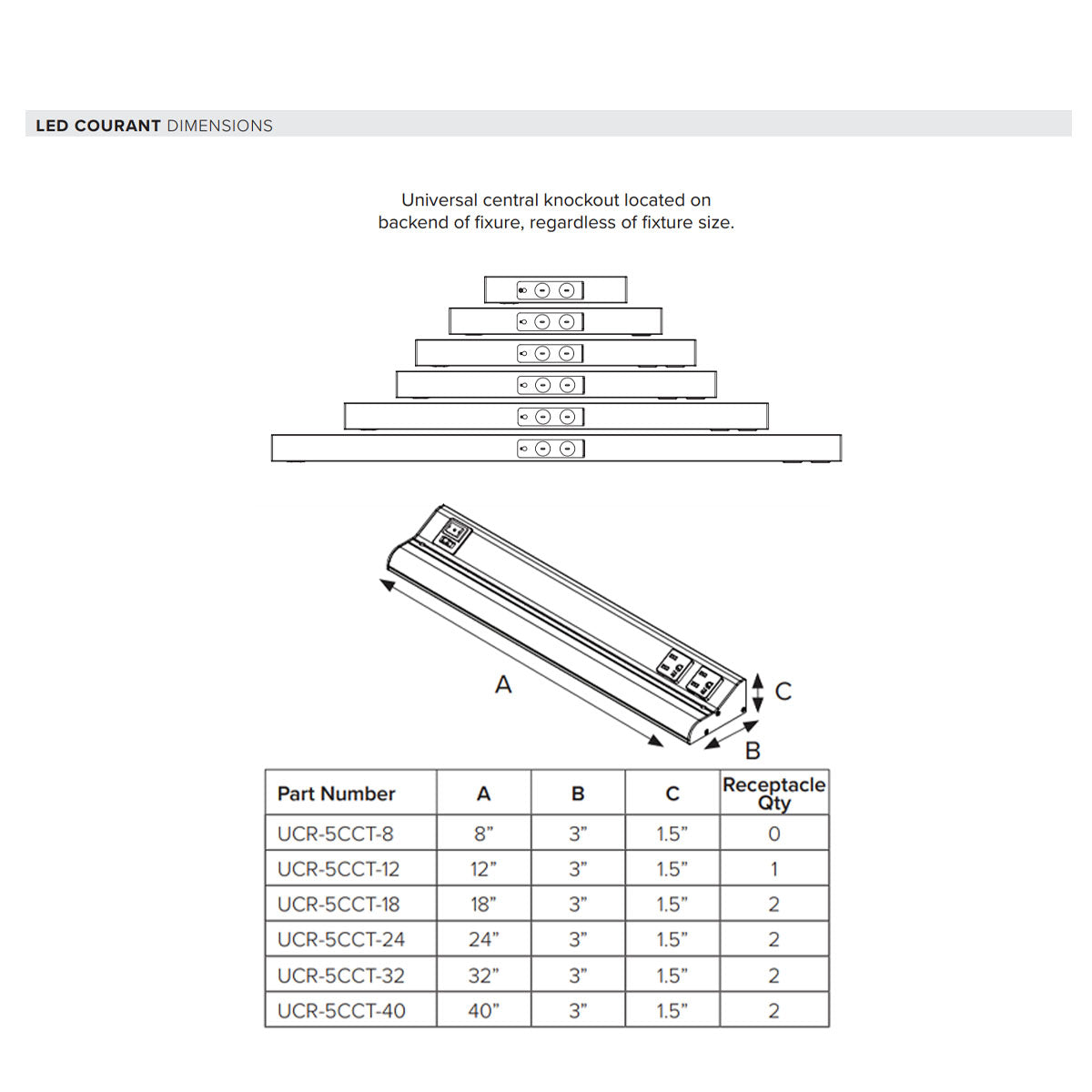

• Dimensions: Measures 8 in. wide, 3 in. long, and 1.5 in. high.
• Voltage: Operates on 120V AC for standard installations.
• Wattage: Consumes 5 watts of power.
• Lumens: Provides 390 lumens of light output.

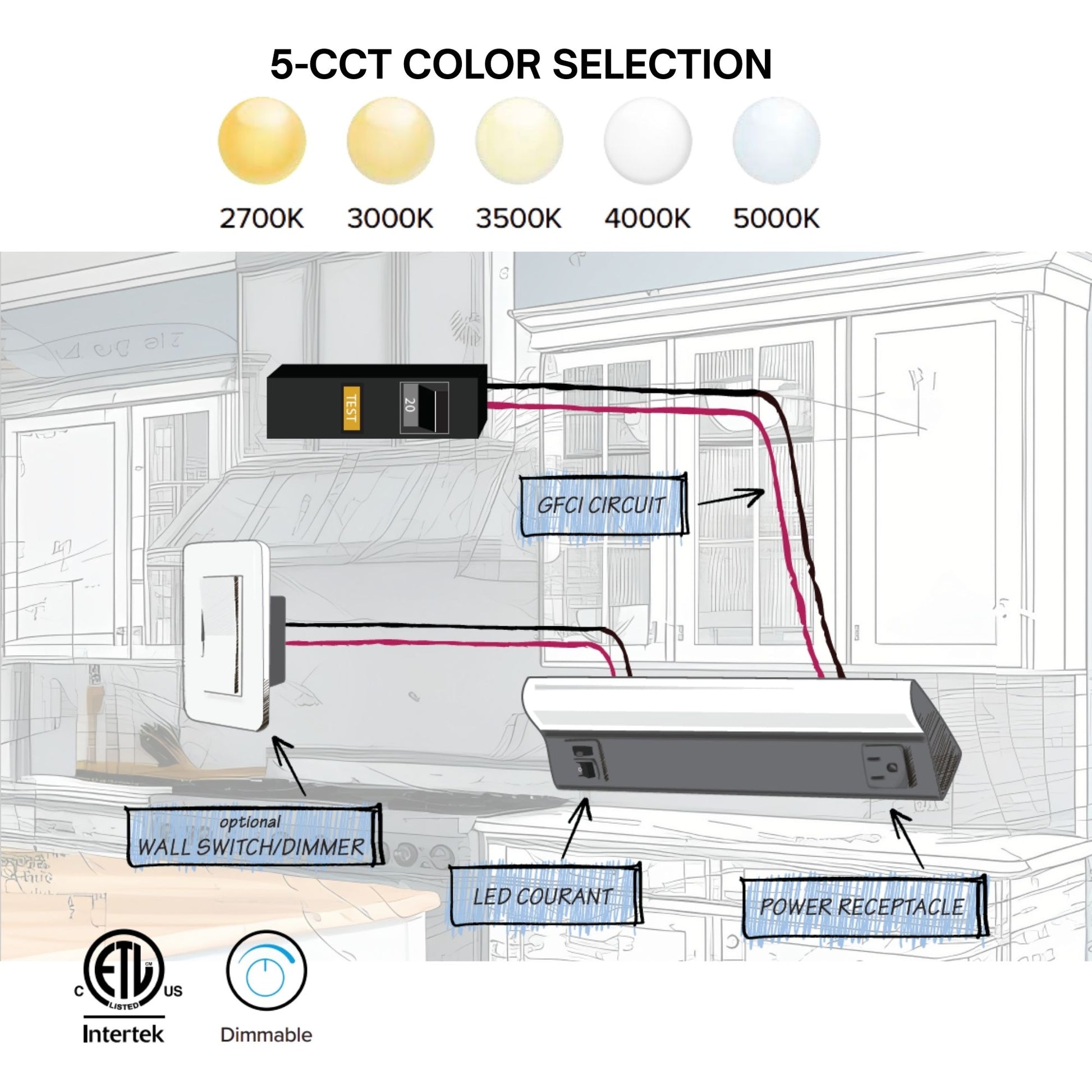

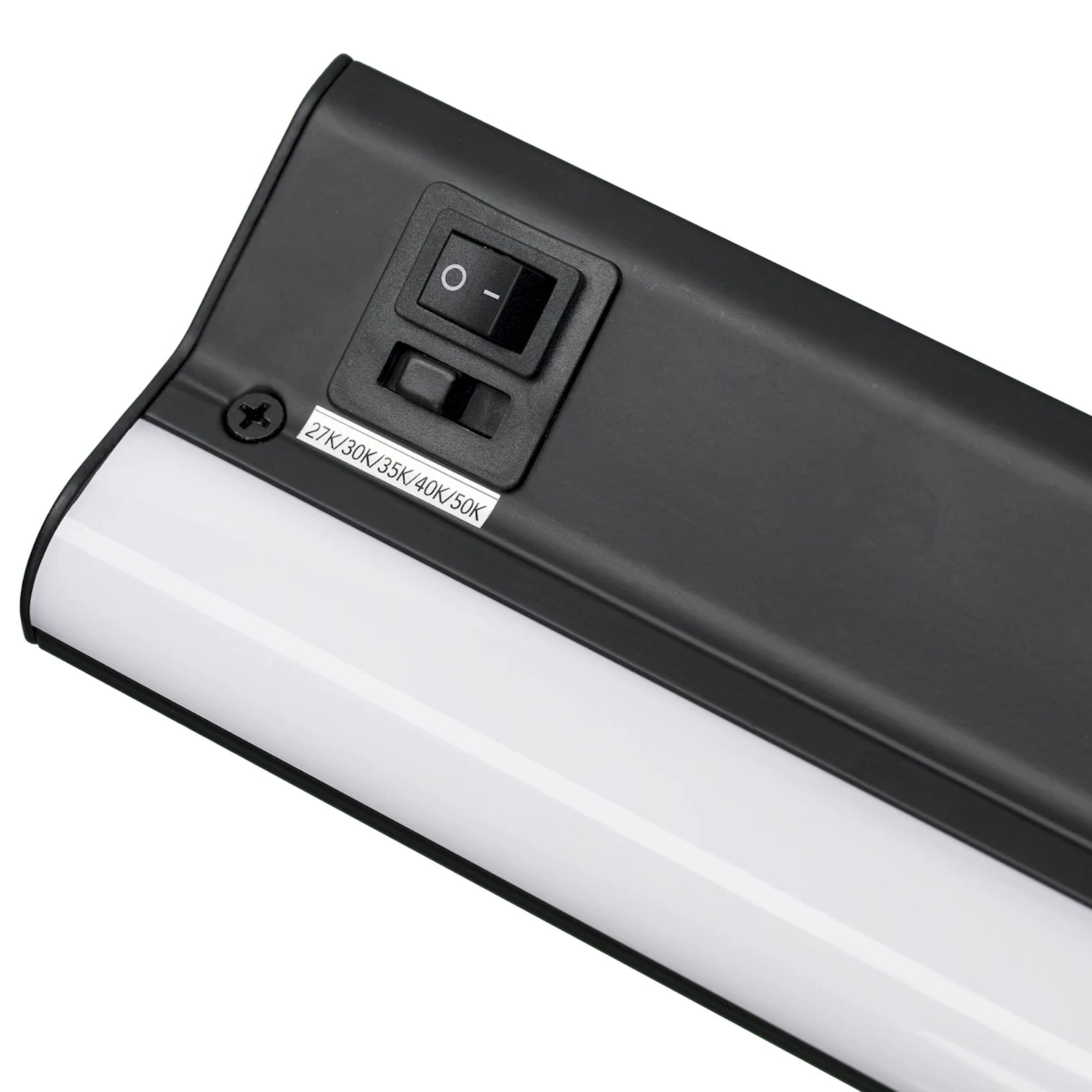

• Color Temperature: Selectable from 2700K to 5000K for customized ambiance.
• CRI: High color rendering index of 90 for accurate color representation.
• Lifespan: Rated for 35,000 hours of operation.
• Special Features: Includes a diffused lens to eliminate dotting and built-in tamper-resistant receptacles.

Core Design & Profile

This fixture features a sleek, low-profile design with a height of less than 2 in., making it ideal for under cabinet applications. It is constructed with a durable black finish and includes a diffused lens for uniform light distribution. Rated for dry indoor locations.

LED Illumination & Performance

Emitting 390 lumens with a power consumption of 5 watts, this fixture offers a high CRI of 90 and selectable CCT options, allowing for precise lighting customization.

Power, Wiring & Linkability

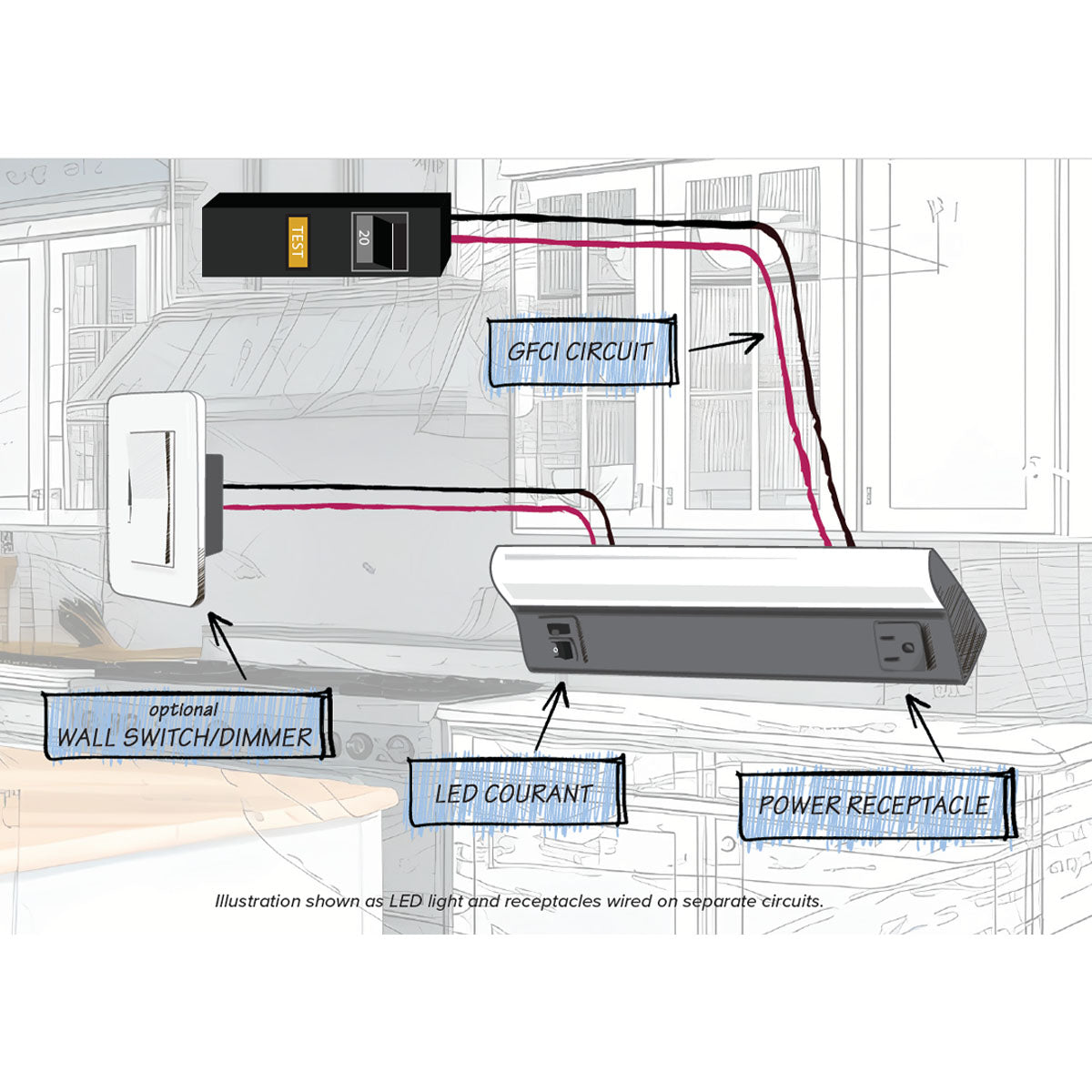

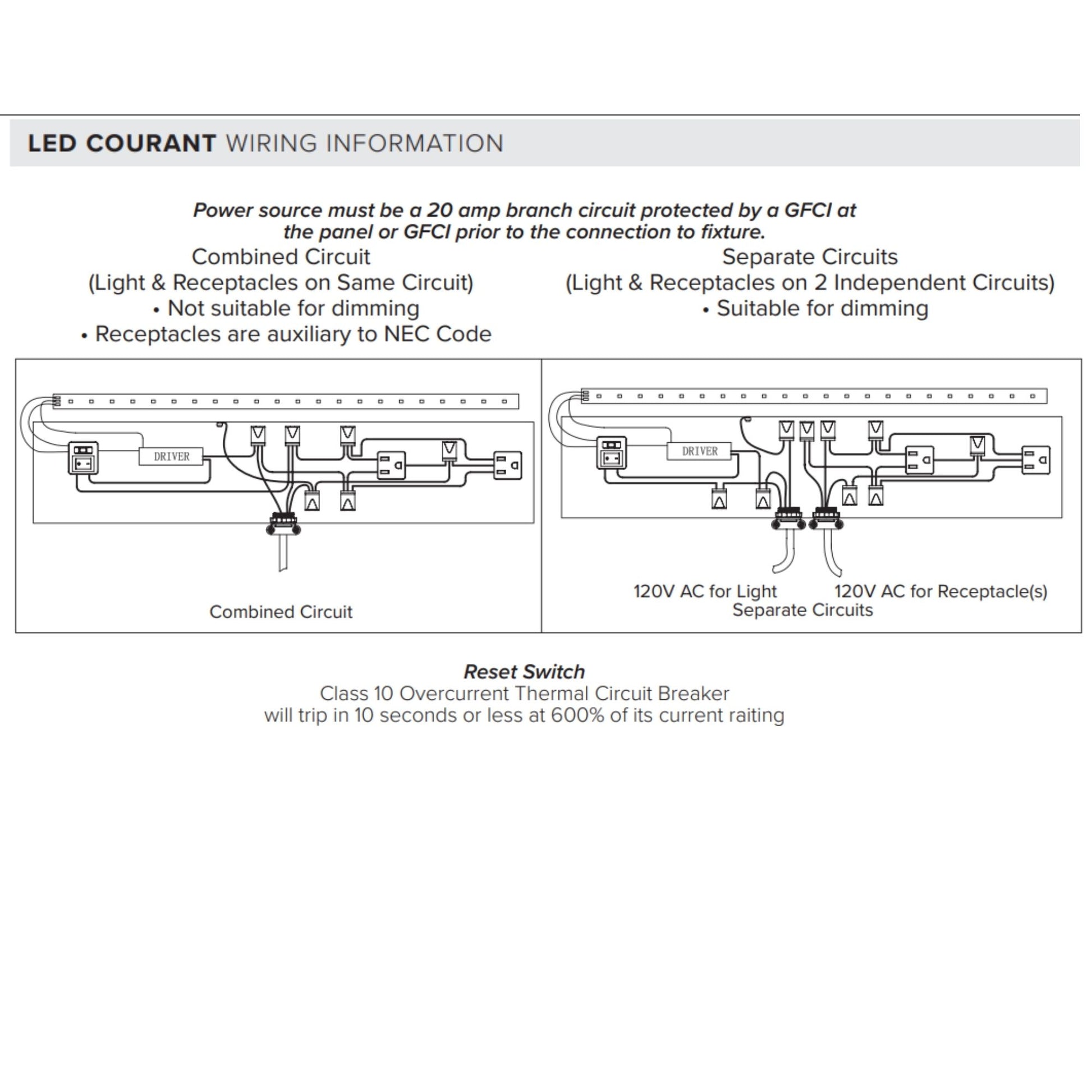

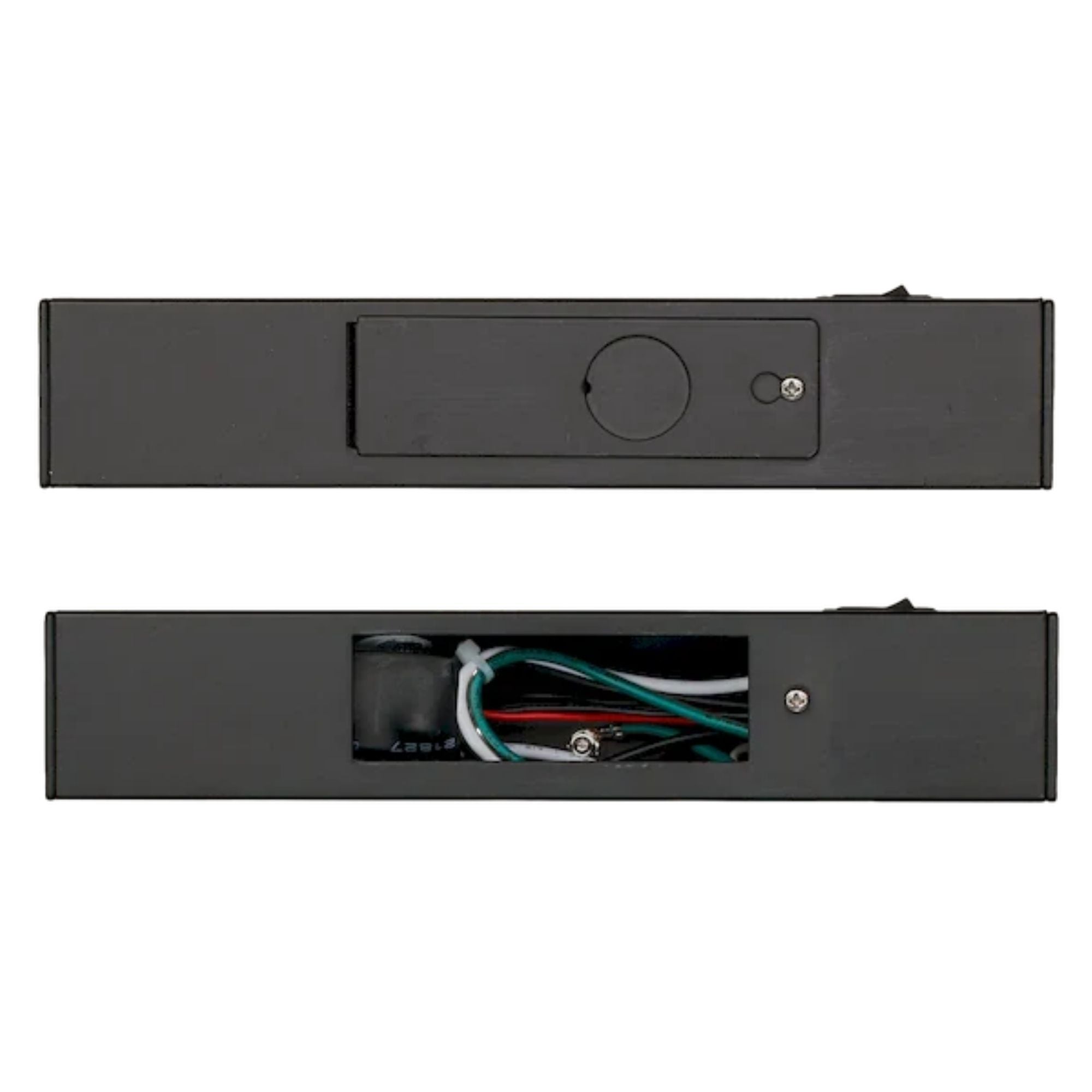

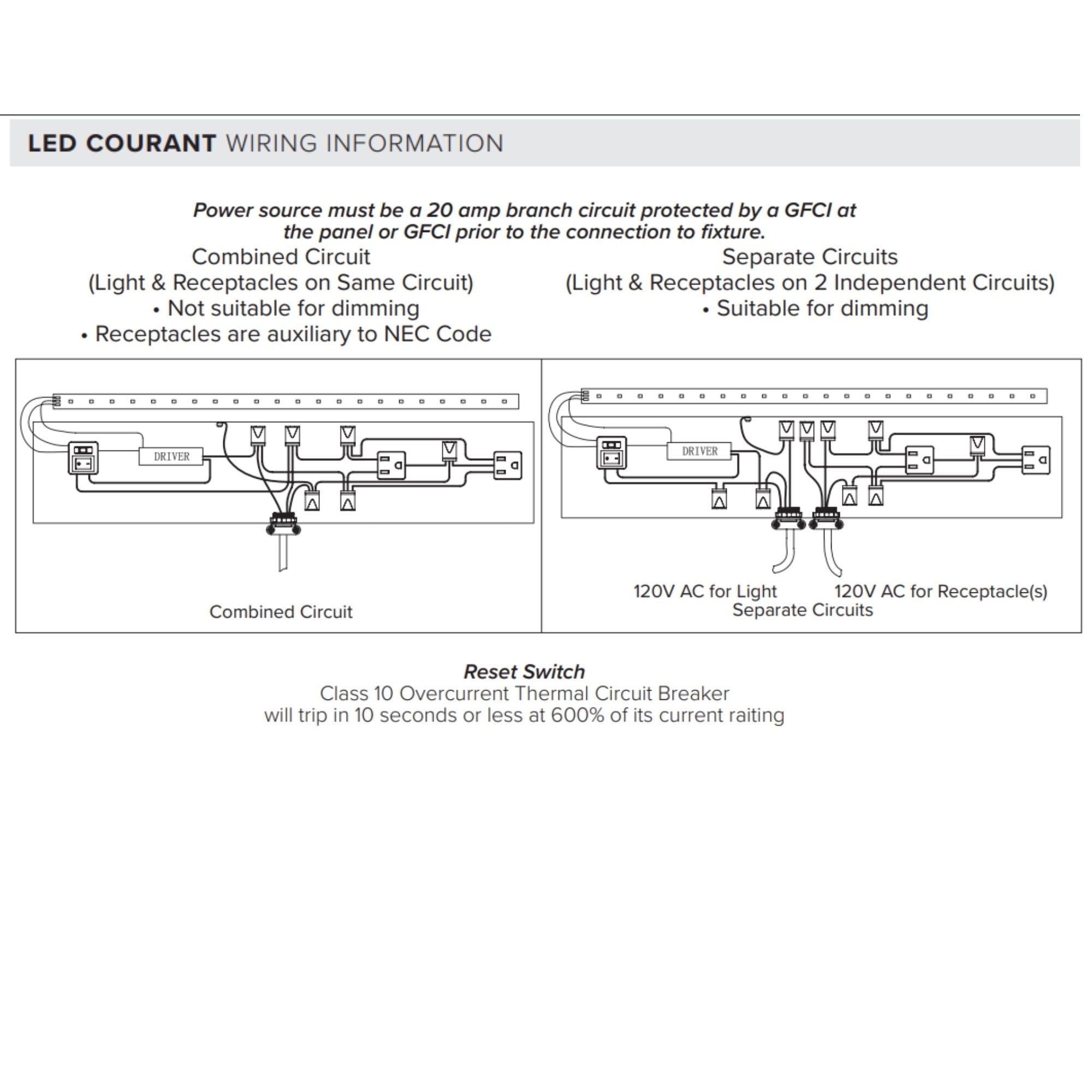

The fixture is designed for direct wire installation, featuring a quick-access wiring compartment and push-in wire connectors. It is dimmable when wired on separate circuits, compatible with most Triac and ELV dimmers.

Where This Fixture Works Best

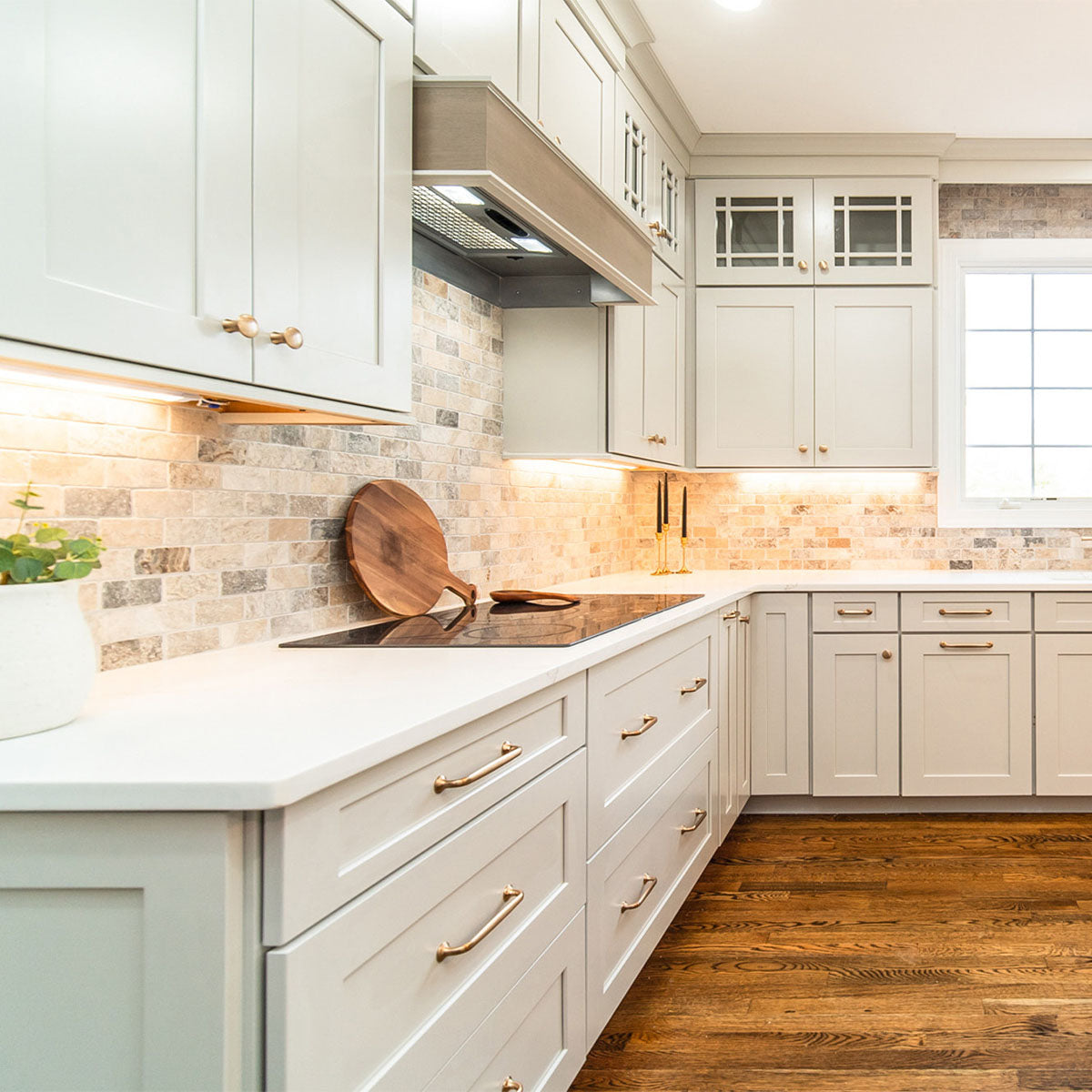

• Under kitchen cabinets
• Workstations
• Display shelves
• Office desks
• Craft rooms

What's Included

• (2) 3/4 in. Cable Clamps
• (2) Push-In Wire Connectors
