American Lighting Trulux Spec Grade Tape Light, RGB+Tunable CCT, IP54, 410Lm/ft, 24V DC
Available in stock (24)
-
Estimated delivery: Jul 03 - Jul 09
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
American Lighting Trulux Spec Grade RGBTW Tape Light — RGB + Tunable CCT | IP54 | 24V DC
The American Lighting Trulux SPTL-RGBTW is the ultimate solution in color-changing RGB linear lighting. Combining dynamic RGB color mixing with tunable white (2700K–6000K), it delivers millions of color combinations, transition effects, and fade-to-white capabilities — all in a single tape. Operating at 24V DC with an IP54 nano-coating, it is rated for indoor dry and damp locations. Available in a 13.1ft reel and a 100ft reel for larger installations.
Key Features
- Voltage: 24V DC — requires a compatible 24V power supply.
- Wattage: 7W per foot.
- Lumens: Up to 410Lm/ft.
- Color: RGB + Tunable CCT (2700K–6000K) — 3-in-1 RGB LEDs with alternating 2700K & 6000K LEDs.
- Max Run: 13.1ft per run.
- Cut Increments: Cuttable every 3.94" (100mm).
- PCB Dimensions: 12mm (0.47") wide × 1.65mm (0.06") high.
- LED Spacing: 0.66" between LEDs.
- Beam Angle: 120°.
- IP Rating: IP54 Coated — rated for indoor dry and damp locations.
- Control: DMX for color and dimming (requires DMX decoder, sold separately).
- Dimming: 5–100% via DMX secondary side controller.
- Operating Temp: 5°C (41°F) to 70°C (158°F).
- Certifications: cULus Listed for dry/damp locations.
Core Design & Construction

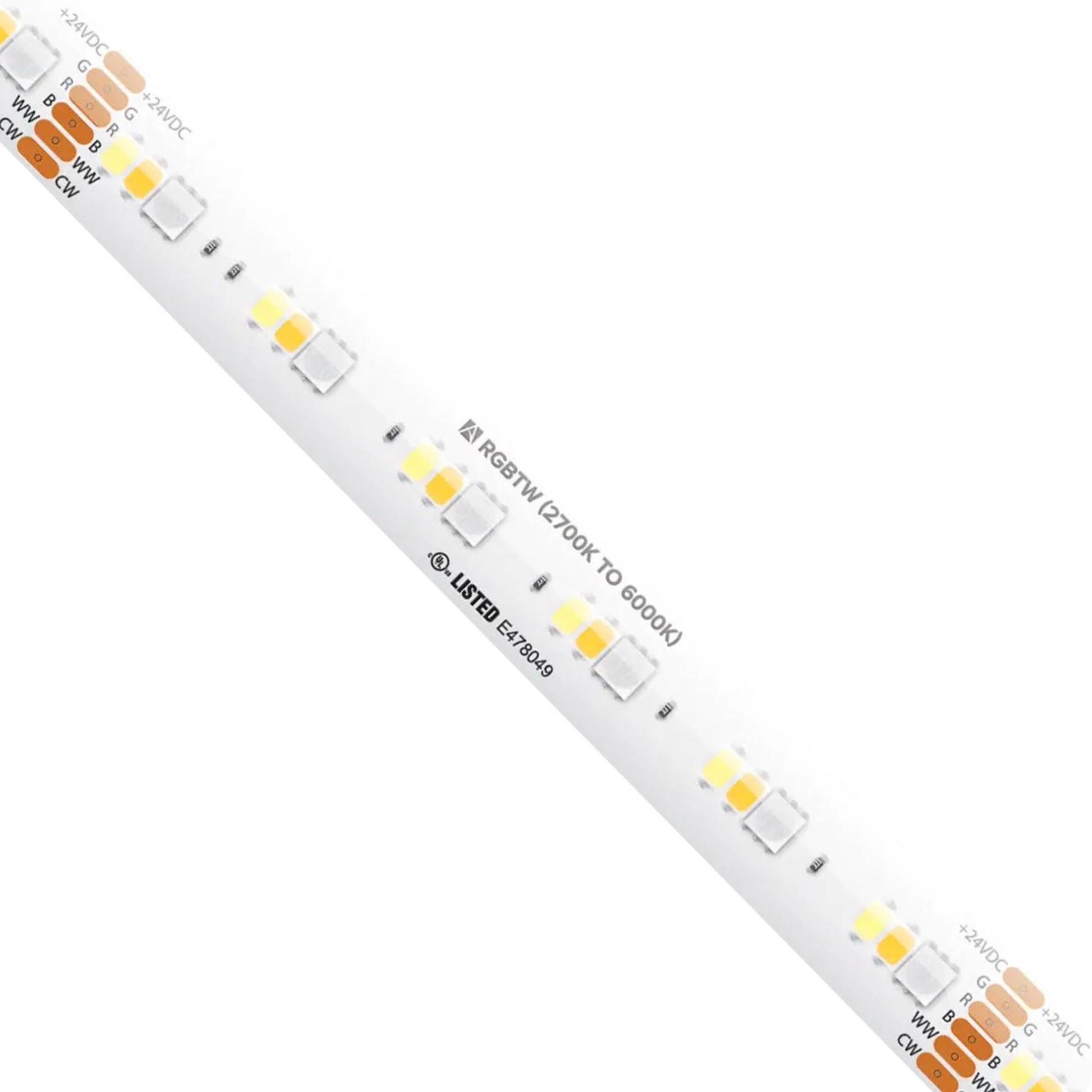

The SPTL-RGBTW features 3-in-1 RGB LEDs alternating with 2700K and 6000K tunable white LEDs on a 12mm wide PCB. The IP54 nano-coating provides a protective layer against moisture and dust. 3M VHB adhesive backing ensures secure mounting on most surfaces. Custom cut orders are available — please allow 2–4 weeks for processing and delivery.
LED Illumination & Performance
With a CRI of 90+ and up to 410 lumens per foot, the SPTL-RGBTW delivers intense color saturation and accurate white light rendering across the full 2700K–6000K tunable range. The RGB palette enables virtually unlimited color combinations for dynamic, impactful installations.
Power, Wiring & Installation
Requires a 24V DC power supply (sold separately). Color and dimming are controlled via DMX — a DMX decoder/receiver is required (sold separately). Cuttable every 3.94" for precise length adjustments. Maximum continuous run is 13.1ft. Each reel includes pre-attached leads, tails, and power connectors for straightforward installation.
Where This Tape Works Best
- Entertainment and hospitality accent lighting
- Retail and display installations
- Architectural cove and feature lighting
- Stage and event lighting
- Color-changing under-cabinet and toe-kick lighting
- Any application requiring dynamic RGB + tunable white control
What's Included — 13.1ft Reel (SPTL-RGBTW)
- 13.1ft IP54 coated RGBTW tape light reel
- 6ft lead, 6ft tail
- (2) TL-6PWR-HD power connectors
What's Included — 100ft Reel (SPTL-RGBTW-100)
- 100ft IP54 coated RGBTW tape light reel
- 6ft lead, 6ft tail
- (3) TL-6PWR-HD power connectors
