American Lighting Trulux Dim-to-Warm Tape Light, 16.4ft, IP54, 3000K–1800K, 24V DC
Available in stock (2907)
-
Estimated delivery: Jul 03 - Jul 09
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
American Lighting Trulux Dim-to-Warm Tape Light — Standard & High Output | IP54 | 24V DC
The American Lighting Trulux Dim-to-Warm series smoothly mimics the dimming behavior of a traditional incandescent lamp. At full brightness, the CCT is 3000K; as the light dims, the color temperature automatically transitions to an ultra-warm 1800K — no additional controls required. Simply connect to a 24V DC dimmable power supply and a compatible ELV or TRIAC dimmer switch. Available in two output levels: Standard Grade (262Lm/ft, 3W/ft) and High Output (335Lm/ft, 4W/ft). Both are IP54 nano-coated for indoor dry and damp locations.
Key Features
- Voltage: 24V DC — requires a compatible 24V dimmable power supply.
- Wattage: 3W/ft (Standard) | 4W/ft (High Output).
- Lumens: 262Lm/ft (Standard) | 335Lm/ft (High Output).
- CCT Range: 3000K (full brightness) → 1800K (fully dimmed) — automatic, no secondary controller needed.
- LED Type: 2835 LEDs, 90+ CRI.
- LED Spacing: 0.35" (Standard) | 0.32" (High Output).
- Max Run: 20ft continuous run.
- Cut Increments: Cuttable every 3.94" (100mm).
- PCB Dimensions: 10mm (0.39") wide × 1.2mm (0.04") high.
- Beam Angle: 120°.
- IP Rating: IP54 Coated — rated for indoor dry and damp locations.
- Dimming: 5–100% with most ELV and TRIAC (PWM) dimmers.
- Operating Temp: 5°C (41°F) to 70°C (158°F).
- Certifications: cULus Listed for dry/damp locations.
- Rated Life: 50,000 Hours.
Which Output Level Is Right for You?

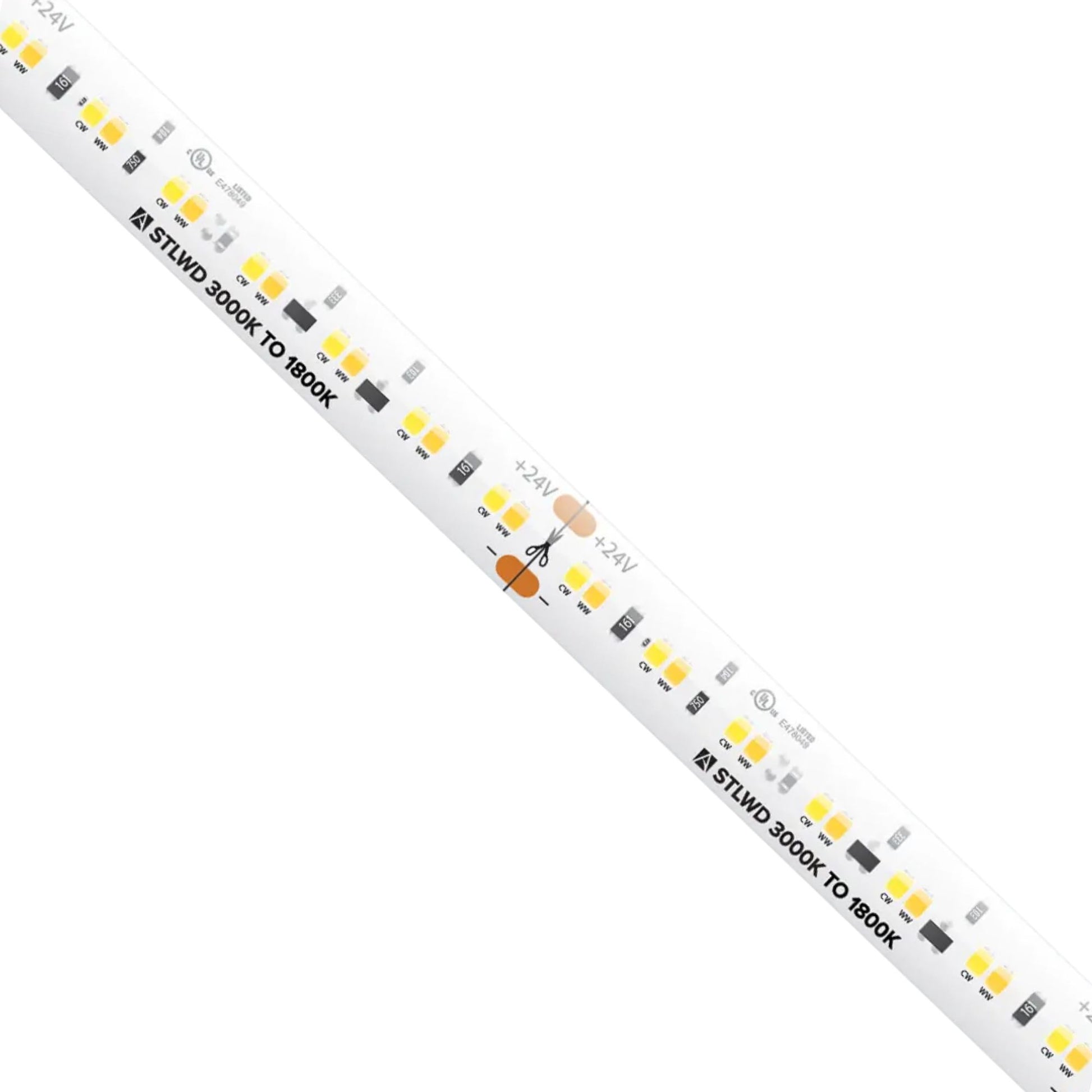

- Standard Grade (STLWD): 262Lm/ft at 3W/ft — ideal for residential under-cabinet, cove, and accent lighting where moderate output is sufficient.

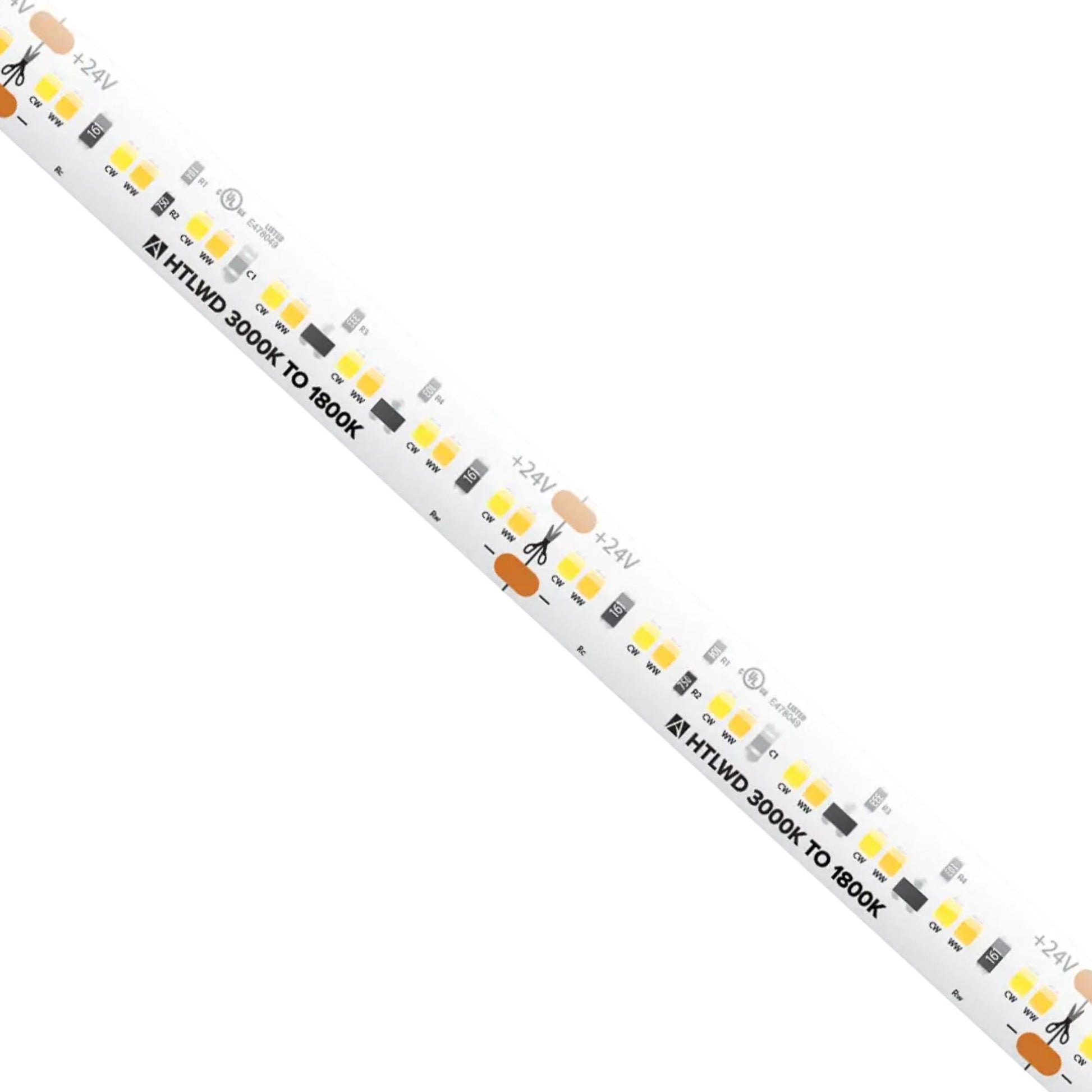

- High Output (HTLWD): 335Lm/ft at 4W/ft — preferred for larger cove spans, commercial hospitality, and applications requiring 28% more lumen output with tighter LED spacing.
Core Design & Construction
Both series feature 2835 LEDs on a 10mm wide PCB with an IP54 nano-coating for moisture and dust protection. 3M VHB adhesive backing ensures secure mounting on most surfaces. Compatible with standard aluminum channels. Custom cut orders are available — please allow 2–4 weeks for processing and delivery.
LED Illumination & Performance
With a CRI of 90+ across both output levels, the Trulux Dim-to-Warm series delivers warm, accurate color rendering that naturally shifts from a crisp 3000K to an ultra-warm 1800K candlelight tone as it dims — no tunable white controller or secondary wiring required. The result is an effortless, incandescent-like dimming experience.
Power, Wiring & Installation
Requires a 24V DC dimmable power supply (sold separately). Compatible with most ELV and TRIAC (PWM) dimmers (5–100%). Cuttable every 3.94" for precise length adjustments. Maximum continuous run is 20ft. Each reel includes pre-attached leads, tails, and hardware for straightforward installation.
Where This Tape Works Best
- Residential cove and architectural lighting
- Under-cabinet and toe-kick lighting
- Hospitality, restaurant, and hotel accent lighting
- Display case and retail feature lighting
- Any application requiring incandescent-like dimming behavior
What's Included (Both Variants)
- 16.4ft IP54 coated Dim-to-Warm tape light reel
- 6ft lead, 6ft tail
- (1) TL-CONKIT
- (2) TL-BLKS
- (2) TL-2PWR-HD power connectors
