American Lighting Trulux 16.4ft LED Tape Light, IP54, Warm Dim, 262 Lumens per Foot, 24V
Available in stock (1227)
About this item
About this item
- Voltage: Operates at 24V DC for efficient power usage.
- Color Temperature: Warm Dim technology transitions from 3000K to 1800K.
- Lumens per Foot: Delivers up to 262 lumens per foot for bright illumination.
- Max Run: Supports a maximum run length of 20 feet.
- Cuttable Increments: Can be cut every 3.94 inches for custom lengths.
We process payments securely and do not store credit card information.
Description
Description

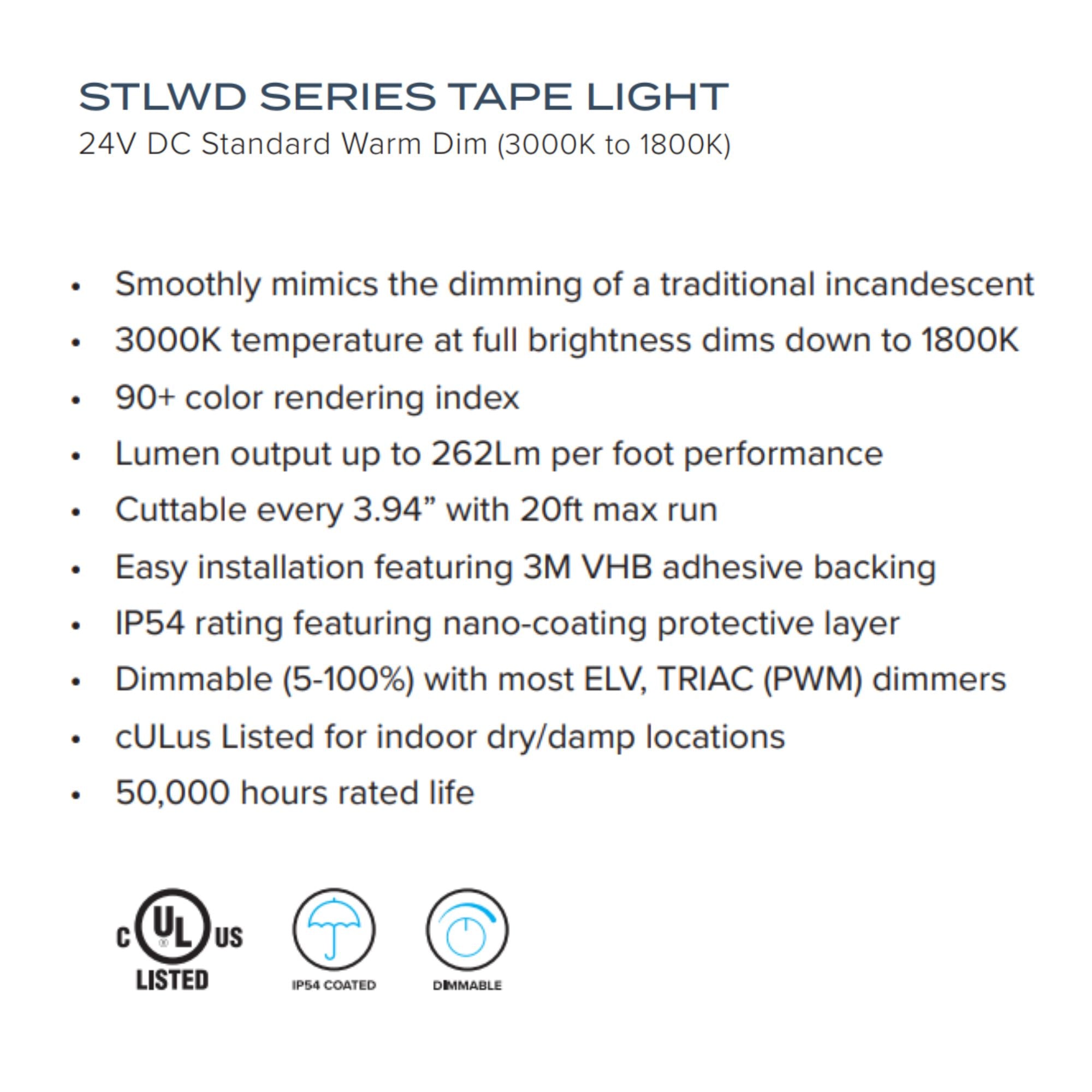

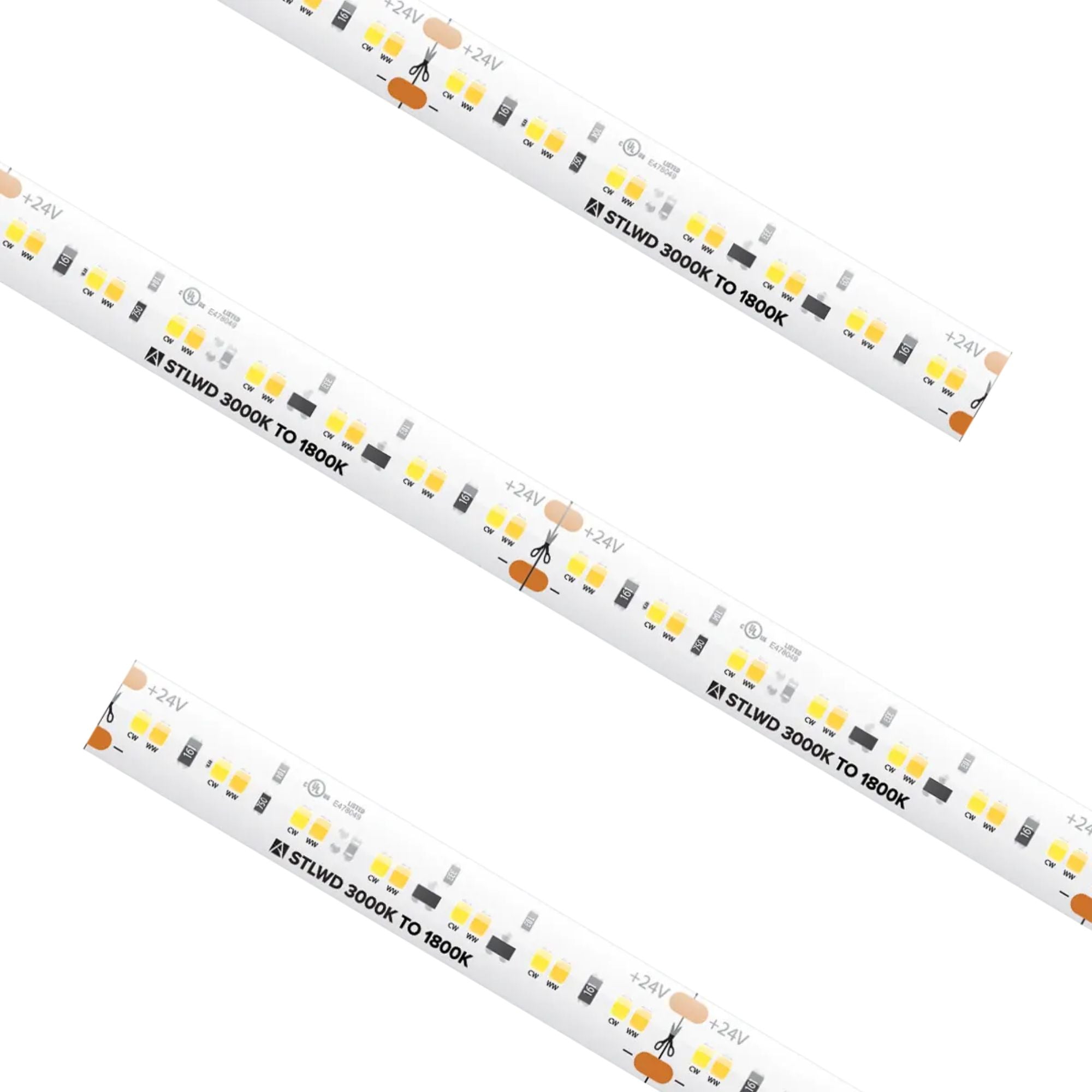

American Lighting Trulux LED Tape Light — Warm Dim & Smooth Dimming
The American Lighting STLWD-3018-16 is a 16.4ft LED Tape Light featuring Warm Dim technology that smoothly transitions from 3000K to 1800K. This tape light operates at 24V DC and is IP54 rated, making it suitable for dry and damp indoor environments.
Key Features
- Voltage: 24V DC operation for stable performance.
- Wattage: Consumes 3W per foot.
- Lumens: Provides 262 lumens per foot.
- LEDs per Foot: Features 2835 LEDs with 90+ CRI.
- Max Run: Capable of running up to 20 feet continuously.
- Cuttable: Cuttable every 3.94 inches for custom installations.
- PCB Width: Measures 10mm wide for compatibility with various channels.
- Beam Angle: Offers a 120-degree beam angle.

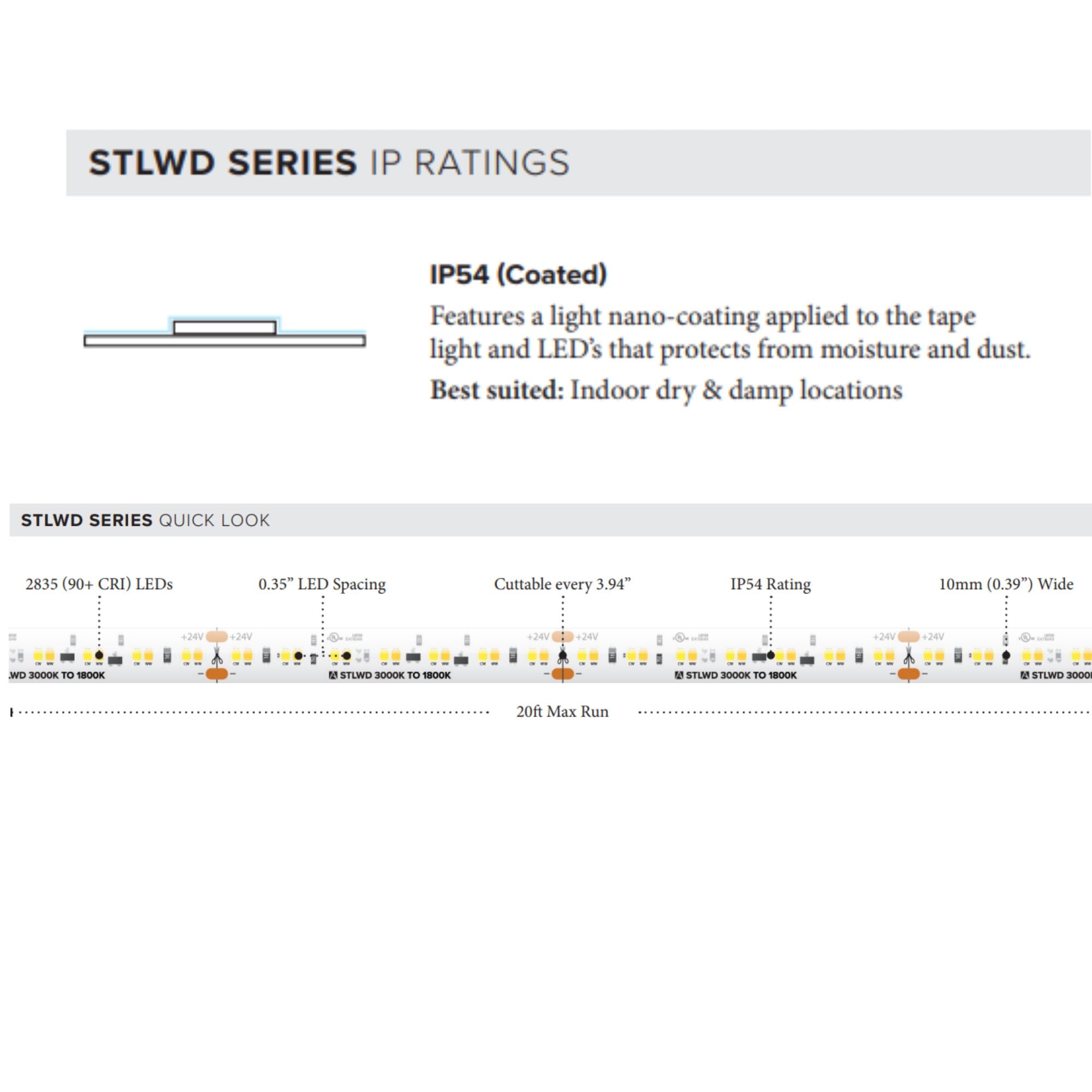

- IP Rating: IP54 for protection against dust and moisture.
- Certifications: cULus Listed for dry and damp locations.
Core Design & Construction
This tape light features a 10mm wide PCB, ensuring compatibility with most aluminum channels. It includes a nano-coating protective layer and 3M VHB adhesive backing for secure installation in dry and damp environments.
LED Illumination & Performance
With a lumen output of 262 lumens per foot and a CRI of 90+, this tape light delivers high-quality illumination. The Warm Dim technology mimics the dimming of incandescent lights, providing a cozy ambiance.
Power, Wiring & Installation
Requires a 24V DC power supply and is dimmable with most ELV and TRIAC dimmers. The tape light can be cut every 3.94 inches and supports a maximum continuous run of 20 feet to prevent voltage drop.

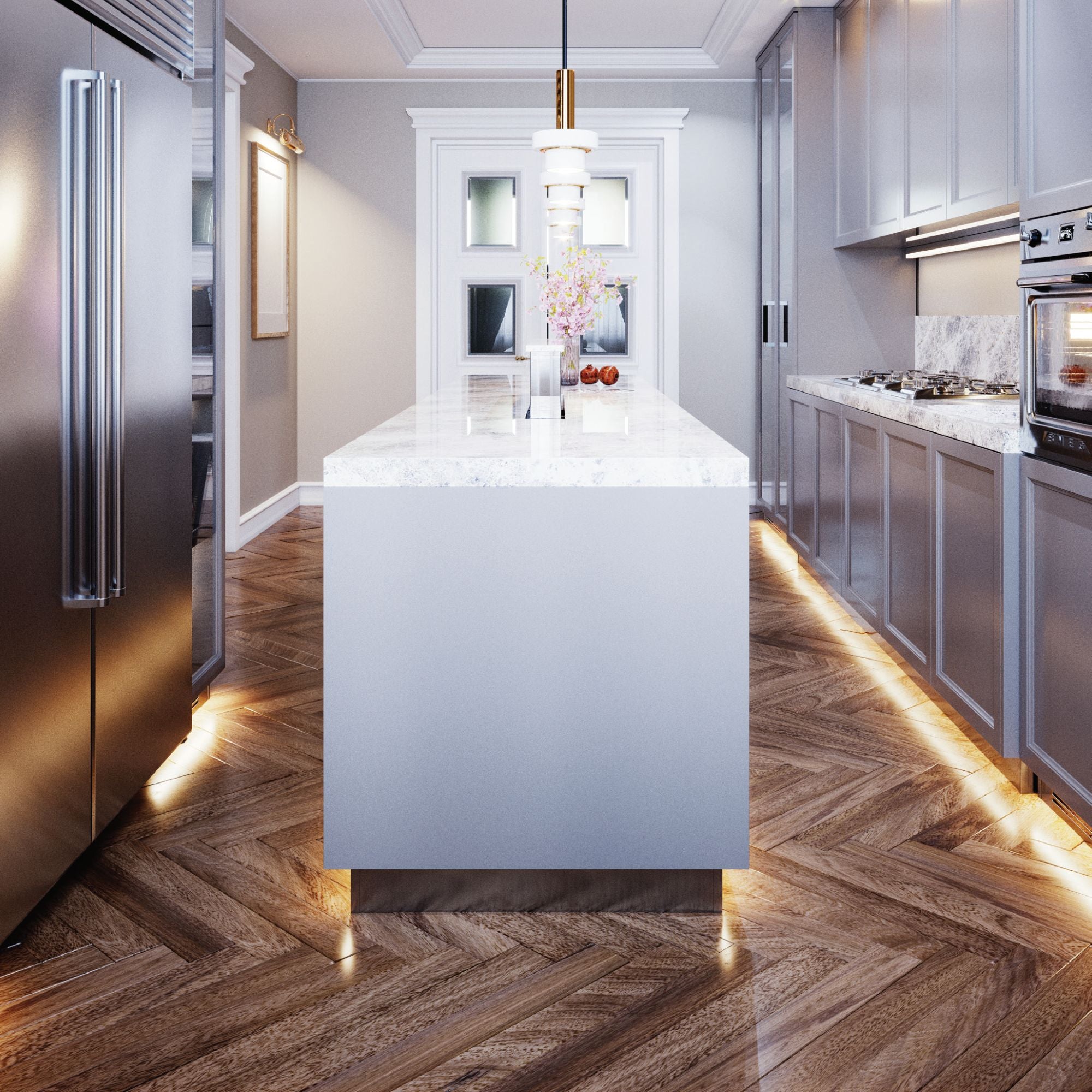

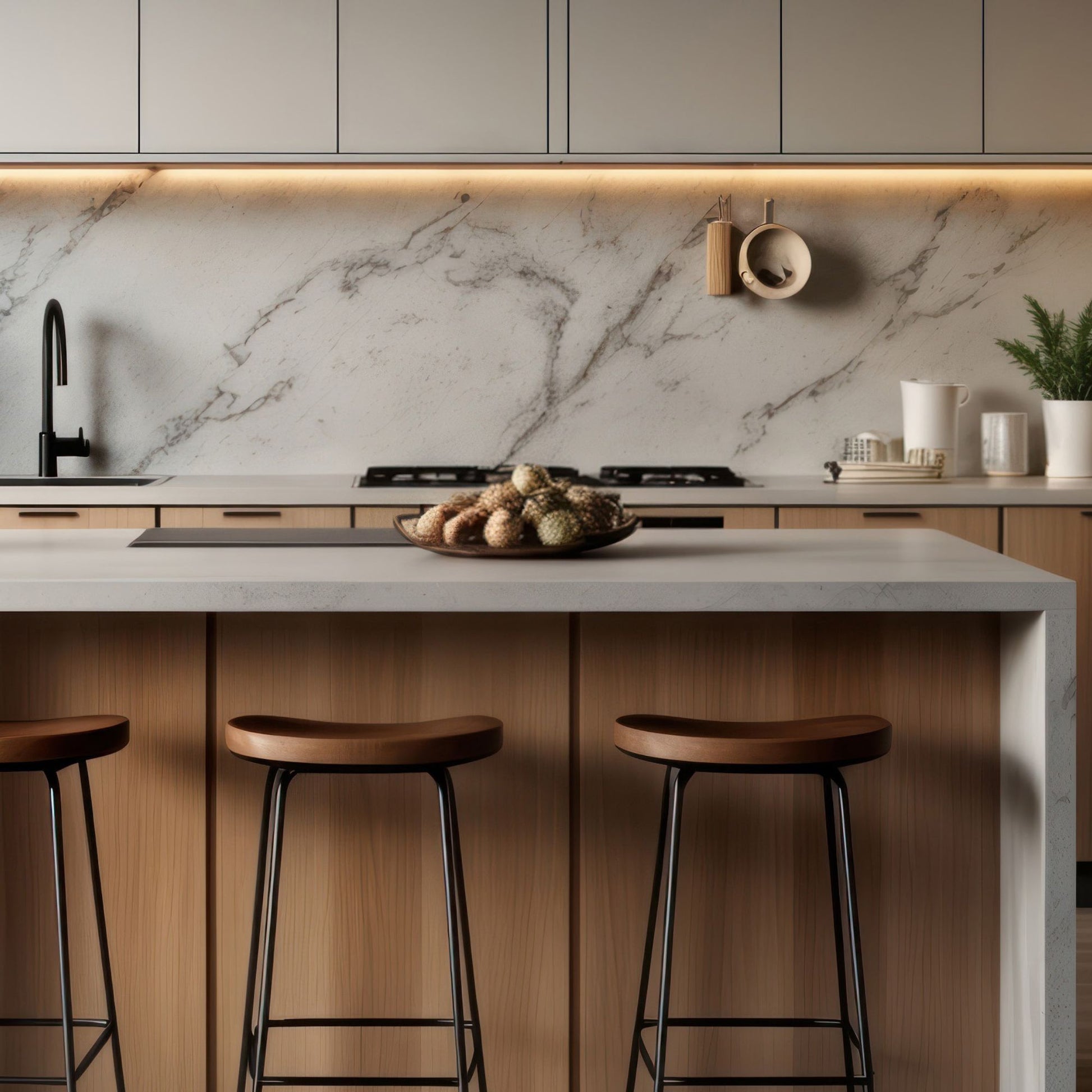

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16.4ft reel of tape light
- 6ft lead and tail
- (1) TL-CONKIT
- (2) TL-BLKS
- (2) TL-2PWR-HD
Specifications
