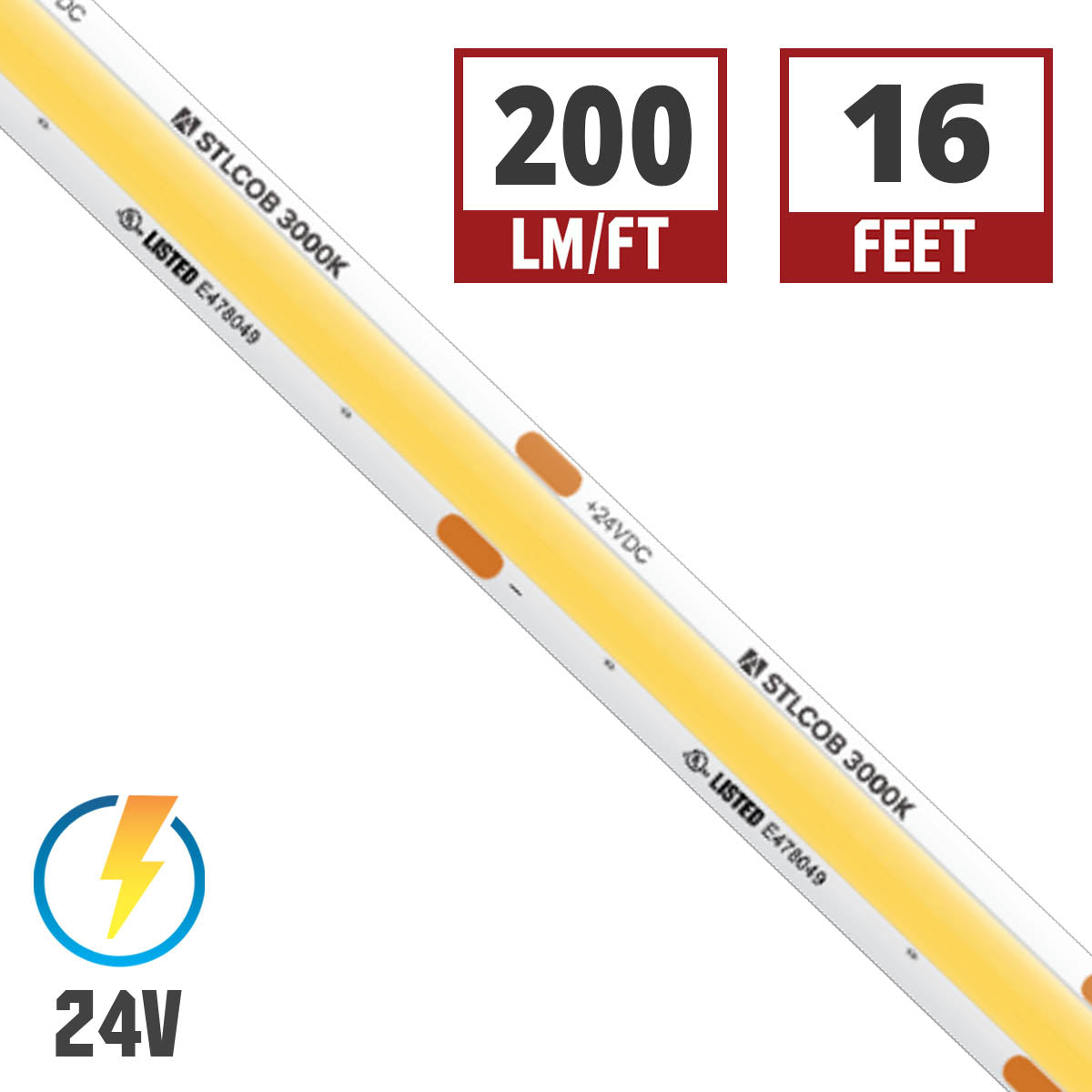

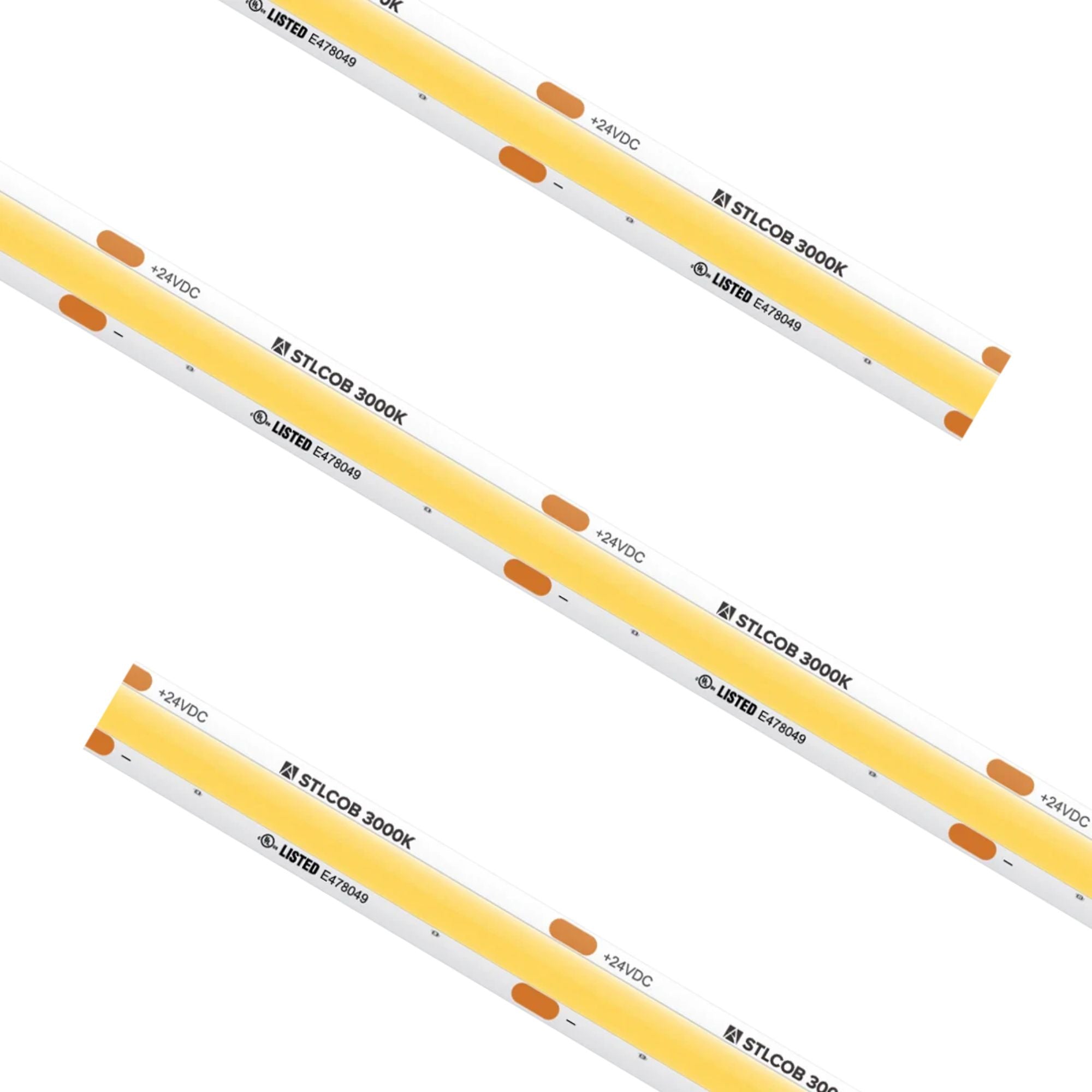

Trulux, 16.4 ft, COB LED Tape Light, IP54, 3000K, 200 Lumens/ft, 24V
Available in stock (8078)
About this item
About this item
- Voltage: Operates on 24V DC for efficient power usage.
- Color Temperature: Provides a warm 3000K light, ideal for ambient settings.
- Lumens per Foot: Delivers up to 200 lumens per foot for bright illumination.
- Max Run: Supports a maximum continuous run of 23 feet to prevent voltage drop.
- Cuttable: Field cuttable every 1.97 inches for custom lengths.
We process payments securely and do not store credit card information.
Description
Description

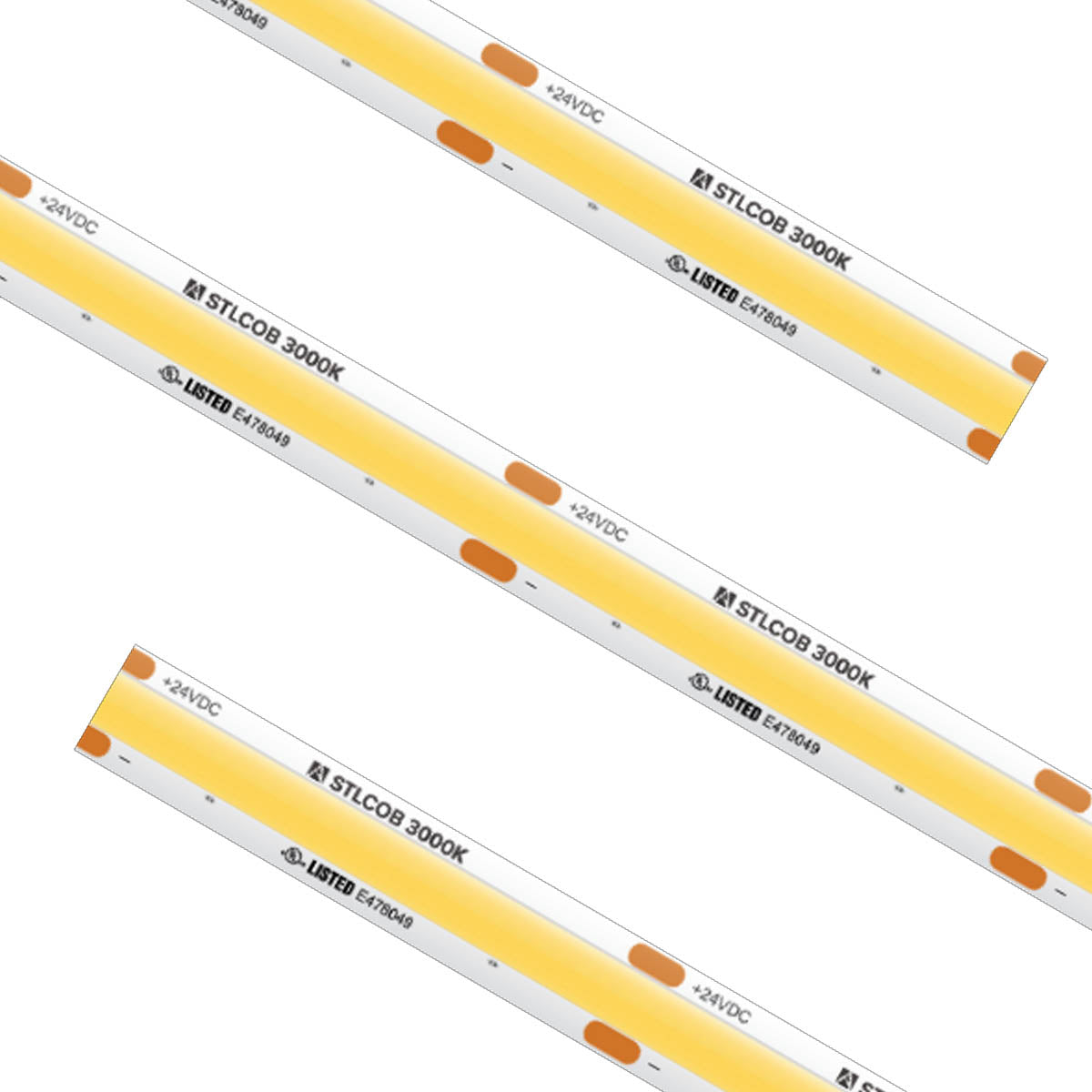

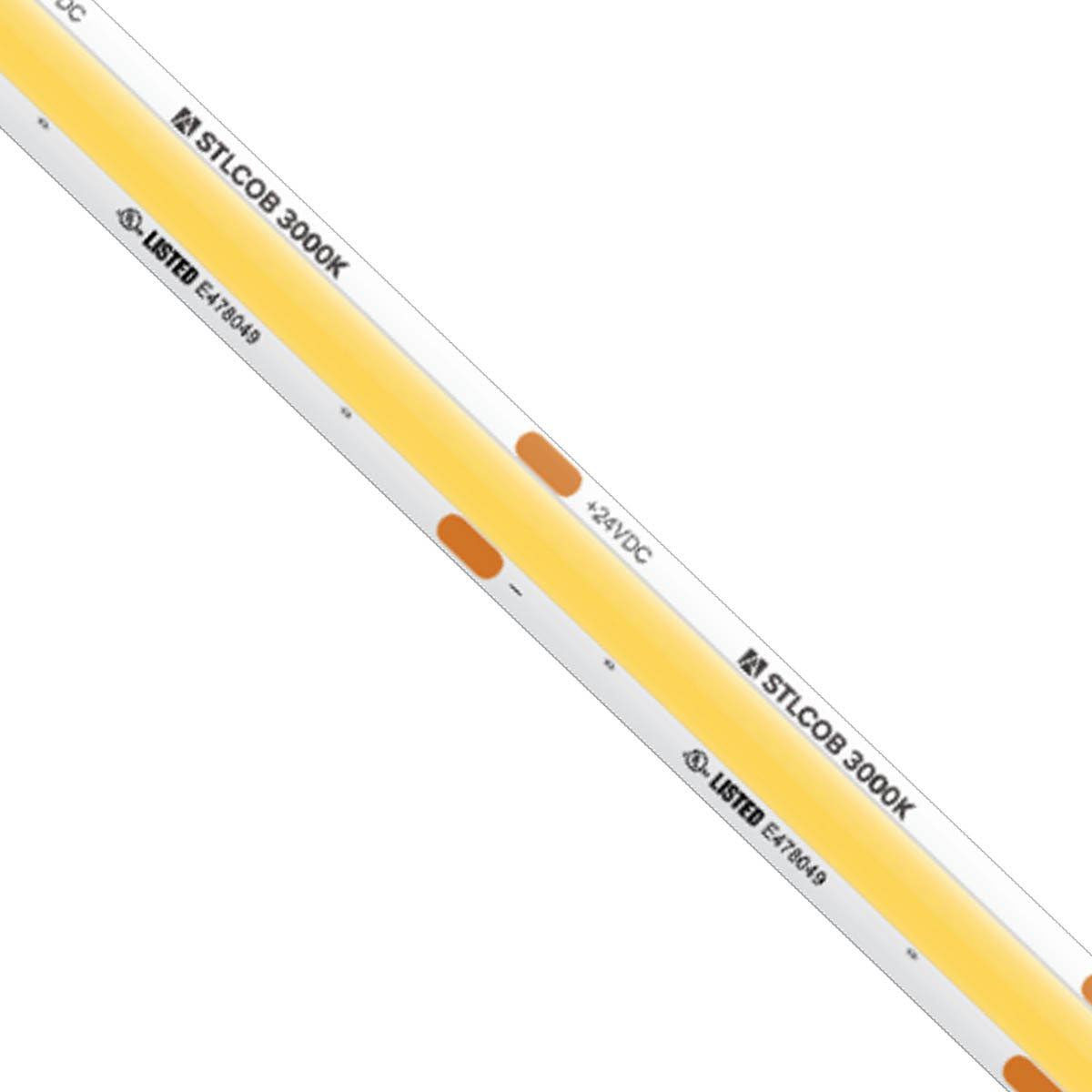

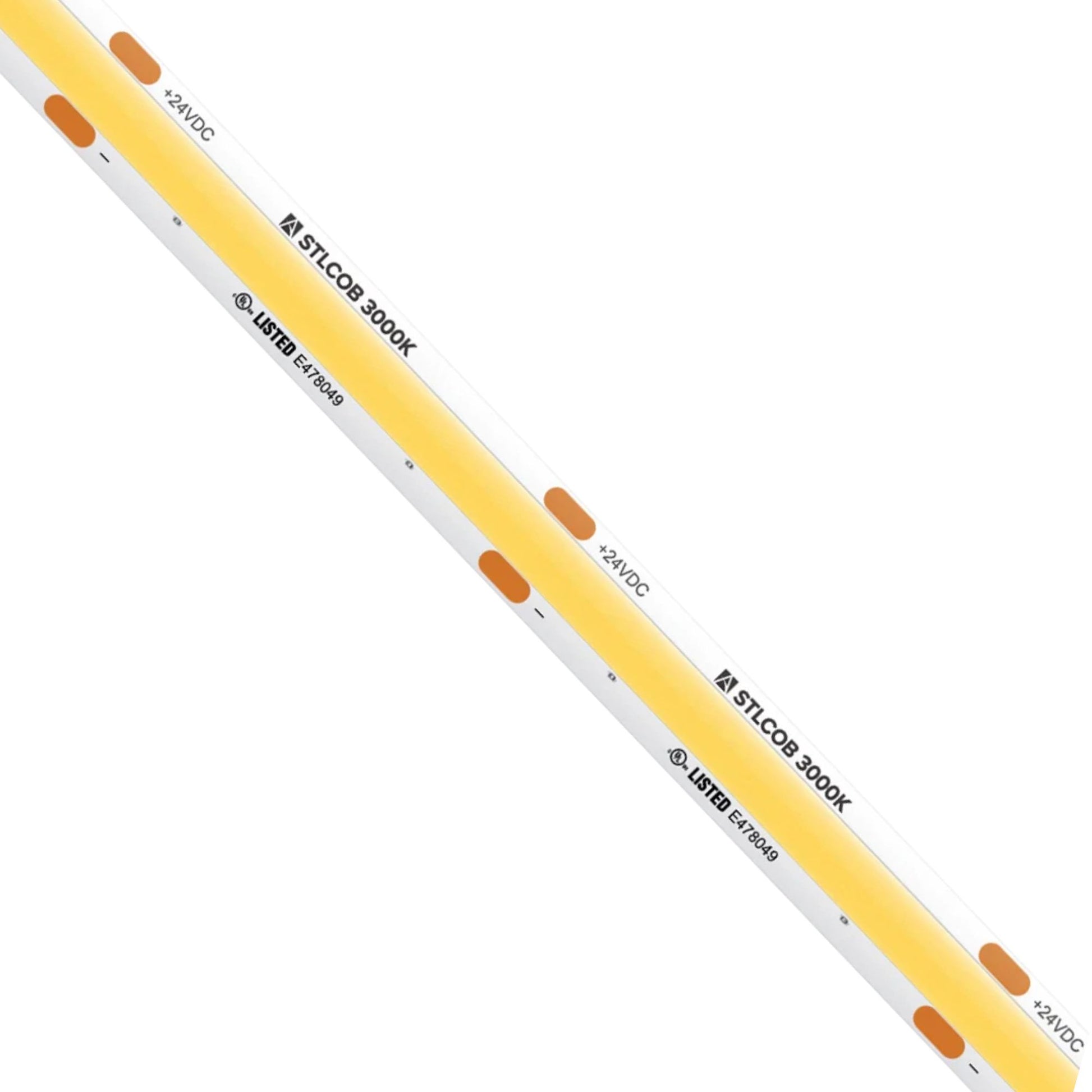

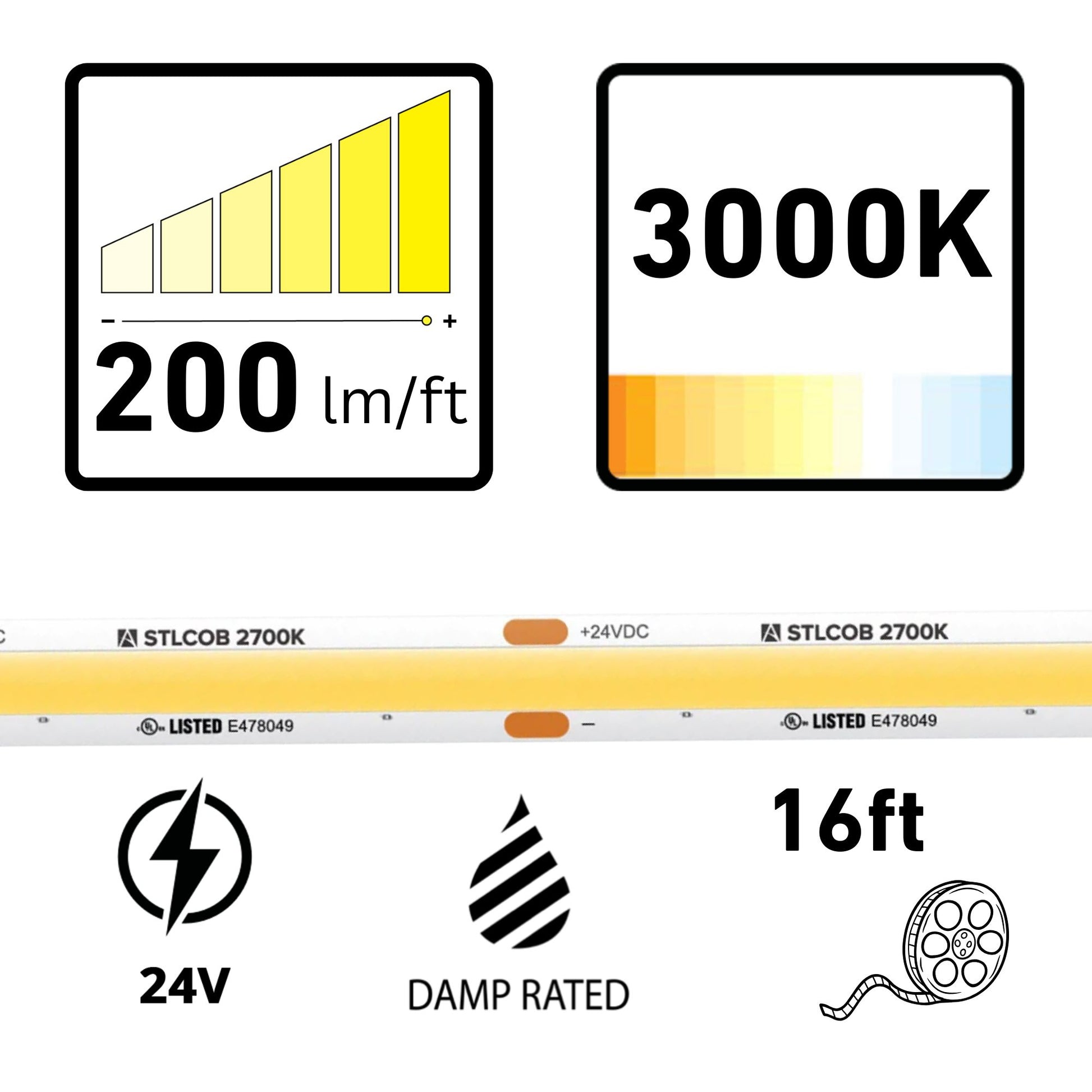

Trulux COB LED Tape Light — 3000K & Seamless Illumination
The Trulux STL-COB-WW-16 is a 16.4 ft COB LED Tape Light designed for seamless illumination without visible diodes. It operates on 24V DC and is IP54 rated, making it suitable for damp locations. This tape light features a 3000K color temperature and delivers 200 lumens per foot, making it ideal for ambient lighting applications.

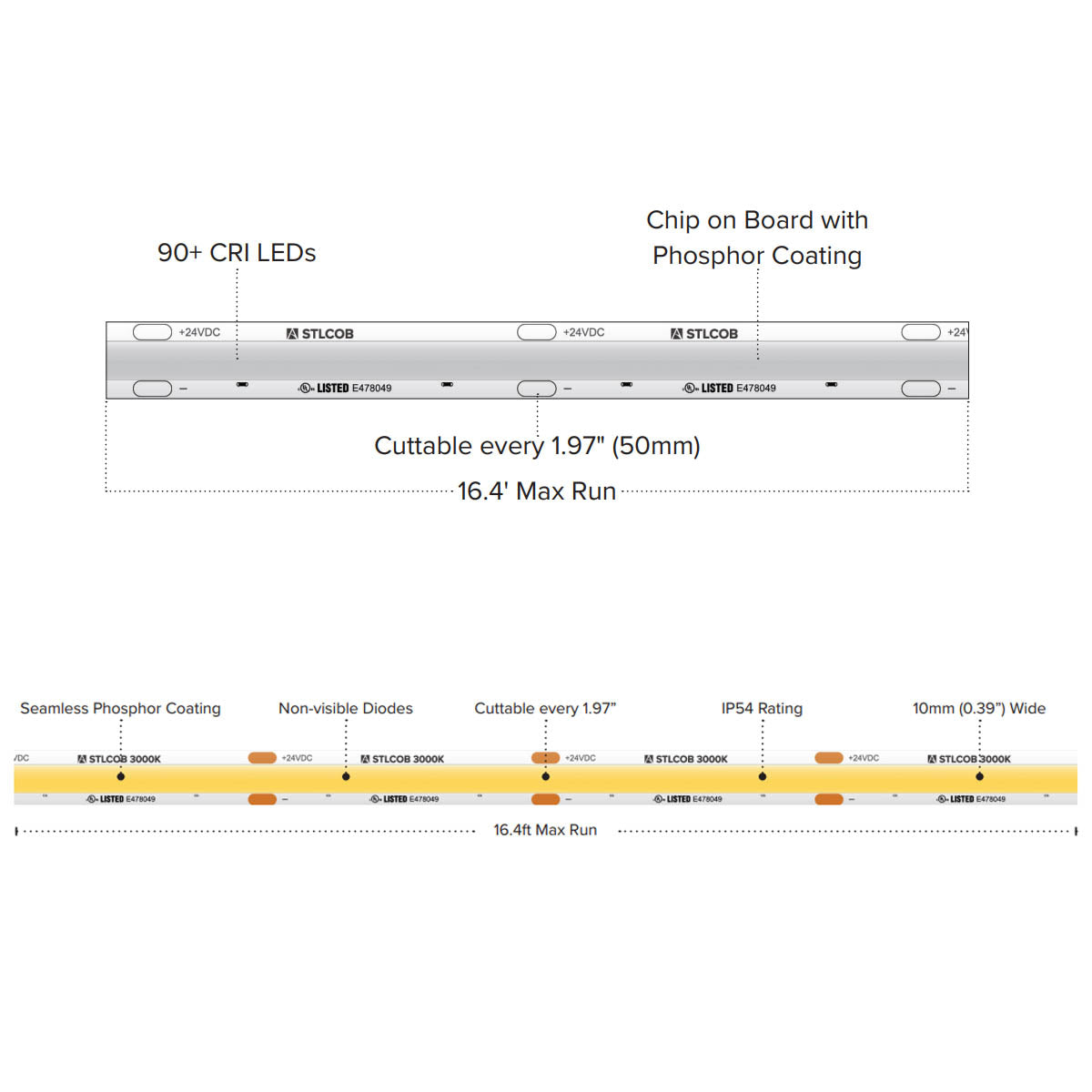

Key Features
- Voltage: 24V DC for efficient operation.
- Wattage: Consumes 2.19W per foot.
- Lumens: Up to 200 lumens per foot for bright output.
- LEDs per Foot: Seamless COB design eliminates visible diodes.
- Max Run: 23 feet maximum continuous run.
- Cuttable: Every 1.97 inches for custom installations.
- PCB Width: 10mm for compatibility with various channels.
- Beam Angle: 120 degrees for wide light distribution.
- IP Rating: IP54 for damp locations.
- Certifications: cULus Listed for safety and reliability.
Core Design & Construction
The tape light features a 10mm wide PCB, ensuring compatibility with most aluminum channels. It includes a light nano-coating for moisture and dust protection, and uses 3M VHB adhesive backing for secure installation.
LED Illumination & Performance
With a high CRI of 90+, this tape light provides excellent color rendering. The COB light engine ensures a seamless line of light, eliminating dotting and glare.
Power, Wiring & Installation
Requires a 24V DC power supply. It is field-cuttable every 1.97 inches and supports a maximum run of 23 feet. Dimmable with most ELV and TRIAC dimmers.

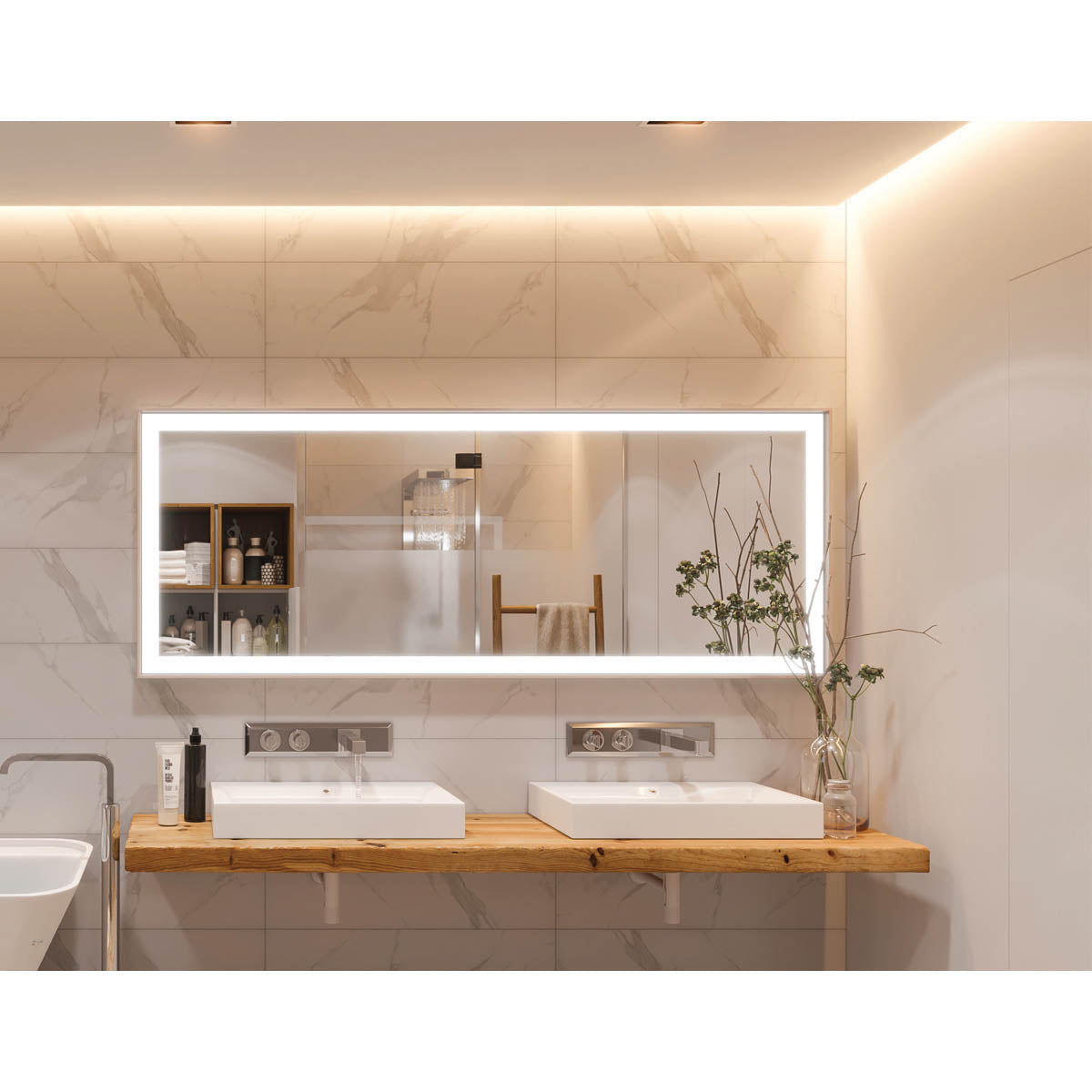

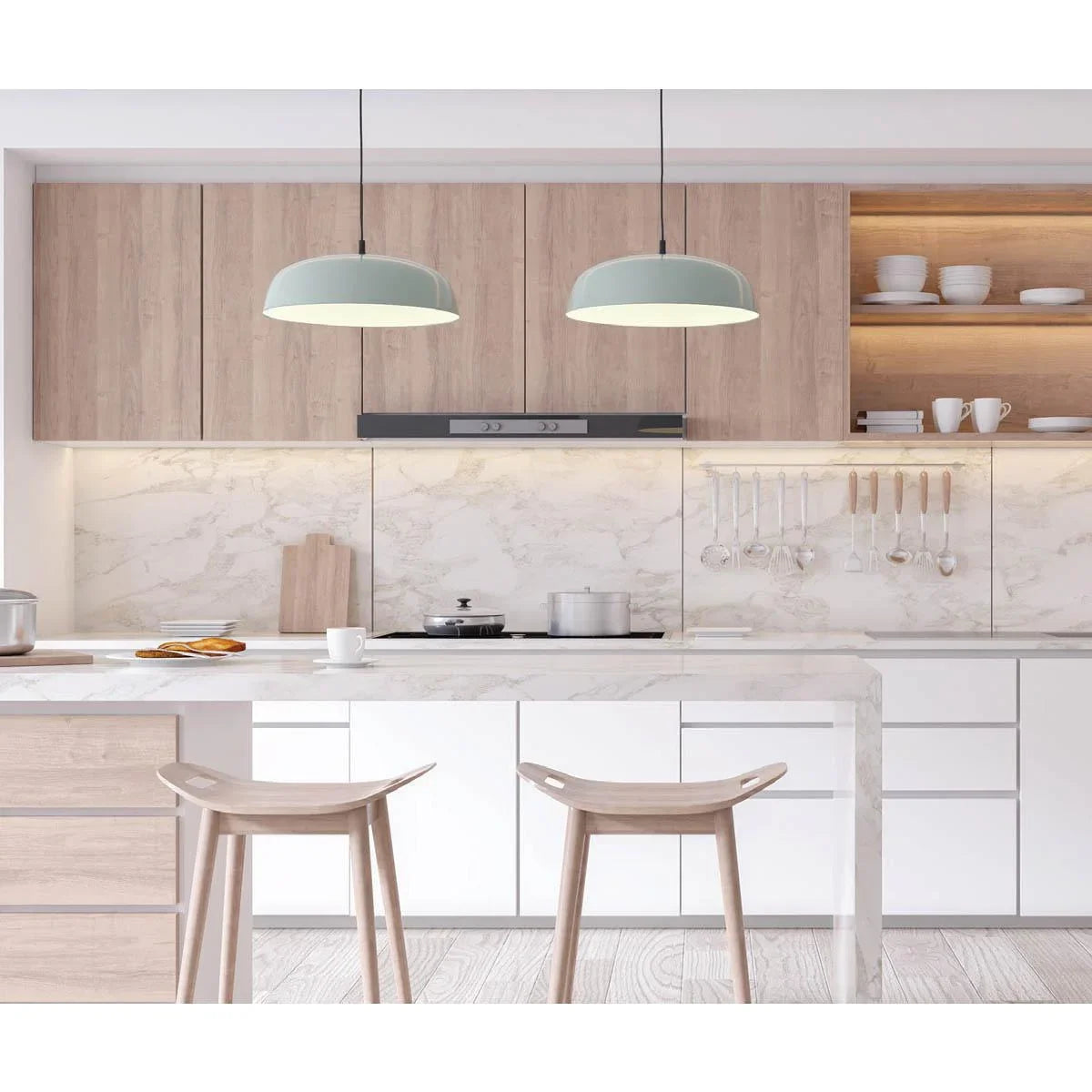

Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16.4 ft reel of tape light
- 6 ft lead and tail
- (1) TL-CONKIT
- (2) TL-BLKS
- (2) TL-2PWR-HD
Specifications
Specifications
Dimensions
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
