Trulux 100ft LED Tape Light, IP54, 4000K, 220 Lumens/ft, 24V
Available in stock (73)
About this item
About this item
- Voltage: Operates at 24V DC for efficient power consumption.
- Color Temperature: Provides a crisp 4000K light, ideal for task lighting.
- Lumens: Delivers up to 220 lumens per foot for bright illumination.
- Max Run: Supports up to 23ft continuous run to prevent voltage drop.
- Cuttable: Field cuttable every 1.97 inches for custom lengths.
We process payments securely and do not store credit card information.
Description
Description

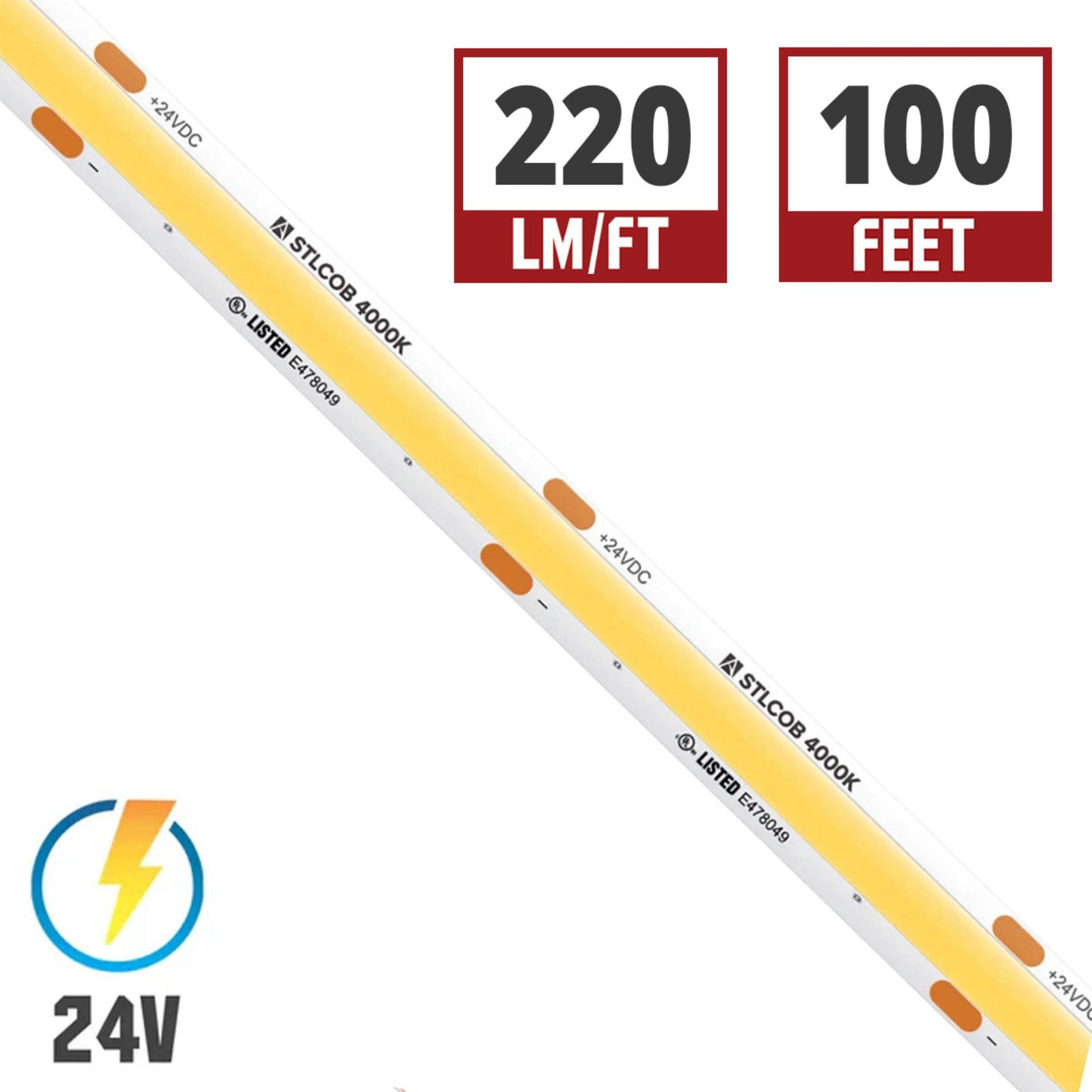

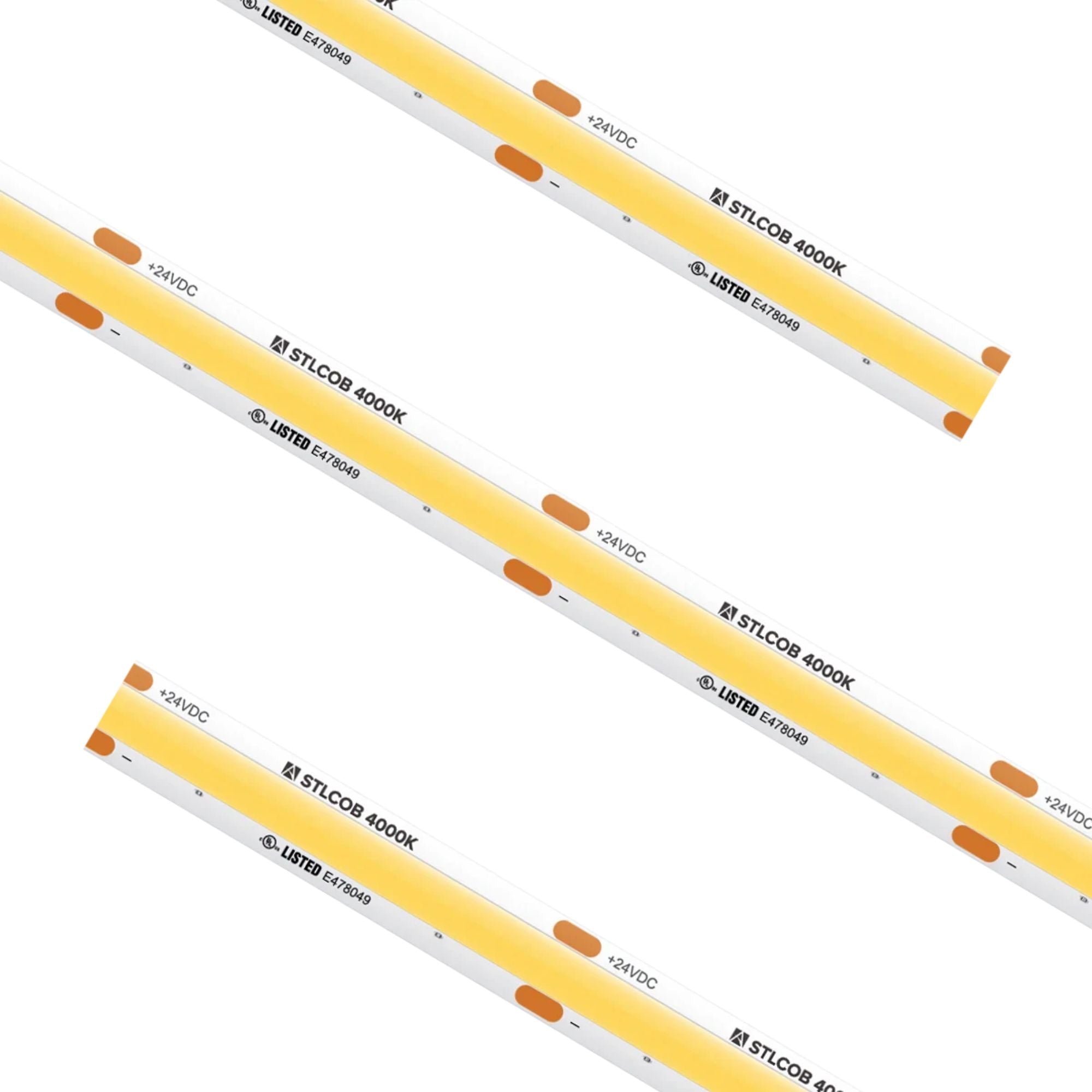

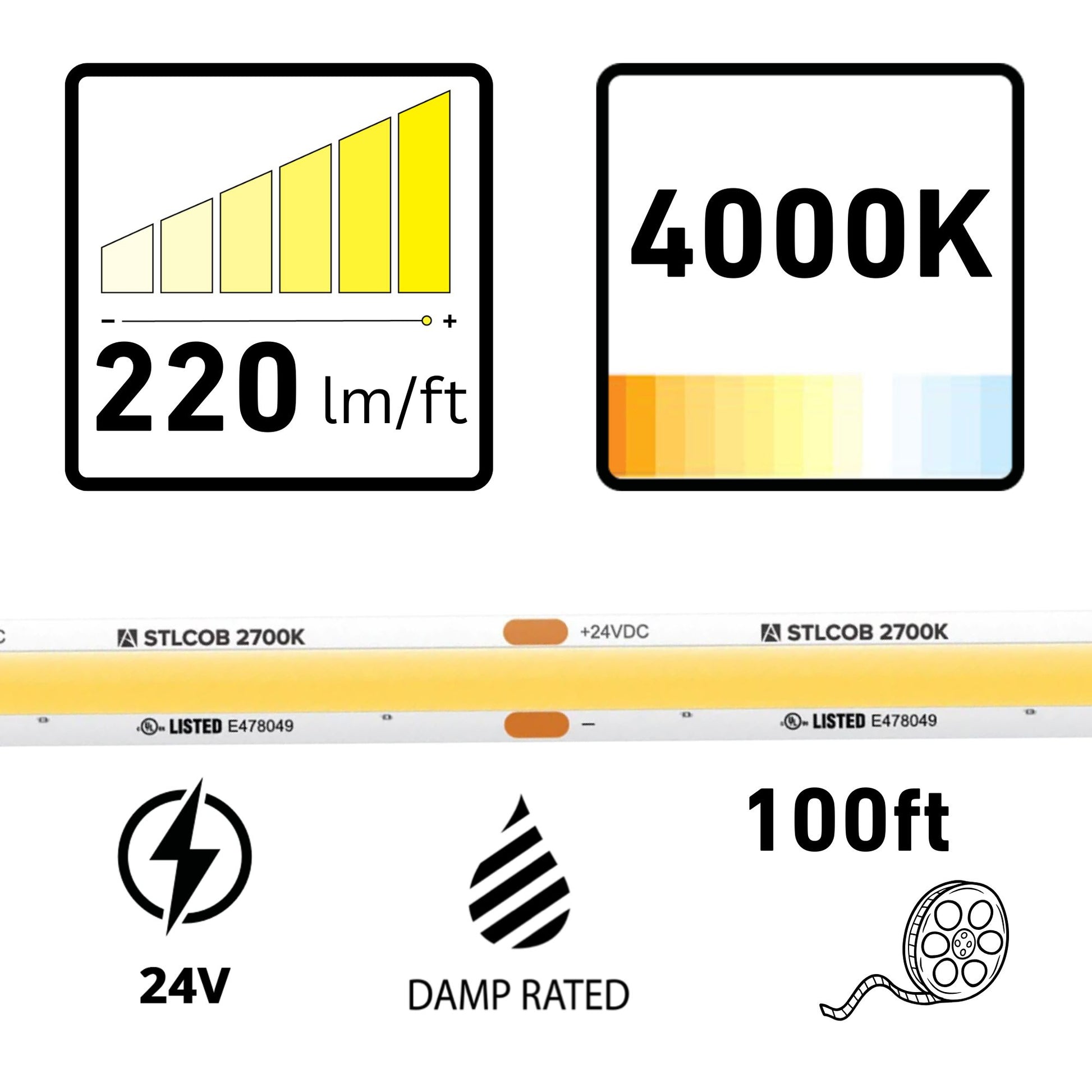

Trulux LED Tape Light — 4000K & COB Dotless
The Trulux STL-COB-WH-100 is a 100ft LED tape light featuring a COB design that provides seamless illumination. With a 4000K color temperature, this tape light is perfect for achieving a neutral white light. It operates at 24V DC and is IP54 rated for damp locations, making it suitable for various indoor applications.
Key Features
- Voltage: 24V DC for stable performance.
- Wattage: Consumes 2.19W per foot.
- Lumens: Up to 220 lumens per foot.
- LEDs per Foot: Seamless COB design eliminates visible diodes.
- Max Run: 23ft maximum run length.
- Cut Increments: Cuttable every 1.97 inches.
- PCB Width: 10mm for compatibility with various channels.
- Beam Angle: 120 degrees for wide light distribution.
- IP Rating: IP54 for damp locations.
- Certifications: cULus Listed for dry/damp locations.
Core Design & Construction
The tape light features a 10mm wide PCB, ensuring compatibility with most aluminum channels. It includes a protective nano-coating for moisture and dust resistance and uses 3M VHB adhesive for secure mounting.
LED Illumination & Performance
With a high CRI of 90+, the tape light delivers up to 220 lumens per foot, providing excellent color rendering and uniform light output thanks to its COB technology.
Power, Wiring & Installation
Requiring a 24V DC power supply, the tape light is field cuttable every 1.97 inches and supports up to 23ft continuous runs. It is dimmable with most ELV and TRIAC dimmers.
Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
- Task lighting
What's Included
- 100ft reel of tape light
- 6ft lead and tail
- 1 TL-CONKIT
- 3 TL-BLKS
- 3 TL-2PWR-HD
Specifications
Specifications
Dimensions
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the Trulux STL-COB-WH-100?
What is the maximum run length for the Trulux STL-COB-WH-100?
How often can the Trulux STL-COB-WH-100 be cut?
How often can the Trulux STL-COB-WH-100 be cut?
What voltage is required for the Trulux STL-COB-WH-100?
What voltage is required for the Trulux STL-COB-WH-100?
Is the Trulux STL-COB-WH-100 suitable for damp locations?
Is the Trulux STL-COB-WH-100 suitable for damp locations?
What type of dimmers are compatible with the Trulux STL-COB-WH-100?
What type of dimmers are compatible with the Trulux STL-COB-WH-100?
