American Lighting Trulux 16.4ft LED Tape Light, IP54, 2700K, 180 Lumens/ft, 24V
Available in stock (1592)
About this item
About this item
- Voltage: Operates at 24V DC for efficient energy use.
- Color Temperature: Provides a warm 2700K light, ideal for cozy environments.
- Lumens per Foot: Delivers up to 180 lumens per foot for bright illumination.
- Max Run: Supports a maximum run of 23ft to prevent voltage drop.
- Cut Increments: Field cuttable every 1.97 inches for custom installations.
We process payments securely and do not store credit card information.
Description
Description

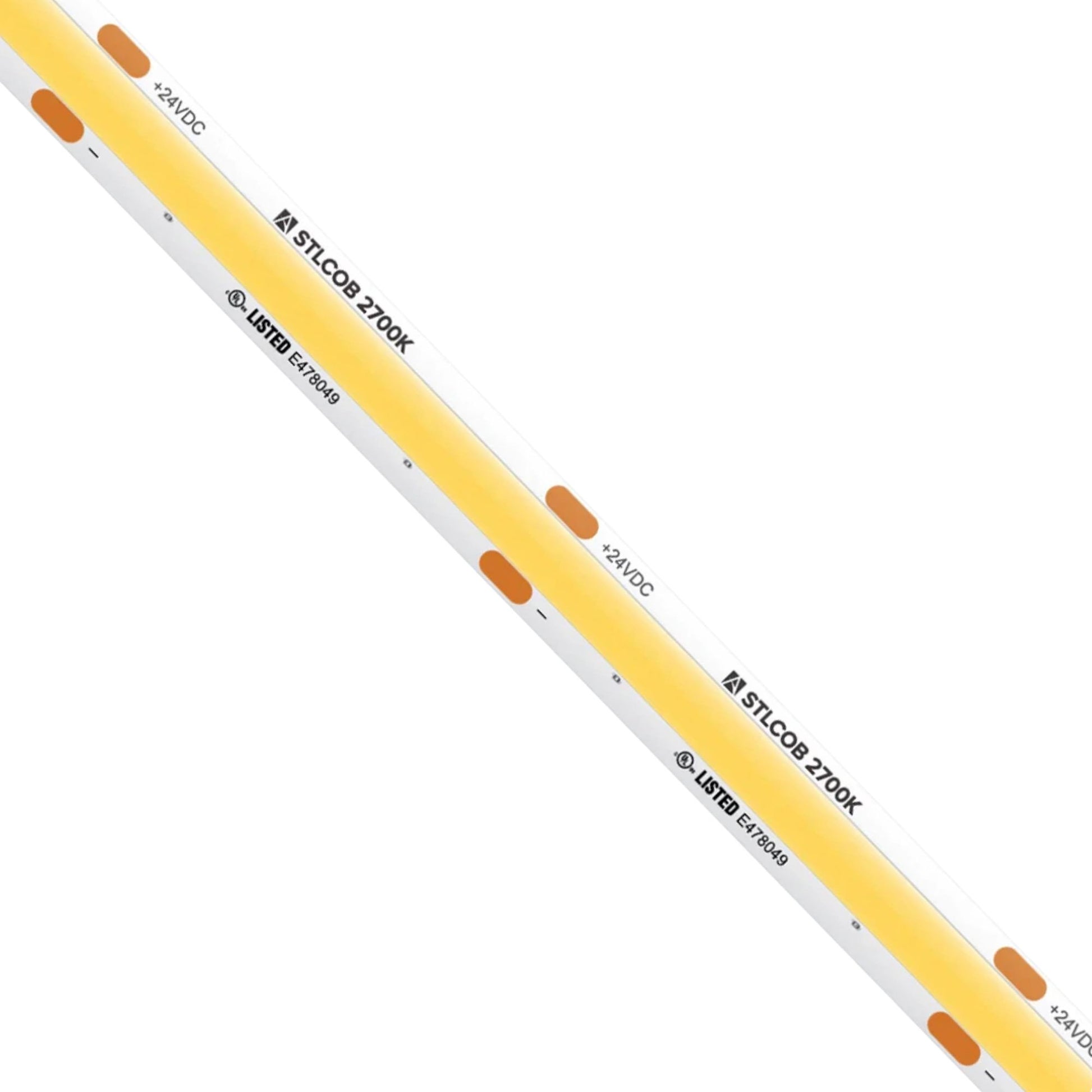

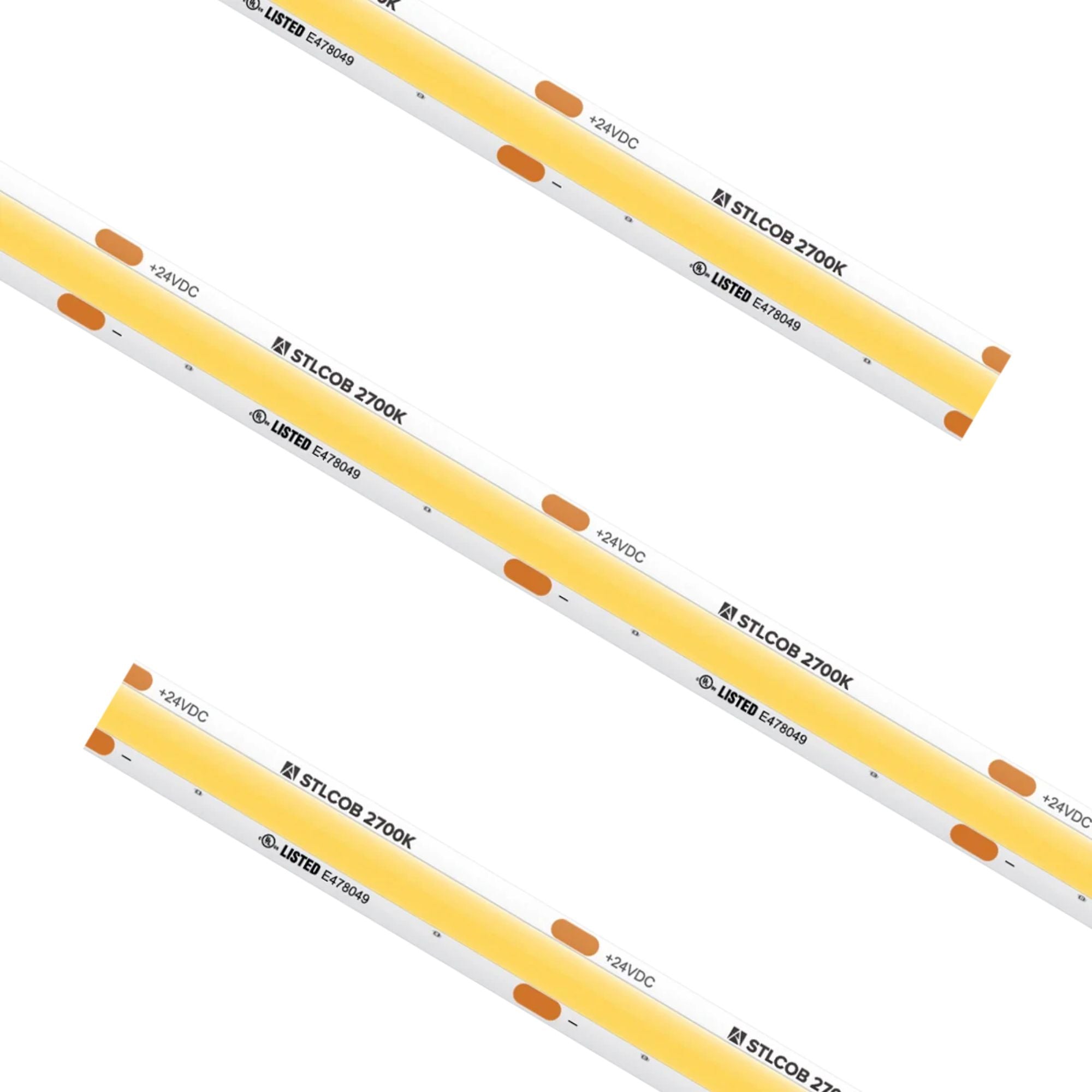

American Lighting Trulux LED Tape Light — 2700K & COB Technology
The STL-COB-UWW-16 is a 16.4ft LED tape light from American Lighting's Trulux series, featuring a seamless COB design that eliminates LED dotting. This tape light operates at 24V DC and is rated IP54 for damp locations, making it suitable for various indoor applications.
Key Features
- Voltage: 24V DC ensures consistent performance.
- Wattage: Consumes 2.19W per foot for energy efficiency.
- Lumens: Provides up to 180 lumens per foot.
- LEDs per Foot: Seamless COB design for uniform light output.
- Max Run: 23ft maximum run length.
- Cut Increments: Cuttable every 1.97 inches for precise installations.
- PCB Width: 10mm width for compatibility with various channels.
- Beam Angle: 120-degree beam angle for wide light distribution.
- IP Rating: IP54 for protection against dust and moisture.
- Certifications: cULus Listed for dry/damp locations.
Core Design & Construction
Featuring a 10mm wide PCB, this tape light is compatible with a range of aluminum channels. It includes a light nano-coating for moisture and dust protection, and uses 3M VHB adhesive for secure mounting.
LED Illumination & Performance
With up to 180 lumens per foot and a 90+ CRI, this COB tape light offers high-quality illumination with a seamless, dotless appearance.
Power, Wiring & Installation
Requires a 24V DC power supply. The tape is field-cuttable every 1.97 inches and supports a maximum continuous run of 23ft. It is dimmable with most ELV and TRIAC dimmers.
Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
What's Included
- 16.4ft reel
- 6ft lead and tail
- (1) TL-CONKIT
- (2) TL-BLKS
- (2) TL-2PWR-HD
Specifications
Specifications
Dimensions
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the STL-COB-UWW-16 tape light?
What is the maximum run length for the STL-COB-UWW-16 tape light?
How often can the STL-COB-UWW-16 tape light be cut?
How often can the STL-COB-UWW-16 tape light be cut?
What voltage is required for the STL-COB-UWW-16 tape light?
What voltage is required for the STL-COB-UWW-16 tape light?
Is the STL-COB-UWW-16 tape light dimmable?
Is the STL-COB-UWW-16 tape light dimmable?
What is the width of the PCB for the STL-COB-UWW-16 tape light?
What is the width of the PCB for the STL-COB-UWW-16 tape light?
