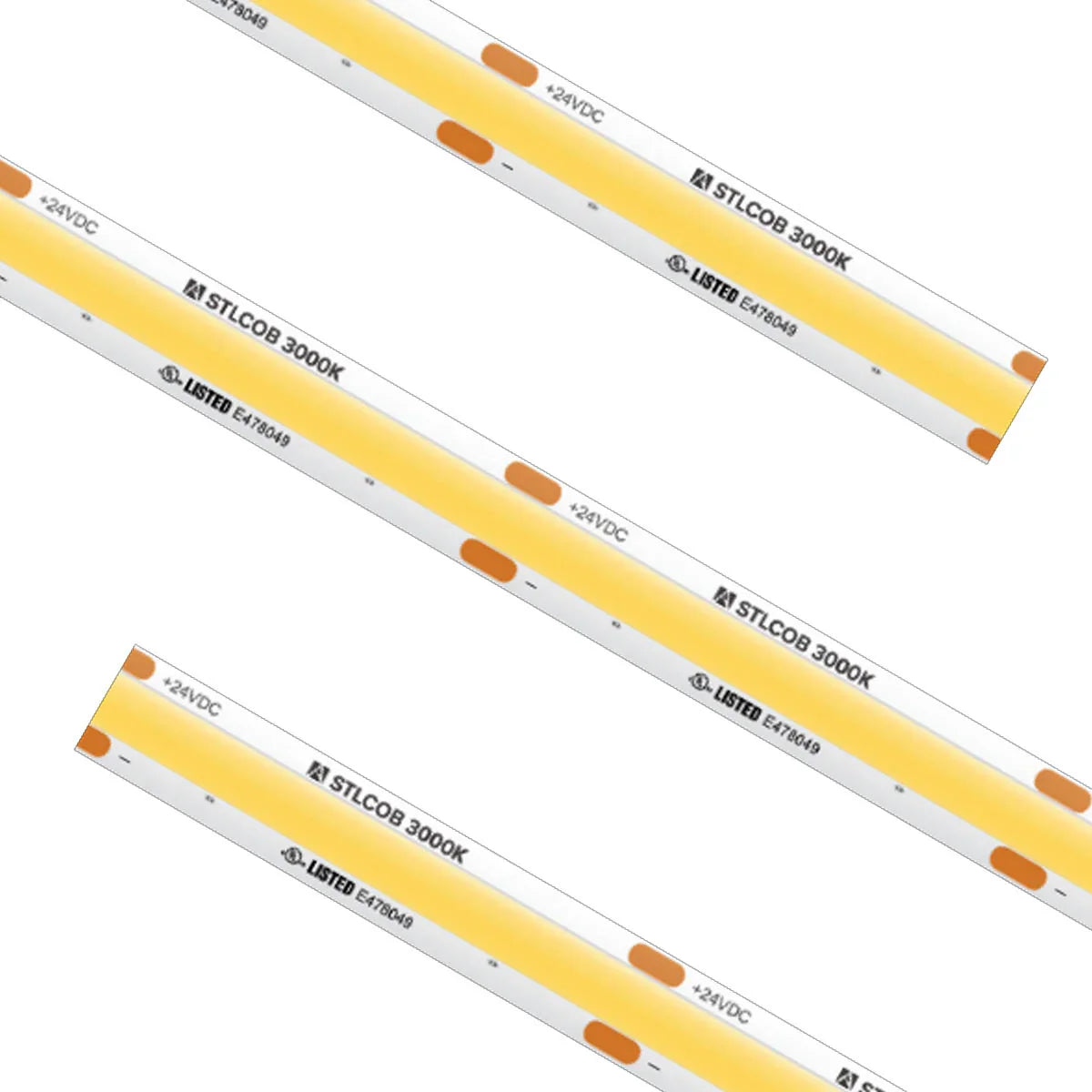

American Lighting STL-COB Series — 24V COB LED Tape Light, Standard Grade TruLux

The American Lighting STL-COB Series (TruLux Standard Grade) is a professional 24V DC COB (Chip-on-Board) LED tape light engineered for seamless, dotless linear illumination. Unlike standard SMD strips, the STL-COB uses a continuous phosphor coating over the full LED array — eliminating visible hotspots and dot-glare for perfectly uniform output across every inch. Available in five color temperatures (2700K–5000K), output ranges from 180 to 220 lumens per foot at 2.19W/ft, 90+ CRI, with IP54 moisture resistance and a 5-year limited warranty.

Designed for professional and residential installations alike, the STL-COB Series excels in under-cabinet kitchen lighting, cove and crown molding accents, display case and retail shelf lighting, bathroom vanity and mirror lighting, and closet lighting (NEC 410.16 compliant in enclosed channel). Available in 16.4 ft and 100 ft reels — cut every 1.97 in (50mm), max continuous run 23 ft per power feed.

Key Features

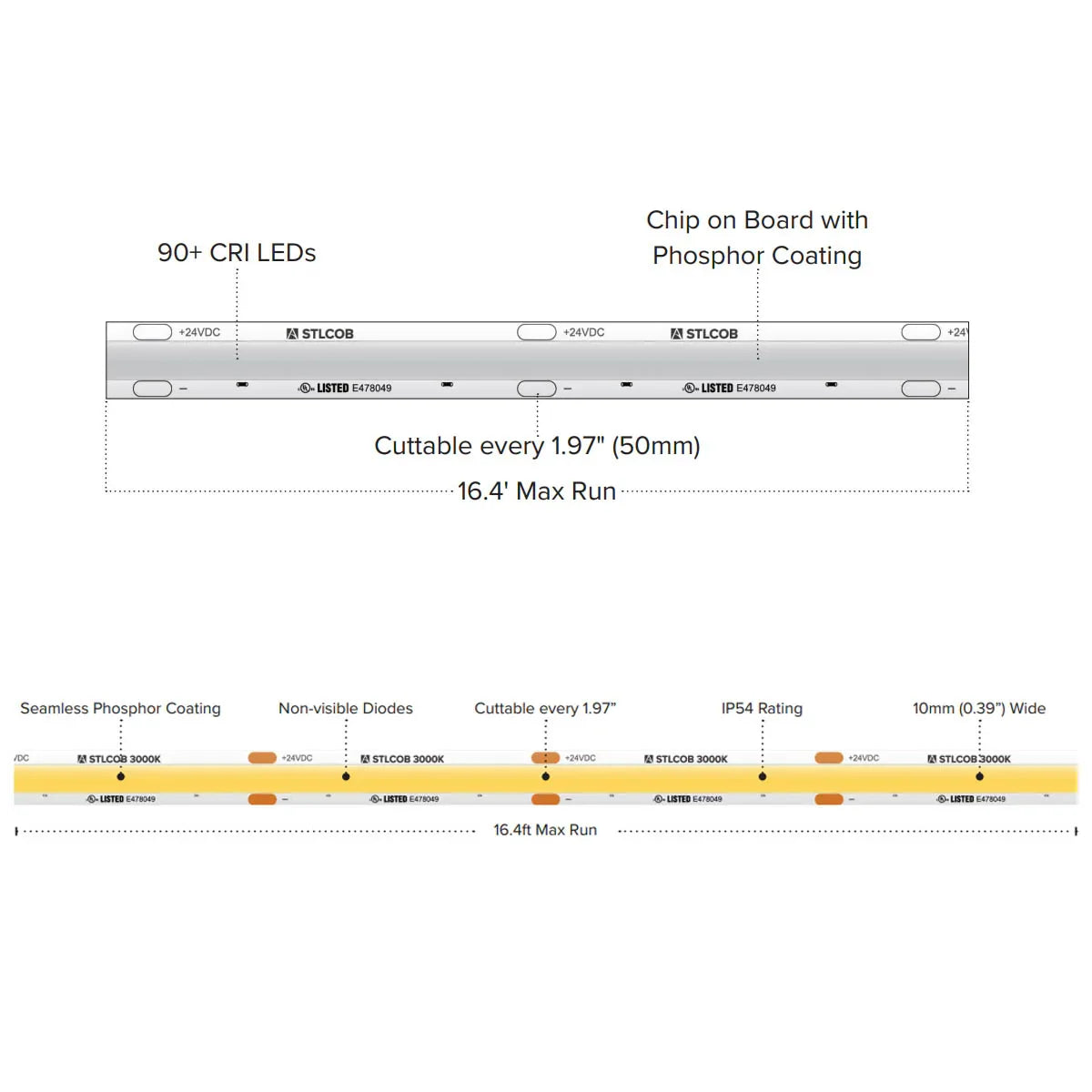

• Seamless COB LED Technology: Continuous phosphor coating over the full LED array eliminates LED dotting and spot-glare — ideal for reflective surfaces, glass display cases, and close-proximity cove installations where uniform output is critical
• 180–220 lm/ft Output at 2.19W/ft: 2700K = 180 lm/ft | 3000K/3500K = 200 lm/ft | 4000K/5000K = 220 lm/ft — all at 2.19W/ft, 24V DC
• 90+ CRI Color Rendering: High color accuracy across all five CCT options for residential, retail, and color-critical commercial applications
• IP54 Coated: Nano-coating protects LEDs and PCB from moisture and dust — rated for indoor dry and damp locations; not rated for outdoor or wet locations
• Dimmable 5–100%: Compatible with most TRIAC and ELV dimmers; dimmer must be wired on the 24V DC output side of the driver — not on AC line input
• Cuttable Every 1.97 in (50mm): Up to 100 cut points per 16.4 ft reel; 610 cut points per 100 ft reel; max continuous run 23 ft per power feed
• 3M VHB Adhesive Backing: Secure tool-free mounting to clean, dry, flat surfaces; compatible with all American Lighting 10mm mounting channels
• Closet-Safe (NEC 410.16): Approved for closet installations when mounted inside an enclosed channel per NFPA 70, NEC 410.16(B)(3) and 410.16(D)(1)(Exception)
• cULus Listed: Certified for indoor dry and damp location installations
• 50,000-Hour Rated Life | 5-Year Warranty: Professional-grade longevity backed by American Lighting’s limited warranty

Light Output & Color Performance

The STL-COB Series is available in five CCT options to match any lighting application. 2700K Ultra Warm White (180 lm/ft) suits bedrooms, hospitality, and residential accent lighting. 3000K Soft White and 3500K Neutral White (200 lm/ft each) work across kitchens, living rooms, offices, and retail ambient lighting. 4000K Cool White and 5000K Daylight (220 lm/ft each) deliver maximum output for task lighting, bathrooms, retail display, and commercial color-critical environments. All CCTs maintain 90+ CRI for accurate color representation across surfaces and materials.

Power, Driver & Dimming Requirements

The STL-COB Series requires a 24V DC Class 2 LED driver (sold separately). At 2.19W/ft, a single 23 ft run draws approximately 50W — well within the 96W output of a Class 2 driver. Use this formula to size your driver: run length (ft) × 2.19W/ft ÷ 0.80 = minimum driver wattage. For a 16.4 ft reel: 16.4 × 2.19 ÷ 0.80 = 45W minimum — recommended ADPT-DRJ-60-24 (60W). For a 23 ft maximum run: 23 × 2.19 ÷ 0.80 = 63W minimum — recommended ADPT-DRJ-96-24 (96W). The 100 ft reel is intended for multi-zone installations — plan one driver per zone with a maximum of 23 ft of tape per driver output. For multi-zone installations, the ADPT-DRJ-192-24 (192W, 2×96W independent outputs) and ADPT-DRJ-288-24 (288W, 3×96W independent outputs) support two and three independently controlled zones respectively. Dimming requires a TRIAC or ELV-compatible dimmer wired on the 24V DC output side of the driver — never on AC line input.

Where This Tape Light Works Best

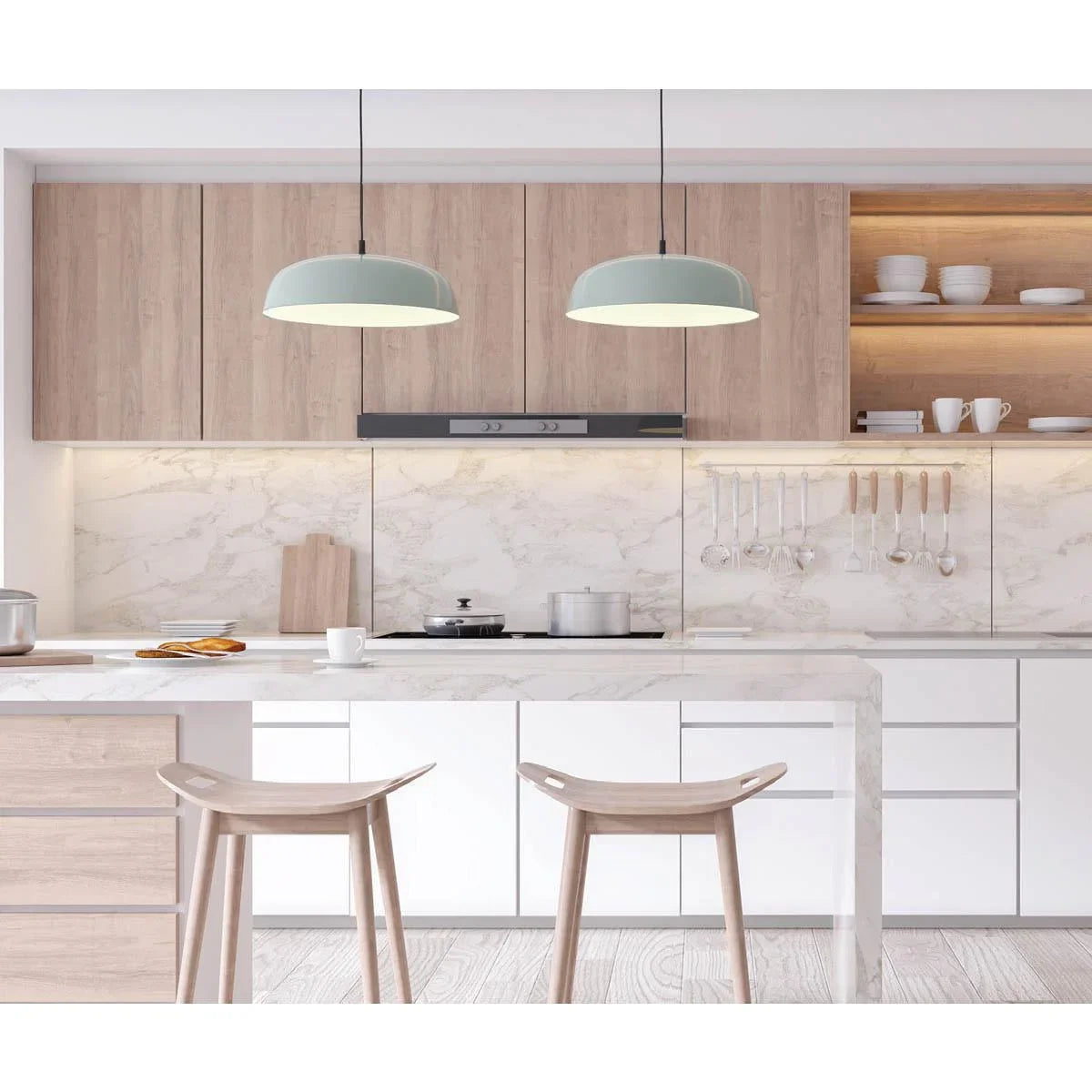

• Under-cabinet kitchen lighting — dotless output eliminates shadow lines on countertops
• Cove, soffit, and crown molding accent lighting — uniform glow with no visible LED dots
• Display case and retail shelf lighting — 90+ CRI renders product colors accurately
• Bathroom vanity and mirror lighting — IP54 damp rating handles humidity safely
• Closet and wardrobe lighting — NEC 410.16 compliant in enclosed mounting channel
• Architectural linear lighting — clean, continuous output for hospitality and commercial spaces

What’s Included

16.4 ft Reel (IP54):

• 1x STL-COB LED Tape Light — 16.4 ft / 5 meters
• 6 ft lead wire + 6 ft tail wire
• (1) TL-CONKIT connector kit
• (2) TL-BLKS mounting blocks
• (2) TL-2PWR-HD power connectors

100 ft Reel (IP54):

• 1x STL-COB LED Tape Light — 100 ft
• 6 ft lead wire + 6 ft tail wire
• (1) TL-CONKIT connector kit
• (3) TL-BLKS mounting blocks
• (3) TL-2PWR-HD power connectors

Required — Sold Separately:

• 24V DC Class 2 LED Driver — ADPT-DRJ-60-24 (16.4 ft reel), ADPT-DRJ-96-24 (up to 23 ft), ADPT-DRJ-192-24 (2 zones), or ADPT-DRJ-288-24 (3 zones)
• LED Dimmer (optional) — TRIAC or ELV compatible, 24V DC side wiring only
• Mounting Channel (optional) — compatible with all American Lighting 10mm channels
