American Lighting Trulux LED Tape Light — 3500K & COB Dotless

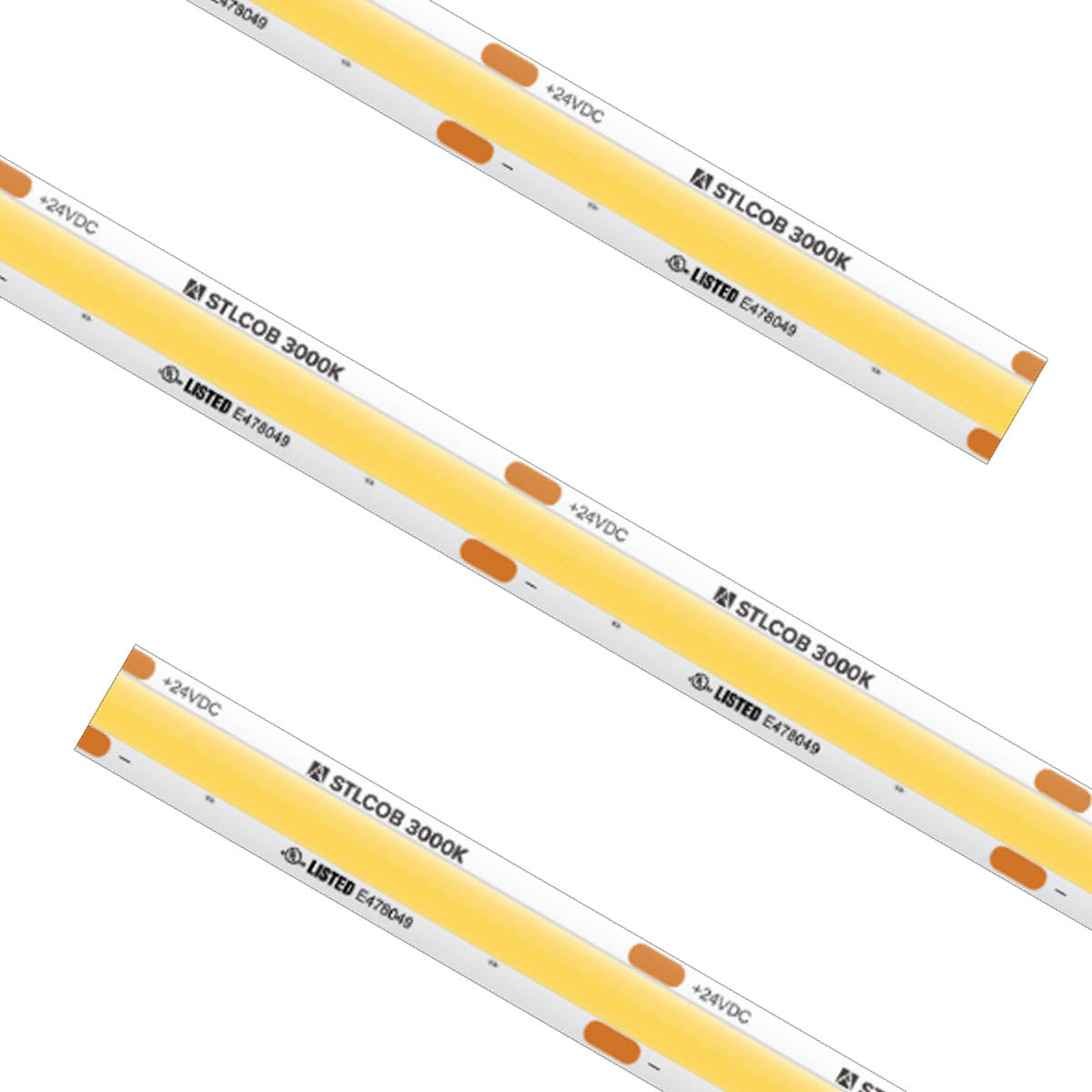

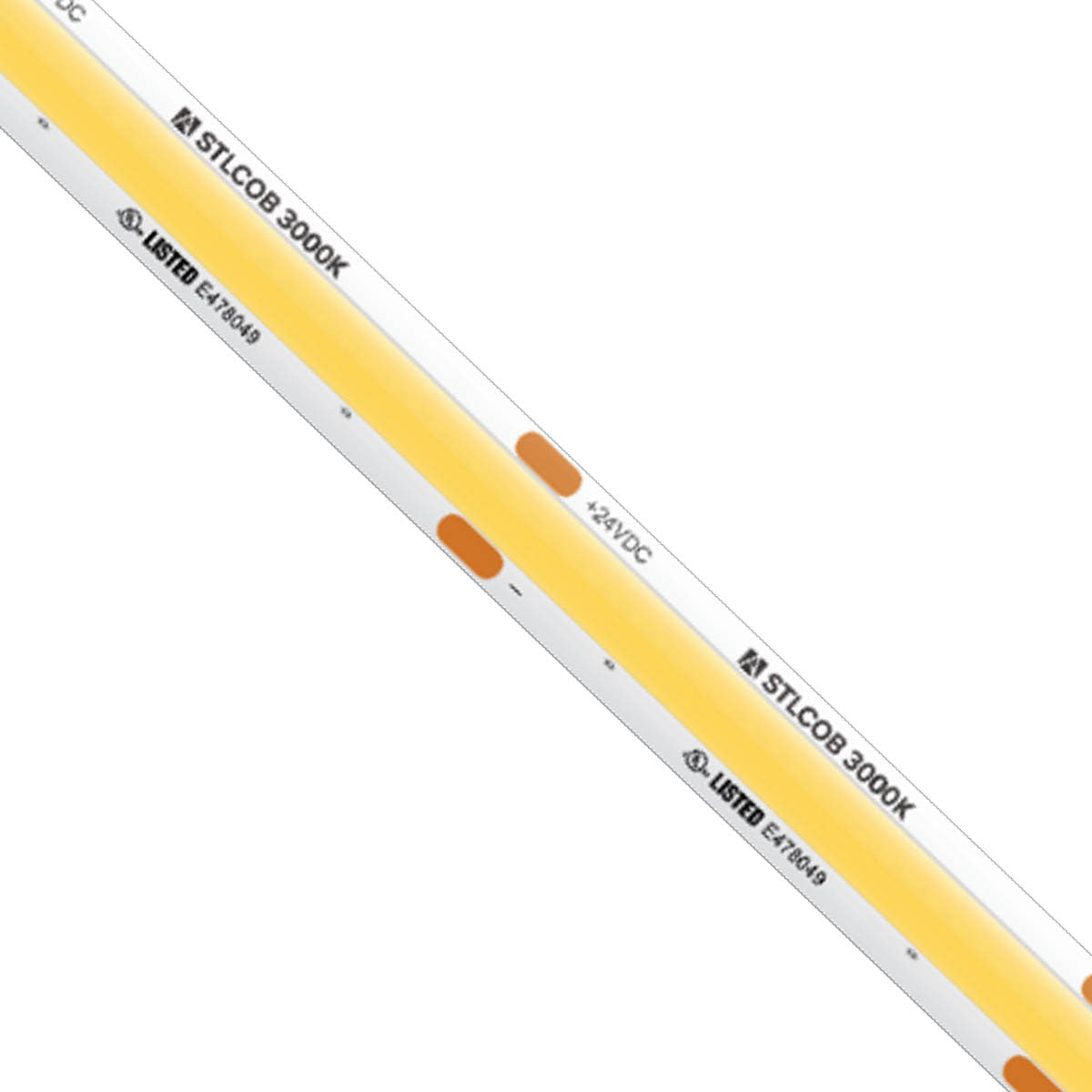

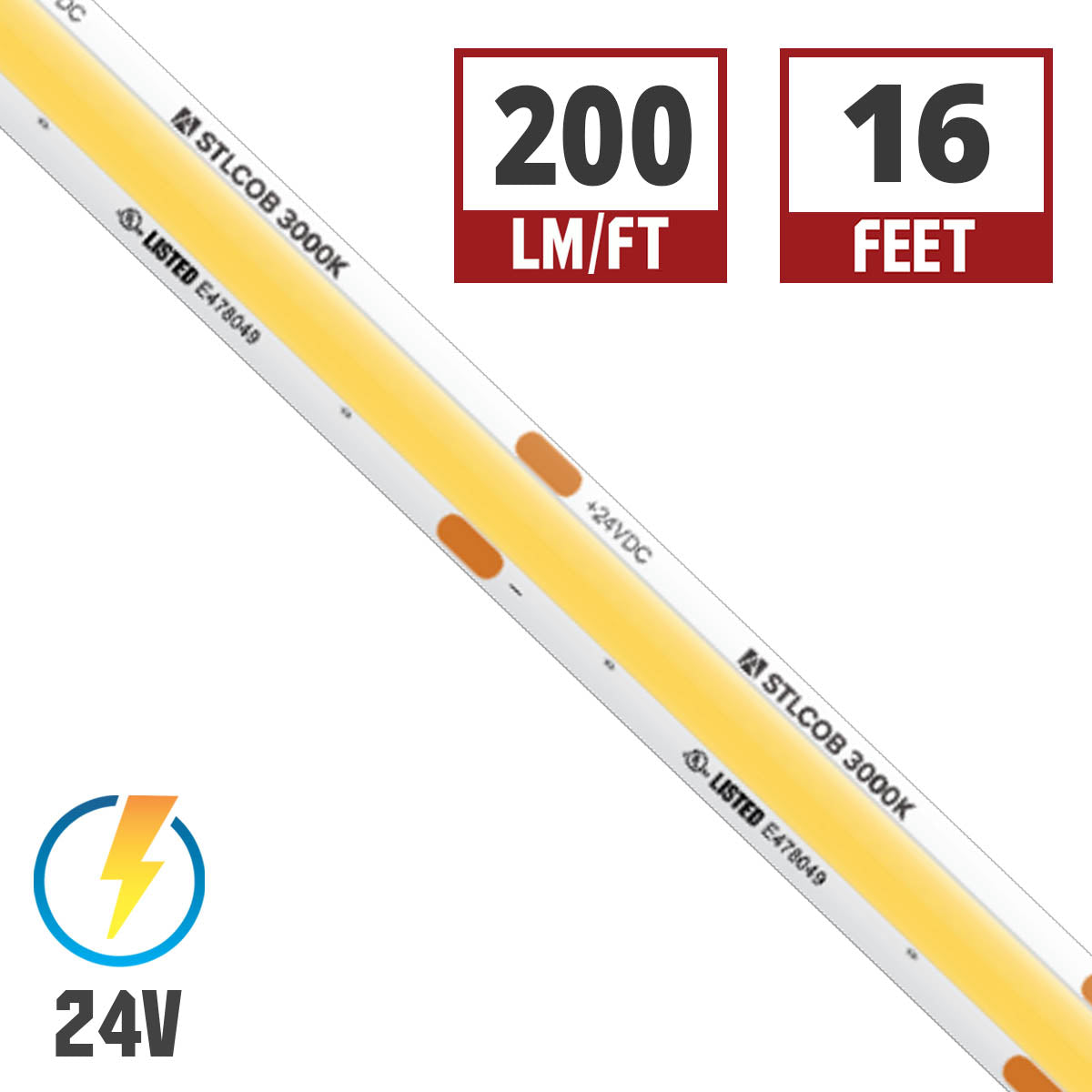

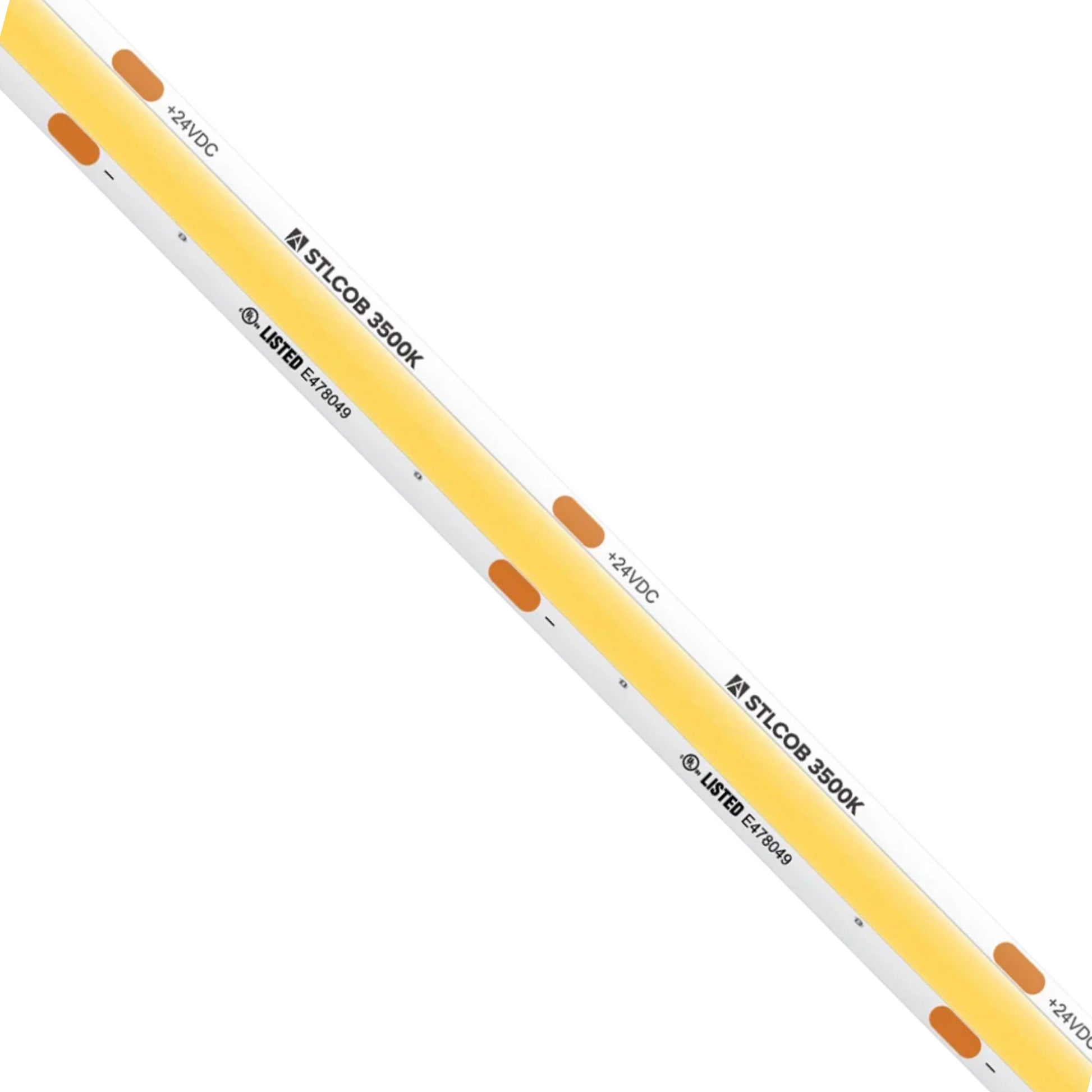

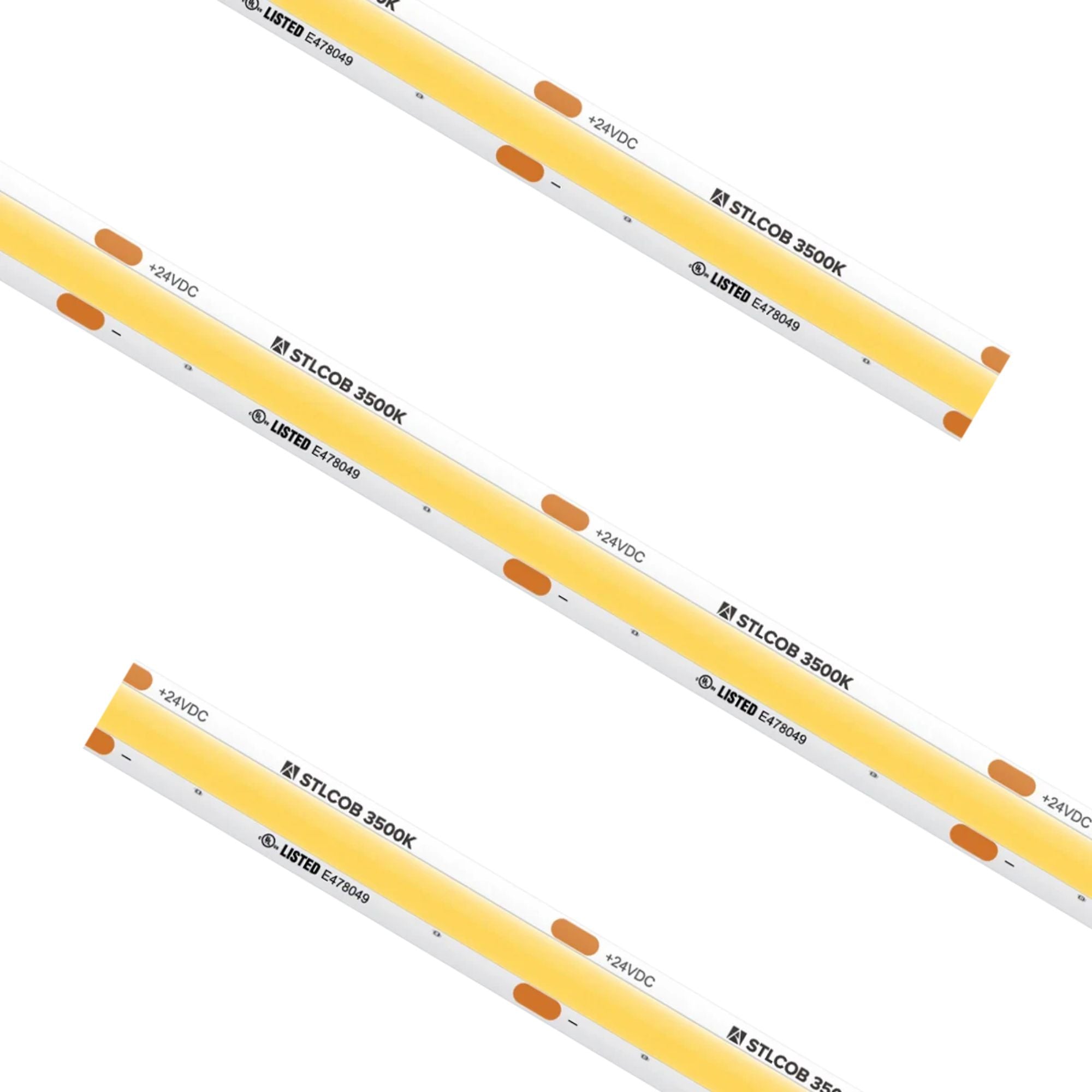

The STL-COB-NW-16 from American Lighting is a 16.4 ft LED tape light featuring COB technology for a seamless line of light. This tape light operates at 24V DC and is IP54 rated, making it suitable for damp locations. With a lumen output of 200 lumens per foot, it provides ample illumination for various applications.

Key Features

• Voltage: 24V DC for efficient energy use.
• Wattage: 2.19W per foot for optimal power consumption.
• Lumens: 200 lumens per foot for bright, consistent lighting.
• LEDs per Foot: Seamless COB design eliminates visible diodes.
• Max Run: 23 feet to prevent voltage drop.

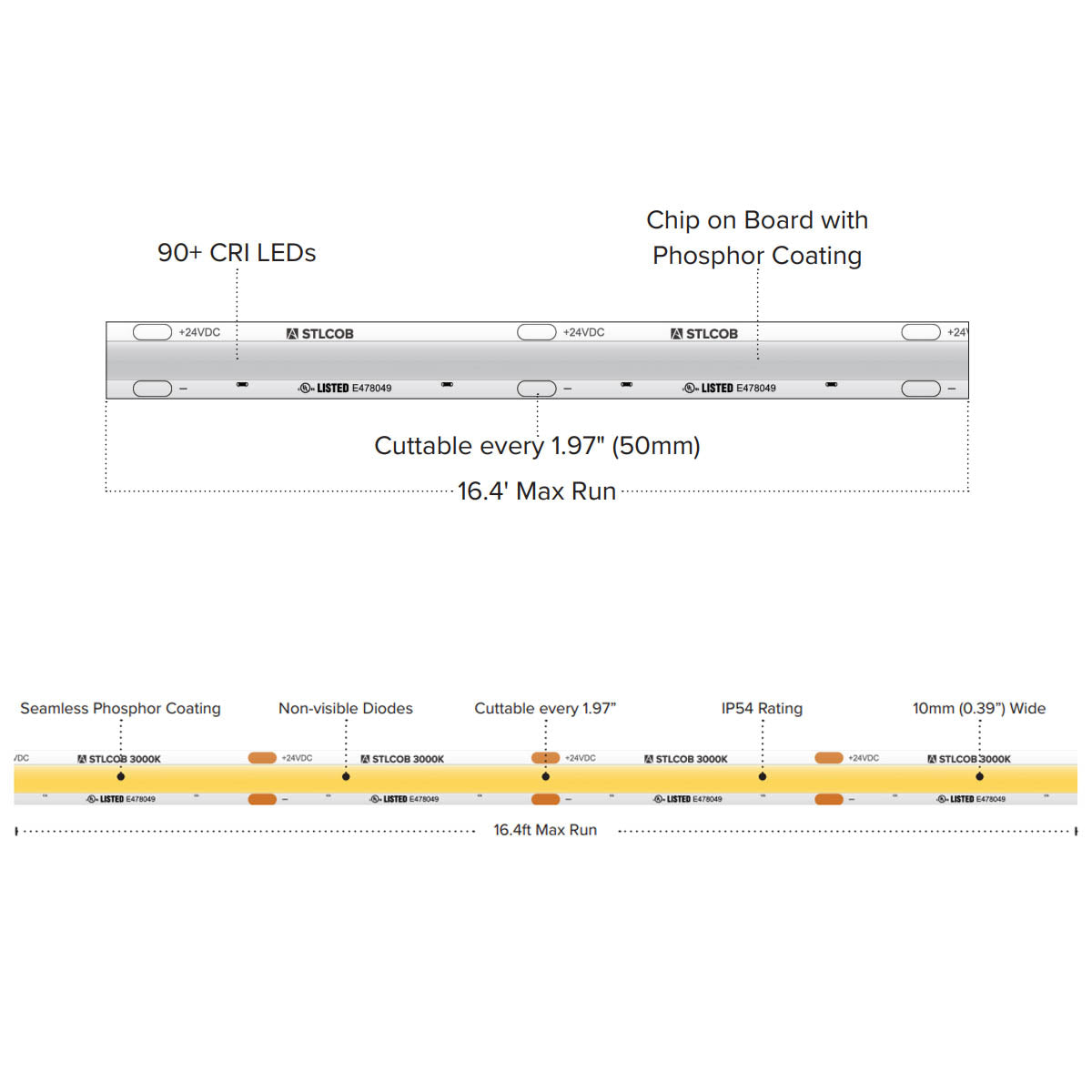

• Cut Increments: Cuttable every 1.97 inches for custom lengths.
• PCB Width: 10mm for compatibility with various channels.
• Beam Angle: 120 degrees for wide light distribution.
• IP Rating: IP54 for dust and water resistance.
• Certifications: cULus Listed for dry/damp locations.

Core Design & Construction

Designed with a 10mm wide PCB, this tape light is compatible with most aluminum channels. It features a light nano-coating for protection against moisture and dust, and uses 3M VHB adhesive backing for secure installation.

LED Illumination & Performance

With a high CRI of 90+, this tape light ensures accurate color rendering. The COB technology provides a dotless, uniform light output, ideal for applications requiring a seamless appearance.

Power, Wiring & Installation

This tape light requires a 24V DC power supply and is dimmable with most ELV and TRIAC dimmers. It can be cut every 1.97 inches, allowing for precise customization. The maximum continuous run is 23 feet to prevent voltage drop.

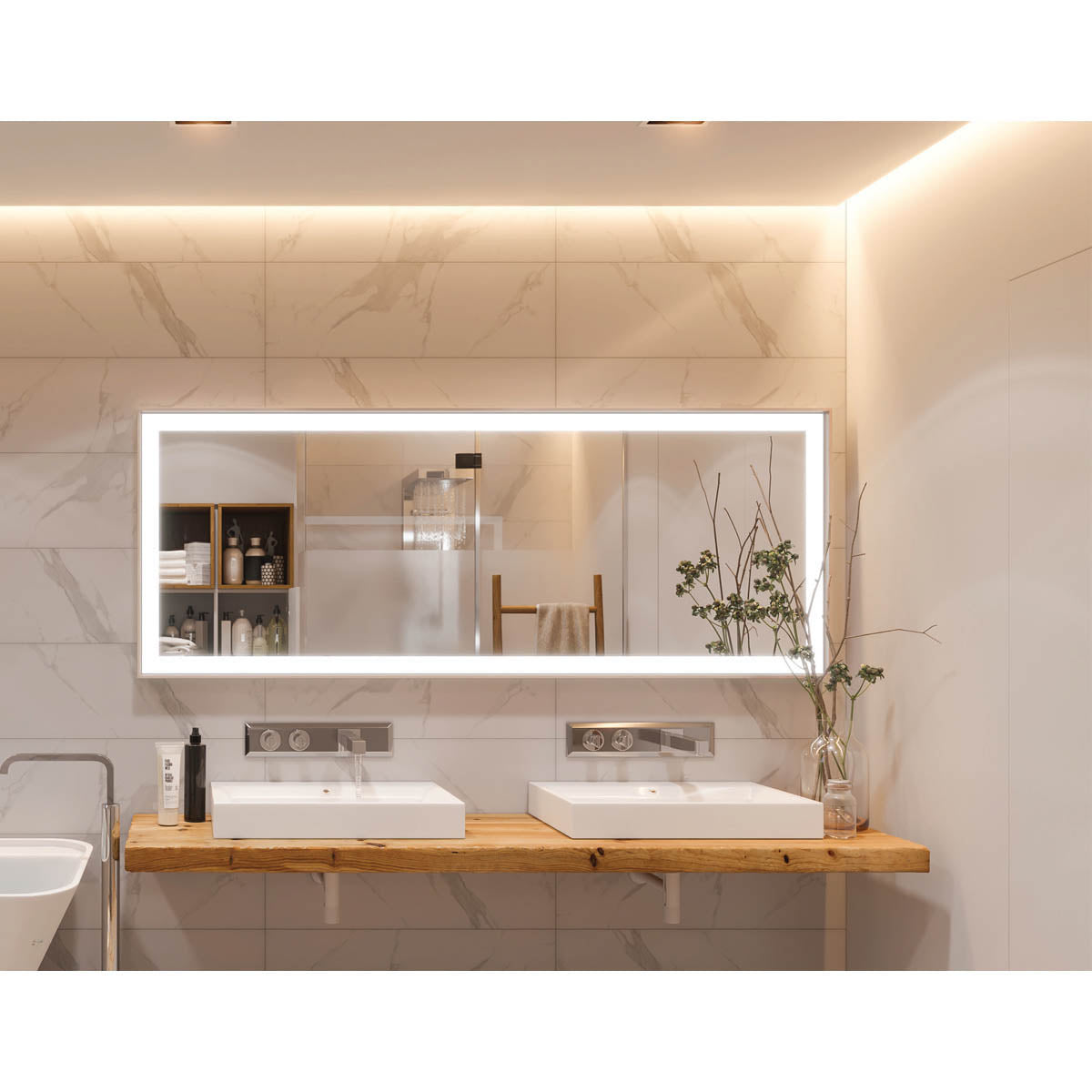

Where This Tape Works Best

• Cove lighting

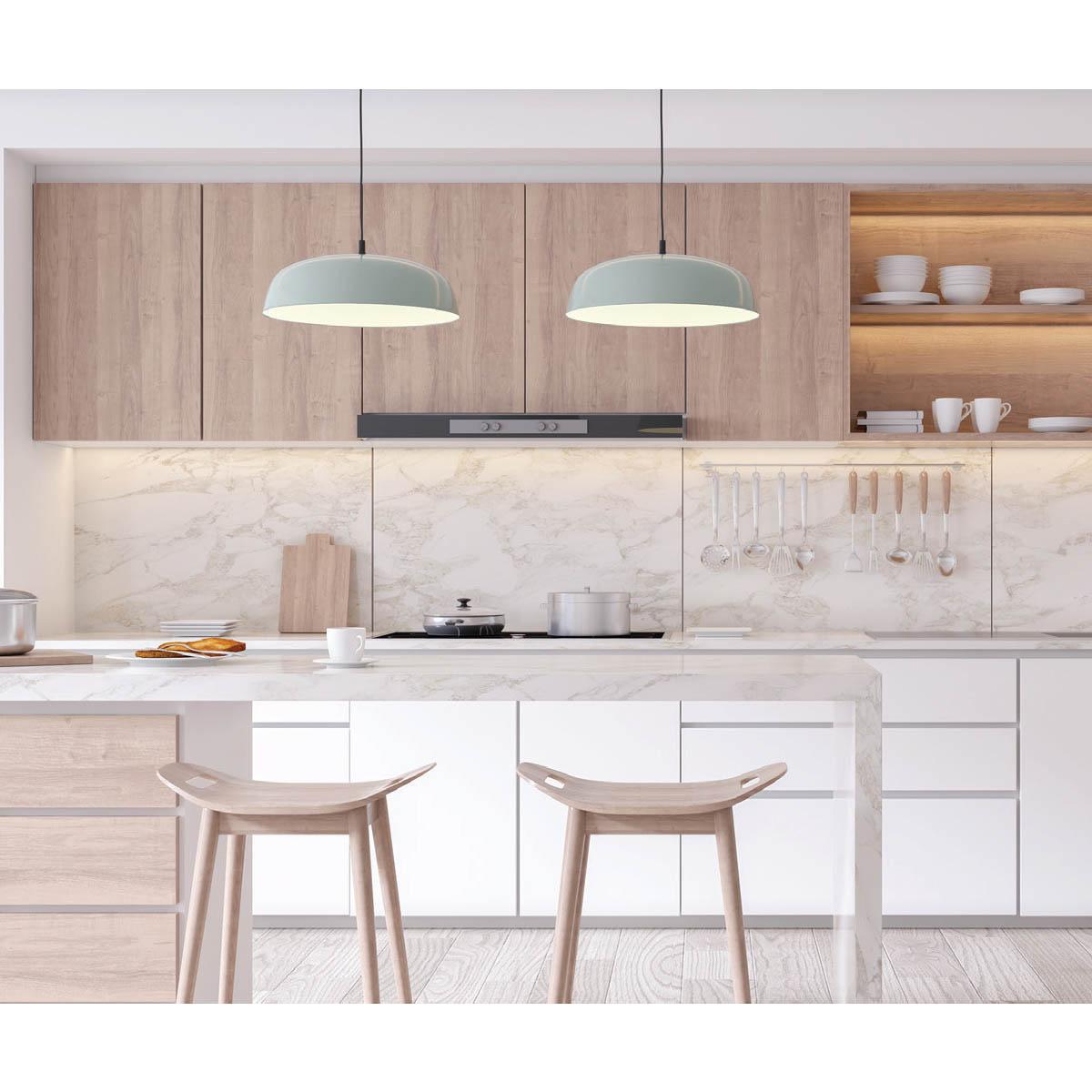

• Under cabinet lighting
• Accent lighting
• Display case lighting
• Retail environments

What's Included

• 16.4 ft reel of tape light
• 6 ft lead and tail
• (1) TL-CONKIT
• (2) TL-BLKS
• (2) TL-2PWR-HD
