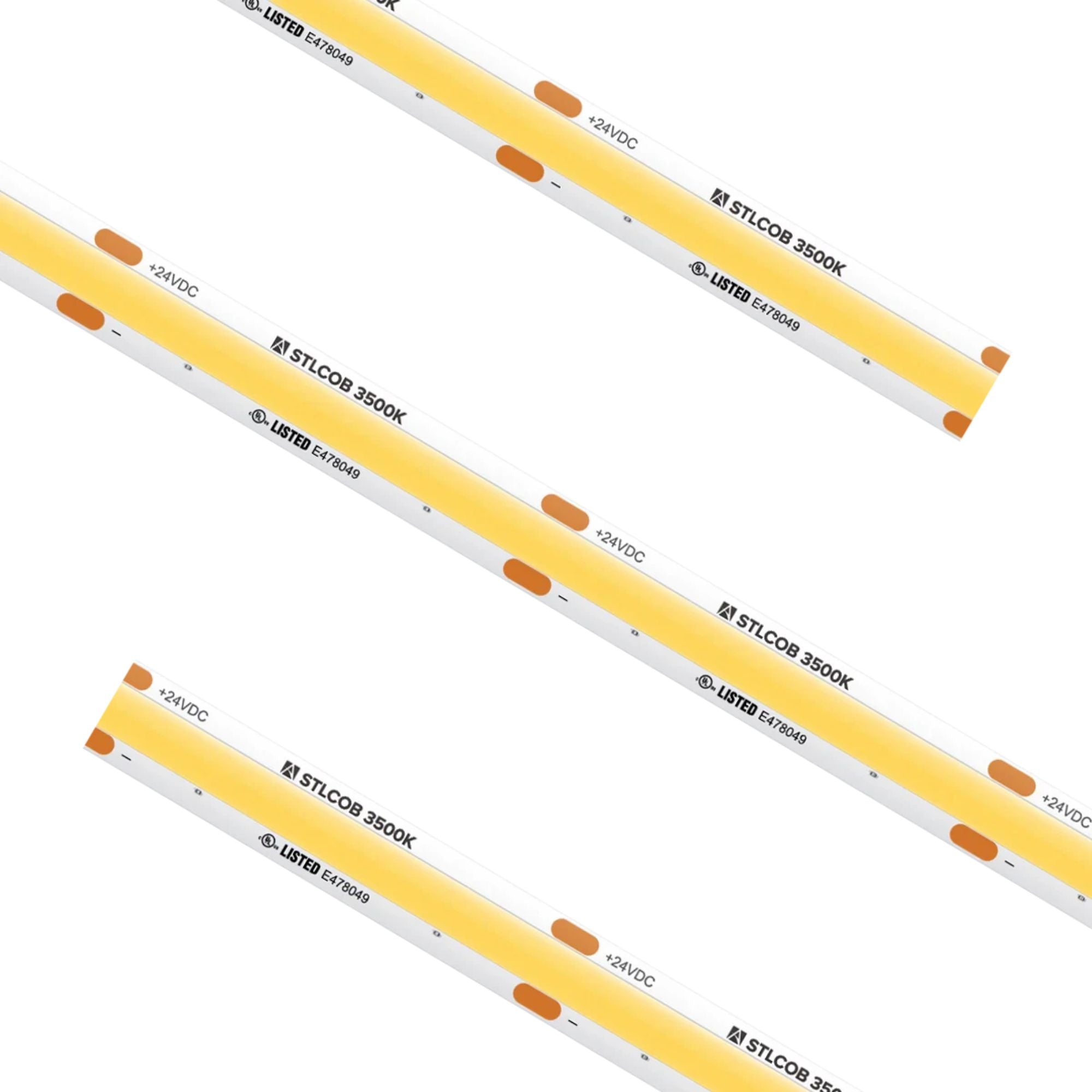

Trulux, 100ft, COB Tape Light, IP54, 3500K, 200 Lumens/ft, 24V
Available in stock (128)
About this item
About this item
- Voltage: Operates on 24V DC for efficient power consumption.
- Color Temperature: Provides a neutral white light at 3500K.
- Max Run: Supports up to 23ft continuous run to minimize voltage drop.
- Cuttable: Field cuttable every 1.97 inches for custom installations.
- IP Rating: IP54 rated for protection against dust and moisture in damp locations.
We process payments securely and do not store credit card information.
Description
Description

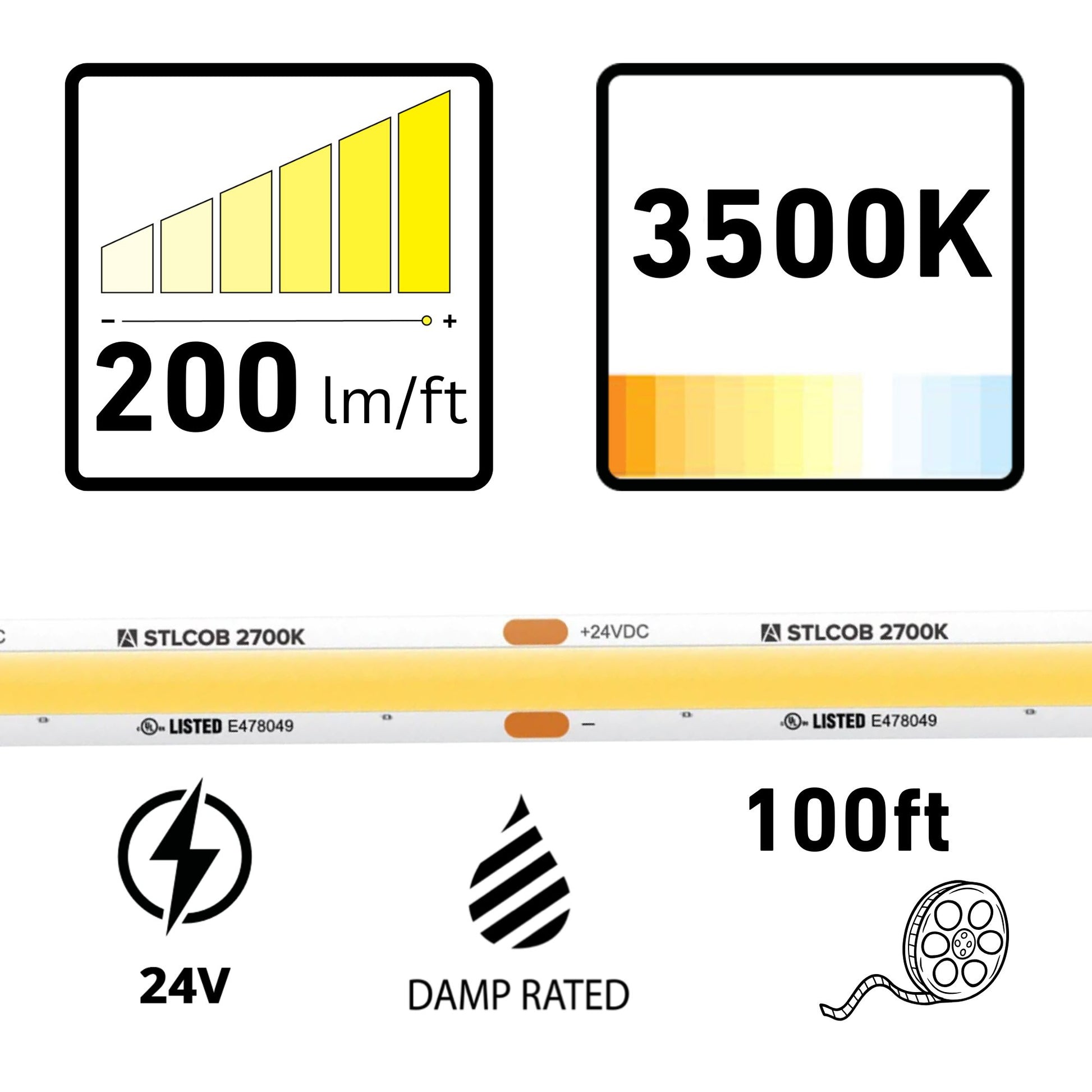

Trulux COB Tape Light — 3500K & Seamless Illumination
The Trulux STL-COB-NW-100 is a 100ft COB tape light designed for seamless illumination. Featuring a 24V DC input, this tape light is IP54 rated for damp locations, making it ideal for various indoor applications. With a 3500K color temperature, it provides a neutral white light suitable for numerous environments.
Key Features
- Voltage: 24V DC ensures efficient power usage.
- Wattage: Consumes 2.19W per foot.
- Lumens: Delivers 200 lumens per foot for bright illumination.
- LEDs per Foot: Seamless COB design eliminates visible diodes.
- Max Run: Supports up to 23ft continuous run.
- Cuttable: Can be cut every 1.97 inches for custom lengths.
- PCB Width: 10mm width for compatibility with standard channels.
- Beam Angle: 120-degree beam angle for wide light distribution.
- IP Rating: IP54 for protection against dust and moisture.
- Certifications: cULus Listed for dry and damp locations.
Core Design & Construction
The tape light features a 10mm wide PCB, suitable for most aluminum channels. It includes a protective nano-coating for moisture resistance and uses 3M VHB adhesive backing for secure installation.
LED Illumination & Performance
With a lumen output of 200 lumens per foot and a CRI of 90+, this COB tape light ensures high-quality, consistent lighting with a seamless appearance.
Power, Wiring & Installation
Requires a 24V DC power supply, with field-cuttable increments every 1.97 inches. Maximum continuous run is 23ft to prevent voltage drop. Compatible with most ELV and TRIAC dimmers for adjustable brightness.
Where This Tape Works Best
- Cove lighting
- Under cabinet lighting
- Accent lighting
- Display case lighting
- Closet lighting
What's Included
- 100ft reel of COB tape light
- 6ft lead and tail
- (1) TL-CONKIT
- (3) TL-BLKS
- (3) TL-2PWR-HD
Specifications
Specifications
Dimensions
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the Trulux STL-COB-NW-100?
What is the maximum run length for the Trulux STL-COB-NW-100?
How often can the Trulux STL-COB-NW-100 be cut?
How often can the Trulux STL-COB-NW-100 be cut?
What voltage is required for the Trulux STL-COB-NW-100?
What voltage is required for the Trulux STL-COB-NW-100?
Is the Trulux STL-COB-NW-100 suitable for damp locations?
Is the Trulux STL-COB-NW-100 suitable for damp locations?
What type of dimmers are compatible with the Trulux STL-COB-NW-100?
What type of dimmers are compatible with the Trulux STL-COB-NW-100?
