American Lighting Trulux LED Tape Light — RGBTW & Dynamic Color Mixing

The American Lighting SPTL-RGBTW is a versatile LED tape light that offers dynamic RGB + tunable white lighting from 2700K to 6000K. This 13.1ft tape light operates on 24V and is IP54 rated, making it suitable for indoor dry and damp locations. With a lumen output of up to 410Lm per foot, it provides vibrant and customizable lighting solutions.

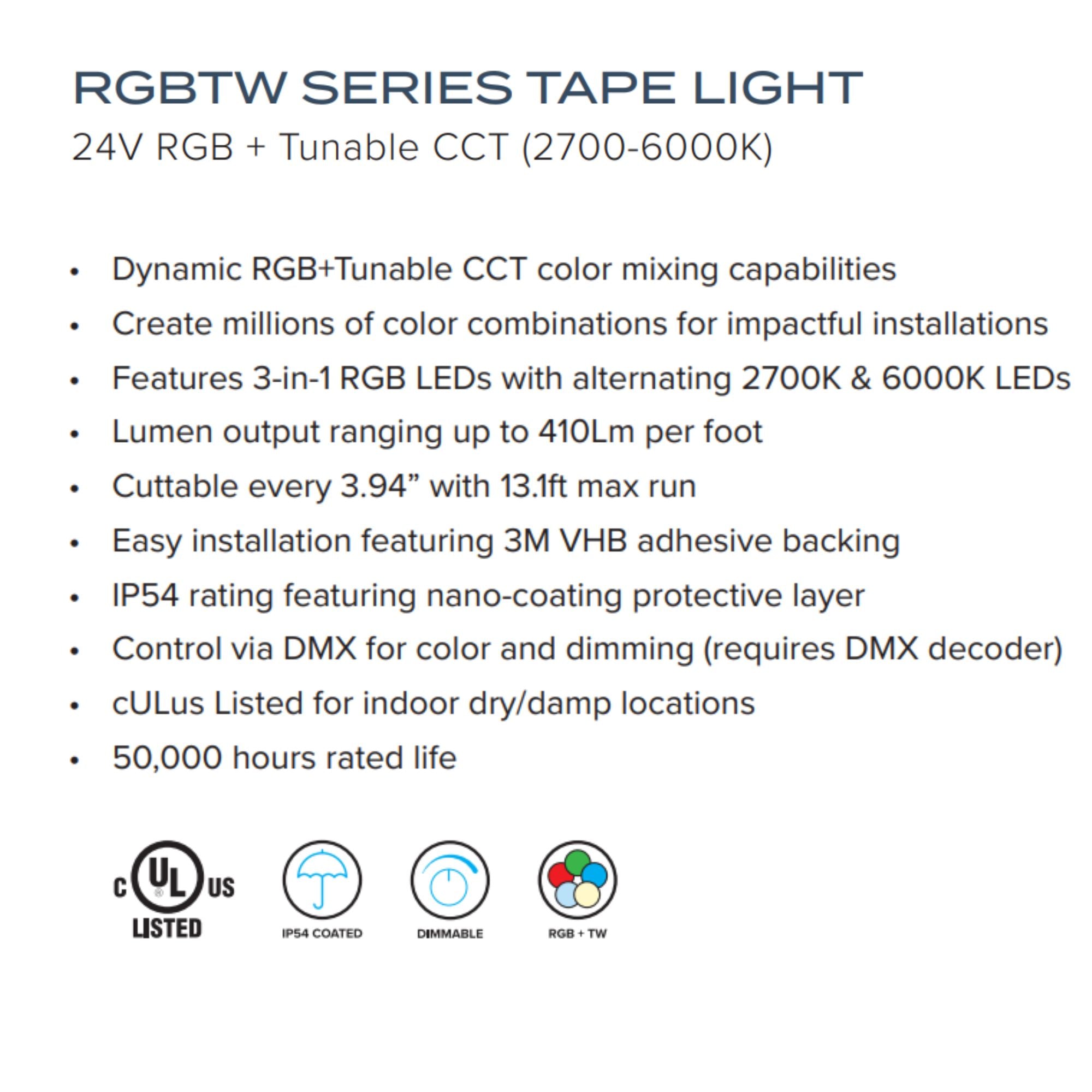

Key Features

• Voltage: 24V operation for efficient energy use.
• Wattage: Consumes 7W per foot.
• Lumens: Up to 410Lm per foot for bright illumination.

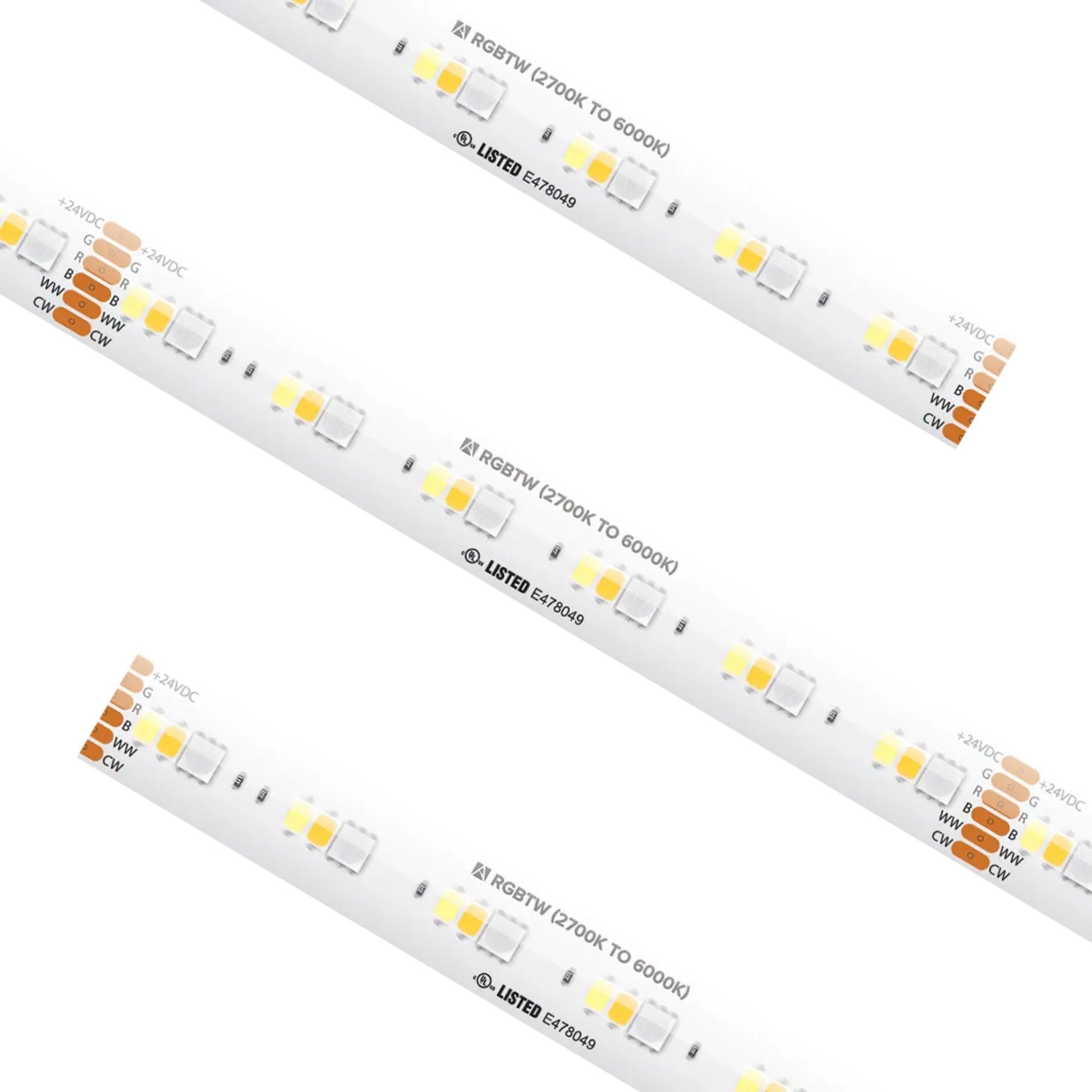

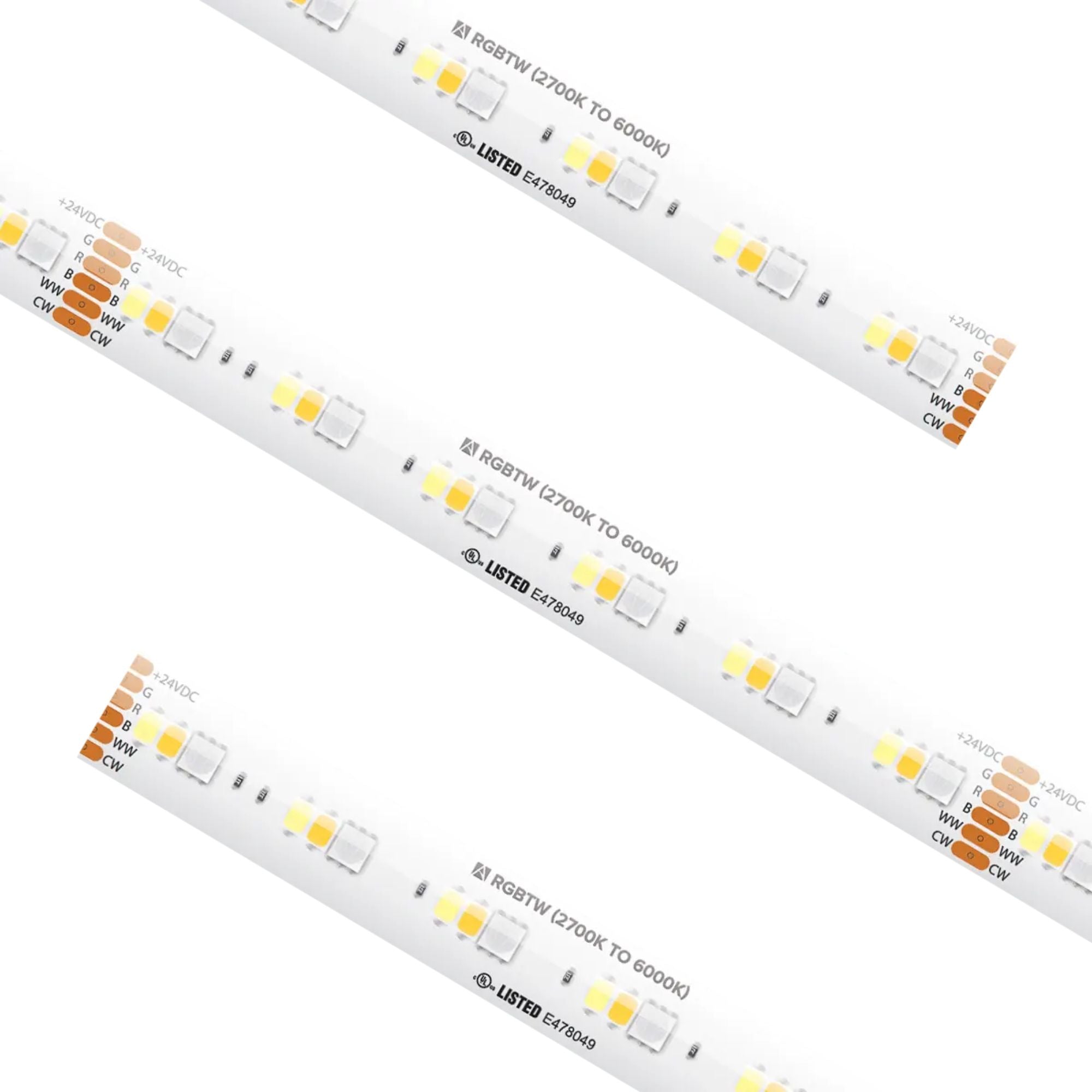

• LEDs per Foot: Features 3-in-1 RGB LEDs with alternating 2700K & 6000K LEDs.
• Max Run: Supports up to 13.1ft to prevent voltage drop.
• Cuttable: Cuttable every 3.94 inches for custom installations.
• PCB Width: 0.47 inches for compatibility with various channels.
• Beam Angle: 120 degrees for wide light distribution.
• IP Rating: IP54 with nano-coating for moisture and dust protection.
• Certifications: cULus Listed for dry/damp locations.

Core Design & Construction

The tape light features a 12mm wide PCB, ensuring compatibility with most aluminum channels. It includes a nano-coating protective layer and 3M VHB adhesive backing for secure installation in dry and damp environments.

LED Illumination & Performance

With up to 410 lumens per foot and a CRI of 90+, this tape light delivers high-quality illumination. The RGB + tunable CCT technology allows for a wide range of color options and white light adjustments.

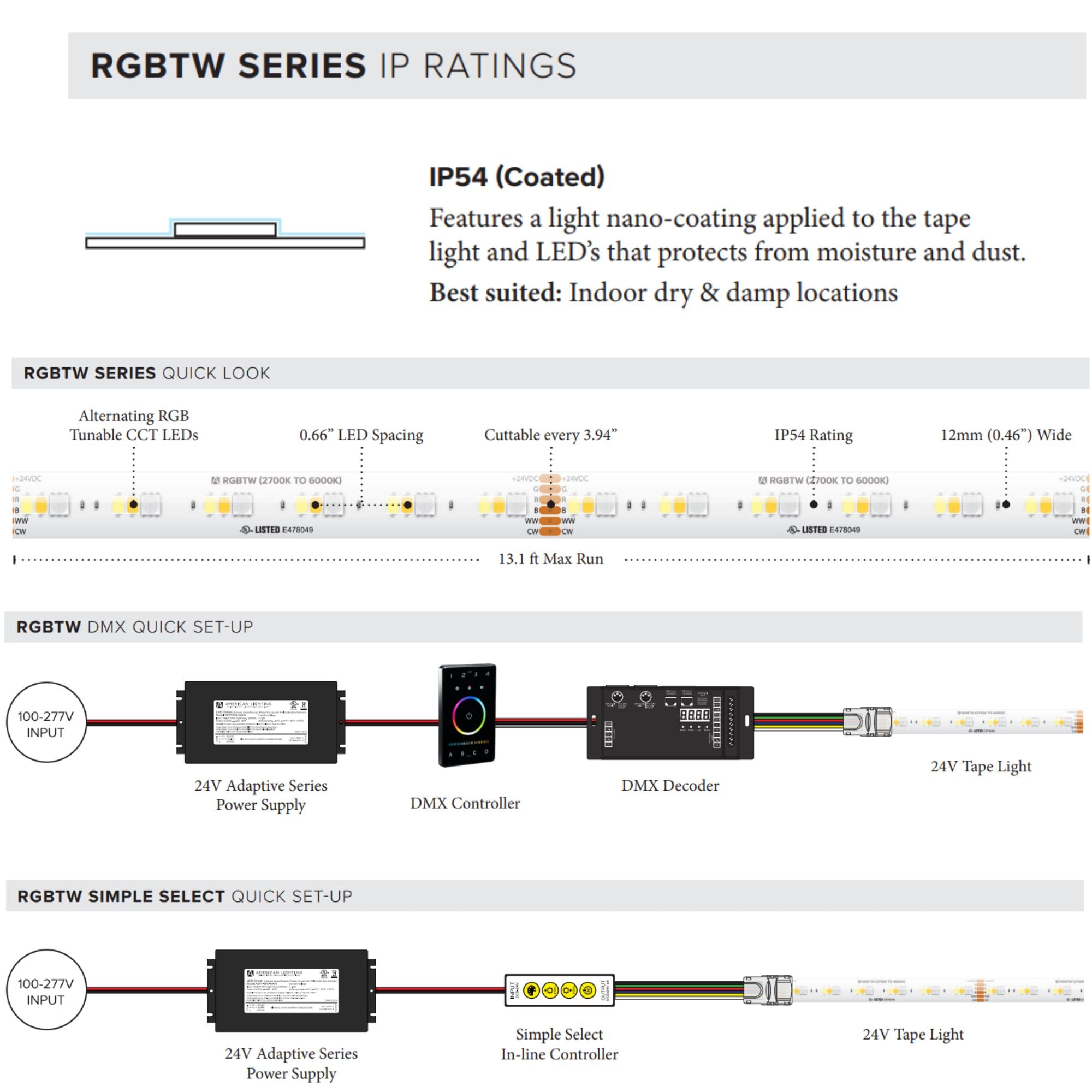

Power, Wiring & Installation

This 24V tape light requires a compatible driver and is cuttable every 3.94 inches. It supports a maximum continuous run of 13.1ft and is dimmable via DMX control.

Where This Tape Works Best

• Cove lighting
• Under cabinet lighting
• Accent lighting
• Retail displays

What's Included

• 13.1ft LED tape light spool
• 3M VHB adhesive backing
