American Lighting Trulux RGB + Tunable White LED Tape Light - 2700K-6000K

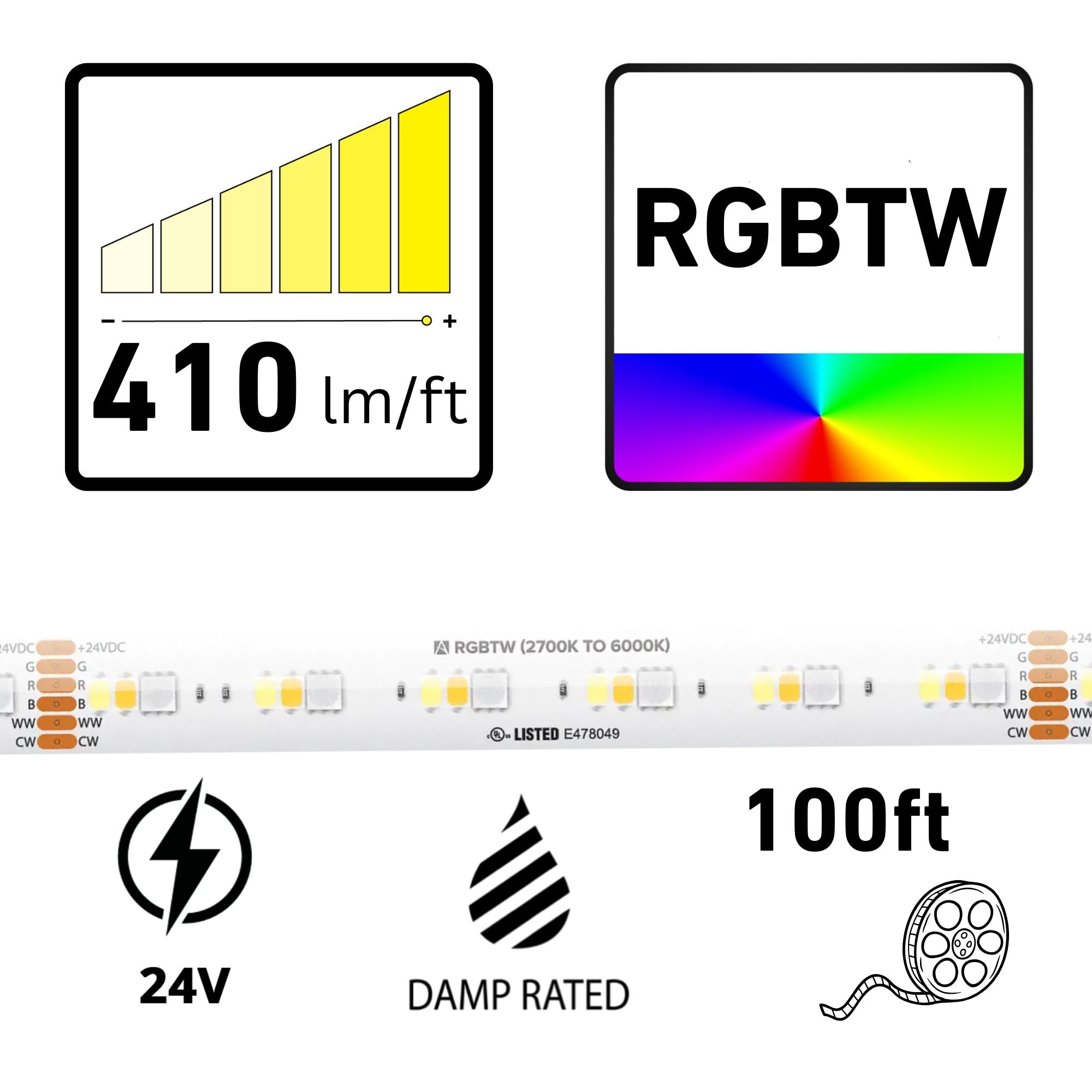

American Lighting SPTL-RGBTW-100 supplies a 100 ft reel of RGB plus tunable white tape rated 24V DC and 7W/ft, with output up to 410 lumens/ft and a 13.1 ft maximum continuous run. The IP54 nano-coated tape is cULus Listed for indoor dry and damp locations. Divide the 100 ft reel into runs within the 13.1 ft limit.

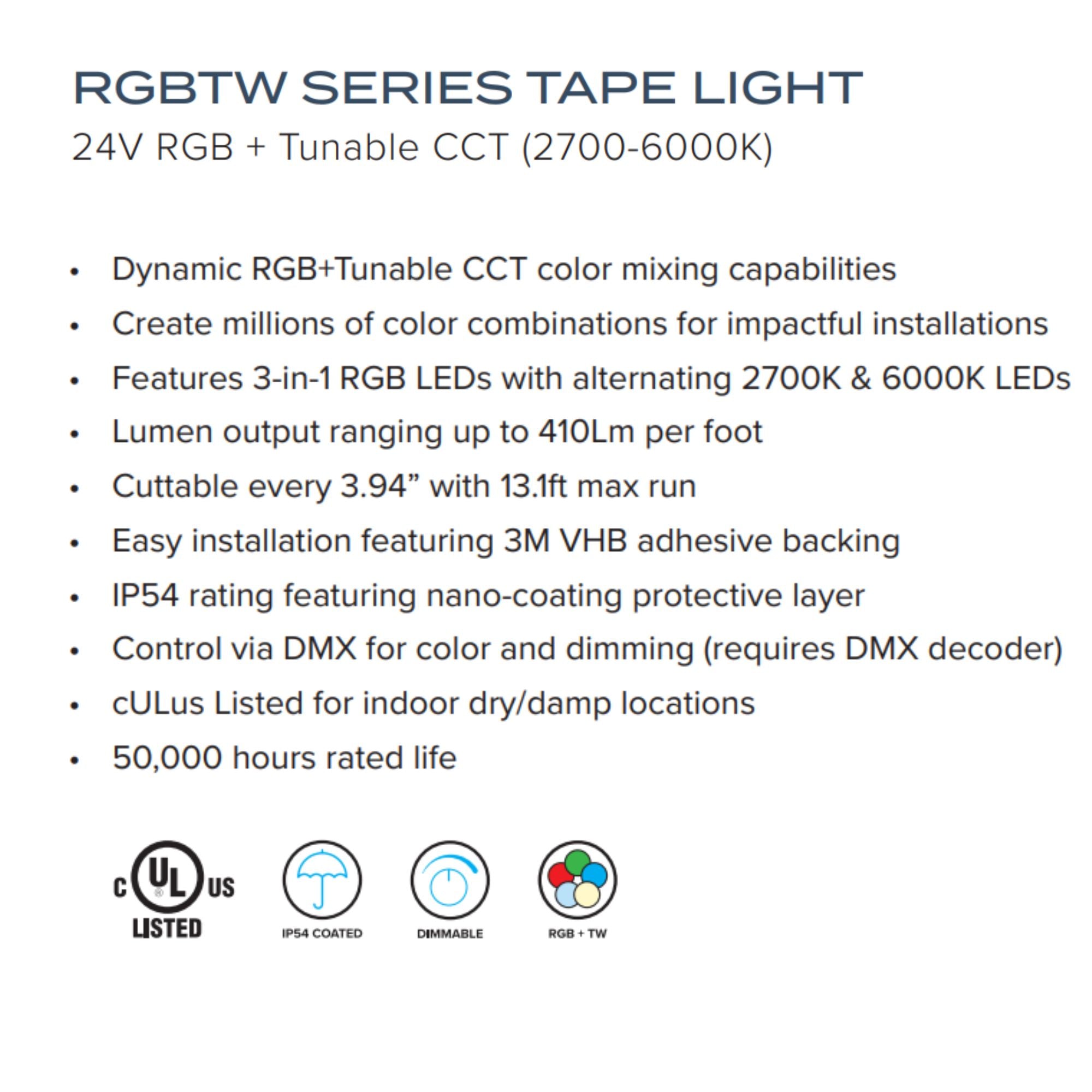

Key Features

  • Color Mixing: RGB colors combine with dedicated white-light tuning from 2700K to 6000K.

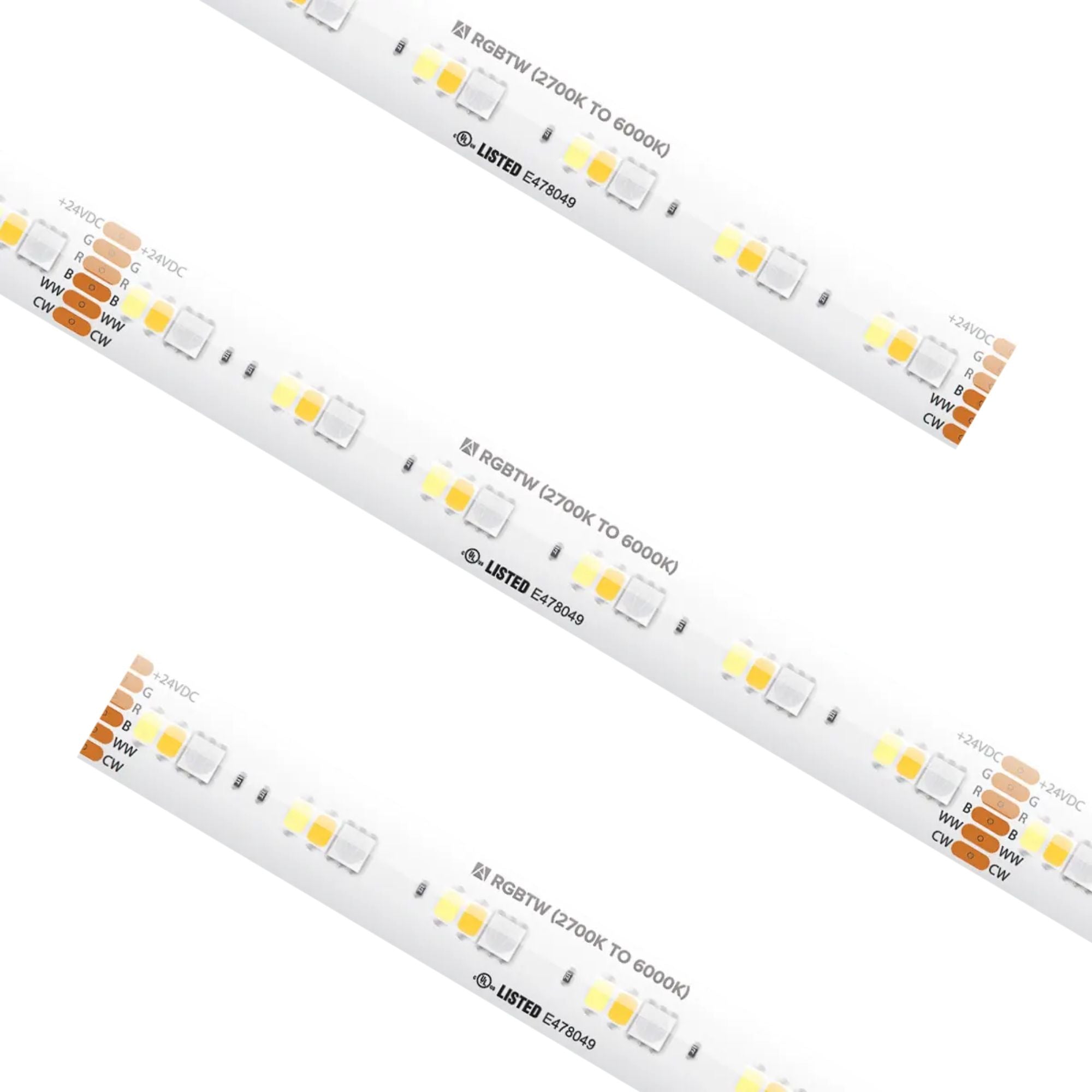

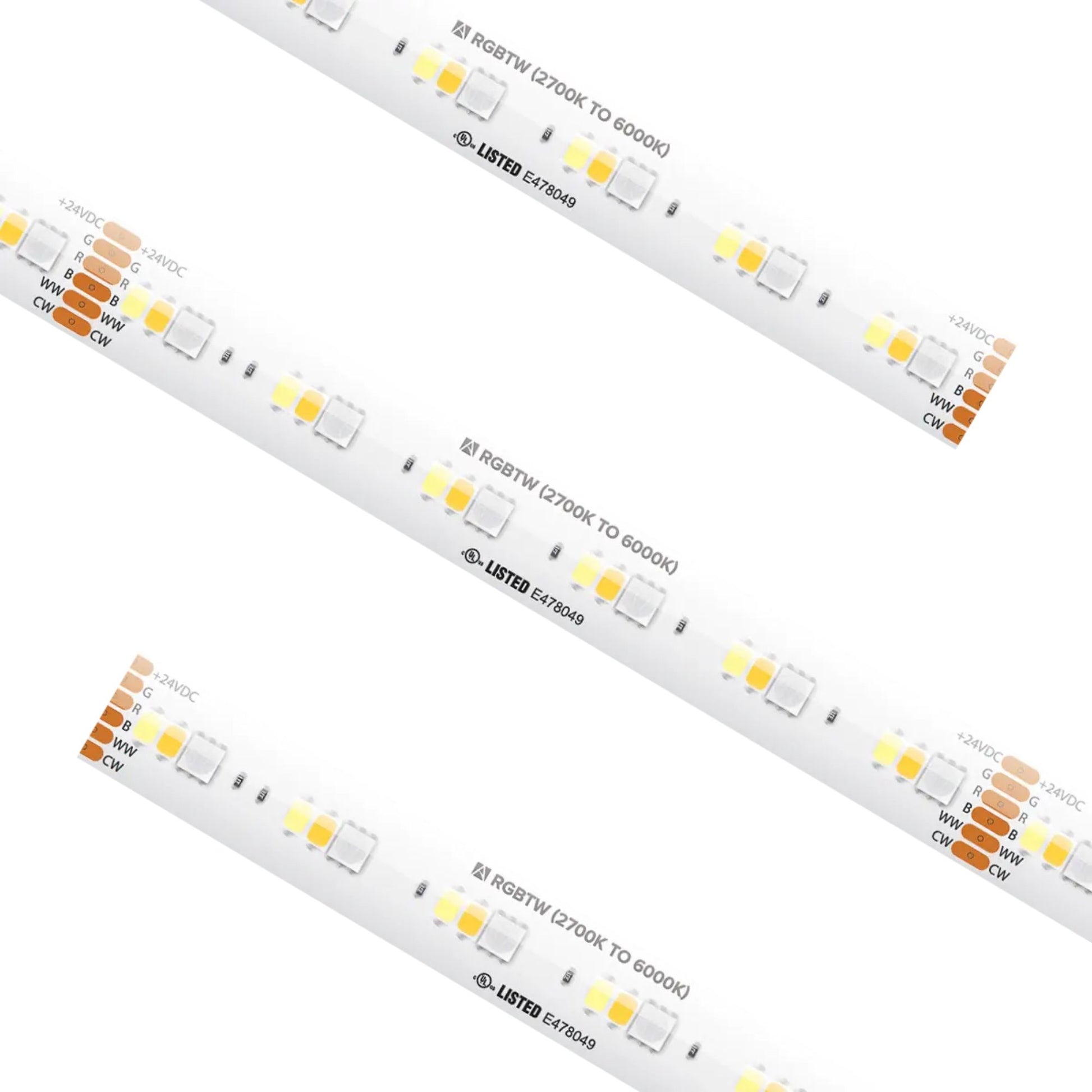

  • LED Design: 3-in-1 RGB LEDs alternate with 2700K and 6000K LEDs.
  • Power: Rated consumption is 7W per foot at 24V DC.
  • Output: Up to 410 lumens per foot; the sheet also lists 90+ CRI without channel-specific test conditions.
  • Run & Cutting: Maximum continuous run is 13.1 ft, with designated cut points every 3.94 in (100 mm).
  • Control: 5-100% dimming requires a secondary-side controller such as DMX.
  • Beam: Published beam angle is 120 degrees.

Core Design & Construction

The specified profile is 0.47 in (12 mm) wide by 0.06 in (1.65 mm) high, with 3M VHB adhesive backing. A nano-coating protects the tape and LEDs from moisture and dust. Listed compatible channels include Economy EE1-AAFR, GT PE-GT and GTX PE-GTX; nominal width alone does not establish compatibility with an unlisted channel.

LED Illumination & Performance

Dedicated white LEDs allow white-light tuning independently of relying solely on RGB color mixing. The manufacturer describes color transitions and fade-to-white effects. The stated output is a maximum, not a guaranteed output for each color or CCT. Rated life is 50,000 hours.

Power, Wiring & Installation

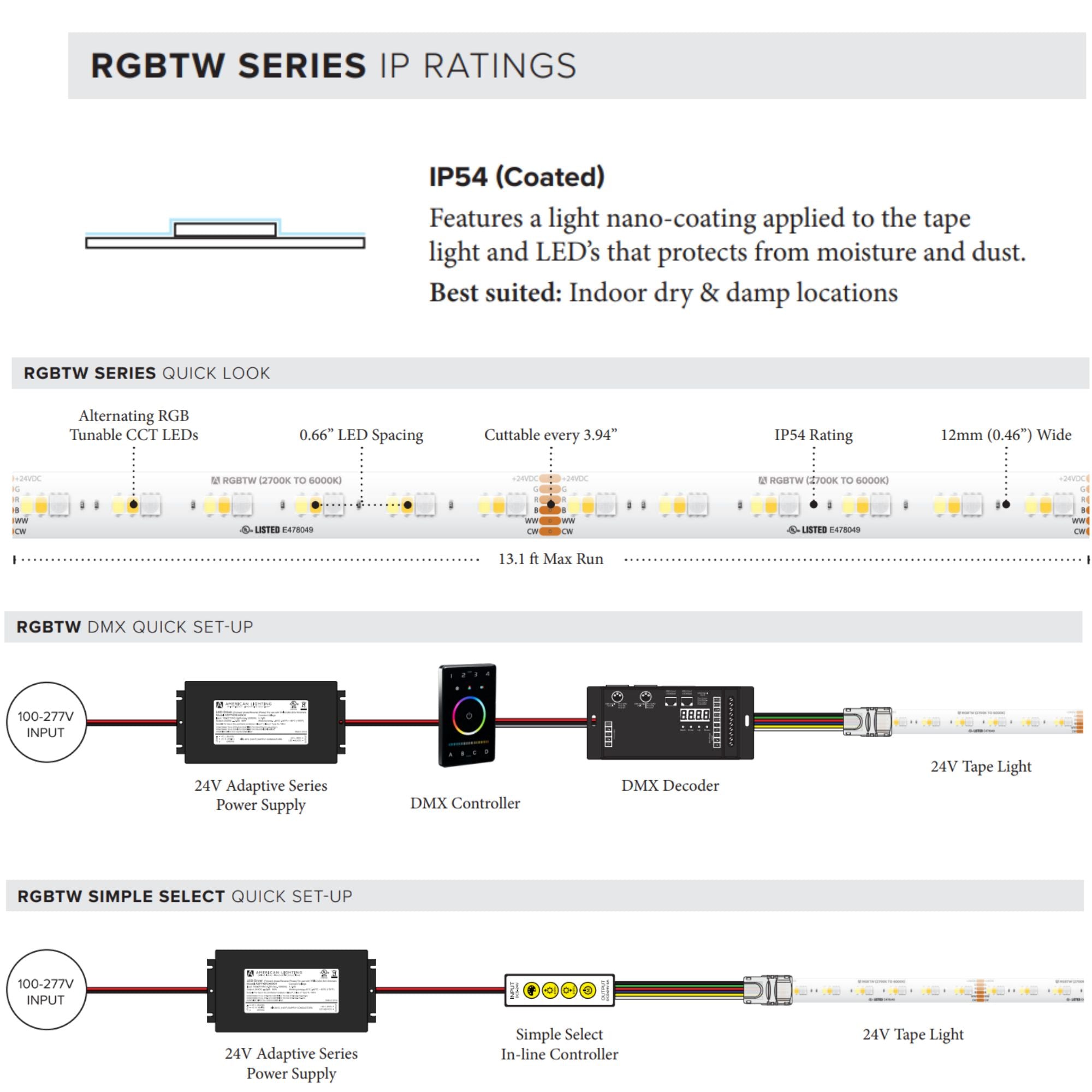

Requires a compatible 24V DC LED driver and secondary-side controller. DMX operation requires a DMX decoder; the sheet also shows Simple Select in-line control. Listed supplies include Adaptive Series ADPT-DRJ-30-24, ADPT-DRJ-60-24, ADPT-DRJ-96-24, ADPT-DRJ-192-24 and ADPT-DRJ-288-24, subject to load limits. Supply phase-dimming capability does not replace the tape's required color controller.

Where This Tape Works Best

Use for manufacturer-described indoor color-changing linear lighting and tunable white effects in dry or damp locations. No outdoor suitability is established.

What's Included

  • 100 ft tape reel with 6 ft lead and 6 ft tail.
  • 3 TL-6PWR-HD power feeds.

Specifications

Dimensions

Length/Depth
1200 in
Width/Diameter
0.47 in
Height
0.06 in
Weight
3.2 lb

Characteristics & Features

Lamp Color
RGBTW
Color Rendering
90 CRI
Beam Angle
120
Dimmable
Yes

Electrical Information

Voltage
24V

Item Details

MPN
SPTL-RGBTW-100
Brand
American Lighting
UPC
714176040813

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
50,000 Hours
Product Rating
Damp Rated, IP54 Rated, Dry Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Does this tape provide tunable white or only RGB colors?

It provides both RGB color mixing and dedicated tunable white from 2700K to 6000K. The LED layout uses 3-in-1 RGB LEDs alternating with 2700K and 6000K white LEDs. Wi-Fi, app control and addressable-pixel operation are not established by this sheet.

What is the maximum continuous run?

The maximum continuous run is 13.1 ft. The 100 ft supplied reel must be divided into runs within that limit; it is not rated as a single 100 ft continuous run. The sheet does not provide detailed feed conditions.

Where can I cut it, and how wide is it?

Cut at designated 3.94 in (100 mm) points. The main dimensions specify 0.47 in (12 mm) width and 0.06 in (1.65 mm) height. The quick-look graphic rounds width differently to 0.46 in; confirm exact fit with the selected manufacturer-listed channel.

What power supply and controls are required?

A compatible 24V DC LED driver and secondary-side controller are required. DMX control requires a DMX decoder, while the sheet also diagrams Simple Select in-line control. Dimming is listed as 5-100%. Adaptive Series ADPT-DRJ-30-24, ADPT-DRJ-60-24, ADPT-DRJ-96-24, ADPT-DRJ-192-24 and ADPT-DRJ-288-24 supplies are listed, subject to their load limits. Driver/controller inclusion is not explicitly stated.

What is included with this reel?

The 100 ft reel includes a 6 ft lead, a 6 ft tail and 3 TL-6PWR-HD power feeds. The listed maximum output is up to 410 lumens per foot; the sheet does not establish this output for every color, white setting or channel combination.
