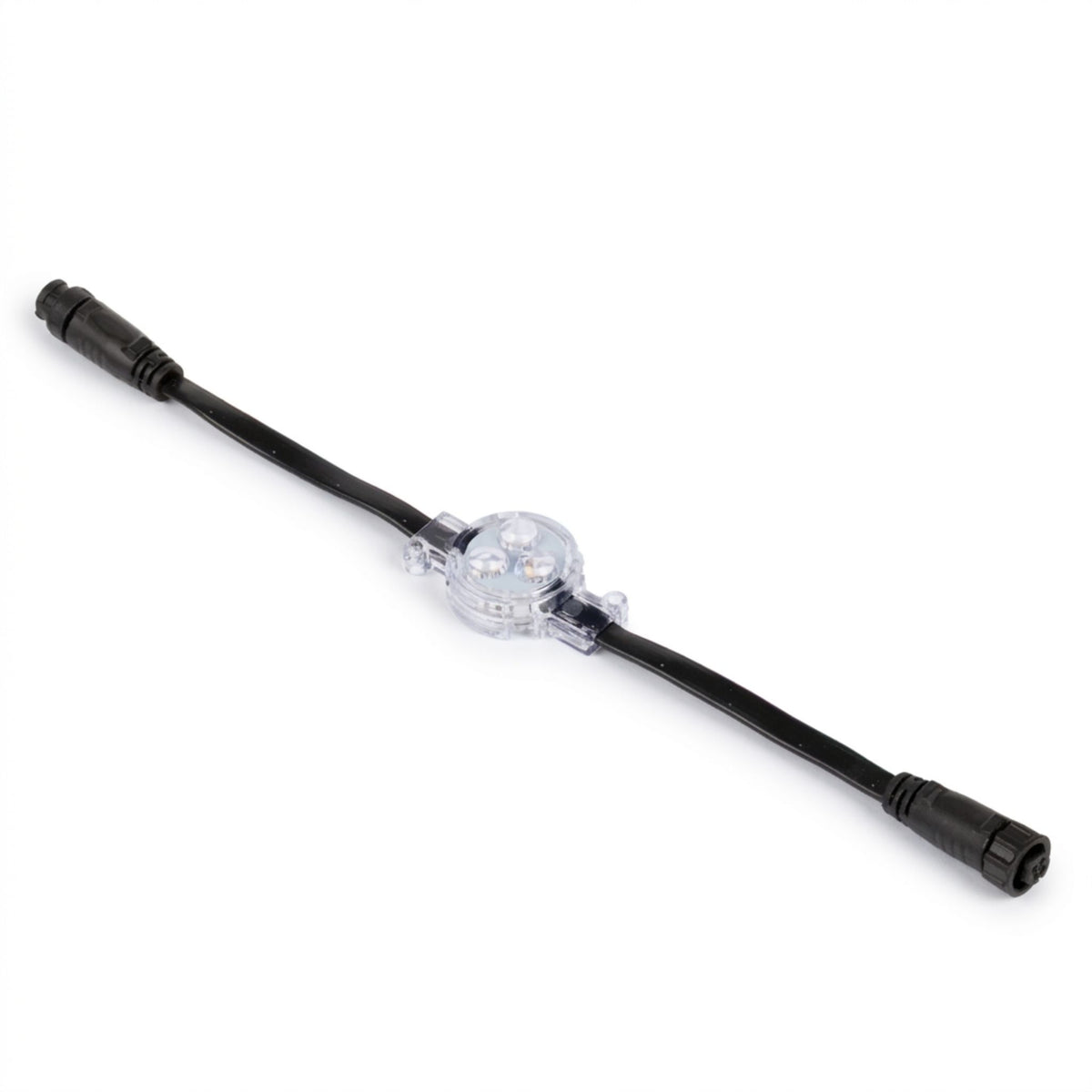

American Lighting Spektrum+ Twilight Trim Permanent Eave Lights — RGBW App Control
The SPKPL-TT-CNFG-AML combined listing offers Twilight Trim permanent eave lighting in 1, 5, 10, 25, 50 or 100-dot configurations. These 24V DC dot components are rated for wet locations and work with compatible aluminum mounting channels; a separate power/control box is required.
Key Features
- Six configurations: Select the dot quantity for each planned segment.
- RGBW engine: RGB color combines with a dedicated 3000K white channel.
- Per-dot output: Manufacturer lists 23 lumens, CRI 80+ and a 90° beam.
- Individual control: Adjust each dot or select designer presets in the Spektrum+ Smart Lighting App.
- App dimming: Adjust brightness from 0–100% through system controls.
- Outdoor dots: IP65 lighting components are rated for wet locations.
- Rated life: The specification sheet lists 25,000 hours.
Construction & Lighting Layout

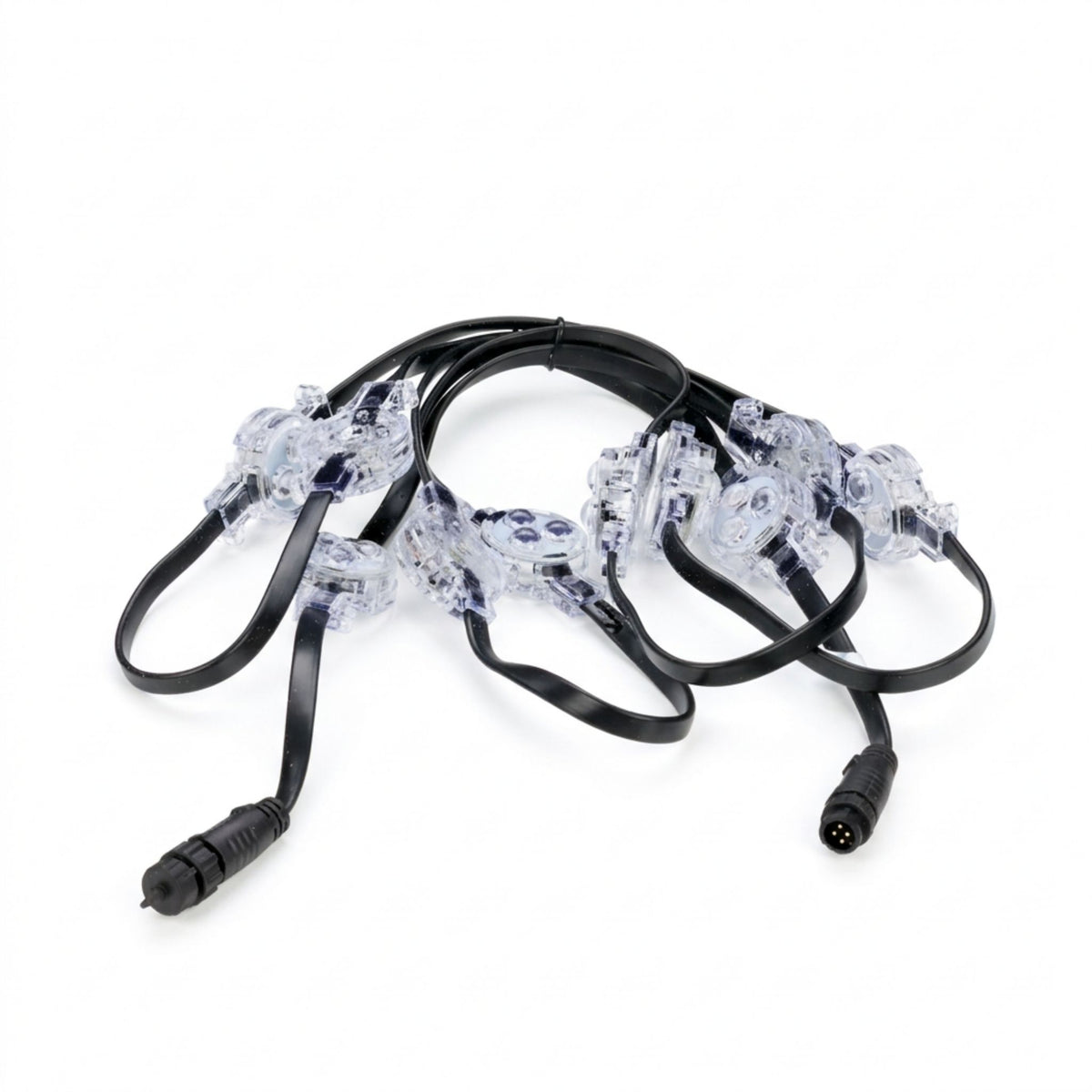

Strings have 12-inch dot spacing, while compatible channels have 9-inch hole spacing. Each string has pre-attached connectors, a 6-inch lead and a 6-inch tail. Three-pin cable uses 18 AWG power conductors and a 22 AWG data conductor.
Light Output & Color
RGBW lighting provides color effects and 3000K white. Output is specified as 23 lumens per dot; the sheet does not identify the measurement color mode. Individual-dot control and presets support year-round decorative lighting.
Power, Connections & Controls
Dots operate at 24V DC, 0.5W each. The 1/5/10/25/50/100-dot options consume 0.5/2.5/5/12.5/25/50W respectively. Maximum run is 160 dots per control/power-box port, with optional power injection for longer runs. The required separate SPKPL-TT-CTRLBOX supports app control through 2.4 GHz Wi-Fi. Standard wall-switch dimmers are not supported.
Mounting & Installation
Choose compatible surface-mount or 45° aluminum channel components for the layout. Anodized channels are field-paintable, with custom powder coating available. Prebuilt dot segments interconnect using their attached connectors; dot-wire cutting and splicing permissions are not specified in the governing sheet.
Recommended Applications
- Permanent residential eave and roofline accent lighting.
- Decorative building-perimeter lighting.
- Year-round white-light scenes and seasonal color displays.
What's Included & Required
- Selected configuration: One dot segment in the chosen quantity, with attached connectors, lead and tail.
- Required separately: Twilight Trim power/control box and suitable mounting components.
- Layout-dependent accessories: Compatible jumpers, signal boosters and power-injection components as needed.
