American Lighting Spektrum+ Twilight Trim 25-Dot Eave Light — RGBW with 3000K White

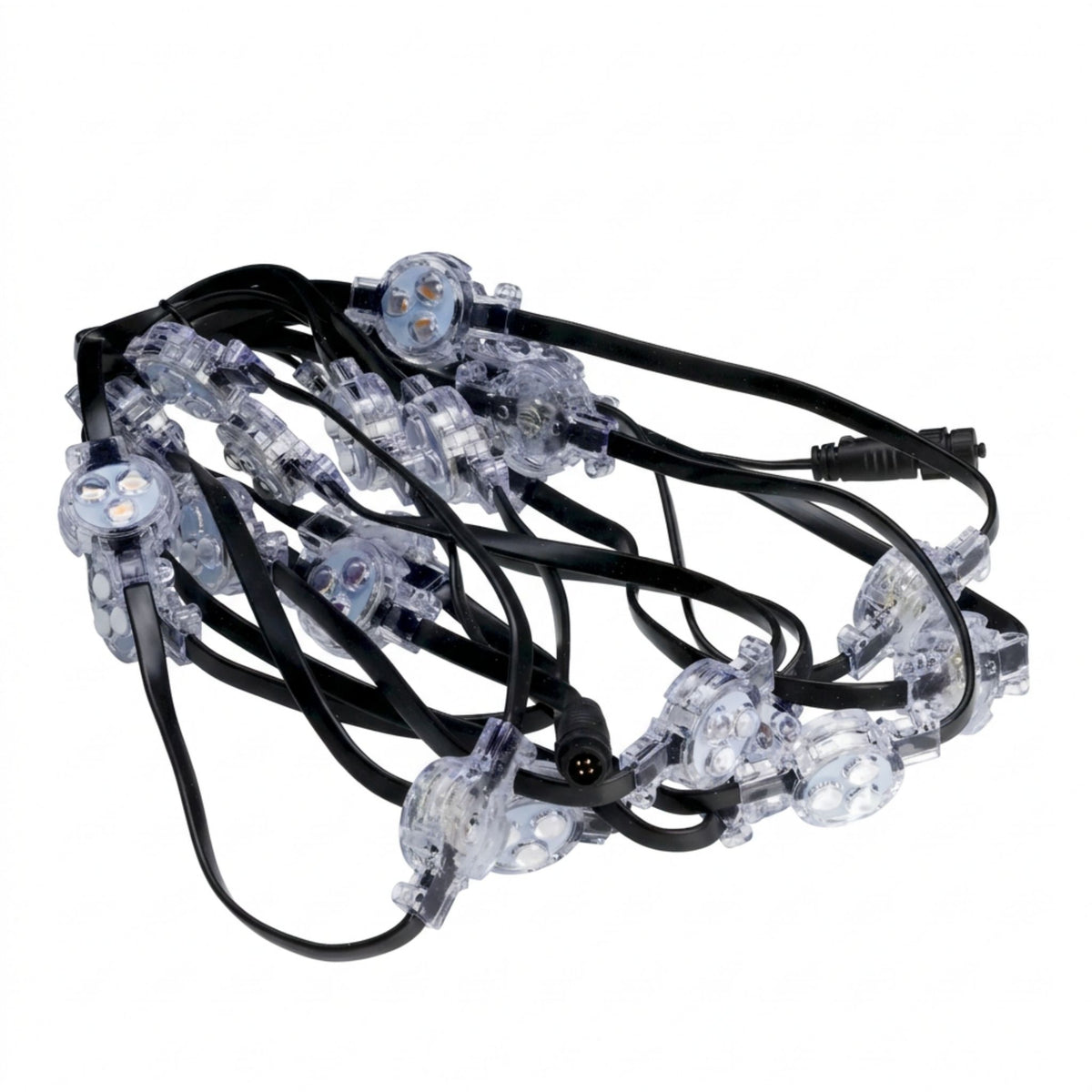

The SPKPL-TT-DOT-25 is a 25-dot component for the Spektrum+ Twilight Trim permanent eave lighting system. It operates on 24V DC and is rated for wet locations, with a separate power/control box and mounting components required for installation.

Key Features

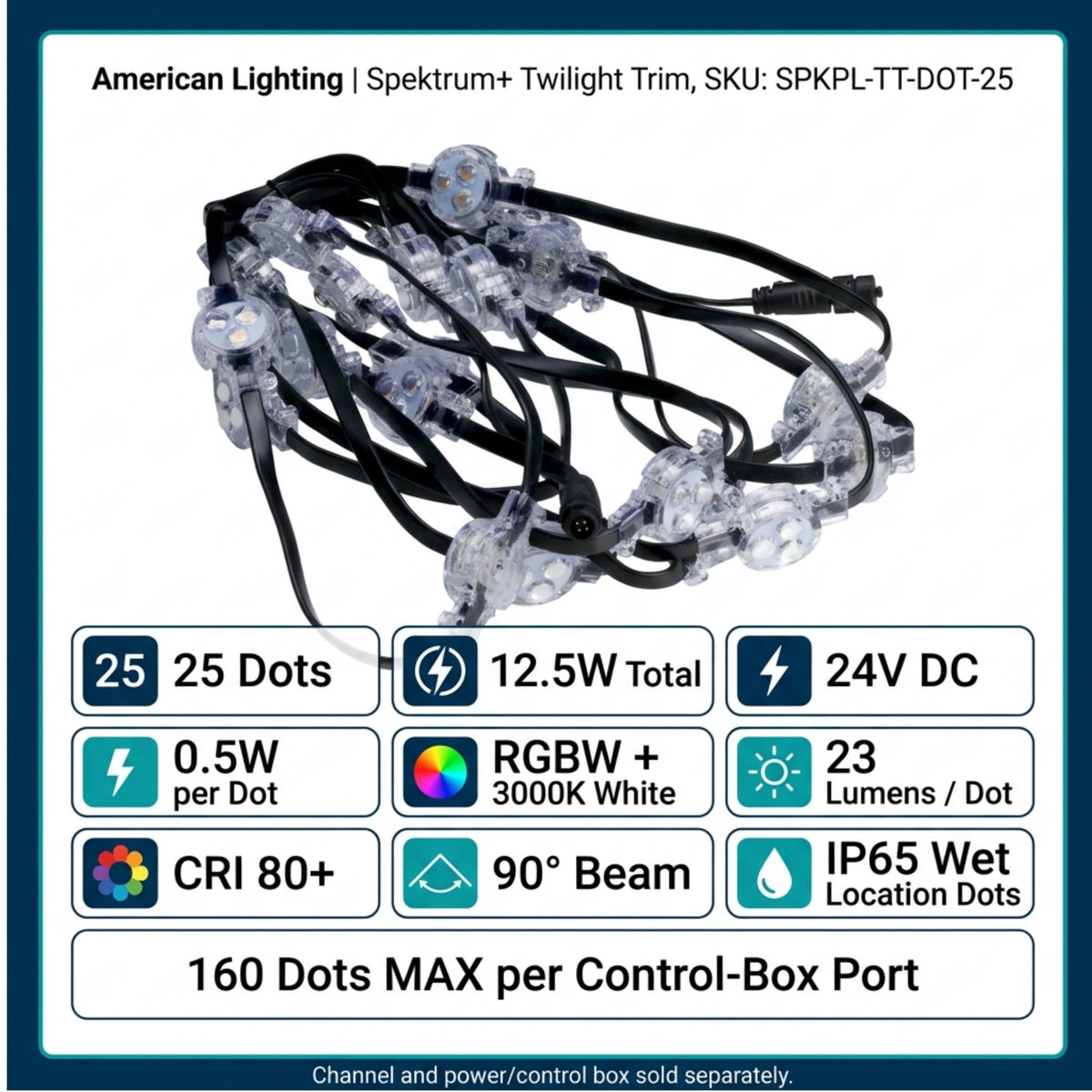

• 25-dot configuration: Adds 25 light points to a planned Twilight Trim installation.

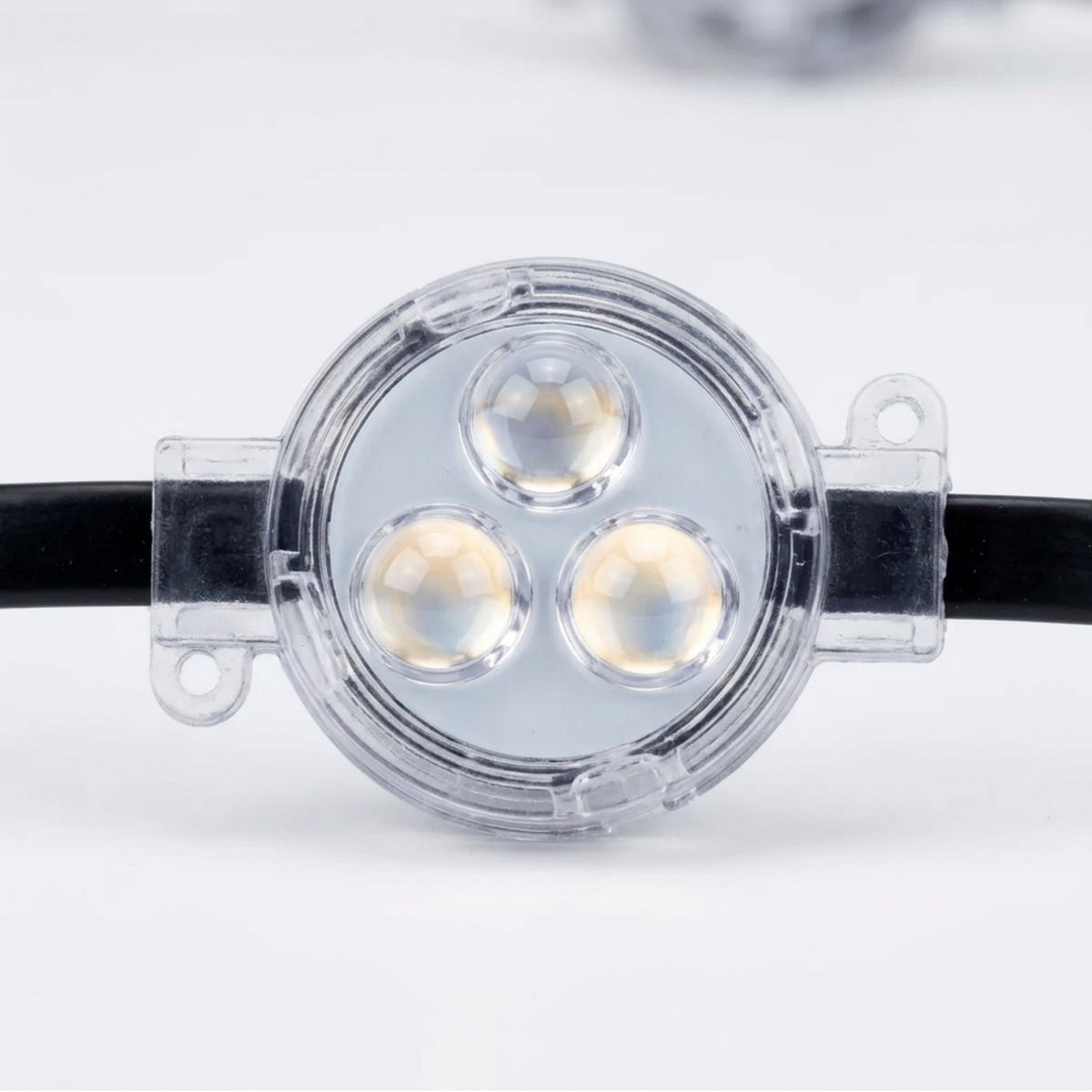

• RGBW lighting: Combines color lighting with a specified 3000K white channel.
• Light output: Manufacturer lists 23 lumens per dot.
• Color rendering: Specified CRI is 80+.
• Beam distribution: A 90° beam provides directional light.
• Factory connections: Pre-attached connectors have a 6-inch lead and 6-inch tail.
• Outdoor rating: Dot lighting is specified as IP65 and rated for wet locations.

Construction & Lighting Layout

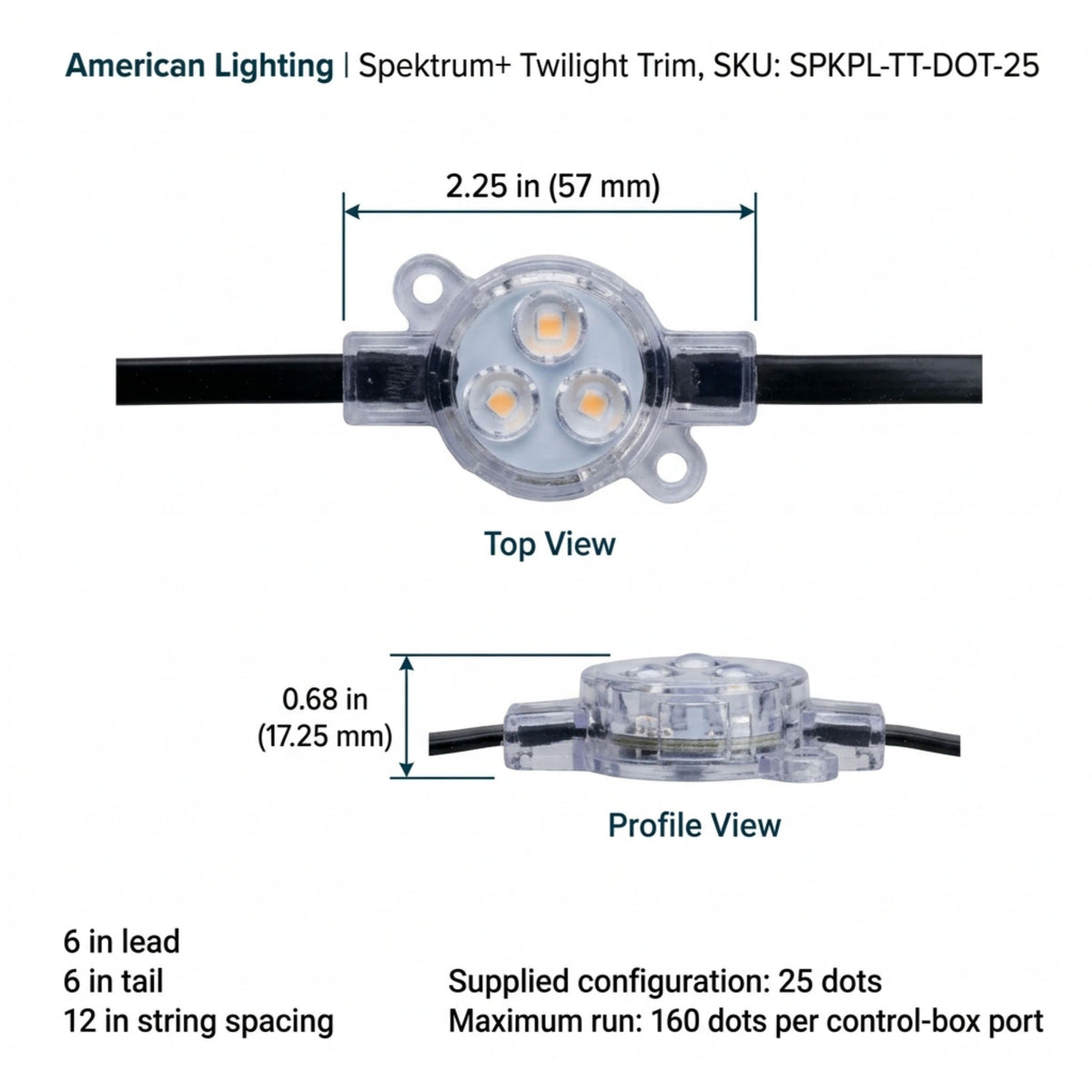

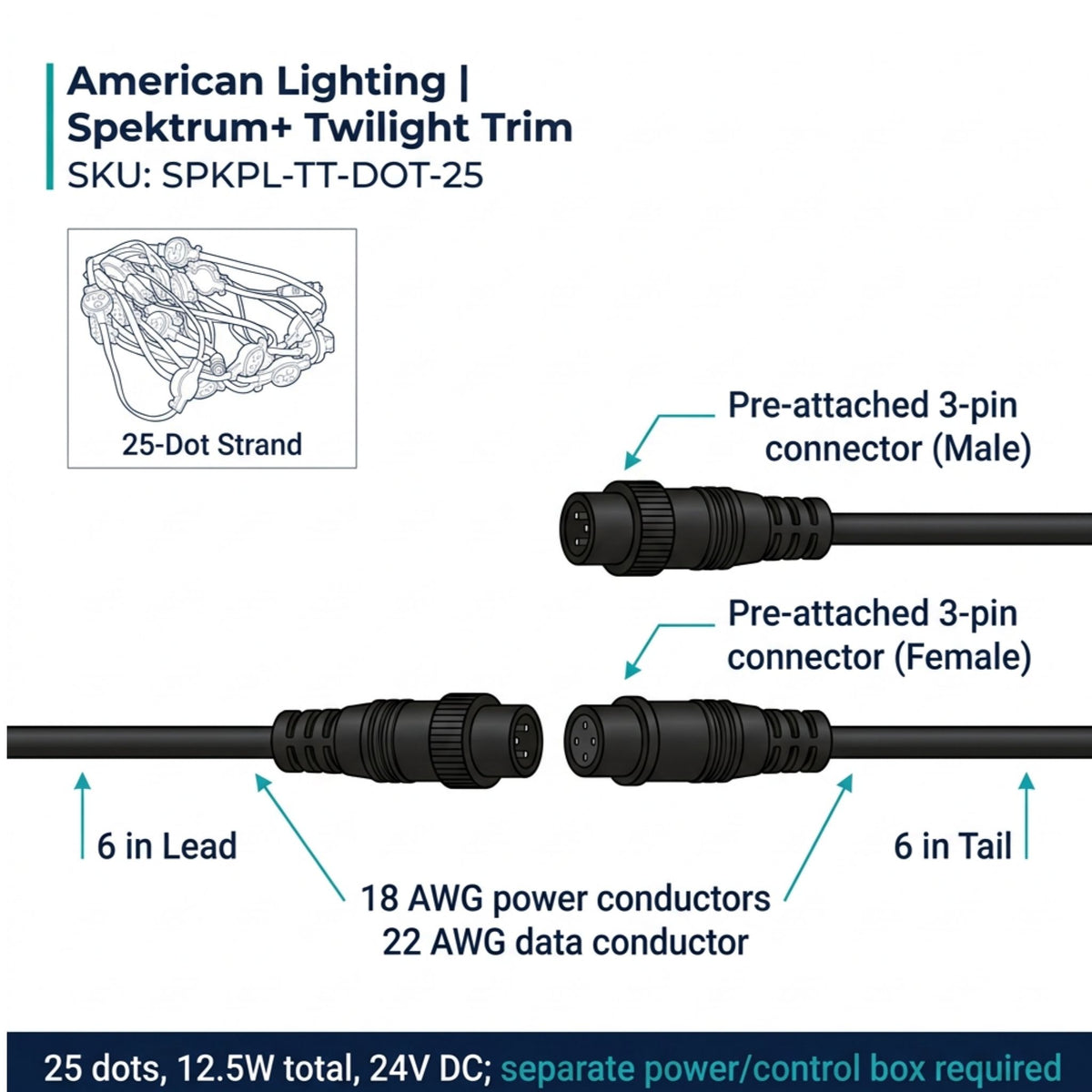

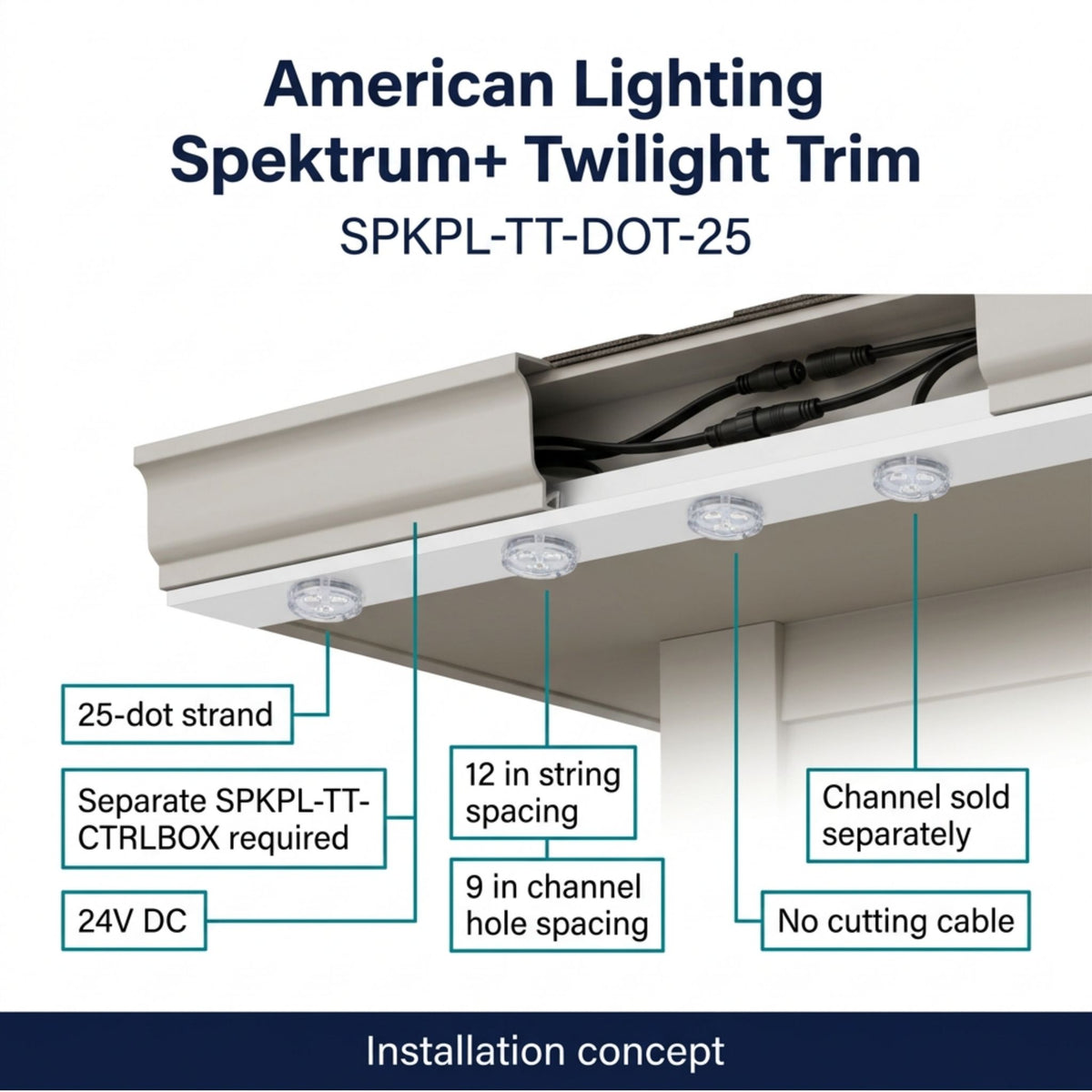

The three-pin cable uses 18 AWG power conductors and a 22 AWG data conductor. The system specifies 12-inch dot spacing on strings and 9-inch hole spacing in compatible mounting channels; these are different layout measurements. Overall and illuminated lengths are not specified separately in the specification sheet.

Light Output & Color

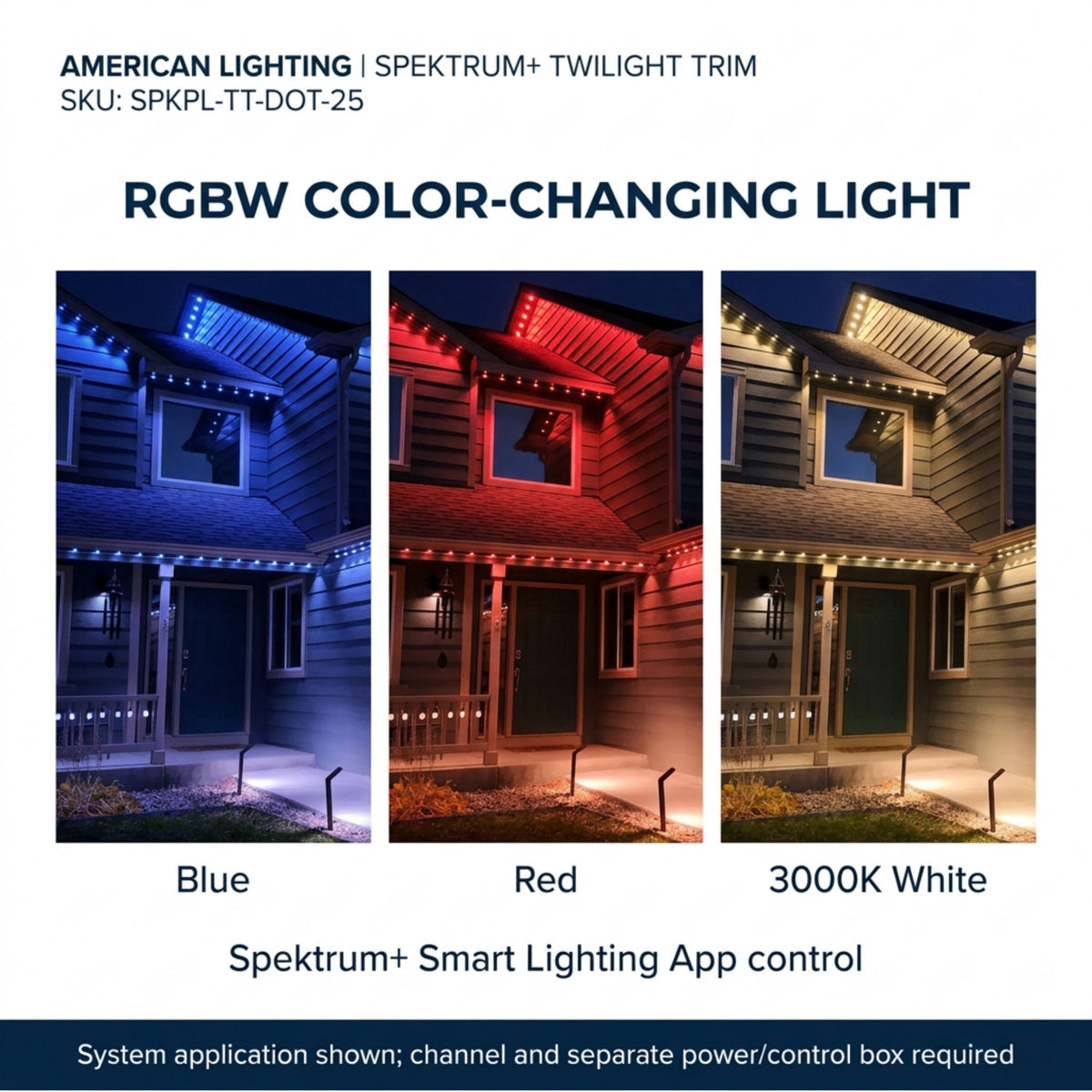

The RGBW engine provides color lighting and 3000K white, with a listed output of 23 lumens per dot, CRI 80+ and a 90° beam. The supplied sheet does not identify which color mode is used for the lumen measurement.

Power, Connections & Controls

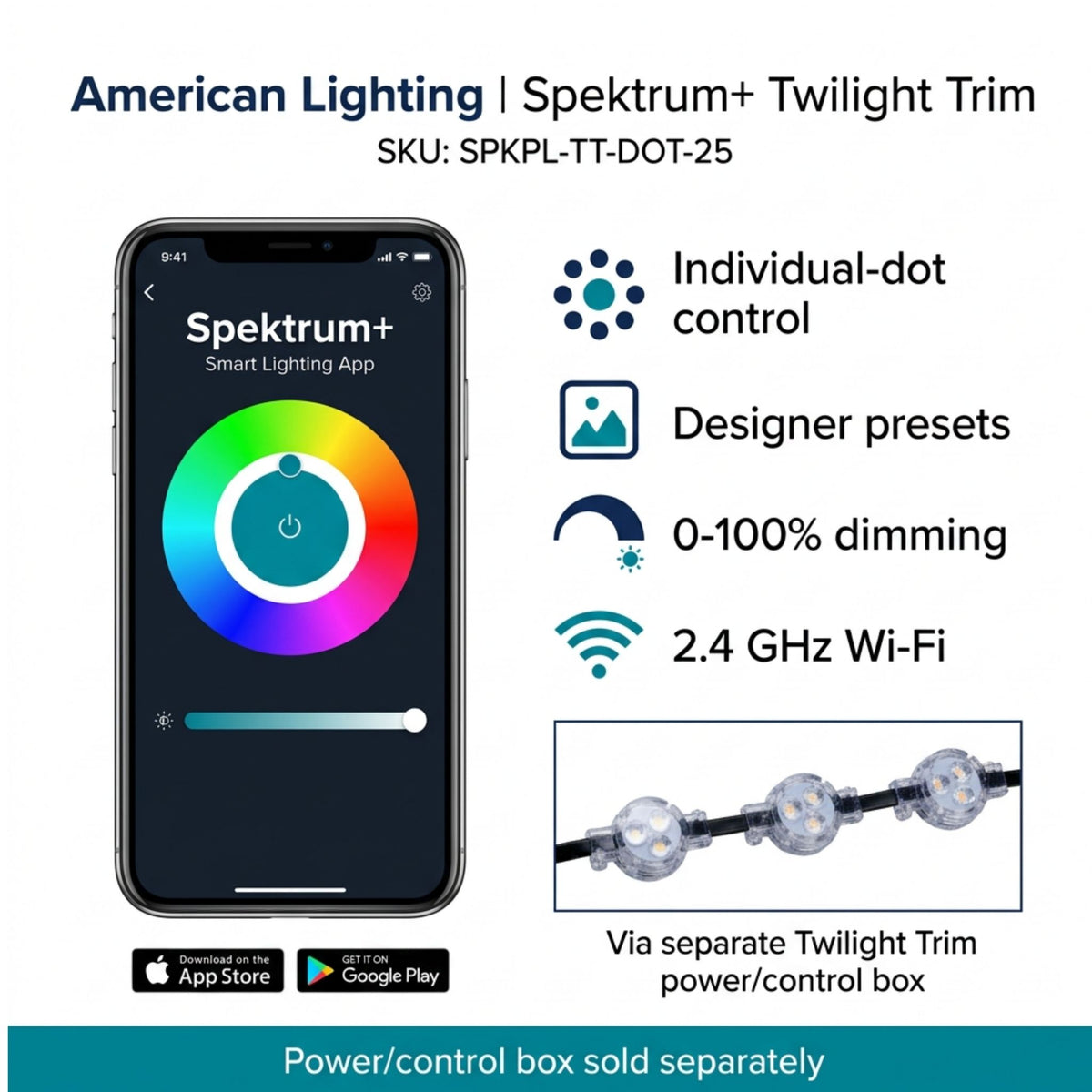

This 25-dot segment operates at 24V DC and consumes 12.5W total, with 0.5W per dot. The maximum run is 160 dots per control/power-box port; an optional power-injection box is available for longer runs. The required SPKPL-TT-CTRLBOX is separate and provides Spektrum+ Smart Lighting App control over 2.4 GHz Wi-Fi, including individual-dot control, designer presets and 0–100% dimming. Standard wall-switch dimmers are not supported.

Mounting & Installation

Compatible Twilight Trim aluminum channels include basic facer and 45° designs. Select backers, flashing or clips to suit the installation. Field-cuttable channel does not establish permission to cut dot wiring; the specification sheet does not provide dot-wire cutting or splicing instructions.

Recommended Applications

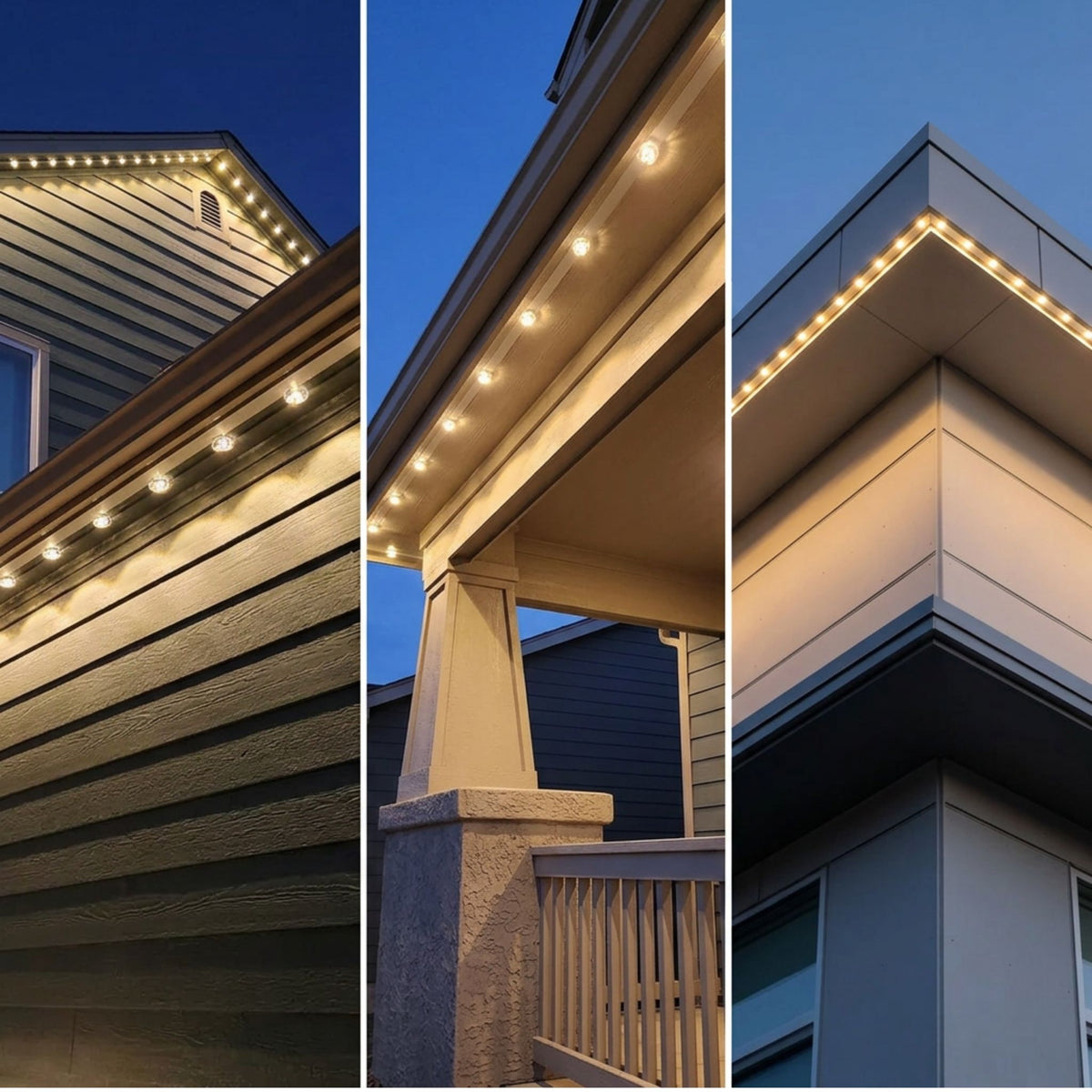

• Permanent eave lighting within a Twilight Trim system.
• Building-perimeter decorative accent lighting.
• Year-round color and white-light scenes using system controls.

What's Included & Required

• Documented configuration: 25 dots with pre-attached connectors, 6-inch lead and 6-inch tail.
• Required separately: Twilight Trim power/control box and suitable mounting components.
• As needed: Compatible jumpers and power-injection accessories selected for the approved system layout.
