American Lighting SPKPL-TT-CTRLBOX Twilight Trim Controller

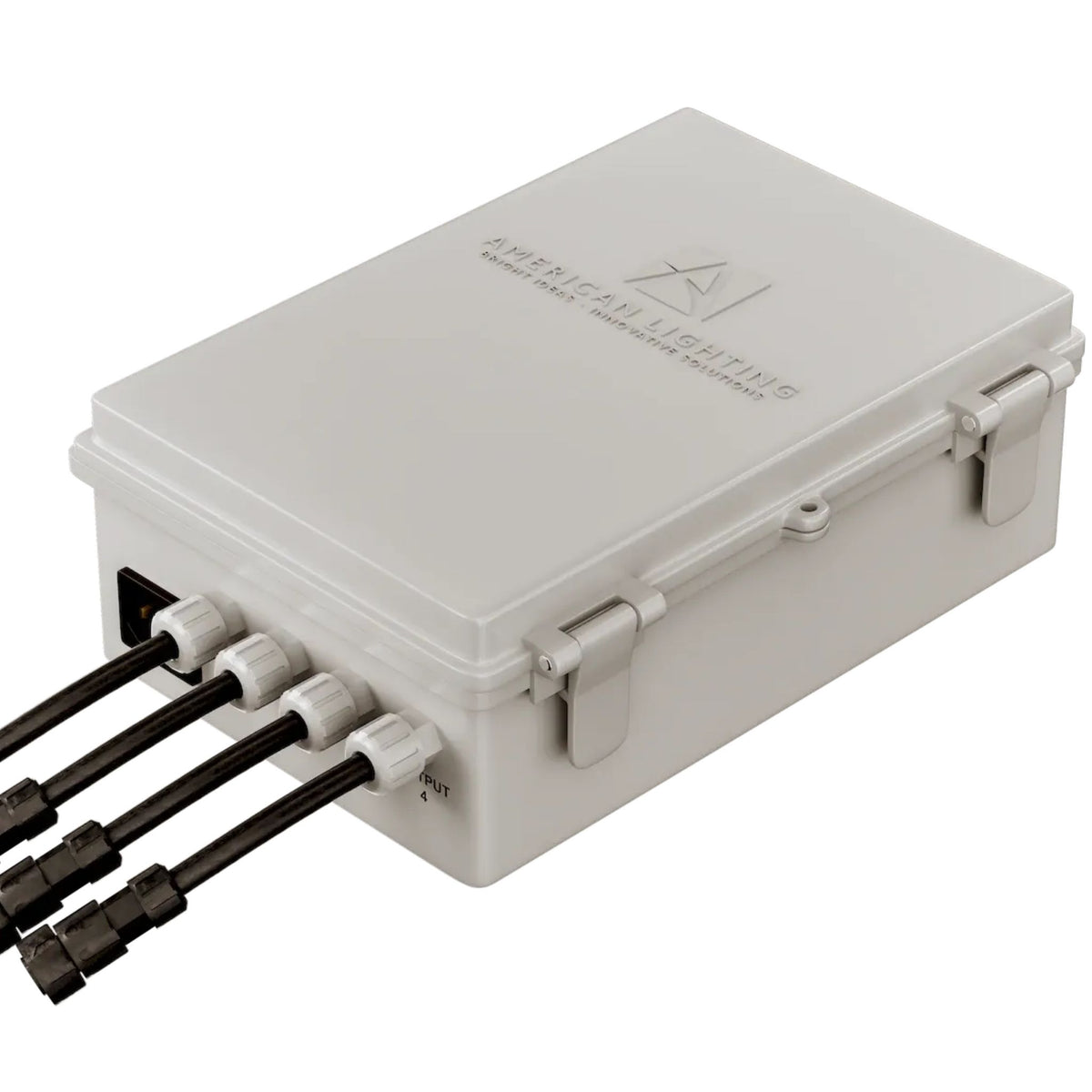

Twilight trim controller with integrated gateway, white enclosure and cable connectors

American Lighting Spektrum+ Twilight Trim Controller with Integrated Gateway, 120–277V AC to 24V DC

$488.32

~~$0.00~~

Description

American Lighting Spektrum+ Twilight Trim Controller — Integrated Gateway & Power Supply

The SPKPL-TT-CTRLBOX combines a controller, integrated gateway and 24V DC power supply in a gray plastic enclosure. Required for Twilight Trim installations, this control component accepts 120–277V AC input and has a NEMA 4 enclosure rated for outdoor wet locations.

Key Features

Integrated gateway: Combines the system controller and gateway in one enclosure.
Power conversion: Accepts 120–277V AC input and supplies 24V DC output.
App control: Uses the Spektrum+ Smart Lighting App interface.
Network requirement: Requires 2.4 GHz Wi-Fi.
Output connections: Provides four dedicated output lines.
Onboard functions: Standalone functions support installation testing.
Enclosure: Gray plastic housing carries the documented NEMA 4 rating.

Construction & Lighting Layout

The enclosure houses the controller, gateway and power supply, with four dedicated output lines for system connections. The supplied product information lists a weight of 3.60 lb.

Light Output & Color

This is a control and power component, not a light fixture. Connected Twilight Trim dots provide RGBW lighting with 3000K white; dot modules are required separately.

Power, Connections & Controls

The controller accepts 120–277V AC and provides 24V DC. Supplied product text lists 160 dots per output line. Spektrum+ app operation requires 2.4 GHz Wi-Fi and supports individual-dot control, designer presets and system dimming. Standard wall-switch dimmers are not supported.

Mounting & Installation

The NEMA 4 enclosure is documented for outdoor wet locations. A molded 120V AC power cable is listed; its voltage designation is distinct from the controller's input range. Follow the manufacturer's installation instructions for supply connections and placement.

Recommended Applications

Control and power for Twilight Trim permanent eave lighting.
App-controlled decorative building-perimeter lighting.
Onboard testing during Twilight Trim installation.

What's Included & Required

Documented assembly: Controller, integrated gateway and power supply in a plastic enclosure.
Connections: Four output lines and molded 120V AC power cable.
Required separately: Compatible Twilight Trim dots, mounting components and 2.4 GHz Wi-Fi for app operation.

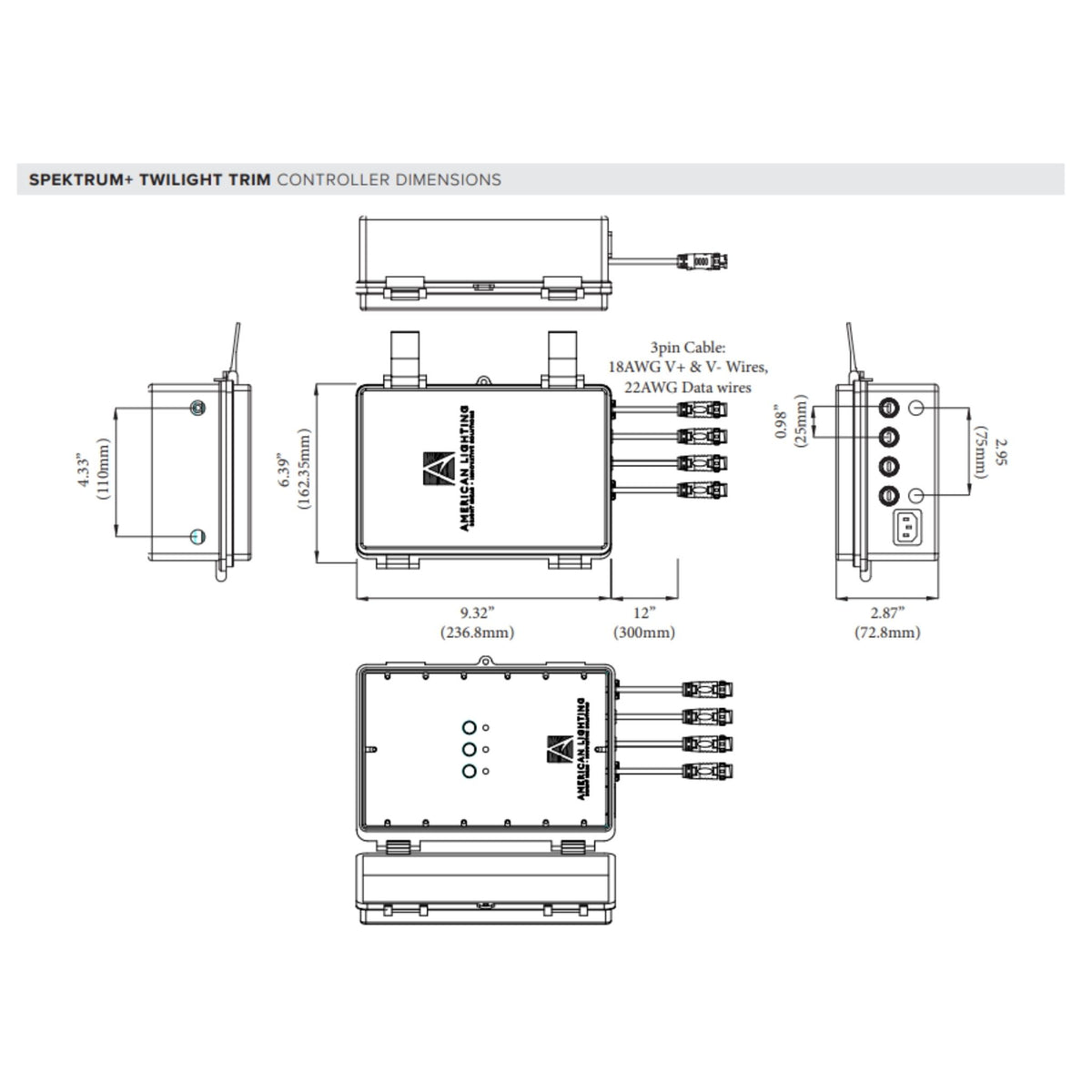

Specifications

Dimensions

Length/Depth

9.82 in

Width/Diameter

6.39 in

Height

2.87 in

Weight

3.6 lb

Documents

Style & Materials

Finish

Gray

Electrical Information

Voltage

120-277V

Output Voltage

24V DC

Wattage Rating

384.0W

Item Details

MPN

SPKPL-TT-CTRLBOX

Brand

American Lighting

Warranty & Certifications

Product Warranty

5 Years

Product Rating

Wet Rated, NEMA 4X

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Is this control box required for Twilight Trim lighting?

Yes. American Lighting identifies this controller with integrated gateway and power supply as required for Twilight Trim installations. Dot modules and mounting components are separate system items.

What input and output voltages does it support?

The specified input is 120–277V AC, and the output is 24V DC. The listed molded power cable is identified as 120V AC; do not interpret that cable designation as approval to connect its plug to a higher-voltage supply.

Does app control require Wi-Fi?

Yes. Spektrum+ Smart Lighting App operation requires 2.4 GHz Wi-Fi. Onboard standalone functions are also documented for installation testing.

How many outputs and dots does it support?

The supplied product text lists four dedicated output lines and 160 dots per line. This does not establish four independent zones or a combined full-load capacity; confirm the approved loading arrangement before specifying a complete system.

Can the enclosure be used outdoors?

Yes. The supplied controller information specifies a NEMA 4 enclosure for outdoor wet locations. Follow the manufacturer’s installation instructions; this enclosure rating does not automatically apply to every connected accessory.
