American Rhyme RHYM-DL3R-15-36-THNC-5CCT-BK 3 in Round Deep Baffle Downlight 15W 5CCT Black
Available in stock (2510)
About this item
About this item
- Click-Action Install: Innovative click-action mechanism enables fast installation and easy maintenance in remodel or new construction
- Deep Baffle w/Honeycomb Louver: Round honeycomb louver controls glare for comfortable, high-quality illumination in architectural settings
- Selectable CCT: 2700K, 3000K, 3500K, 4000K, and 5000K — field selectable with included remote driver
- Air-Tight & Wet Location Rated: cETLus Listed, Type IC, IP44, JA8 Compliant — suitable for wet locations and insulated ceilings
- 50,000-Hour Rated Life: 15W, 1185–1310 lm, CRI 90+, TRIAC/ELV dimmable to 10%, RoHS compliant
Description
Description

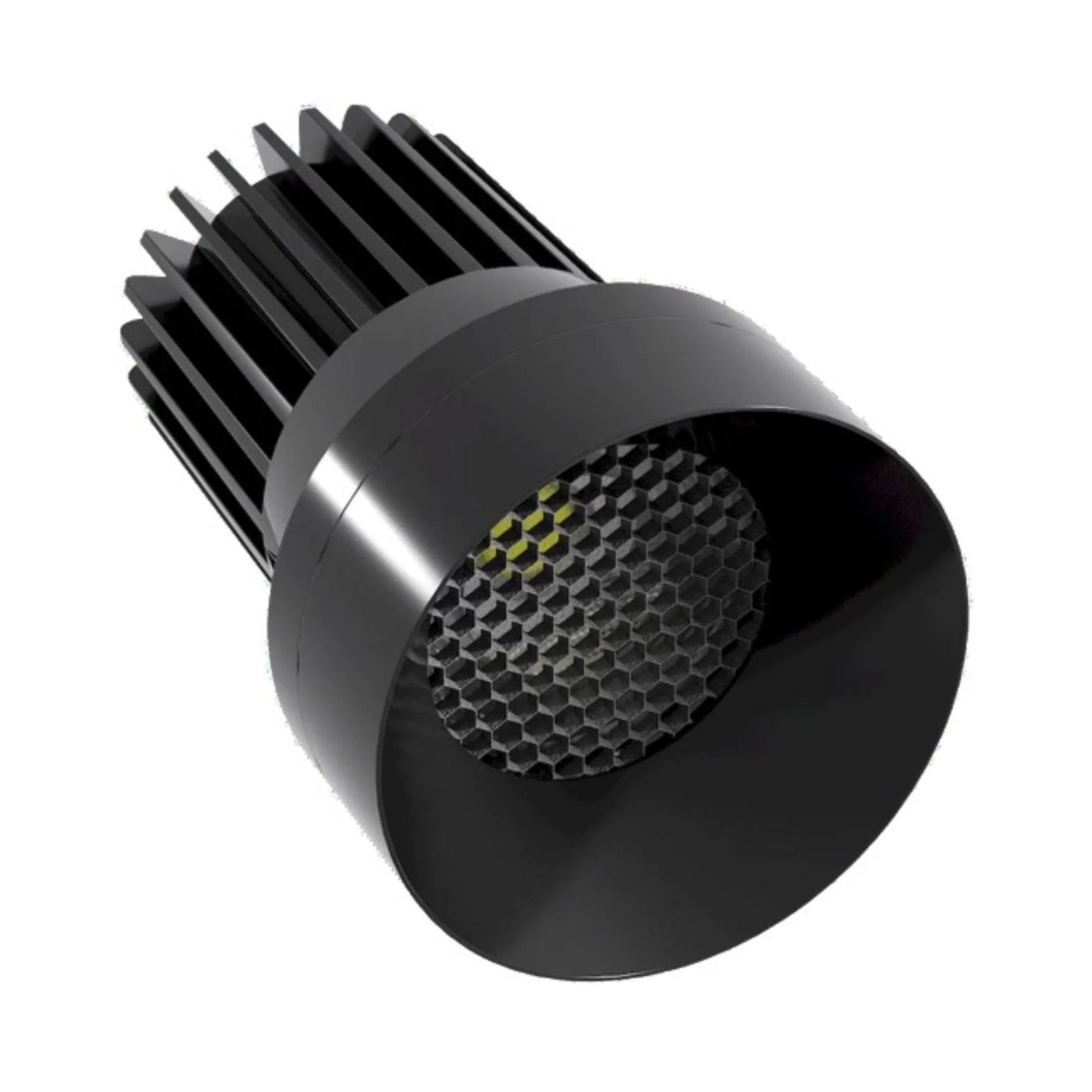

American Lighting Rhyme RHYM-DL3R-15-36-THNC-5CCT-BK 3 in Round Deep Baffle Downlight — 15W / 1185–1310 lm / 5CCT / 36° / Black
The RHYM-DL3R-15-36-THNC-5CCT-BK is a 3 in round recessed downlight from the American Lighting Rhyme series, featuring a deep baffle with honeycomb louver in black finish. The Rhyme series’ innovative click-action mechanism enables fast installation and easy maintenance for both remodel and new construction. Field-selectable CCT: 2700K, 3000K, 3500K, 4000K, or 5000K. Delivers 1185–1310 lm at 15W, CRI 90+, 36° default beam (field adjustable to 24° or 60°). TRIAC/ELV dimmable 10–100%. cETLus Listed, wet location rated, air-tight, Type IC, JA8 Compliant. 50,000-hour rated life.
Key Features
- Click-Action Mechanism: Tool-free module installation for quick remodel and new construction installs; supports easy field maintenance
- Optic Type: Deep baffle with honeycomb louver (THNC) — TIR lens, 36° default beam angle
- Field Adjustable Beam: Ships with 24° and 60° optics included — swap at installation without tools
- Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K via remote driver
- Light Output: 1185–1310 lm at 15W, CRI 90+, 36° TIR beam
- Finish: Black
- Dimming: TRIAC/ELV, 10–100%
- Voltage: 120V AC / 60Hz
- IP Rating: IP44
- Operating Temp: -20°C (-4°F) to +40°C (+104°F)
- Housing: Aluminum with polycarbonate lens
- Mounting: Recessed | Driver: Remote (included)
- Ratings: cETLus Listed, wet location rated, air-tight, Type IC
- Certifications: cETLus, FCC, JA8 Compliant, RoHS Compliant
- Rated Life: 50,000 hours
Construction & Design

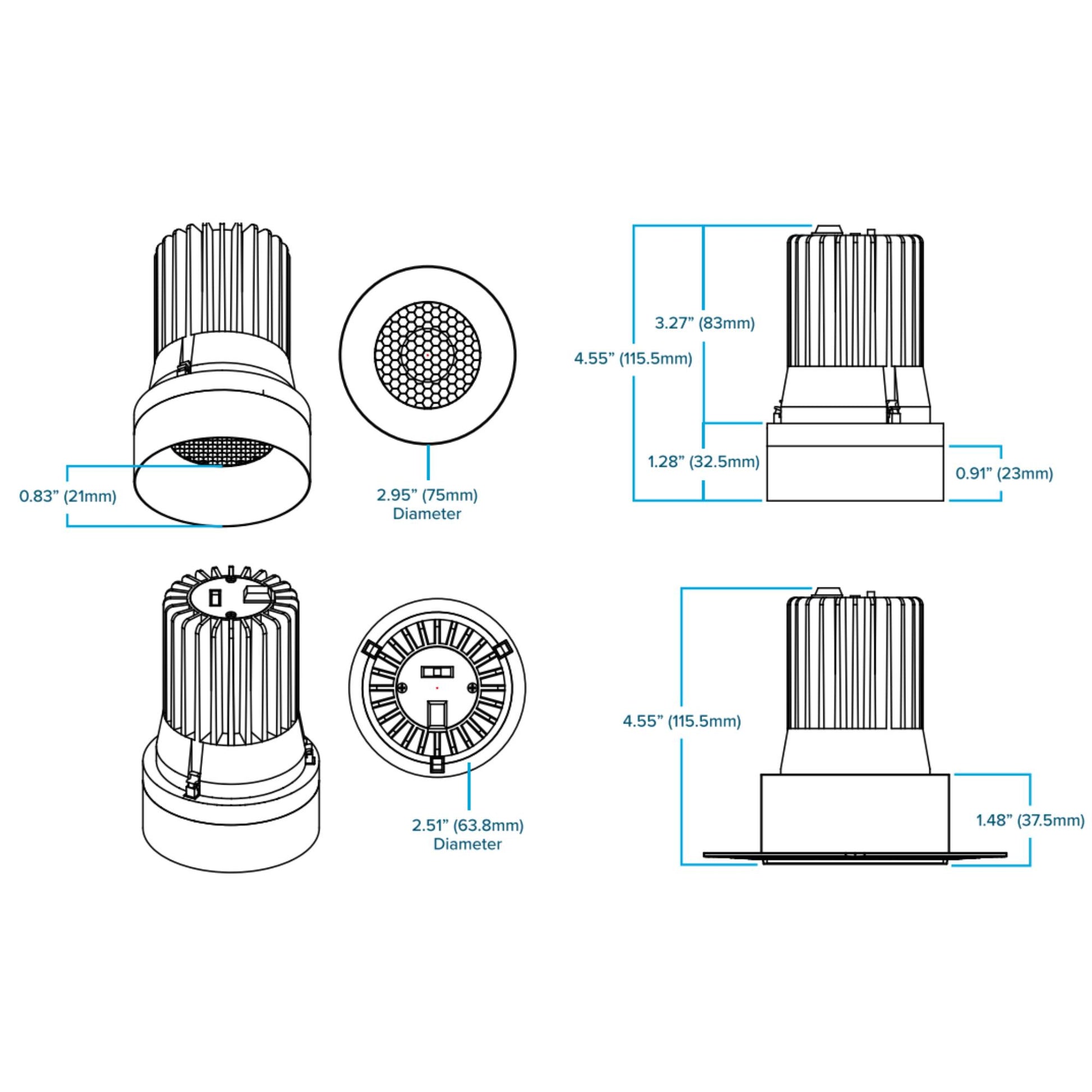

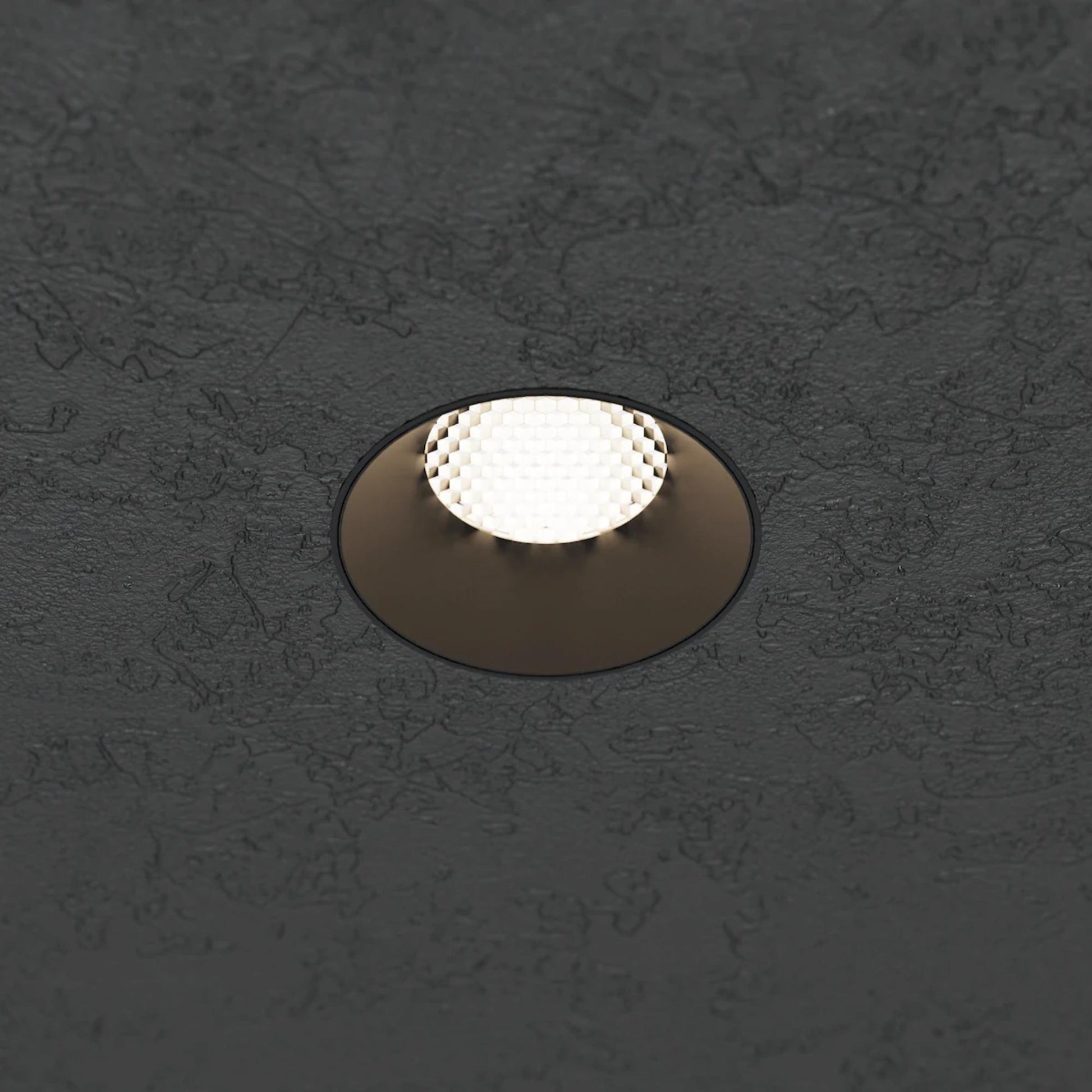

3 in round aperture, black finish, aluminum housing with polycarbonate lens. Deep baffle with honeycomb louver for precise glare control and architectural aesthetics. Trim and trimless installation options included. Air-tight and Type IC rated — suitable for insulated ceilings and wet locations.
Light Output & Performance
Delivers 1185–1310 lm at 15W, CRI 90+, 36° default TIR beam angle (field adjustable to 24° or 60° using included optics). TRIAC/ELV dimmable 10–100%. Rated life: 50,000 hours.
Electrical & Installation
120V AC / 60Hz. Recessed mount. Click-action module installs into housing without tools — suitable for remodel and new construction. Remote driver included. Rough-in plate with hanger bars (RP-DL3-RHYM) available separately for new construction applications.
Compatible Accessories (Sold Separately)
- 3.62 in Steel Rough-in Plate w/Hanger Bars: American Lighting RP-DL3-RHYM
Typical Applications

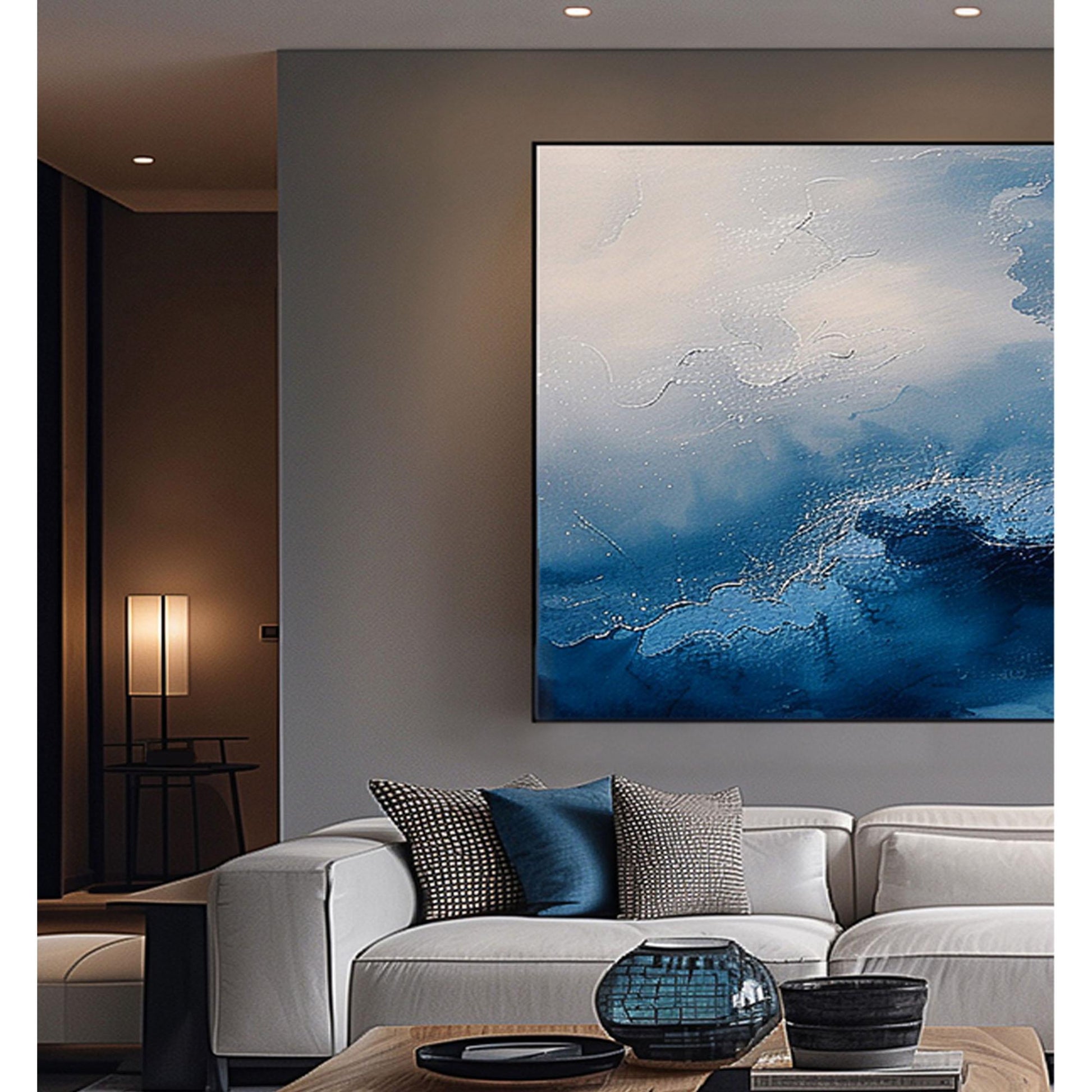

- Residential and hospitality downlighting
- Bathrooms and wet locations
- Architectural accent and general illumination
- New construction and remodel

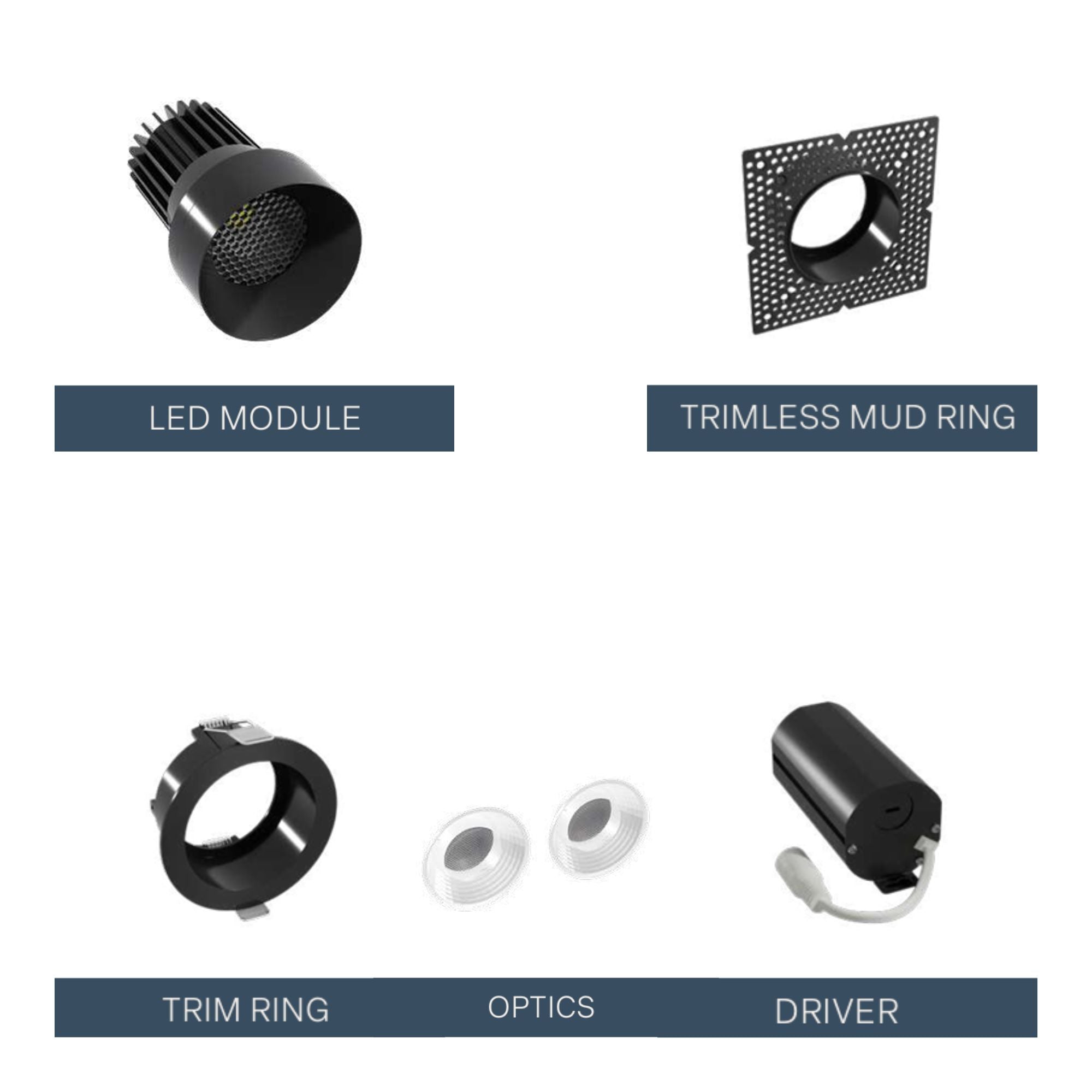

What’s Included

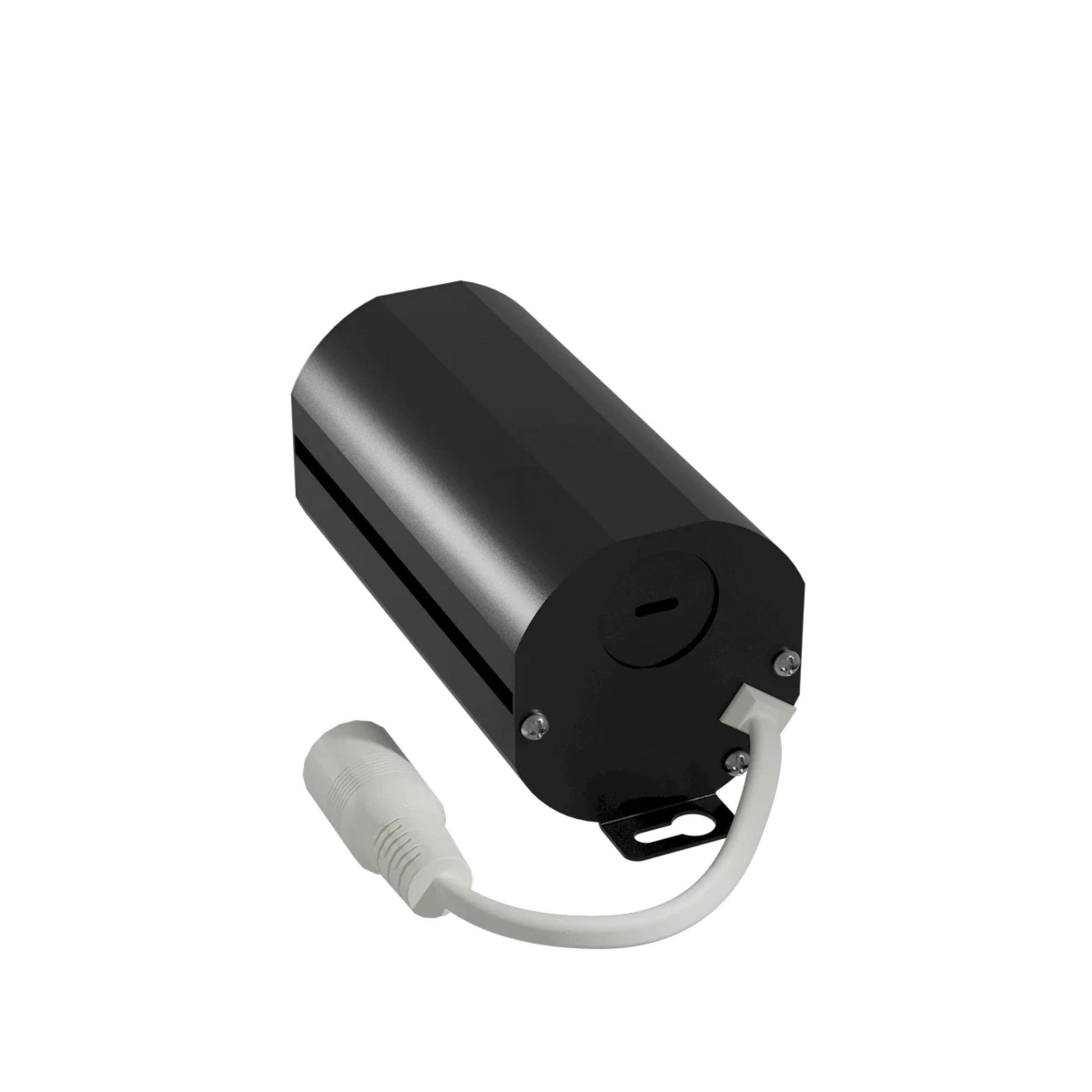

- (1) Remote driver
- (1) Plastic mudstopper accessory

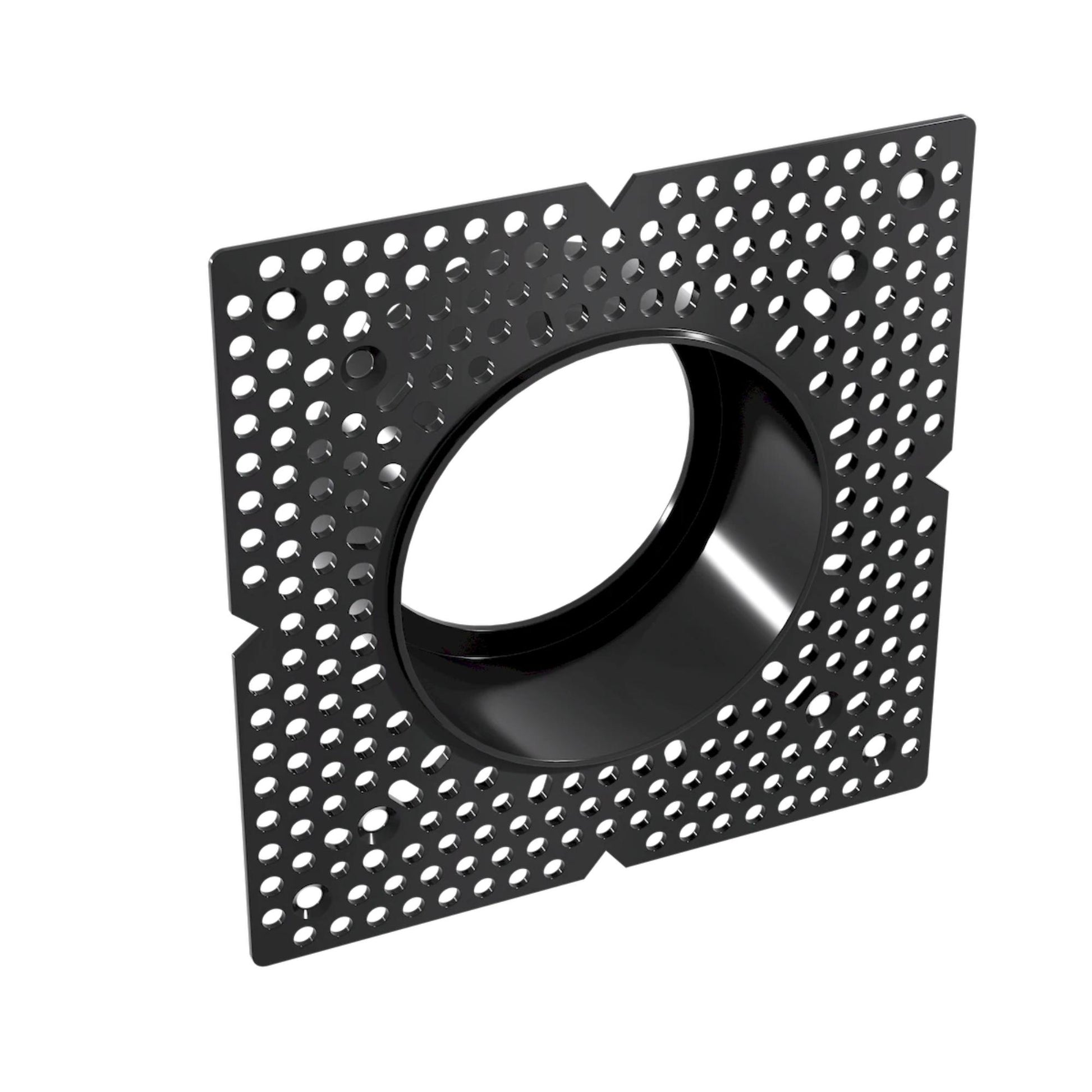

- (1) Round trimless mud-ring

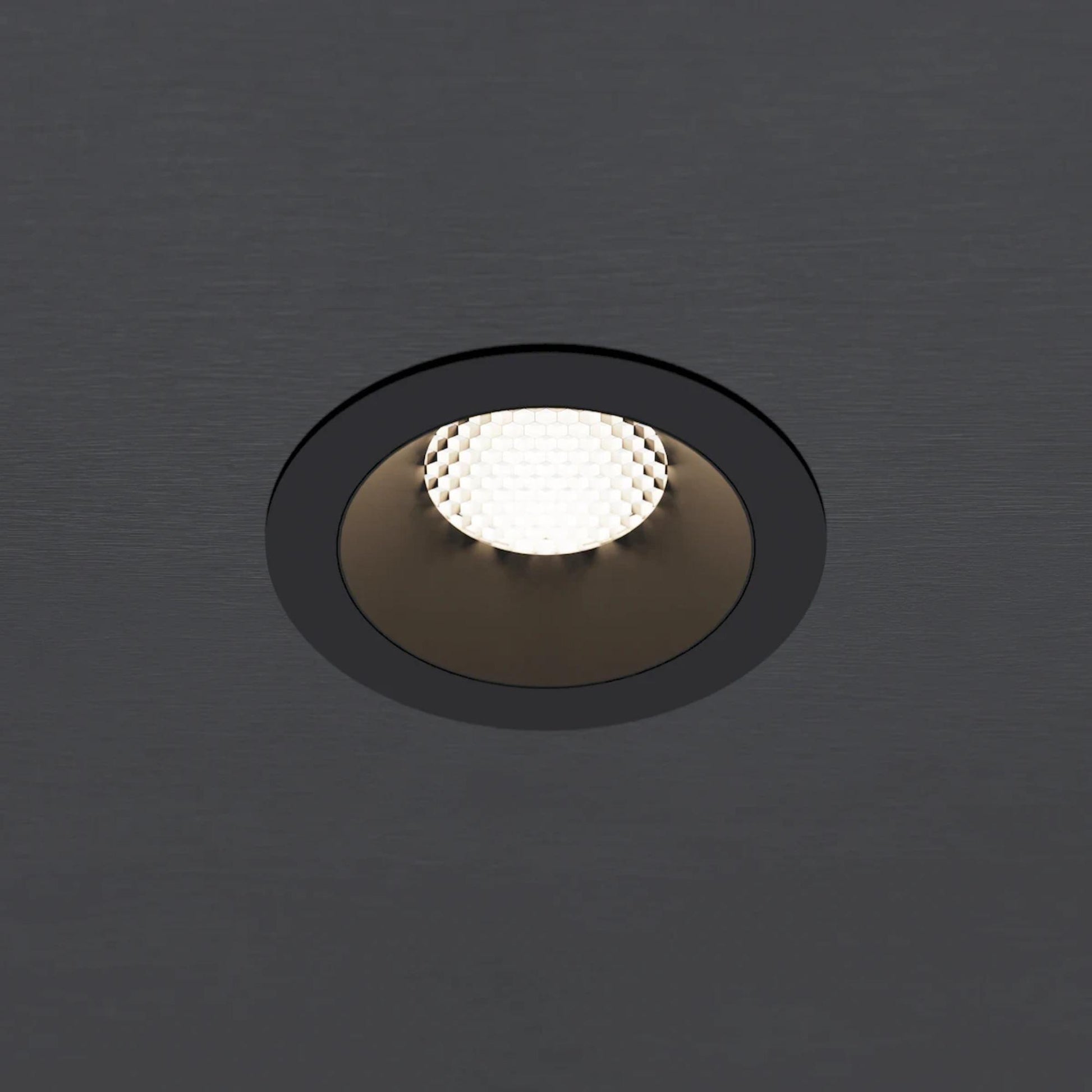

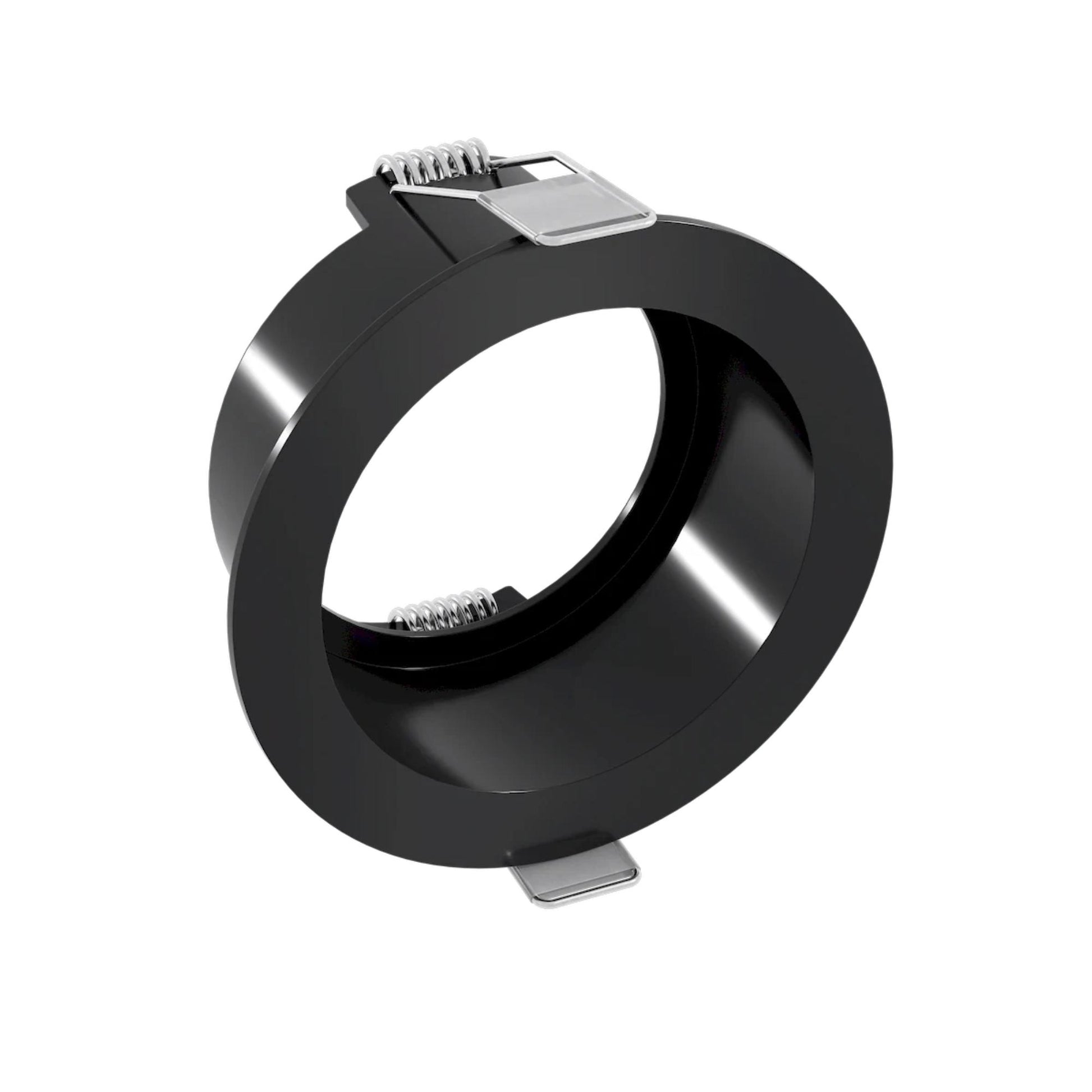

- (1) Round trim-ring

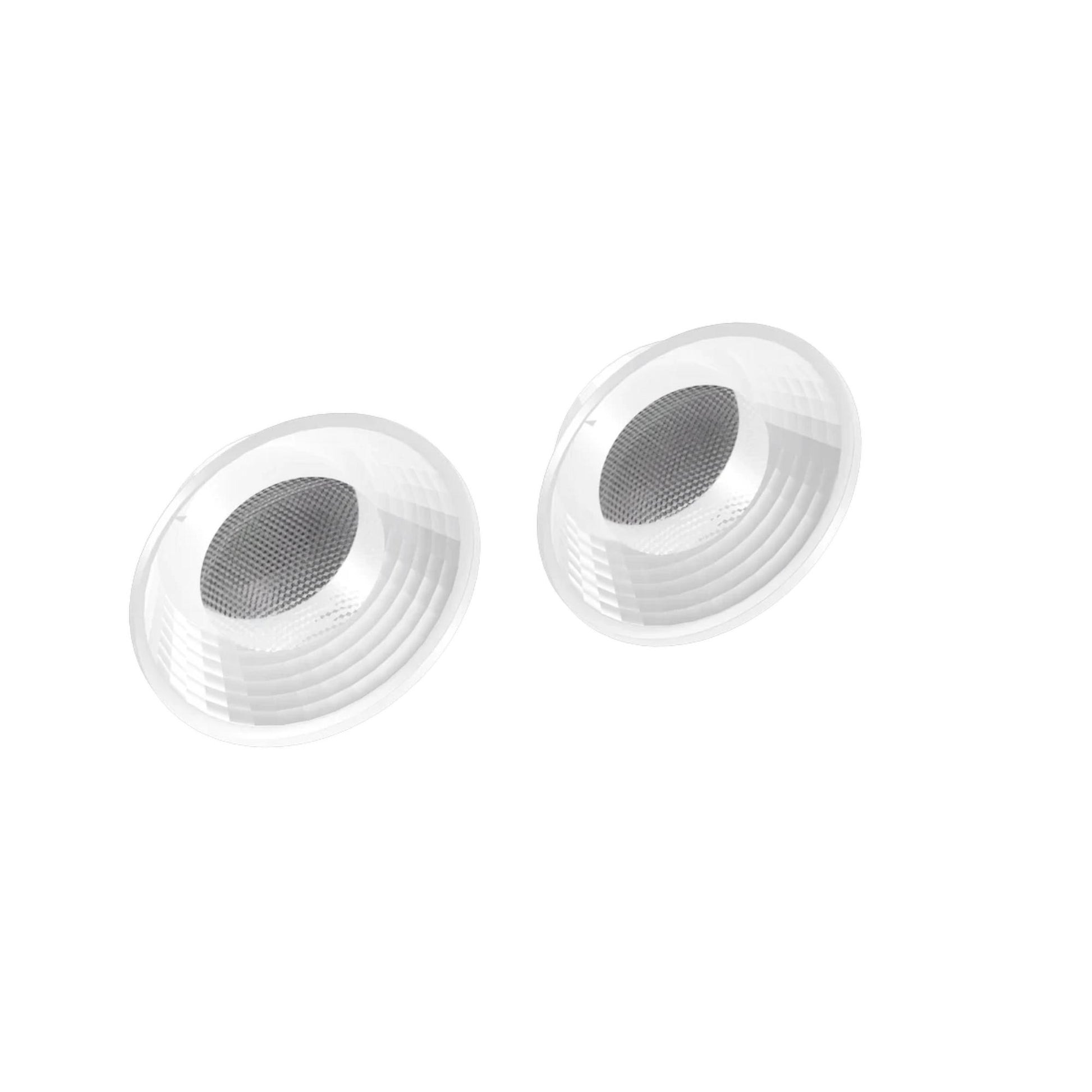

- (2) Field adjustable optics (24° and 60° — default beam is 36°)
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
