American Lighting Rhyme RHYM-DL3R-15-2450-ZOM-5CCT-WH 3 in Zoom Adjustable Downlight 15W 5CCT White
Available in stock (2263)
About this item
About this item
- Click-Action Install: Innovative click-action mechanism enables fast installation and easy maintenance in remodel or new construction
- Zoom Adjustable Beam: Continuously adjustable TIR beam from 24° to 50° — dial in spot to flood without changing optics
- Selectable CCT: 2700K, 3000K, 3500K, 4000K, and 5000K — field selectable with included remote driver
- Air-Tight & Wet Location Rated: cETLus Listed, Type IC, IP44, JA8 Compliant — suitable for wet locations and insulated ceilings
- 50,000-Hour Rated Life: 15W, 895–1160 lm, CRI 90+, TRIAC/ELV dimmable to 10%, RoHS compliant
Description
Description

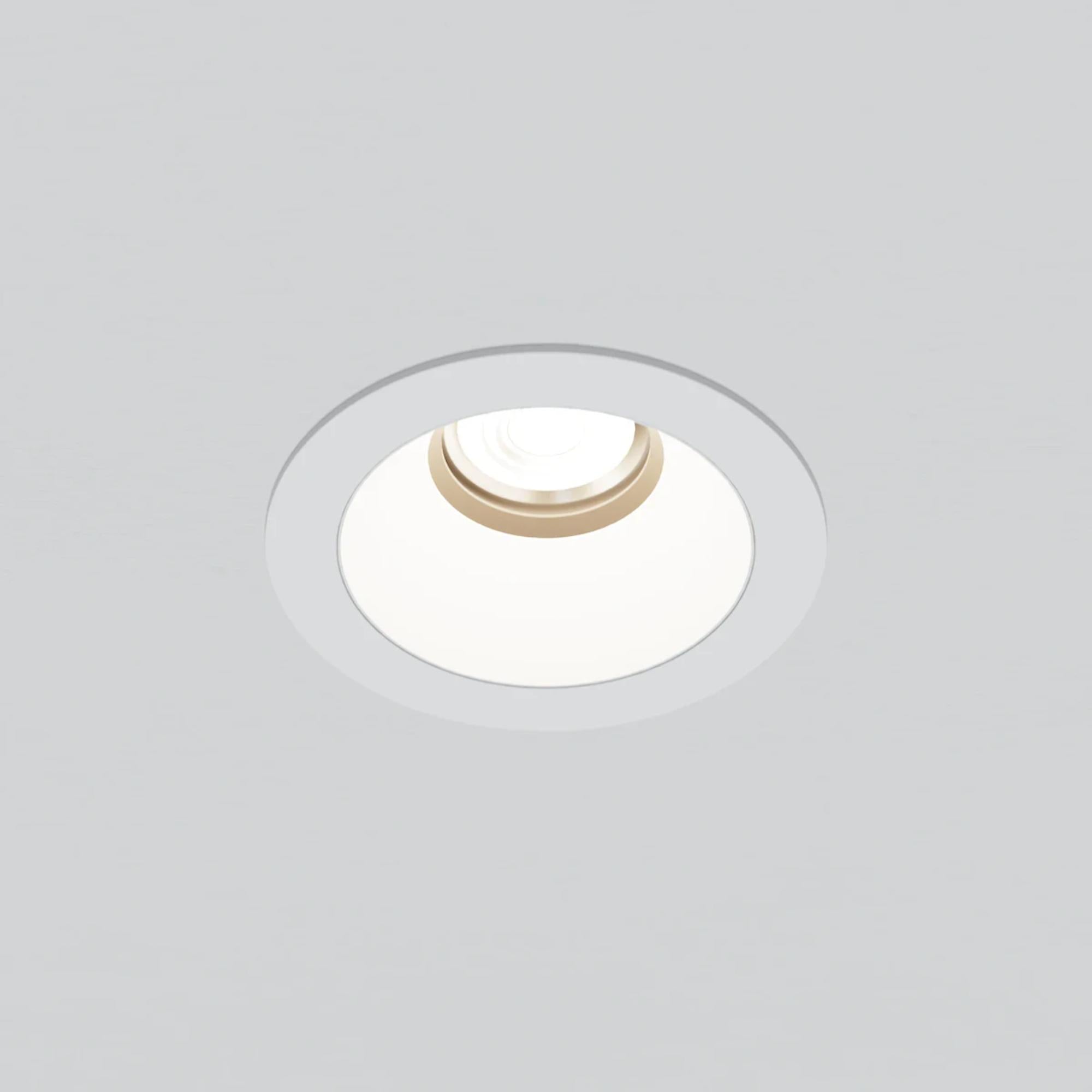

American Lighting Rhyme RHYM-DL3R-15-2450-ZOM-5CCT-WH 3 in Round Zoom Adjustable Downlight — 15W / 895–1160 lm / 5CCT / 24°–50° / White
The RHYM-DL3R-15-2450-ZOM-5CCT-WH is a 3 in round recessed zoom downlight from the American Lighting Rhyme series, featuring a continuously adjustable TIR beam from 24° to 50° in white finish. The zoom optic allows beam angle to be set from narrow spot to wide flood without swapping optics. The Rhyme series’ click-action mechanism enables fast installation and easy maintenance for both remodel and new construction. Field-selectable CCT: 2700K, 3000K, 3500K, 4000K, or 5000K. Delivers 895–1160 lm at 15W, CRI 90+. TRIAC/ELV dimmable 10–100%. cETLus Listed, wet location rated, air-tight, Type IC, JA8 Compliant. 50,000-hour rated life.
Key Features
- Click-Action Mechanism: Tool-free module installation for quick remodel and new construction installs; supports easy field maintenance

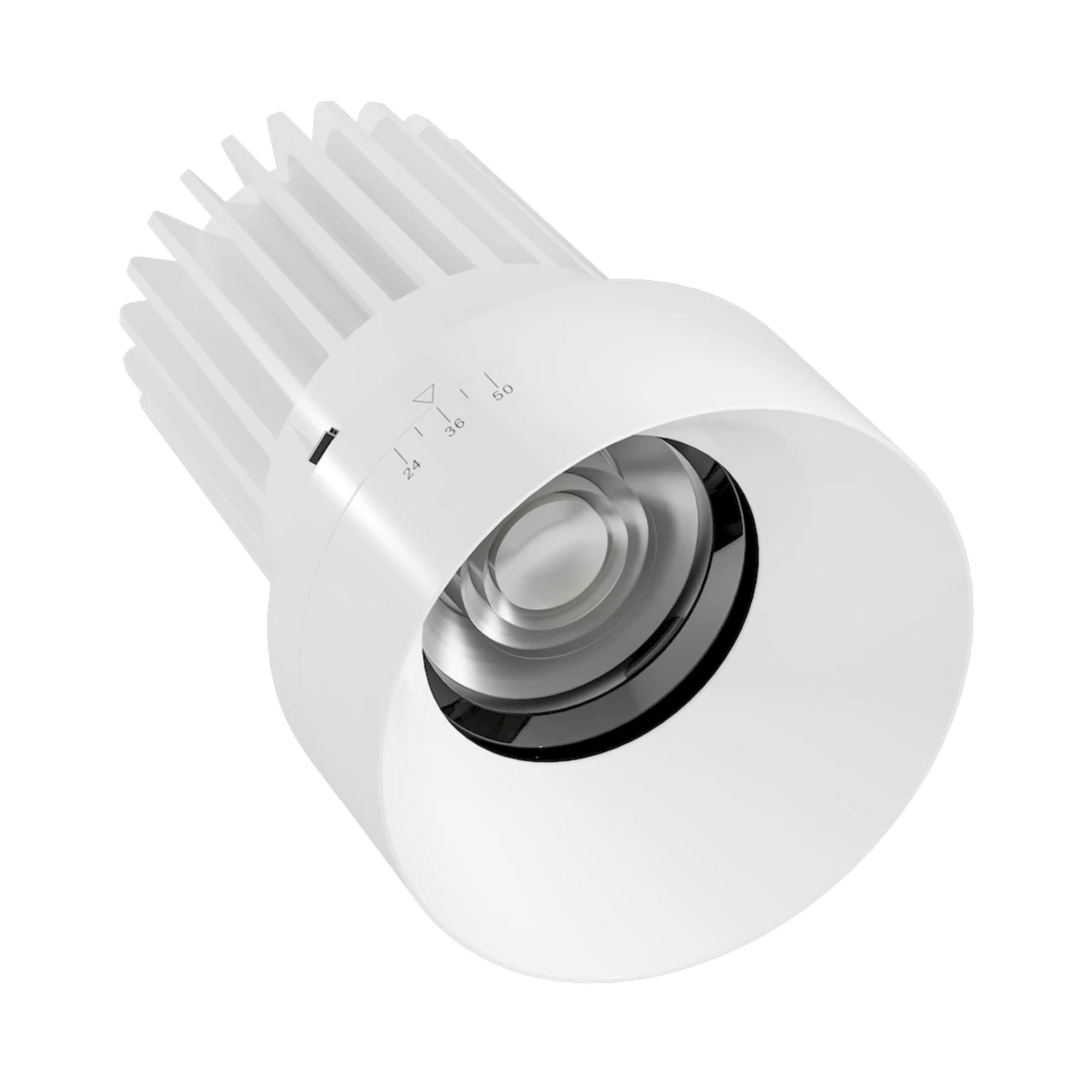

- Optic Type: Zoom adjustable TIR — continuously variable 24°–50° beam angle, no optic swap required
- Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K via remote driver
- Light Output: 895–1160 lm at 15W, CRI 90+
- Finish: White
- Dimming: TRIAC/ELV, 10–100%
- Voltage: 120V AC / 60Hz
- IP Rating: IP44
- Operating Temp: -20°C (-4°F) to +40°C (+104°F)
- Housing: Aluminum with polycarbonate lens
- Mounting: Recessed | Driver: Remote (included)
- Ratings: cETLus Listed, wet location rated, air-tight, Type IC
- Certifications: cETLus, FCC, JA8 Compliant, RoHS Compliant
- Rated Life: 50,000 hours
Construction & Design

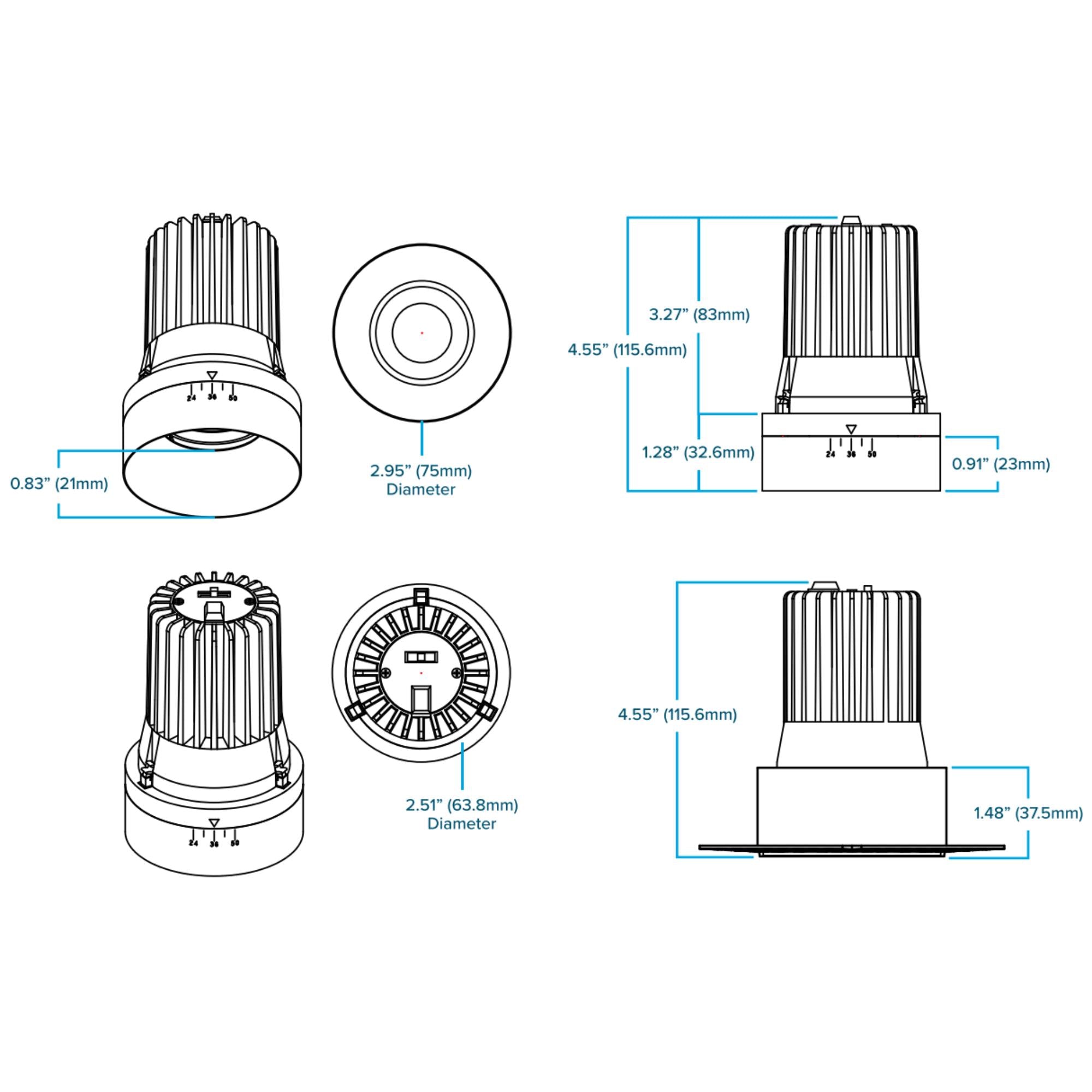

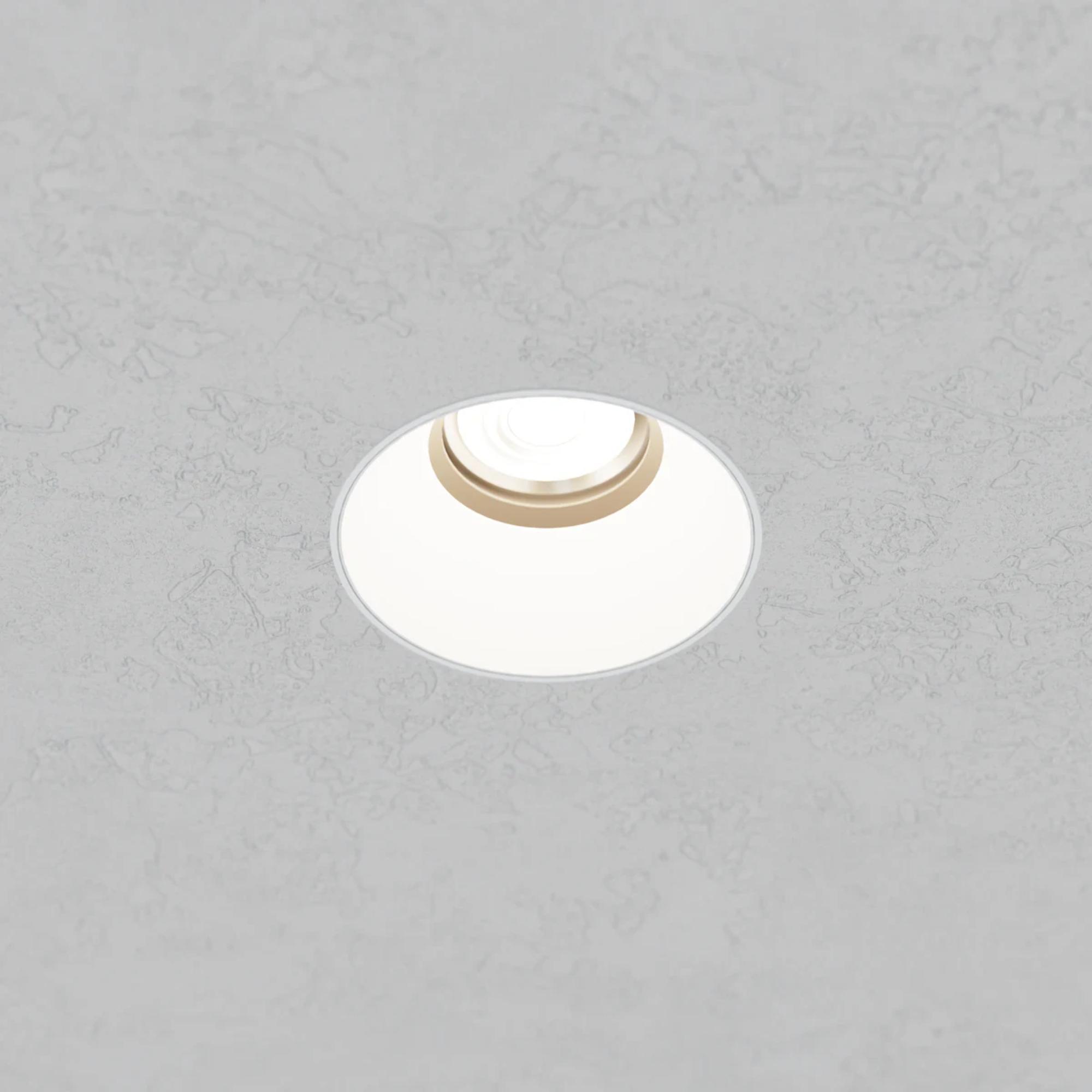

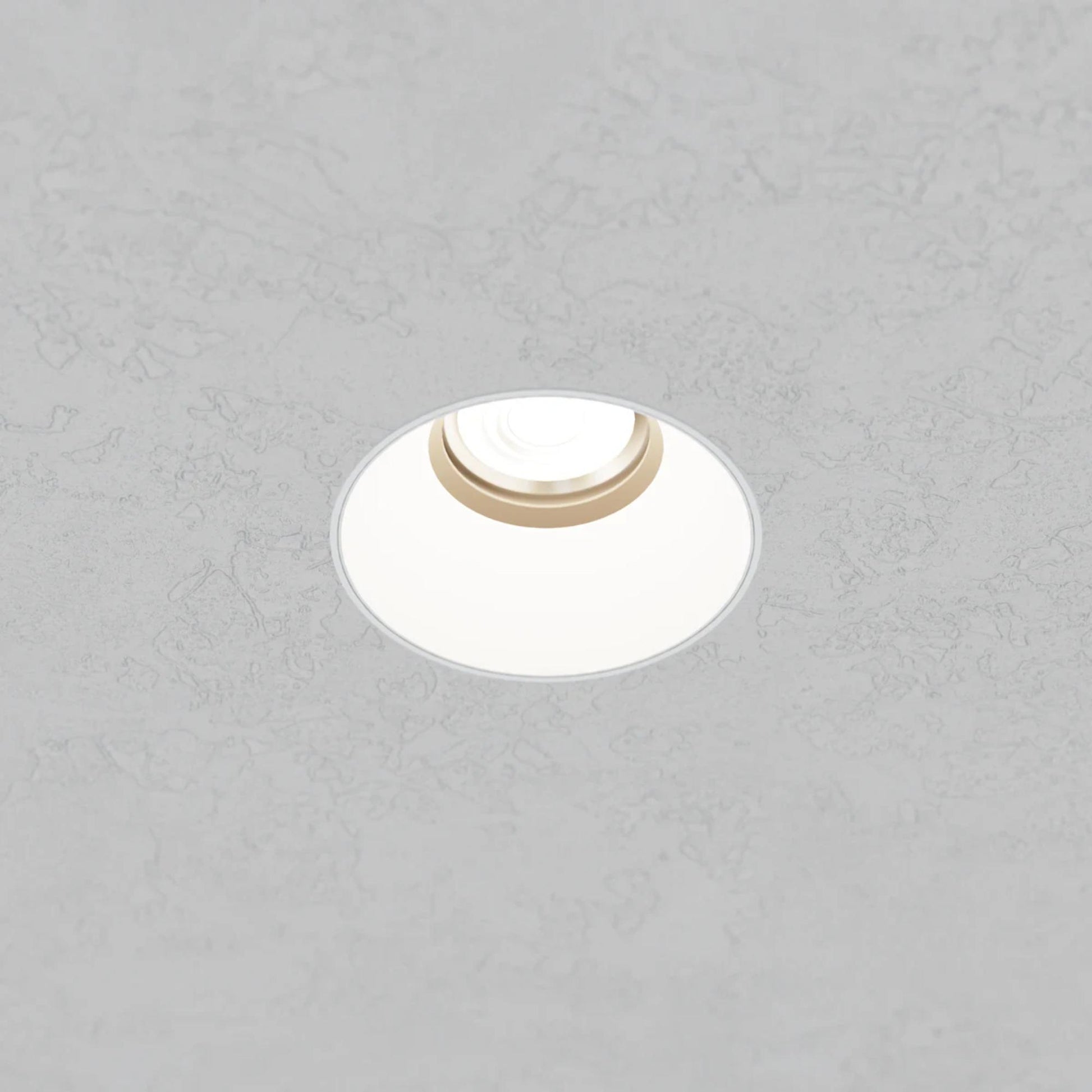

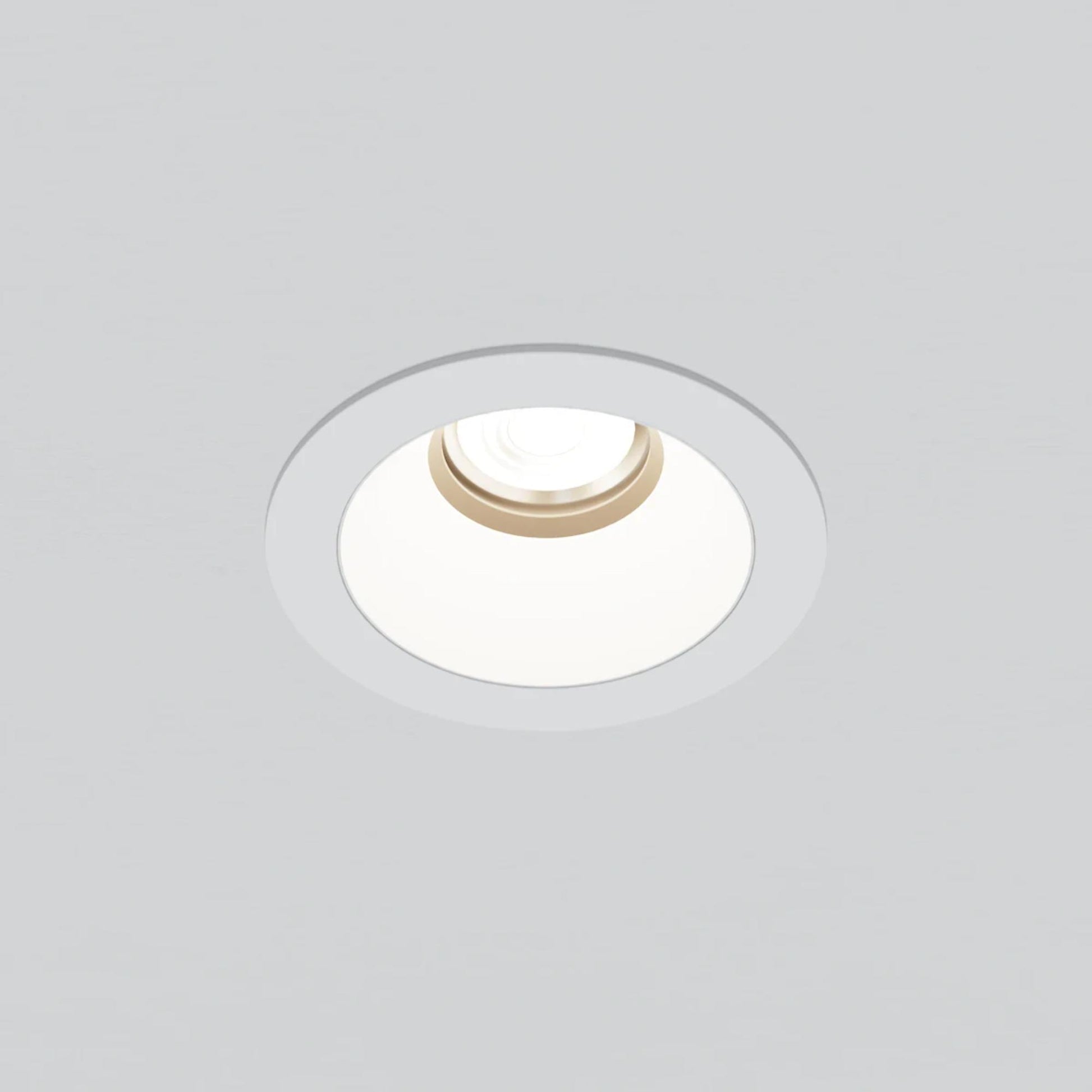

3 in round aperture, white finish, aluminum housing with polycarbonate lens. Zoom adjustable TIR optic for continuous beam control from 24° to 50°. Round trim and trimless installation options included. Air-tight and Type IC rated — suitable for insulated ceilings and wet locations.
Light Output & Performance
Delivers 895–1160 lm at 15W, CRI 90+, continuously adjustable TIR beam 24°–50°. TRIAC/ELV dimmable 10–100%. Rated life: 50,000 hours.
Electrical & Installation
120V AC / 60Hz. Recessed mount. Click-action module installs into housing without tools — suitable for remodel and new construction. Remote driver included. Rough-in plate with hanger bars (RP-DL3-RHYM) available separately for new construction applications.
Compatible Accessories (Sold Separately)
- 3.62 in Steel Rough-in Plate w/Hanger Bars: American Lighting RP-DL3-RHYM
Typical Applications
- Flexible accent and general downlighting
- Retail and gallery lighting requiring beam flexibility
- Bathrooms and wet locations
- New construction and remodel

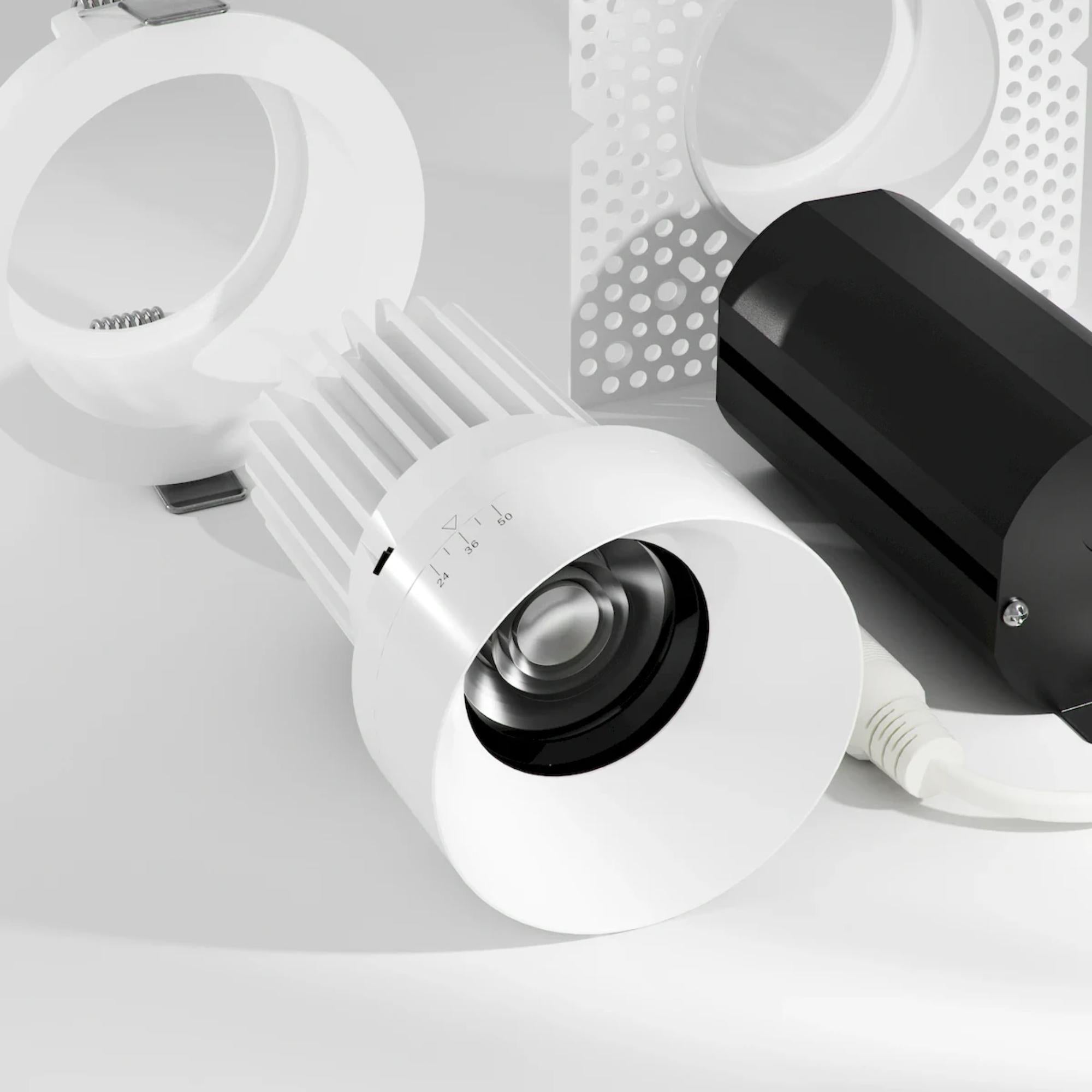

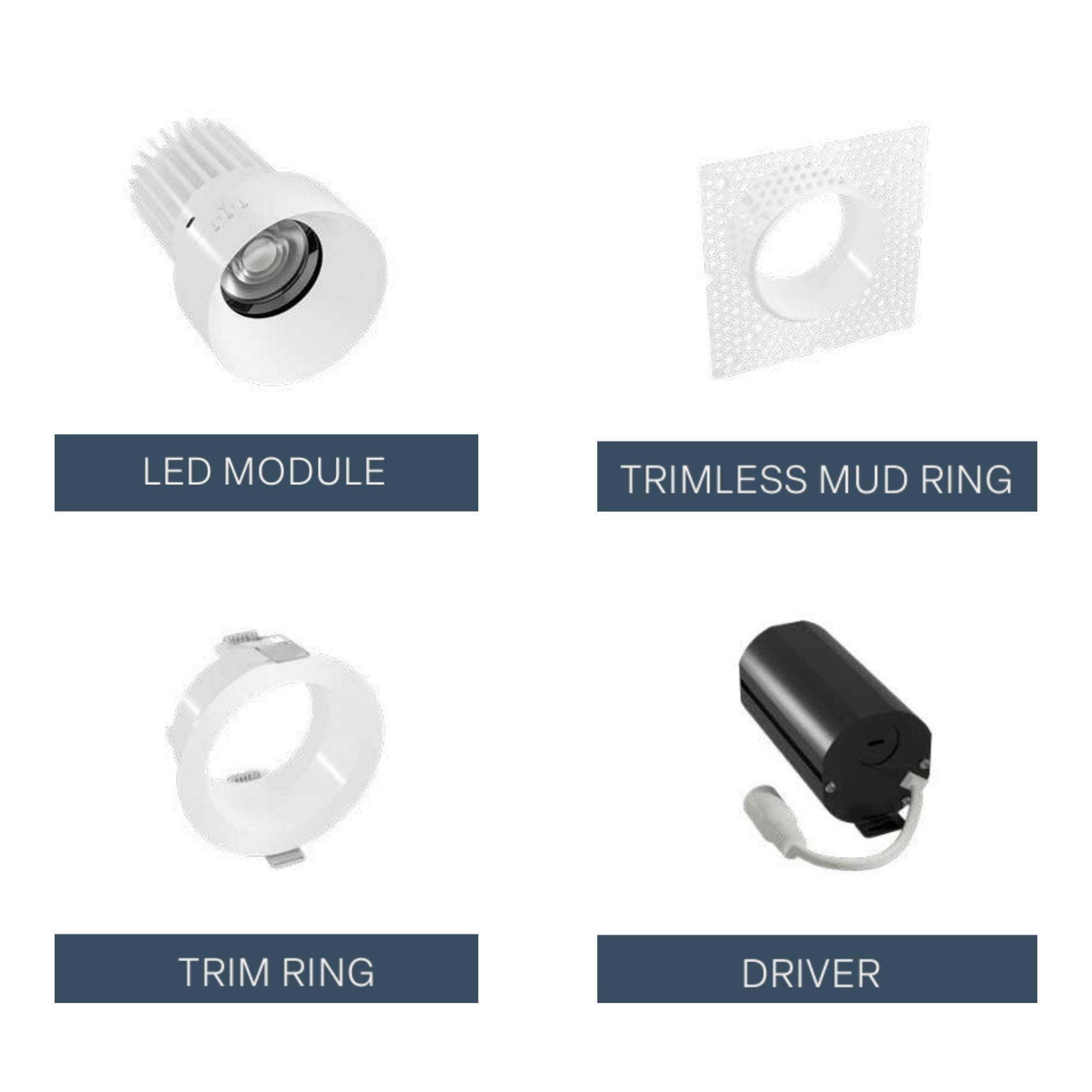

What’s Included

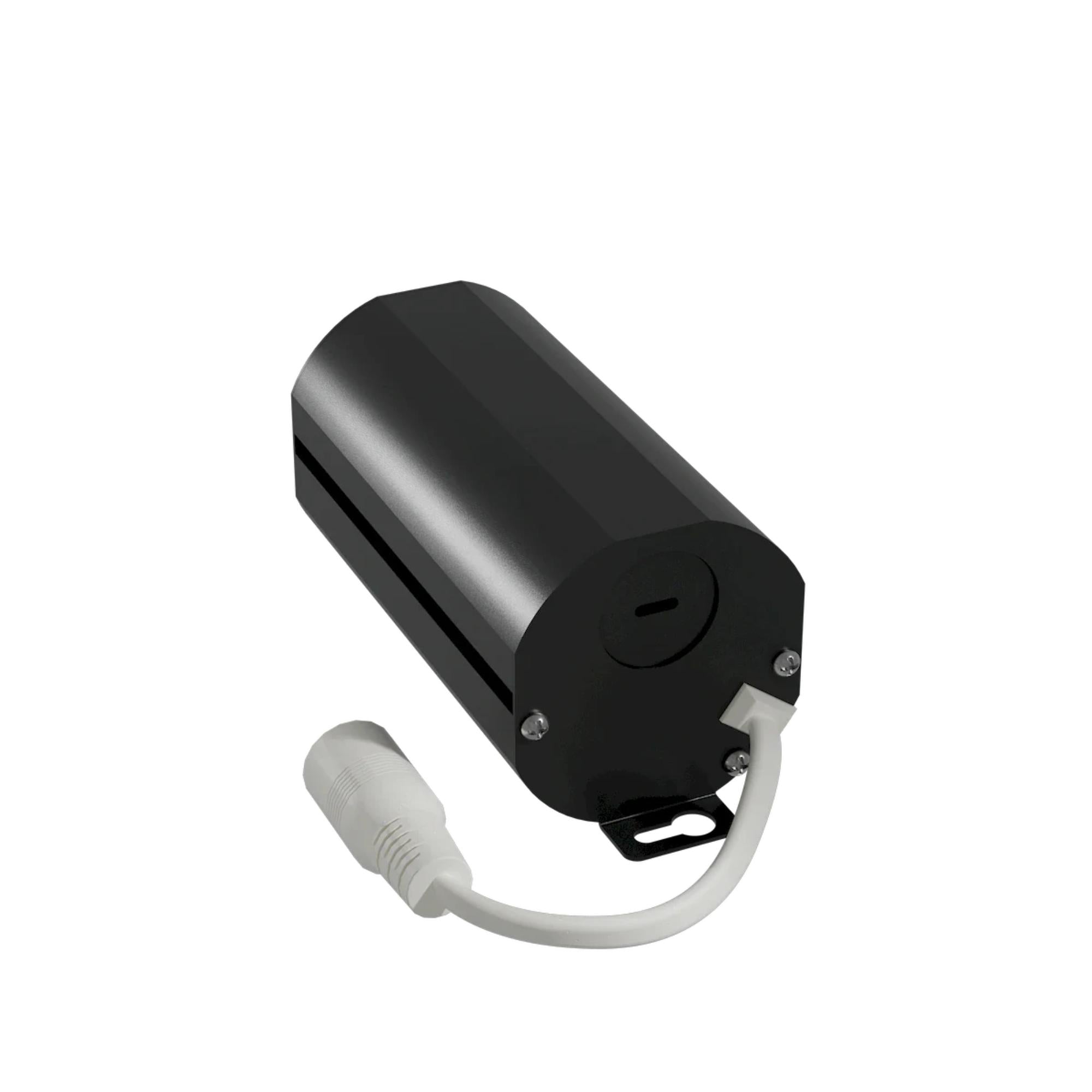

- (1) Remote driver
- (1) Plastic mudstopper accessory

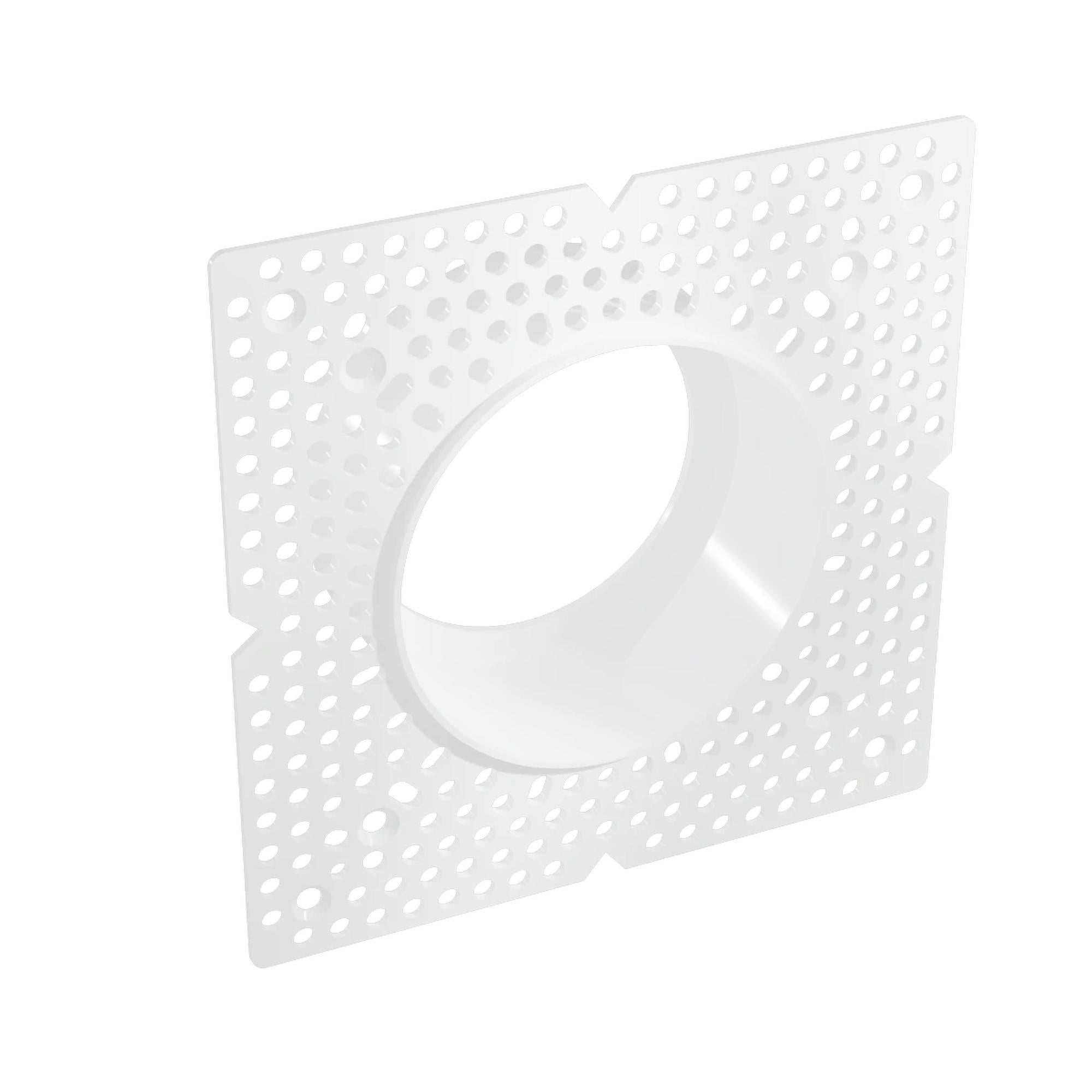

- (1) Round trimless mud-ring

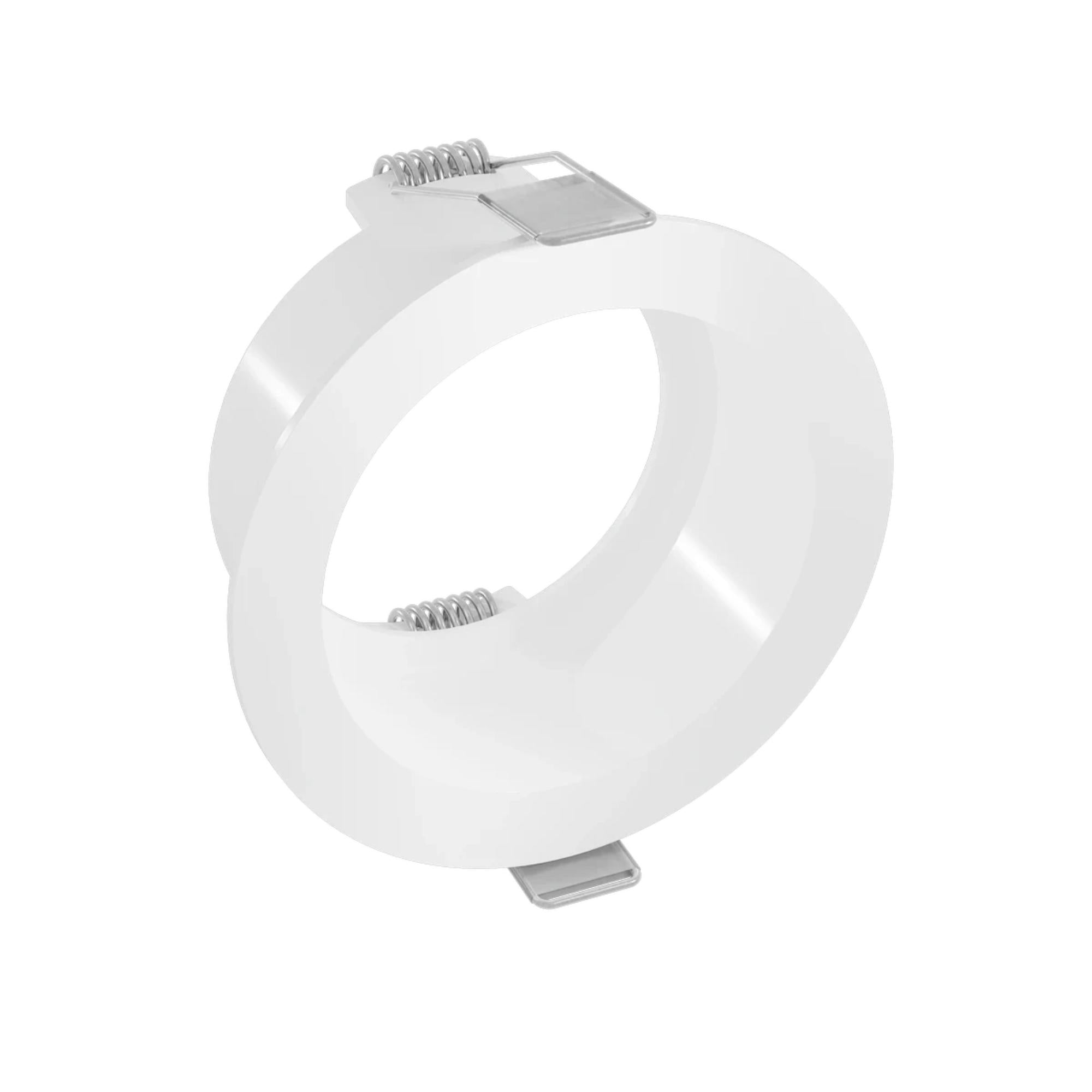

- (1) Round trim-ring
