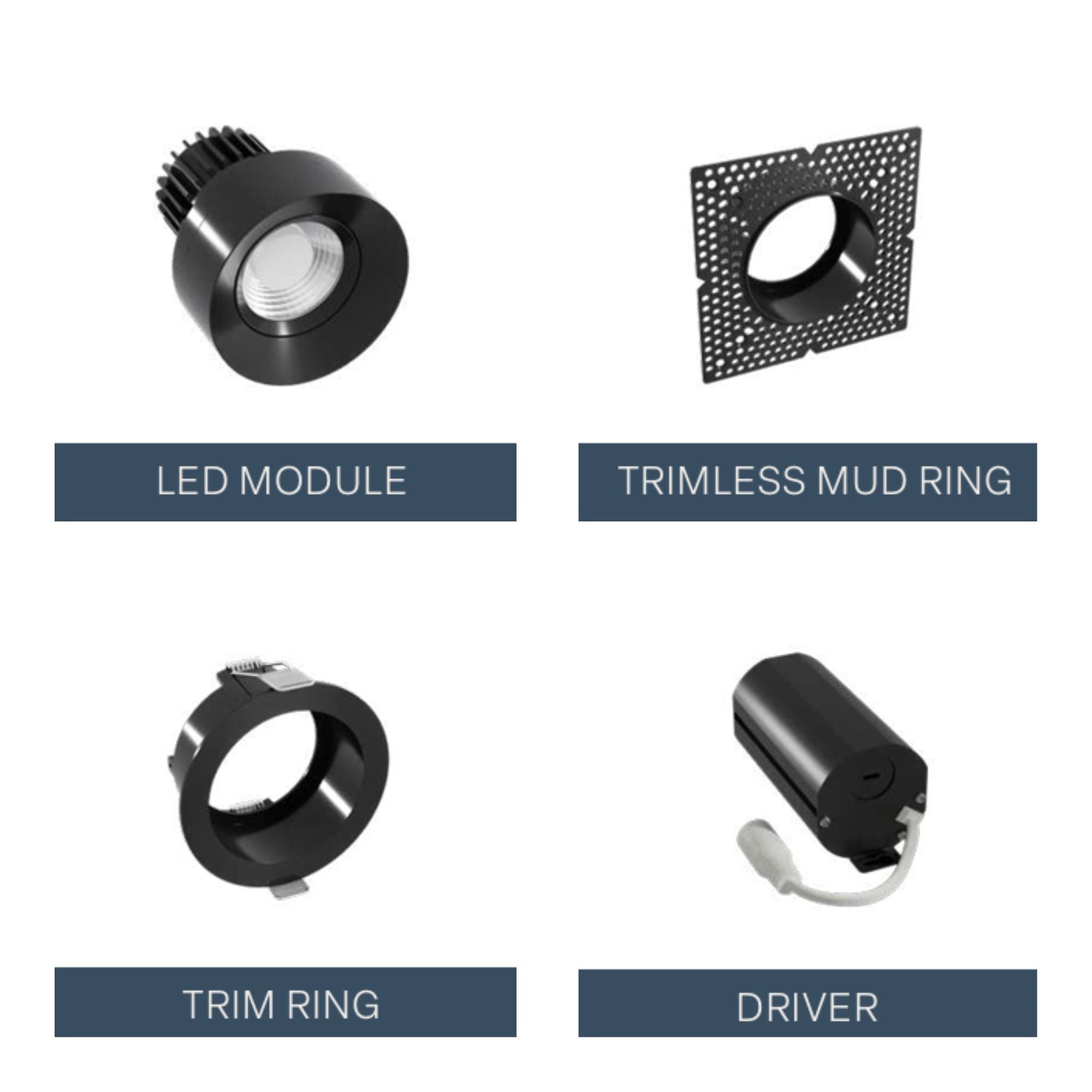

Black gimbal downlight with trimless mud ring, trim ring, and LED driver components
Rhyme 3" Round Gimbal Trimless LED Downlight, 12W, 1190 Lm, 5-CCT, Black - Bees Lighting

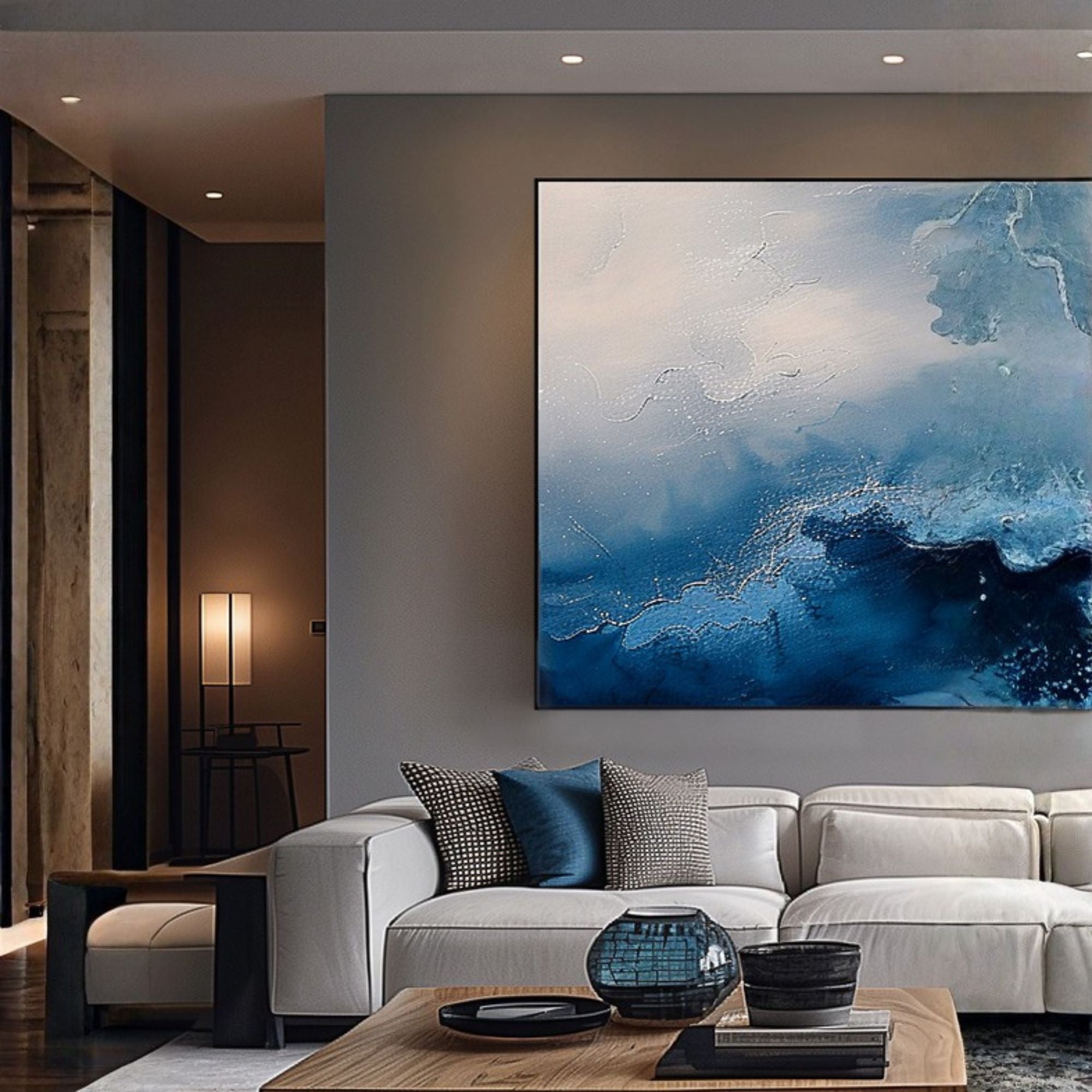

Recessed gimbal downlights in a modern living room ceiling, multiple fixtures visible
Rhyme 3" Round Gimbal Trimless LED Downlight - Bees Lighting
Rhyme 3" Round Gimbal Trimless LED Downlight - Bees Lighting
Rhyme 3" Round Gimbal Trimless LED Downlight, 12W, 1190 Lm, 5-CCT, Black - Bees Lighting
Rhyme 3" Round Gimbal Trimless LED Downlight, 12W, 1190 Lm, 5-CCT, Black - Bees Lighting
Rhyme 3" Round Gimbal Trimless LED Downlight - Bees Lighting
Rhyme 3" Round Gimbal Trimless LED Downlight, 12W, 1190 Lm, 5-CCT, Black - Bees Lighting
Rhyme 3" Round Gimbal Trimless LED Downlight, 12W, 1190 Lm, 5-CCT, Black - Bees Lighting
Rhyme 3" Round Gimbal Trimless LED Downlight, 12W, 1190 Lm, 5-CCT, Black - Bees Lighting
Black gimbal downlight with trimless mud ring, trim ring, and LED driver components
Rhyme 3" Round Gimbal Trimless LED Downlight, 12W, 1190 Lm, 5-CCT, Black - Bees Lighting
Recessed gimbal downlights in a modern living room ceiling, multiple fixtures visible
Rhyme 3" Round Gimbal Trimless LED Downlight - Bees Lighting

American Rhyme RHYM-DL3R-12-36-GIM-5CCT-BK 3 in Round Gimbal Downlight 12W 5CCT Black

Vendor: American Lighting

SKU: RHYM-DL3R-12-36-GIM-5CCT-BK

Quick Ship
$117.81
$0.00
Shipping calculated at checkout.
Color: Black

Available in stock (2798)

Must be ordered in quantities of .

About this item
  • Click-Action Install: Innovative click-action mechanism enables fast installation and easy maintenance in remodel or new construction
  • Eyeball Gimbal Optic: Round gimbal with TIR lens provides directional accent lighting at 36° beam angle
  • Selectable CCT: 2700K, 3000K, 3500K, 4000K, and 5000K — field selectable with included remote driver
  • Air-Tight & Wet Location Rated: cETLus Listed, Type IC, IP44, JA8 Compliant — suitable for wet locations and insulated ceilings
  • 50,000-Hour Rated Life: 12W, 1090–1190 lm, CRI 90+, TRIAC/ELV dimmable to 10%, RoHS compliant
View More Details

Description

American Lighting Rhyme RHYM-DL3R-12-36-GIM-5CCT-BK 3 in Round Gimbal Downlight — 12W / 1090–1190 lm / 5CCT / 36° / Black

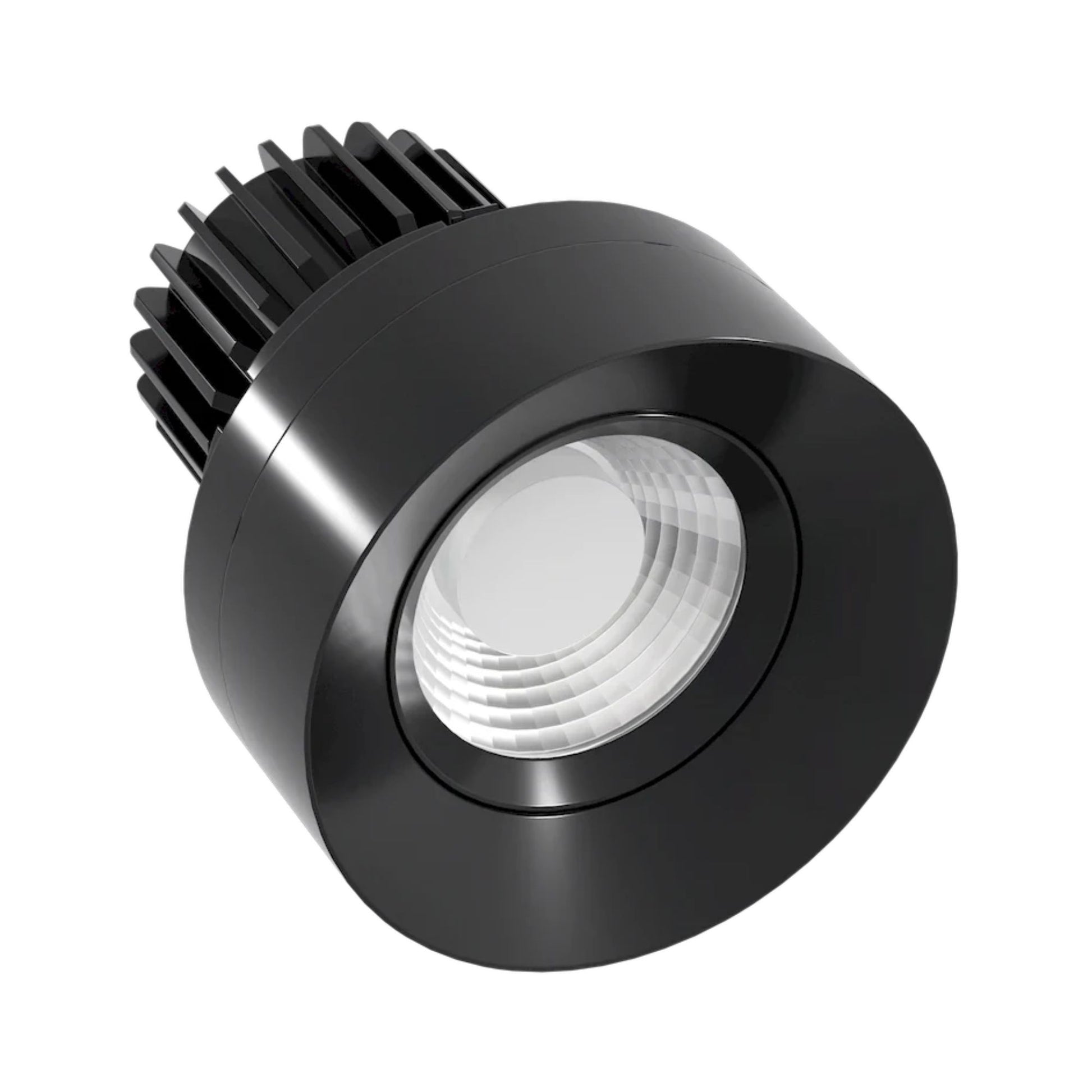

The RHYM-DL3R-12-36-GIM-5CCT-BK is a 3 in round recessed gimbal downlight from the American Lighting Rhyme series, featuring an eyeball-style gimbal with TIR lens in black finish. The gimbal provides directional accent lighting with a fixed 36° beam angle. The Rhyme series’ click-action mechanism enables fast installation and easy maintenance for both remodel and new construction. Field-selectable CCT: 2700K, 3000K, 3500K, 4000K, or 5000K. Delivers 1090–1190 lm at 12W, CRI 90+. TRIAC/ELV dimmable 10–100%. cETLus Listed, wet location rated, air-tight, Type IC, JA8 Compliant. 50,000-hour rated life.

Key Features

  • Click-Action Mechanism: Tool-free module installation for quick remodel and new construction installs; supports easy field maintenance
  • Optic Type: Eyeball gimbal — TIR lens, 36° fixed beam angle, directional aiming
  • Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K via remote driver
  • Light Output: 1090–1190 lm at 12W, CRI 90+, 36° TIR beam
  • Finish: Black
  • Dimming: TRIAC/ELV, 10–100%
  • Voltage: 120V AC / 60Hz
  • IP Rating: IP44
  • Operating Temp: -20°C (-4°F) to +40°C (+104°F)
  • Housing: Aluminum with polycarbonate lens
  • Mounting: Recessed | Driver: Remote (included)
  • Ratings: cETLus Listed, wet location rated, air-tight, Type IC
  • Certifications: cETLus, FCC, JA8 Compliant, RoHS Compliant
  • Rated Life: 50,000 hours

Construction & Design

3 in round aperture, black finish, aluminum housing with polycarbonate lens. Eyeball gimbal optic for directional accent lighting. Round trim and trimless installation options included. Air-tight and Type IC rated — suitable for insulated ceilings and wet locations.

Light Output & Performance

Delivers 1090–1190 lm at 12W, CRI 90+, 36° fixed TIR beam angle. TRIAC/ELV dimmable 10–100%. Rated life: 50,000 hours.

Electrical & Installation

120V AC / 60Hz. Recessed mount. Click-action module installs into housing without tools — suitable for remodel and new construction. Remote driver included. Rough-in plate with hanger bars (RP-DL3-RHYM) available separately for new construction applications.

Compatible Accessories (Sold Separately)

  • 3.62 in Steel Rough-in Plate w/Hanger Bars: American Lighting RP-DL3-RHYM

Typical Applications

  • Residential and hospitality accent lighting

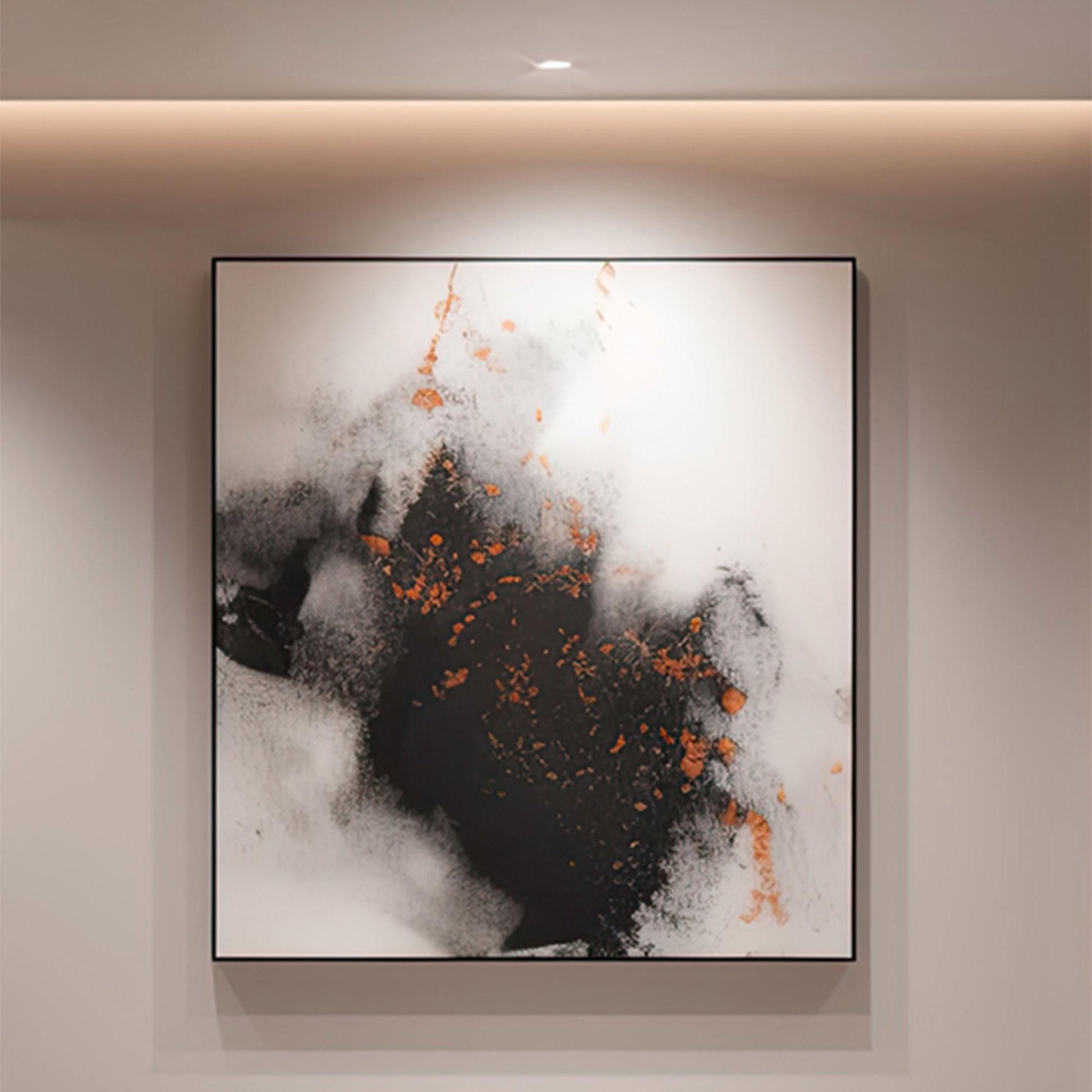

  • Artwork and feature wall illumination
  • Bathrooms and wet locations
  • New construction and remodel

What’s Included

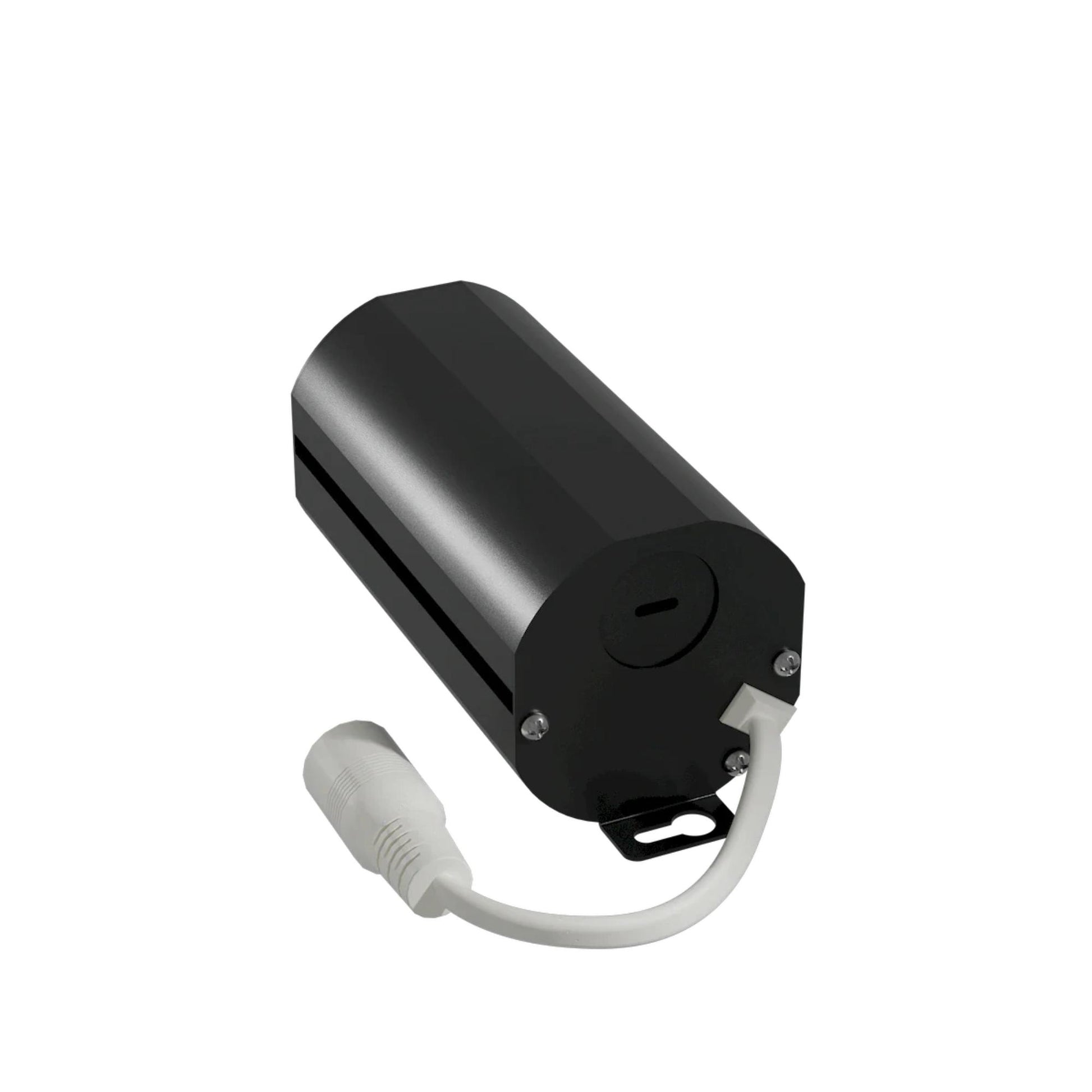

  • (1) Remote driver
  • (1) Plastic mudstopper accessory

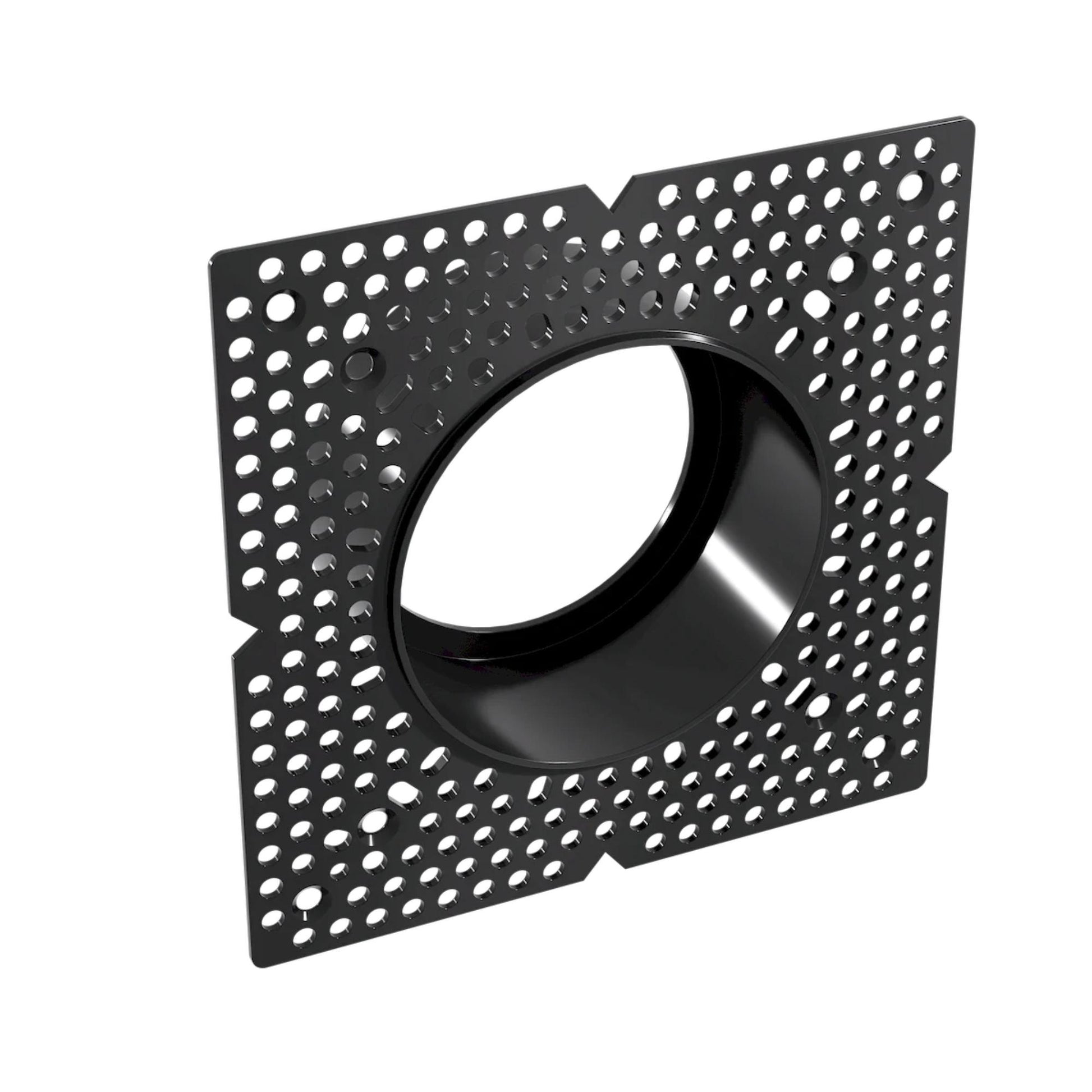

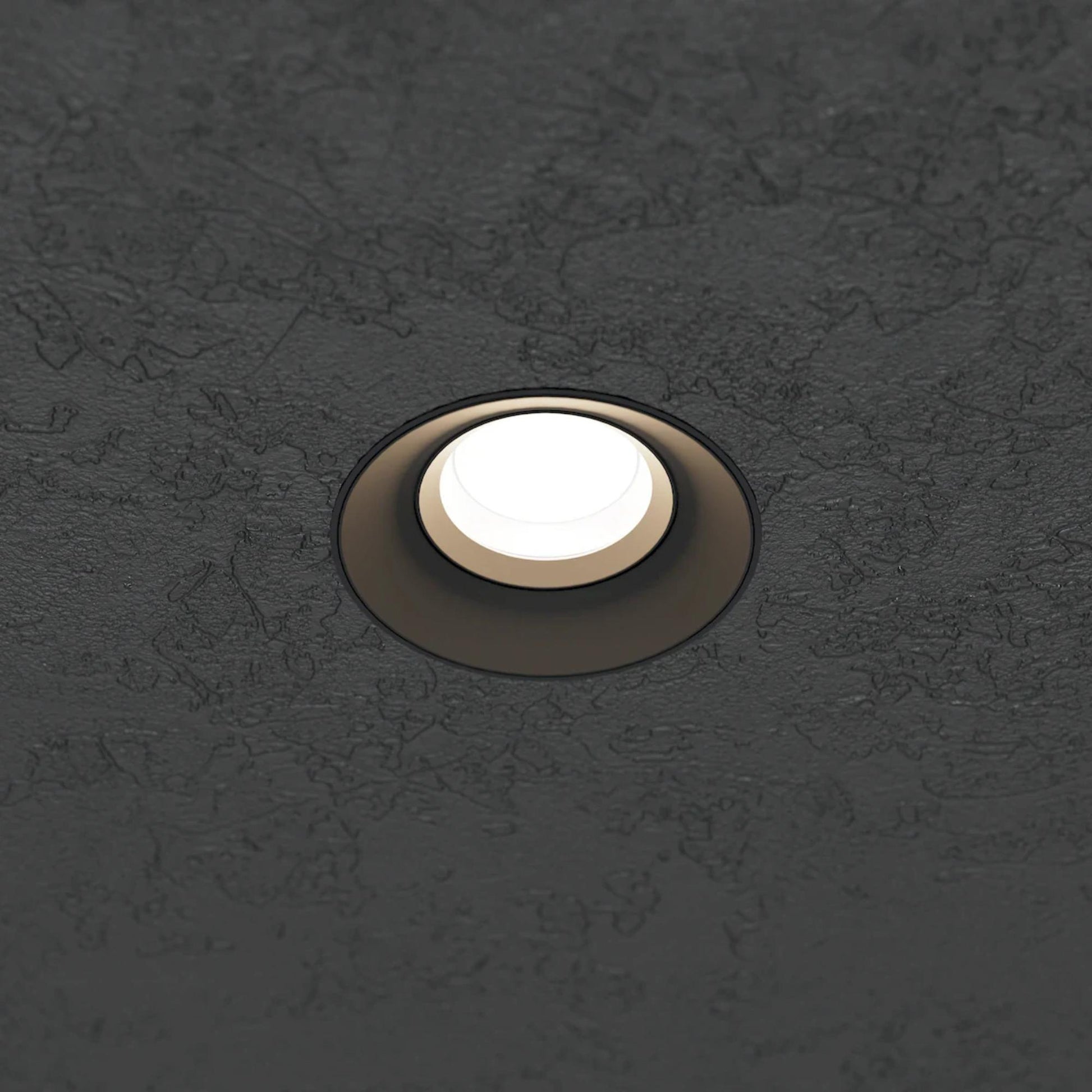

  • (1) Round trimless mud-ring

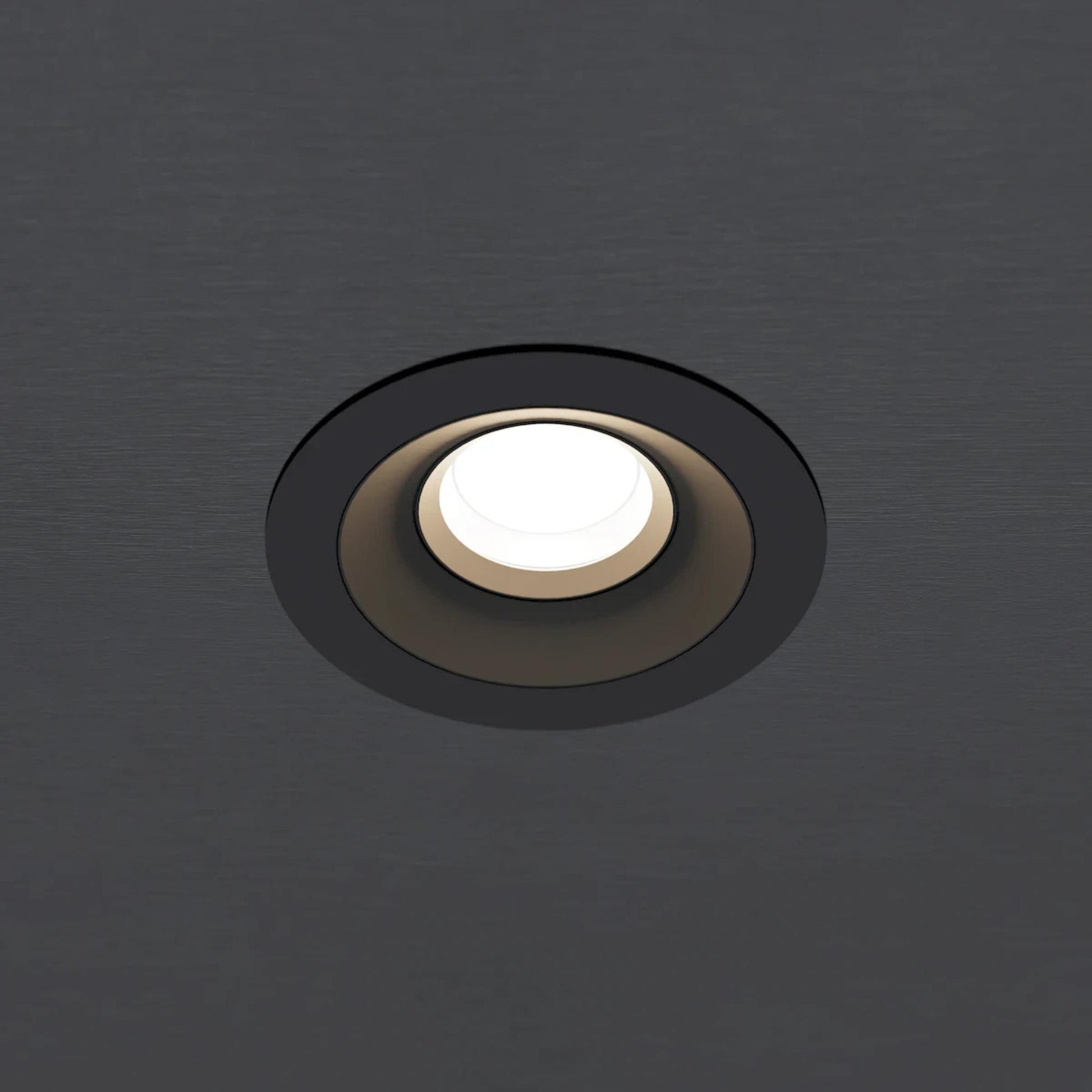

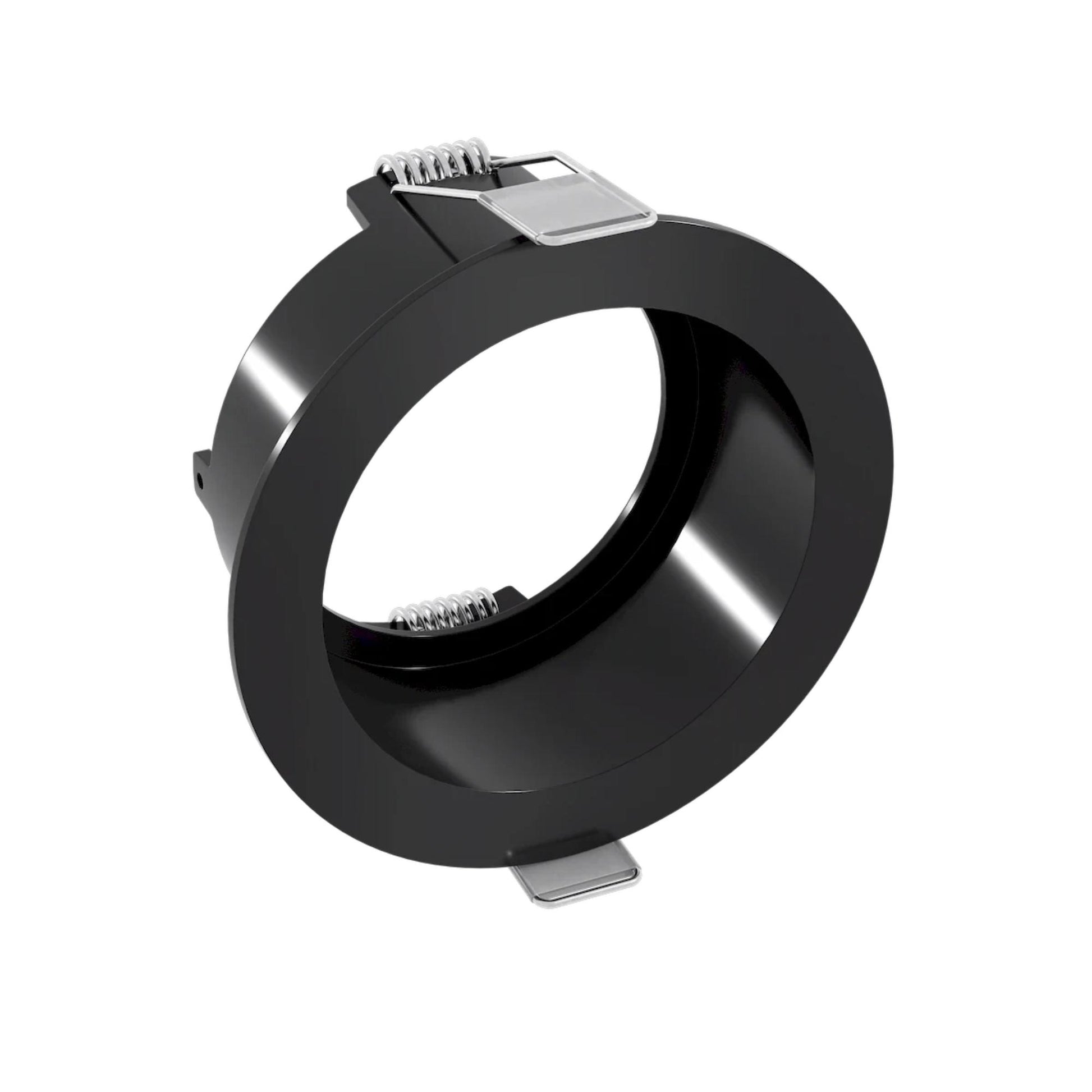

  • (1) Round trim-ring

Specifications

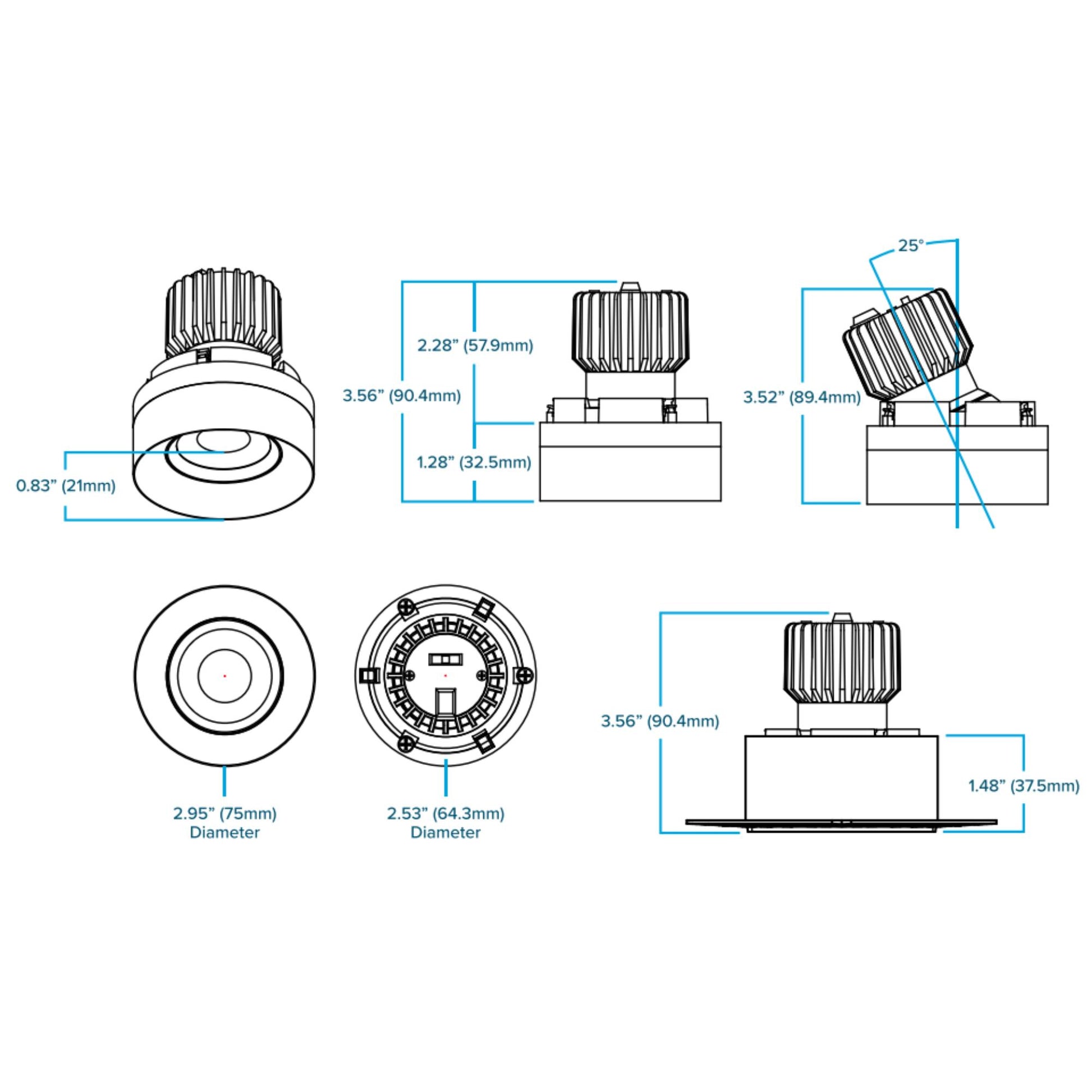

Dimensions

Length/Depth
2.95 in
Width/Diameter
2.95 in
Height
3.56 in
Weight
1 lb

Documents

Style & Materials

Finish
Black
Material
Aluminum
Shape
Round

Characteristics & Features

Lamp Color
2700K, 3000K, 3500K, 4000K, 5000K, Selectable CCT
Color Rendering
90 CRI
Delivered Lumens
1190
Beam Angle
36
Dimmable
Yes
Trim
Gimbal, Trimless
Reflector
Gimbal

Electrical Information

Voltage
120V
Total Wattage
12W

Item Details

MPN
RHYM-DL3R-12-36-GIM-5CCT-BK
Brand
American Lighting
Family
Rhyme Downlights
UPC
714176038643

Warranty & Certifications

Product Warranty
5 Years
Lamp Life
50,000 Hours
Product Rating
Wet Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

What location rating does the RHYM-DL3R-12-36-GIM-5CCT-BK carry?
Yes — the RHYM-DL3R-12-36-GIM-5CCT-BK is cETLus Listed for wet locations, air-tight rated, and Type IC rated for direct contact with insulation. IP44. JA8 Compliant. Suitable for dry, damp, and wet environments including bathrooms and covered outdoor areas.

Is the RHYM-DL3R-12-36-GIM-5CCT-BK compatible with standard wall dimmers?
Yes — the RHYM-DL3R-12-36-GIM-5CCT-BK is dimmable with most TRIAC/ELV dimmers from 10–100%. Consult American Lighting’s dimmer compatibility list for approved models.

What is the click-action mechanism on the Rhyme series?
Yes — the Rhyme series features an innovative click-action mechanism that allows for quick and easy installation as well as maintenance, suitable for both remodel and new construction applications. The light module clicks into the housing without tools, simplifying field installation.

What is included with the RHYM-DL3R-12-36-GIM-5CCT-BK?
Yes — the RHYM-DL3R-12-36-GIM-5CCT-BK includes (1) remote driver, (1) plastic mudstopper accessory, (1) round trimless mud-ring, and (1) round trim-ring. A 3.62 in steel rough-in plate with hanger bars (RP-DL3-RHYM) is available separately.

What is the difference between the Rhyme Gimbal and Deep Baffle models?
Yes — the Rhyme Gimbal (GIM) features an eyeball-style adjustable gimbal with a fixed 36° TIR beam, ideal for directional accent lighting at 12W. The Deep Baffle (THNC) models are fixed downlights at 15W with a honeycomb louver and field adjustable optics (24°, 36°, 60°), suited for general illumination. Both share the same click-action mechanism, CCT options, and certifications.
