American Lighting REC-DMX-RJ45A-5CH 5-Channel DMX Decoder with RJ45, 12-24V DC, 8A per Channel
Available in stock (2362)
About this item
About this item
- 5-Channel PWM Decoder: Translates DMX512 signals into PWM output across 5 independent channels at 8A per channel — supporting up to 96W per channel at 12V DC or 192W per channel at 24V DC.
- RJ45, XLR5, or Direct Wire: Features female and male 5-pin XLR plus dual RJ45 In/Out connections for seamless integration into new and existing DMX installations.
- 8-Bit or 16-Bit PWM Resolution: Selectable output resolution with 500Hz–30KHz PWM frequency and 0.1–9.9 gamma correction for smooth, precise dimming performance.
- Standalone or Decoder Mode: Operates independently in standalone mode or as part of a larger DMX system in decoder mode — link multiple units for scalable installations.
- Wide Compatibility: Works with single color, tunable white, and RGB-based LED tape light and neon. Metal housing with digital display. 3-year warranty.
We process payments securely and do not store credit card information.
Description
Description

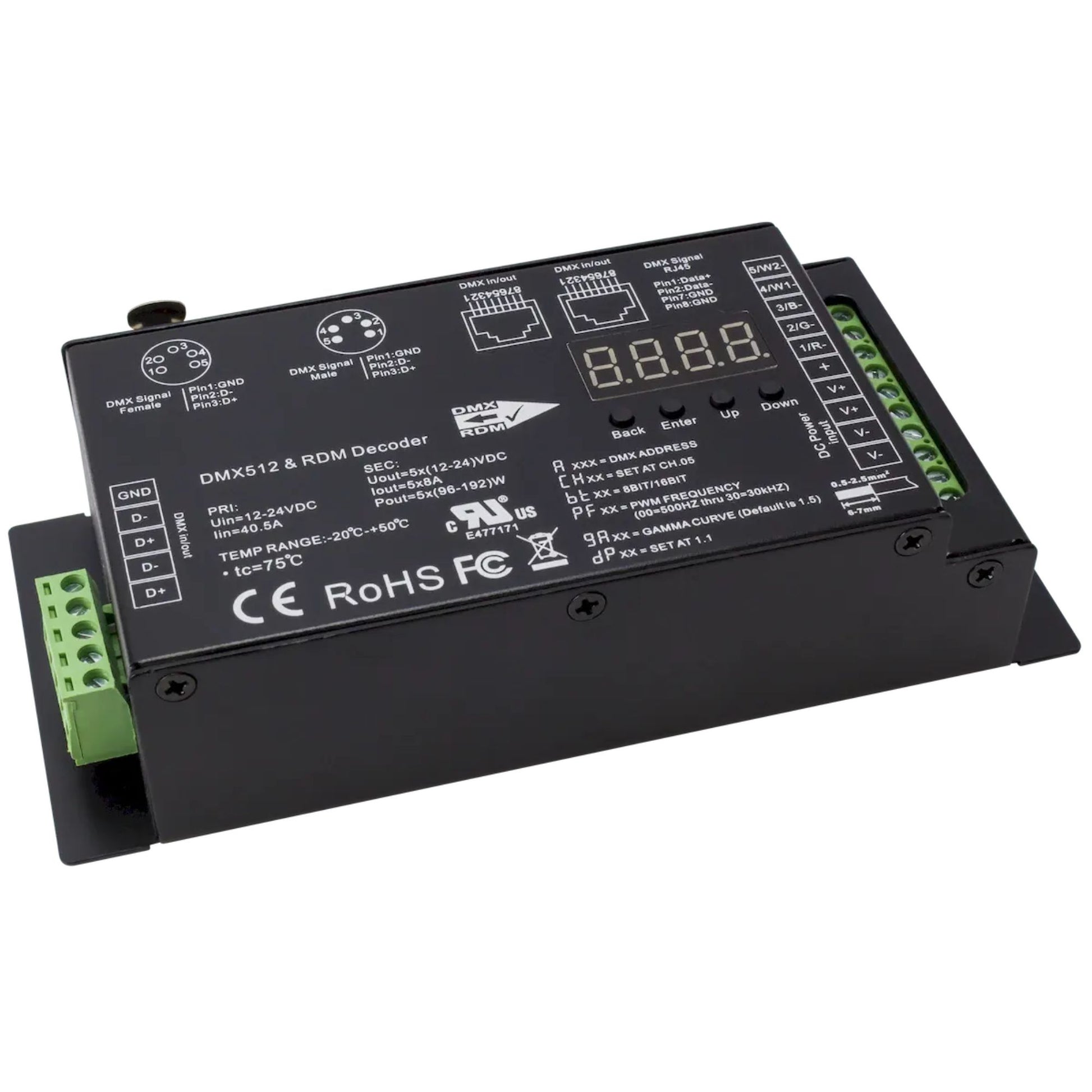

American Lighting 5-Channel DMX Decoder with RJ45 — PWM Control for RGB, Tunable & Single-Color Tape Light
The American Lighting REC-DMX-RJ45A-5CH is a 5-channel DMX signal receiver and decoder that translates DMX signals into the PWM control signal used by RGB, tunable white, and single-color LED tape light and neon. Compatible with RJ45, XLR5, or direct wire DMX inputs and outputs, it integrates seamlessly into new and existing DMX installations. Operates in standalone mode or decoder mode, and supports both 8-bit and 16-bit PWM output resolution for precise dimming control.
Key Features
- 5-Channel PWM Output: 5-channel capable output at 8A per channel maximum — 96W per channel at 12V DC or 192W per channel at 24V DC.
- DMX512 RDM Decoder: Translates DMX512 signals into PWM output for direct control of LED tape light and neon.
- RJ45, XLR5, or Direct Wire: Features female 5-pin XLR, male 5-pin XLR, and dual RJ45 In/Out connections for flexible integration into any DMX installation.
- 8-Bit or 16-Bit PWM Resolution: Selectable 8-bit or 16-bit PWM output resolution ratio for smooth, precise dimming performance.
- PWM Frequency: 500Hz to 30KHz output PWM frequency range.
- Gamma Correction: 0.1 to 9.9 gamma value output dimming curve range for natural-looking dimming response.
- Standalone or Decoder Mode: Operates in standalone mode for independent control or decoder mode when integrated into a DMX system.

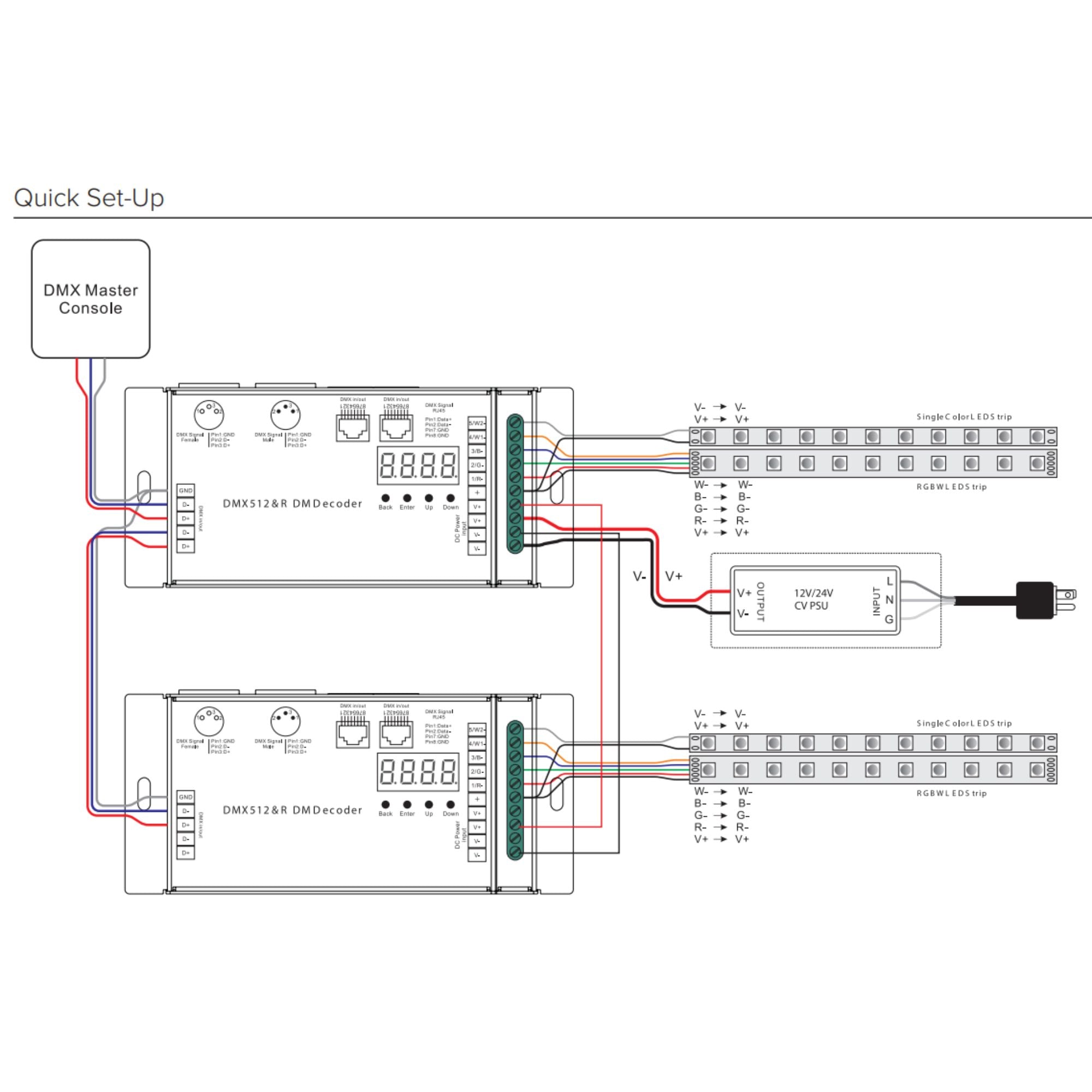

- Scalable Installations: Link multiple receivers for larger installs — each unit requires a separate DMX address.
- Metal Housing with Digital Display: Durable metal enclosure with on-board digital display for easy configuration.
- Wide Load Compatibility: Compatible with single color, tunable white, and RGB-based neon or tape light.
- Input Voltage: 12-24V DC constant voltage (96-192W total output) or 12-36V DC constant voltage (60-120W total output).
- Input Current: 40.5A maximum.
- Mounting: Surface mount to hard surface.
- Operating Temperature: -4°F to 122°F (-20°C to 50°C).
- Warranty: 3 years.
- Certifications: FCC Compliant, RoHS Compliant. Dry location rated.
Connections
- Female 5-Pin XLR In/Out
- Male 5-Pin XLR In/Out
- RJ45 In/Out (×2)
- LED output terminals (5 channels)
- 12-24V DC or 12-36V DC constant voltage input

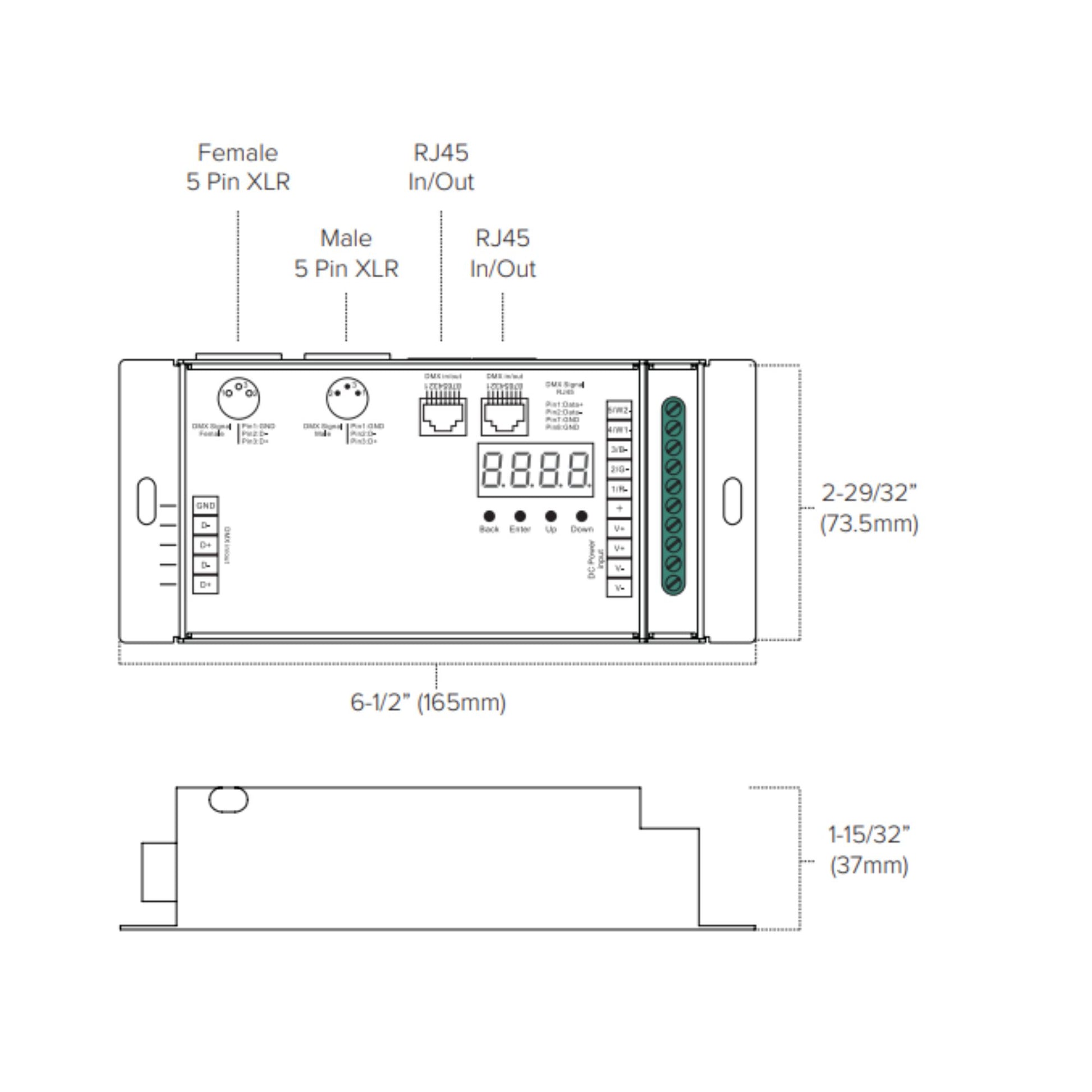

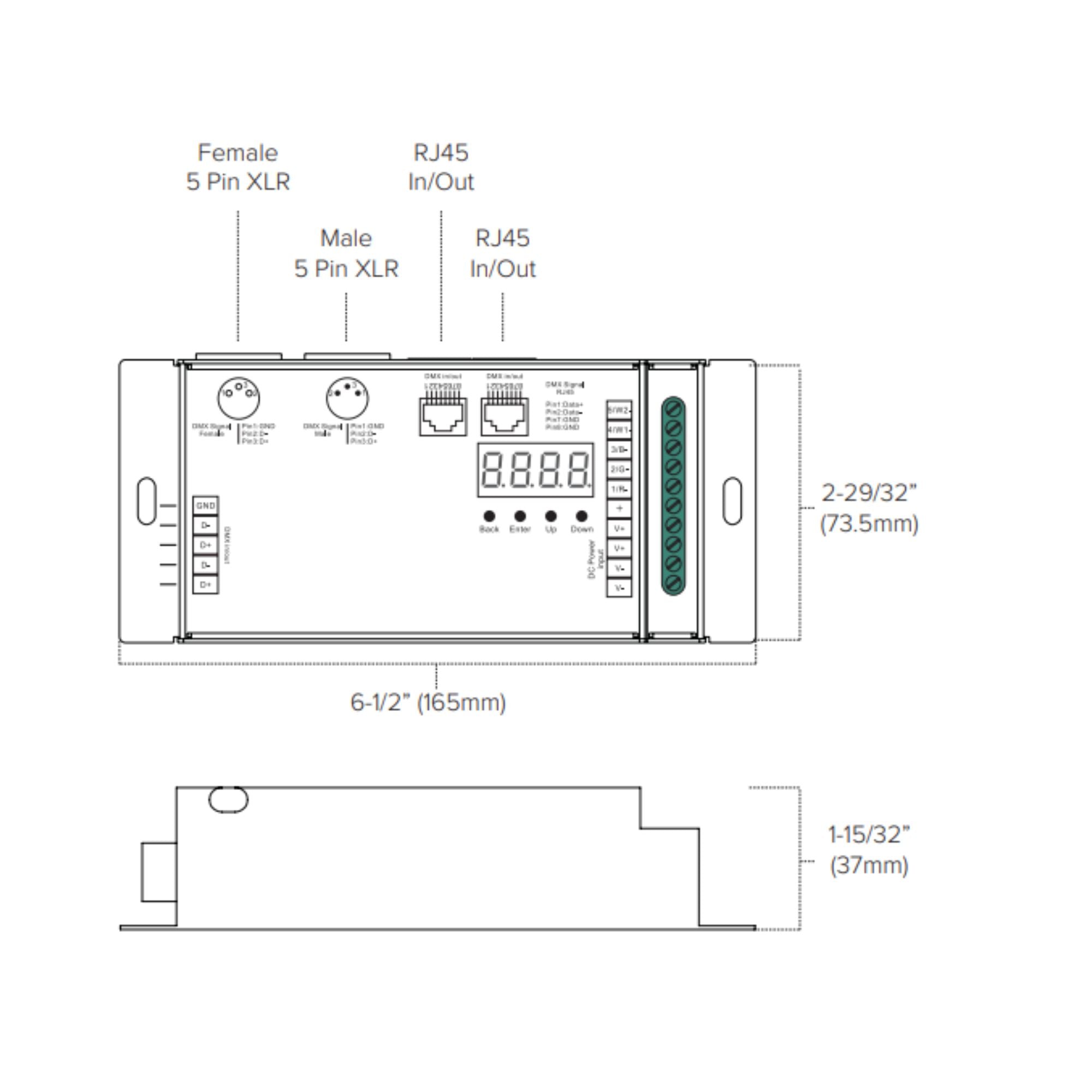

Dimensions
- Length: 6-1/2" (165mm)
- Height: 2-29/32" (73.5mm)
- Depth: 1-15/32" (37mm)
⚠ Important Installation Notes

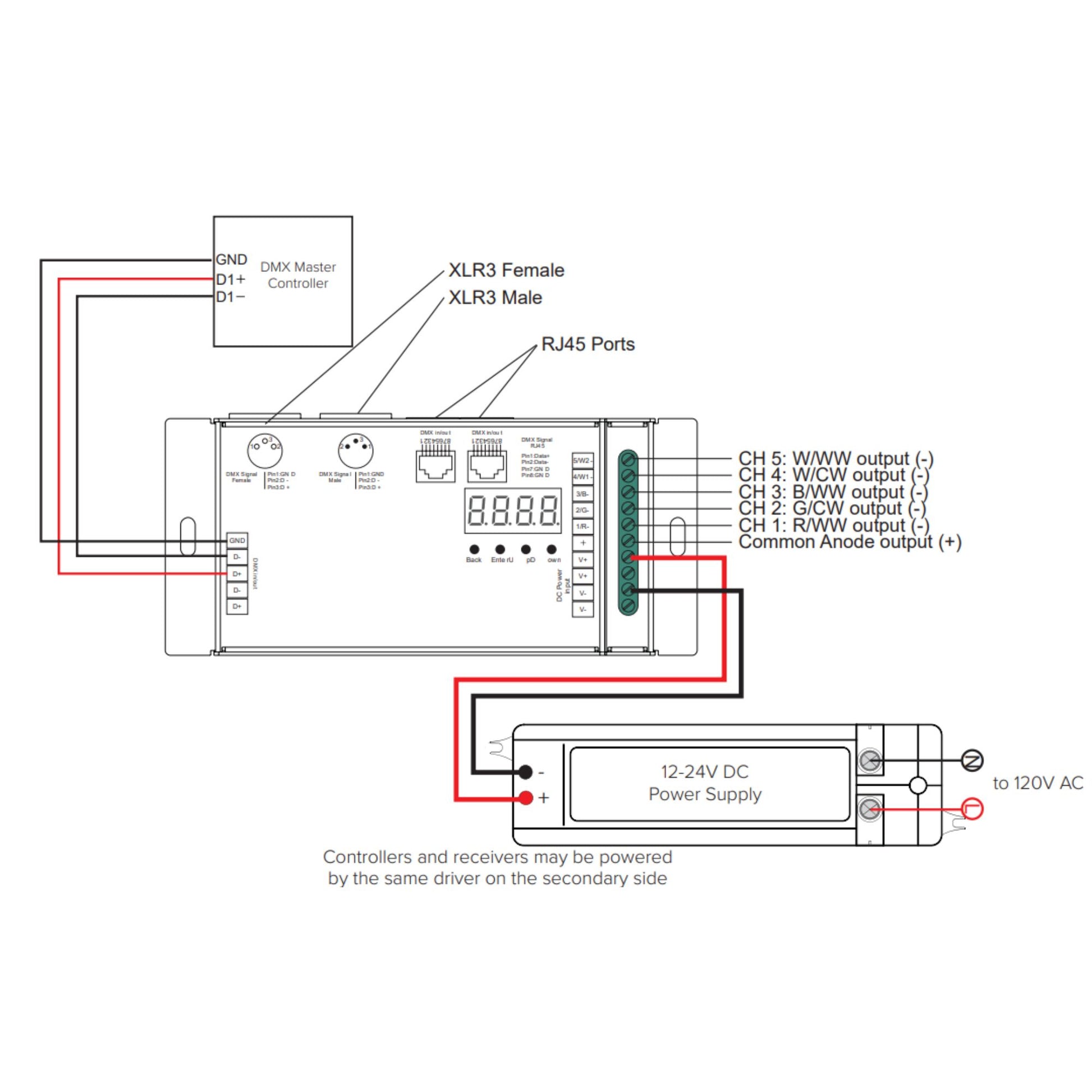

- Receiver can be powered from the secondary side of the driver being used to power the controller and/or fixture.
- Do not connect more than one power supply to the input side of the decoder.
- Requires a 12-24V DC constant voltage driver and DMX controller for operation — both sold separately.
What's Included
- (1) DMX Receiver/Decoder
Requires 12-24V power supply and DMX control — sold separately.
Specifications
Specifications
Dimensions
Documents
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What load types is the REC-DMX-RJ45A-5CH compatible with?
What load types is the REC-DMX-RJ45A-5CH compatible with?
What DMX connection types does the REC-DMX-RJ45A-5CH support?
What DMX connection types does the REC-DMX-RJ45A-5CH support?
The decoder supports RJ45, XLR5 (female and male 5-pin), or direct wire DMX inputs and outputs, allowing seamless integration into new and existing DMX installations.
What is the maximum output per channel on the REC-DMX-RJ45A-5CH?
What is the maximum output per channel on the REC-DMX-RJ45A-5CH?
Each of the 5 channels supports a maximum of 8A output — equivalent to 96W per channel at 12V DC or 192W per channel at 24V DC, for a total output of up to 192W at 12V DC or 384W at 24V DC across all 5 channels.
Can the REC-DMX-RJ45A-5CH operate without a DMX controller?
Can the REC-DMX-RJ45A-5CH operate without a DMX controller?
Yes. The decoder supports standalone mode for independent operation without a DMX controller, as well as decoder mode for full integration into a DMX system. A 12-24V DC constant voltage power supply is required in both modes.
Can multiple REC-DMX-RJ45A-5CH units be linked for larger installations?
Can multiple REC-DMX-RJ45A-5CH units be linked for larger installations?
Yes. Multiple receivers can be linked together for larger installations — each unit requires its own separate DMX address. Use the RJ45 or XLR5 output connections to daisy-chain units through the DMX signal path.
