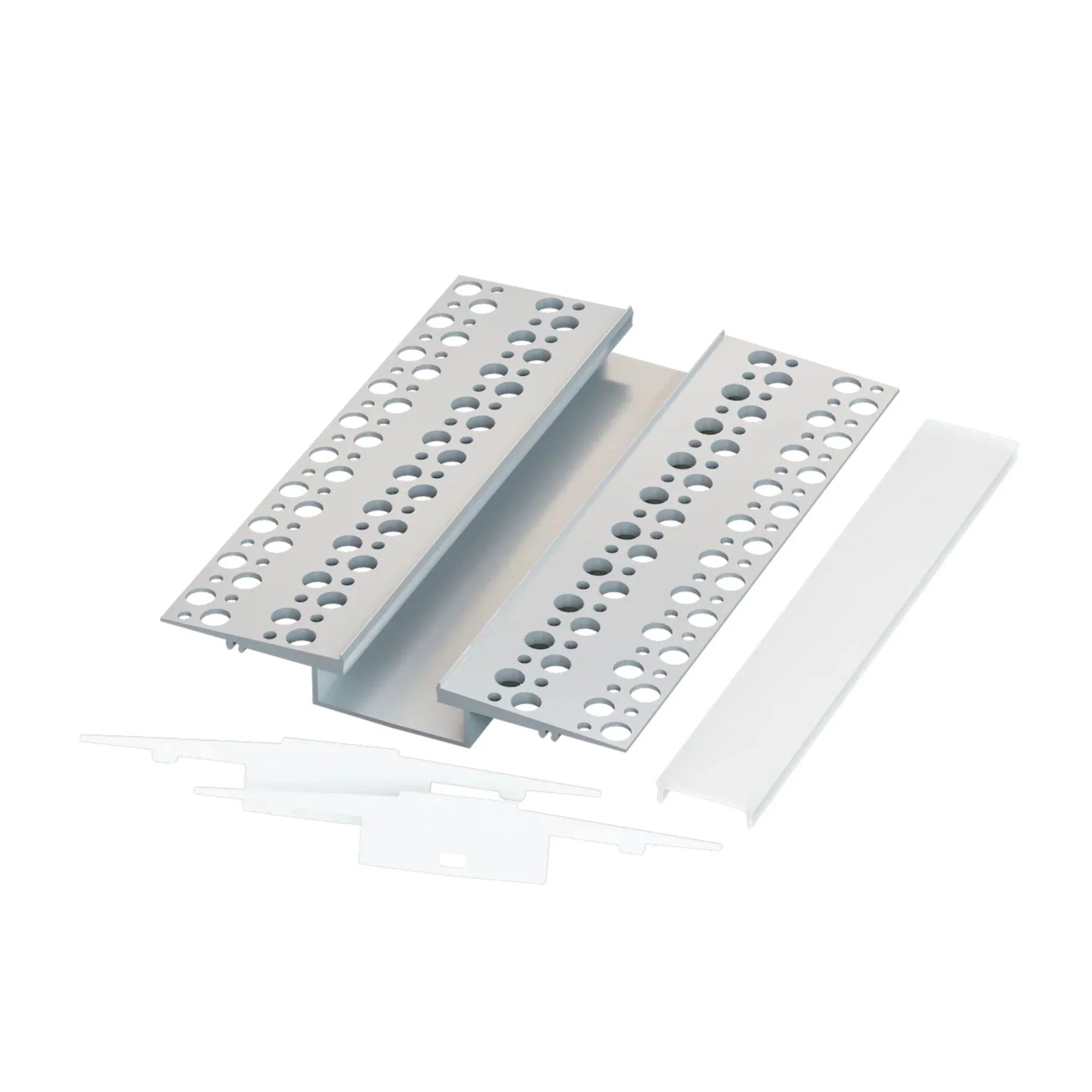

Aluminum tape light channel bundle with perforated diffuser inserts and white end caps

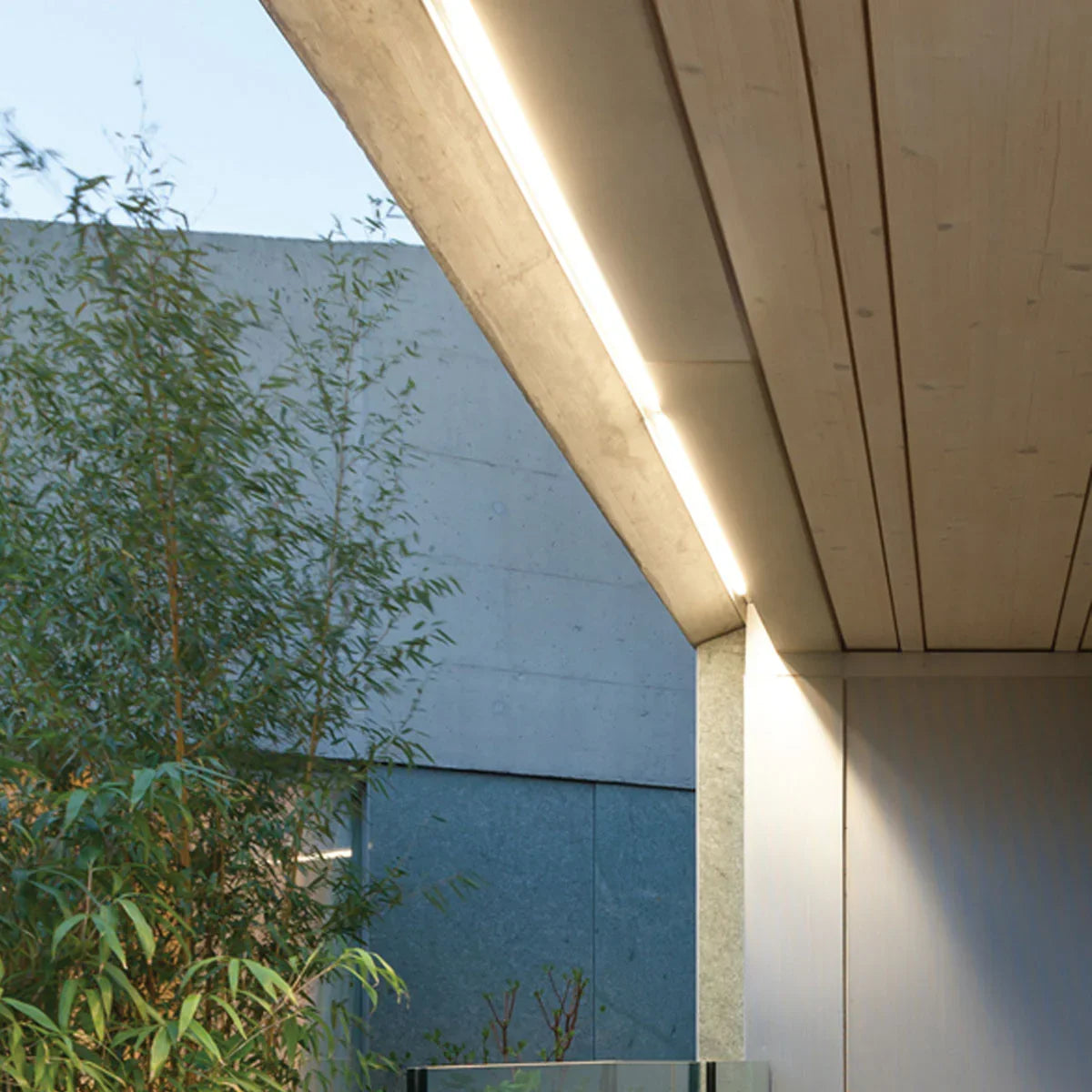

Recessed tape light channel in drywall with a subtle linear light along the wall edge

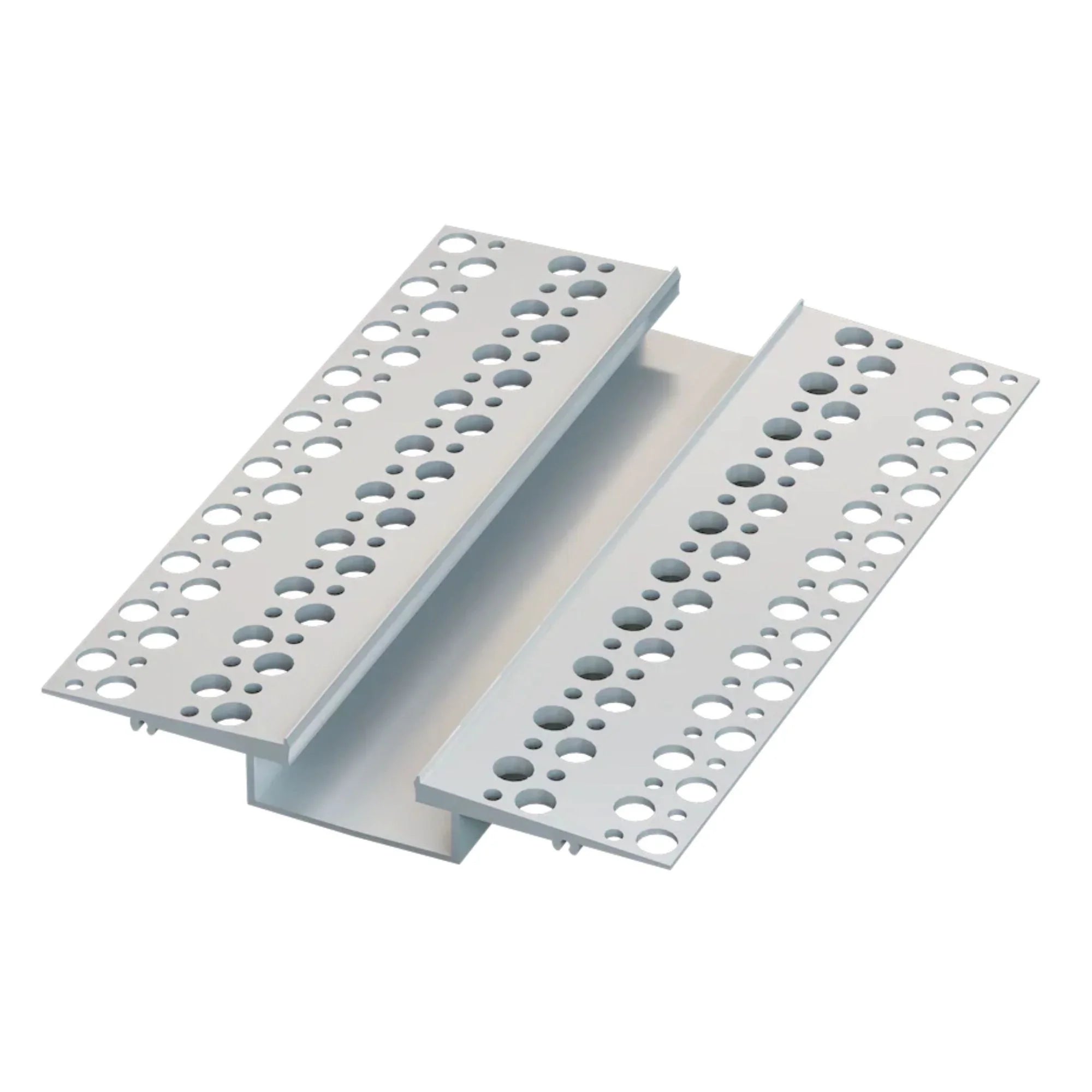

Aluminum and white tape light channel set with perforated diffuser strips and mounting bases

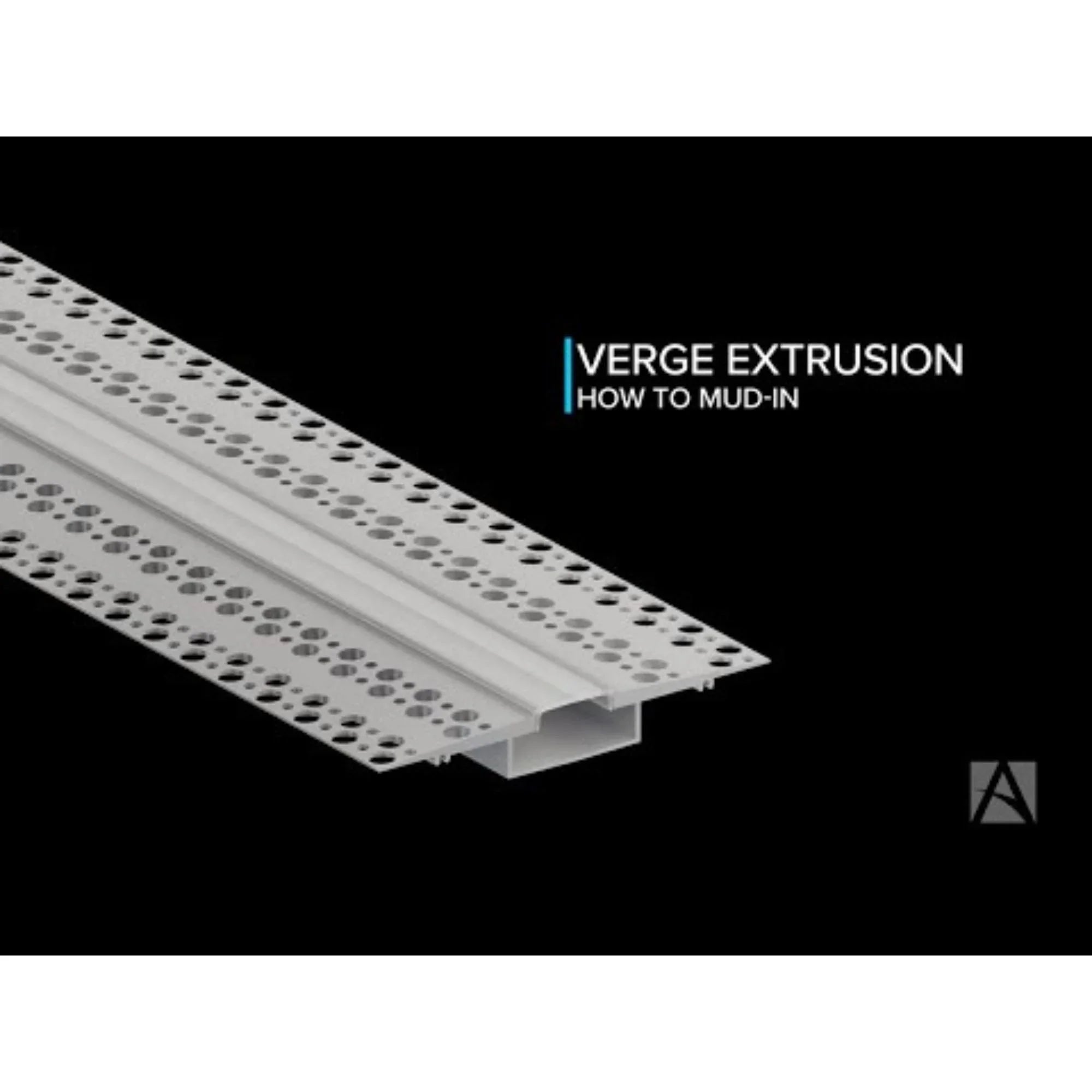

Tape light channel installation diagram showing channel mounting and taped lens coverage

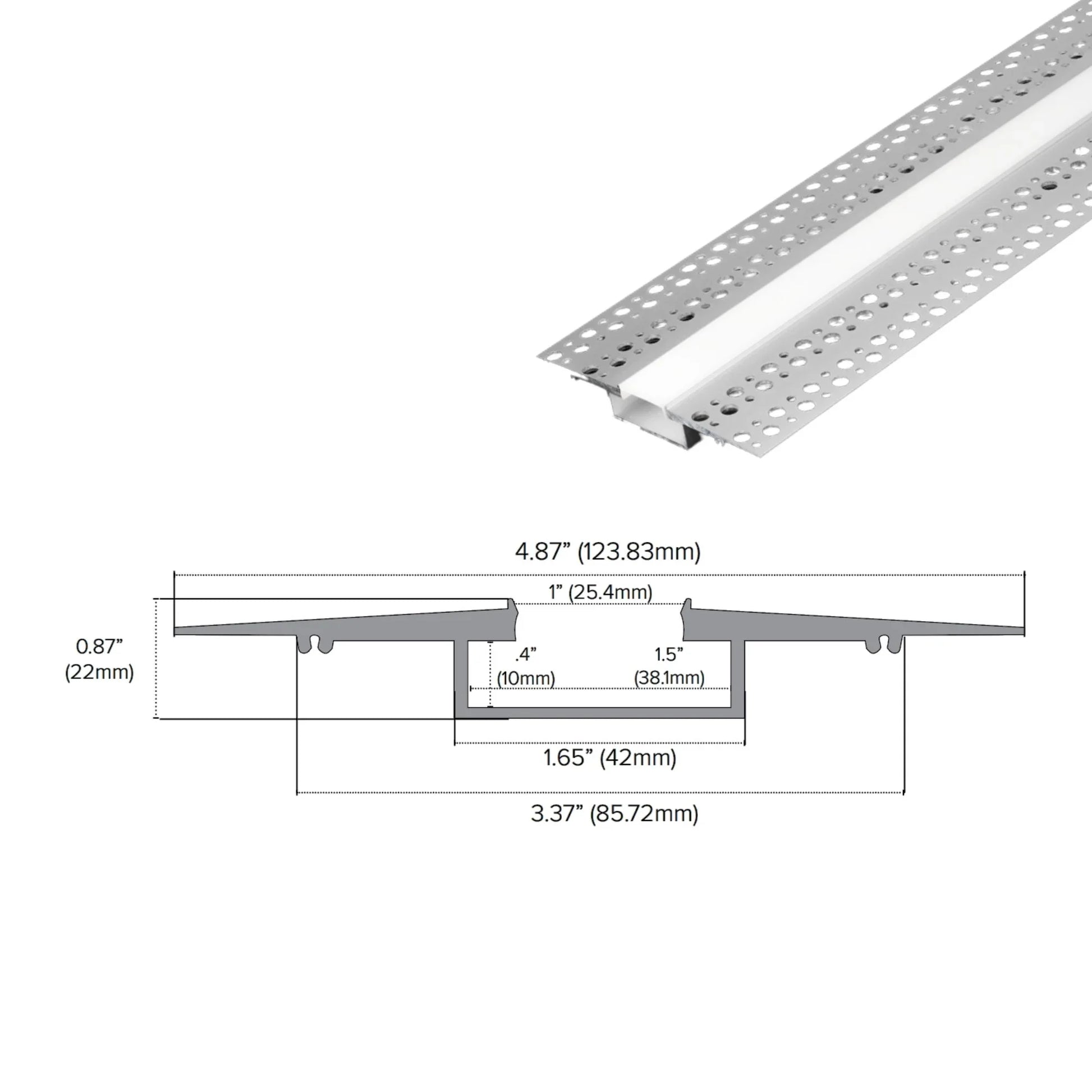

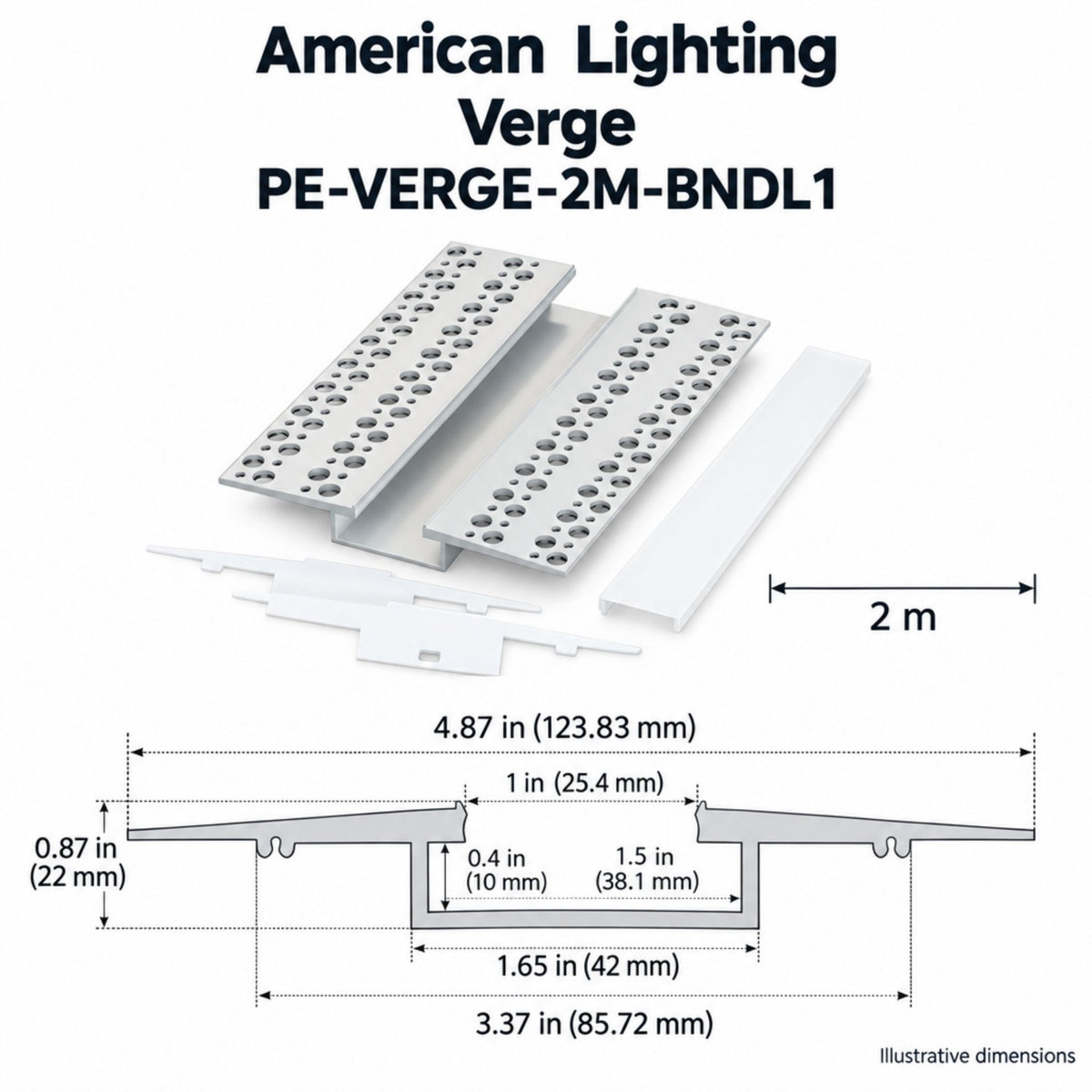

Aluminum tape light channel with perforated diffuser insert shown with dimension diagram
Aluminum tape light channel bundle with perforated diffuser inserts and white end caps

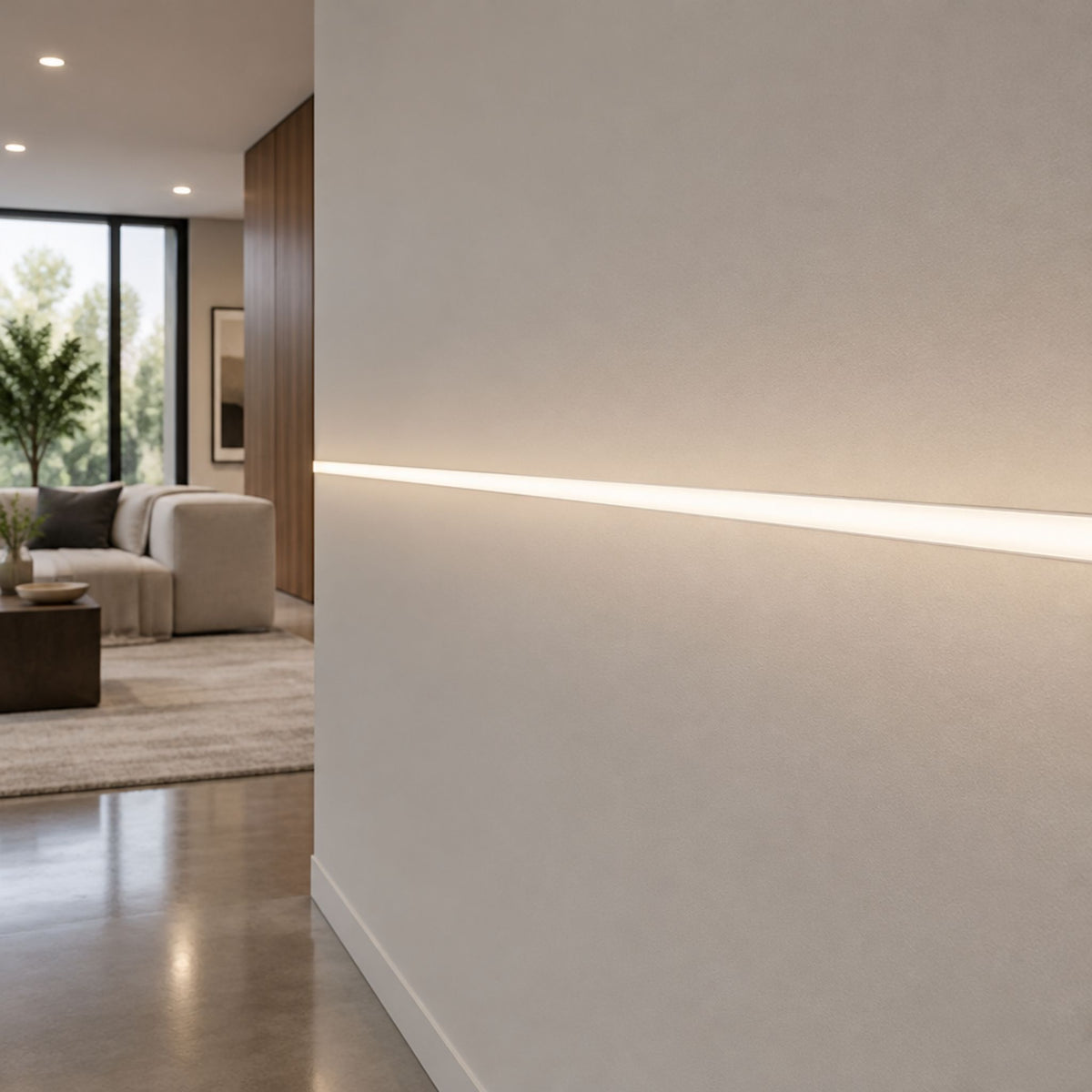

Recessed tape light channel in drywall with a subtle linear light along the wall edge

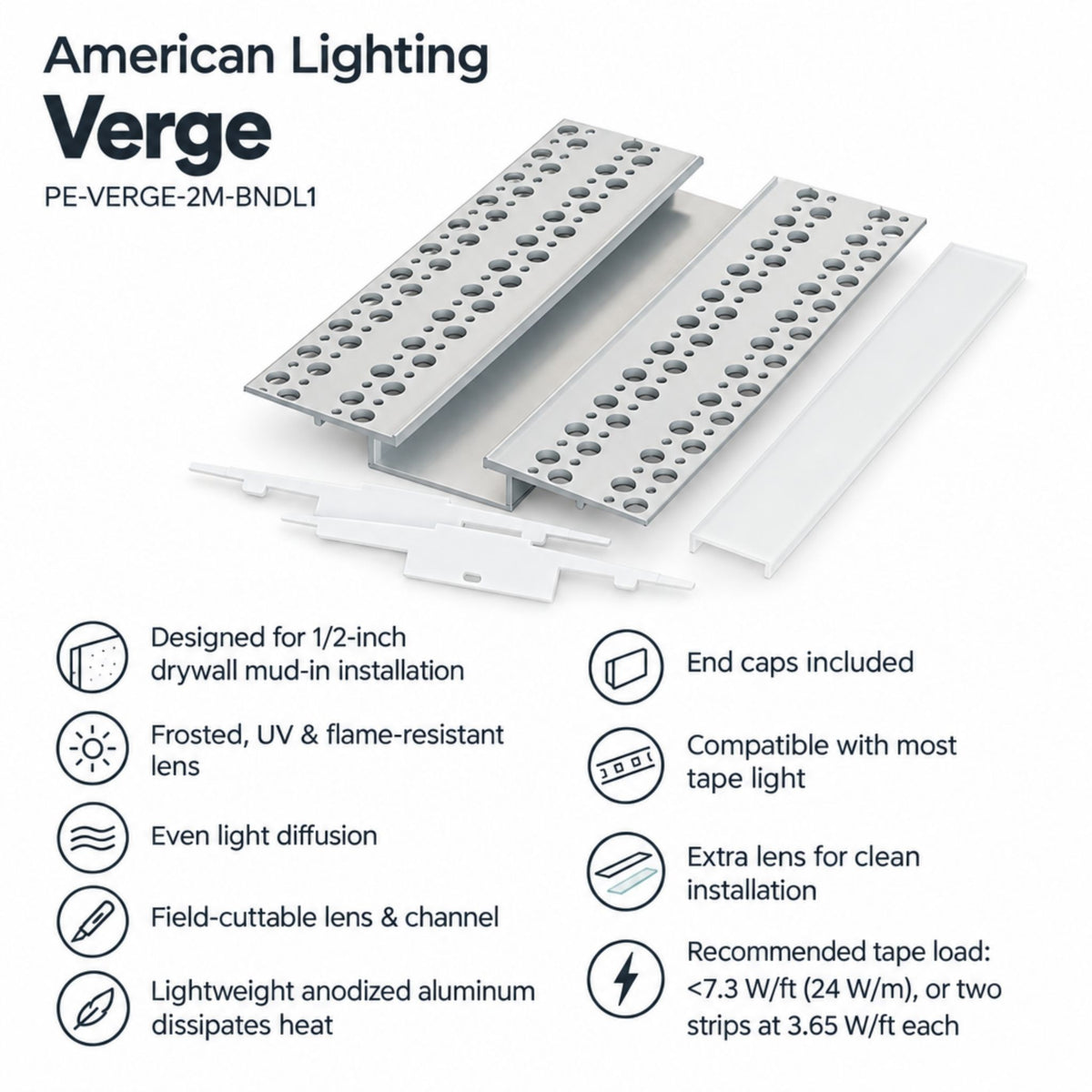

Aluminum and white tape light channel set with perforated diffuser strips and mounting bases

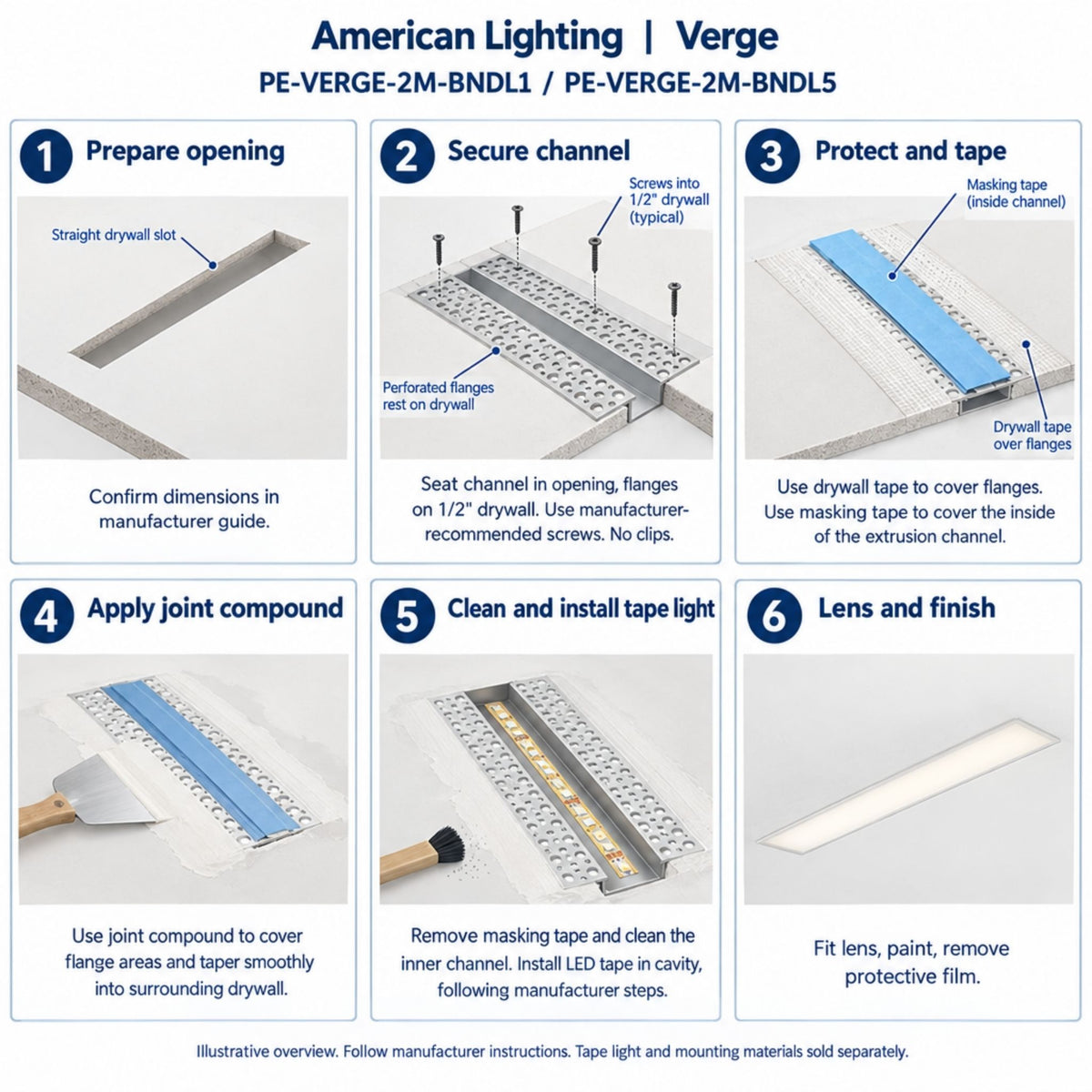

Tape light channel installation diagram showing channel mounting and taped lens coverage
Aluminum tape light channel with perforated diffuser insert shown with dimension diagram

American Lighting Verge PE-VERGE-2M-BNDL1 2M Mud-In Drywall Aluminum Tape Light Channel Bundle, Aluminum

Vendor: American Lighting

SKU: PE-VERGE-2M-BNDL1

Quick Ship
$141.39
$0.00
Shipping calculated at checkout.
Get 20% Off Drivers & Channels With a purchase of American Tape or undercabinet lights
Style: Single

Available in stock (7730)

Must be ordered in quantities of .

About this item
  • 2M Mud-In Format: The 2-meter channel provides long sections for in-wall linear accents, with large flanges designed for 1/2-inch drywall mud-in installation.
  • Anodized Aluminum: Lightweight anodized aluminum in Aluminum finish dissipates heat for the installed tape-light system.
  • Frosted Diffusion: The UV- and flame-resistant lens protects tape light while diffusing its output and helping minimize visible diode imaging.
  • Extra Installation Lens: One extra installation lens is listed to support a clean mud-in installation.
  • Tape Configuration: The sheet lists 10 mm single-color/tunable-CCT and 12 mm RGBW/RGBTW tape, with recommended loading below 7.3 W/ft (24 W/m) or two strips at 3.65 W/ft each.
View More Details

Description

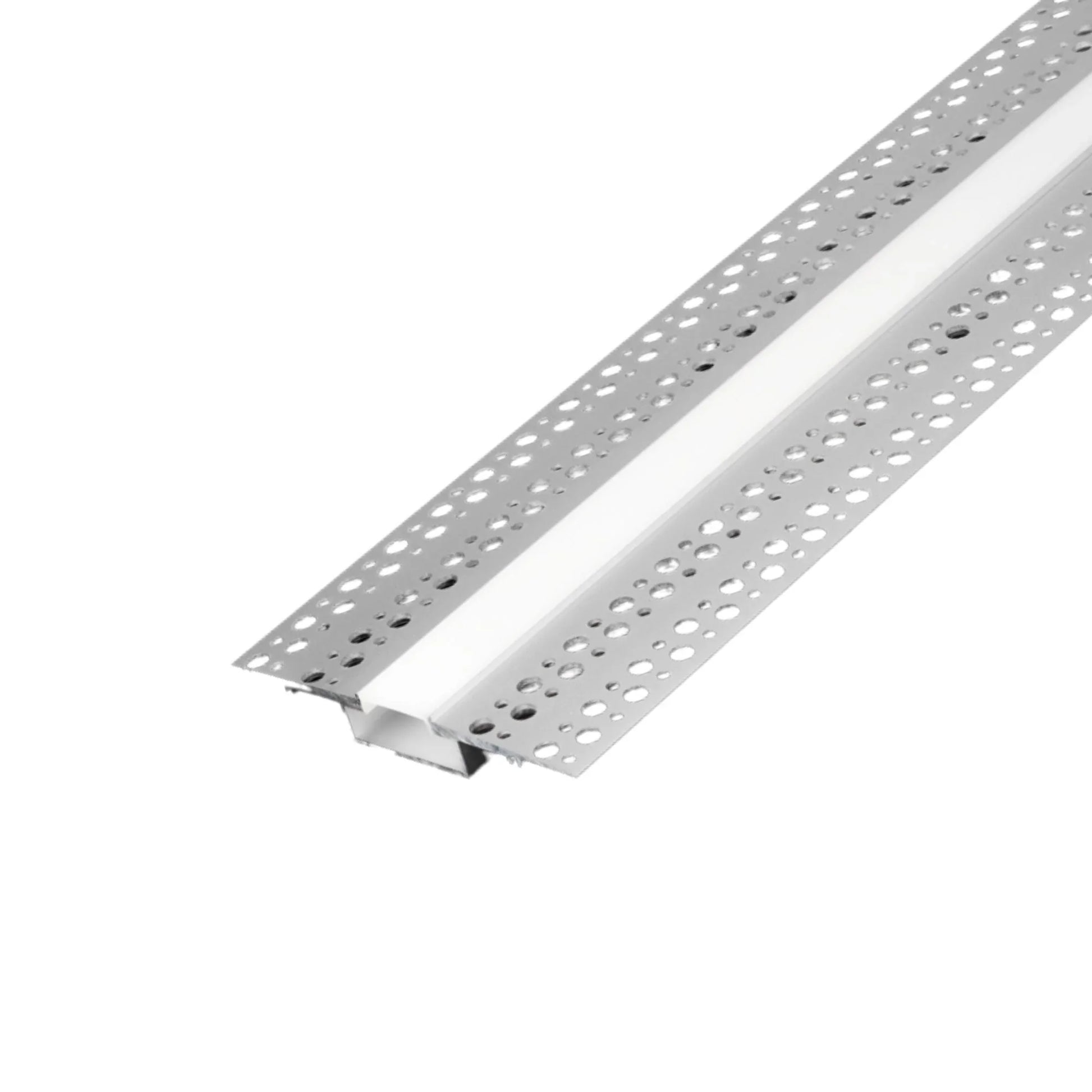

The American Lighting Verge PE-VERGE-2M-BNDL1 is a 2M Aluminum Tape Light Channel Bundle in Aluminum finish for in-wall accents. Large flanges support mud-in installation in 1/2-inch drywall, creating a linear lighting detail.

Lightweight anodized aluminum dissipates heat, and the frosted, UV- and flame-resistant lens protects the tape and diffuses light. Confirmed ordering text lists one 2M Aluminum-finish Verge channel, one 2M high-grade diffusion lens, one end cap with a hole, one end cap without a hole and one extra installation lens. Channel and lens are field cuttable.

The sheet lists 10 mm single-color and tunable-CCT tape, plus 12 mm RGBW and RGBTW tape. Recommended tape loading is below 7.3 W/ft (24 W/m), with an alternative configuration stated as two strips at 3.65 W/ft each. Tape light and compatible power supplies are separate essentials, not listed as included.

Specifications

Dimensions

Length/Depth
78.74 in
Width/Diameter
1.65 in
Height
0.88 in
Weight
5 lb

Documents

Style & Materials

Finish
Aluminum
Mounting Type
Recessed mount, In-Wall mount

Item Details

MPN
PE-VERGE-2M-BNDL1
Brand
American Lighting
Family
Verge
UPC
714176037790

Warranty & Certifications

Product Rating
Wet Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

What drywall installation is Verge designed for?
Verge is designed for mud-in installation in 1/2-inch drywall. Large flanges support in-wall linear accent-lighting applications.

What included components can be confirmed?
The readable ordering text confirms one 2M Aluminum-finish Verge channel, one 2M high-grade diffusion lens, one end cap with a hole, one end cap without a hole and one extra installation lens.

What tape light does the sheet list as compatible?
The sheet lists 10 mm single-color and tunable-CCT tape, plus 12 mm RGBW and RGBTW tape. Connector fit is not specified and must be verified separately.

What is the recommended tape loading?
The sheet states recommended loading below 7.3 W/ft (24 W/m), or two strips at 3.65 W/ft each. These are tape-loading specifications, not power consumption by the passive channel.

Can the channel and lens be cut to length?
Yes, the manufacturer explicitly states that both channel and lens are field cuttable. Cutting procedures and electrical linking limits are not provided.
