American Lighting Universal Mini PE-UNVMINI-2M-BNDL5 2M Surface & Recessed Mount Channel Bundle, Aluminum, 5 Units
Out of stock
About this item
About this item
- Five 2M Channels: Five channels, each 15 mm wide by 6 mm high with an 11 mm internal width, provide matching low-profile sections for multiple tape-light runs.
- Aluminum Construction: Lightweight anodized aluminum in Aluminum finish dissipates heat and protects the installed tape light.
- Five Diffusion Lenses: Each 2M frosted high-grade lens diffuses light and helps minimize visible diode imaging, with UV- and flame-resistant construction.

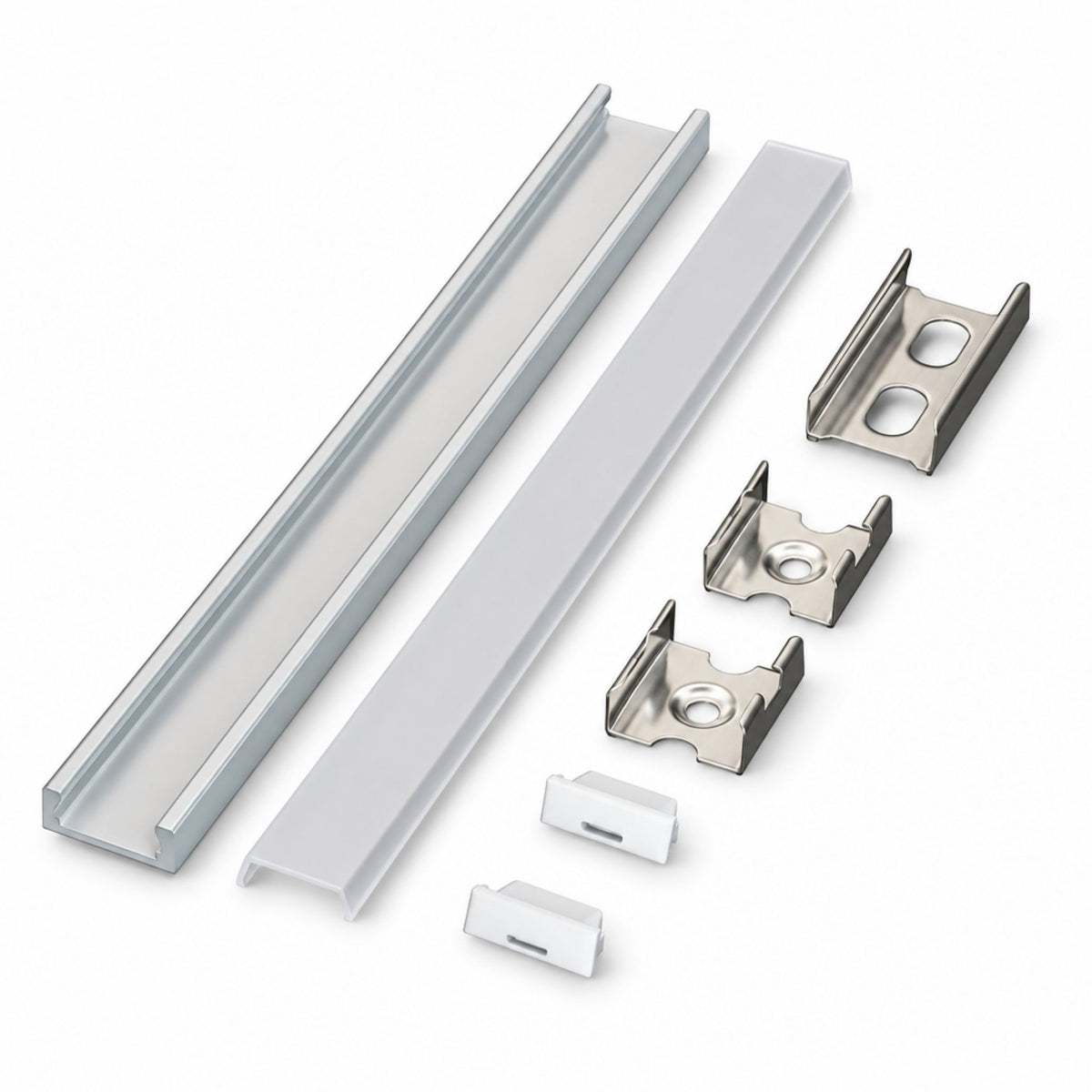

- Bundle Hardware: Five end caps with holes, five end caps without holes, and 30 mounting clips accompany the five channels and lenses.
- Tape Fit & Installation: Each channel accepts 10 mm single-color or tunable-CCT tape below 4.5 W/ft (15 W/m), with surface or recessed mounting and field-cuttable channel and lens.
We process payments securely and do not store credit card information.
Description
Description

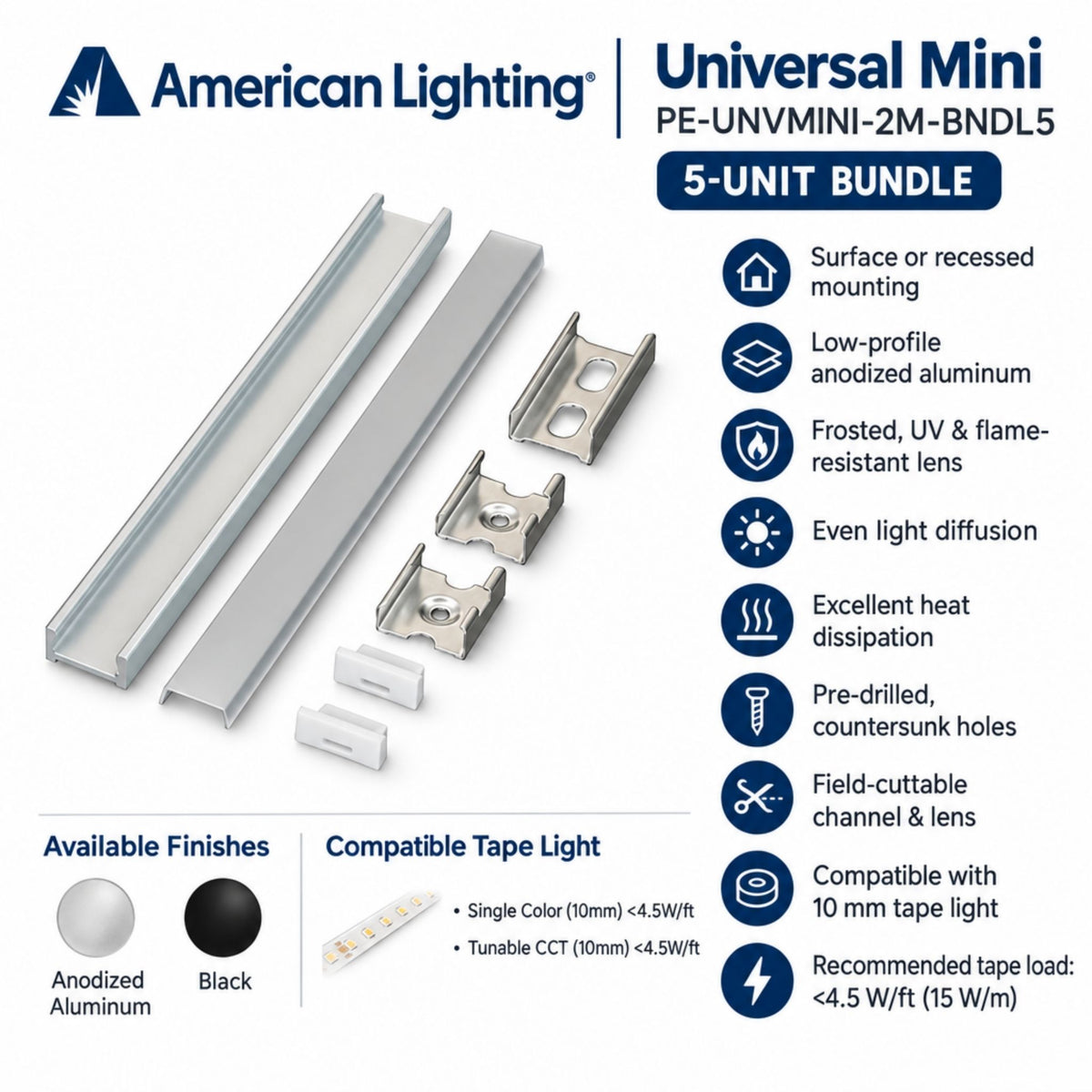

The American Lighting Universal Mini PE-UNVMINI-2M-BNDL5 is a five-unit 2M Surface & Recessed Mount Channel Bundle in Aluminum finish. Its low-profile anodized aluminum channels dissipate heat and protect installed tape light; frosted lenses diffuse light and help minimize visible diode imaging.

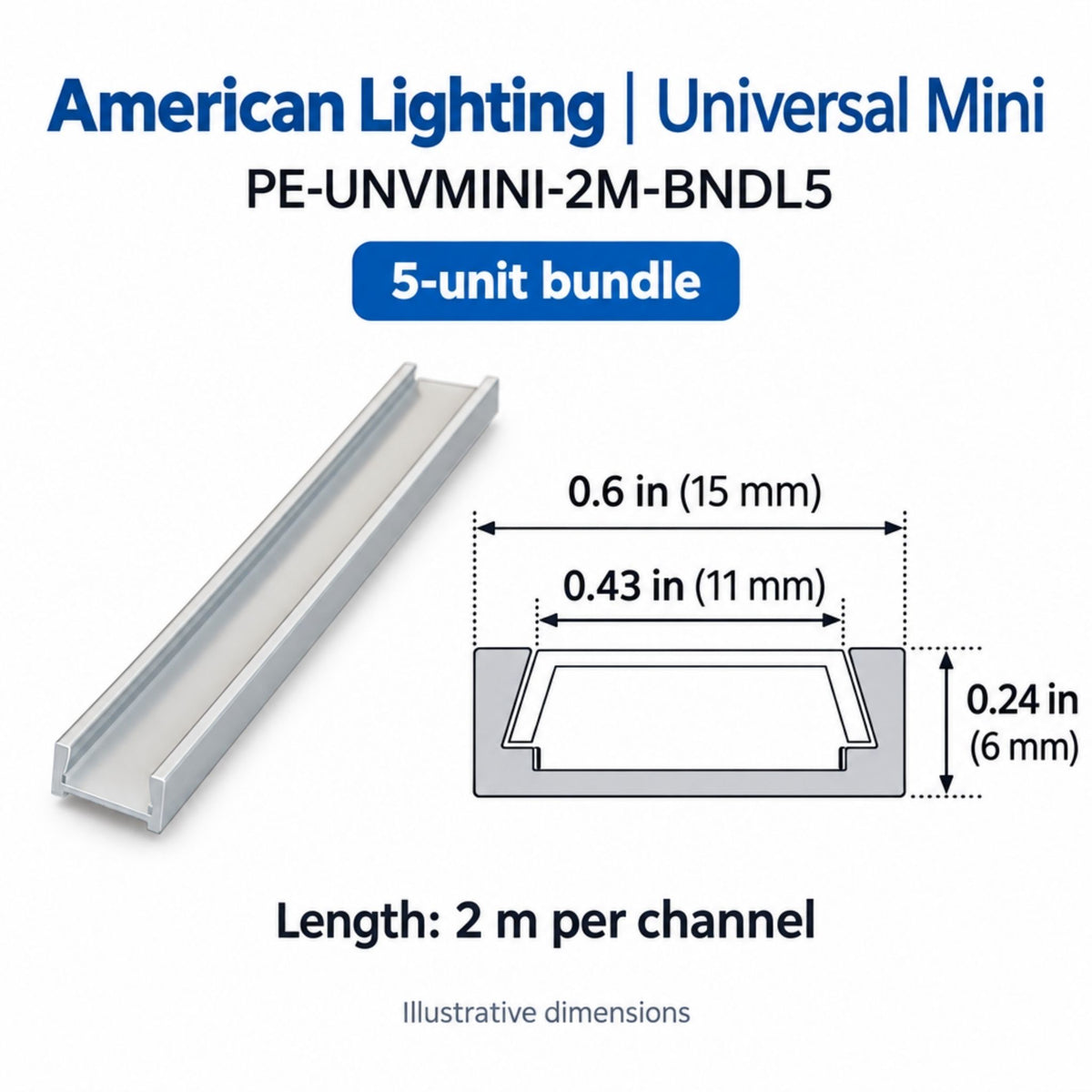

Each channel measures 2 meters long, 15 mm wide and 6 mm high, with an 11 mm internal width. The bundle includes five 2M Aluminum-finish channels, five 2M high-grade diffusion lenses, five end caps with holes, five end caps without holes, and 30 mounting clips. The lenses are UV- and flame-resistant.
Each channel accommodates 10 mm single-color or tunable-CCT tape with recommended loading below 4.5 W/ft (15 W/m). Surface or recessed mounting is supported, with pre-drilled, countersunk holes. Channels and lenses are field cuttable. Tape light and compatible power supplies are separate essentials, not listed in the bundle.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Item Details
Frequently Asked Questions
How many channels are included, and how long is each?
How many channels are included, and how long is each?
What components are included in the five-unit bundle?
What components are included in the five-unit bundle?
What tape light can be installed in these channels?
What tape light can be installed in these channels?
Can the channels be recessed and cut to length?
Can the channels be recessed and cut to length?
Does this five-unit bundle establish an electrical linking limit?
Does this five-unit bundle establish an electrical linking limit?
