American Lighting Universal Mini PE-UNVMINI-2M-BNDL1 2M Surface & Recessed Mount Channel Bundle, Aluminum
Available in stock (1995)
About this item
About this item
- Compact 2M Profile: The channel measures 15 mm wide by 6 mm high, with an 11 mm internal width for limited-space tape-light installations.
- Aluminum Aluminum Housing: The lightweight anodized aluminum channel combines a Aluminum finish with heat dissipation and tape-light protection.
- Diffusion Lens: The 2M frosted high-grade lens diffuses light and helps minimize visible diode imaging, with UV- and flame-resistant construction.

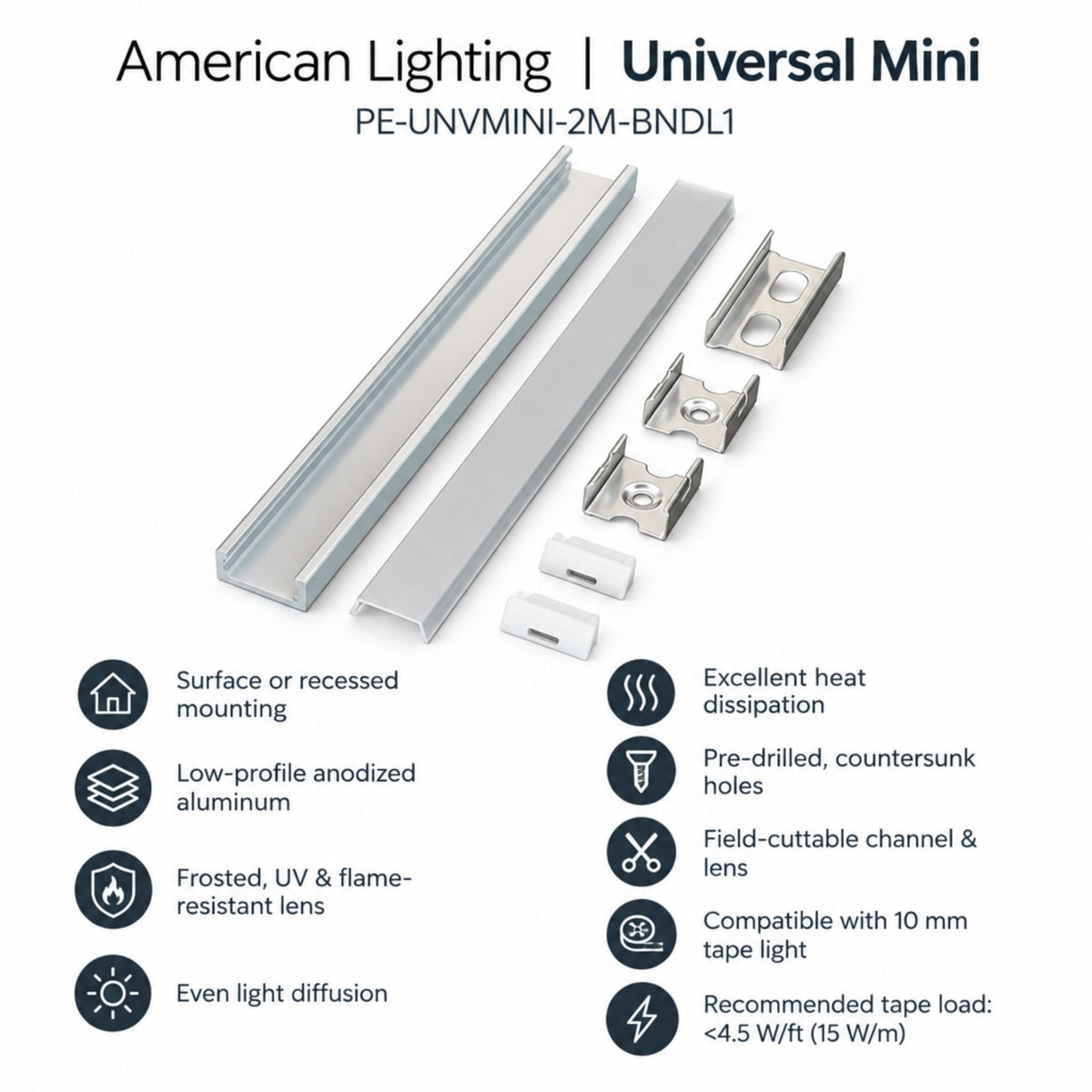

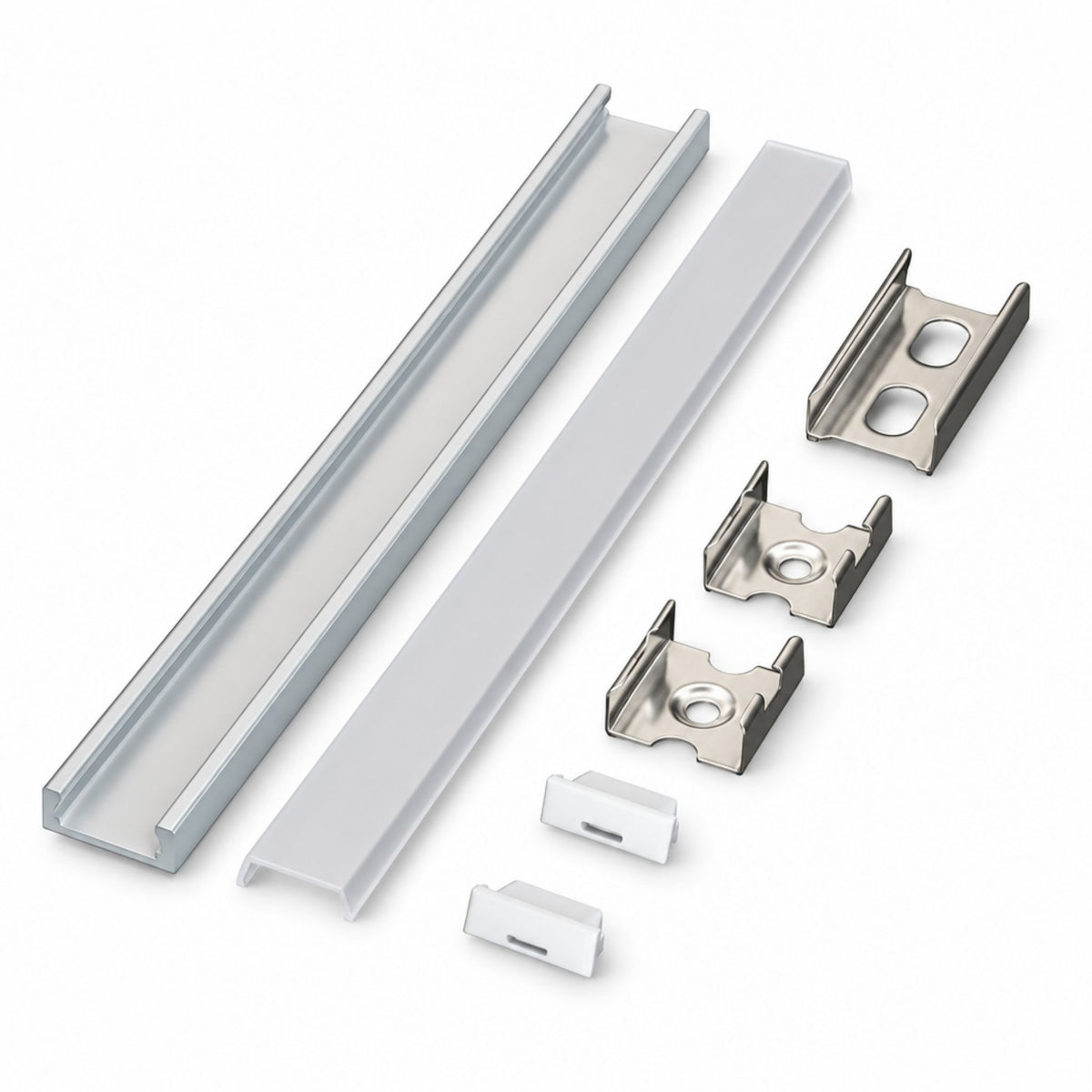

- Single-Bundle Contents: One channel, one lens, one end cap with a hole, one end cap without a hole, and six mounting clips provide the listed assembly components.
- Tape Fit & Installation: Accepts 10 mm single-color or tunable-CCT tape below 4.5 W/ft (15 W/m), with surface or recessed mounting, pre-drilled countersunk holes, and field-cuttable channel and lens.
We process payments securely and do not store credit card information.
Description
Description
The American Lighting Universal Mini PE-UNVMINI-2M-BNDL1 is a 2M Surface & Recessed Mount Channel Bundle in Aluminum finish for compatible tape lighting. The low-profile anodized aluminum channel dissipates heat, while its frosted lens diffuses light and helps minimize visible diode imaging.

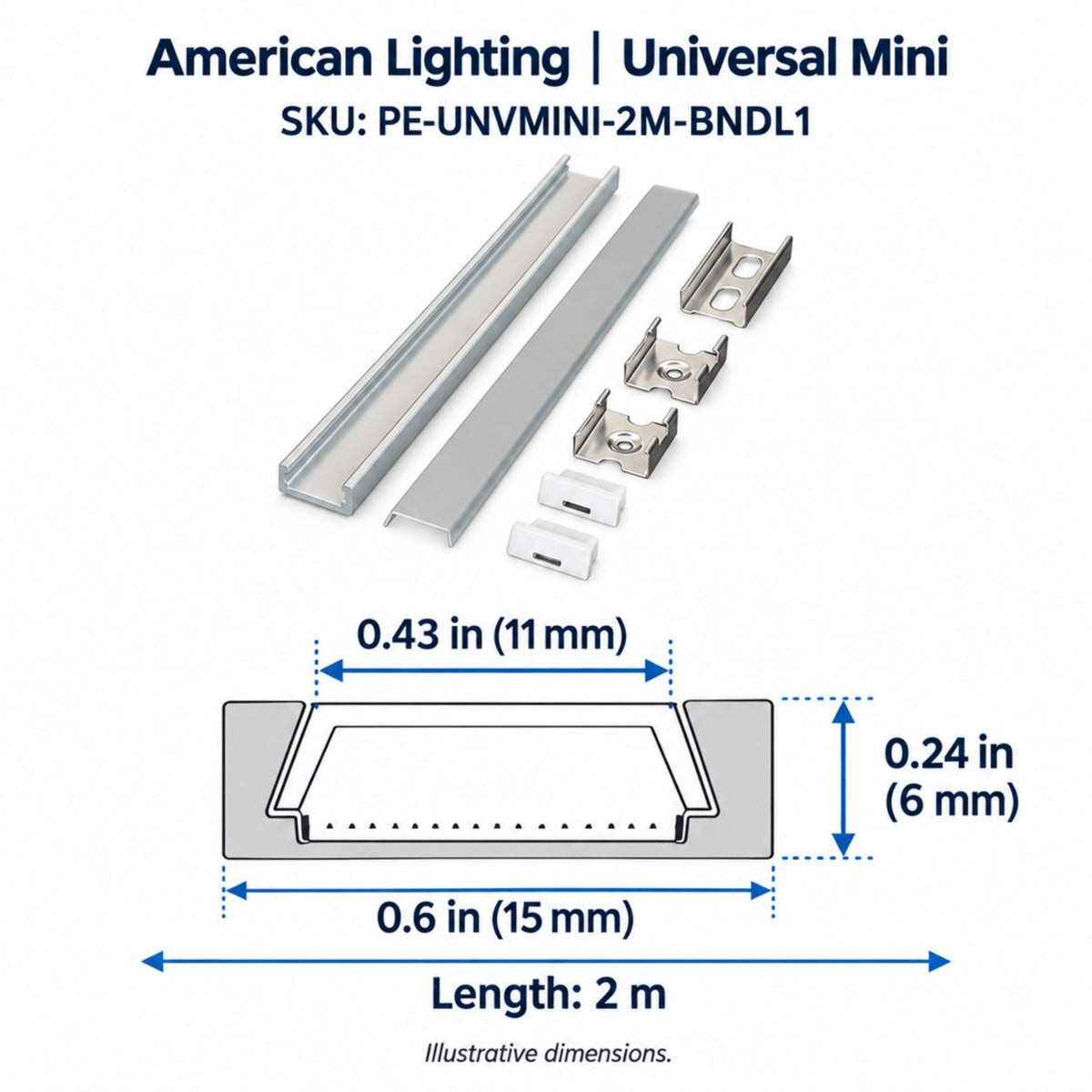

The channel is 2 meters long, 15 mm wide and 6 mm high, with an 11 mm internal width. The single bundle includes one 2M Aluminum-finish channel, one 2M high-grade diffusion lens, one end cap with a hole, one end cap without a hole, and six mounting clips. The lens is UV- and flame-resistant.
The channel accommodates 10 mm single-color or tunable-CCT tape with recommended loading below 4.5 W/ft (15 W/m). It supports surface or recessed mounting and has pre-drilled, countersunk holes. Channel and lens are field cuttable. Tape light and a compatible power supply are separate essentials, not listed in the bundle.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Item Details
Frequently Asked Questions
What are the dimensions of the Aluminum Universal Mini channel?
What are the dimensions of the Aluminum Universal Mini channel?
What is included in the Aluminum single bundle?
What is included in the Aluminum single bundle?
What tape light fits, and are connectors compatible?
What tape light fits, and are connectors compatible?
Can the channel be recessed or cut to length?
Can the channel be recessed or cut to length?
Does the frosted lens guarantee dotless illumination?
Does the frosted lens guarantee dotless illumination?
