American Lighting Double Flange PE-DBLF-2M-BNDL1 2M Recessed Mount Channel Bundle, Anodized Aluminum
Out of stock
About this item
About this item

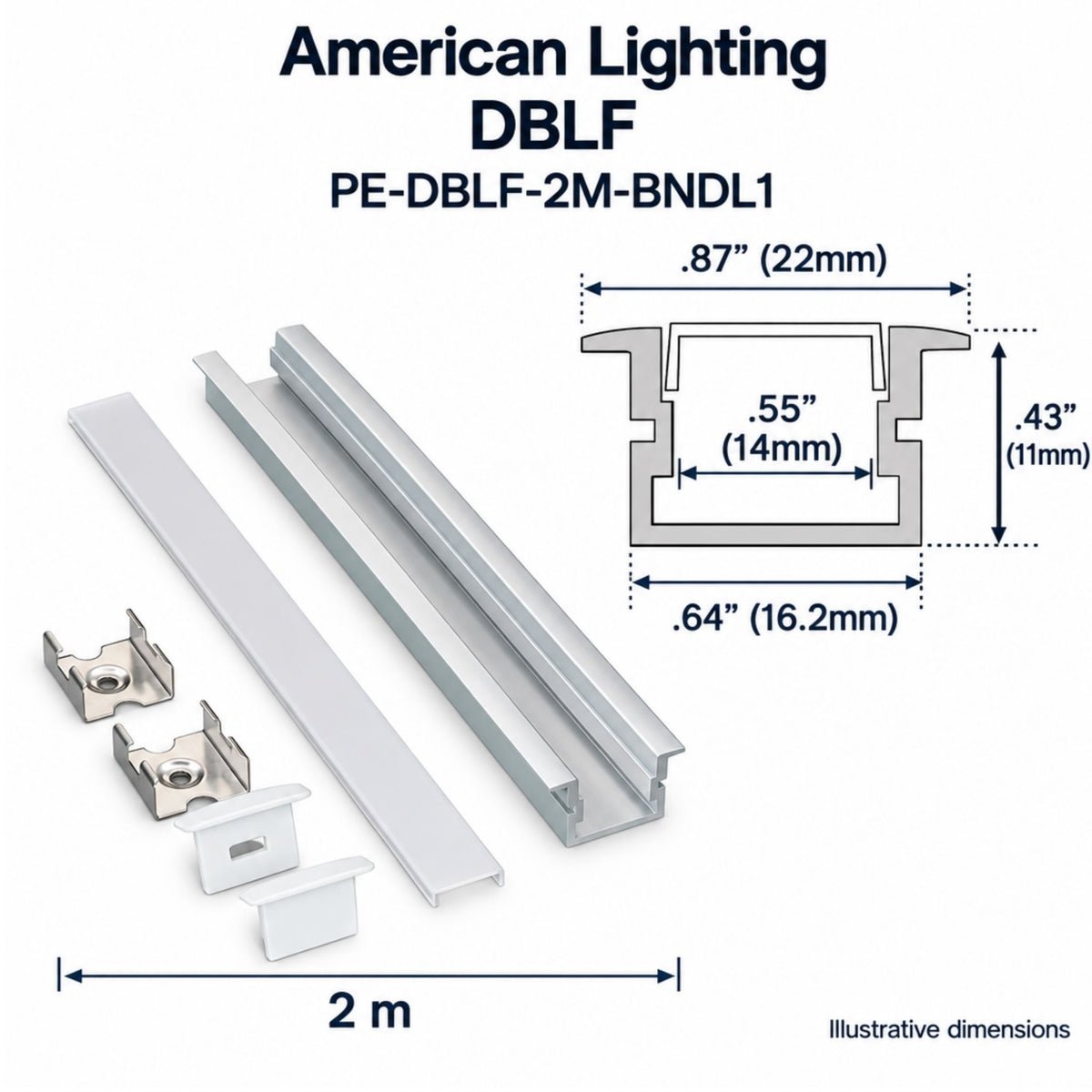

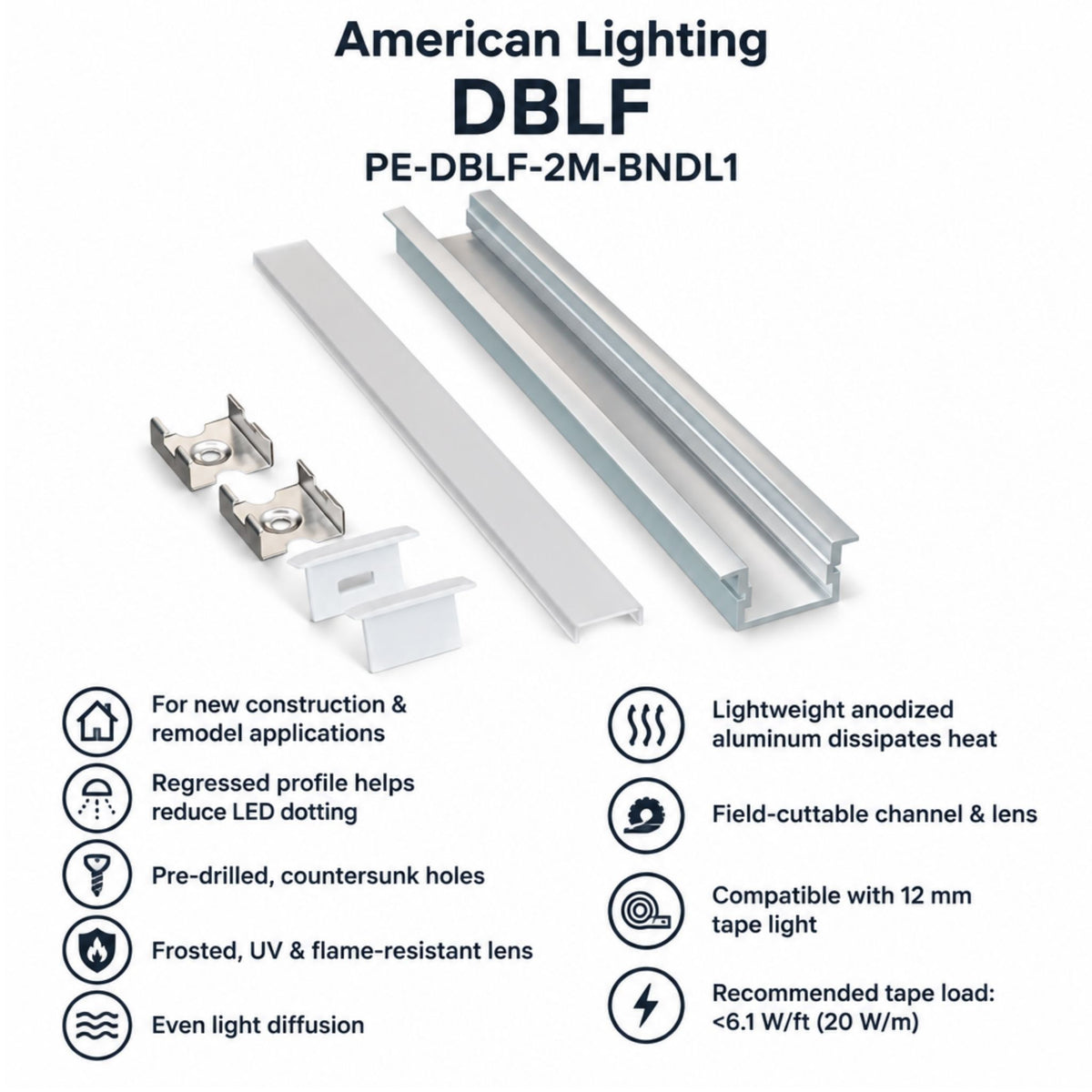

- 2M Recessed Channel: The 2-meter Double Flange profile uses flanged edges to finish a recessed tape-light opening in new construction or remodel applications.
- Regressed Profile: The slightly regressed housing and frosted lens help minimize visible LED dotting without guaranteeing completely dotless output.
- Anodized Aluminum: Lightweight anodized aluminum dissipates heat and provides the manufacturer-listed finish for the recessed channel.

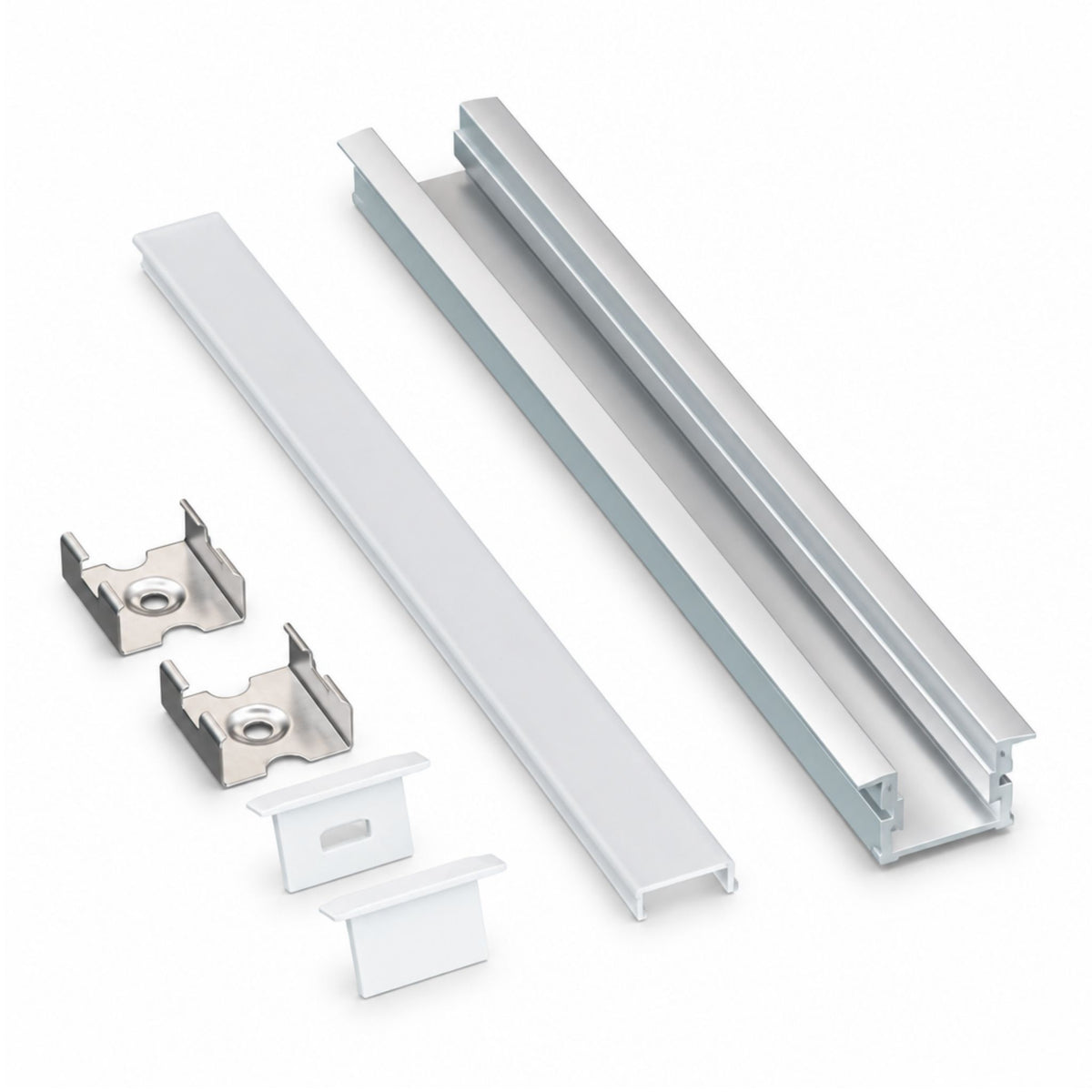

- Single-Bundle Contents: One 2M channel, one 2M high-grade diffusion lens, one end cap with a hole, one without a hole and six mounting clips supply the listed assembly components.
- Tape Fit & Installation: Supports listed 10 mm and 12 mm tape types below 6.1 W/ft (20 W/m), with pre-drilled countersunk holes and field-cuttable channel and lens.
We process payments securely and do not store credit card information.
Description
Description
The American Lighting Double Flange PE-DBLF-2M-BNDL1 is a 2M Recessed Mount Channel Bundle in Anodized Aluminum finish for tape-light installations. Flanged edges finish the recessed opening, while the slightly regressed profile helps minimize visible LED dotting in new construction or remodel applications.
The bundle includes one 2M Double Flange channel, one 2M high-grade diffusion lens, one end cap with a hole, one end cap without a hole and six mounting clips. Lightweight anodized aluminum dissipates heat. The frosted, UV- and flame-resistant lens protects the light source and diffuses light.
The sheet specifies 12 mm tape compatibility and lists 10 mm single-color and tunable-CCT tape plus 12 mm RGBW and RGBTW tape. Recommended tape loading is below 6.1 W/ft (20 W/m). Pre-drilled, countersunk holes support installation; channel and lens are field cuttable. Tape light and a compatible power supply are separate essentials, not listed as included.
Specifications
Specifications
Dimensions
Documents
Style & Materials
Item Details
Frequently Asked Questions
What installation type is Double Flange designed for?
What installation type is Double Flange designed for?
What is included in the single bundle?
What is included in the single bundle?
What tape light fits, and will connectors fit?
What tape light fits, and will connectors fit?
What is the recommended tape loading?
What is the recommended tape loading?
Can the channel and lens be cut to length?
Can the channel and lens be cut to length?
