American Lighting NAVI CCT Series — All-In-One In-Wall LED Dimmer + Driver + Tunable CCT Control | 24V DC | 96W

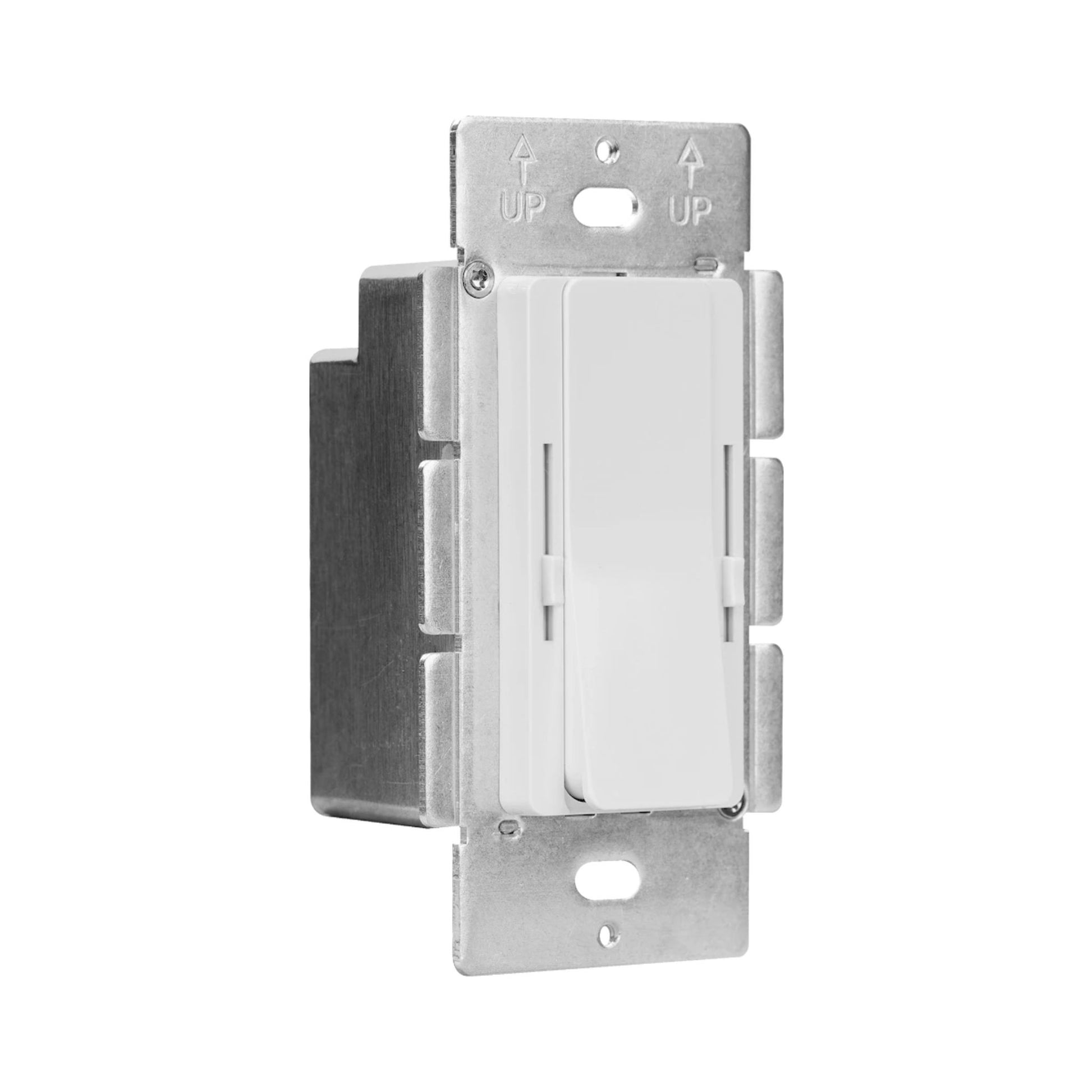

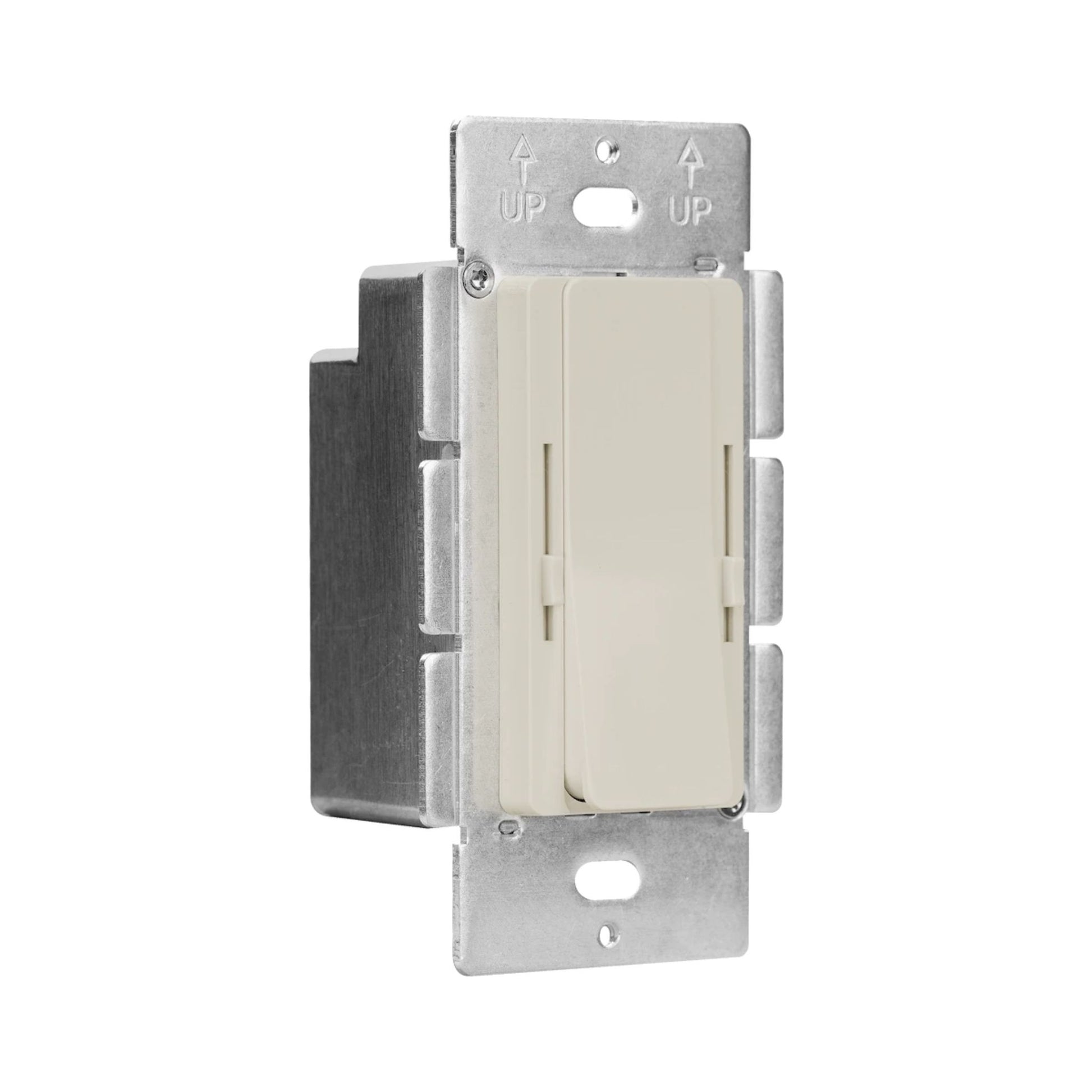

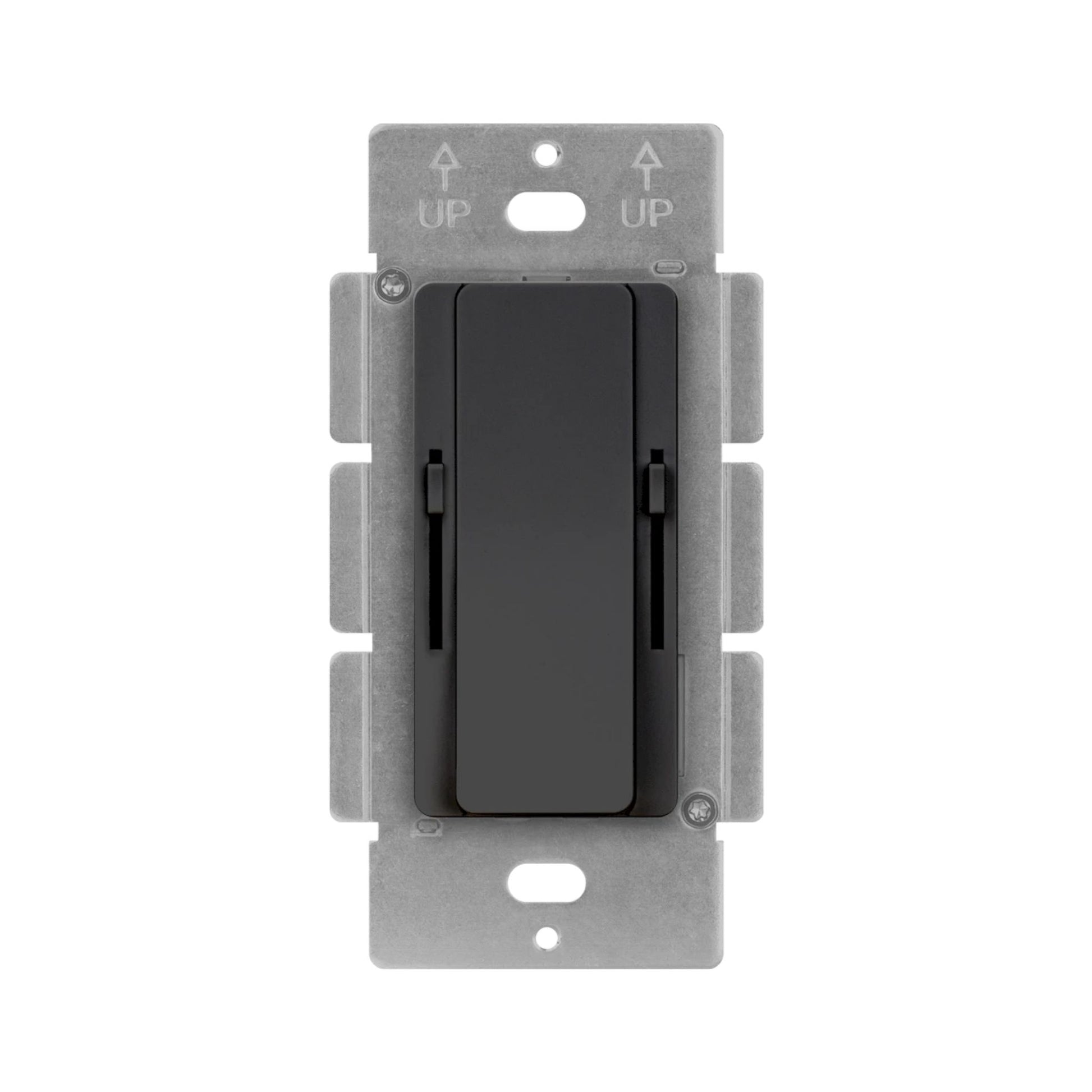

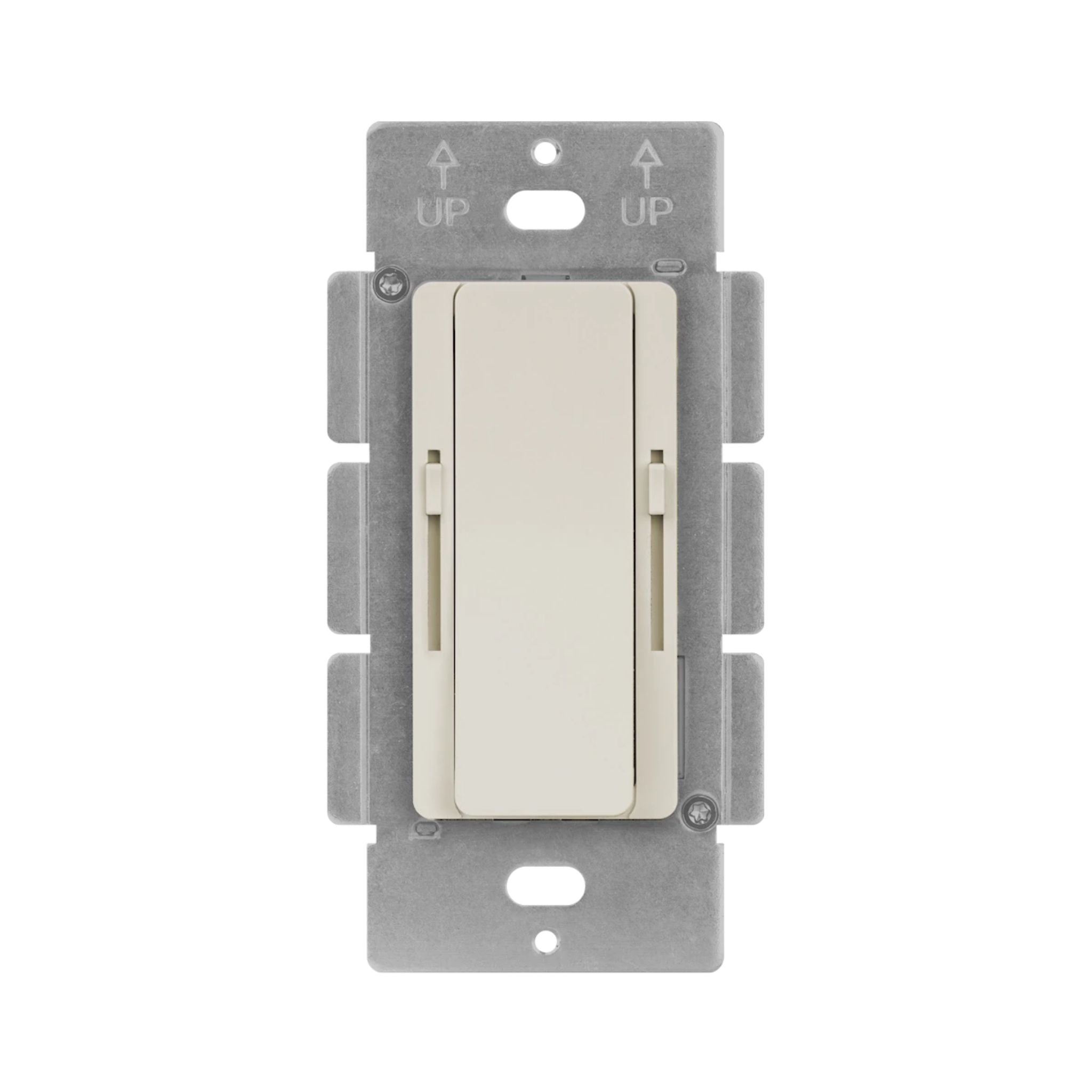

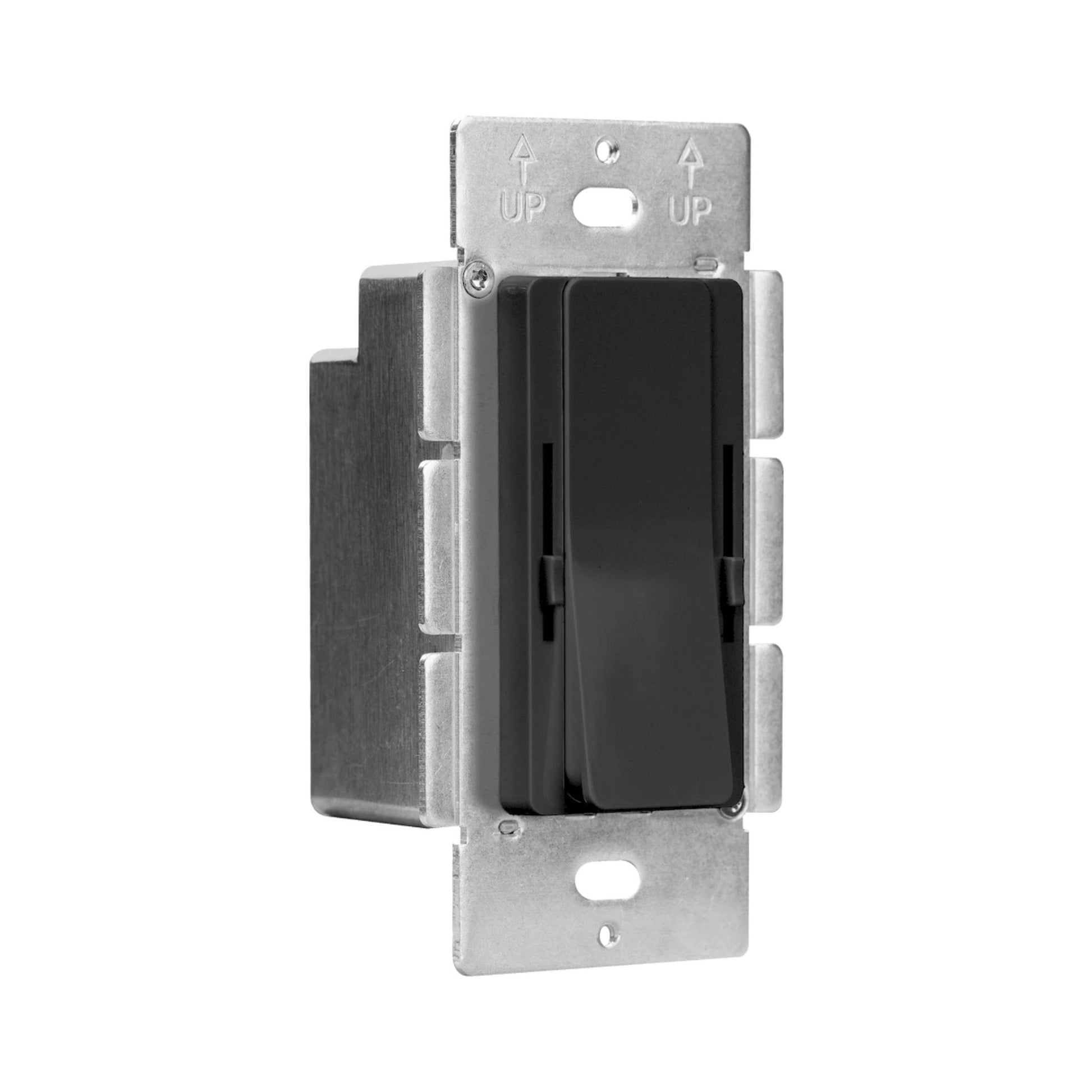

The American Lighting NAVI CCT Series takes the proven NAVI DIM all-in-one platform a step further by adding tunable CCT (Correlated Color Temperature) control — combining an in-wall LED dimmer switch, constant voltage power supply, and CCT tuning into a single integrated unit. Mounting to a standard single-gang recessed electrical box, the NAVI CCT accepts 120V AC input and outputs stable 24V DC at 96W, compatible with most 24V DC tunable CCT LED tape light and fixtures. Available in White, Black, and Almond finishes to match standard decora faceplate trims. cULus Listed, FCC, CE, RoHS compliant. >30,000-hour rated life.

Key Features

• All-In-One Dimmer + Driver + CCT Control: Combines an in-wall LED dimmer switch, constant voltage power supply, and tunable CCT control into one device — no separate driver or CCT controller required.
• Output: 24V DC constant voltage, 96W (4A).
• Input: 120V AC (108–132VAC), 60Hz.
• Full-Range Dimming: 0.3–100% dimming range with no minimum load — 16KHz PWM output with gamma 2.2 curve for smooth, eye-friendly dimming.
• Tunable CCT: Integrated CCT control compatible with most 24V DC tunable white LED tape light and fixtures.
• Single Pole or 3-Way: Operates as a single pole or 3-way dimmer with an on/off push switch.
• Adjustable Voltage Output: Built-in voltage output dial to compensate for voltage drop in longer tape light runs.
• Voltage Barrier Partition: Included partition allows high and low voltage circuits to be safely installed in the same switch box.
• No Derating When Ganging: Full rated wattage maintained — no derating required when ganging multiple units.
• Power Failure Memory: Recalls dimming and CCT settings prior to power interruption.
• Fits Decora Trims: Compatible with most standard decora faceplate trims (not included).
• High Efficiency & PFC: 91% efficiency at 120V max load; built-in PFC function with power factor >0.99.
• Certifications: cULus Listed, FCC, SELV, Class 2, Class P, CE, RoHS compliant. Indoor/Dry & Damp locations.
• Rated Life: >30,000 hours.

Physical Design & Installation

The NAVI CCT mounts to a standard single-gang recessed electrical box and fits most standard decora faceplate trims (sold separately). A voltage barrier partition is included for safe co-installation of high and low voltage wiring in the same switch box. Available in White (WH), Black (BK), and Almond (AL) to match existing decor. No derating is required when ganging multiple units side by side. Installation must be performed by a qualified, licensed electrician in accordance with national and local electrical codes and the NEC.

Dimming & Controls

The NAVI CCT delivers 0.3–100% dimming with no minimum load requirement and integrated tunable CCT control — all from a single in-wall device. Output is 16KHz PWM with a gamma 2.2 curve for smooth, eye-friendly light level transitions. Power failure memory retains both dimming level and CCT settings when power is interrupted and restored. Operates as a single pole or 3-way configuration with an integrated on/off push switch.

Performance & Build

Input: 120V AC (108–132VAC), 60Hz. Output: 24V DC, 96W (4A). Dimming: 0.3–100%, 16KHz PWM, gamma 2.2. Efficiency: 91% @ 120V. Power Factor: >0.99 (built-in PFC). THD: ≤10% @ max load. Standby Power: ≤0.5W. Protections: Short circuit, thermal runaway, over-voltage. Operating Temp: -40°C to 60°C. Ambient Temp: 0°C to 40°C. Rated Life: >30,000 hours. Certifications: cULus Listed, FCC, SELV, Class 2, Class P, CE, RoHS. Location: Indoor / Dry & Damp.

Typical Applications

• Residential tunable white LED tape lighting with in-wall control
• Under-cabinet and cove lighting with adjustable color temperature
• Hospitality and light commercial 24V DC tunable CCT applications
• Retrofit projects requiring combined dimming and CCT control in a single gang box
• 3-way switching configurations with integrated CCT tuning
