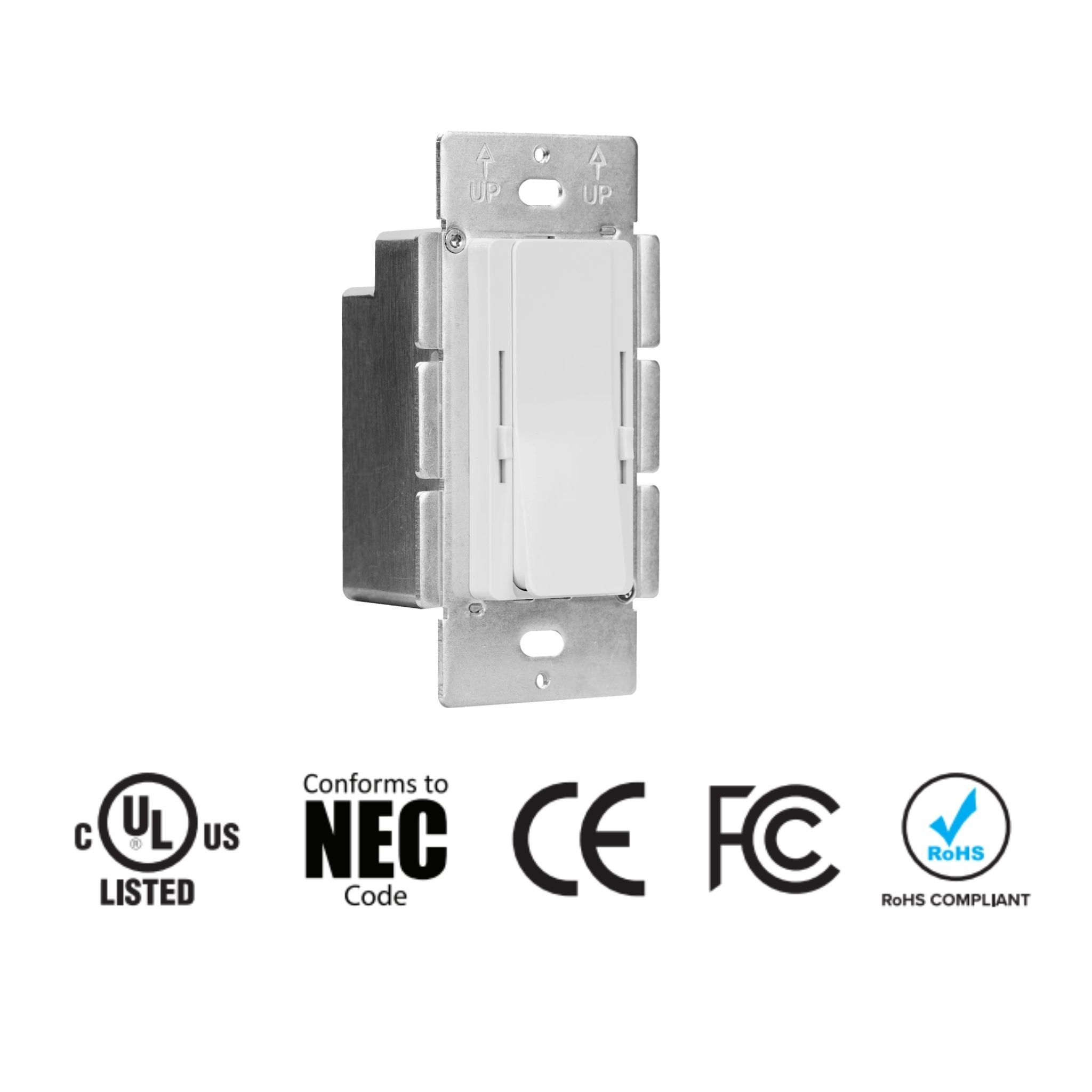

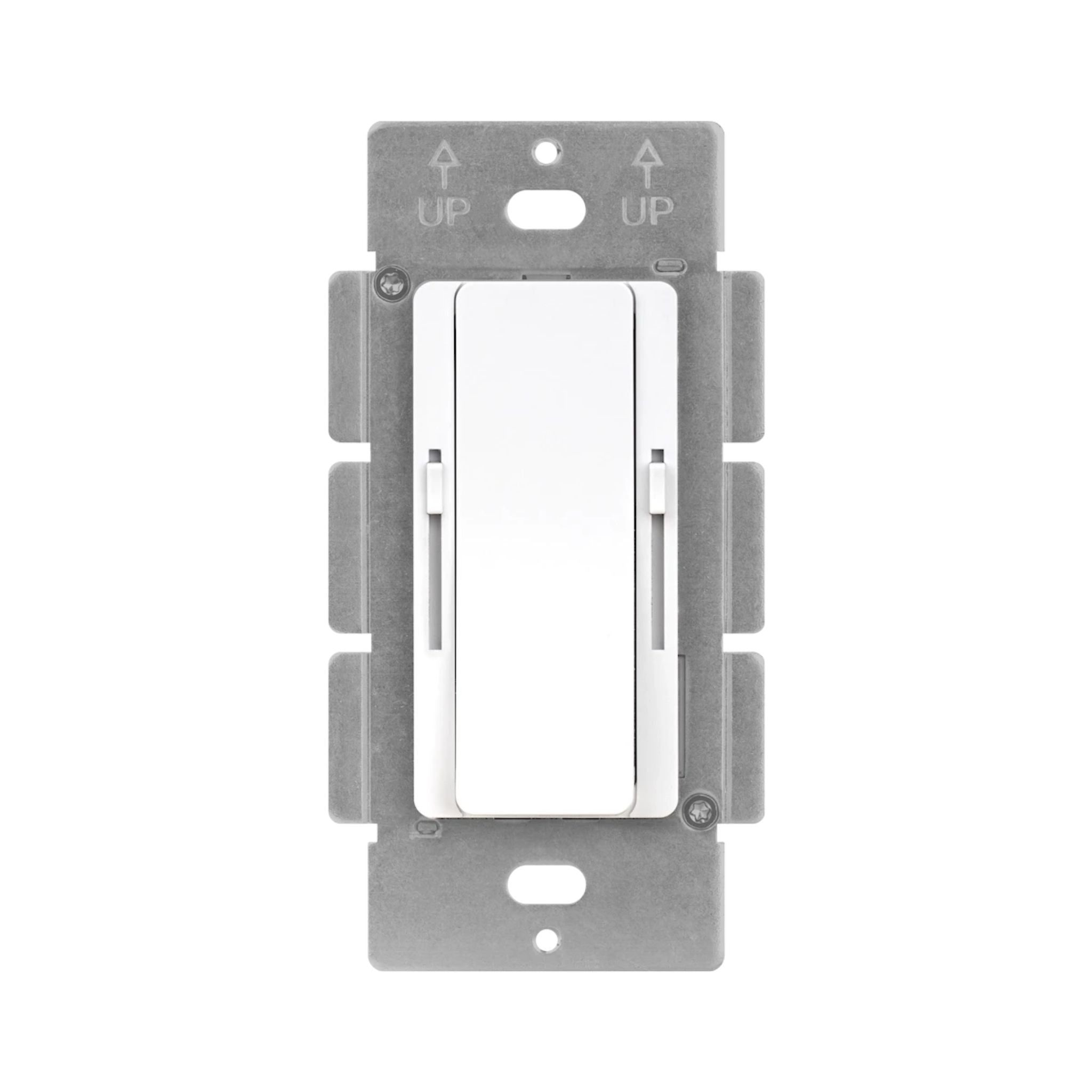

American Lighting Navi CCT 96W 24VDC LED Driver In-Wall Dimmer, White
Out of stock
About this item
About this item
- Output Power: Delivers a constant 24VDC output at 96W for high-capacity tunable CCT lighting.
- Integrated Dimming: Features a built-in 0.3-100% PWM dimmer and CCT control in a single unit.
- Input Voltage: Operates on standard 120VAC 60Hz input for residential and commercial applications.
- Enclosure Design: Fits standard single-gang recessed electrical boxes for a clean in-wall installation.
- Safety Protections: Includes short circuit, thermal runaway, and over-voltage protection for long-term reliability.
We process payments securely and do not store credit card information.
Description
Description
American Lighting Navi CCT 96W LED Driver — 24VDC
The American Lighting NAVI-CCT-96-24-WH is a revolutionary 96W LED Driver that combines a power supply, in-wall dimmer switch, and tunable CCT control into one integrated unit. This Class 2 rated device provides a 24VDC Constant Voltage output and is designed to fit into a standard single-gang Integrated Junction Box or recessed electrical box, eliminating compatibility issues between separate drivers and switches.
Key Features
- Power Output: 96W
- Input Voltage: 120VAC
- Output Voltage: 24VDC
- Dimming Range: 0.3-100% PWM
- Minimum Load: No minimum load required
- Dimensions: 4.1 in. L x 2.1 in. W x 1.42 in. H
- Enclosure Type: Single-gang in-wall mount
- IP Rating: Dry and Damp Locations
- Class Rating: Class 2
- Certifications: cULus Listed, FCC, Class P
Physical Design & Installation

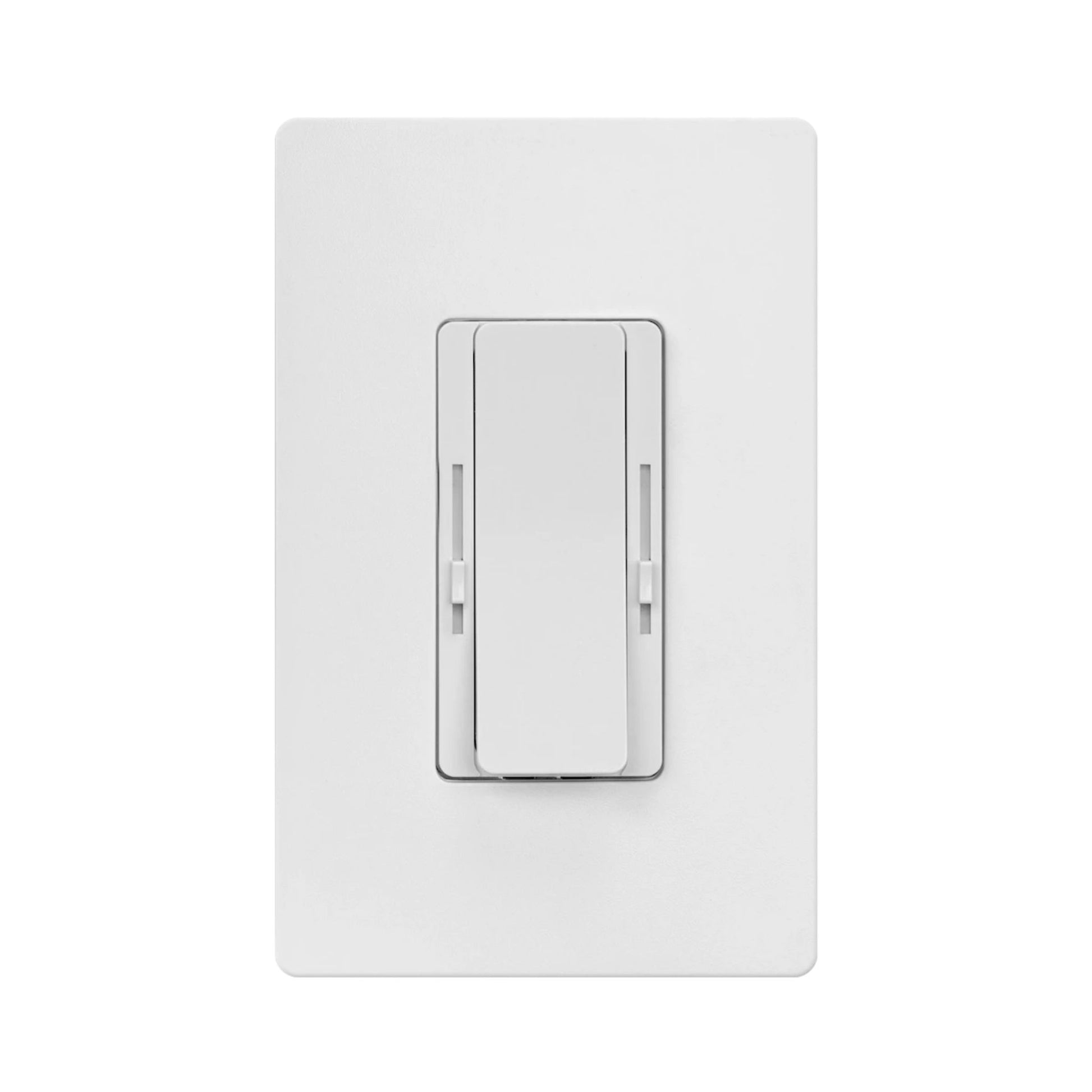

Constructed for seamless integration, this unit fits into standard single-gang recessed electrical boxes. It includes a voltage barrier partition to safely install high and low voltage circuits in the same switch box and is compatible with standard decora faceplate trims.
Dimming & Controls
The Navi CCT utilizes a 16KHZ PWM output with a gamma 2.2 curve for smooth, flicker-free dimming from 0.3% to 100%. It supports both single-pole and 3-way configurations and features an adjustable voltage output dial to compensate for voltage drop.
Performance & Build
Engineered for durability, this driver features built-in protection against short circuits, thermal runaway, and over-voltage. It maintains a high power factor of over 0.99 and is rated for a life of over 30,000 hours in indoor dry or damp environments.
Typical Applications
- Tunable CCT LED Tape Light
- Under Cabinet Lighting
- Residential Cove Lighting
- Commercial Accent Lighting
