American Lighting NAVI CCT 96W 24VDC LED Driver PWM Dimming, Black
Out of stock
About this item
About this item
- Output Voltage/Power: 24VDC output providing up to 96W of power for tunable CCT tape lights.
- Dimming: Integrated 0.3-100% PWM dimming with no minimum load requirement for smooth control.
- Input Voltage: Standard 120VAC input simplifies installation in residential and commercial settings.
- Enclosure: Designed to fit standard single-gang in-wall switch boxes for a clean, integrated look.
- Protection: Built-in short circuit, thermal runway, and over-voltage protection for long-term reliability.
We process payments securely and do not store credit card information.
Description
Description
American Lighting NAVI CCT 96W LED Driver — 24VDC

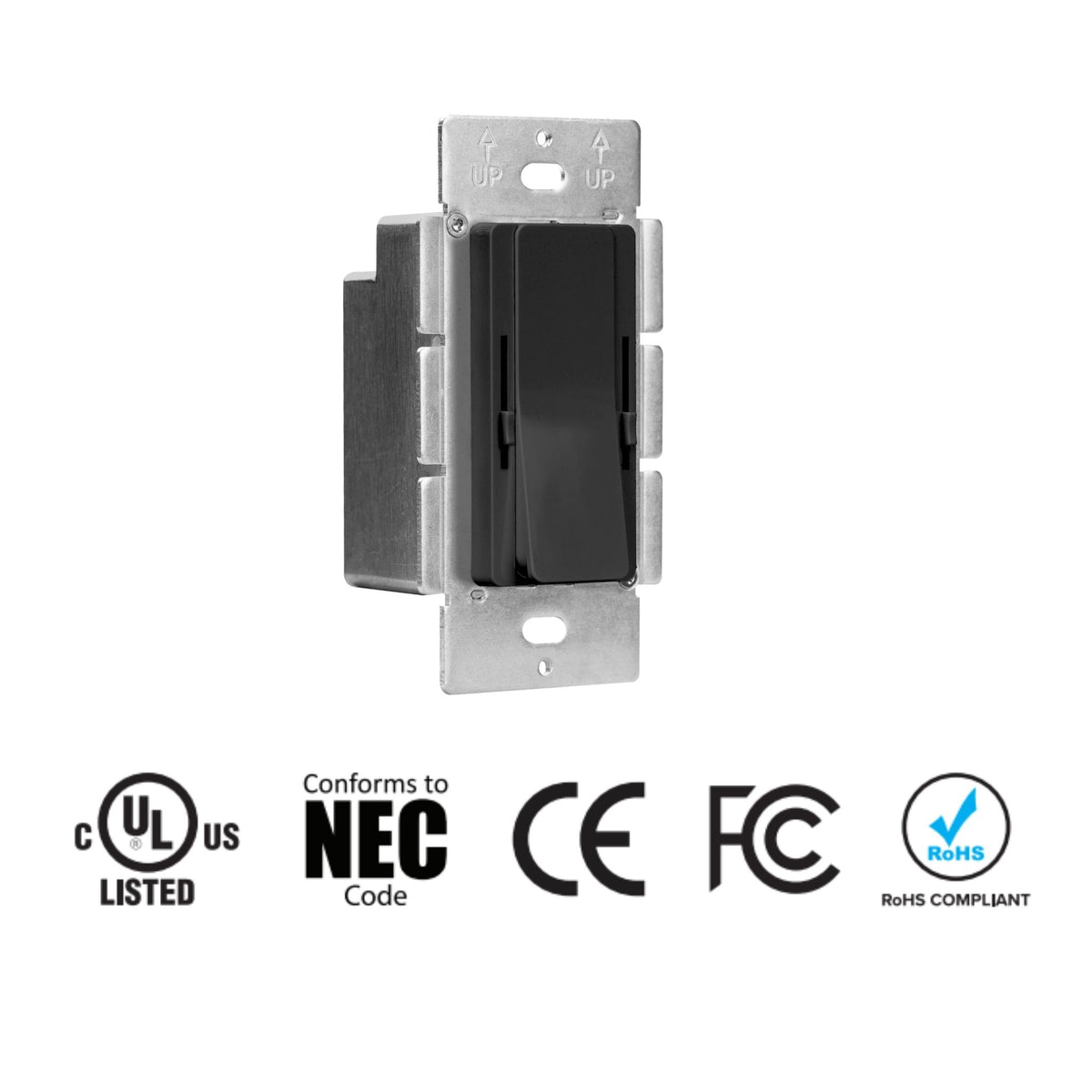

The American Lighting NAVI-CCT-96-24-BK is an all-in-one 96W LED Driver and in-wall dimmer switch providing 24VDC Constant Voltage output. This Class 2 rated device features an Integrated Junction Box design that fits standard single-gang electrical boxes, combining power and tunable CCT control into one unit. It operates on a 120VAC input and provides smooth 0.3-100% PWM dimming for compatible tunable white LED tape lights.
Key Features
- Power: 96W
- Input Voltage: 120VAC, 60Hz
- Output Voltage: 24VDC
- Dimming: 0.3-100% PWM
- Minimum Load: 0W (No minimum load)
- Dimensions: 4.1 in. L x 2.1 in. W x 1.42 in. H
- Enclosure Type: In-wall single-gang switch box
- IP Rating: Damp Rated
- Class 2: Yes
- Certifications: cULus Listed, FCC, Class P
Physical Design & Installation
The NAVI-CCT-96-24-BK features a sleek black finish designed to fit into standard single-gang recessed electrical boxes. It includes a voltage barrier partition to safely separate high and low voltage circuits within the same switch box, eliminating the need for remote driver mounting.
Dimming & Controls
This unit provides 0.3-100% dimming using a 16KHZ PWM output with a gamma 2.2 curve. It functions as a single-pole or 3-way dimmer with an on/off push switch and includes an adjustable voltage output dial to address potential voltage drop across long runs. There is no minimum load requirement for flicker-free operation.
Performance & Build
Engineered for safety, the driver includes short circuit, thermal runway, and over-voltage protections. It is Class 2 and Class P rated, ensuring compliance with strict electrical standards for indoor dry and damp locations while maintaining a high efficiency of 91%.
Typical Applications
- Tunable CCT LED Tape Light
- Residential Kitchen Lighting
- Commercial Hospitality Accents
- Under-cabinet Lighting Systems
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What dimming protocol does the NAVI-CCT-96-24-BK use?
What dimming protocol does the NAVI-CCT-96-24-BK use?
Does this LED driver require a minimum load for dimming?
Does this LED driver require a minimum load for dimming?
Does this unit include an integrated junction box?
Does this unit include an integrated junction box?
What is the input voltage range for this driver?
What is the input voltage range for this driver?
Is the NAVI-CCT-96-24-BK suitable for outdoor use?
Is the NAVI-CCT-96-24-BK suitable for outdoor use?
