American Lighting Navi CCT 96W LED Driver — 24VDC

The American Lighting NAVI-CCT-96-24-AL is a 96W LED Driver and in-wall dimmer that provides a 24VDC Constant Voltage output. This Integrated Junction Box compatible unit combines power conversion and tunable CCT control into a single Almond-finished device.

Key Features

• Power Output: 96W
• Output Voltage: 24VDC
• Input Voltage: 120VAC, 60Hz
• Dimming Range: 0.3-100% PWM
• Minimum Load: No minimum load required

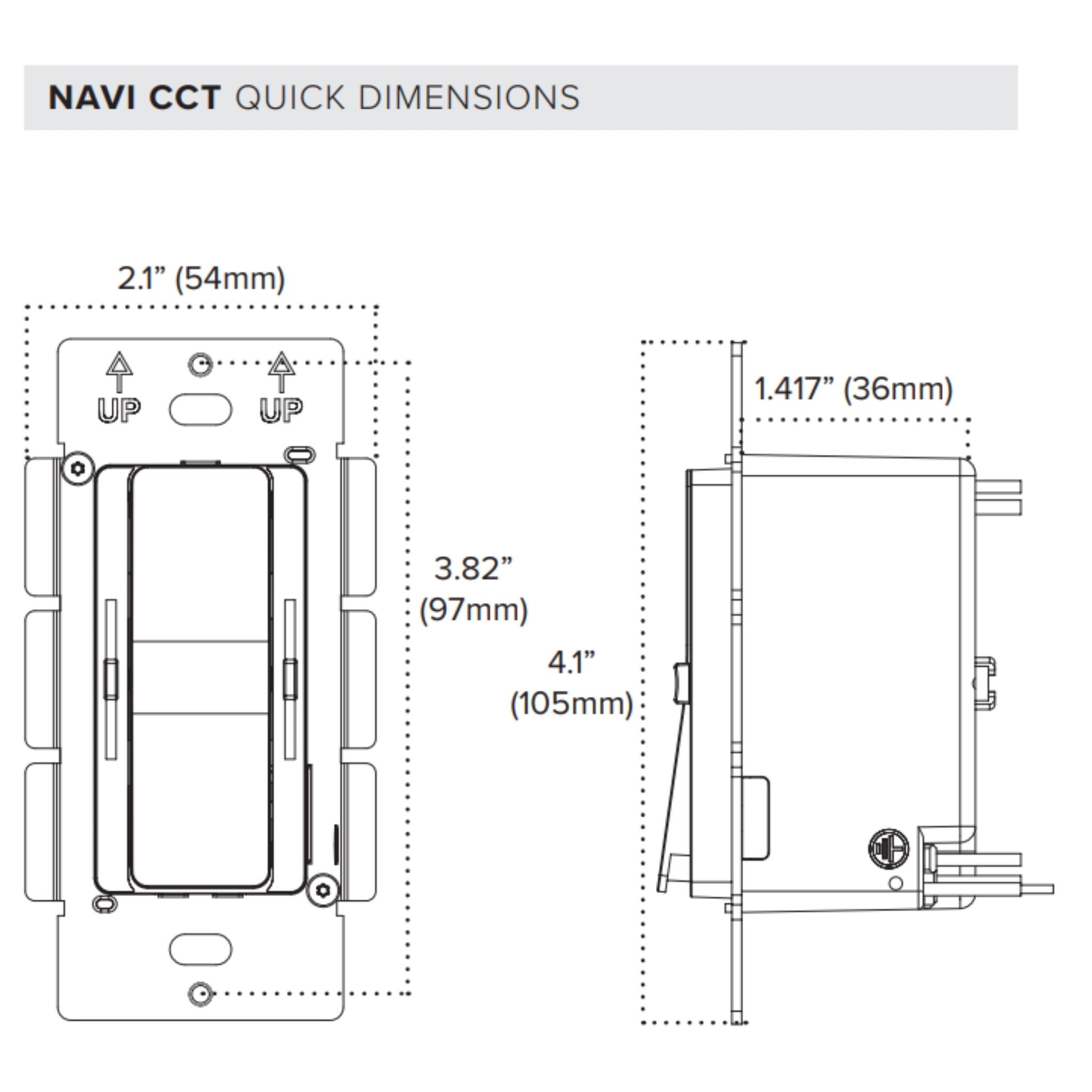

• Dimensions: 4.1 in. L x 2.1 in. W x 1.42 in. H
• Enclosure Type: Fits standard single gang recessed electrical box
• IP Rating: Damp and Dry Location Rated
• Class 2: Yes, UL Class 2 Rated

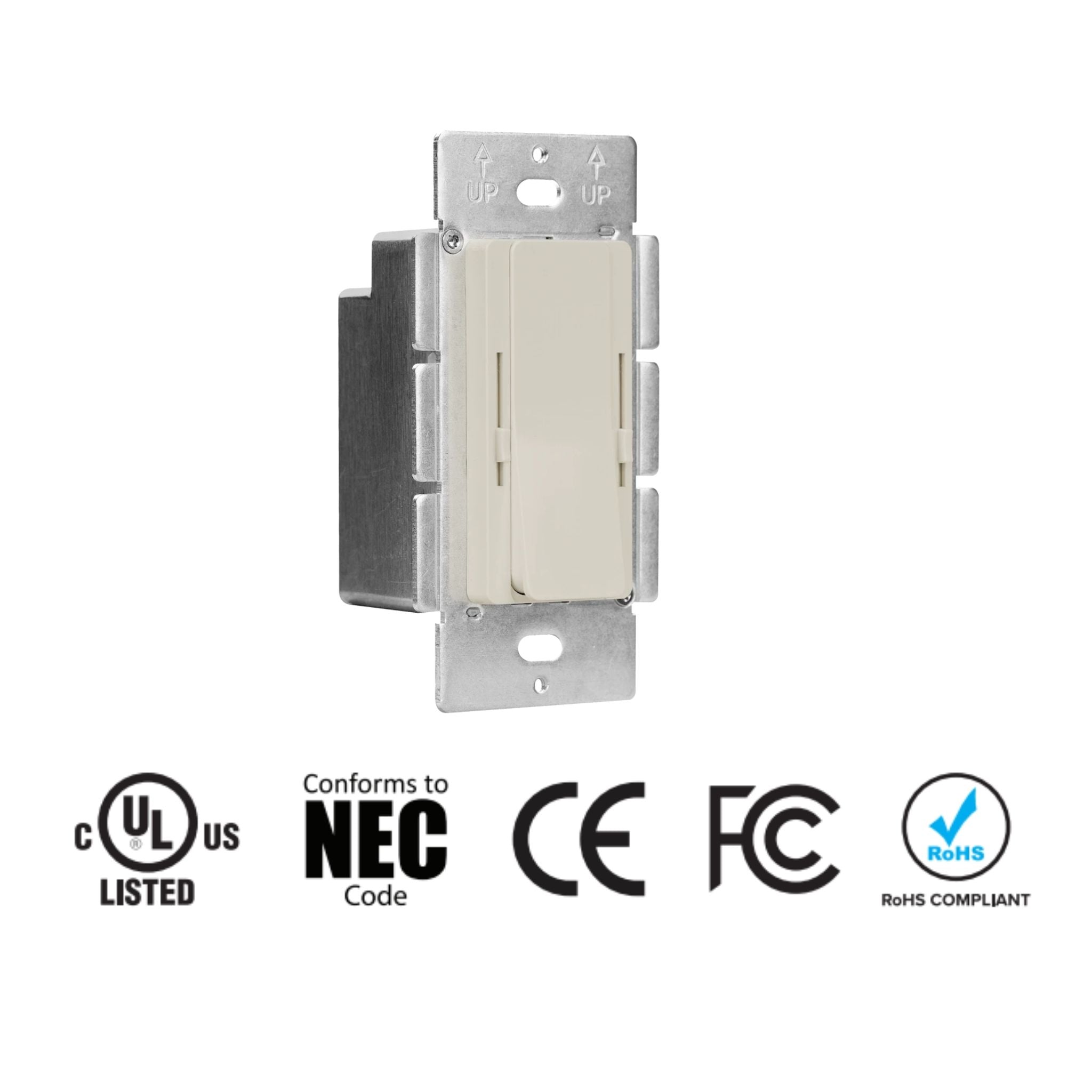

• Certifications: cULus Listed, FCC, SELV, Class P

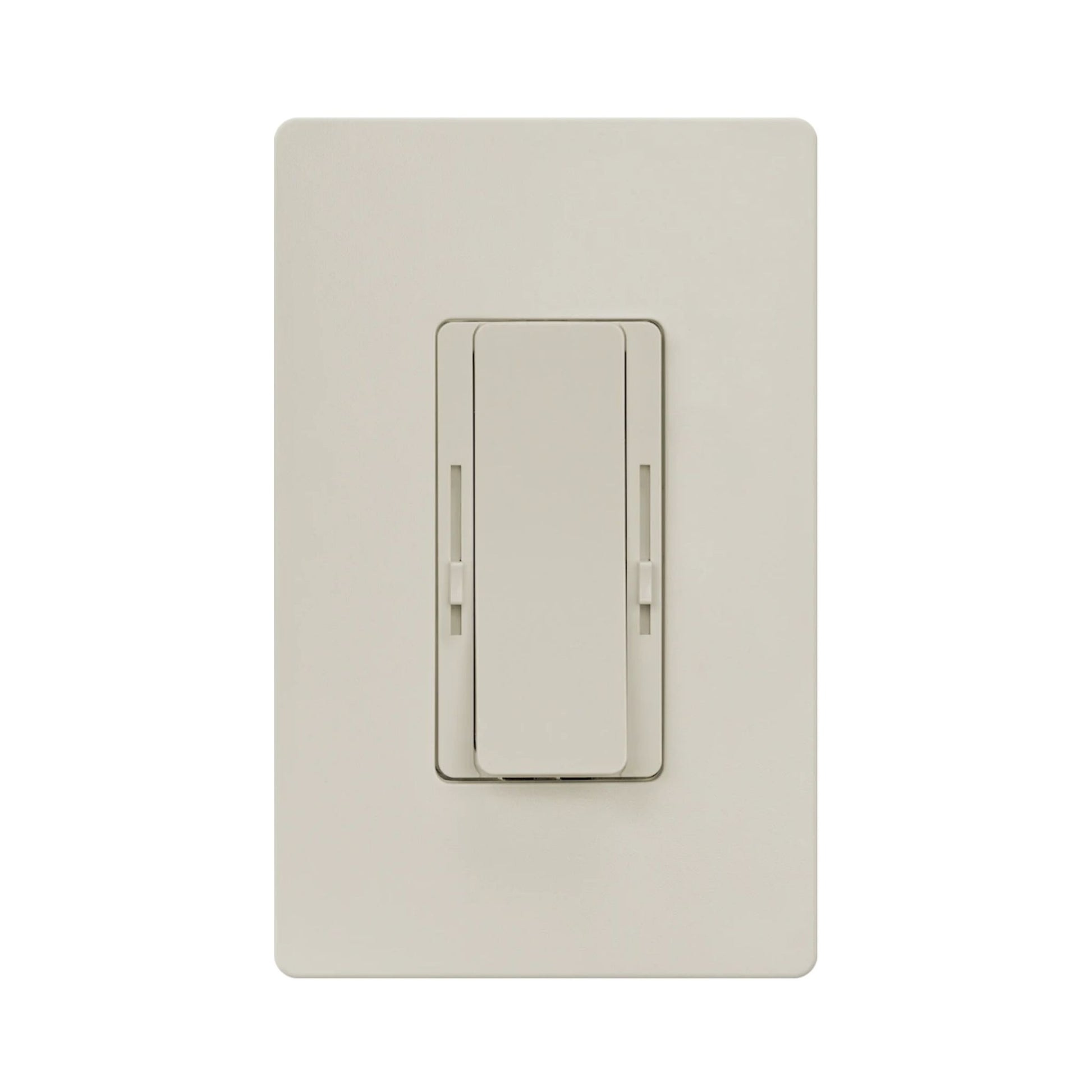

Physical Design & Installation

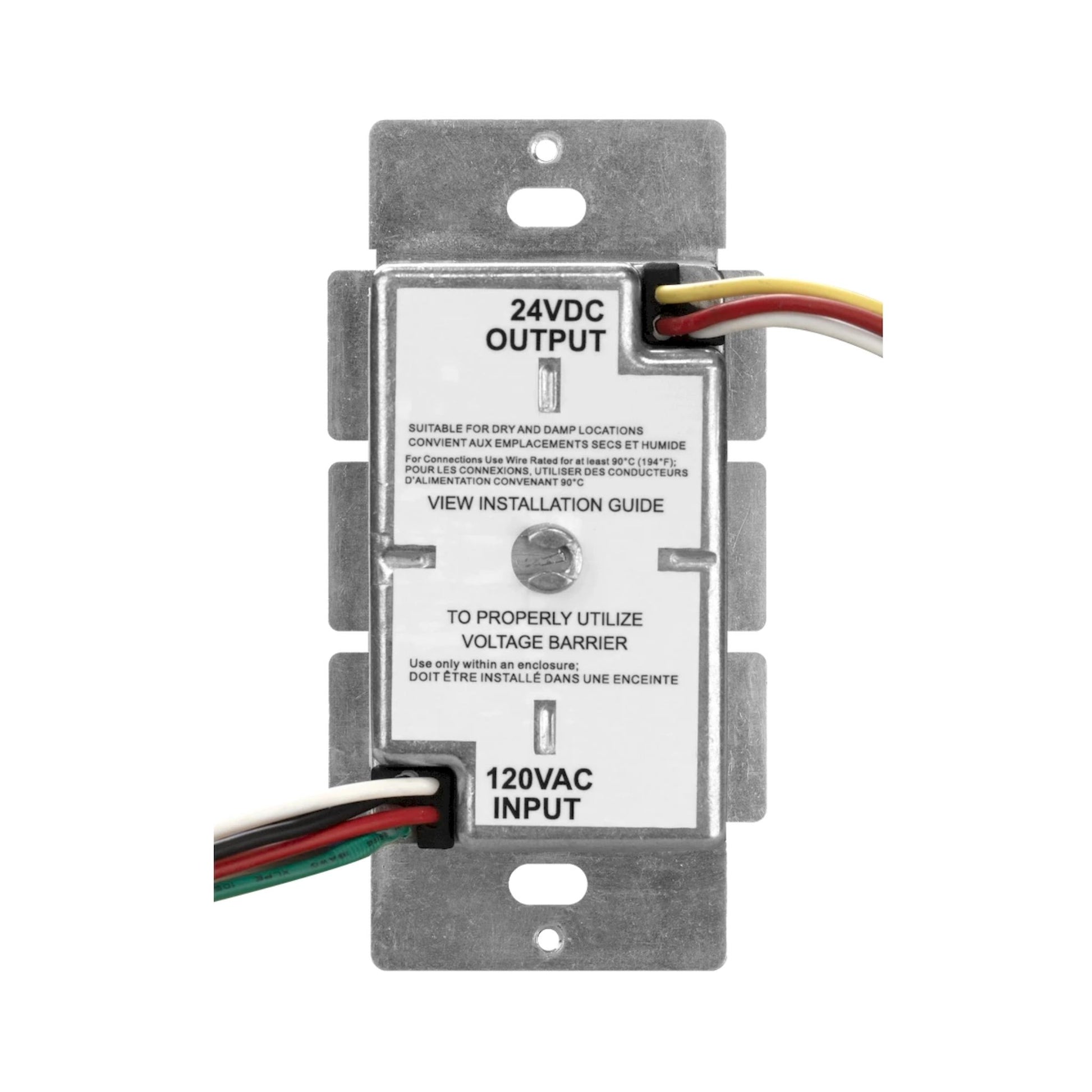

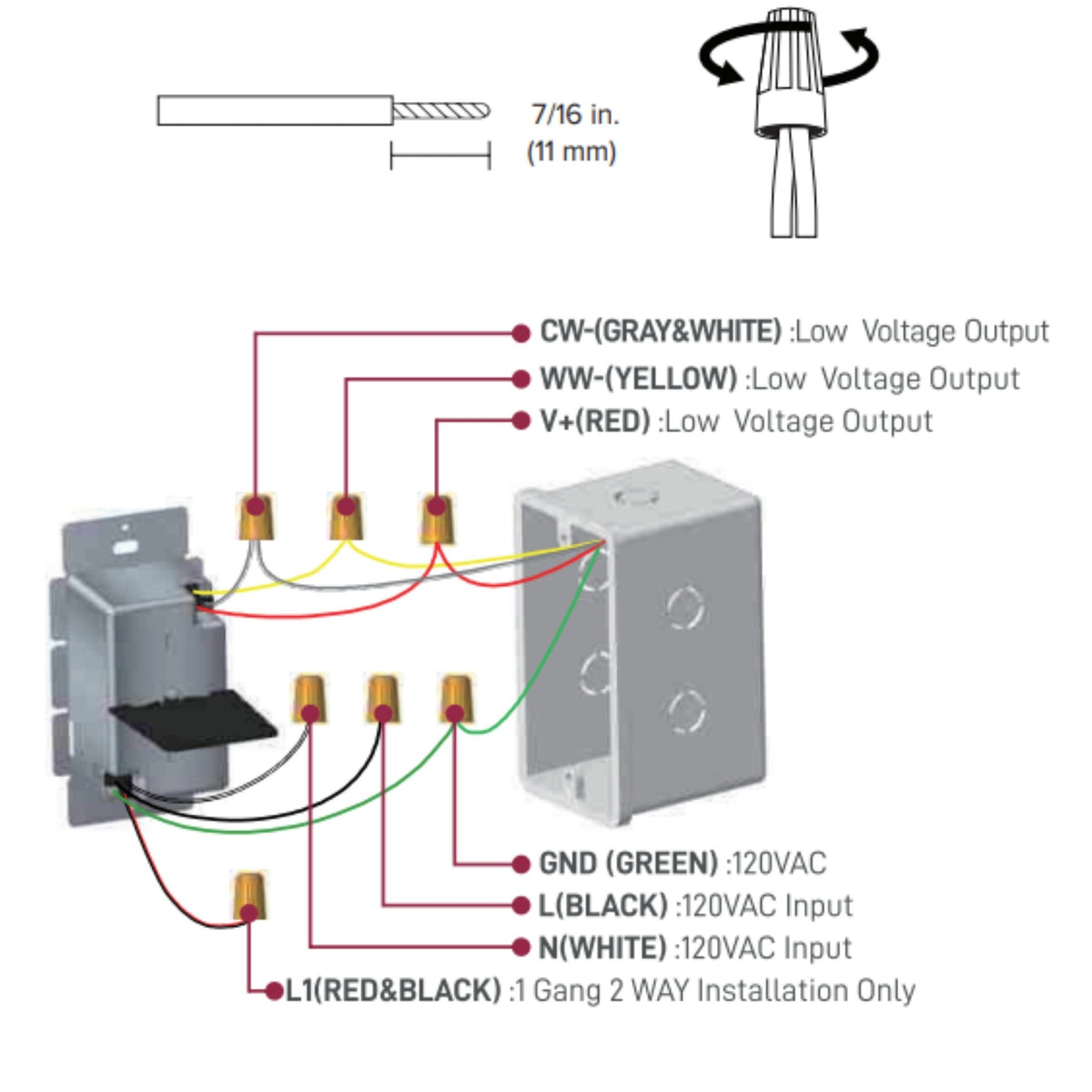

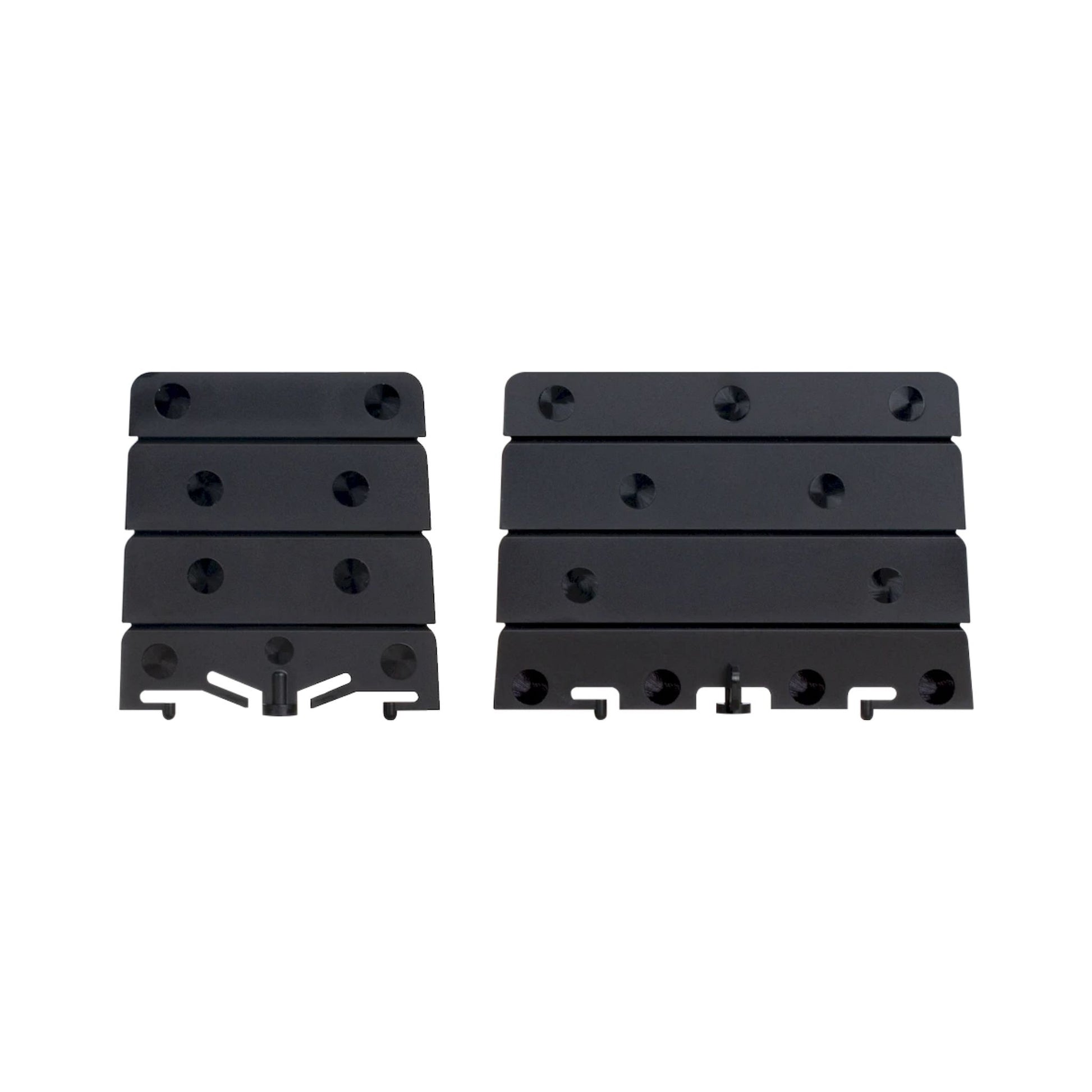

The Navi CCT features an Almond finish and is designed to fit into standard single gang recessed electrical boxes. It includes a voltage barrier partition to allow for the installation of high and low voltage circuits within the same switch box, simplifying the wiring process for contractors.

Dimming & Controls

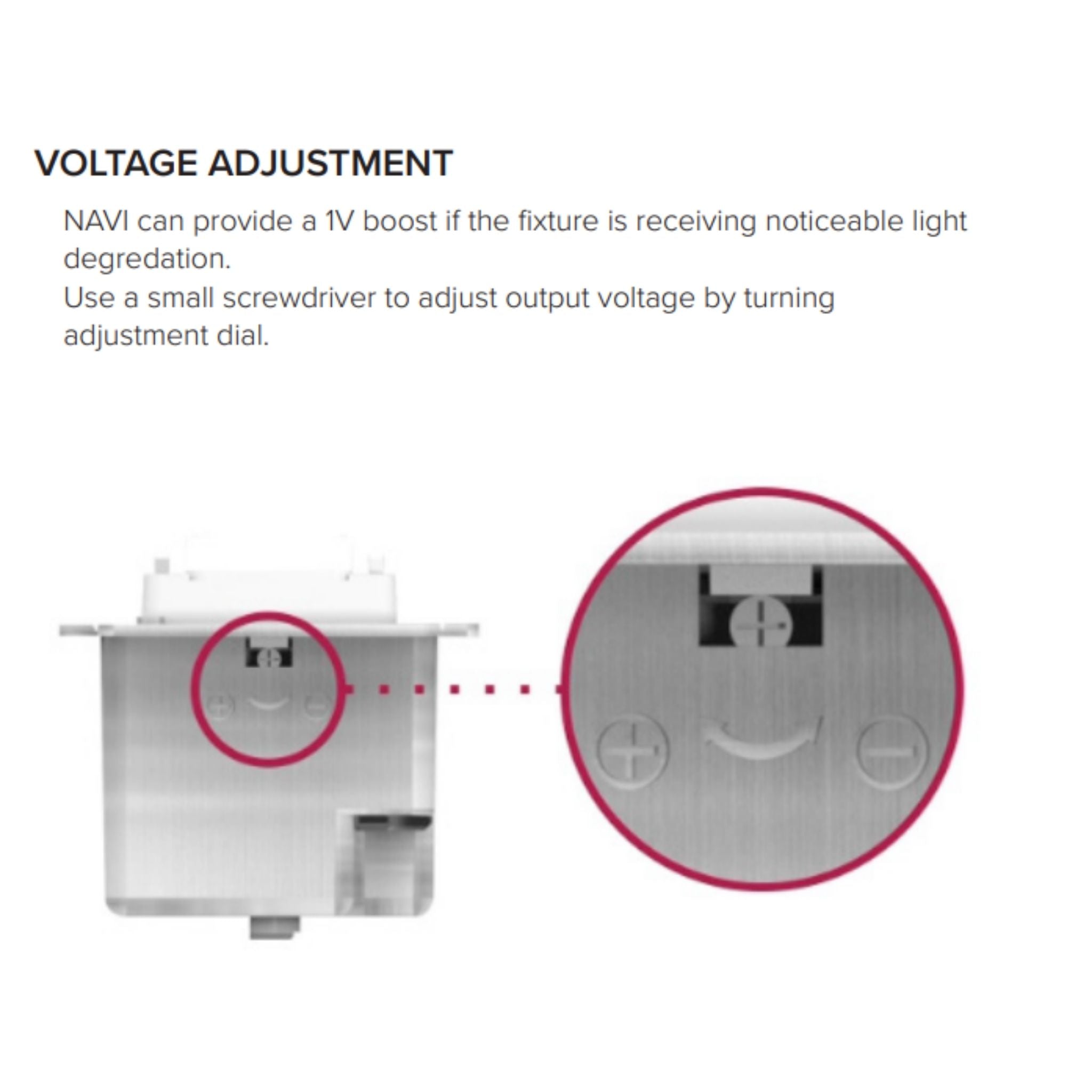

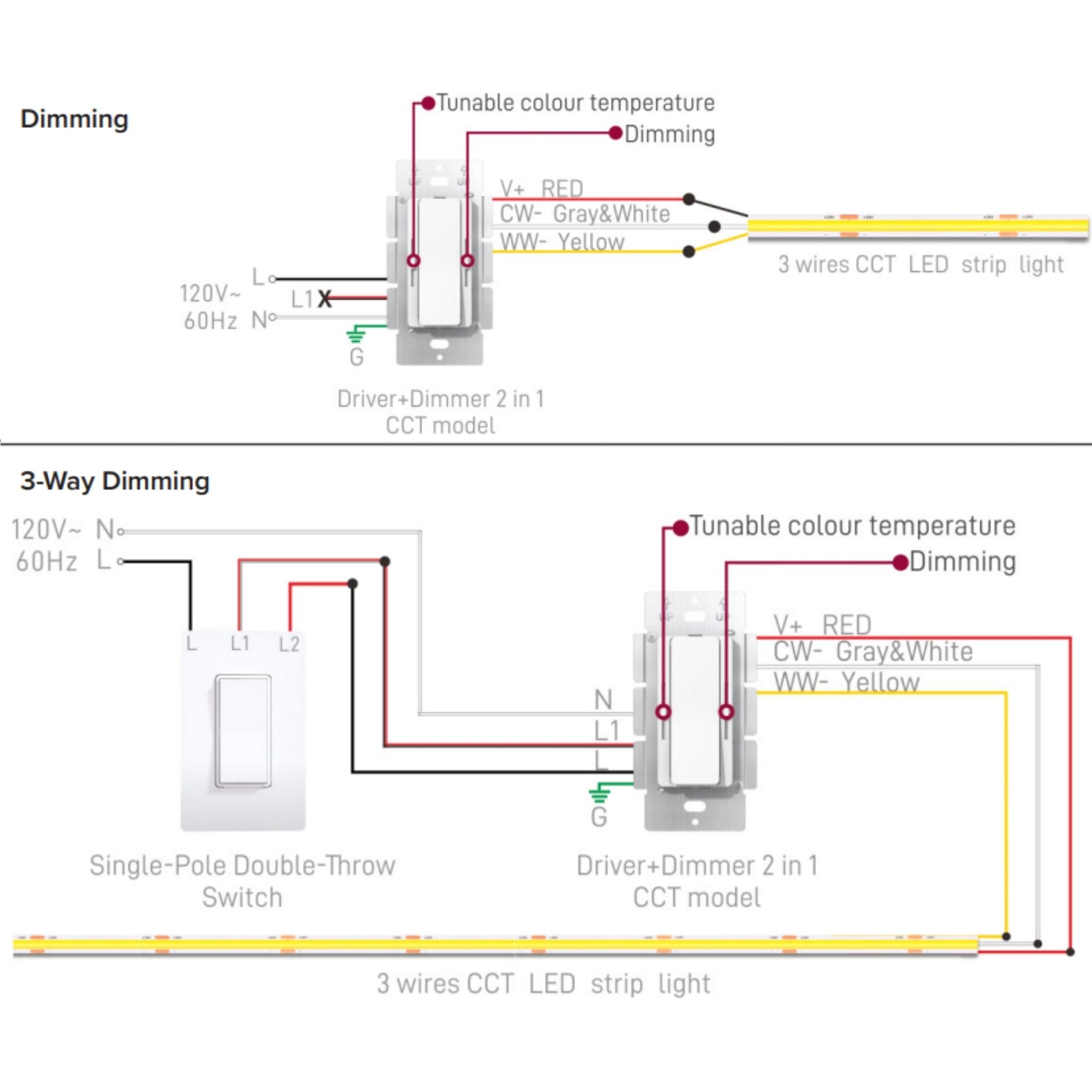

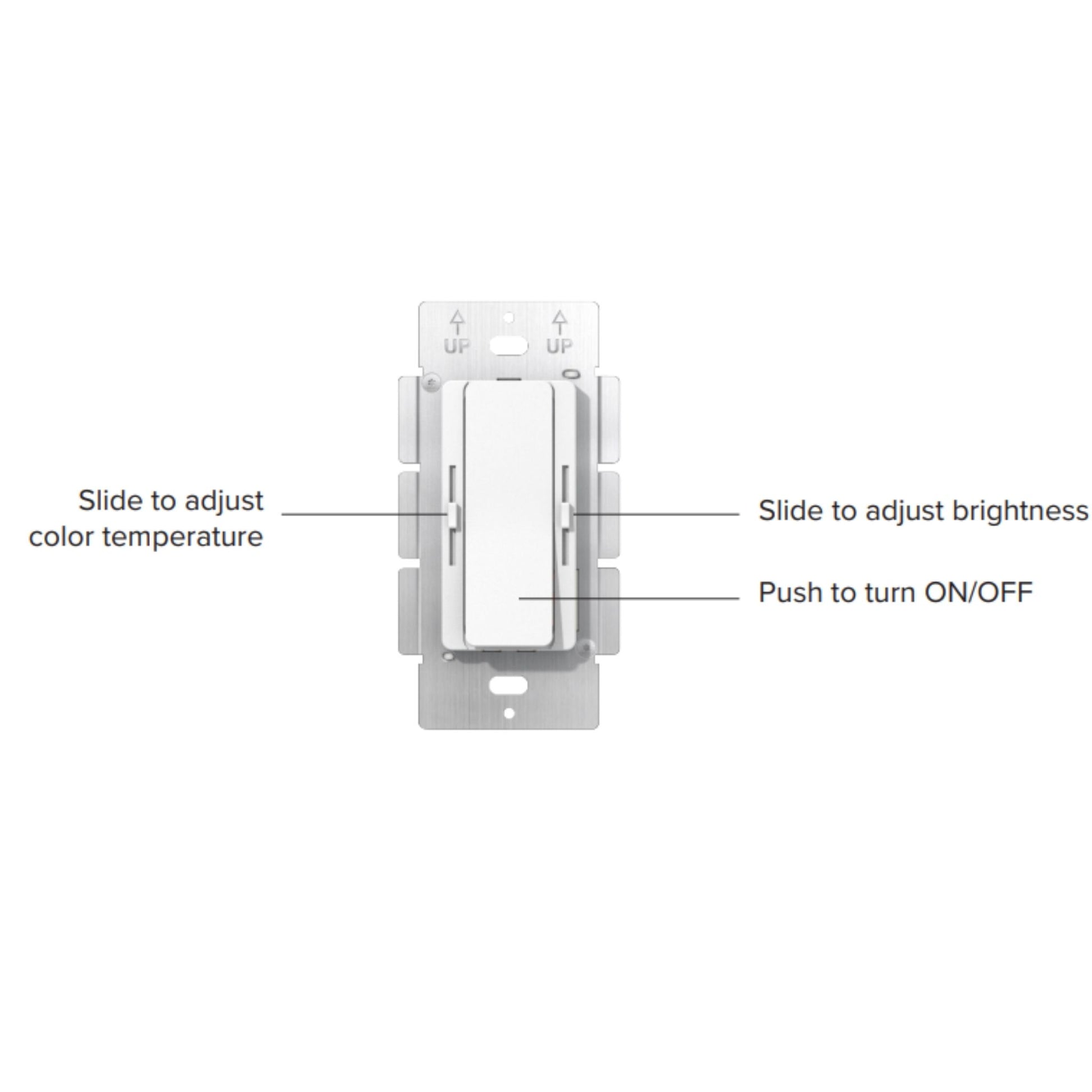

This all-in-one unit functions as a single pole or 3-way dimmer with an integrated on/off push switch. It utilizes a 16kHz PWM output with a gamma 2.2 curve for smooth dimming from 0.3% to 100%. An adjustable voltage output dial is included to address potential voltage drop over long wire runs.

Performance & Build

Built for reliability, this driver offers 91% efficiency at 120V and includes a built-in PFC function with a power factor greater than 0.99. The unit is protected against short circuits, thermal runaway, and over-voltage conditions, ensuring a rated life of over 30,000 hours.

Typical Applications

• Residential tunable CCT tape lighting
• Commercial hospitality accent lighting
• Under-cabinet and cove lighting systems
