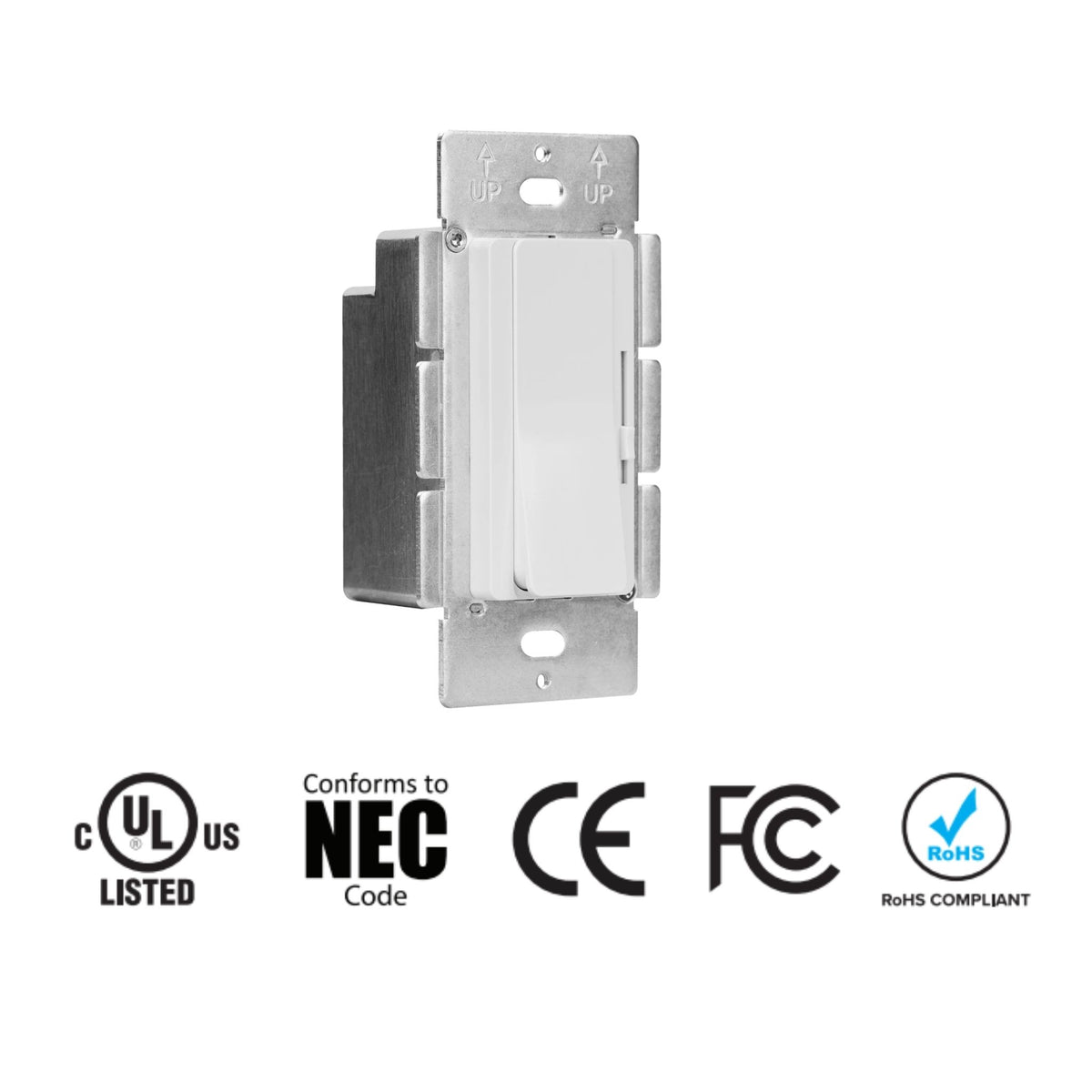

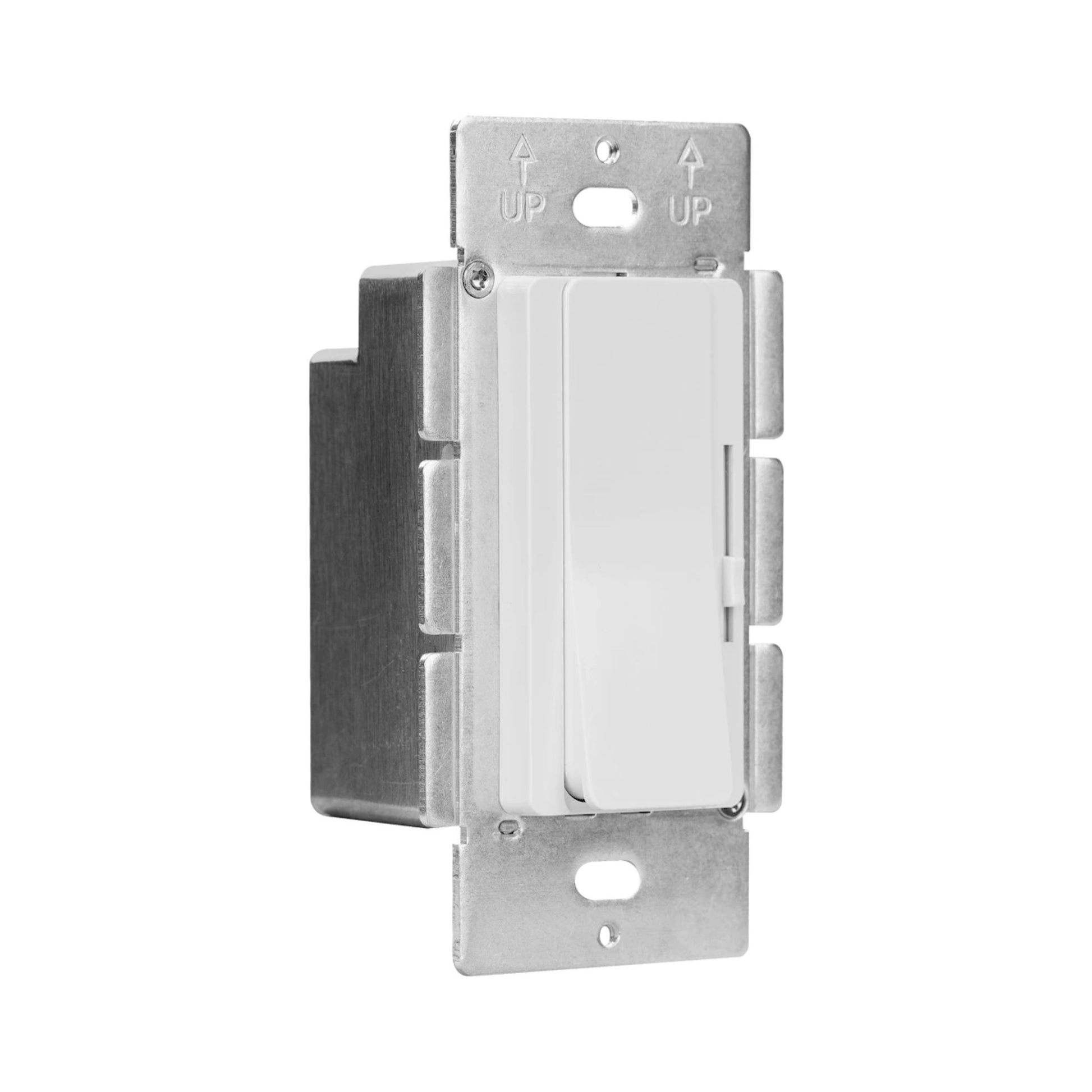

American Lighting Navi Dim 96W 24VDC LED Driver and In-Wall Dimmer, White
Out of stock
About this item
About this item
- Power Output: Delivers a constant 24VDC output with a maximum load capacity of 96W for low voltage LED systems.

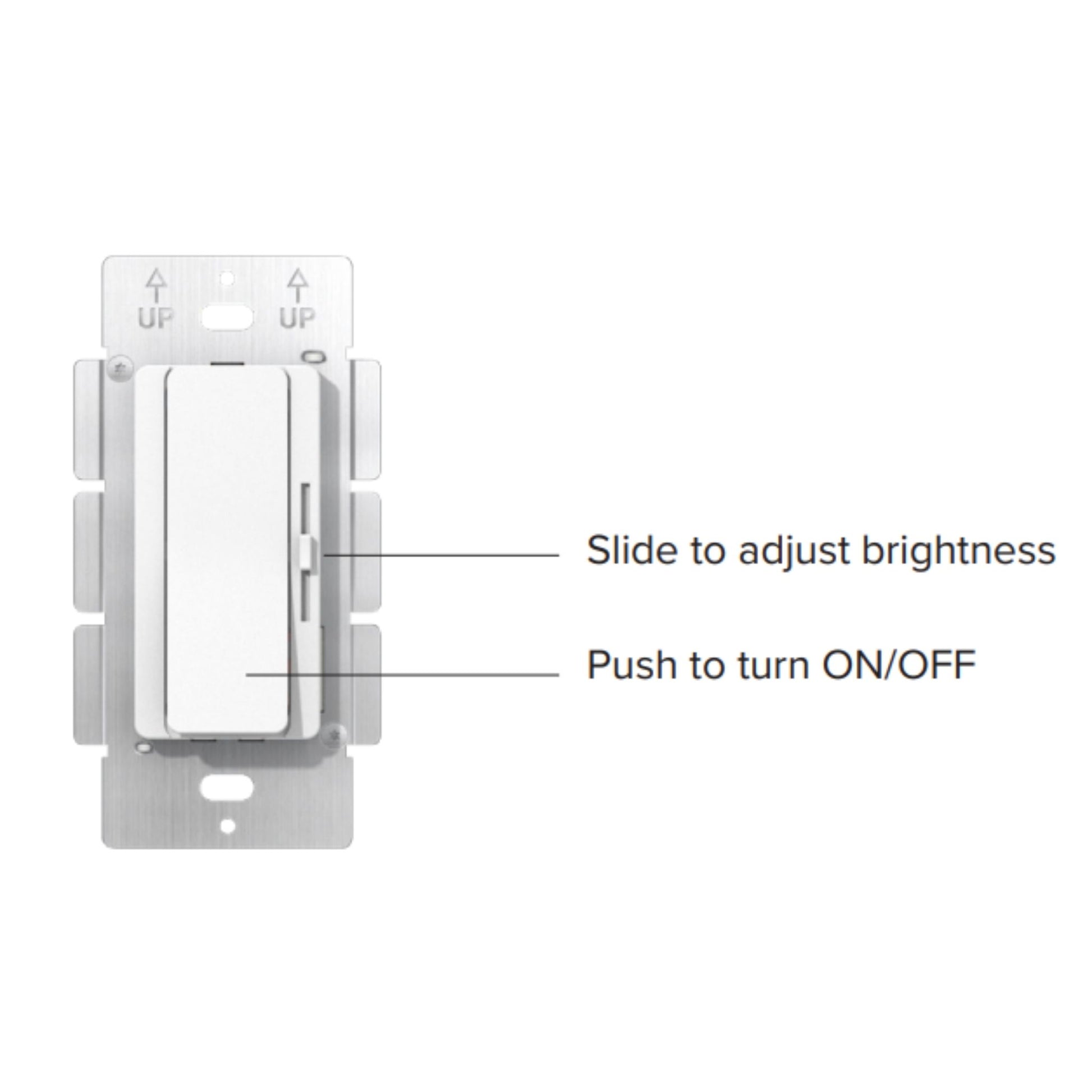

- Integrated Dimming: Features a 0.3-100% PWM dimming range with an on/off push switch for precise lighting control.
- Input Voltage: Designed for standard 120VAC 60Hz input, simplifying residential and commercial installations.
- Compact Enclosure: Fits into a standard single gang recessed electrical box for a clean, finished wall-mount appearance.
- Safety Protections: Includes built-in short circuit, thermal runaway, and over-voltage protection for long-term reliability.
We process payments securely and do not store credit card information.
Description
Description
American Lighting Navi Dim 96W LED Driver — 24VDC
The American Lighting NAVI-96-24-WH is a revolutionary 96W LED Driver that combines a power supply and in-wall dimmer into one unit. Operating at 120VAC input and providing a 24VDC Constant Voltage output, this Class 2 rated device fits into a standard single gang box.
Key Features
- Power Rating: 96W
- Input Voltage: 120VAC, 60Hz
- Output Voltage: 24VDC
- Dimming Range: 0.3-100% PWM
- Minimum Load: No minimum load required

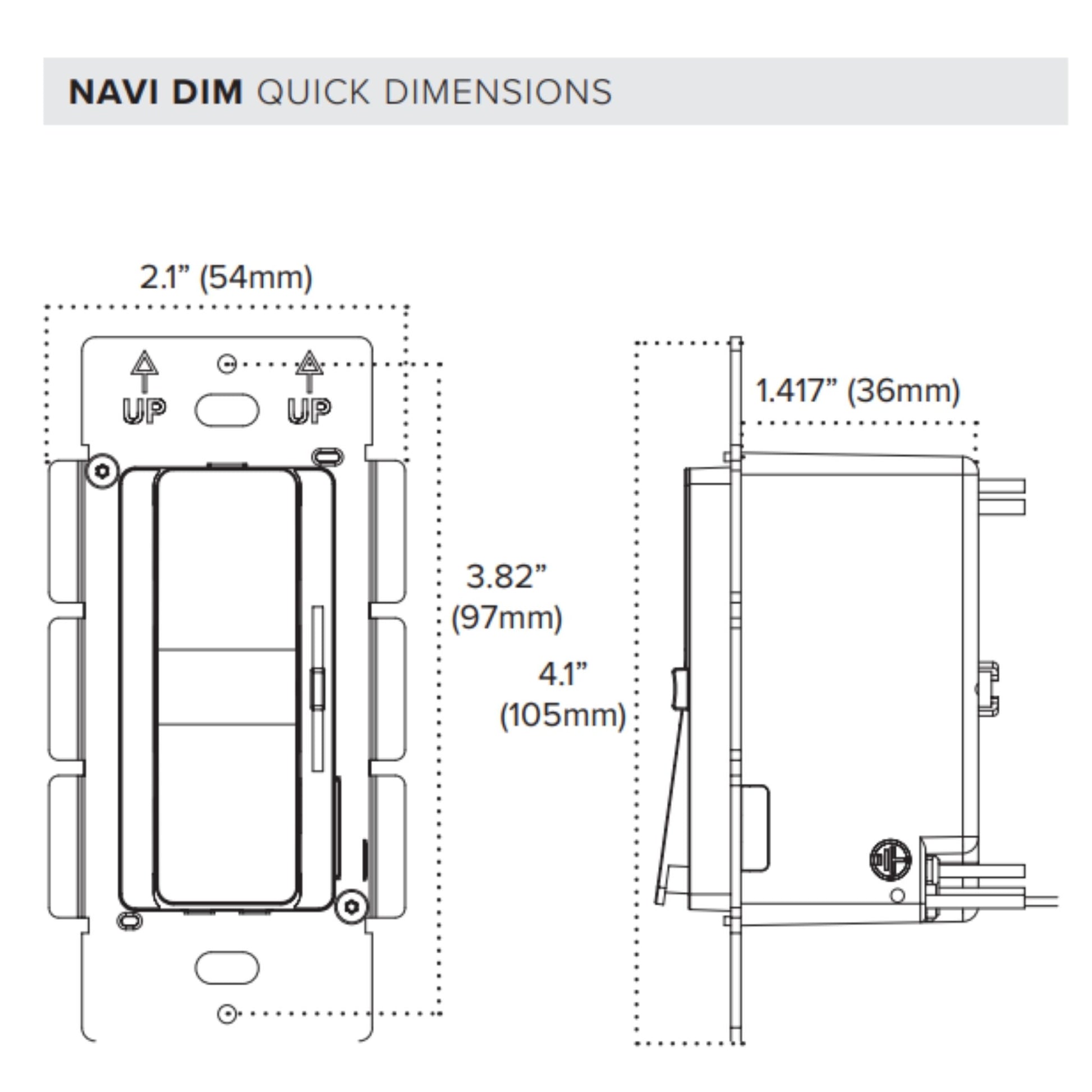

- Dimensions: 4.1 in. L x 2.1 in. W x 1.42 in. H
- Enclosure Type: Single Gang In-Wall Box
- Efficiency: 91% at max load
- Operating Temperature: -40C to 60C
- Certifications: cULus Listed, FCC, Class 2, Class P
Physical Design & Installation

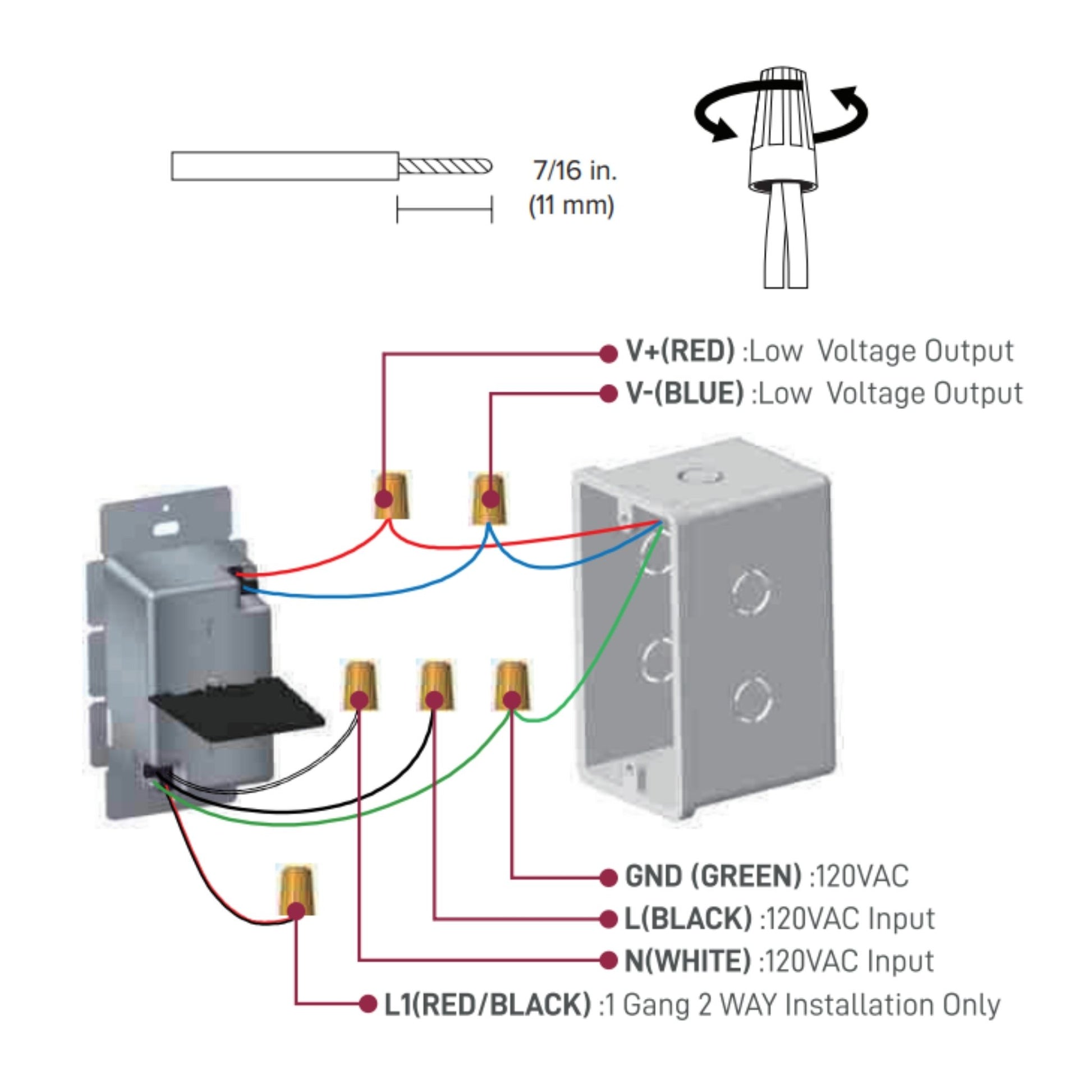

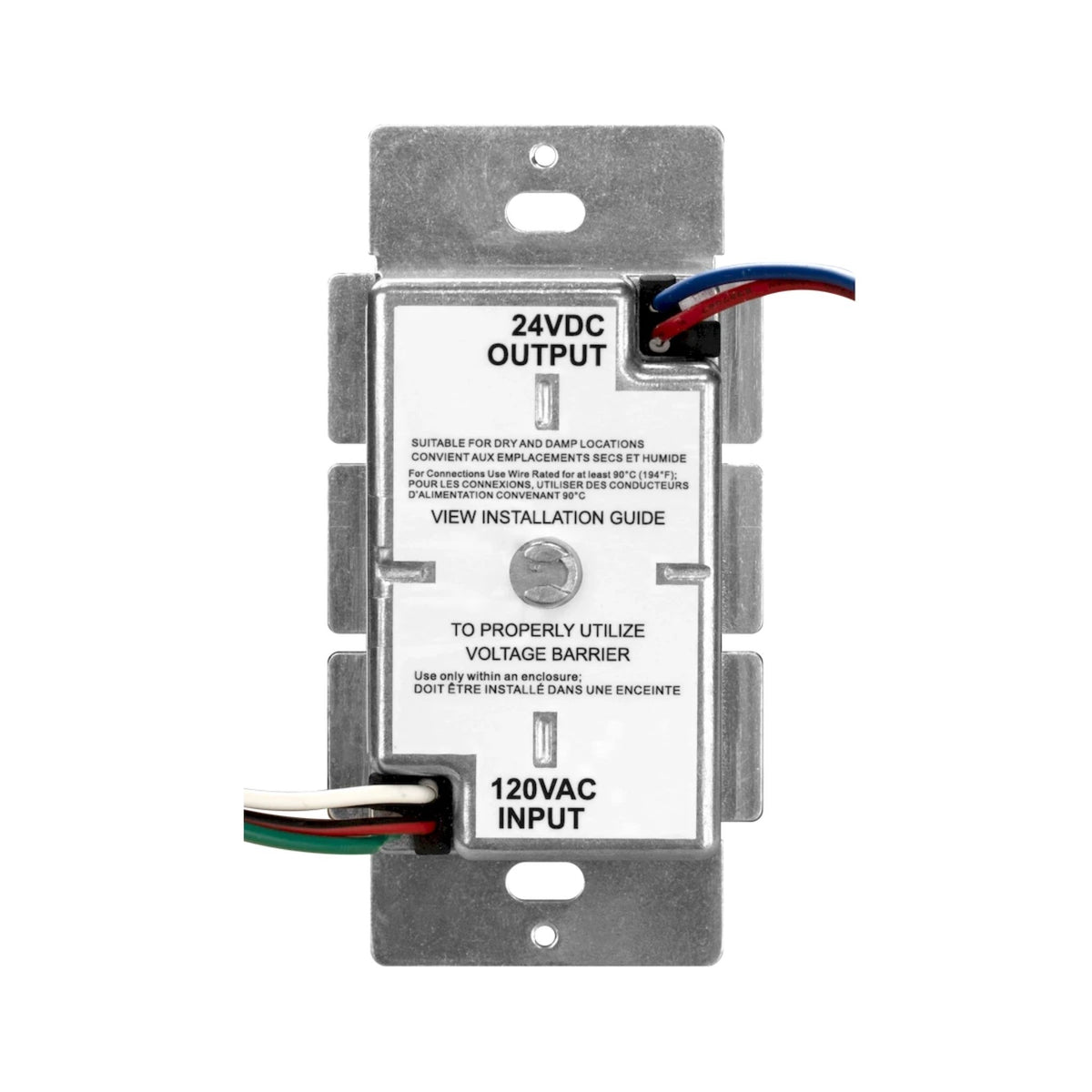

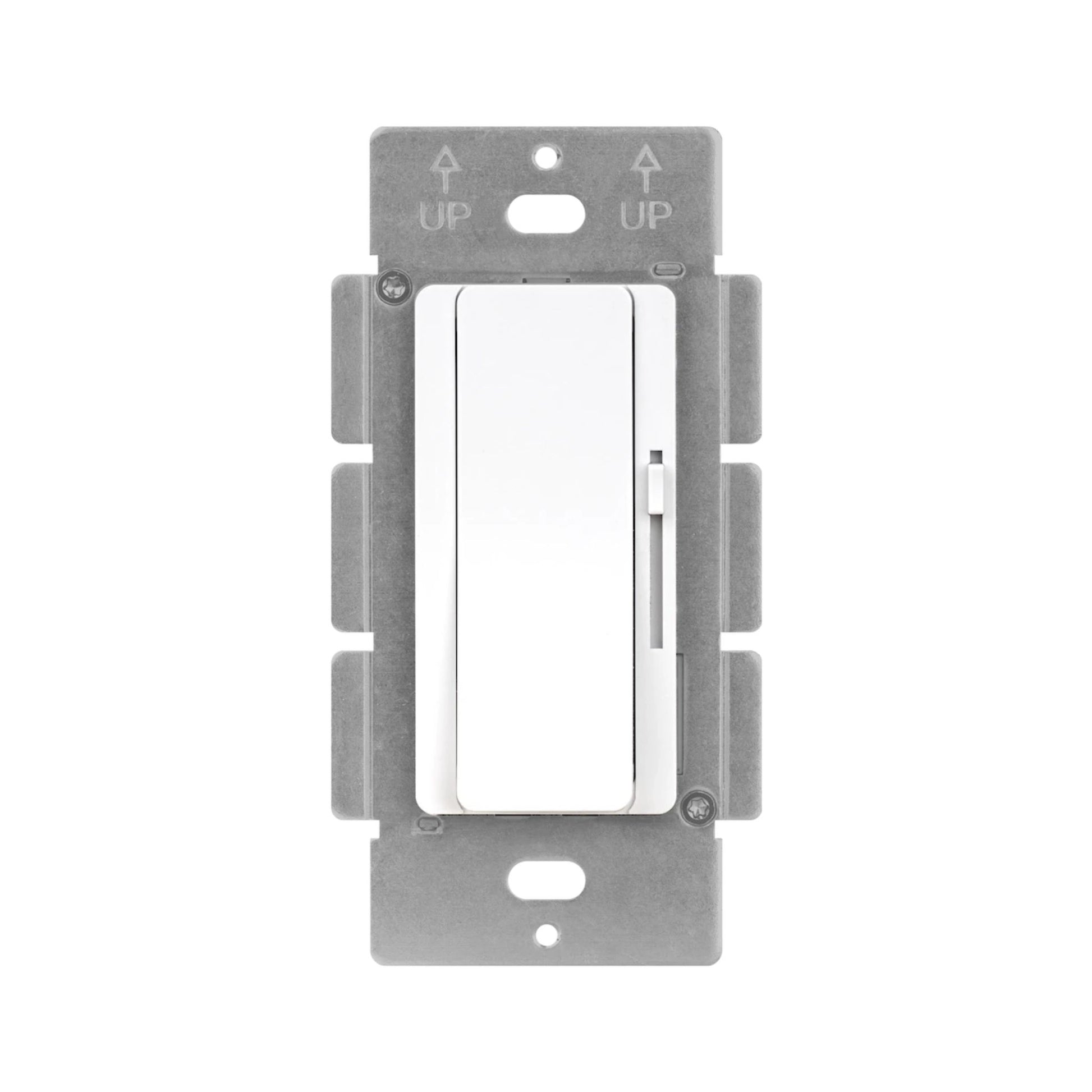

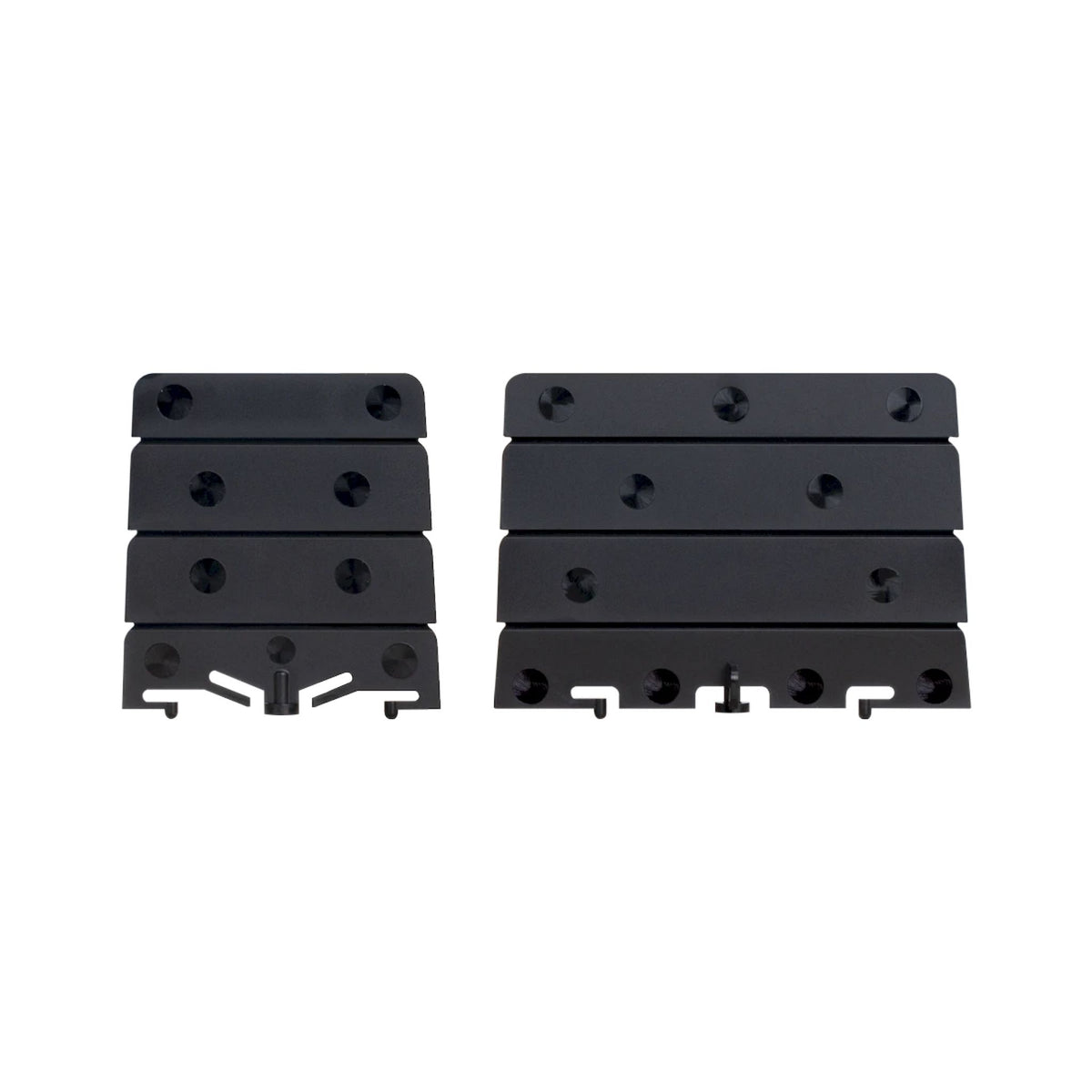

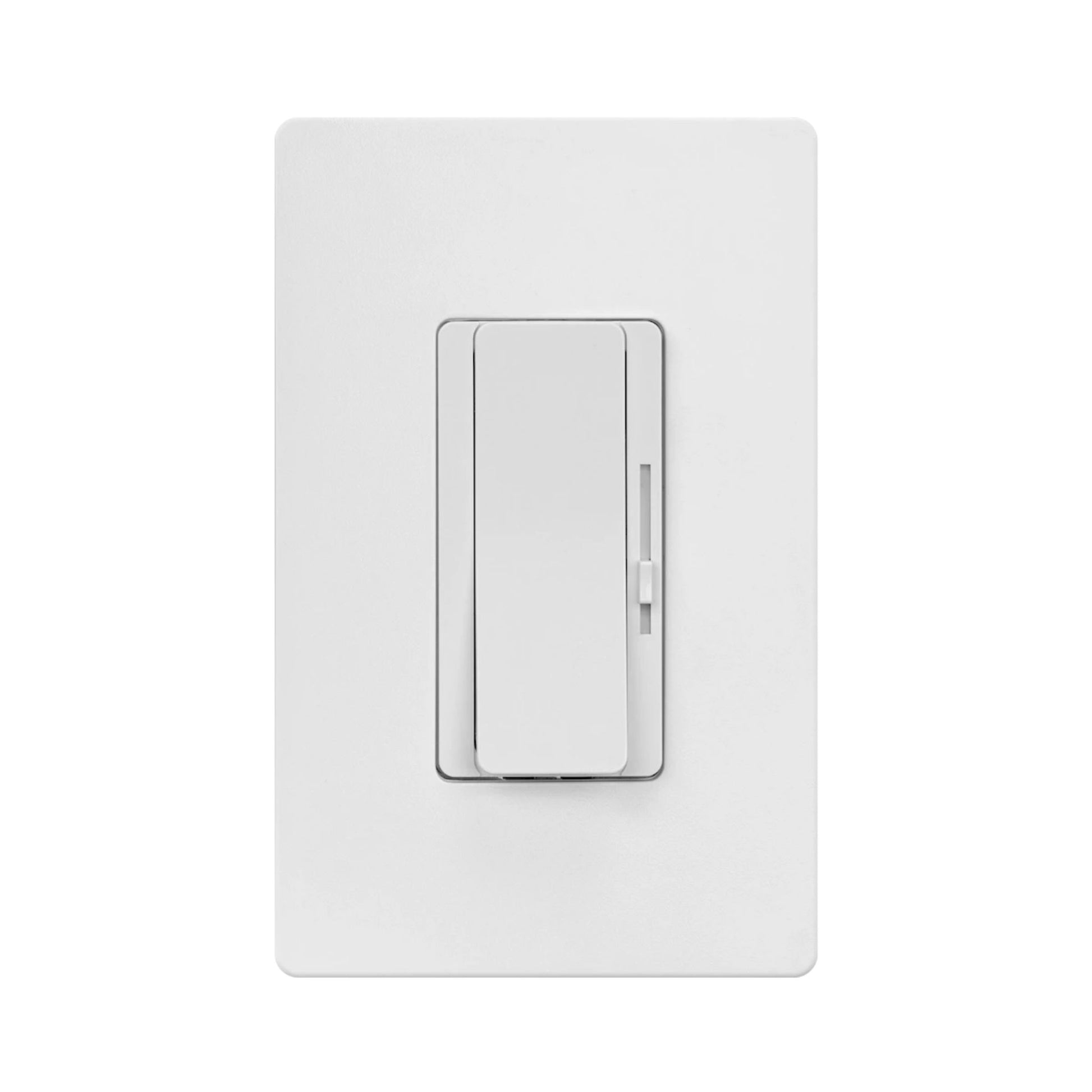

The Navi Dim features a sleek white finish designed to fit most standard decora faceplate trims. It is engineered to mount directly into a standard single gang recessed electrical box, eliminating the need for remote power supply housing. The unit includes a voltage barrier partition to safely install high and low voltage circuits within the same switch box.
Dimming & Controls

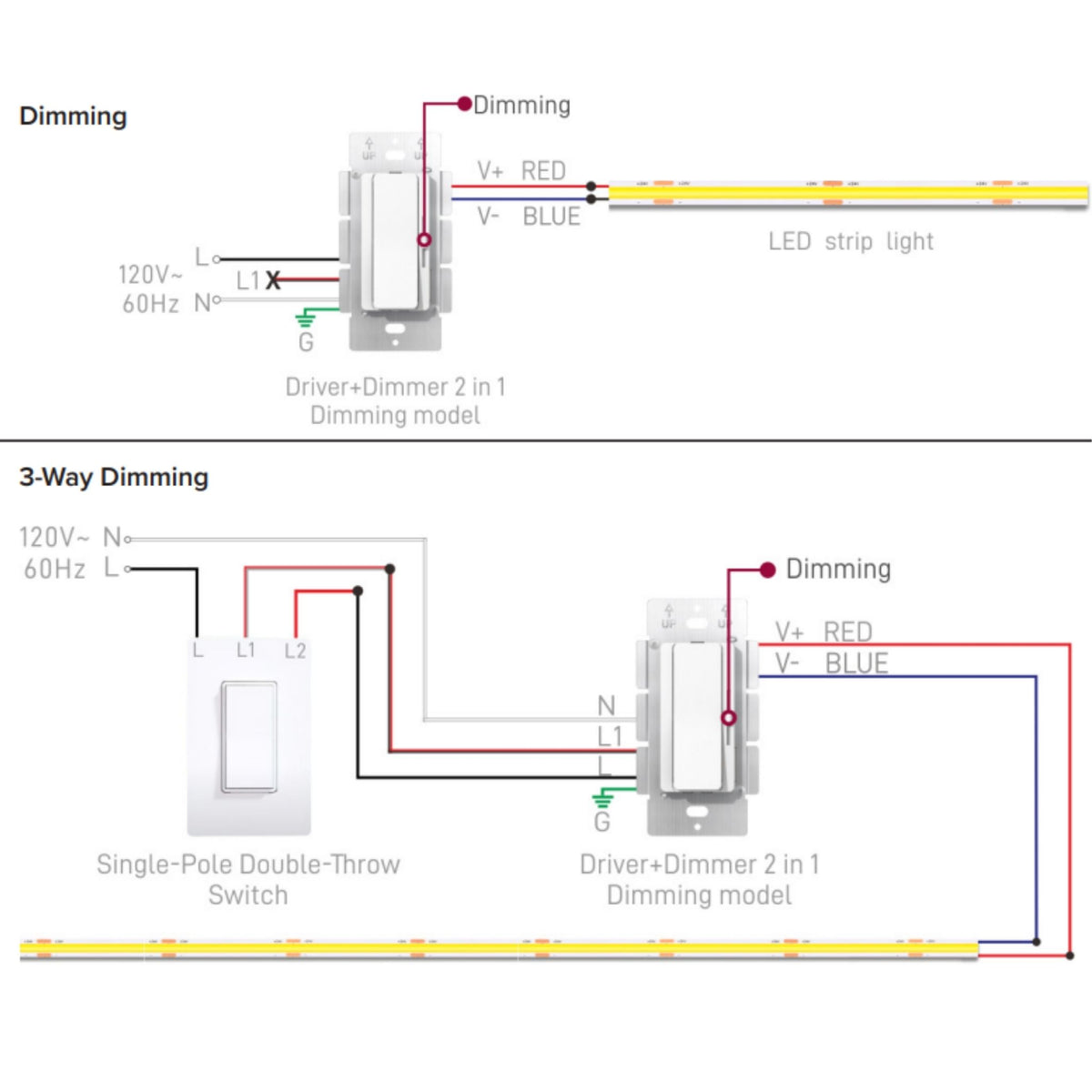

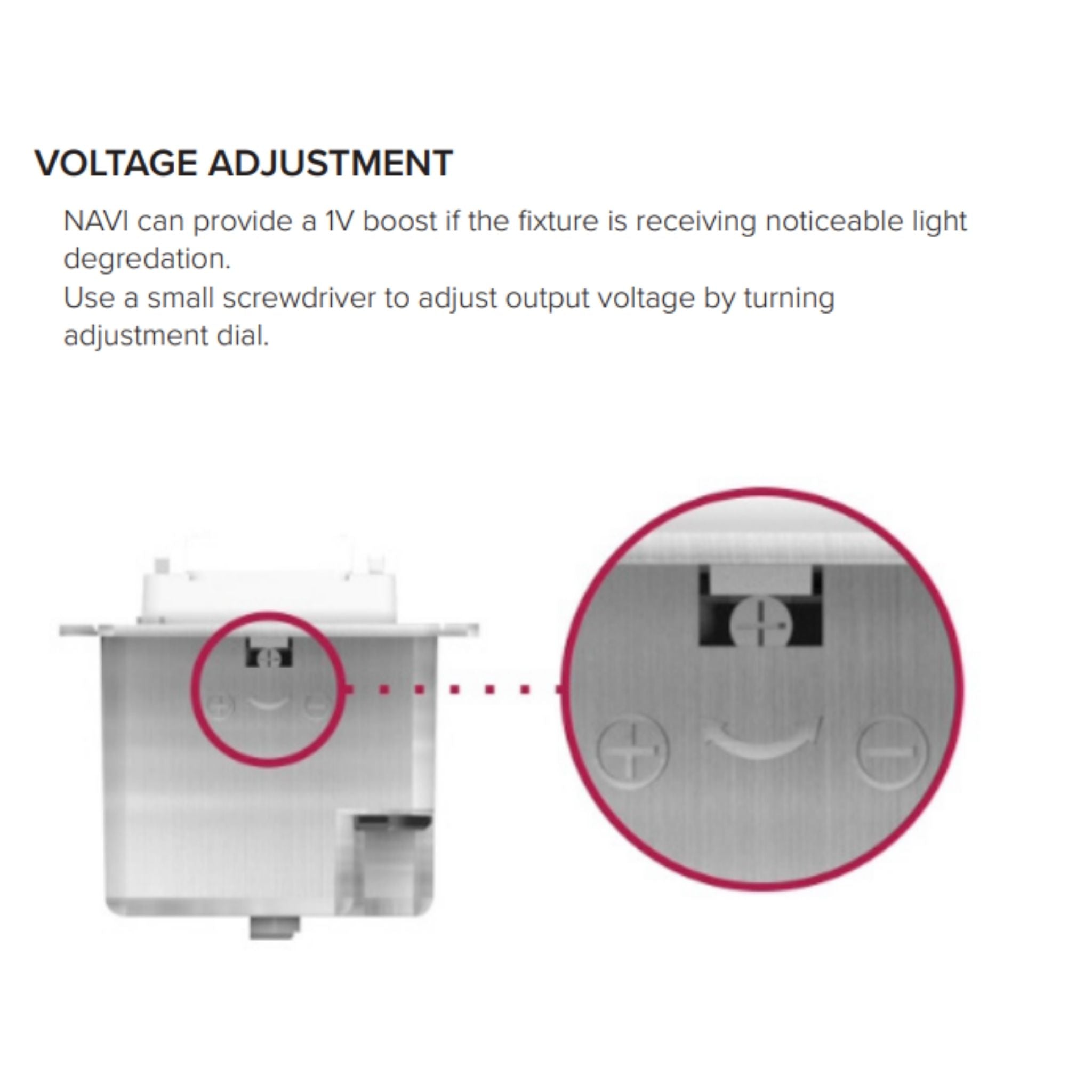

This all-in-one solution utilizes a 16kHz PWM output with a gamma 2.2 curve for smooth, flicker-free dimming. It supports both single pole and 3-way configurations and includes an adjustable voltage output dial (24V-26V) to compensate for potential voltage drop in long wire runs. No minimum load is required for stable operation.
Performance & Build
Built for durability, the driver is rated for over 30,000 hours of life and includes comprehensive protection against short circuits, thermal runaway, and over-voltage. It is damp location rated and complies with FCC Part 15 Class B limits for digital devices.
Typical Applications
- Residential LED tape lighting
- Commercial accent and cove lighting
- Under-cabinet task lighting
- Hospitality ambient lighting
