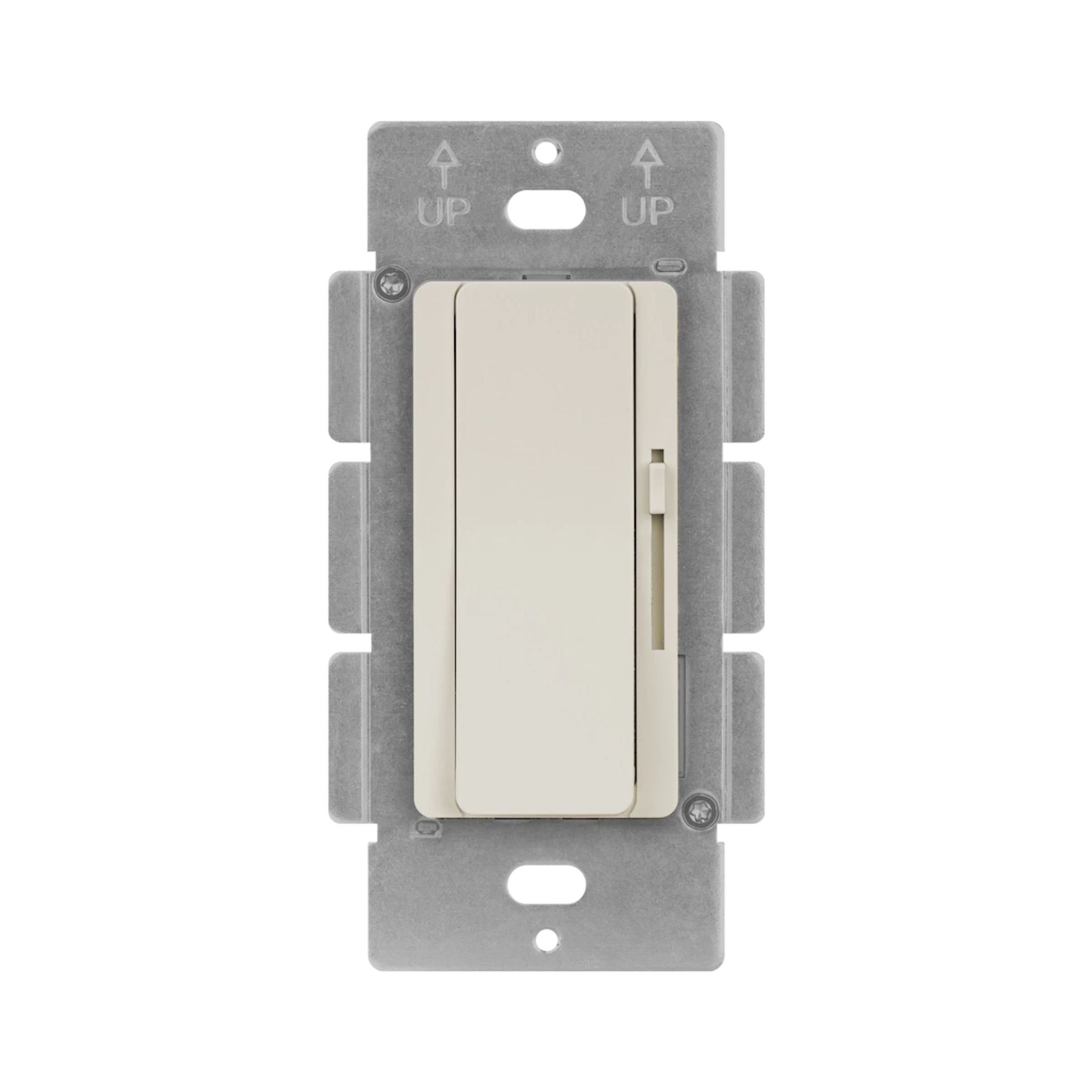

American Lighting Navi Dim 96W 24VDC LED Driver Integrated In-Wall Dimmer, Almond
Out of stock
About this item
About this item
- Output Power: 96W capacity providing 24VDC constant voltage output.
- Integrated Dimming: Features 0.3-100% PWM dimming with no minimum load requirement.
- Input Voltage: Optimized for standard 120V AC 60Hz electrical systems.
- Installation: Fits standard single-gang recessed electrical boxes for a clean in-wall finish.
- Safety Protections: Includes short circuit, thermal runaway, and over-voltage protection.
We process payments securely and do not store credit card information.
Description
Description
American Lighting Navi Dim 96W LED Driver — 24VDC
The American Lighting NAVI-96-24-AL is a 96W LED Driver and in-wall dimmer combo providing 24VDC Constant Voltage. This Class 2 rated device accepts 120V AC input and fits into a standard single gang recessed electrical box, eliminating compatibility issues between separate components.
Key Features
- Power: 96W
- Output Voltage: 24VDC
- Input Voltage: 120V AC
- Dimming: 0.3-100% PWM
- Minimum Load: 0W (No minimum load)
- Dimensions: 4.1 in. L x 2.1 in. W x 1.42 in. H
- Enclosure Type: Single Gang In-Wall Box
- Rating: Class 2 / Class P
- Finish: Almond

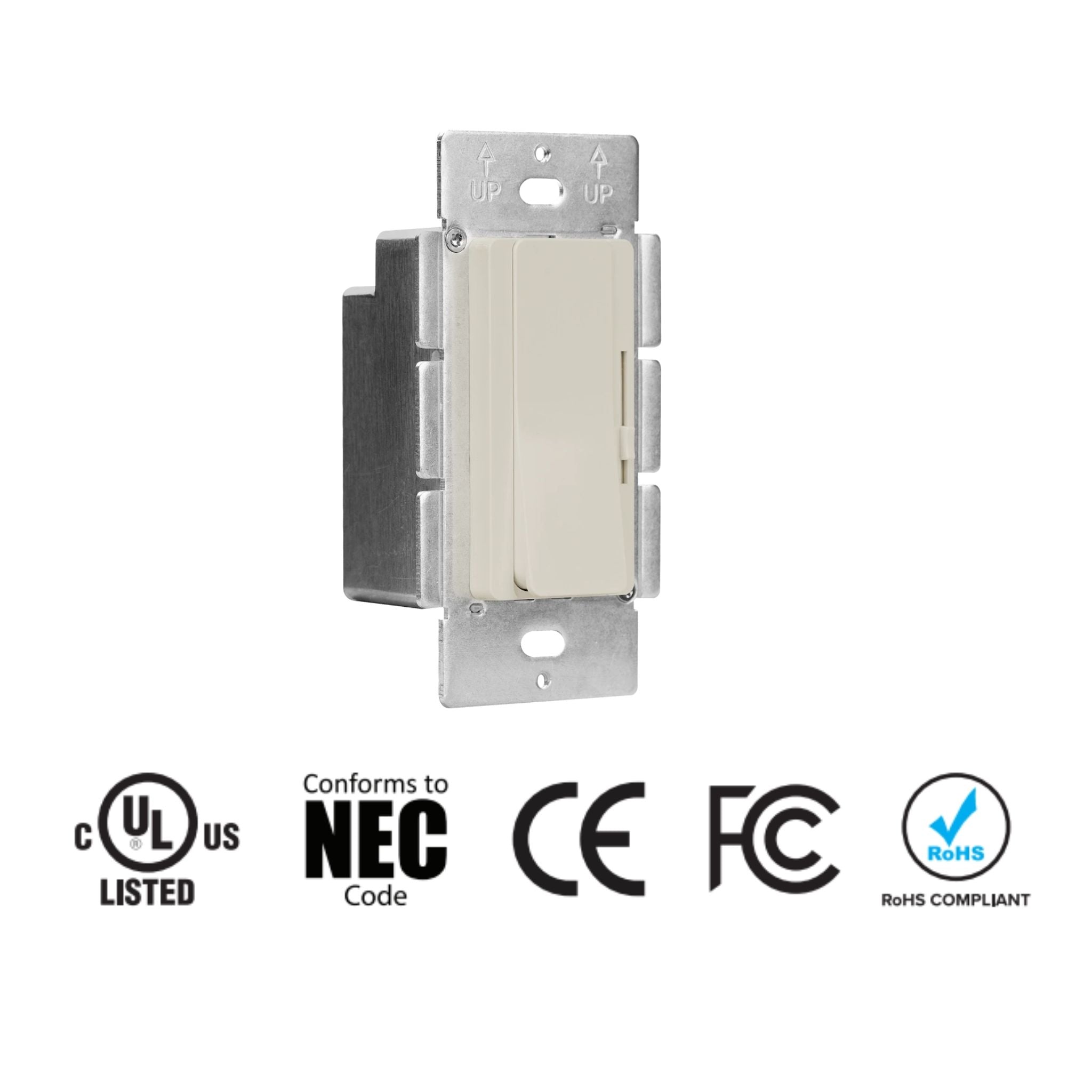

- Certifications: cULus Listed, FCC

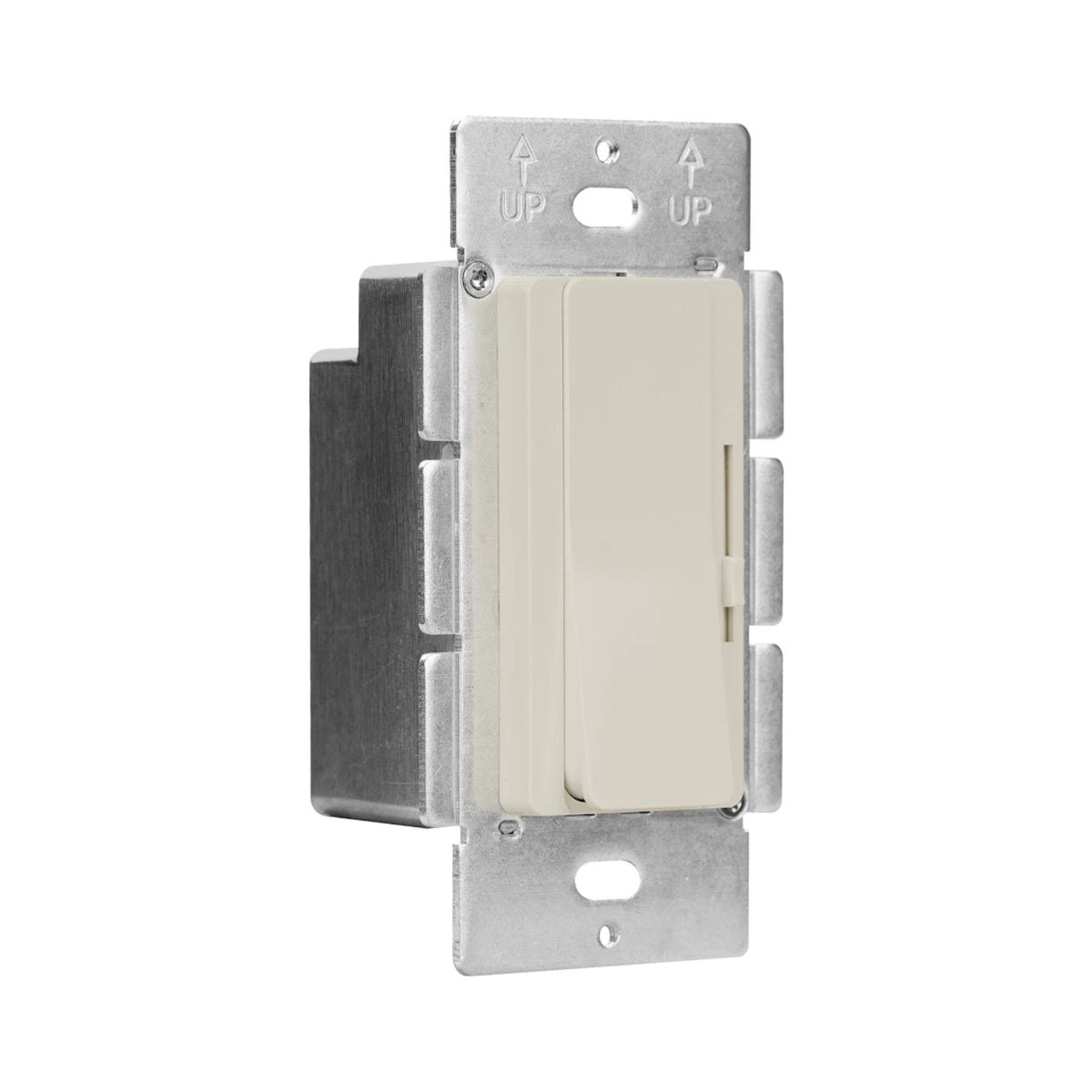

Physical Design & Installation

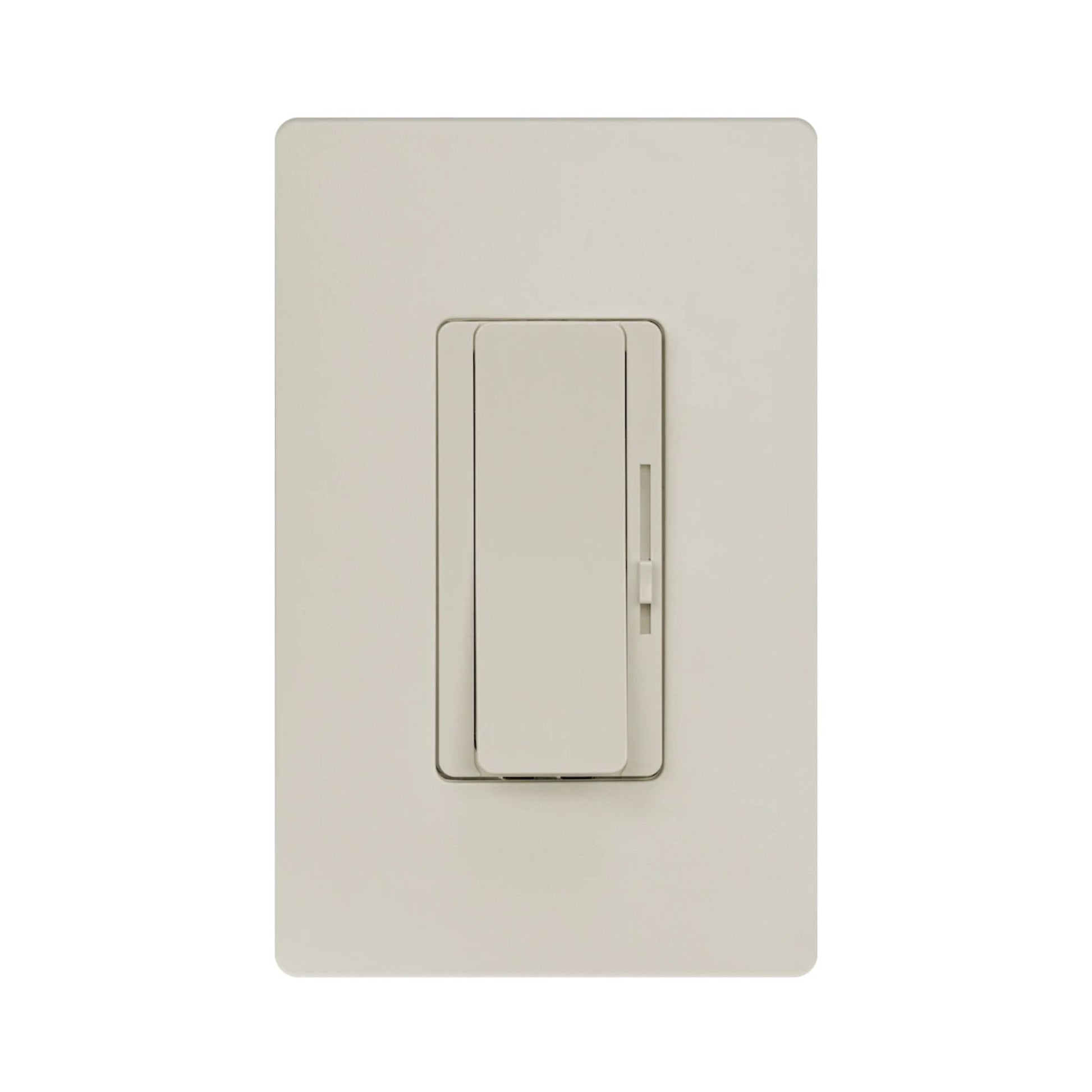

The Navi Dim features a compact design that fits standard single-gang recessed electrical boxes. It includes a voltage barrier partition to safely install high and low voltage circuits in the same switch box. The almond finish faceplate integrates seamlessly with standard Decora trims.
Dimming & Controls
This unit provides a 0.3-100% dimming range using 16KHZ PWM output with a gamma 2.2 curve. It supports single pole or 3-way configurations and includes an adjustable voltage output dial to address voltage drop. No minimum load is required for operation.
Performance & Build
Built for reliability, the driver includes short circuit, thermal runaway, and over-voltage protections. It is cULus listed for dry and damp locations and features a built-in PFC function with a power factor greater than 0.99.
Typical Applications
- LED Tape Light
- Under-cabinet Lighting
- Cove Lighting
- Residential Accent Lighting
