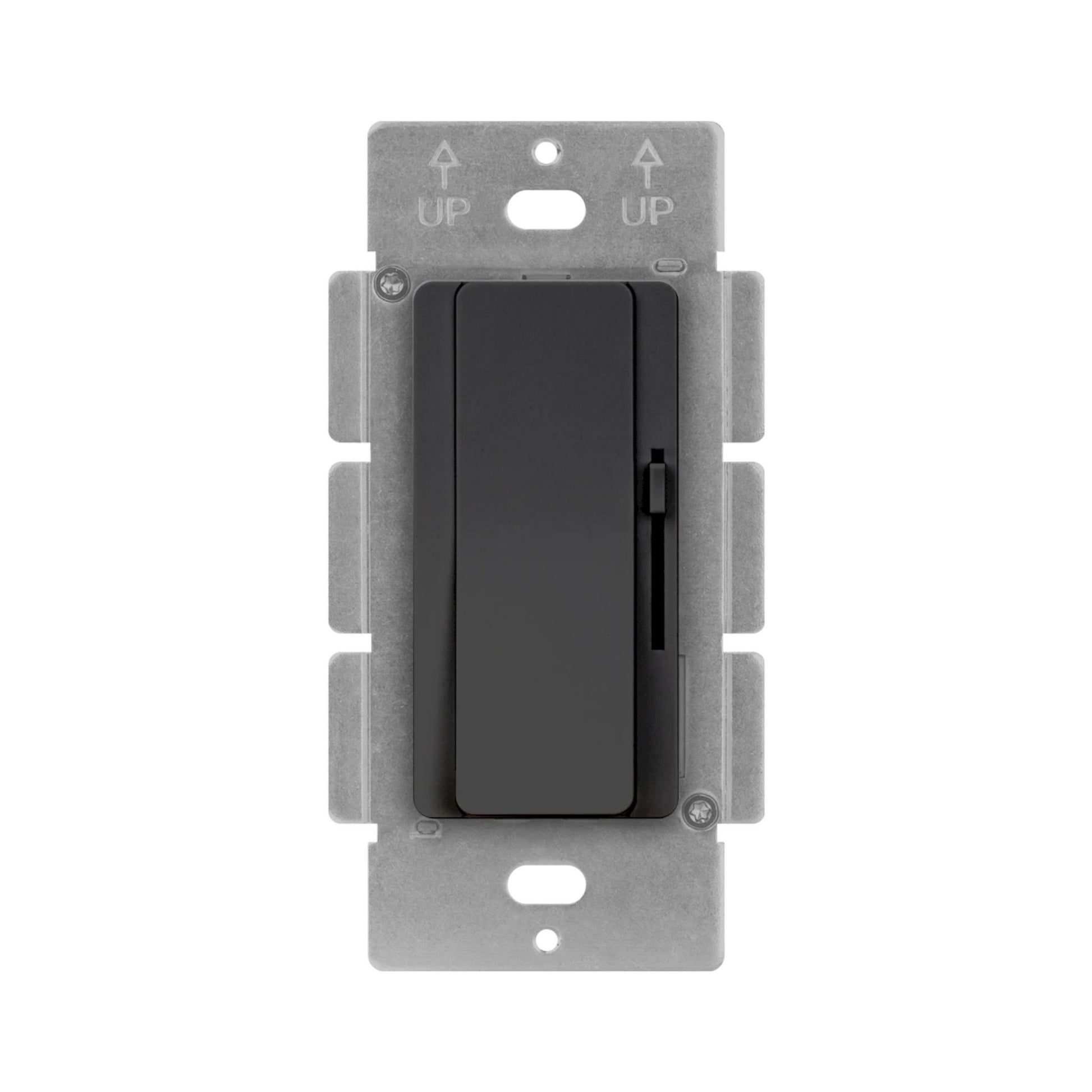

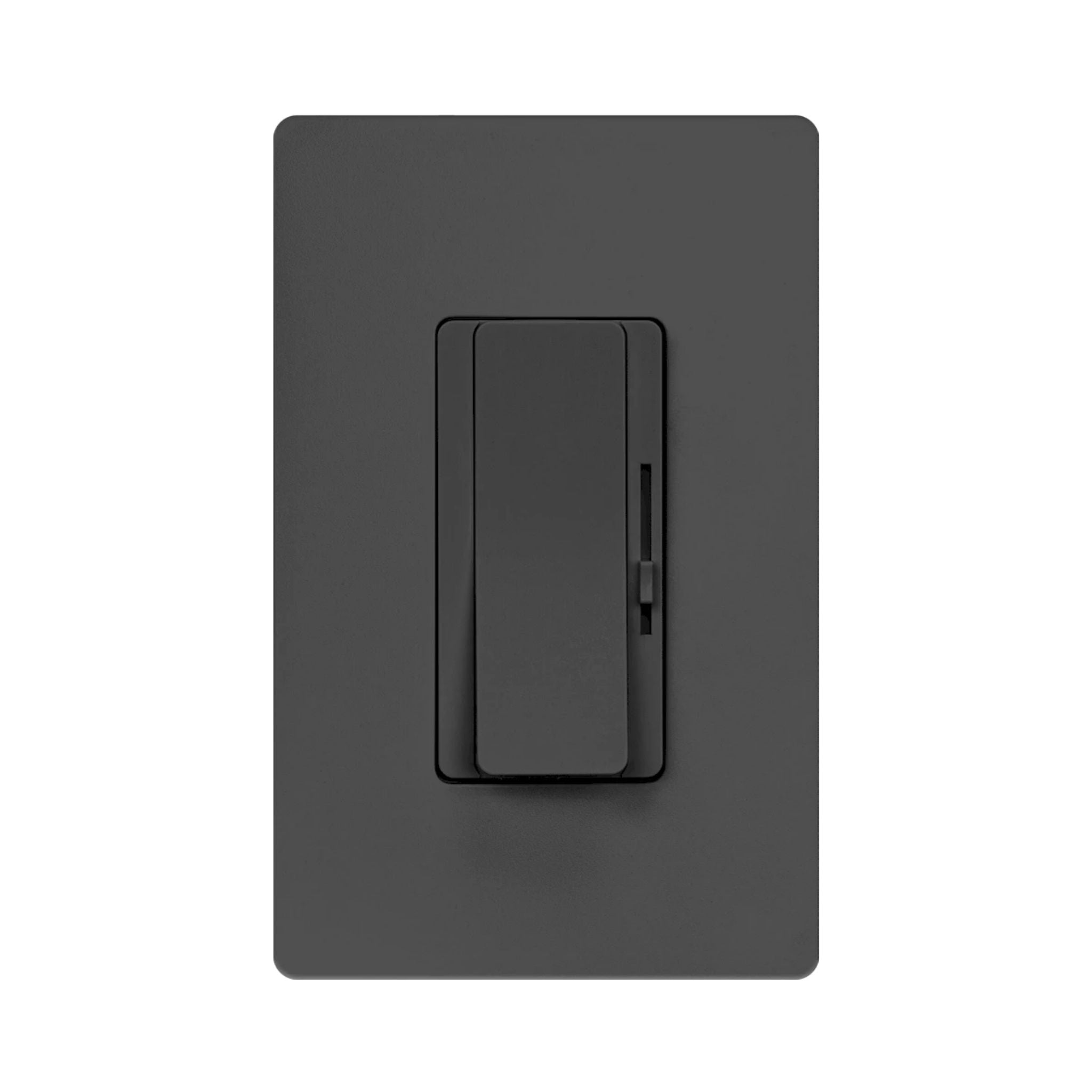

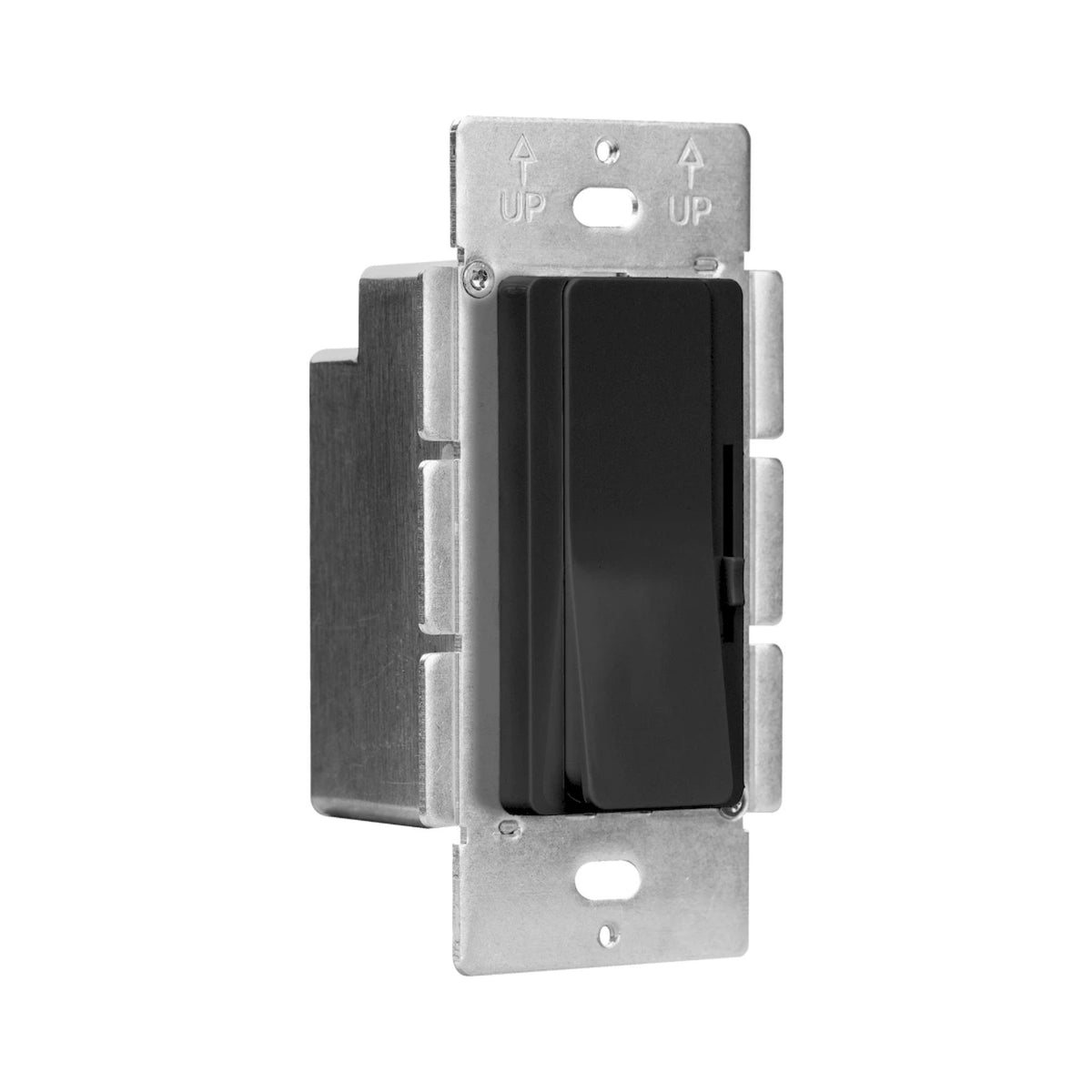

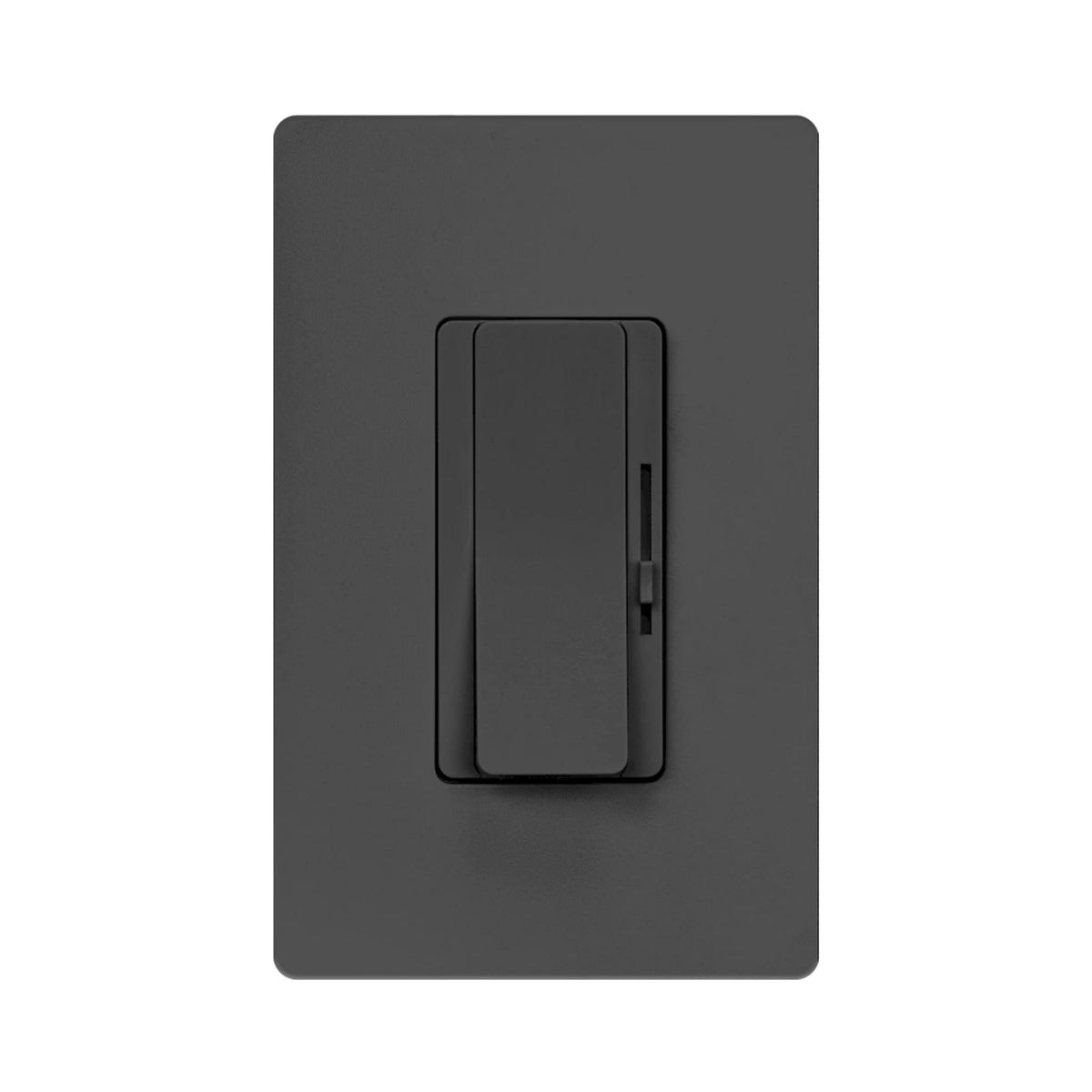

American Lighting Navi Dim 60W 24VDC LED Driver Integrated In-Wall Dimmer, Black
Out of stock
About this item
About this item
- Output Power: 24VDC constant voltage output with a maximum capacity of 60W.
- Dimming Protocol: Integrated in-wall PWM dimming from 0.3% to 100% with no minimum load requirement.
- Input Voltage: Operates on standard 120VAC input for easy integration into existing electrical systems.
- Enclosure: Designed to fit standard single-gang recessed electrical boxes, acting as an Integrated Junction Box.
- Protection Features: Includes built-in short circuit, thermal runaway, and over-voltage protection for enhanced safety.
We process payments securely and do not store credit card information.
Description
Description
American Lighting Navi Dim 60W LED Driver — 24VDC
The American Lighting NAVI-60-24-BK is a high-performance 60W LED Driver that combines a power supply and in-wall dimmer into one 24VDC Constant Voltage solution. This unit simplifies installations by fitting directly into a standard Integrated Junction Box or single-gang recessed electrical box while providing smooth flicker-free control.
Key Features
- Power Output: 60W
- Input Voltage: 120VAC, 60Hz
- Output Voltage: 24VDC
- Dimming Range: 0.3-100% PWM
- Minimum Load: No minimum load required
- Dimensions: 4.10 in. L x 2.10 in. W x 1.42 in. H
- Enclosure Type: Single-gang switch box compatible
- Safety Rating: Class 2 and Class P
- Efficiency: 91% at max load
Physical Design & Installation
The Navi Dim features a compact design that fits into standard single-gang recessed electrical boxes. It includes a voltage barrier partition to allow for the installation of high and low voltage circuits within the same switch box, adhering to NEC Code 725.136.
Dimming & Controls
This all-in-one unit utilizes a 16KHZ PWM output with a gamma 2.2 curve for smooth dimming from 100% down to 0.3%. It supports single-pole or 3-way configurations and features an adjustable voltage output dial to compensate for voltage drop on longer runs.
Performance & Build

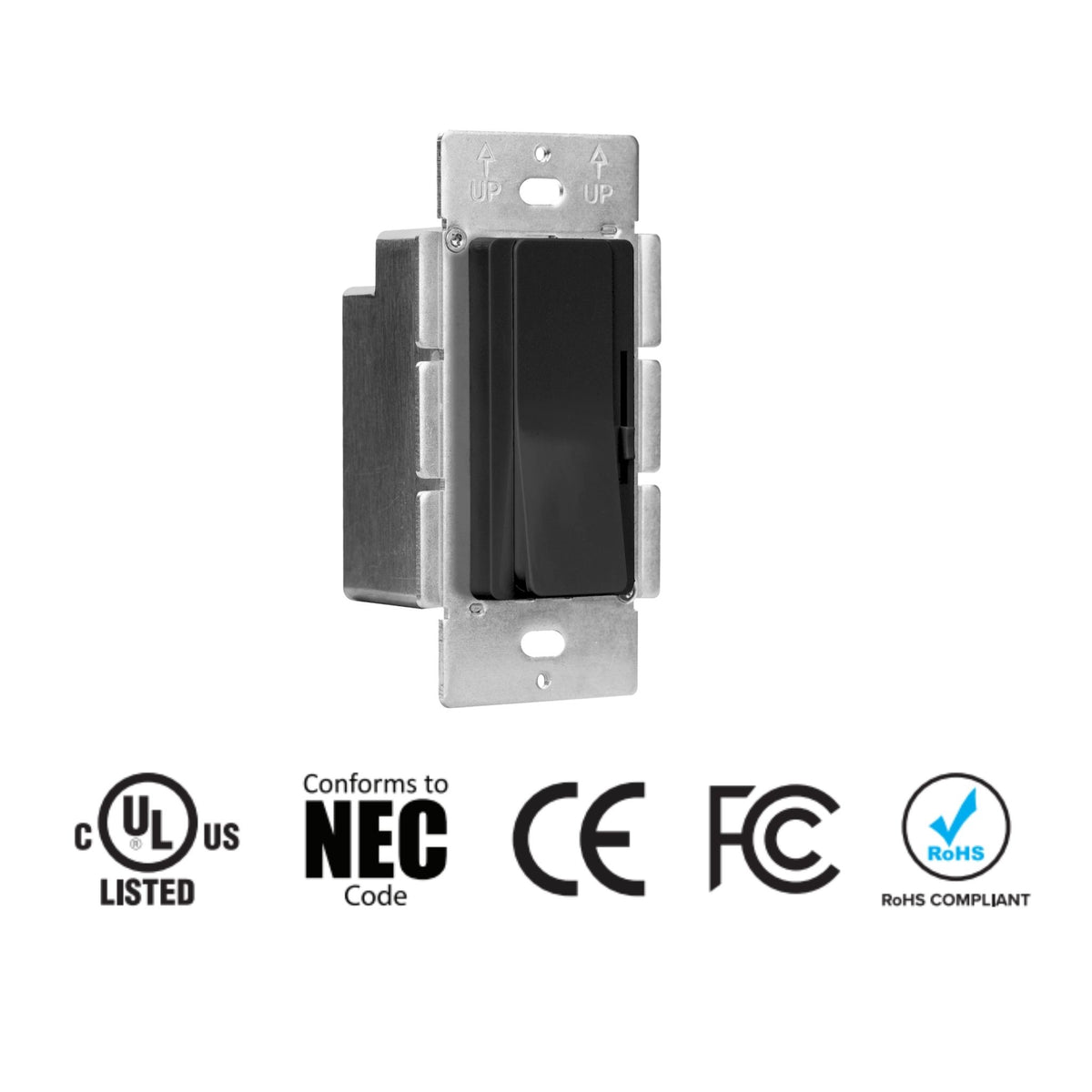

Engineered for reliability, the driver includes short circuit, thermal runaway, and over-voltage protections. It is cULus listed for dry and damp locations and maintains a high power factor of over 0.99.
Typical Applications
- Under cabinet LED tape lighting
- Cove and accent lighting
- Residential LED strip installations
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the dimming range of the American Lighting Navi Dim driver?
What is the dimming range of the American Lighting Navi Dim driver?
Does the NAVI-60-24-BK require a minimum load for dimming?
Does the NAVI-60-24-BK require a minimum load for dimming?
Can this driver be used in a 3-way switch configuration?
Can this driver be used in a 3-way switch configuration?
What input voltage is required for this LED driver?
What input voltage is required for this LED driver?
Is the NAVI-60-24-BK rated for use in bathrooms or kitchens?
Is the NAVI-60-24-BK rated for use in bathrooms or kitchens?
