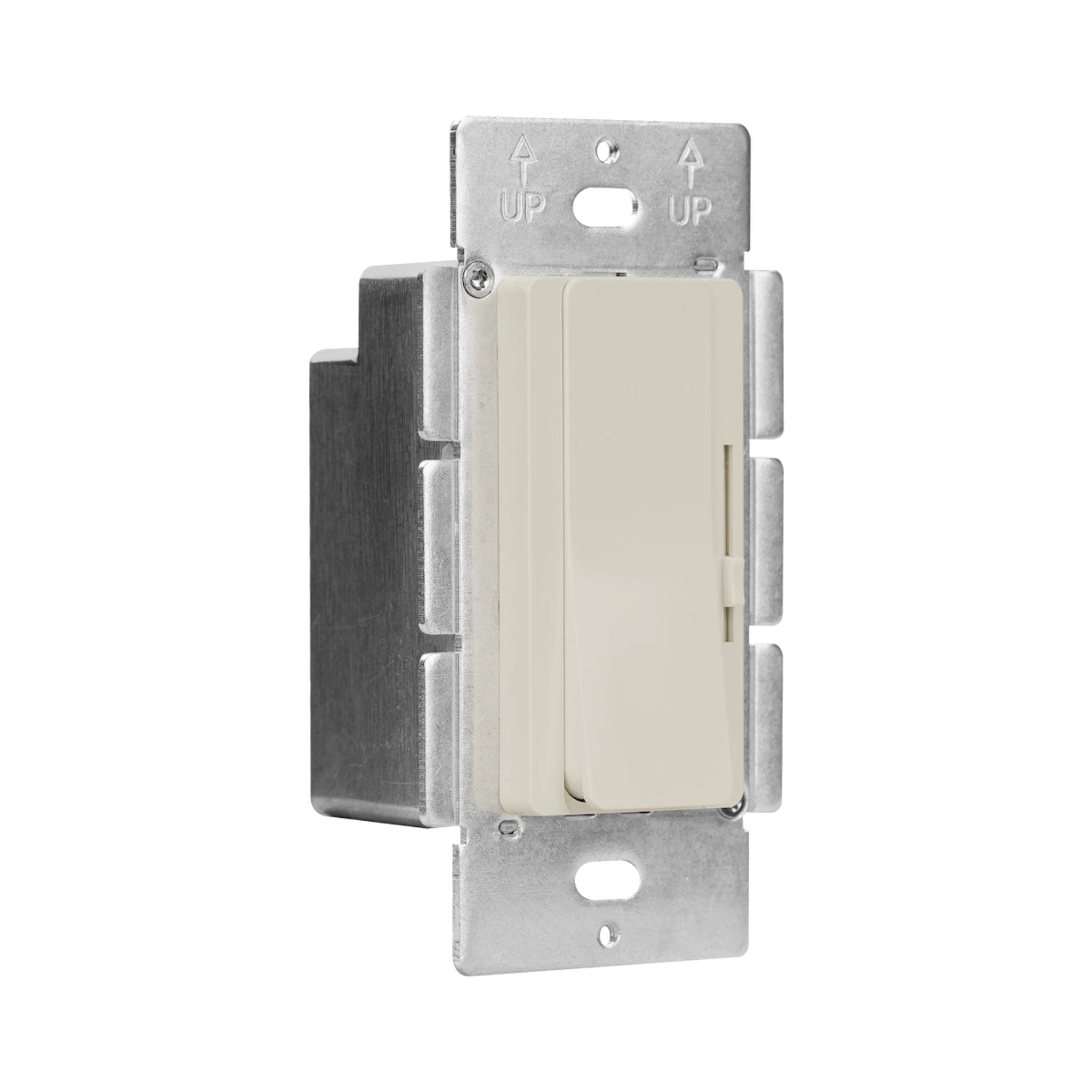

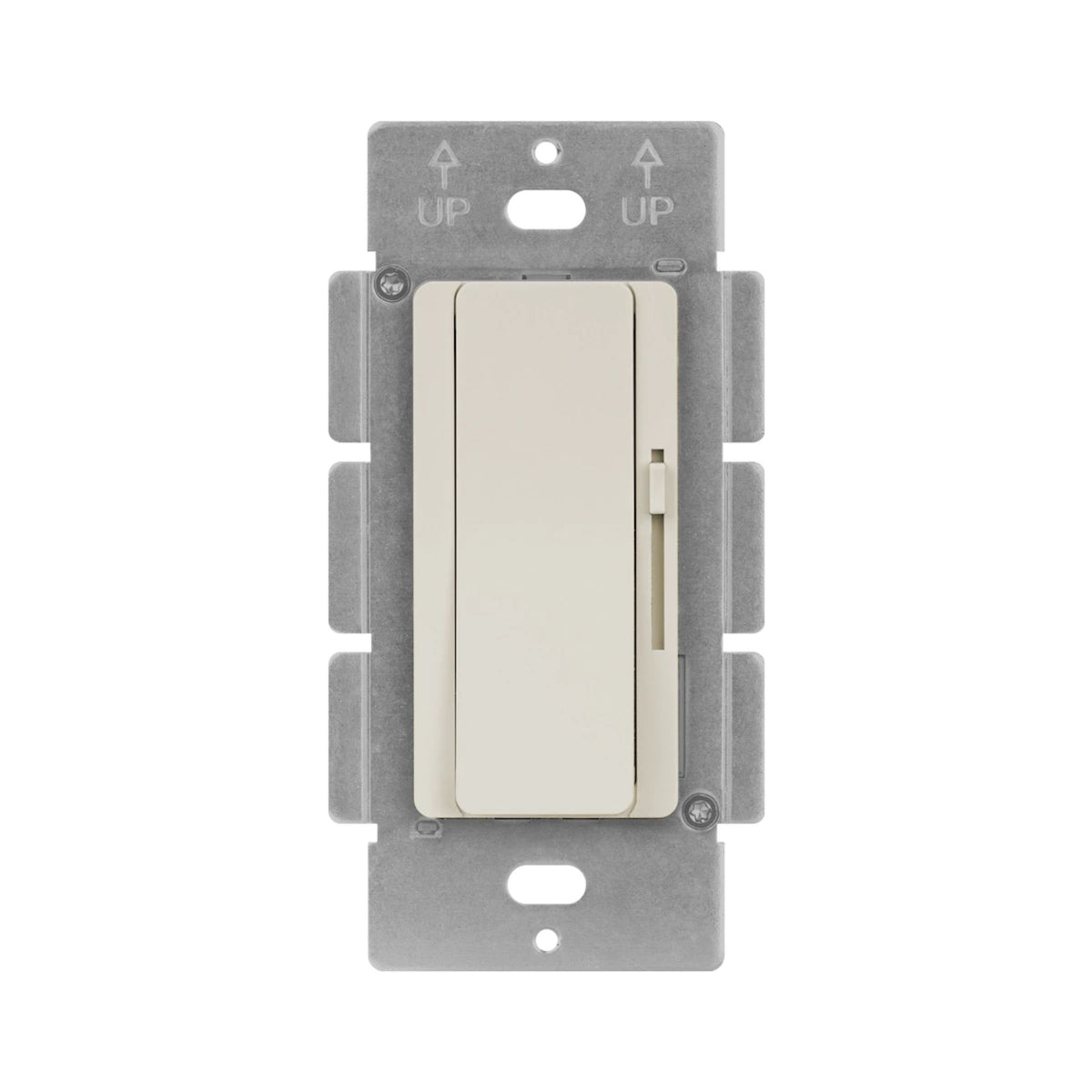

American Lighting NAVI DIM 60W 24V DC LED Driver PWM Dimming, Almond
Out of stock
About this item
About this item
- Output Power: 24V DC at 60W capacity
- Dimming Protocol: 0.3-100% PWM dimming range
- Input Voltage: 120V AC 60Hz
- Enclosure Type: Fits standard single gang recessed electrical box
- Safety Features: Short circuit, thermal, and over voltage protection
We process payments securely and do not store credit card information.
Description
Description
American Lighting NAVI DIM 60W LED Driver — 24V DC
The American Lighting NAVI-60-24-AL is a 60W 24V DC Constant Voltage LED Driver and dimmer with 120V input, 0.3-100% PWM dimming, and Class 2 rating. This innovative all-in-one device eliminates compatibility issues by combining the power supply and switch into one unit designed to fit a standard single gang recessed electrical box.
Key Features
- Power: 60W
- Input Voltage: 120V AC
- Output Voltage: 24V DC (Adjustable 24V-26V)
- Dimming: 0.3-100% PWM
- Minimum Load: No minimum load
- Dimensions: 4.10 in. L x 2.10 in. W x 1.42 in. H
- Enclosure: Fits standard single gang recessed electrical box
- Rating: Class 2 / Class P
- Finish: Almond

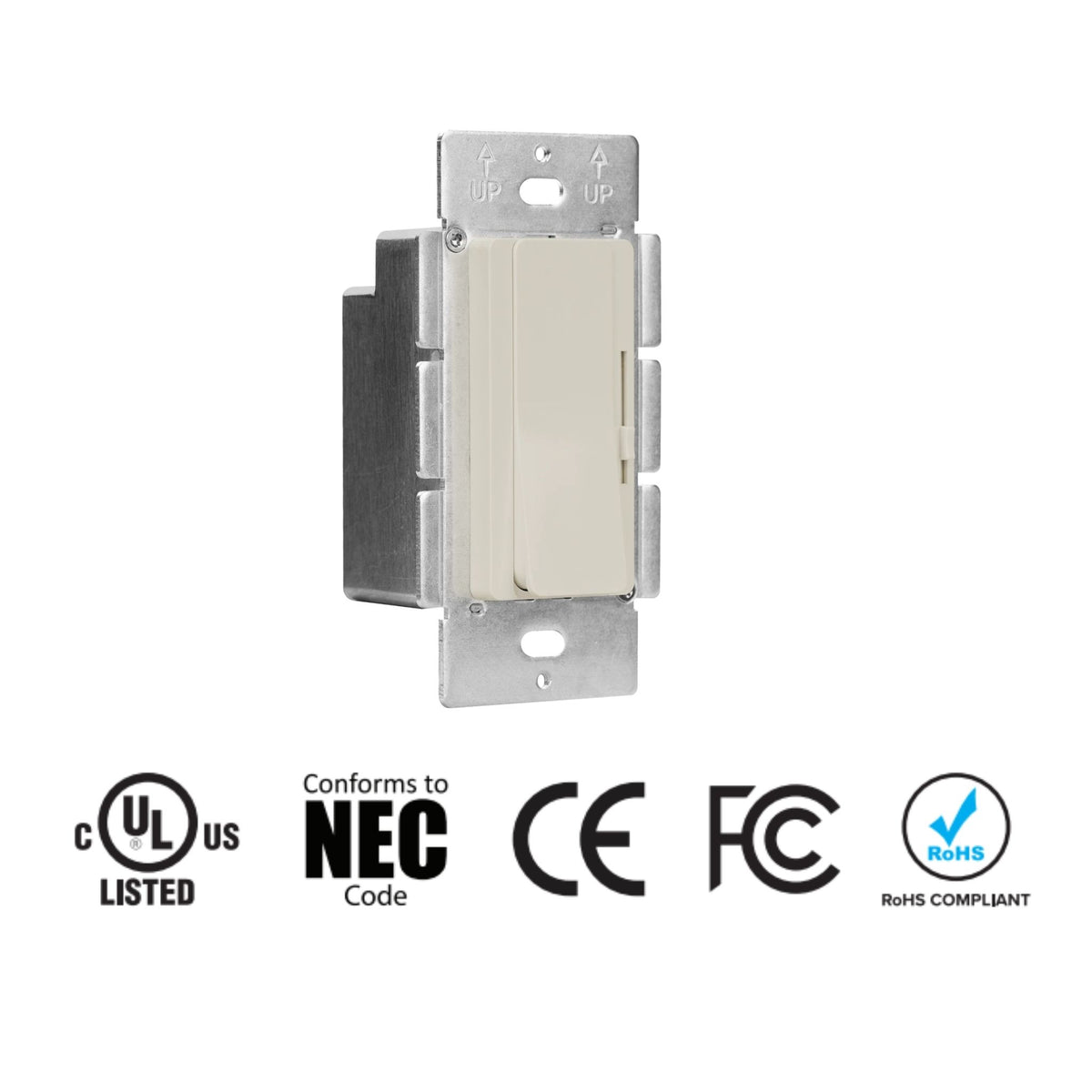

- Certifications: cULus Listed, FCC, SELV
Physical Design & Installation

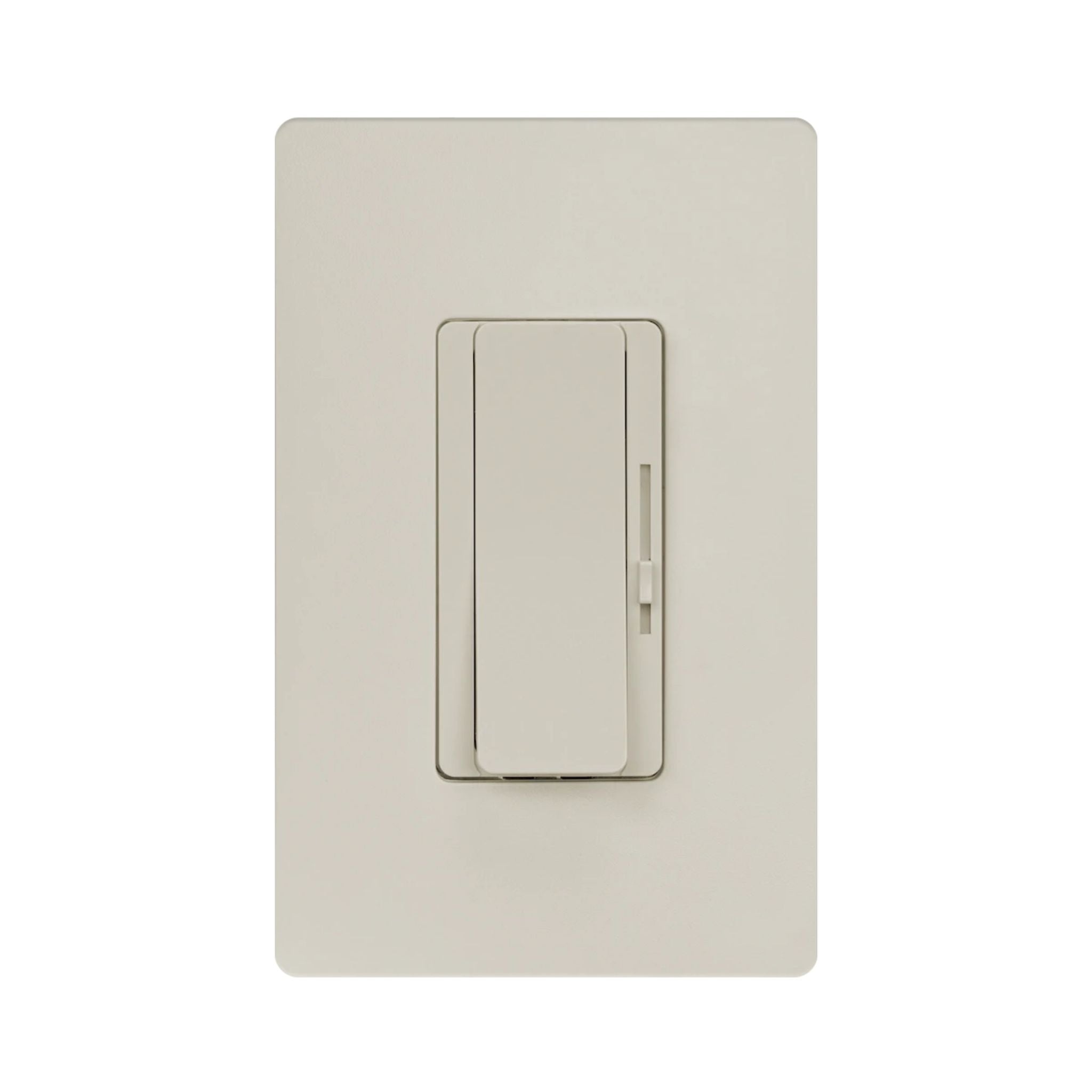

The NAVI DIM series features a compact design with an Almond finish that fits most standard decora faceplate trims. It is engineered to mount directly into a standard single gang recessed electrical box, simplifying installation by removing the need for a remote power supply. The unit includes a voltage barrier partition to safely install high and low voltage circuits within the same switch box.
Dimming & Controls
This all-in-one unit provides smooth 0.3-100% dimming using a 16KHZ PWM output with a gamma 2.2 curve. It features a single pole or 3-way dimmer with an on/off push switch and a power failure memory that recalls previous settings. An integrated voltage adjustment dial allows for fine-tuning the output between 24V and 26V to address potential voltage drop in long LED runs, all with no minimum load requirement.
Performance & Build
Built for reliability, the driver includes comprehensive protection against short circuits, thermal runaway, and over voltage. It is cULus Listed, Class 2, and Class P rated, ensuring compliance with strict safety standards for indoor dry and damp locations. With a power factor greater than 0.99 and 91% efficiency, it delivers high-performance power management for sensitive LED systems.
Typical Applications
- Residential LED tape lighting
- Commercial accent lighting
- Under-cabinet lighting systems
- Hospitality mood lighting
