American Lighting MVP 5CCT Puck Light — White & Selectable CCT

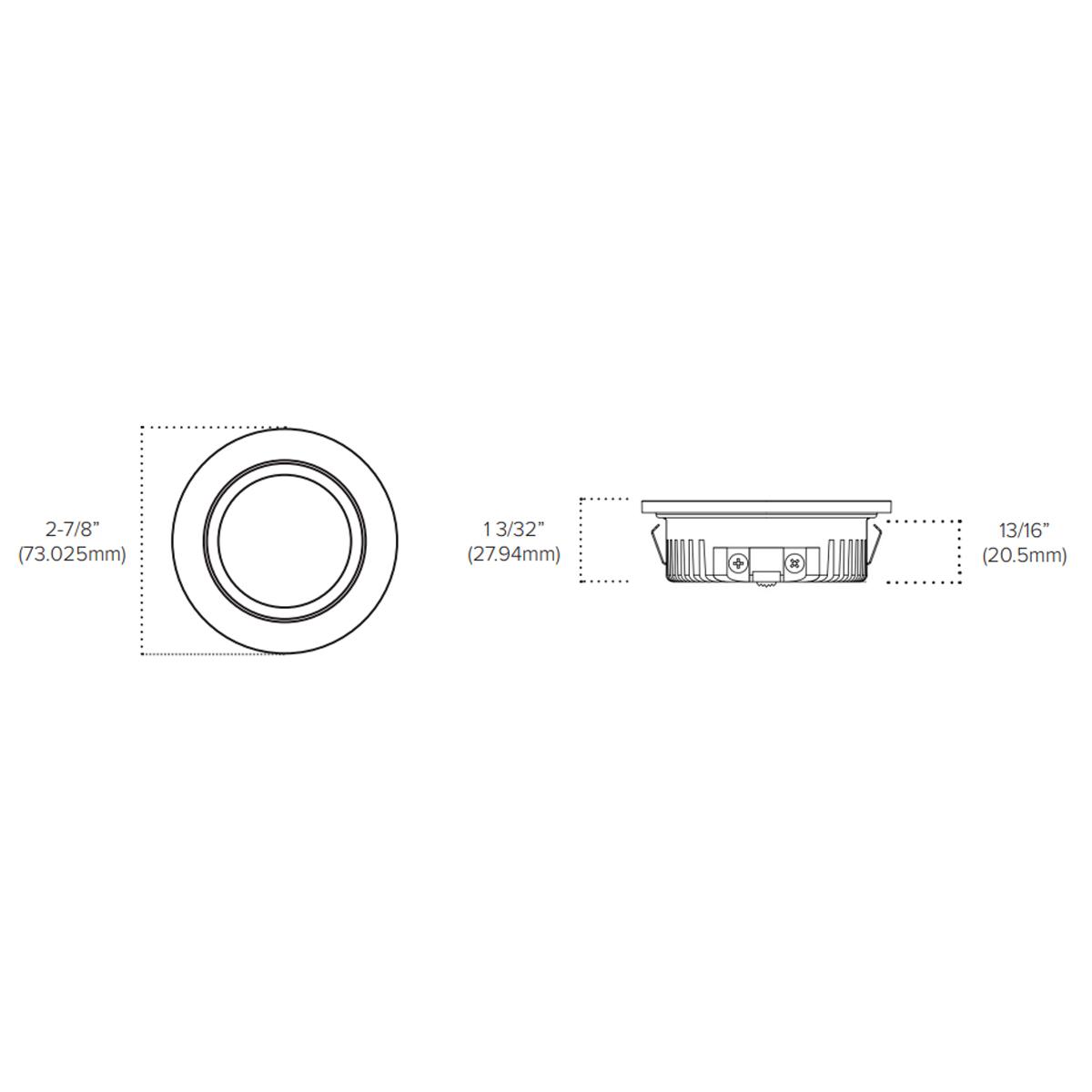

The American Lighting MVP-1-5CCT-WH is a versatile puck light in a white finish, designed for both surface and recessed mounting. Measuring 2.88 inches in diameter, this fixture provides up to 230 lumens of light output at 120V with a selectable color temperature ranging from 2700K to 5000K.

Key Features

• Voltage: Operates at 120V AC for easy integration into standard electrical systems.
• Wattage: Consumes only 4 watts per puck, ensuring energy efficiency.
• Lumens: Delivers up to 230 lumens, ideal for task lighting.
• Color Temperature: Field-switchable 5CCT options (2700K, 3000K, 3500K, 4000K, 5000K).
• CRI: High color rendering index of 90+ for true-to-life color accuracy.
• Lifespan: Rated for 35,000 hours, reducing maintenance frequency.
• Dimming: Supports 10-100% dimming with TRIAC and ELV dimmers.

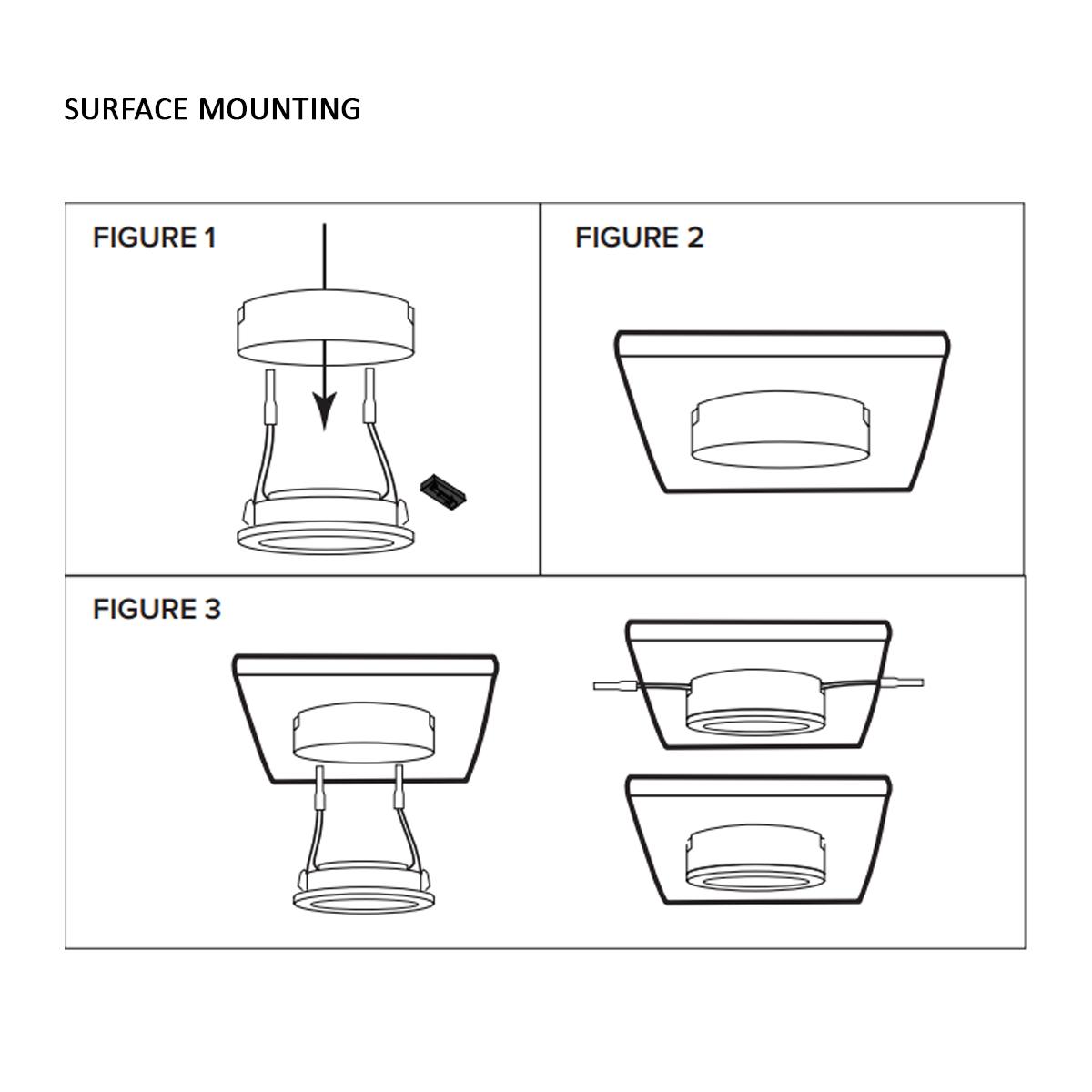

• Mounting: Suitable for surface or recessed installation.
• Beam Angle: Wide 120-degree beam angle for broad light distribution.
• Max Run: Supports up to 20 pucks in a single run for extensive coverage.

Core Design & Profile

This puck light features a minimalistic design with a low profile, making it ideal for discreet installations. Constructed for dry locations, it is cETLus listed, ensuring safety and compliance.

LED Illumination & Performance

With a light output of up to 230 lumens and a power consumption of 4 watts, this LED puck light offers efficient illumination. The selectable CCT feature allows for customization of the lighting environment, enhancing both functionality and ambiance.

Power, Wiring & Linkability

The MVP-1-5CCT-WH operates on 120V AC and can be linked up to 20 pucks using 12-inch and 24-inch linking cables. It includes a 6-foot power cord with a roll switch for plug-and-play convenience.

Where This Fixture Works Best

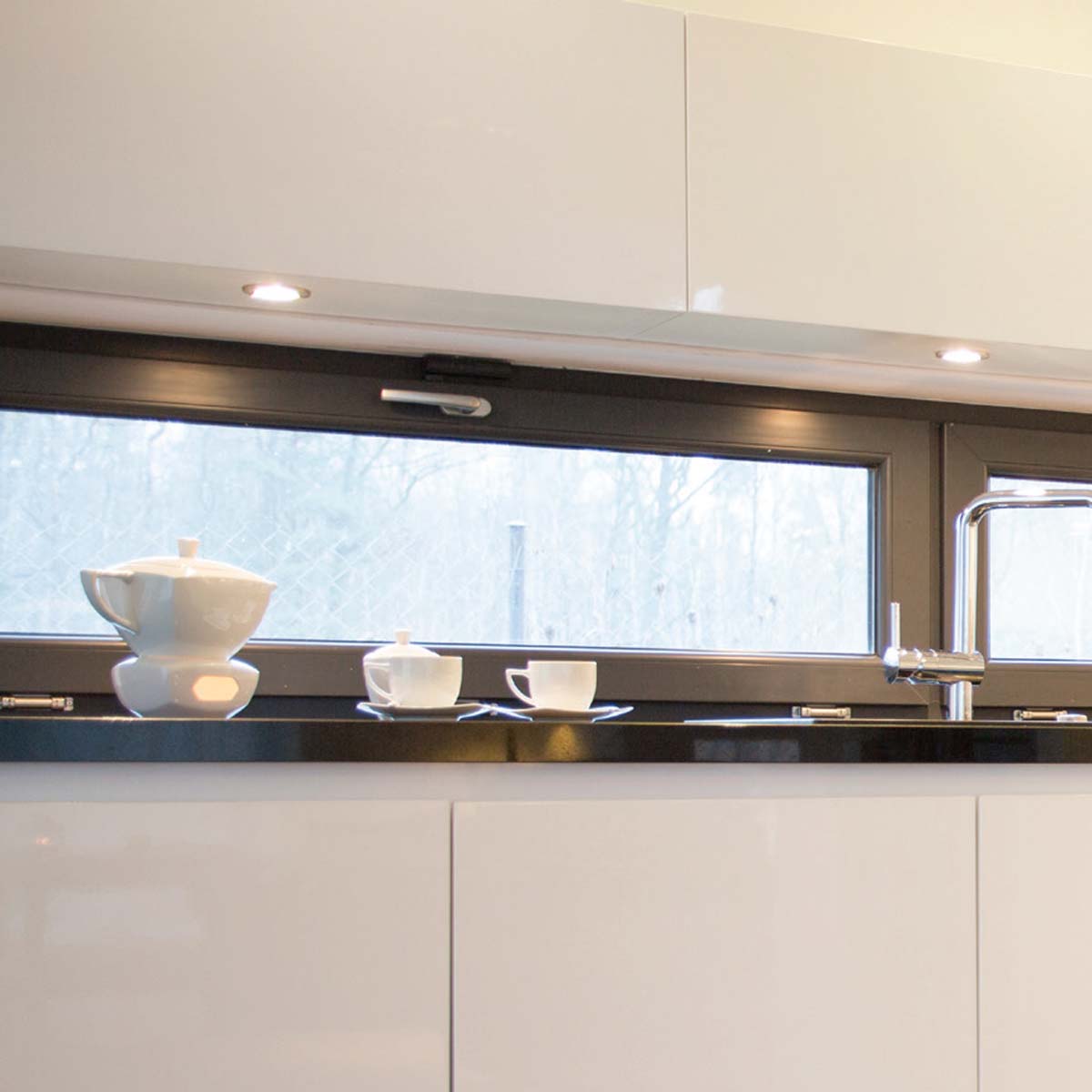

• Under cabinet lighting
• Display shelving
• Back bars
• Built-ins
• Task areas

What's Included

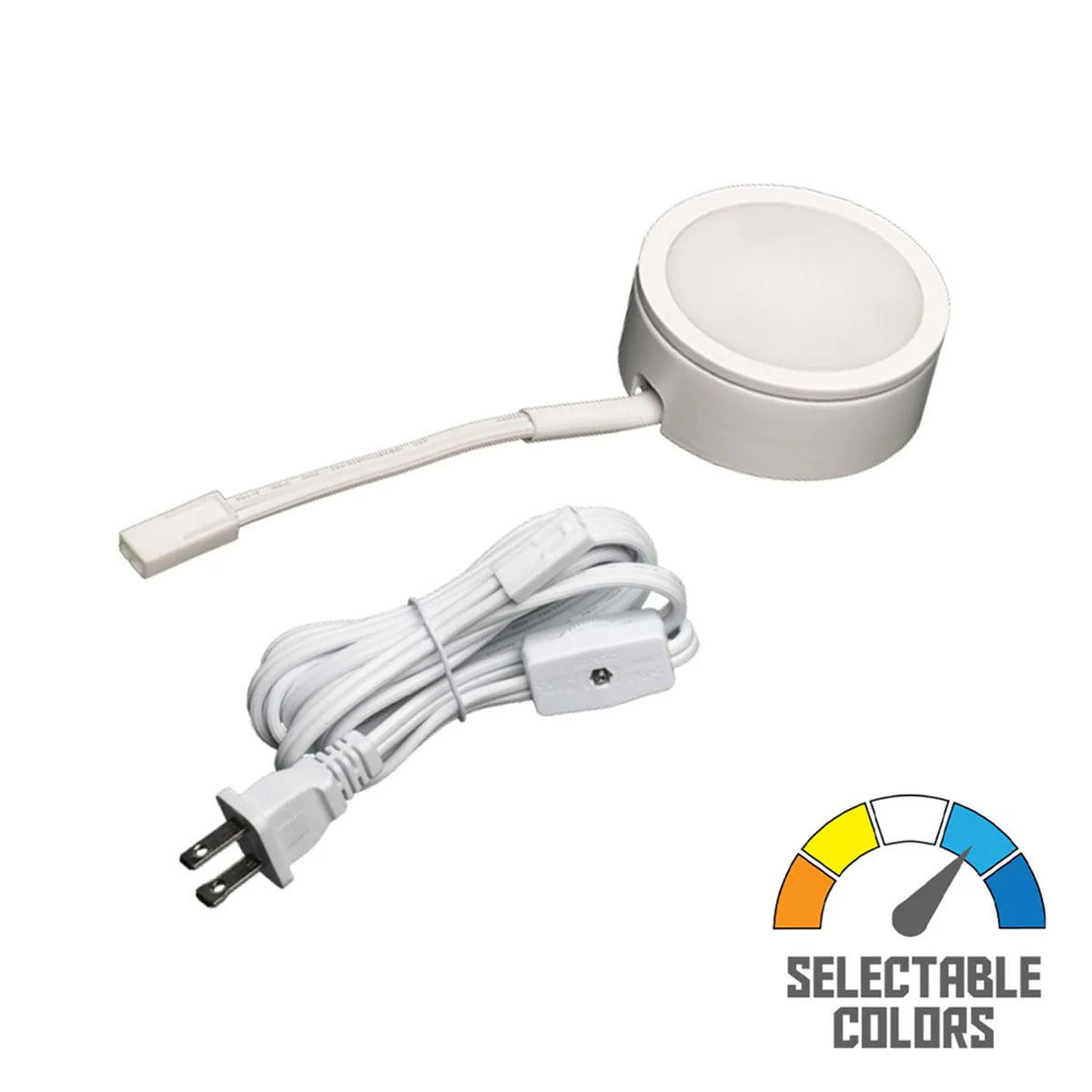

• (1) Puck with 6-inch lead wire
• (1) 6-foot power cord with roll switch
• Mounting screws
