American Lighting MicroLux Neon Tape Light, 16.4ft, IP65, 3000K, 370 Lumens/ft, 24V
Available in stock (153)
About this item
About this item
- Voltage: Operates at 24V DC, ensuring efficient power consumption and compatibility with low voltage systems.
- Max Run: Supports a maximum continuous run of 16.4 feet, ideal for extended installations without voltage drop.
- Cuttable Increments: Can be precisely cut every 3.94 inches for custom lengths and installations.
- IP Rating: IP65 rated for wet locations, suitable for both indoor and outdoor applications.
- Beam Angle: Features a 160-degree beam angle, providing wide and even light distribution.
We process payments securely and do not store credit card information.
Description
Description
American Lighting MicroLux Neon Tape Light — 3000K & Wet Rated
The American Lighting MLUX-30 is a 16.4-foot Neon Tape Light designed for versatile lighting applications. This fixture operates at 24V DC and is IP65 rated, making it suitable for wet locations. The MicroLux series offers a flexible, low-profile design that emits light from three sides, providing a 160-degree beam angle for even illumination.
Key Features
- Voltage: 24V DC for efficient operation.
- Wattage: Consumes 4.4W per foot.
- Lumens: Delivers 370 lumens per foot.
- LEDs per Foot: High-density LED configuration for uniform light output.
- Max Run: Up to 16.4 feet without voltage drop.
- Cuttable: Every 3.94 inches for custom installations.

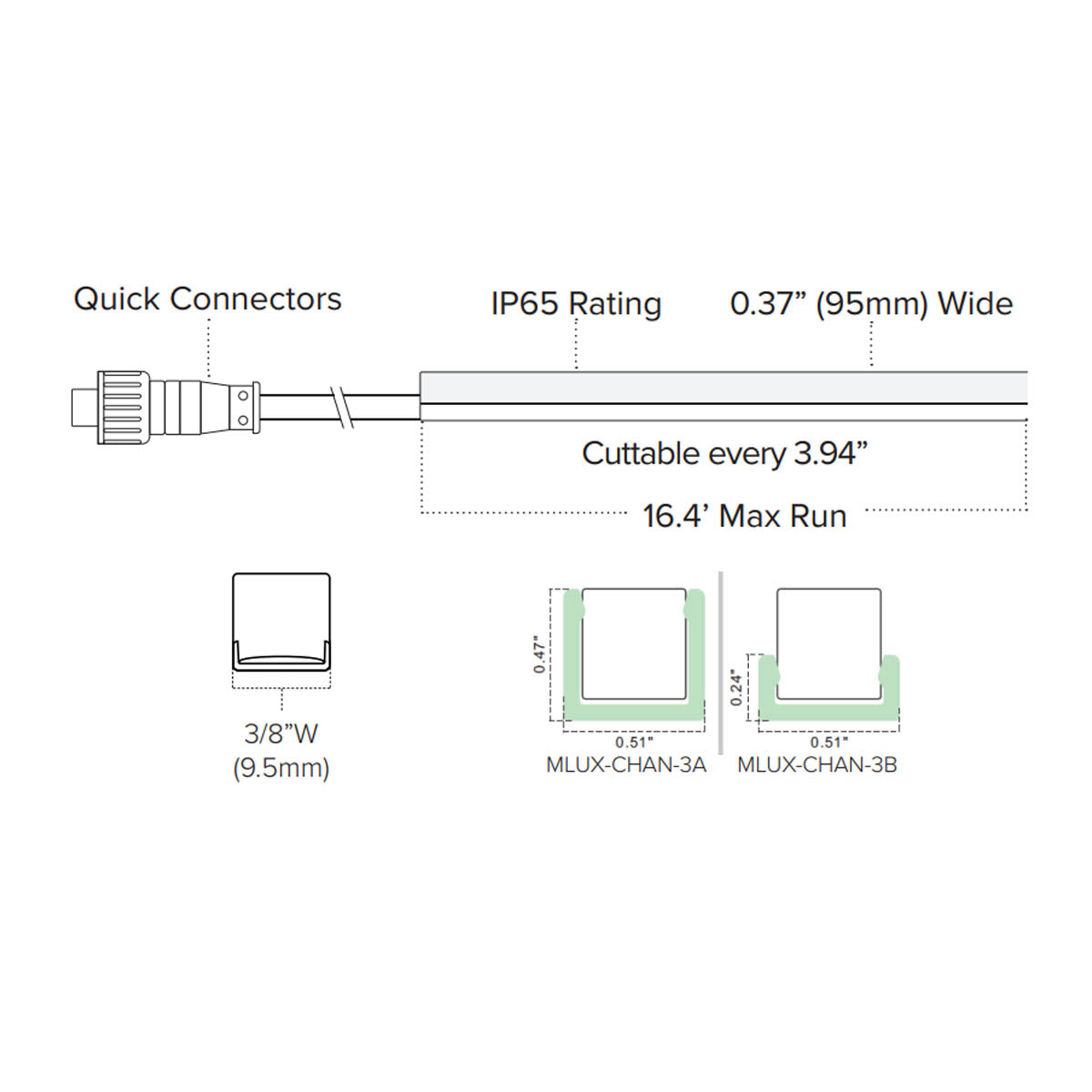

- PCB Width: 0.37 inches for compatibility with narrow channels.
- Beam Angle: 160 degrees for wide coverage.
- IP Rating: IP65 for wet locations.
- Certifications: cULus Listed, RoHS Compliant.
Core Design & Construction
The MicroLux features a 0.37-inch wide PCB, allowing it to fit into compact spaces and channels. It is encased in a UV, flame, and saltwater-resistant PU coating, ensuring durability in various environments. The tape light includes a 3M adhesive backing for easy installation.
LED Illumination & Performance
With 370 lumens per foot and a CRI of 90+, the MicroLux delivers high-quality, consistent illumination. The light engine is designed to emit from three sides, providing a unique and versatile lighting solution.
Power, Wiring & Installation
This tape light requires a 24V DC power supply and is dimmable with most TRIAC, ELV, or CL dimmers. It can be cut every 3.94 inches, allowing for precise customization. The maximum continuous run is 16.4 feet to prevent voltage drop.
Where This Tape Works Best

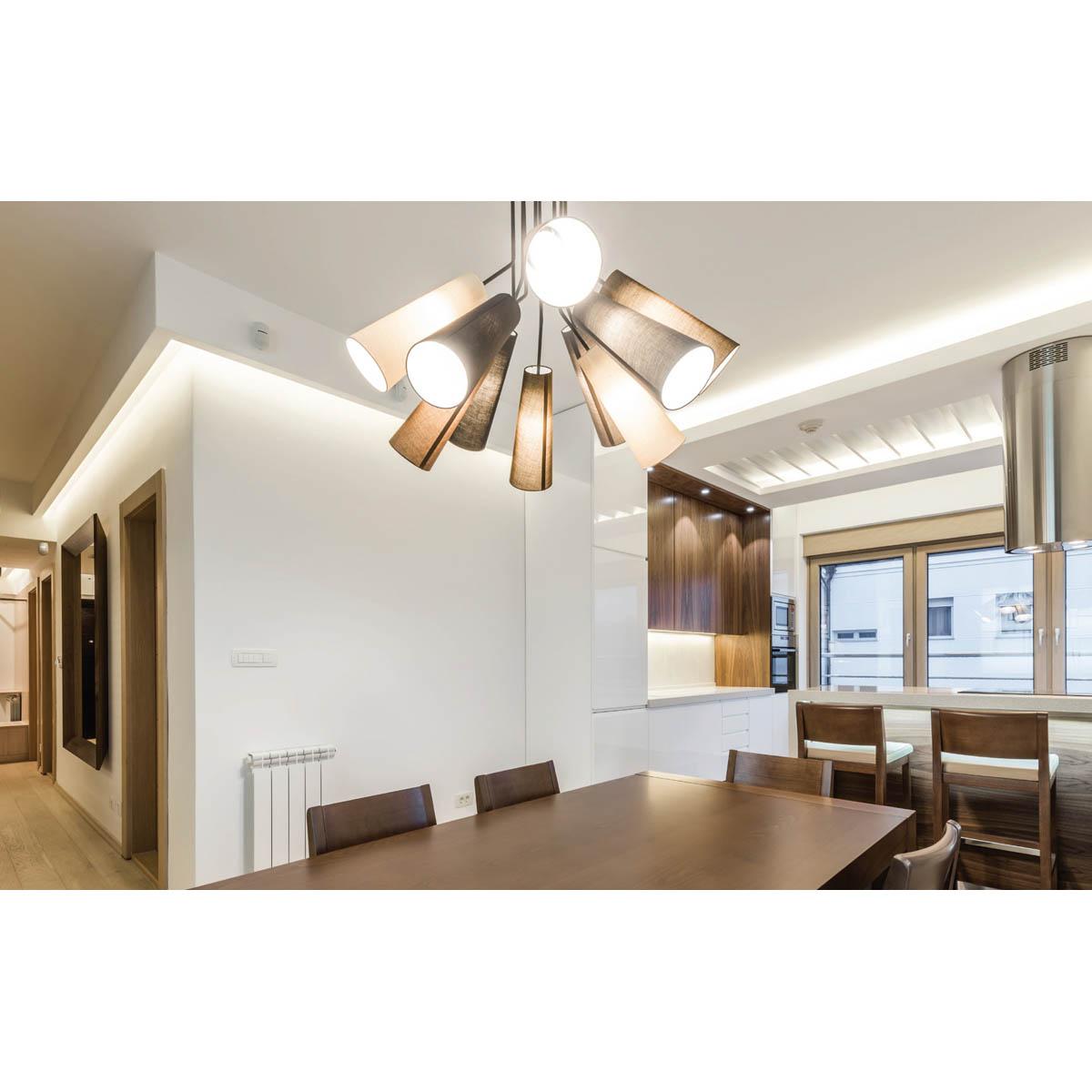

- Cove lighting
- Frame lighting
- Bar and rail lighting
- Outdoor pathways
- Accent lighting in wet locations
What's Included
- 16.4-foot spool of Neon Tape Light
- Attached 6-inch female connector
- 3-foot lead wire
- 15 mounting clips
Specifications
Specifications
Dimensions
Documents
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
What is the maximum run length for the MLUX-30 Neon Tape Light?
What is the maximum run length for the MLUX-30 Neon Tape Light?
How often can the MLUX-30 be cut for custom lengths?
How often can the MLUX-30 be cut for custom lengths?
What voltage is required for the MLUX-30 Neon Tape Light?
What voltage is required for the MLUX-30 Neon Tape Light?
Is the MLUX-30 suitable for outdoor use?
Is the MLUX-30 suitable for outdoor use?
What type of dimmers are compatible with the MLUX-30?
What type of dimmers are compatible with the MLUX-30?
