American Lighting Microlink Under Cabinet Light, White, 3000K, 200 Lumens, 24V

American Lighting Microlink Under Cabinet Light — White & Feature Summary

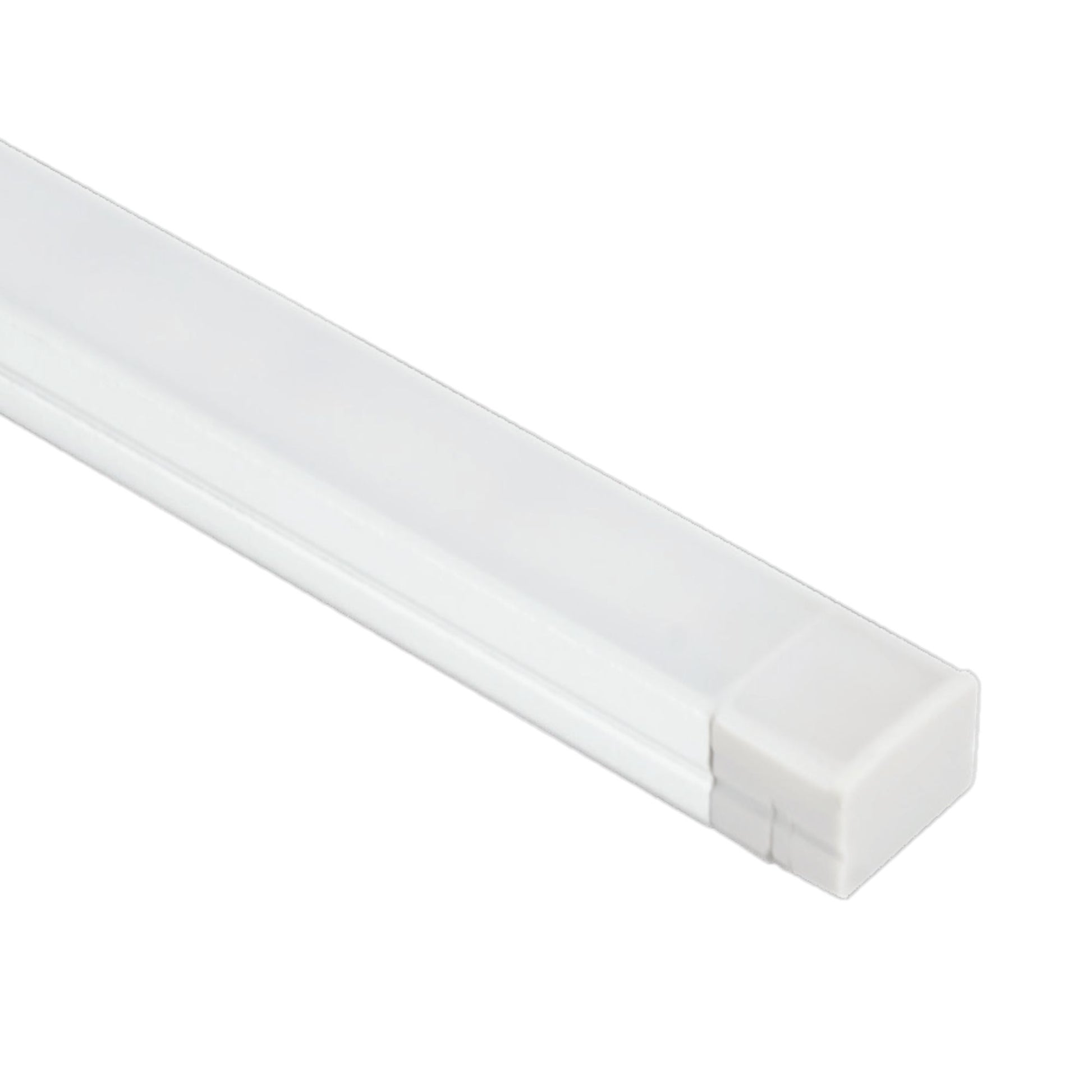

The American Lighting MLINK-30-6 in White is a compact Under Cabinet Light designed for seamless integration into various spaces. Measuring 6 inches in length, this fixture operates on 24V DC and features an integrated LED light source, delivering 200 lumens at 3000K.

Key Features

• Voltage: 24V DC for low-voltage applications.
• Wattage: Consumes only 3 watts for energy efficiency.
• Lumens: Outputs 200 lumens for bright task lighting.
• Color Temperature: Fixed at 3000K for warm illumination.
• CRI: High CRI of 90+ for accurate color rendering.
• Lifespan: Rated for 35,000 hours of continuous use.
• Dimming: Dimmable from 5-100% with compatible dimmers.
• Beam Angle: Wide 120° beam for broad coverage.
• Linkability: Seamlessly linkable up to 16.4 feet.
• Mounting: Surface mount with included clips.

Core Design & Profile

This fixture features a slim profile with a White finish, making it suitable for a variety of design aesthetics. It is dry-rated for indoor use, ensuring safe installation in kitchens and other dry areas.

LED Illumination & Performance

With a 200-lumen output and a 3000K color temperature, this fixture provides warm, inviting light. The high CRI of 90+ ensures excellent color accuracy, enhancing the appearance of illuminated objects.

Power, Wiring & Linkability

The MLINK-30-6 is designed for 24V DC systems and can be linked up to 16.4 feet for extended runs. It includes a plug-and-play system for easy installation and is compatible with both plug-in and hardwire drivers.

Where This Fixture Works Best

• Kitchen under cabinets
• Workstations
• Display shelves
• Accent lighting
• Retail environments

What's Included

• 6-inch Female DC Power Connection
• Two small mounting clips with screws
• End cap
