American Lighting Microlink Under Cabinet Light, White, 3000K, 1100 Lumens, 24V, Dimmable
Available in stock (904)
About this item
About this item
- Voltage: Operates on 24V DC for efficient low-voltage applications.
- Dimensions: Measures 32.5 in. in length, ideal for continuous runs.
- Color Temperature: Provides a warm 3000K light, suitable for task lighting.
- Lumens: Delivers 1100 lumens for bright, effective illumination.
- Dimming: Compatible with most standard 2-wire and CL dimmers for adjustable lighting.
Description
Description

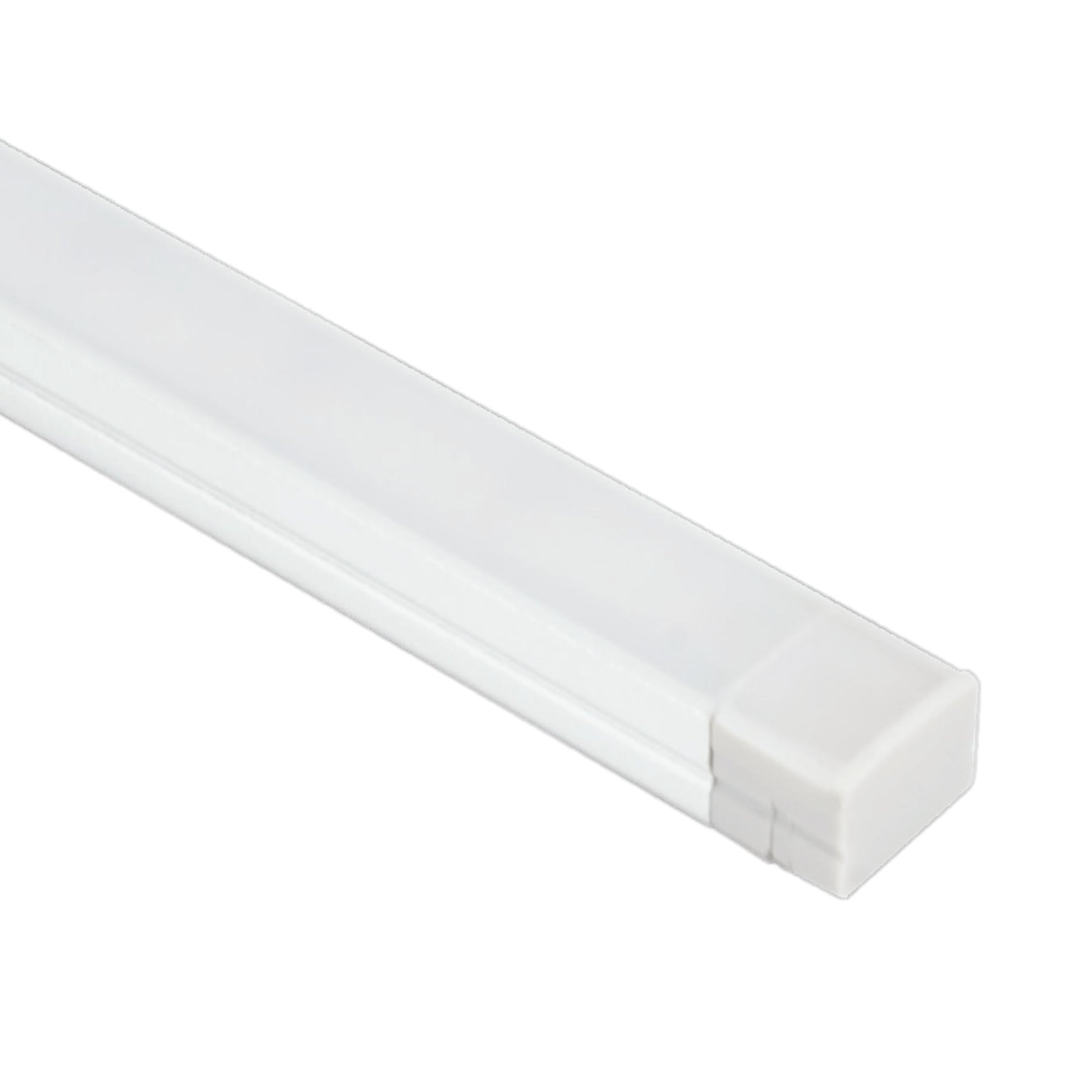

American Lighting Microlink Under Cabinet Light — White & Feature Summary
The MLINK-30-32 by American Lighting is a white under cabinet light crafted for seamless integration into modern spaces. This fixture measures 32.5 in. in length and operates on 24V DC, making it suitable for low-voltage applications. It features an integrated LED light source, delivering 1100 lumens at a 3000K color temperature.
Key Features
- Voltage: 24V DC for low-voltage applications.
- Wattage: Consumes 13 watts for energy-efficient operation.
- Lumens: Provides 1100 lumens for bright illumination.
- Color Temperature: Fixed at 3000K for warm lighting.
- CRI: 90+ for excellent color rendering.
- Lifespan: Rated for 35,000 hours of use.
- Beam Angle: 120° for wide light distribution.
- Profile: Slim design with a height of 0.39 in.
- Mounting: Surface mount with included clips.
- Linkability: Supports up to 16.4 ft. of continuous run.
Core Design & Profile
The Microlink series features a low-profile design with a height of 0.39 in., making it ideal for discreet under cabinet installations. It is constructed with a white finish and a diffused lens for smooth light distribution. This fixture is cETLus listed for dry locations.
LED Illumination & Performance
With a lumen output of 1100 and a power consumption of 13 watts, this fixture provides efficient lighting. It offers a fixed 3000K color temperature and a high CRI of 90+, ensuring accurate color representation.
Power, Wiring & Linkability
This fixture operates on 24V DC and is designed for plug-and-play installation using a DC connection. It supports linking up to 16.4 ft. for extended runs, and is compatible with most standard dimmers for adjustable lighting.
Where This Fixture Works Best
- Under kitchen cabinets
- Office workstations
- Retail displays
- Workshop benches
- Bookshelves
What's Included
- 6 in. Female DC Power Connection
- Two small mounting clips with screws
- End cap
