American Lighting Microlink 6 in. Under Cabinet Light, Aluminum, RGB+Tunable White, 128 Lumens, 24V
Available in stock (782)
About this item
About this item
- Voltage: Operates at 24V DC for efficient power consumption.
- Color Temperature: Features RGB+TW (2700K-6000K) for versatile lighting options.
- Linkability: Supports up to 16.4ft of continuous run for extended installations.
- Dimming: Offers 5-100% dimming capability via DMX or smart controls.
- Construction: Low-profile aluminum housing for discreet under cabinet installation.
We process payments securely and do not store credit card information.
Description
Description

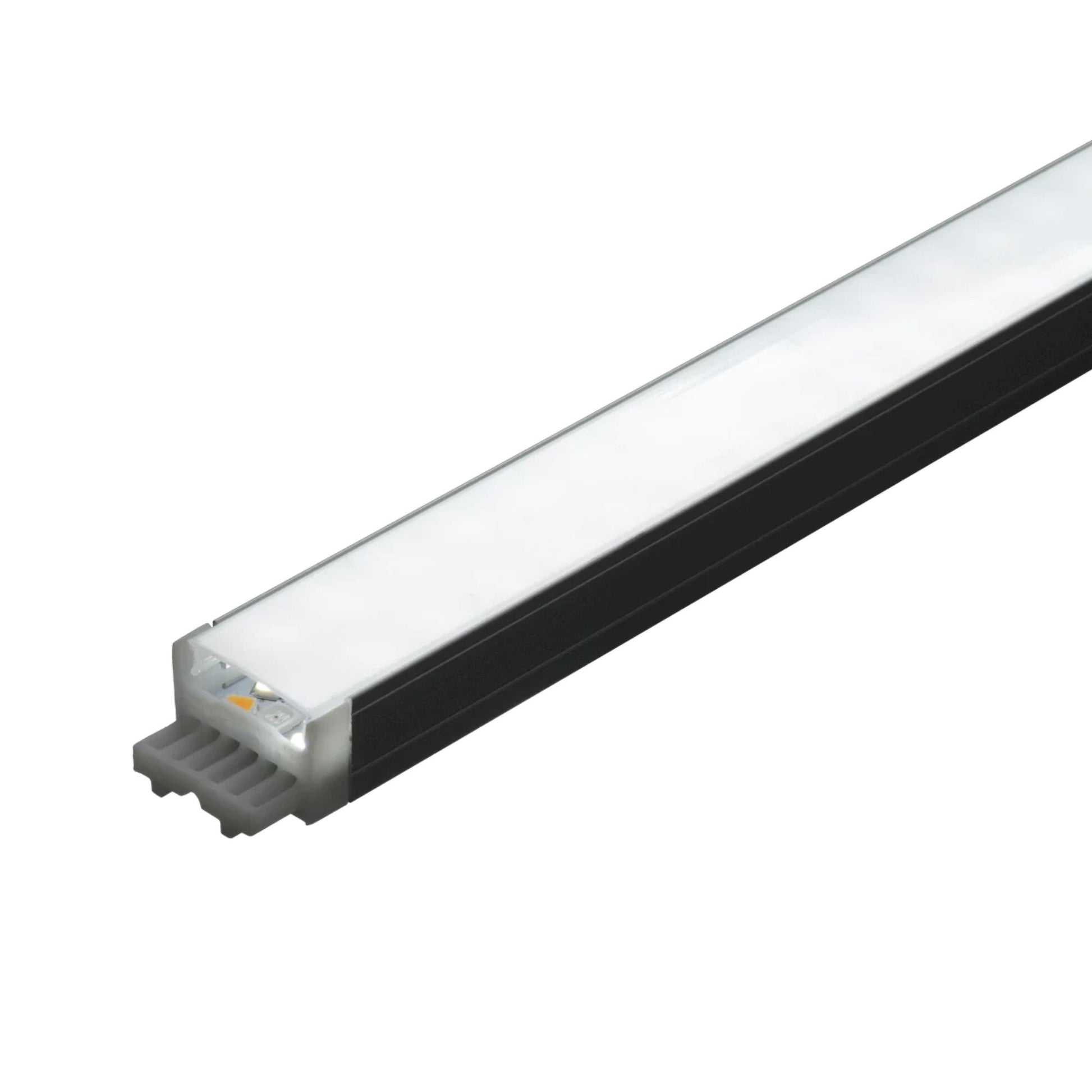

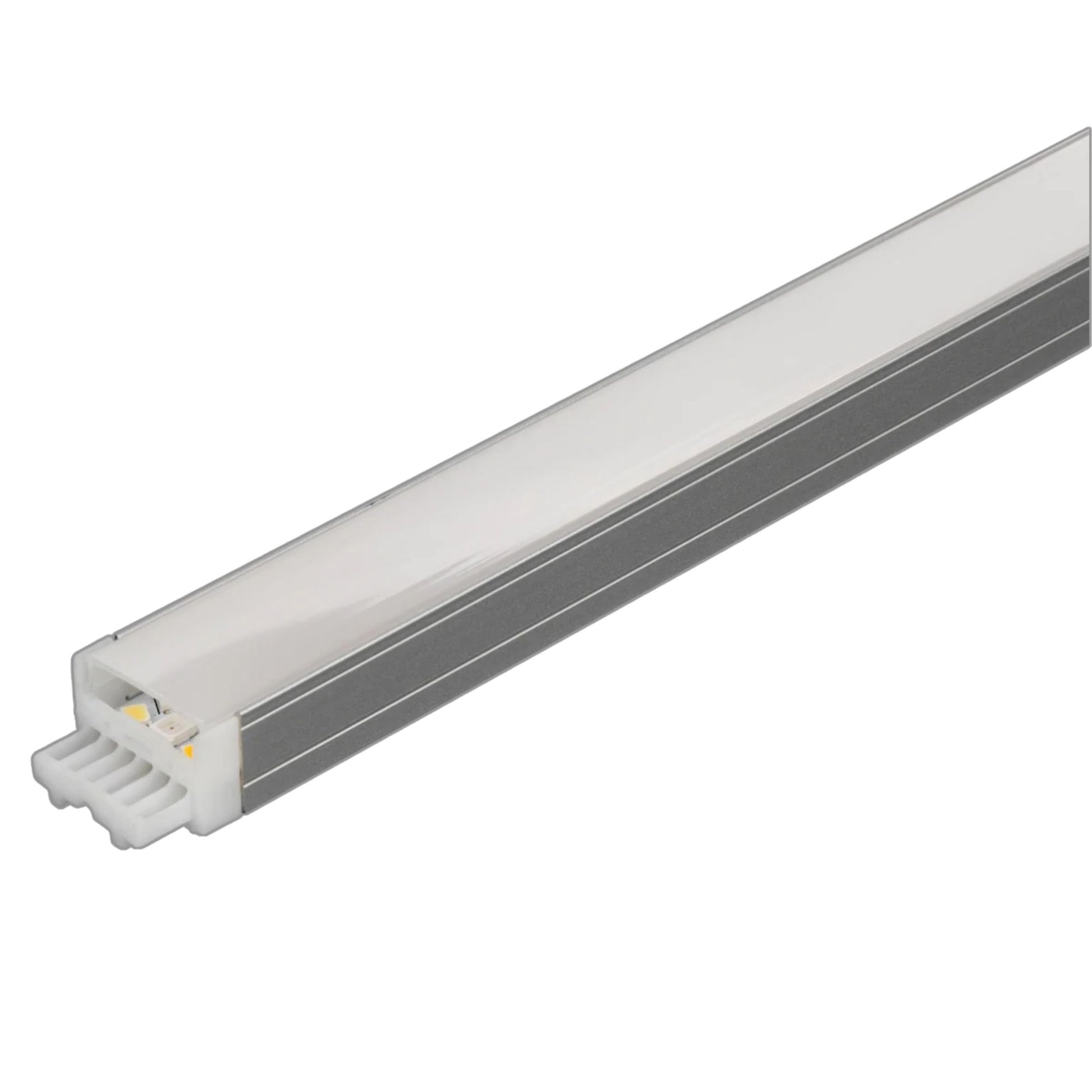

American Lighting Microlink Under Cabinet Light — Aluminum & RGB+Tunable White
The MLINK-24-RGBTW-6 is a sleek, aluminum under cabinet light designed for versatile lighting applications. This fixture measures 6 inches in length and operates on 24V DC, featuring an integrated RGB+Tunable White LED light source.
Key Features

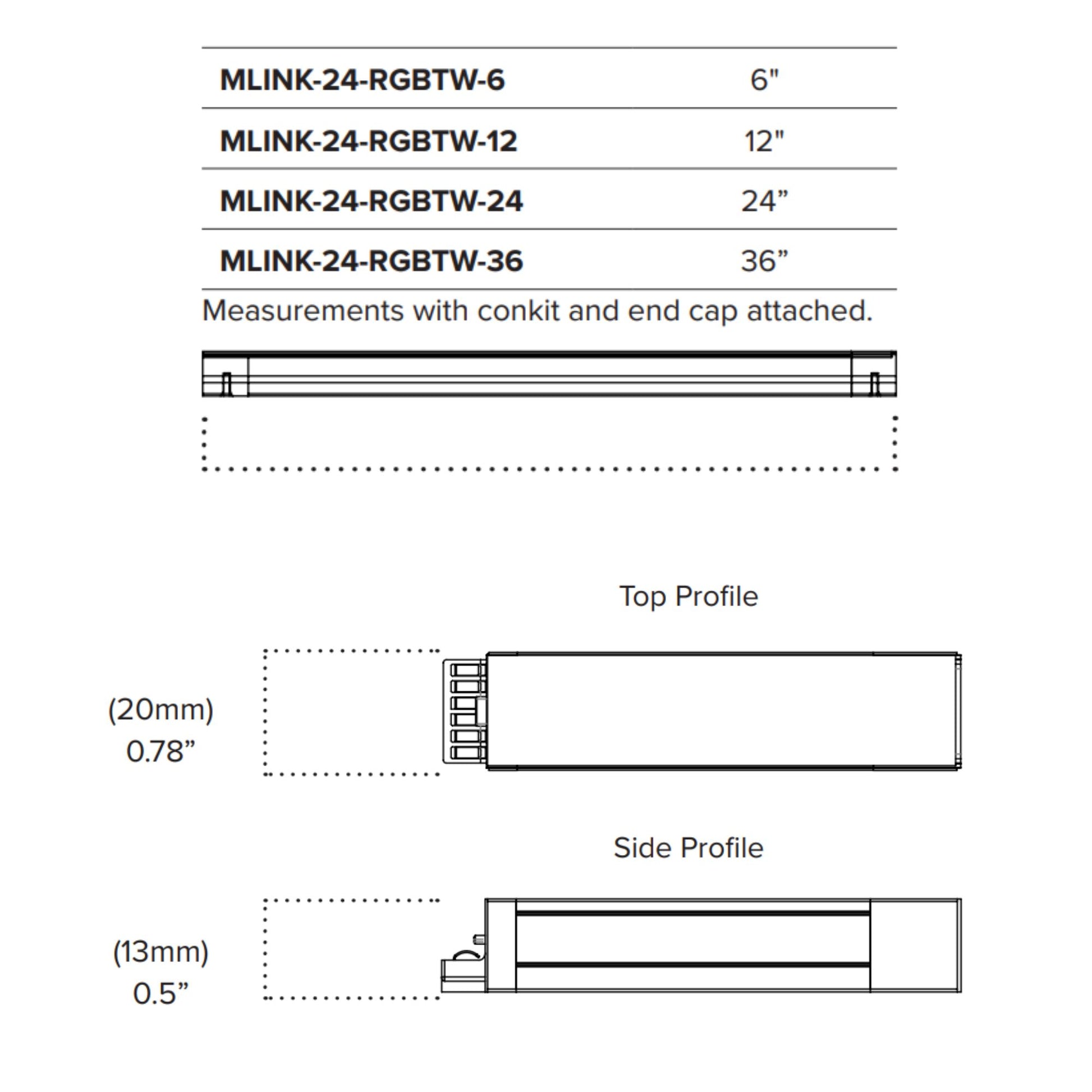

- Dimensions: Compact 6 in. length with a low-profile height of 0.5 in.
- Voltage: Operates on 24V DC for energy-efficient performance.
- Wattage: Consumes only 4 watts for cost-effective operation.
- Lumens: Delivers 128 lumens for effective task lighting.

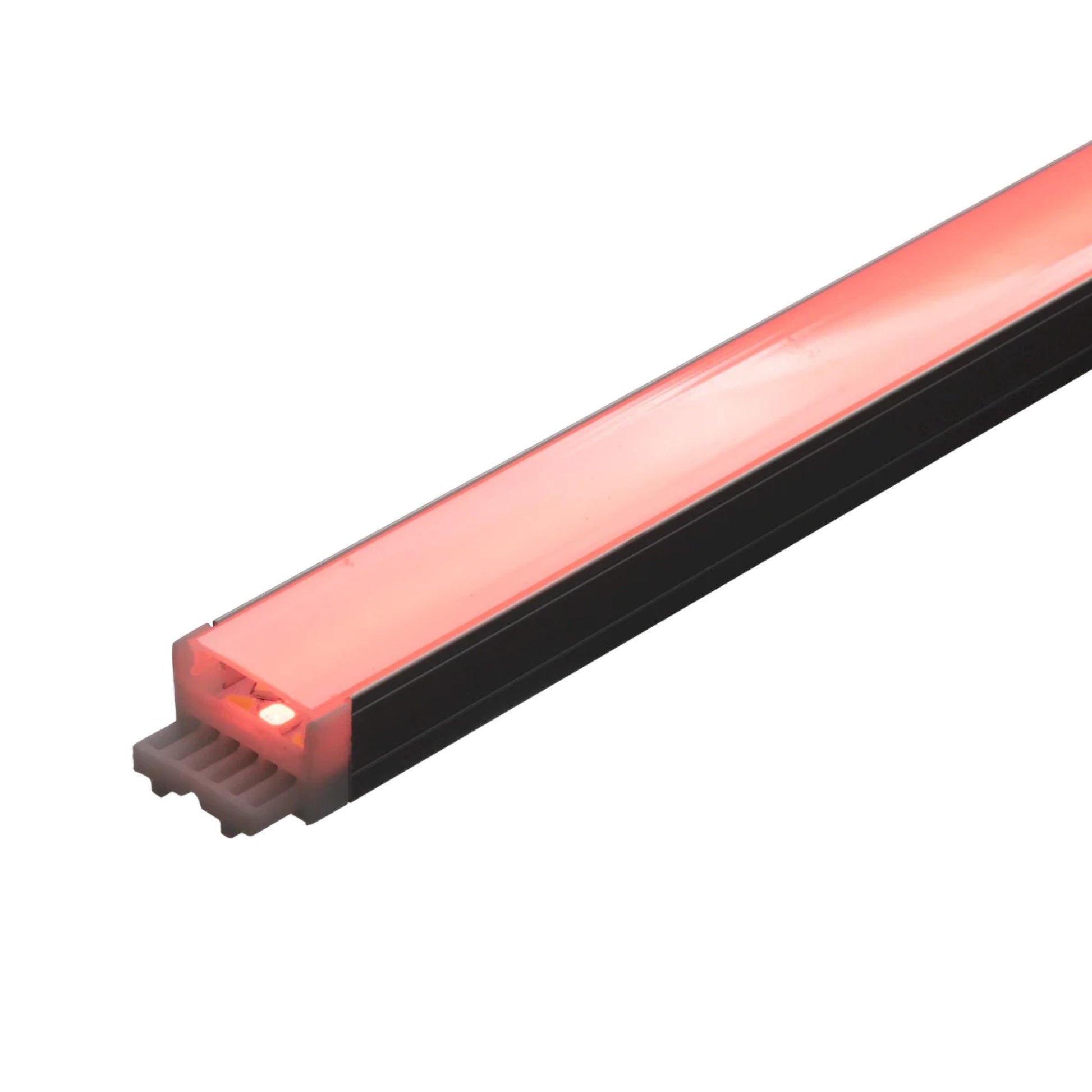

- Color Temperature: RGB+TW (2700K-6000K) for customizable ambiance.
- CRI: 90+ for high-quality color rendering in white mode.
- Lifespan: Rated for 35,000 hours of reliable use.
- Beam Angle: 120° for wide light distribution.
- Linkability: Supports up to 16.4ft of continuous run.
- Dimming: 5-100% dimming via DMX or smart controls.
Core Design & Profile
This fixture features a low-profile aluminum housing, ideal for discreet installation in dry, indoor locations. The diffused lens ensures smooth, evenly distributed light.
LED Illumination & Performance
With 128 lumens output and a 4-watt consumption, this fixture provides efficient task lighting. The RGB+TW feature allows for a wide range of color temperatures from 2700K to 6000K.

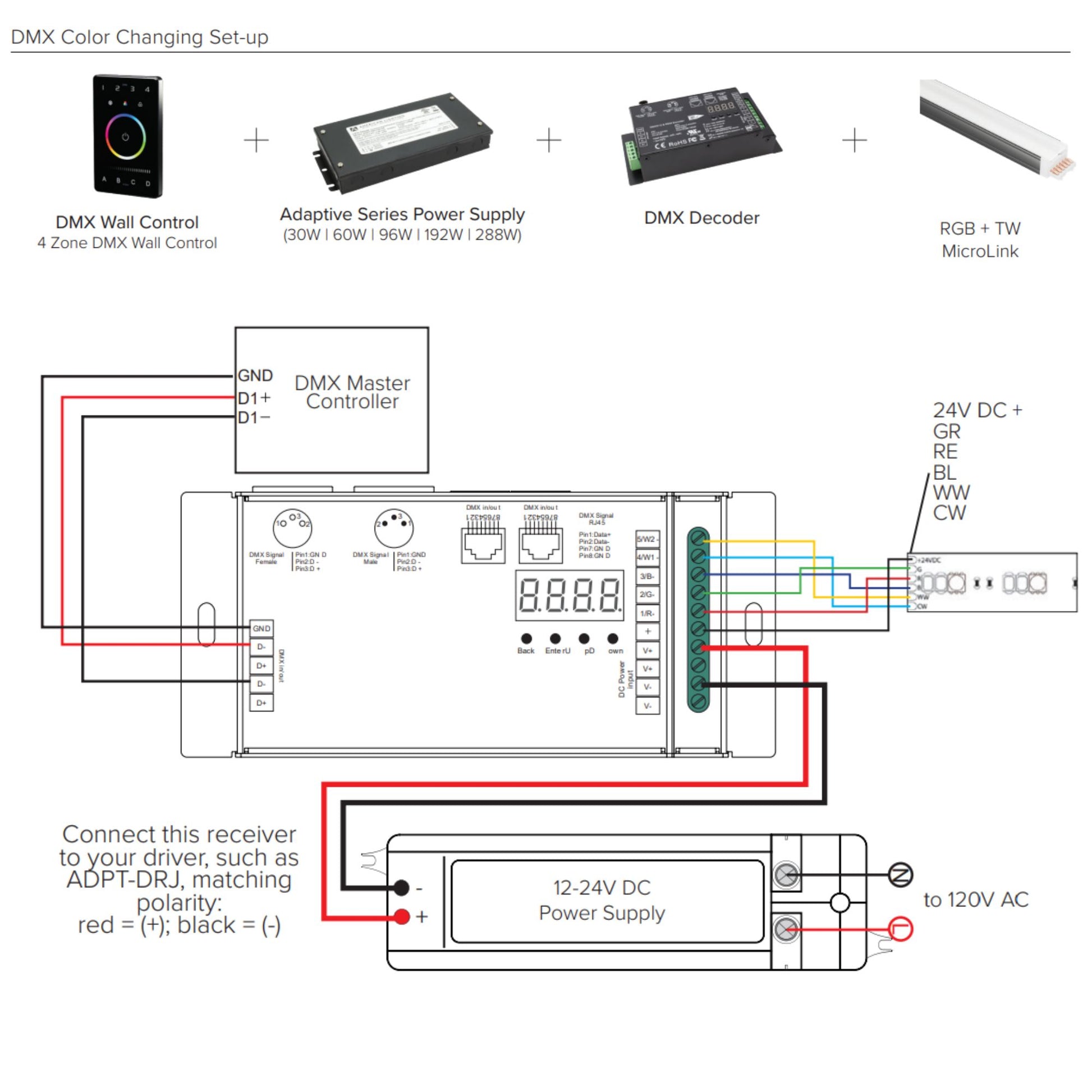

Power, Wiring & Linkability
Designed for 24V DC operation, this fixture is part of a plug-and-play system for easy installation. It supports up to 16.4ft of linkable length, making it suitable for extended runs.

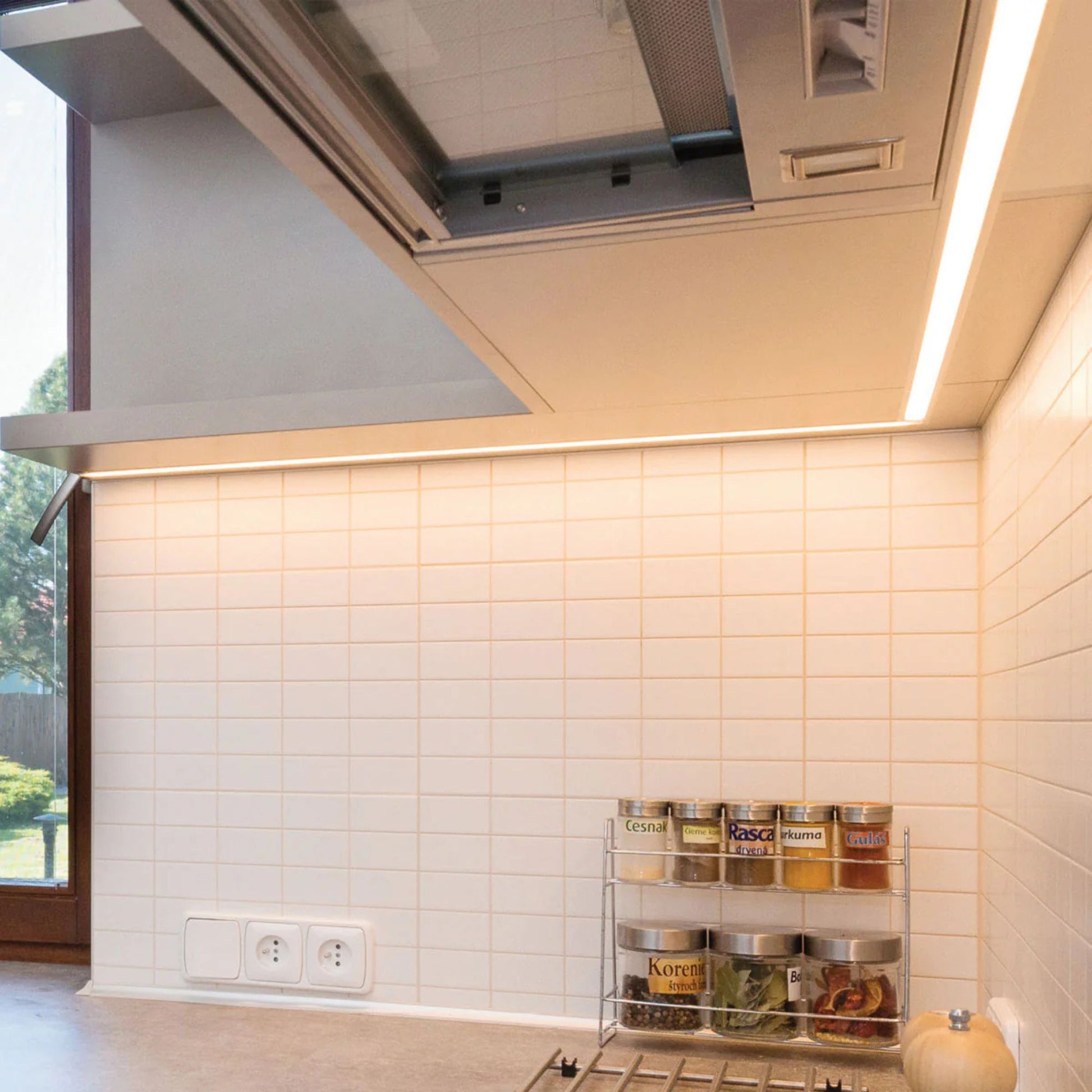

Where This Fixture Works Best
- Kitchen under cabinets
- Office workstations
- Retail display shelves
- Residential task areas
- Accent lighting in living spaces

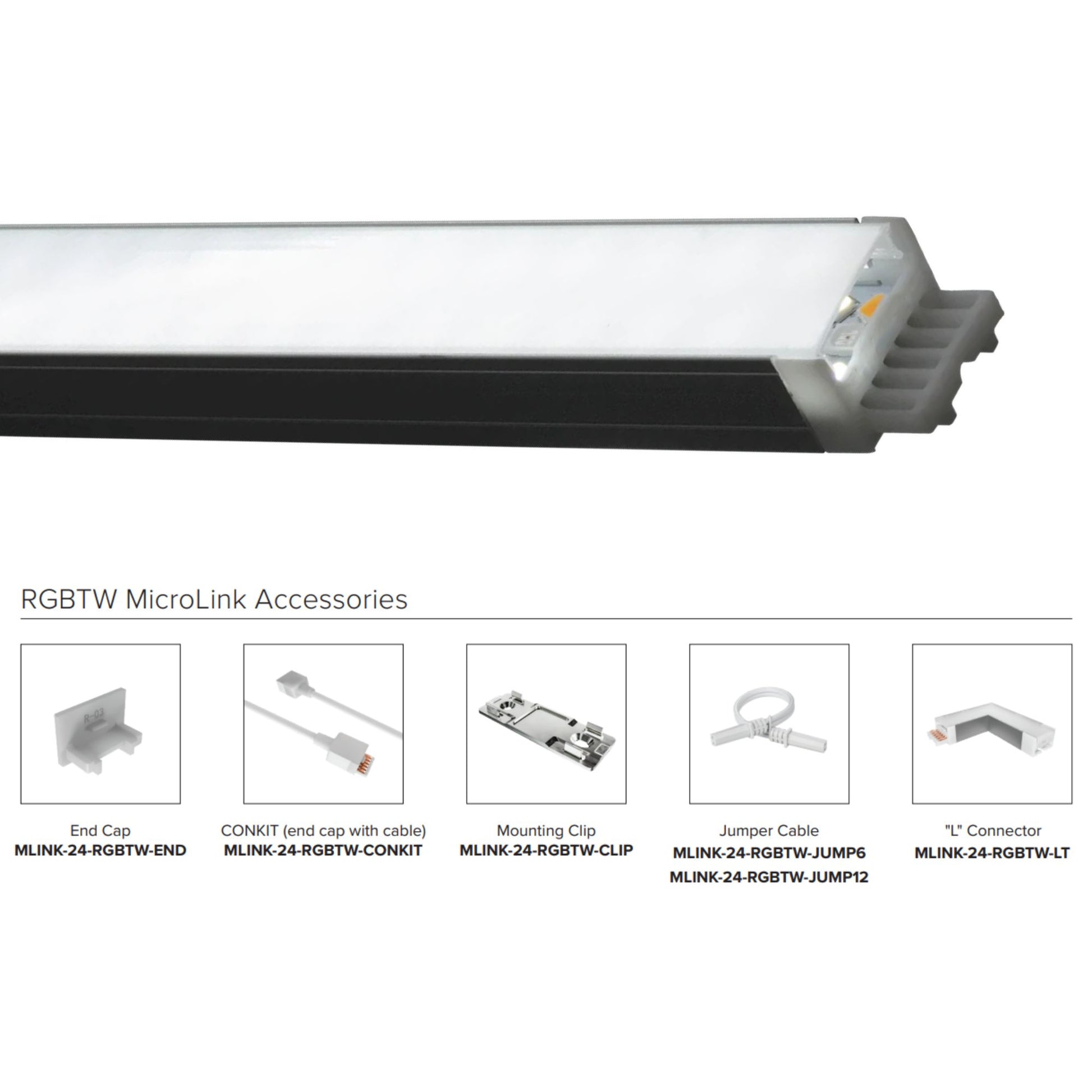

What's Included
- 1 x MLINK-24-RGBTW-CONKIT (end cap with cable)
- 2 x MLINK-24-RGBTW-CLIP (mounting clips)
- 1 x End cap
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Can the MLINK-24-RGBTW-6 be linked with other fixtures?
Can the MLINK-24-RGBTW-6 be linked with other fixtures?
Is the MLINK-24-RGBTW-6 hardwired or plug-in?
Is the MLINK-24-RGBTW-6 hardwired or plug-in?
Does the MLINK-24-RGBTW-6 support selectable CCT?
Does the MLINK-24-RGBTW-6 support selectable CCT?
Is the MLINK-24-RGBTW-6 dimmable?
Is the MLINK-24-RGBTW-6 dimmable?
Does the MLINK-24-RGBTW-6 require a driver?
Does the MLINK-24-RGBTW-6 require a driver?
