American Lighting Microlink Under Cabinet Light — Aluminum & RGB+Tunable White

The American Lighting MLINK-24-RGBTW-36 is a sleek aluminum under cabinet light designed for versatile lighting applications. This fixture measures 36 inches in length and features an integrated LED light source with a 24V DC input voltage. It delivers up to 765 lumens of illumination, making it ideal for task lighting.

Key Features

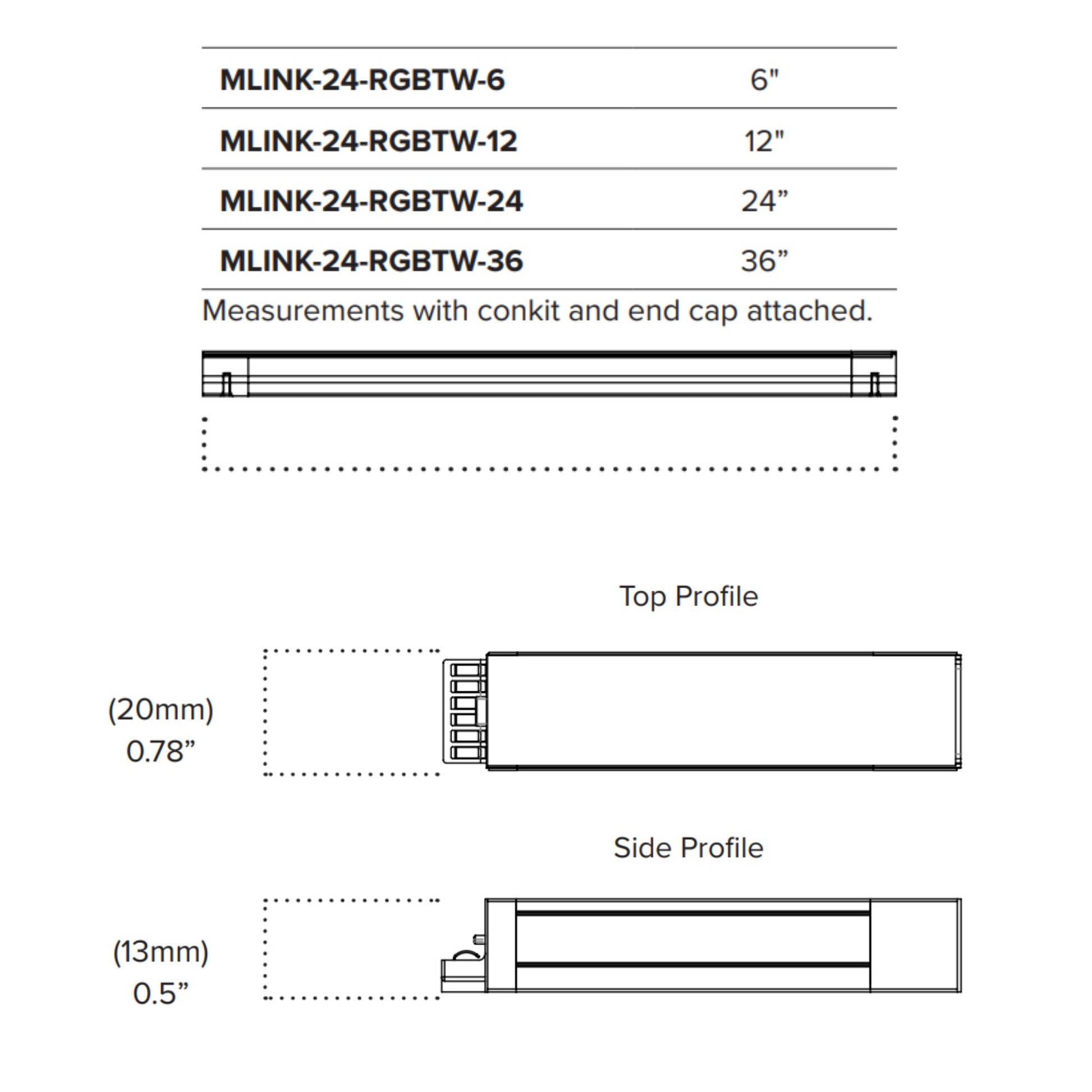

• Dimensions: 36in. length, 0.78in. width, 0.5in. height.
• Voltage: Operates on 24V DC.
• Wattage: Consumes 21 watts.
• Lumens: Provides 765 lumens of brightness.
• Color Temperature: RGB+Tunable White (2700K-6000K).
• CRI: 90+ for accurate color rendering.
• Lifespan: Rated for 35,000 hours of use.
• Linkability: Connects up to 16.4ft in a continuous run.

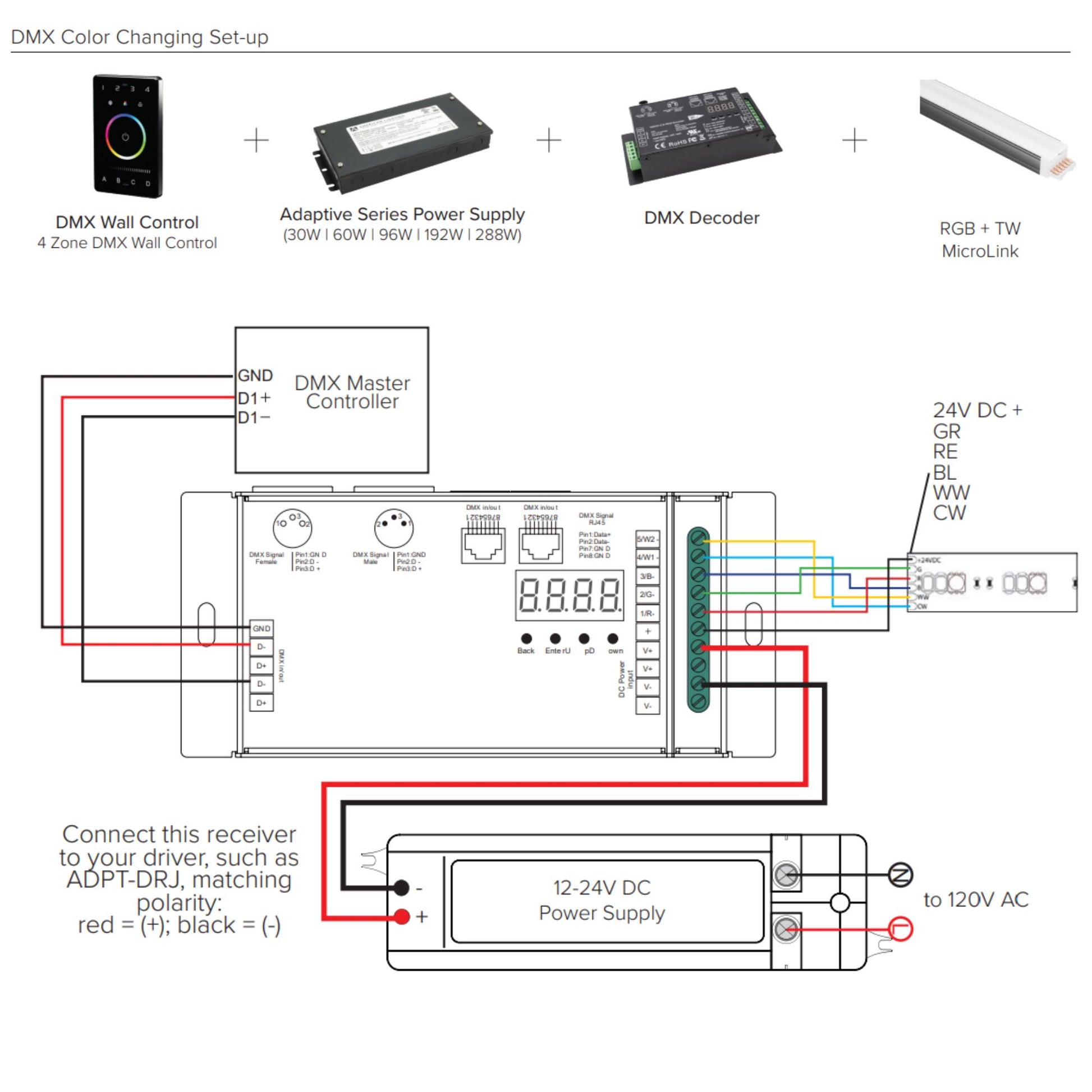

• Dimming: 5-100% dimming via DMX or Smart Controls.
• Beam Angle: 120° for wide light distribution.

Core Design & Profile

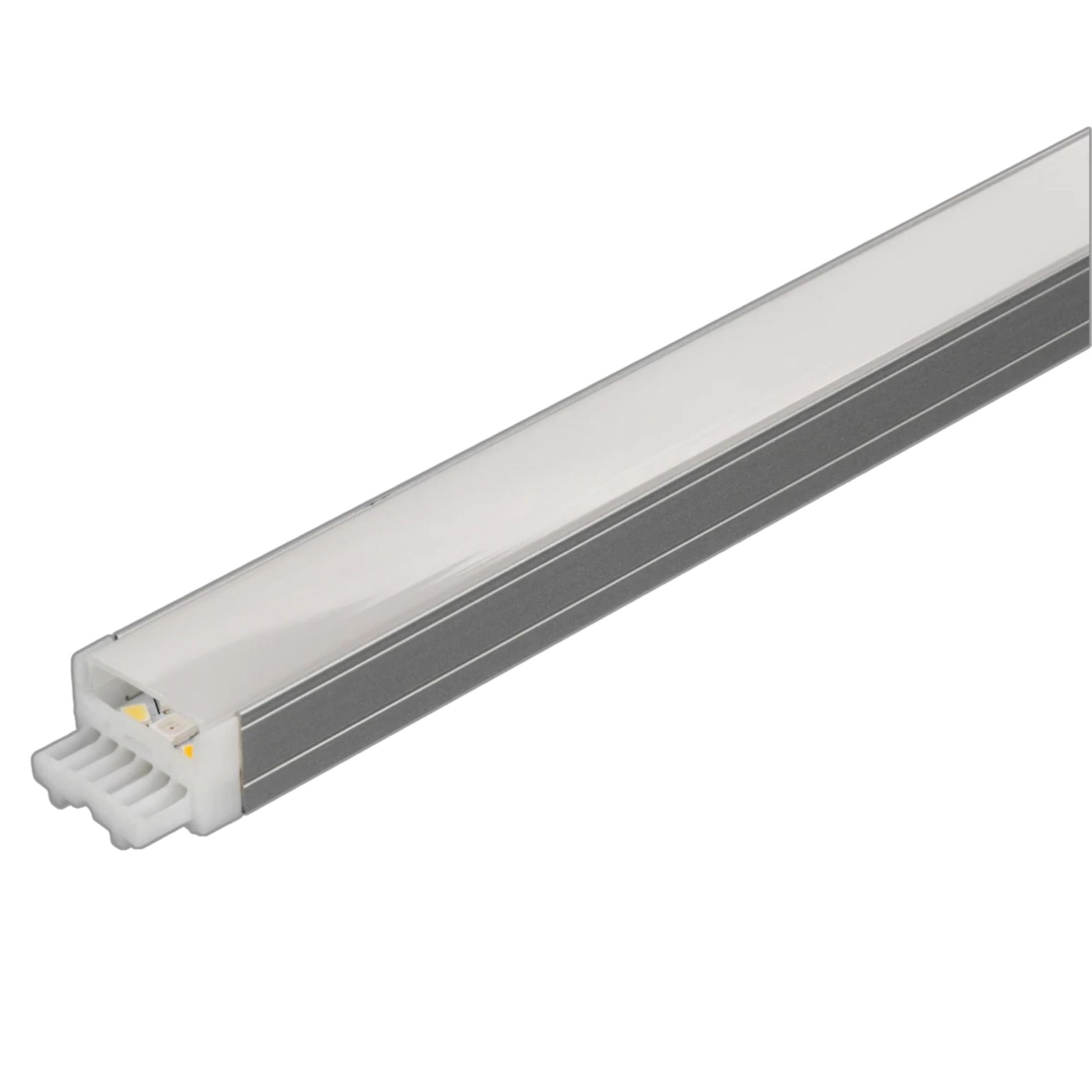

This fixture features a low-profile design with an aluminum finish, suitable for dry indoor locations. It includes a diffused lens for smooth, even light distribution.

LED Illumination & Performance

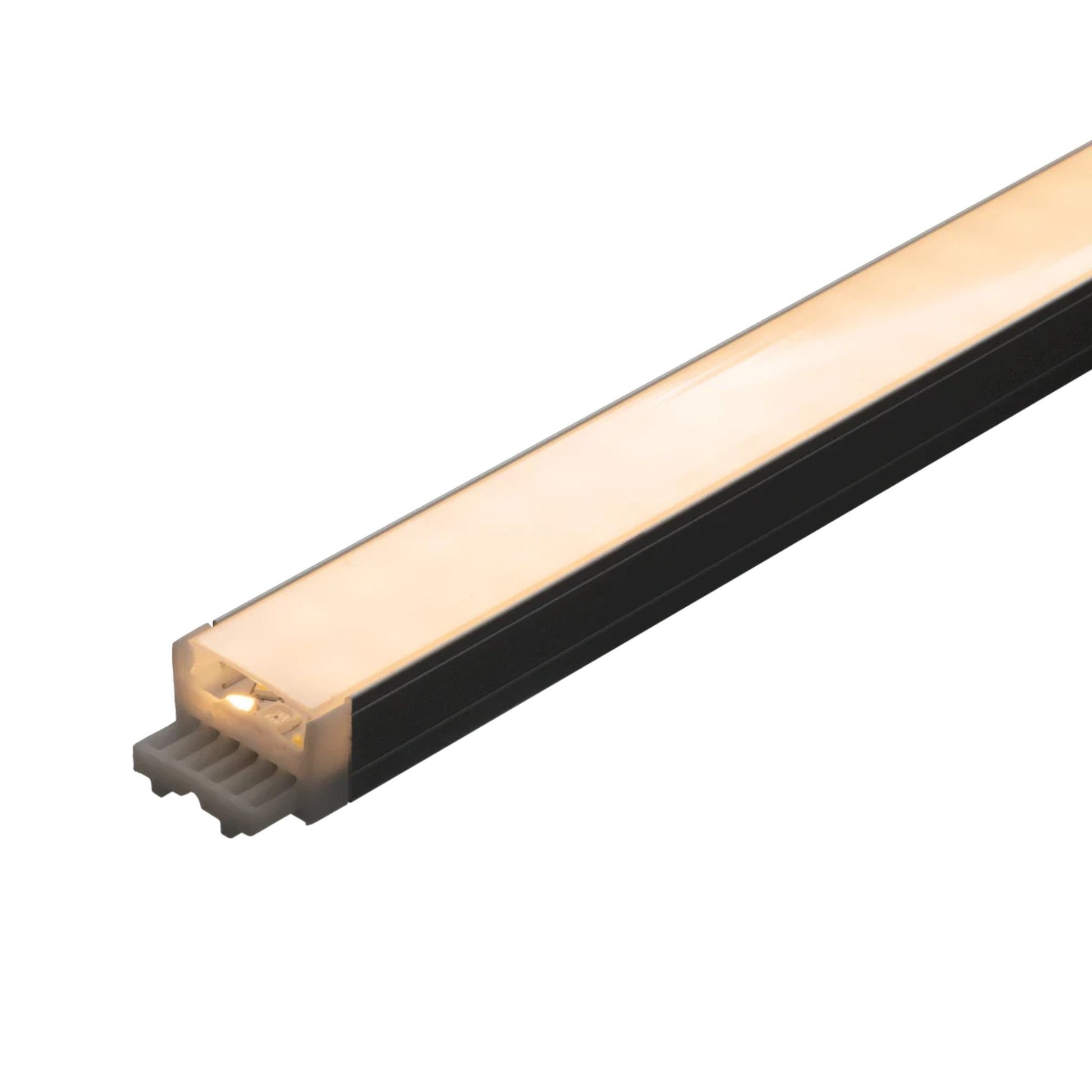

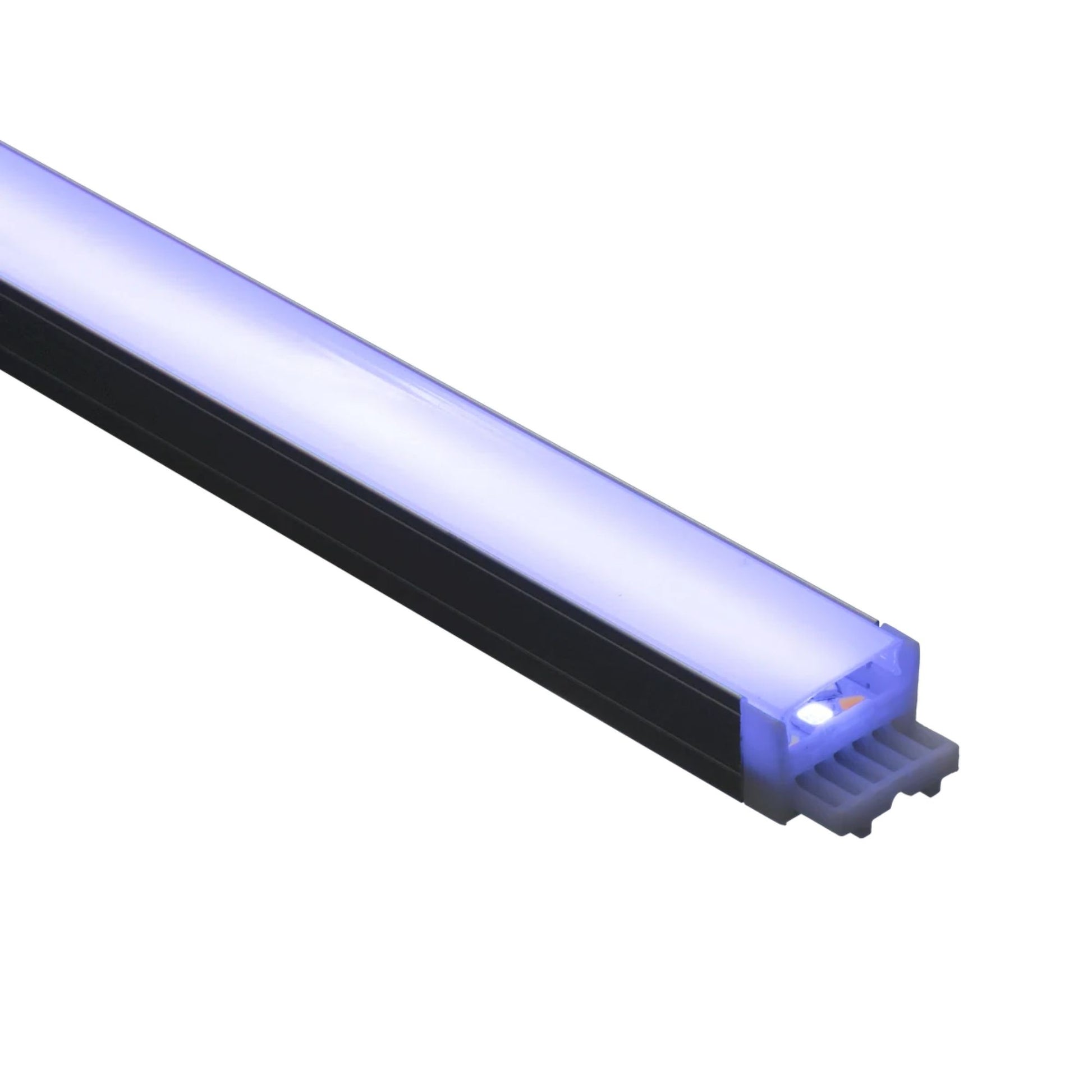

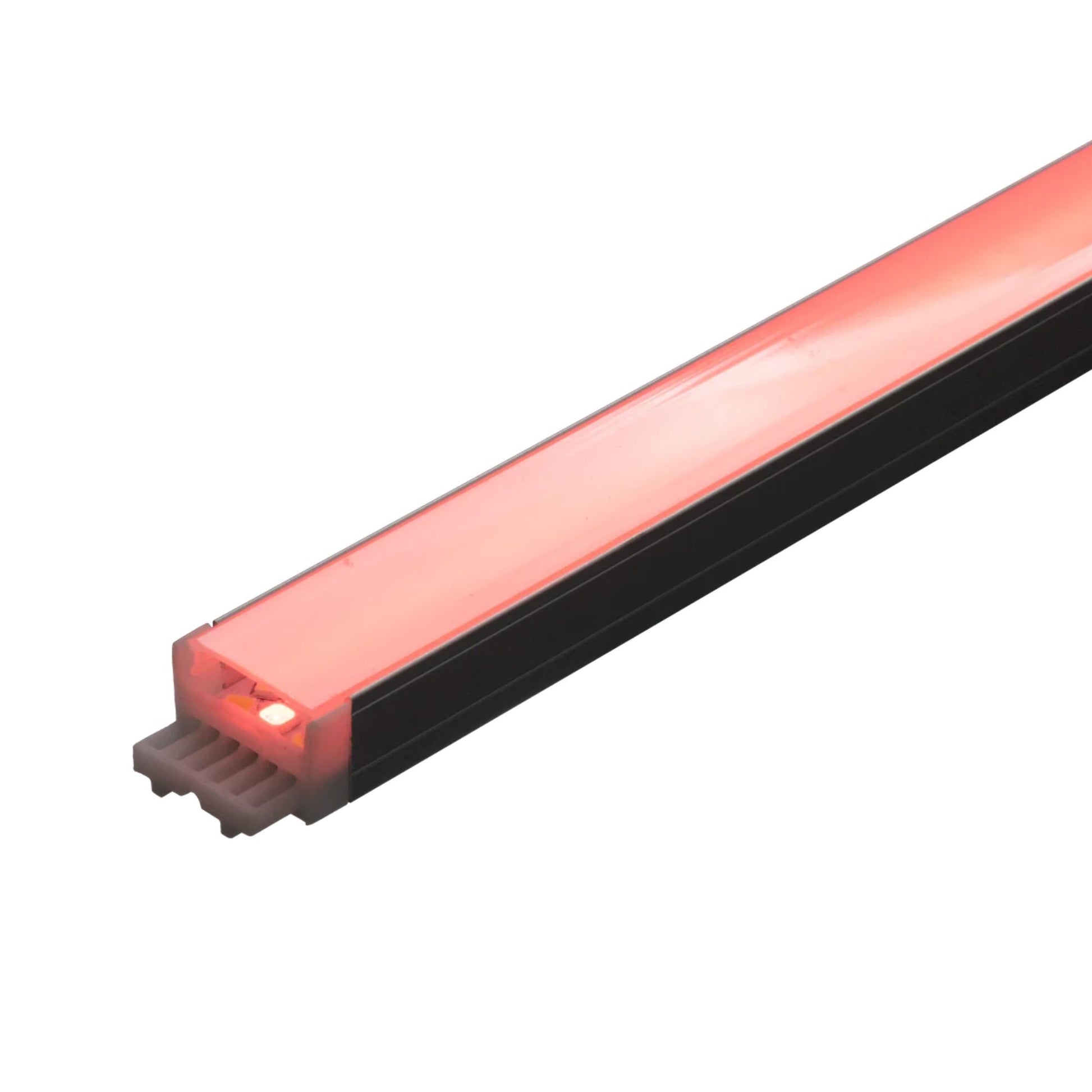

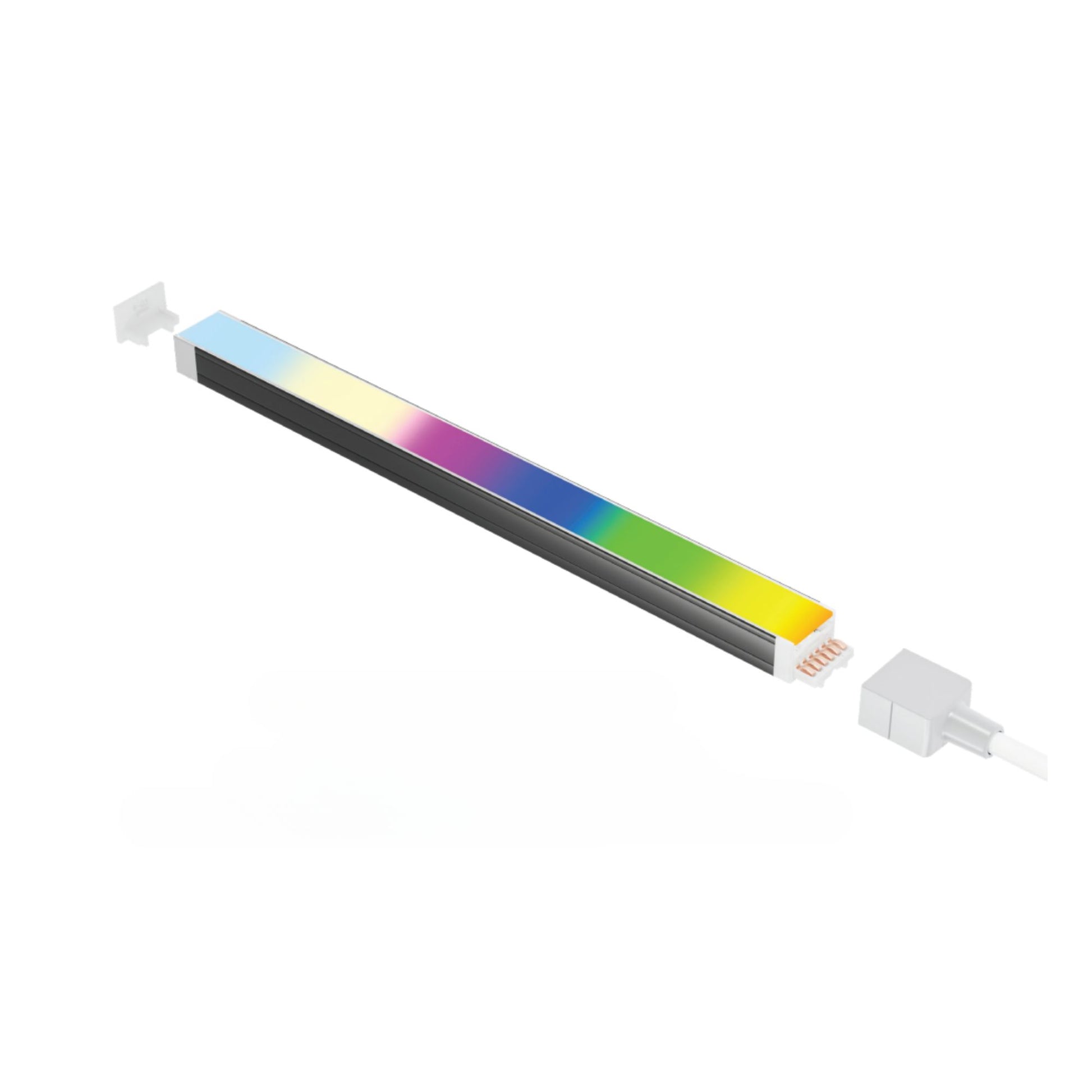

The MLINK-24-RGBTW-36 offers a tunable white range from 2700K to 6000K, with RGB capabilities for dynamic lighting effects. It delivers 765 lumens at 21 watts, with a CRI of 90+.

Power, Wiring & Linkability

This under cabinet light operates on 24V DC and is designed for plug and play installation. It supports up to 16.4ft of linkable length, allowing for extensive lighting setups.

Where This Fixture Works Best

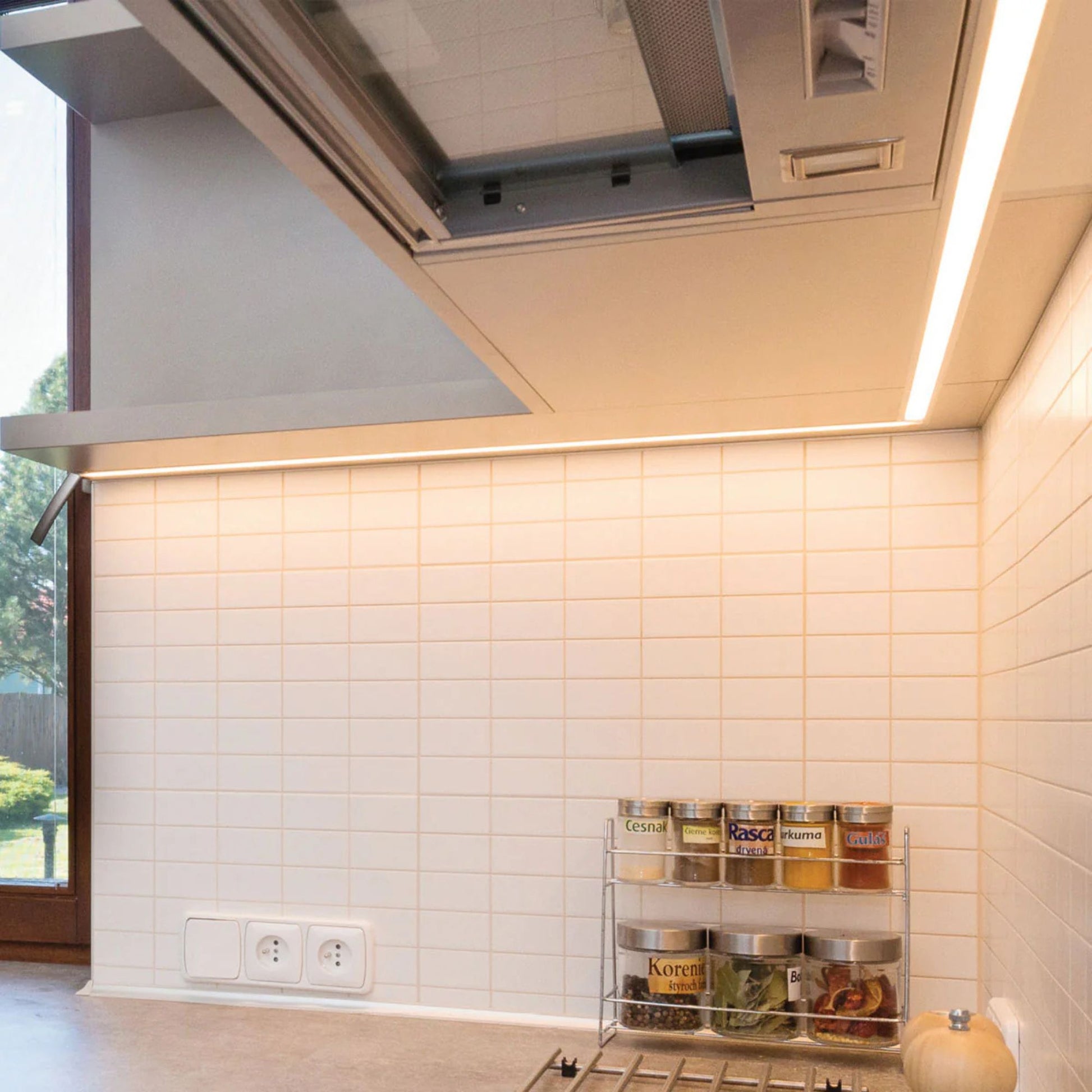

• Kitchen under cabinets
• Office workstations
• Retail displays
• Task lighting in workshops
• Accent lighting in living areas

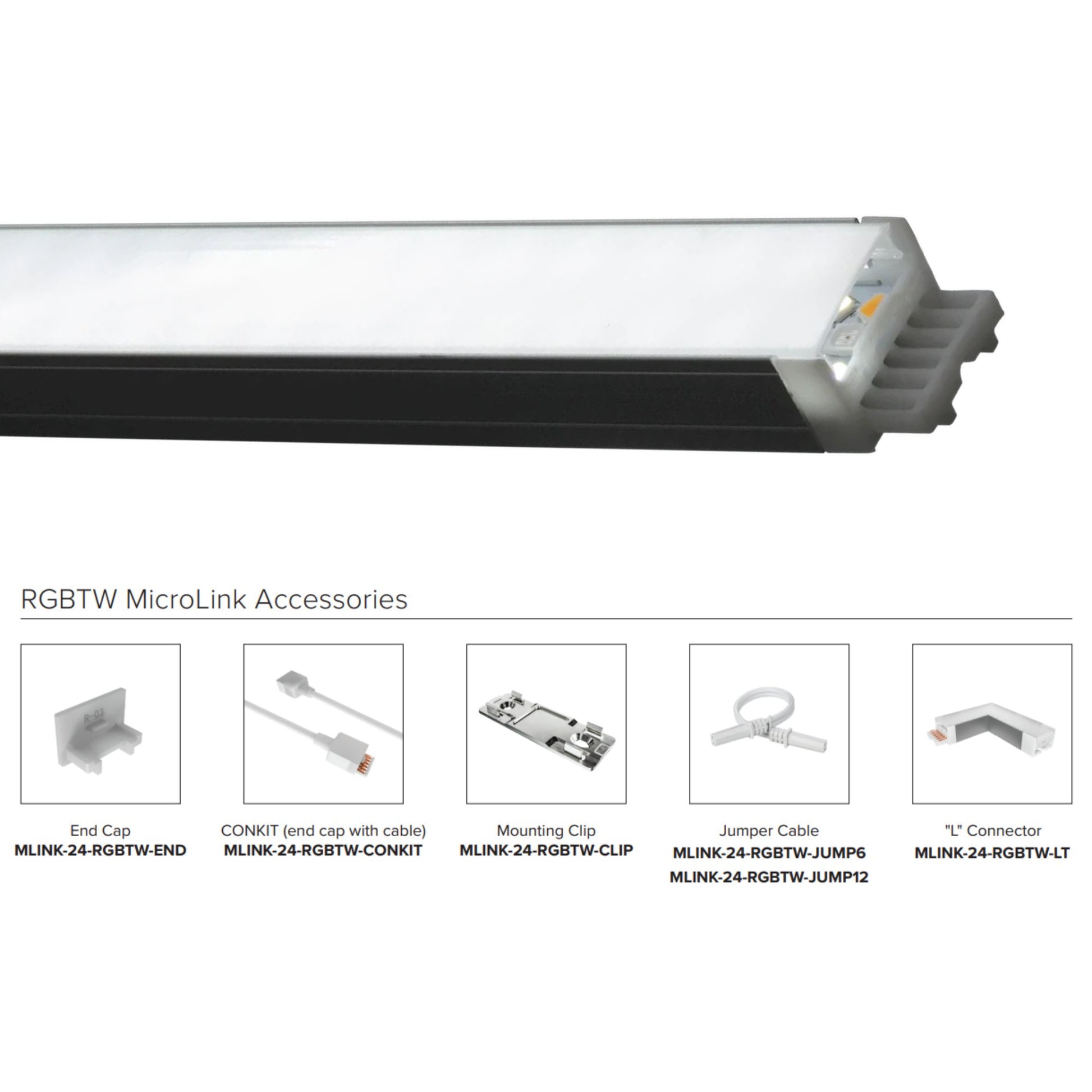

What's Included

• 1 MLINK-24-RGBTW-CONKIT
• 2 MLINK-24-RGBTW-CLIP
• 1 End cap
