American Lighting Microlink Under Cabinet Light — Aluminum & RGB+TW Features

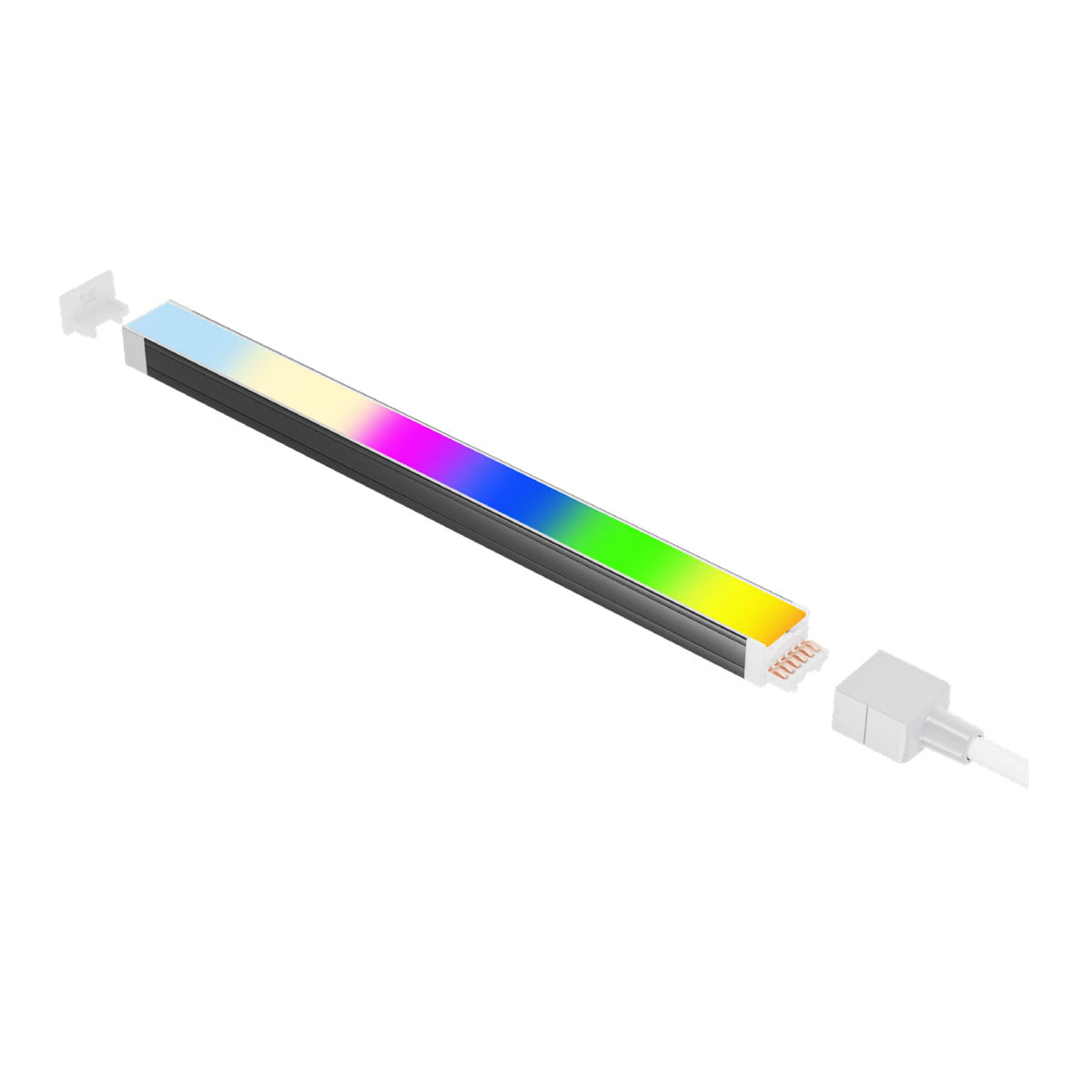

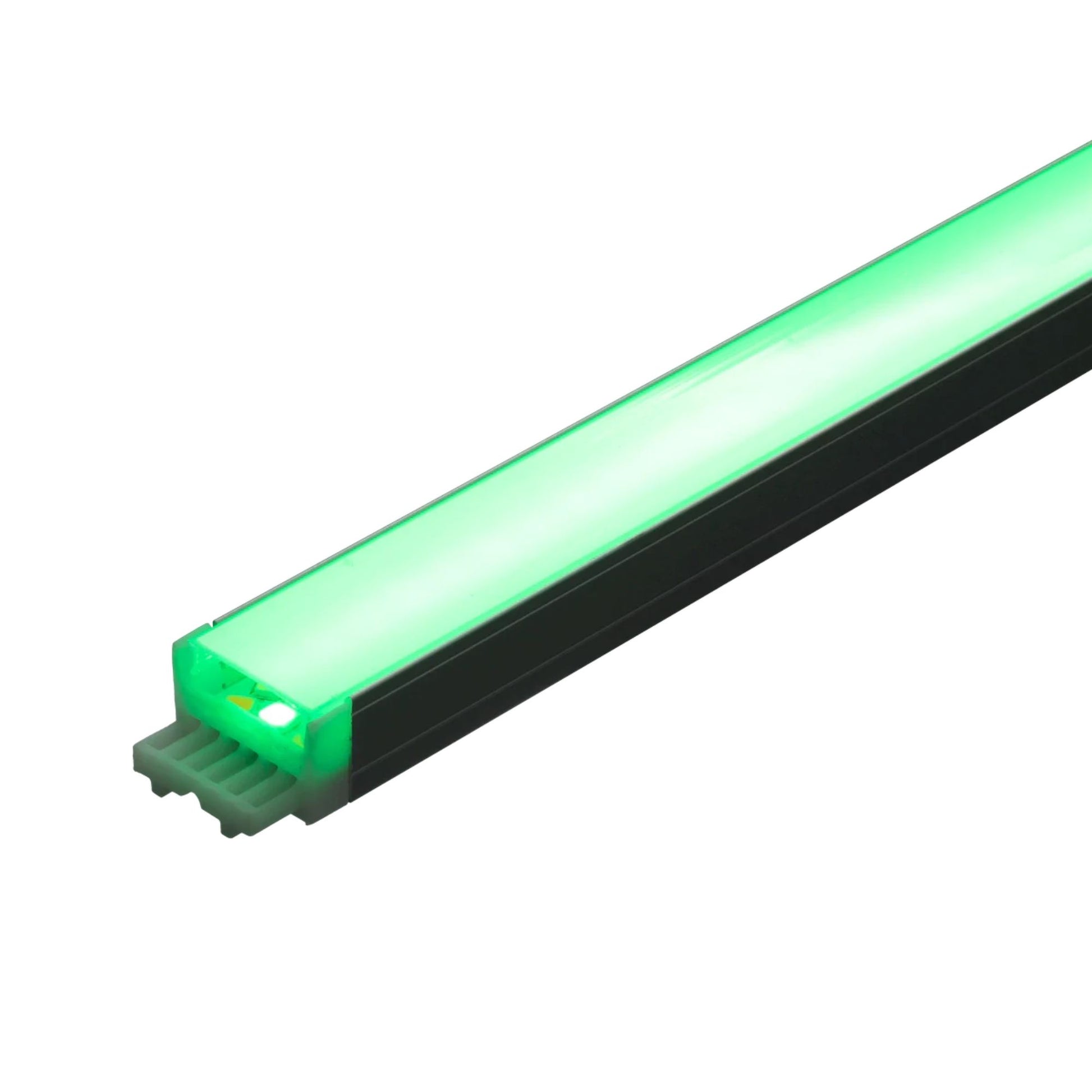

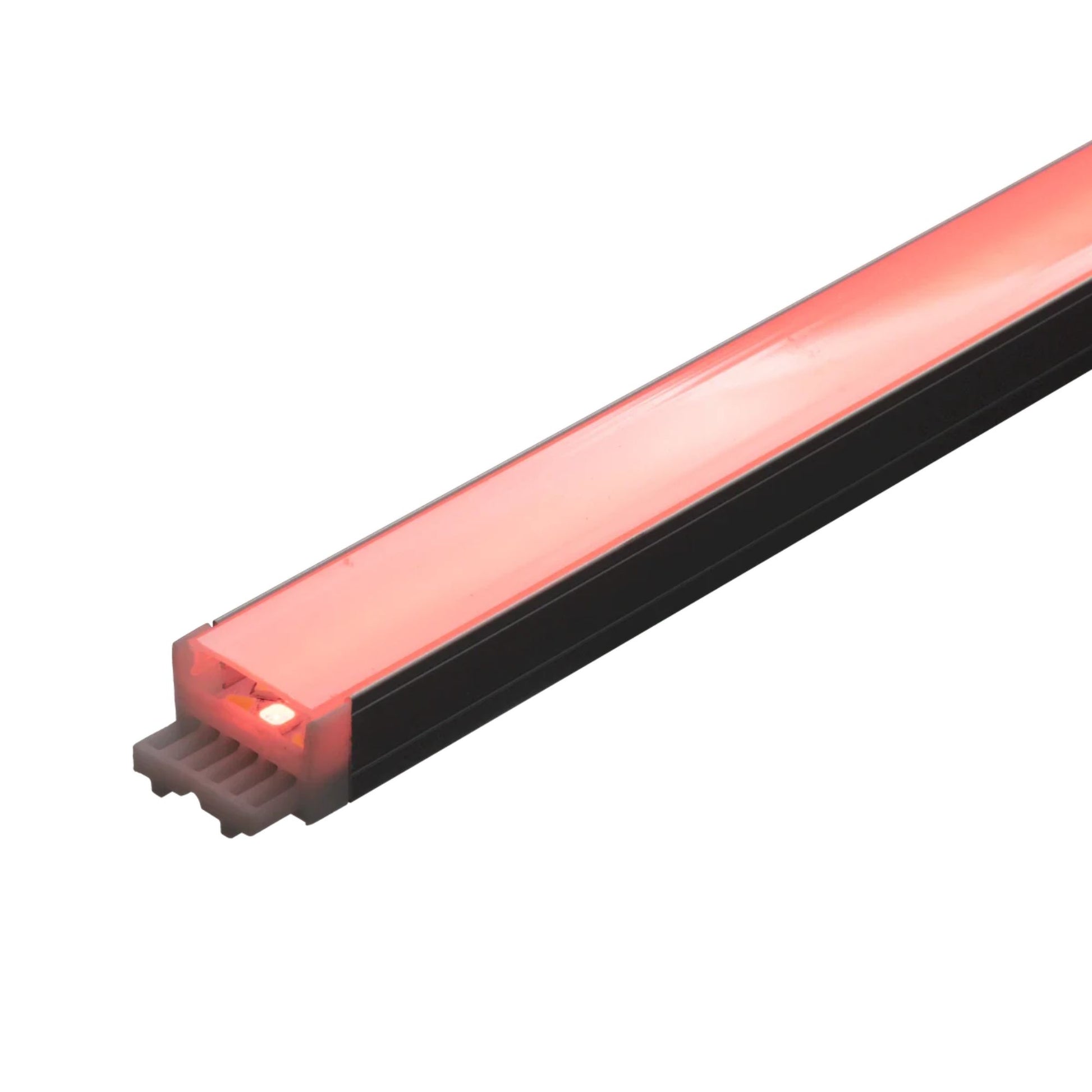

The MLINK-24-RGBTW-24 in aluminum is a 24-inch under cabinet light designed for versatile task lighting. This fixture features an RGB+TW LED light source, delivering 510 lumens at 24V DC. Its slim profile and modular design make it ideal for various applications.

Key Features

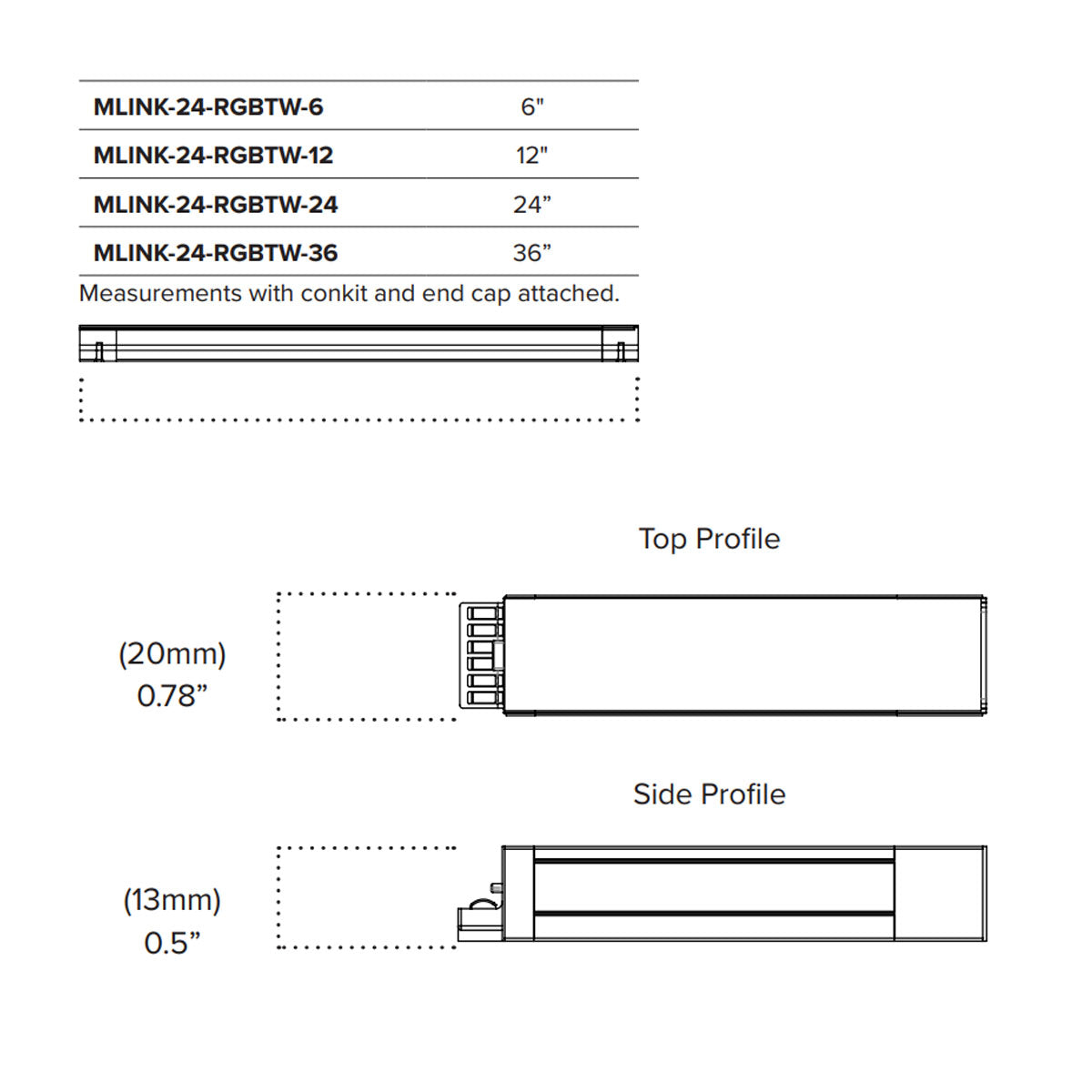

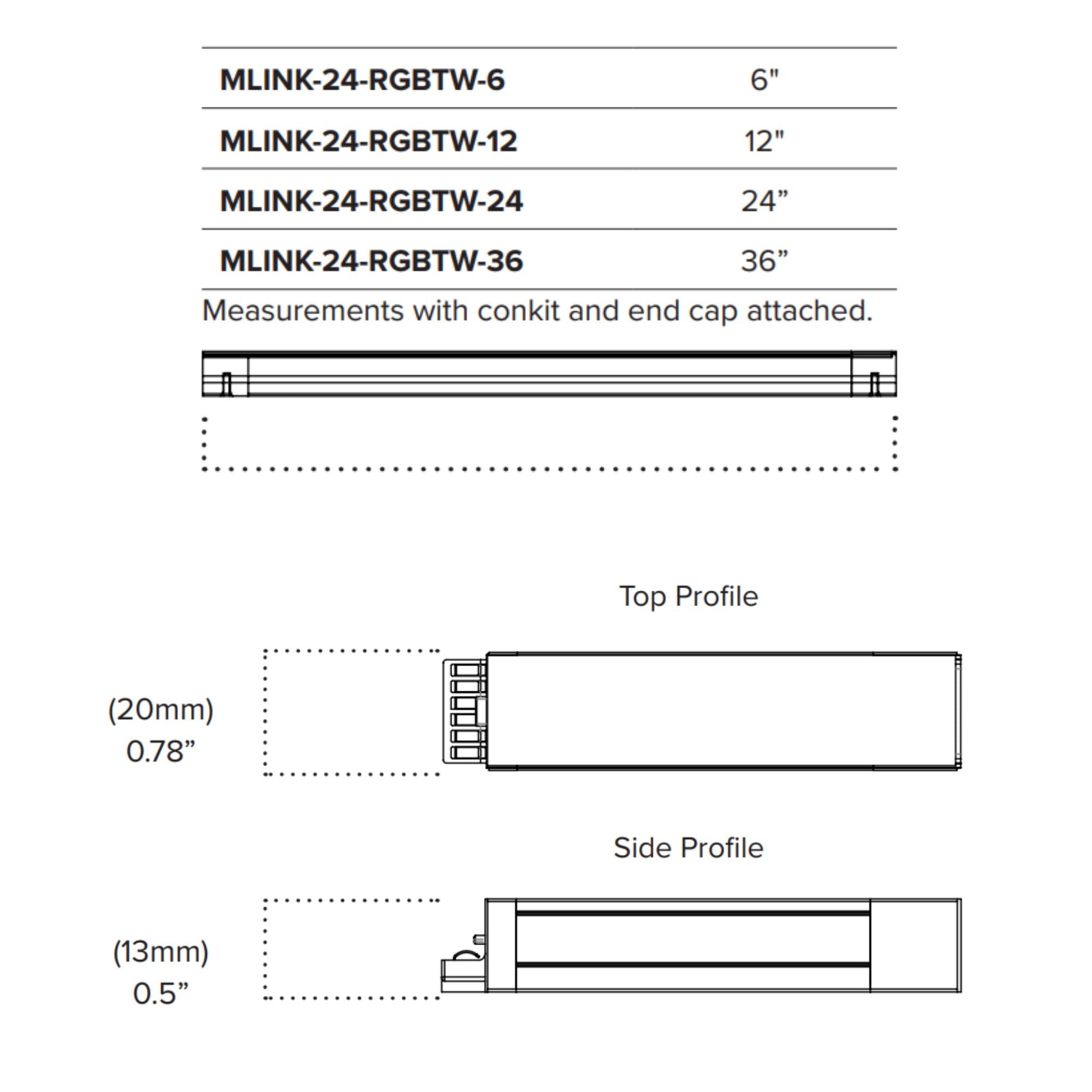

• Dimensions: Measures 24in. in length, 0.78in. in width, and 0.5in. in height.
• Voltage: Operates on 24V DC for consistent performance.
• Wattage: Consumes 14 watts, providing efficient lighting.
• Lumens: Outputs 510 lumens for bright illumination.
• Color Temperature: RGB+TW range from 2700K to 6000K for customizable lighting.
• CRI: 90+ CRI ensures high-quality color rendering.
• Lifespan: Rated for 35,000 hours of use.
• Beam Angle: 120-degree beam angle for wide light distribution.
• Linkability: Connects up to 16.4ft for extended lighting runs.

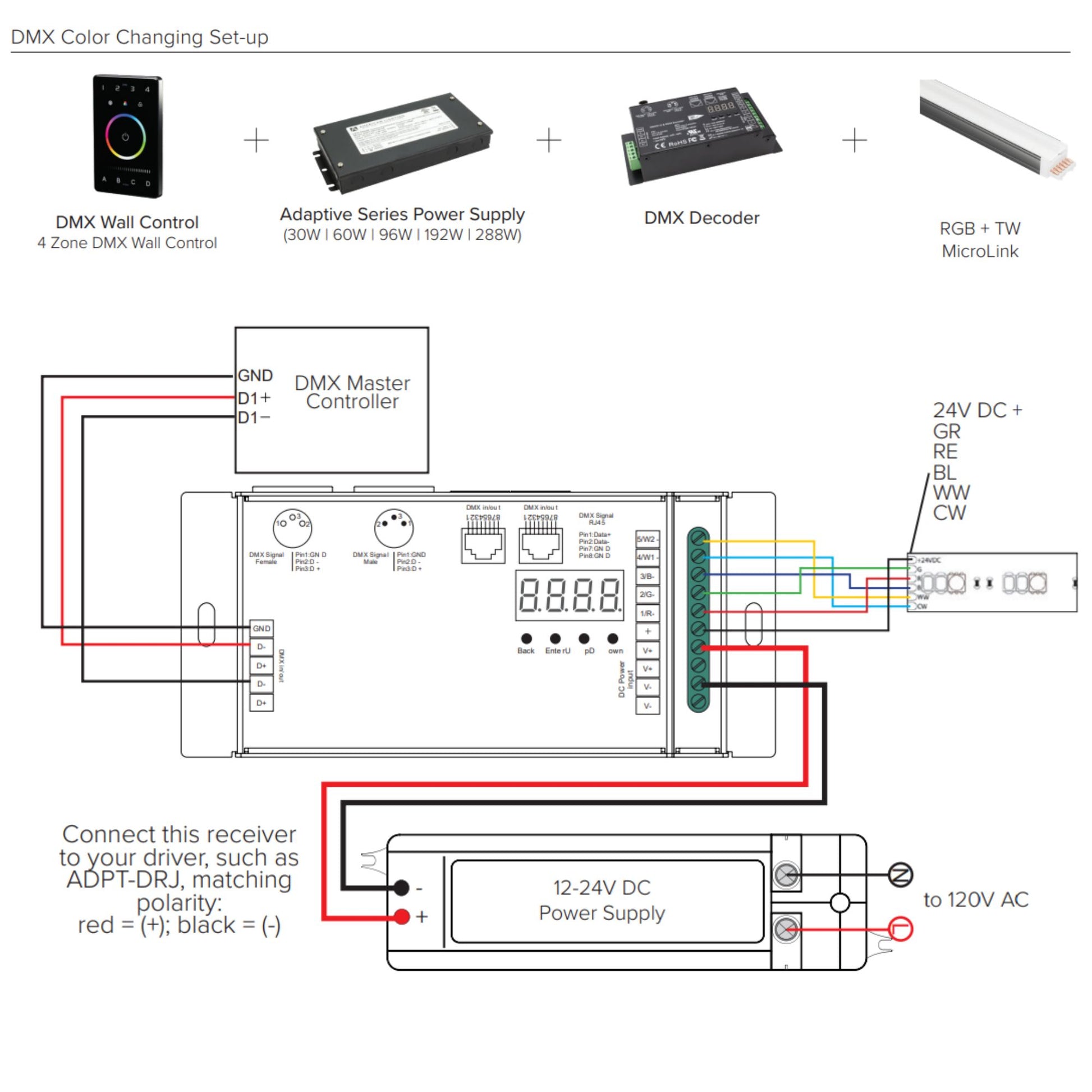

• Dimming: 5-100% dimming capability via DMX or smart controls.

Core Design & Profile

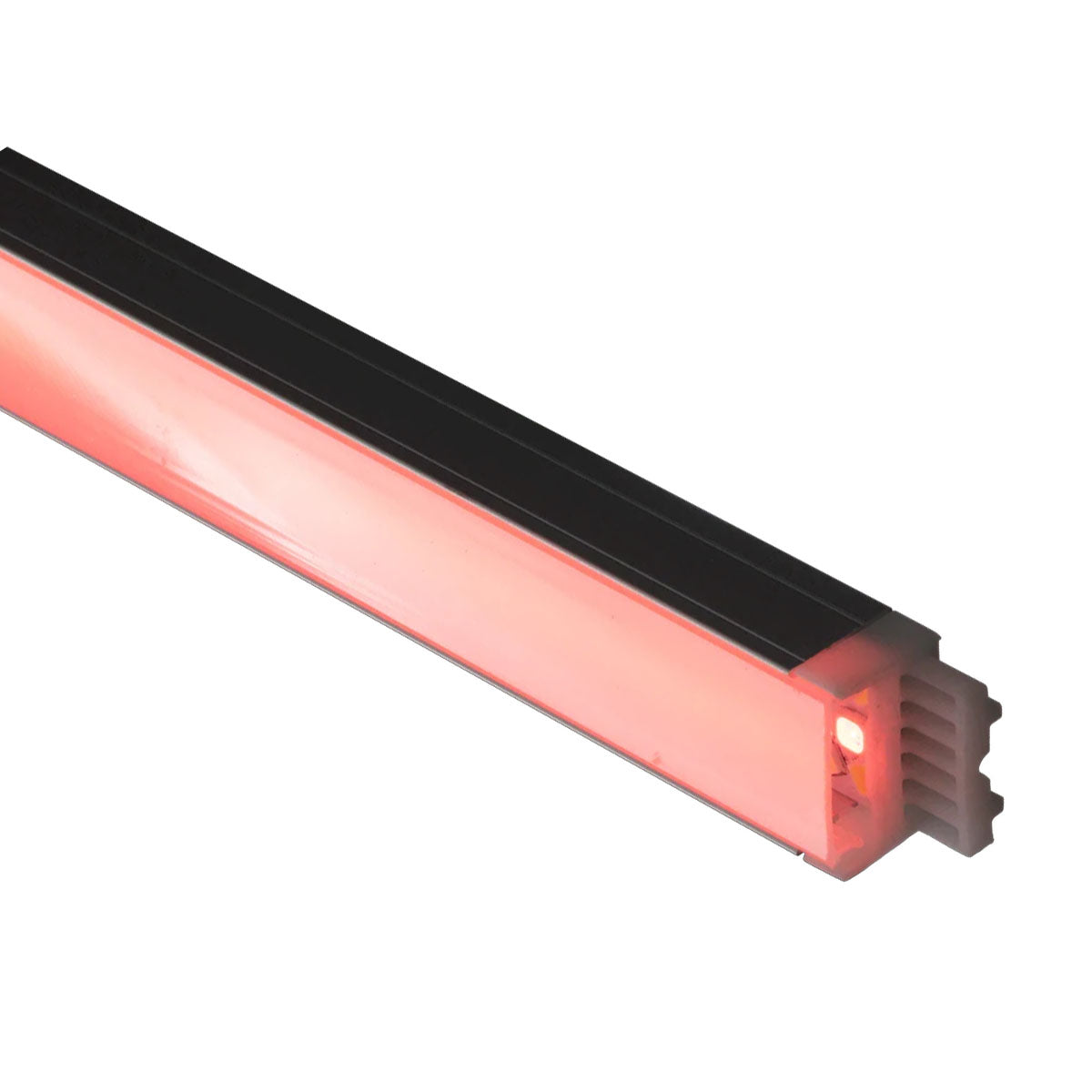

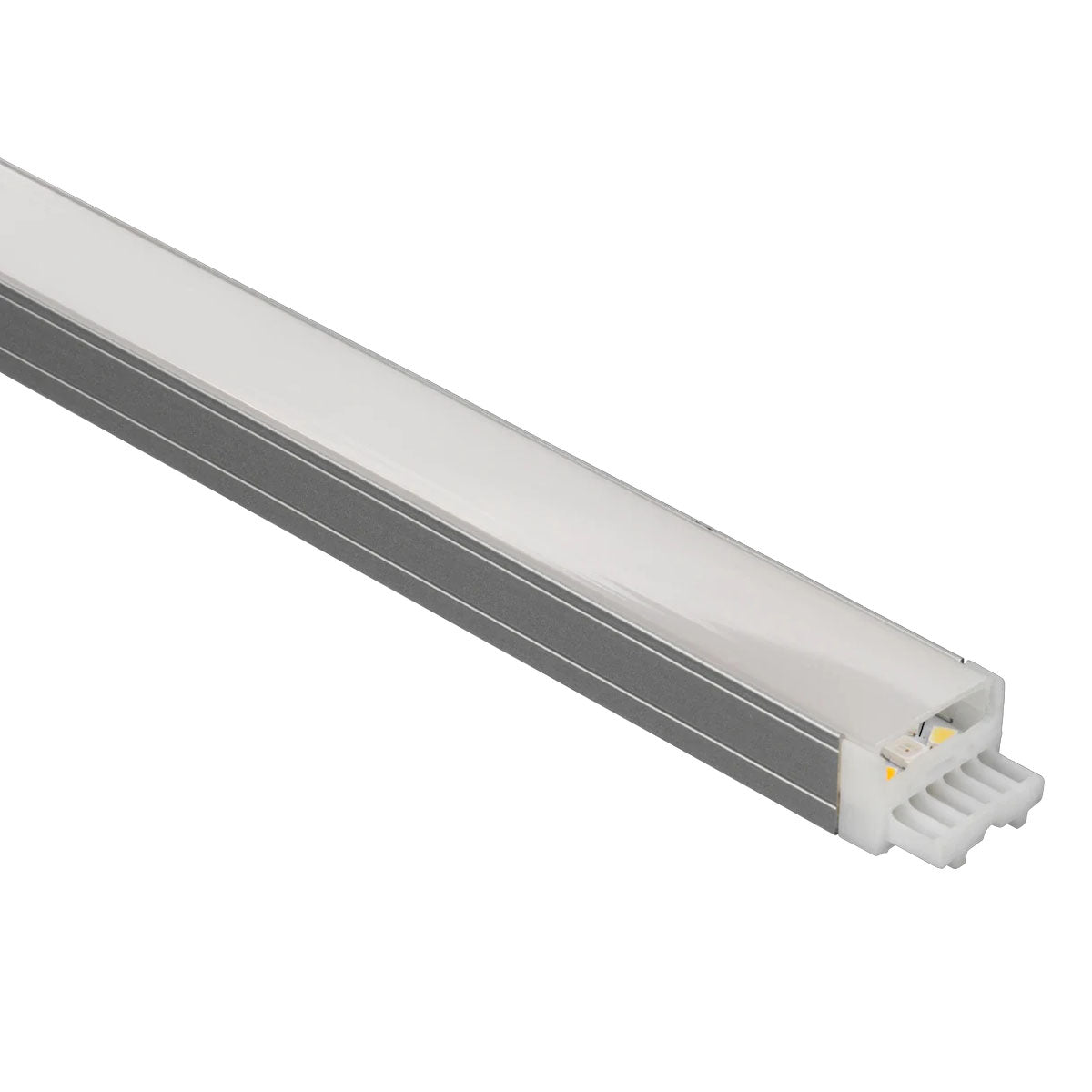

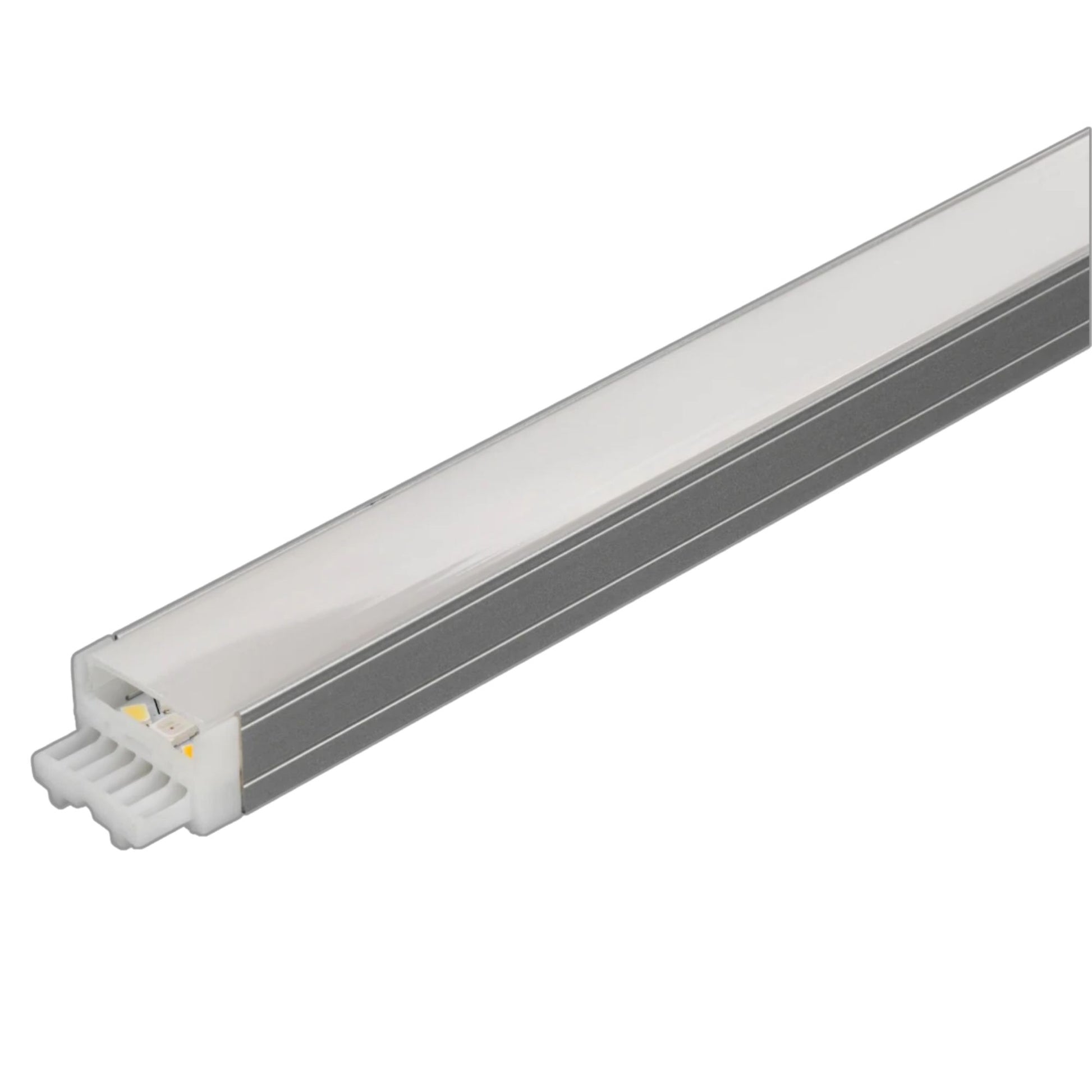

This fixture features a low-profile aluminum housing with a diffused lens for smooth light distribution. It is cETLus listed for dry locations.

LED Illumination & Performance

With 510 lumens and 14 watts, this fixture offers efficient lighting. The RGB+TW LEDs provide a tunable white range from 2700K to 6000K, with a CRI of 90+ for excellent color accuracy.

Power, Wiring & Linkability

The MLINK-24-RGBTW-24 is a 24V DC fixture requiring a compatible power supply. It supports plug-and-play installation and can be linked up to 16.4ft for larger setups.

Where This Fixture Works Best

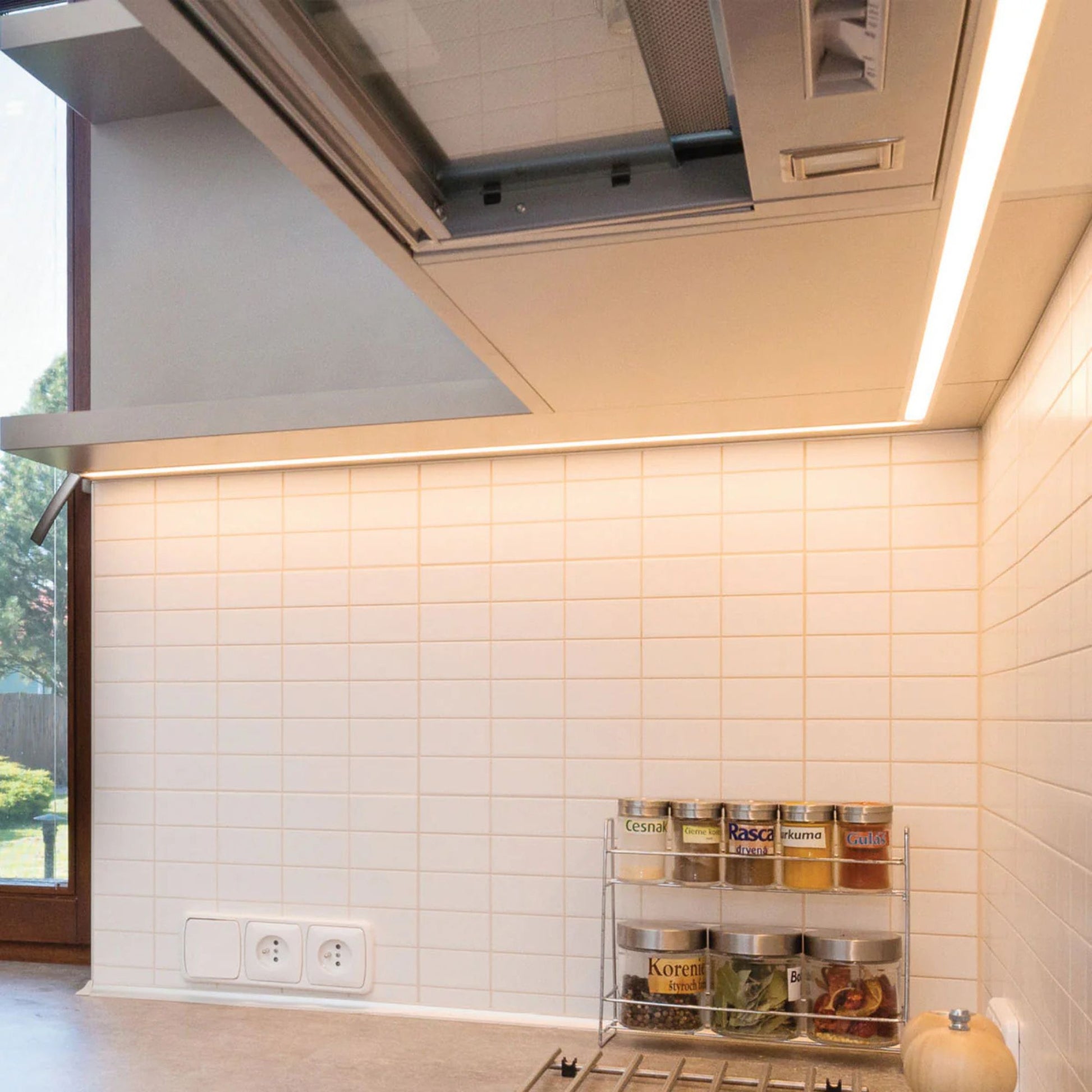

• Kitchen under cabinet lighting
• Office task lighting
• Retail display lighting
• Accent lighting in living spaces
• Workshop task lighting

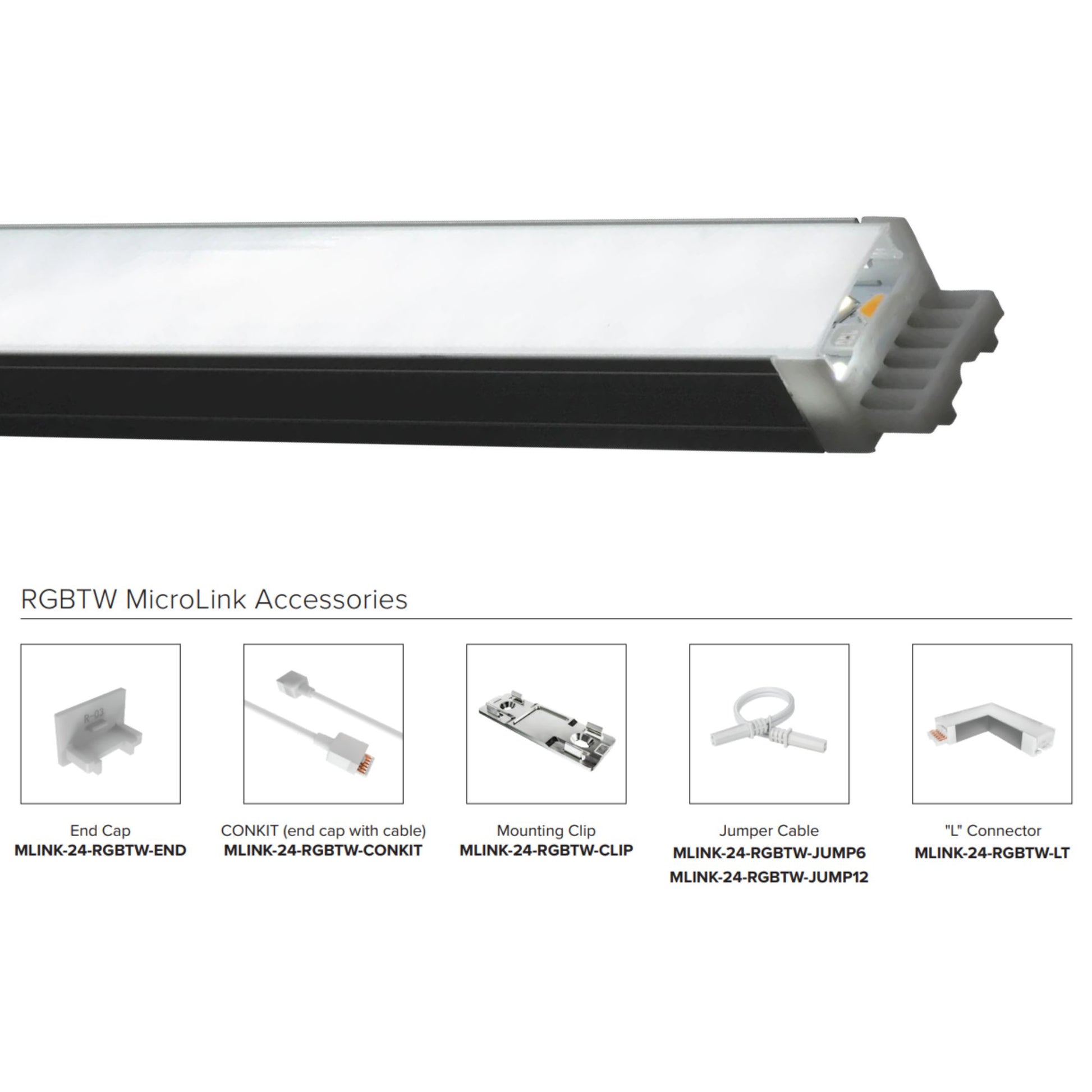

What's Included

• One MLINK-24-RGBTW-CONKIT
• Two MLINK-24-RGBTW-CLIP
• One End cap
