American Lighting Microlink Under Cabinet Light — Aluminum & RGB+Tunable White

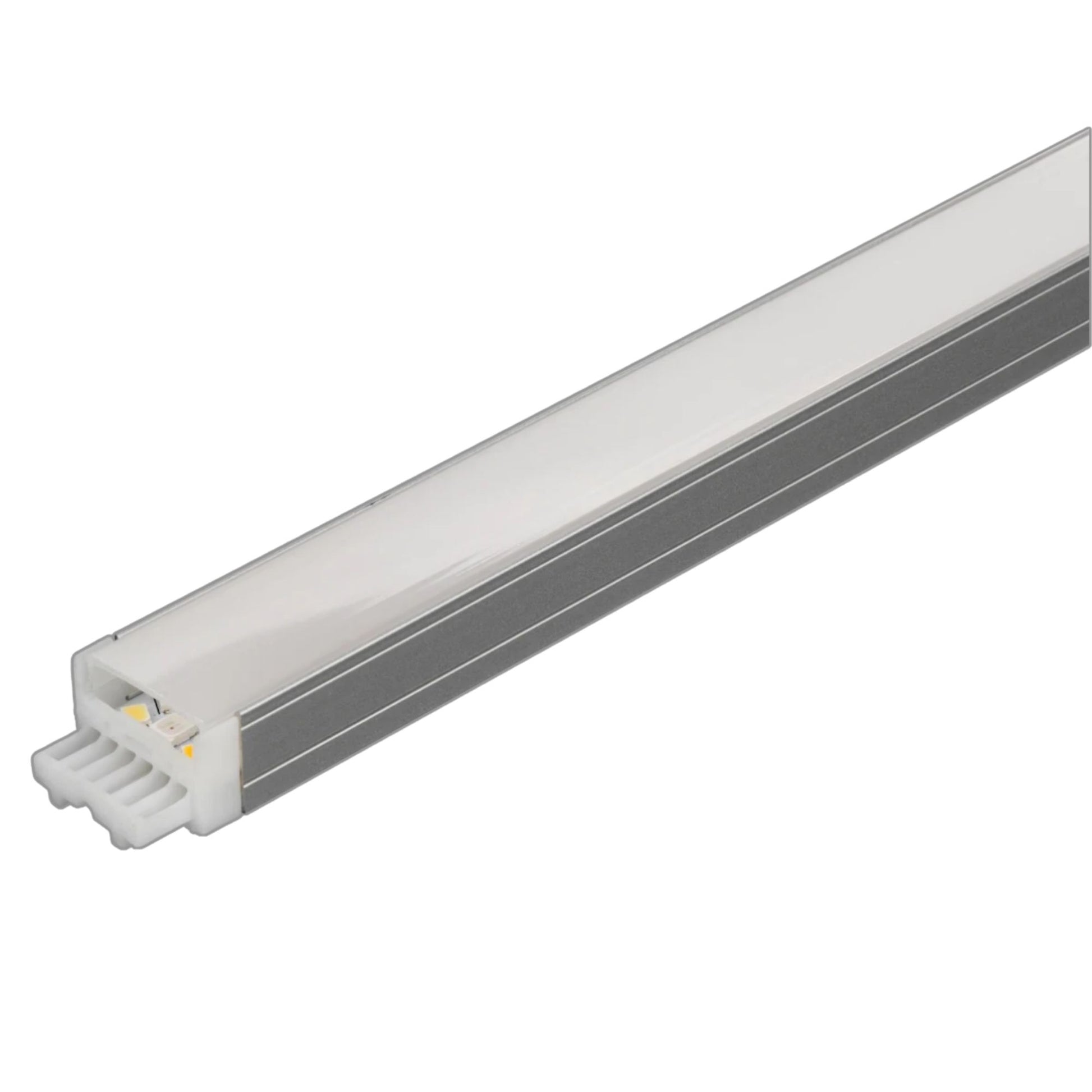

The MLINK-24-RGBTW-12 is an aluminum under cabinet light designed for versatile lighting applications. This fixture features a 12 in. length and operates on 24V DC, providing 256 lumens of illumination with a 7W power consumption. The integrated LED offers RGB+Tunable White color options, allowing for a customizable lighting experience.

Key Features

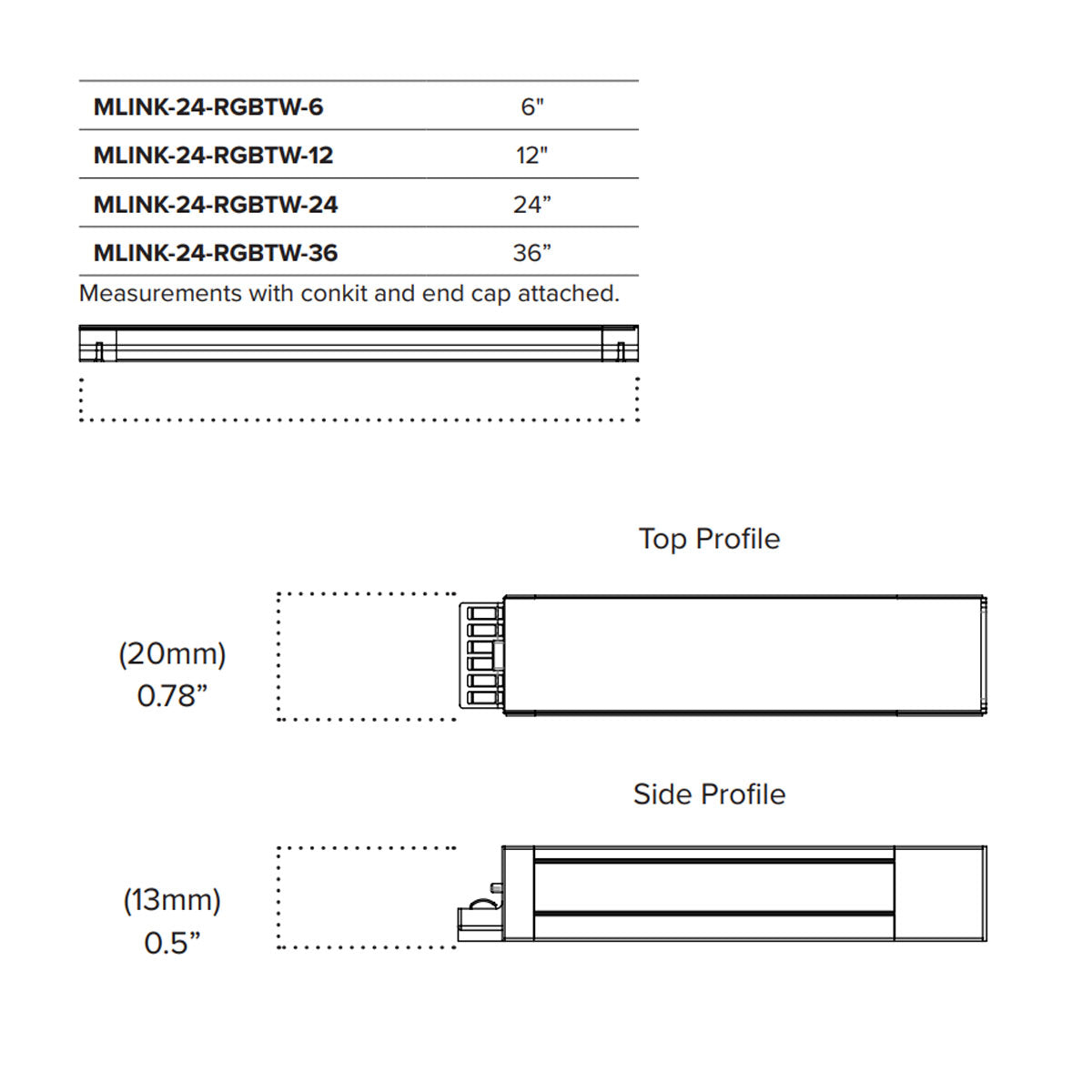

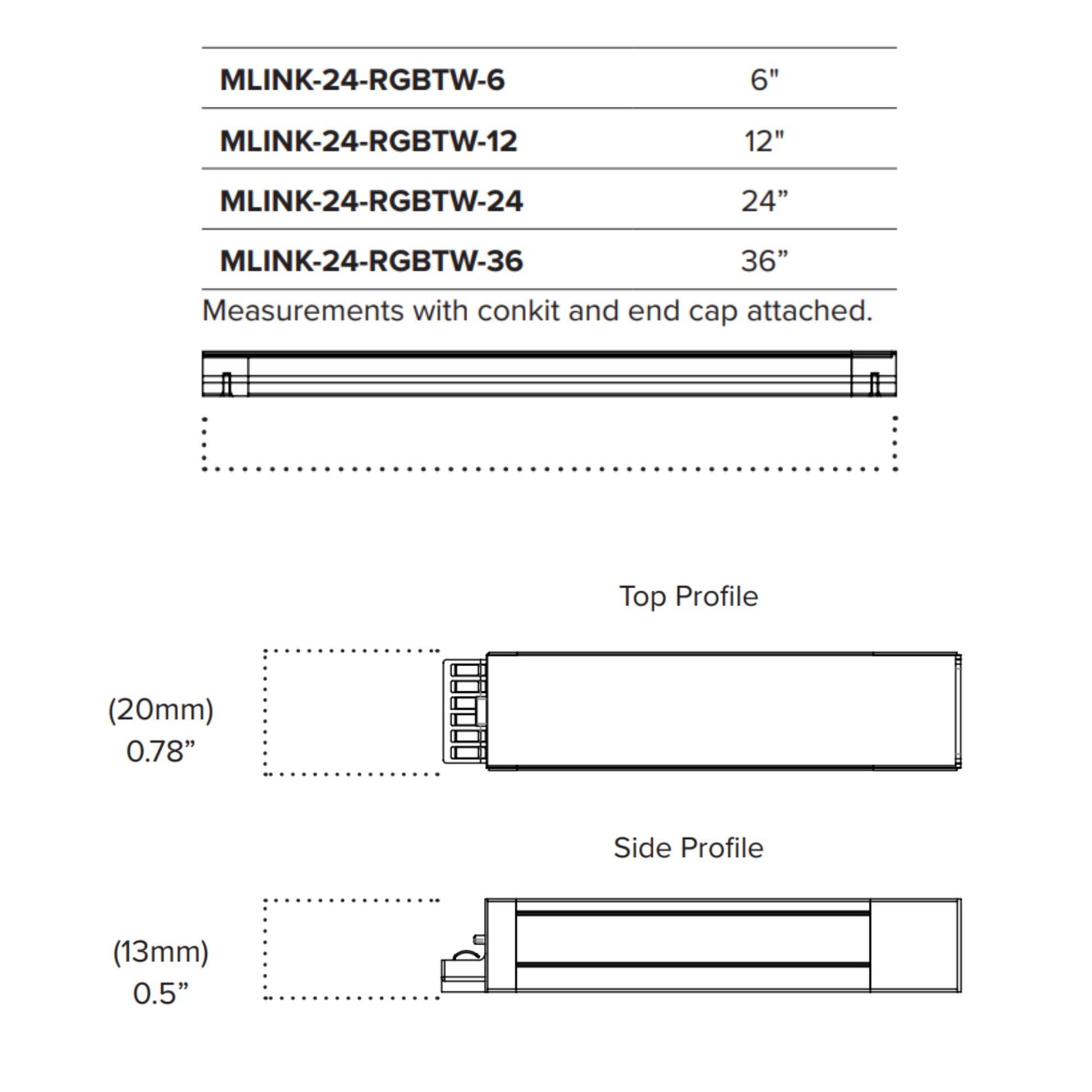

• Dimensions: Measures 12 in. in length, 0.78 in. in width, and 0.5 in. in height.
• Voltage: Operates on 24V DC for low-voltage applications.
• Wattage: Consumes 7 watts of power.
• Lumens: Provides 256 lumens of light output.
• Color Temperature: RGB+Tunable White (2700K-6000K) for diverse lighting needs.
• CRI: 90+ for accurate color rendering in white light mode.
• Lifespan: Rated for 35,000 hours of use.
• Special Features: Includes a diffused lens for smooth light distribution.
• Linkability: Supports up to 16.4ft of continuous run.

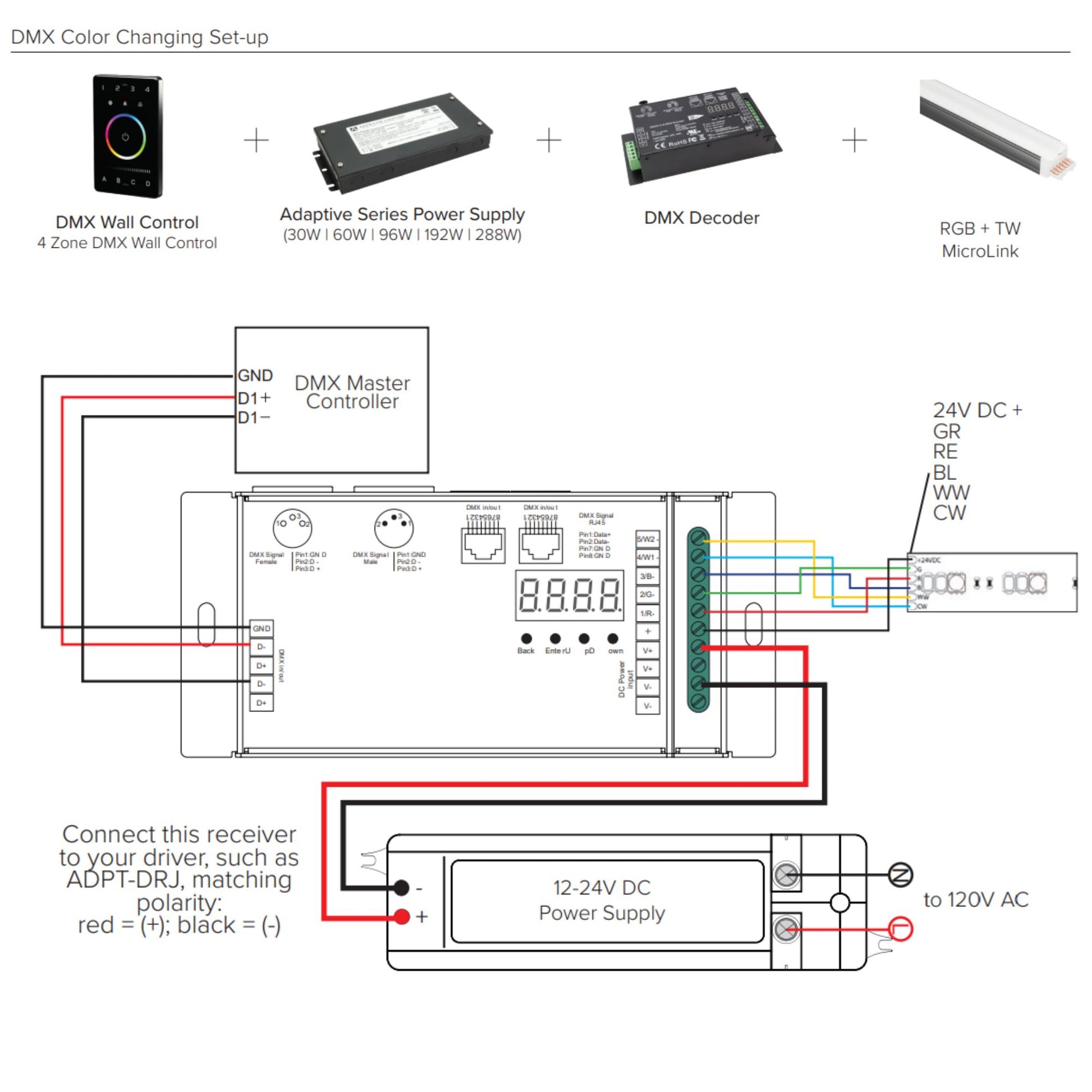

• Dimming: 5-100% dimming via DMX or smart controls.

Core Design & Profile

This fixture features a slim profile with an aluminum finish, suitable for a variety of indoor, dry locations. The diffused lens ensures even light distribution.

LED Illumination & Performance

With 256 lumens and a 7W power consumption, this fixture offers efficient lighting. The RGB+Tunable White capability allows for a wide range of color temperatures from 2700K to 6000K.

Power, Wiring & Linkability

The fixture operates on 24V DC and is designed for plug-and-play installation. It supports up to 16.4ft of linkable runs, making it ideal for extended applications.

Where This Fixture Works Best

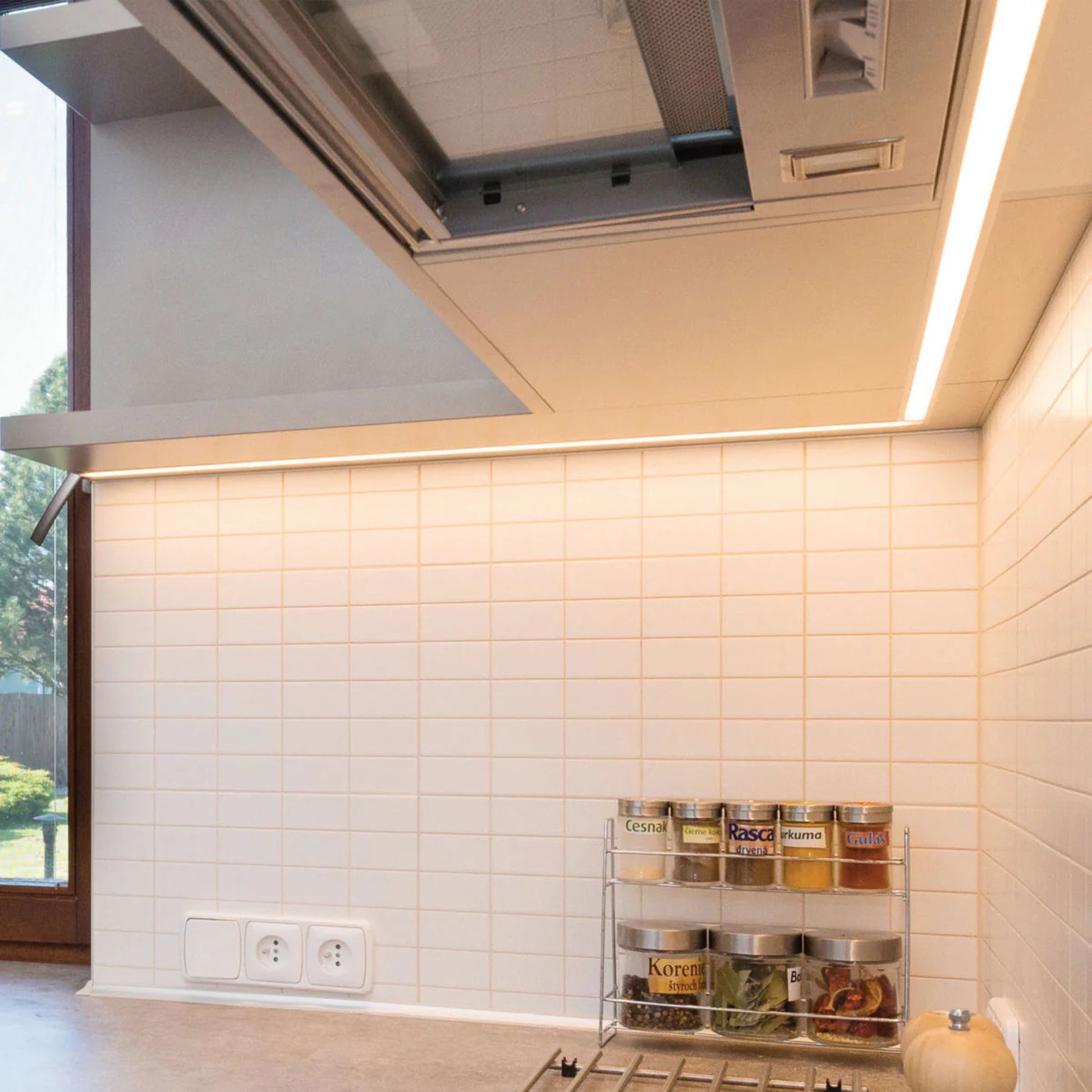

• Under kitchen cabinets
• Office task lighting
• Retail display shelves
• Workshop benches
• Accent lighting in living spaces

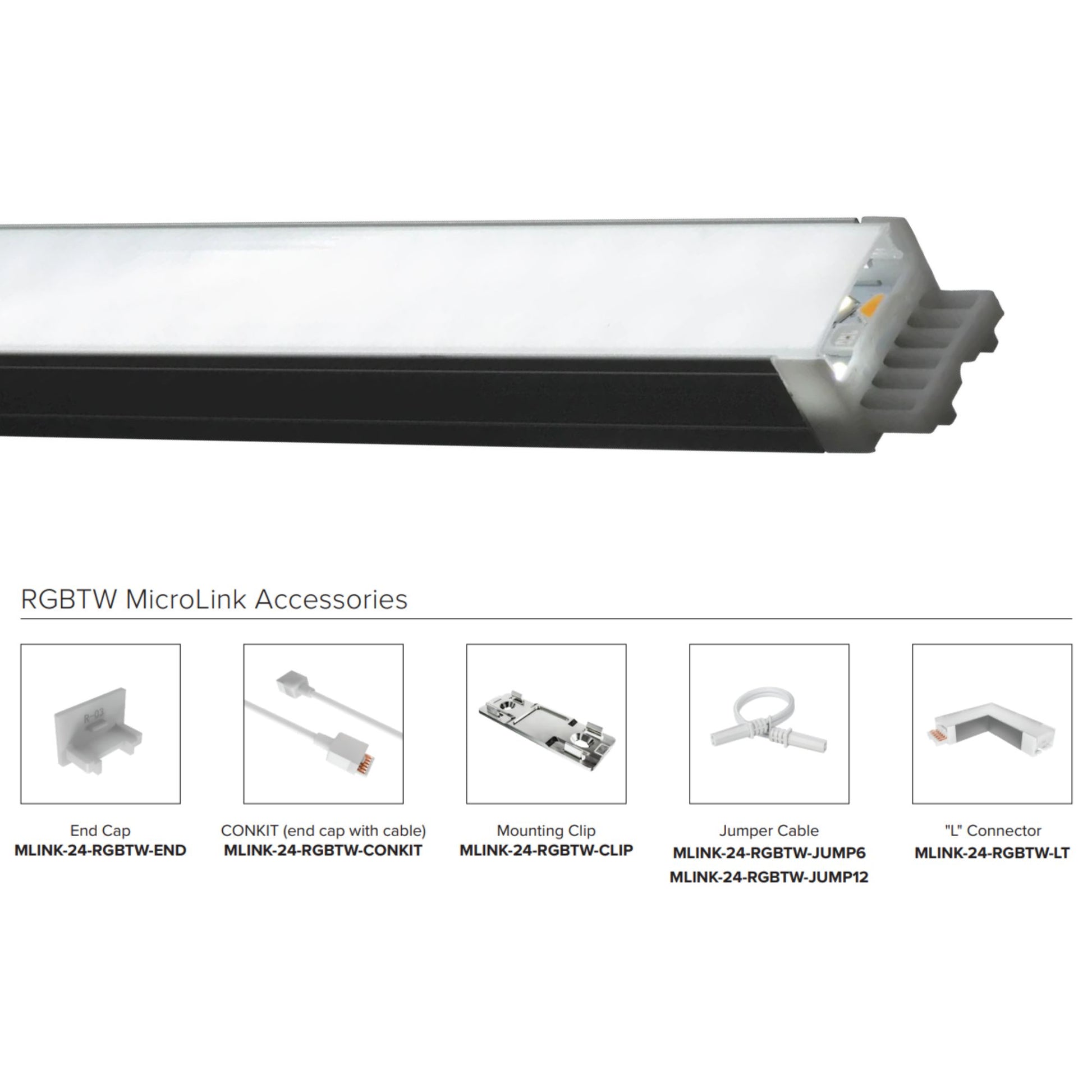

What's Included

• 1 x MLINK-24-RGBTW-CONKIT
• 2 x MLINK-24-RGBTW-CLIP
• 1 x End cap
