American Lighting Minuet 6×6 Top-Bend LED Neon Strip, 3000K Soft White, 16.4 ft (5 m)
Available in stock (361)
About this item
About this item

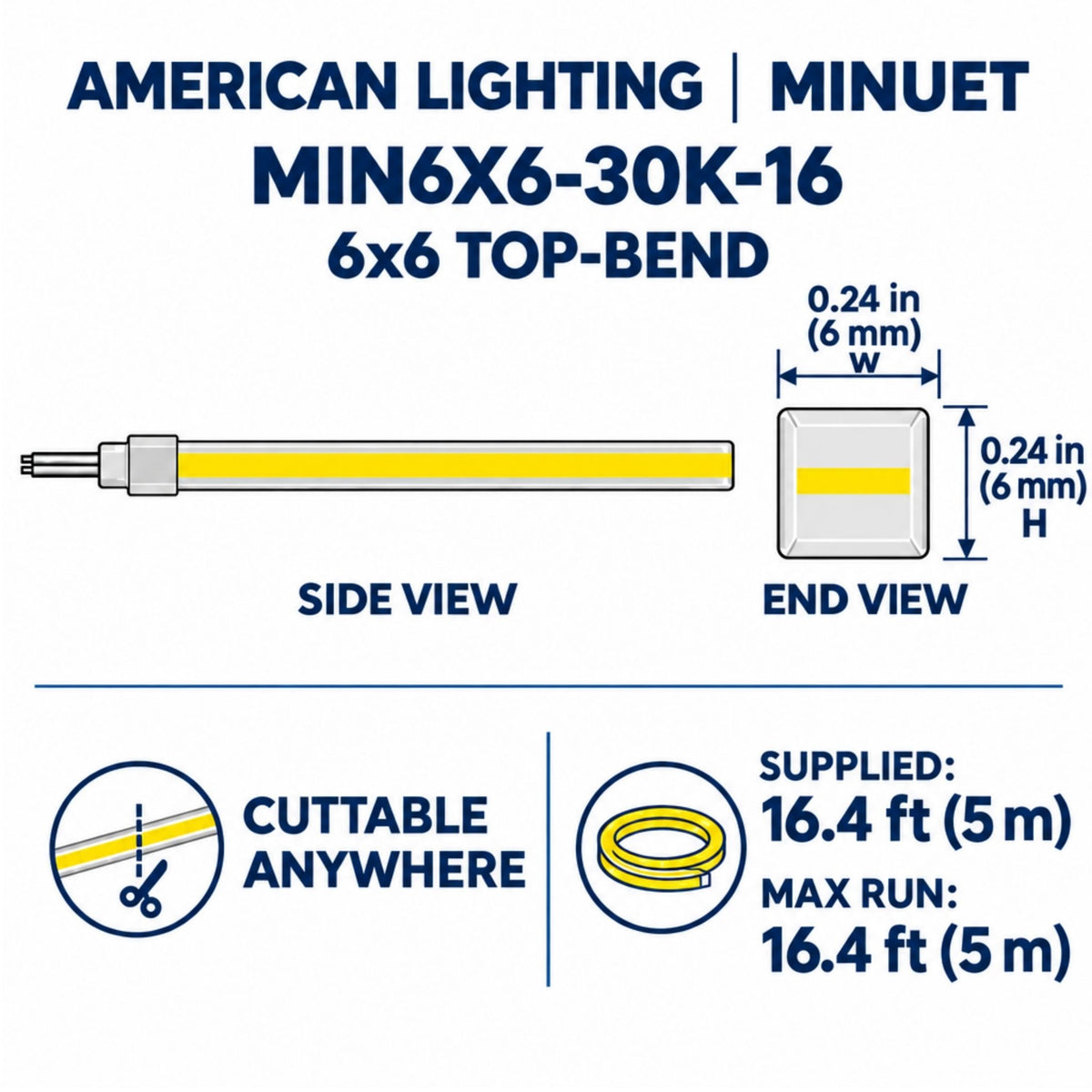

- 6×6 mm top-bend profile in 3000K soft white.
- 165 lumens per foot; 2.43W per foot.
- 16.4 ft (5 m) supplied length with a 16.4 ft maximum run.
- 24V DC with 5–100% TRIAC/ELV/CL dimming specified.
- cULus wet-location listed, IP67 uncut; IP65 after field cutting.
We process payments securely and do not store credit card information.
Description
Description
American Lighting Minuet 6×6 Top-Bend LED Neon Strip, 3000K Soft White, 16.4 ft (5 m)

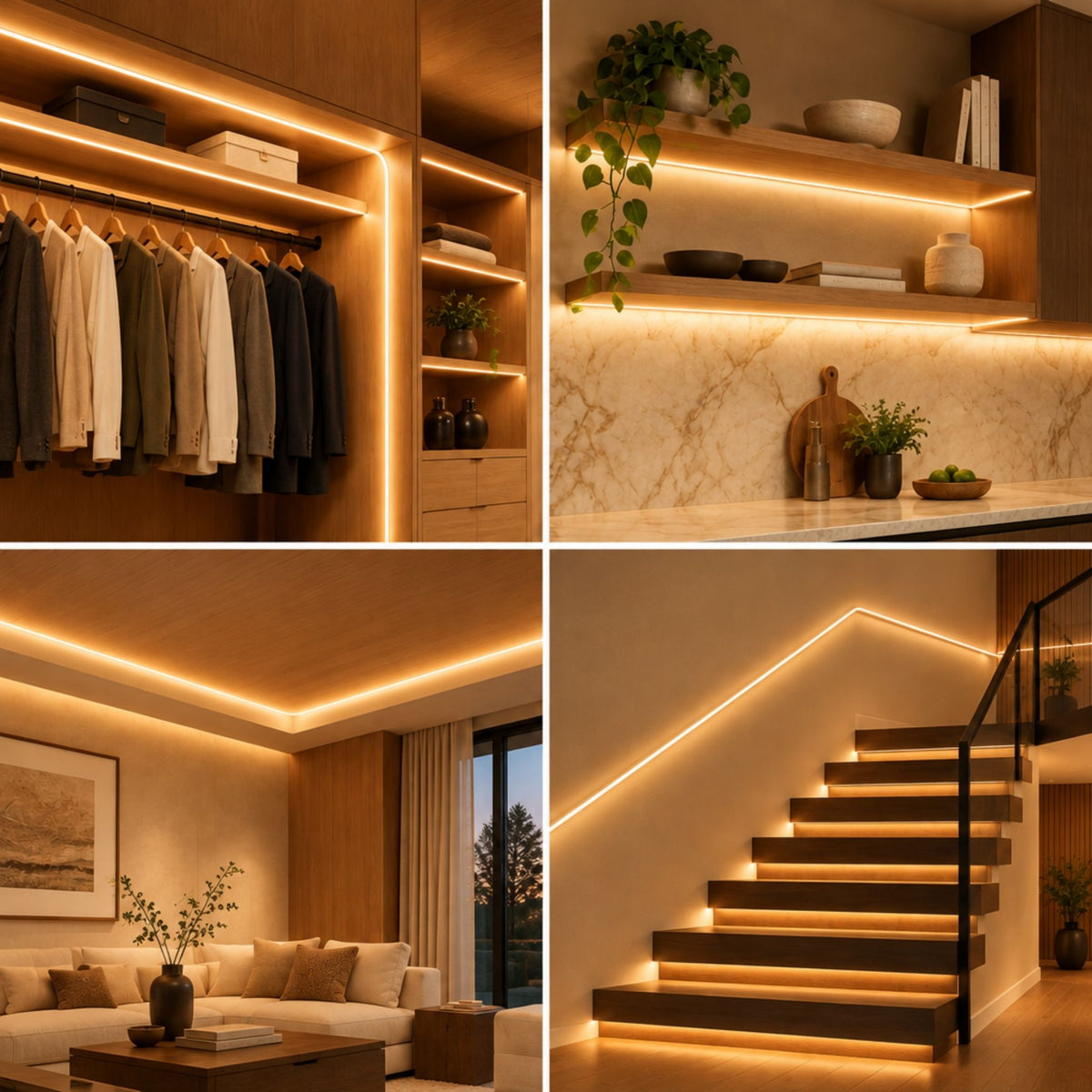

Bring soft, even illumination to cabinetry, coves, woodwork, frames, bars, or rails with this flexible American Lighting Minuet neon strip. This is the 6×6 mm top-bend profile in 3000K soft white.
Performance
- 3000K soft white; 165 lumens per foot.
- 16.4 ft (5 m) supplied length; maximum run 16.4 ft (5 m).
- 24V DC, 2.43W per foot, 120° beam angle.
- Cuttable anywhere; listed dimming range is 5–100% with TRIAC, ELV, or CL dimmers.

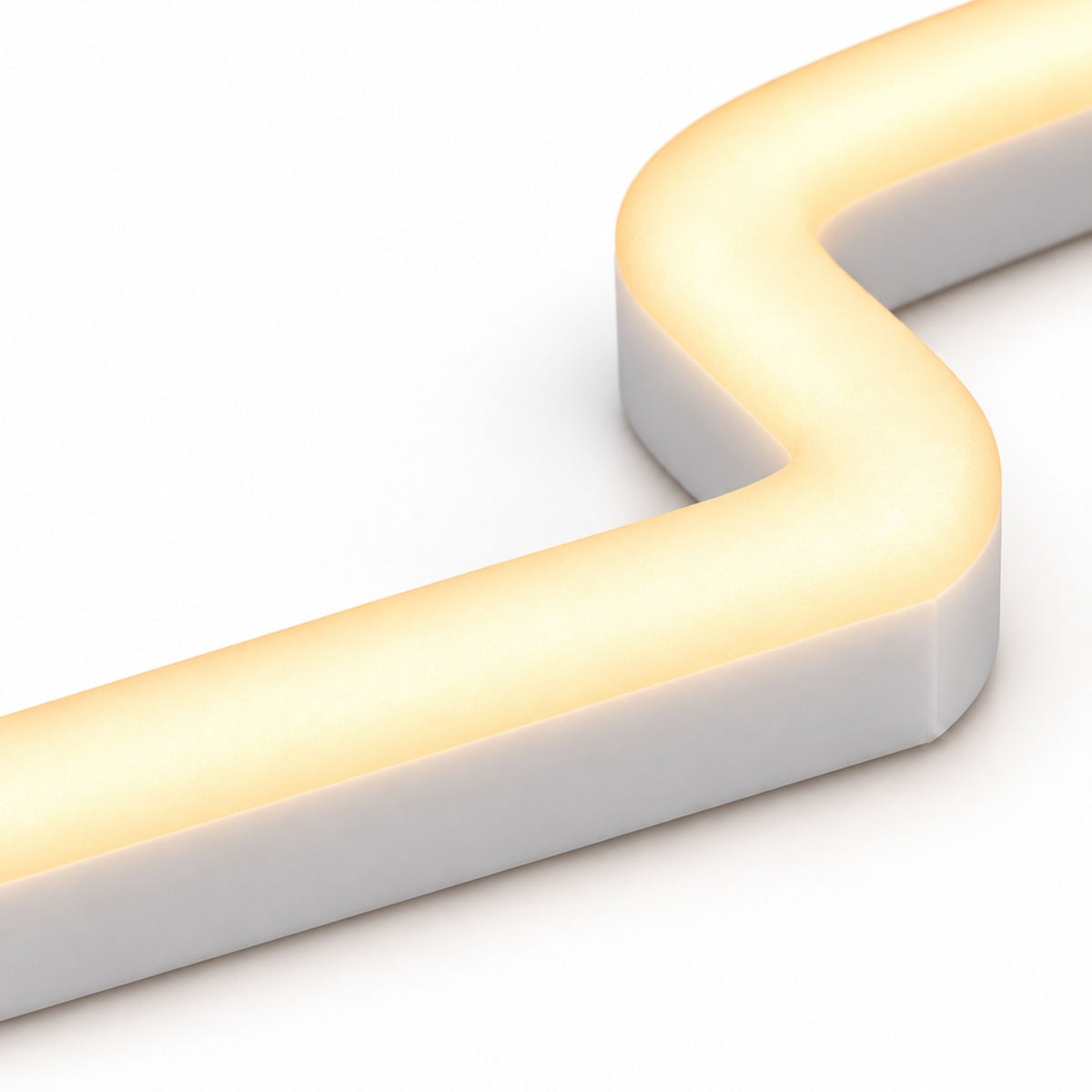

- Listed bending radius: 2.36 in (60 mm).
Location and safety
The spec sheet lists cULus wet-location suitability and IP67. It states that field cutting reduces the rating to IP65. Do not install in inclement weather or extreme conditions, including −25°C (−13°F) and below. Closet use is subject to the cited NFPA 70 / NEC provisions; confirm code requirements for your project.
Power and package details

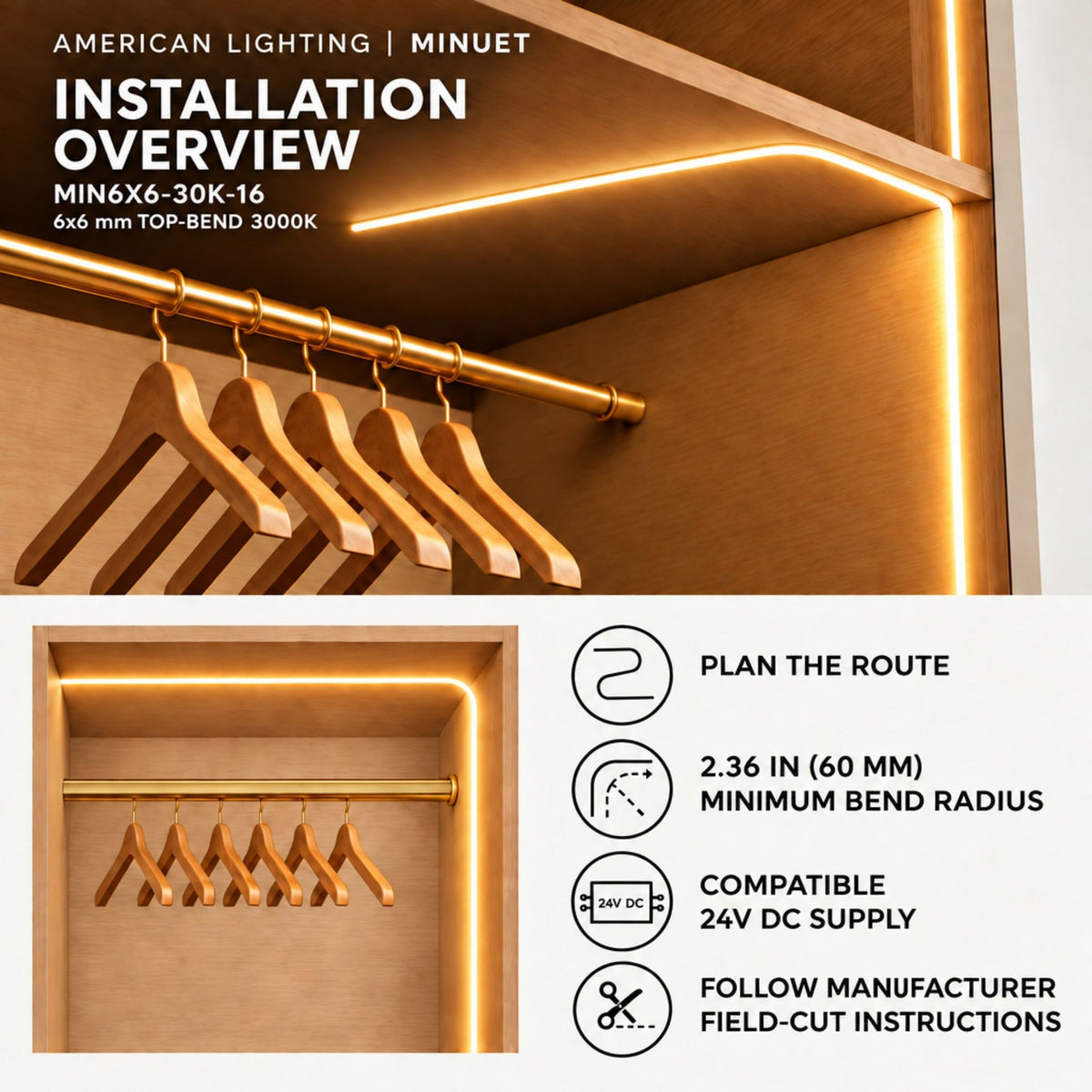

Requires a compatible 24V DC power supply. The manufacturer sheet lists recommended supplies and states that each neon includes a 6 ft lead wire and a 6 ft tail wire. Mounting channels, raceway, splice terminal block, and power supplies are also listed as accessories; confirm package contents for this item. Follow the manufacturer's installation and field-cut instructions.
More specifications
- Operating temperature: −40°C to 55°C (−40°F to 131°F).
- Rated life: 50,000 hours; RoHS compliant.
