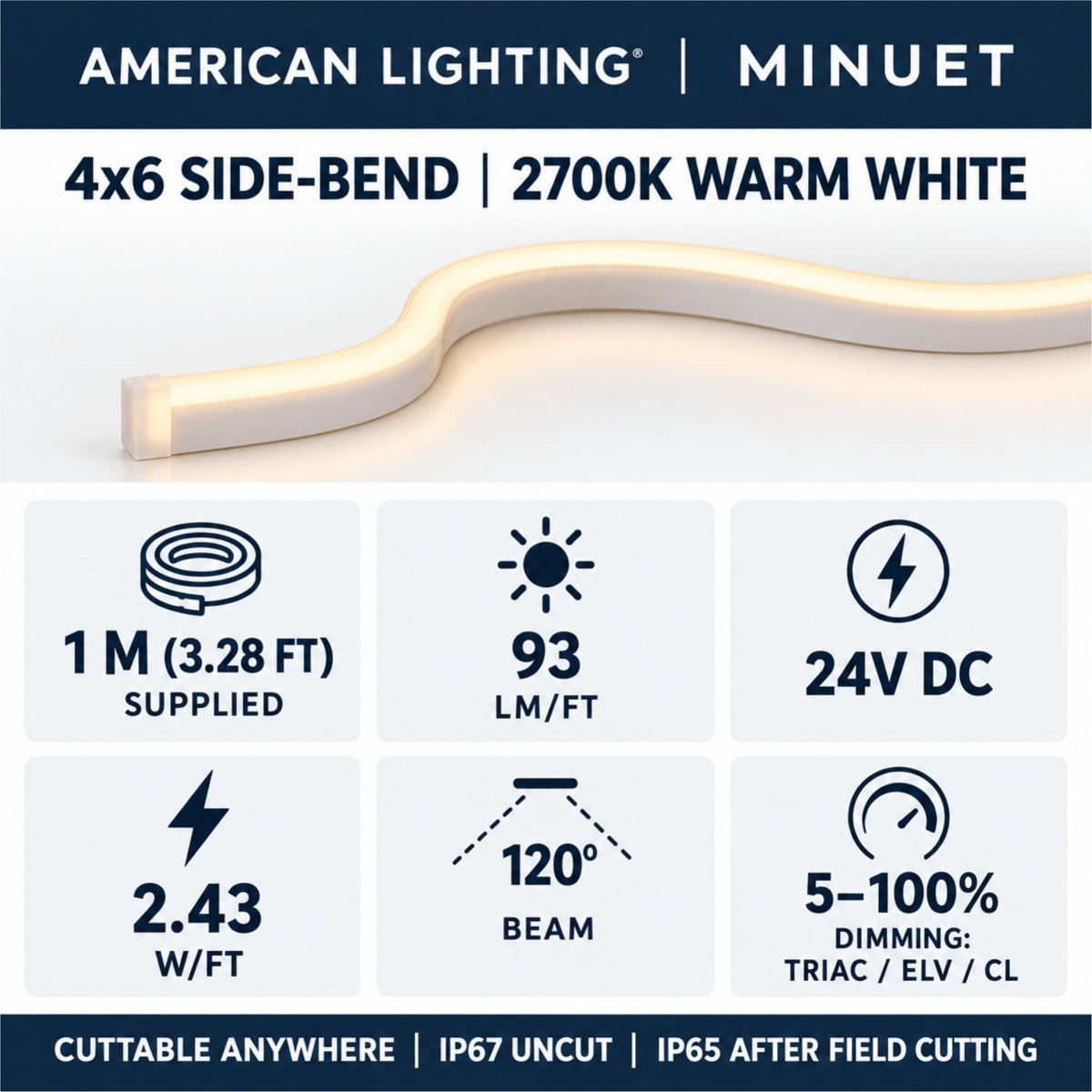

American Lighting Minuet 4×6 Side-Bend LED Neon Strip, 2700K Warm White, 3.28 ft (1 m)
Available in stock (62)
About this item
About this item

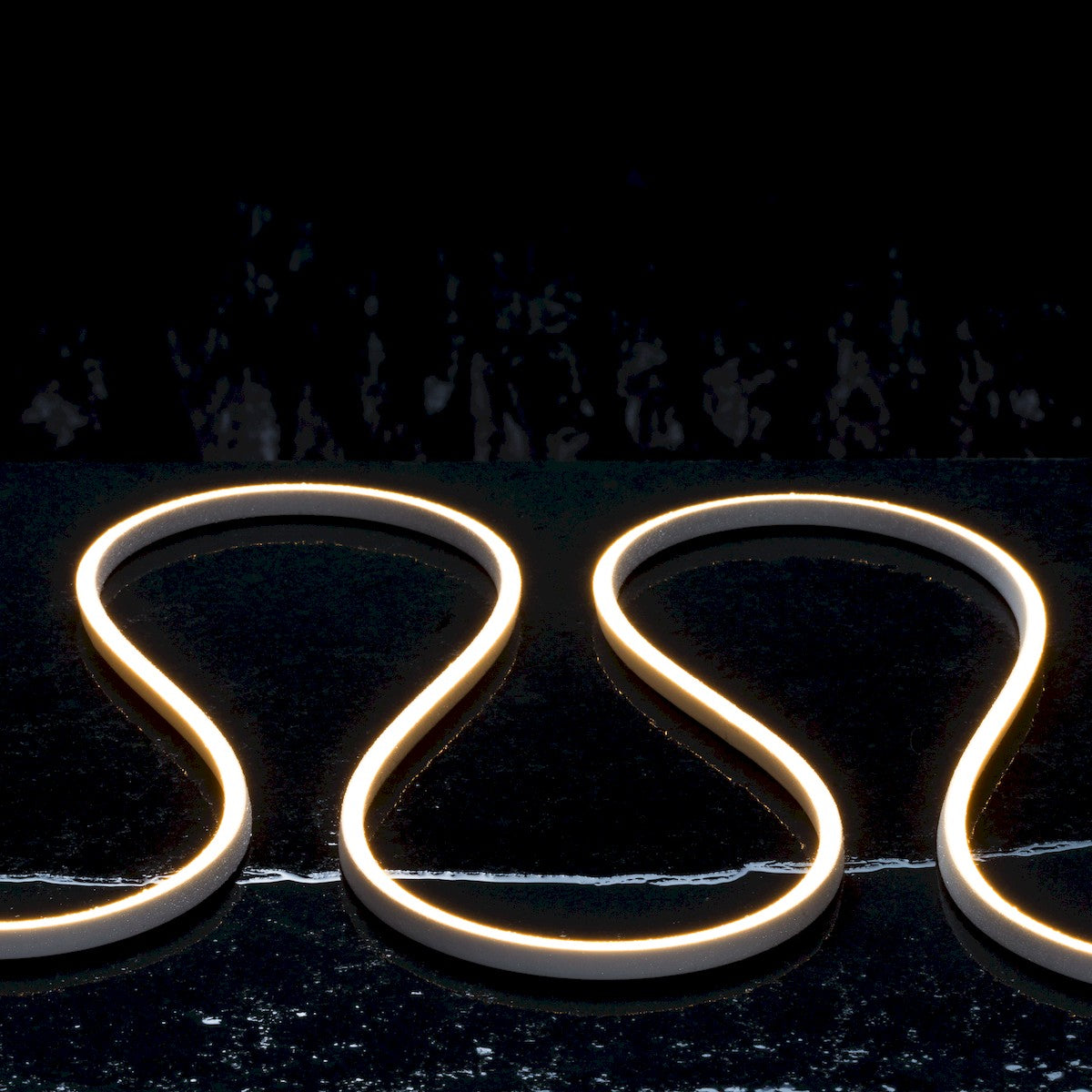

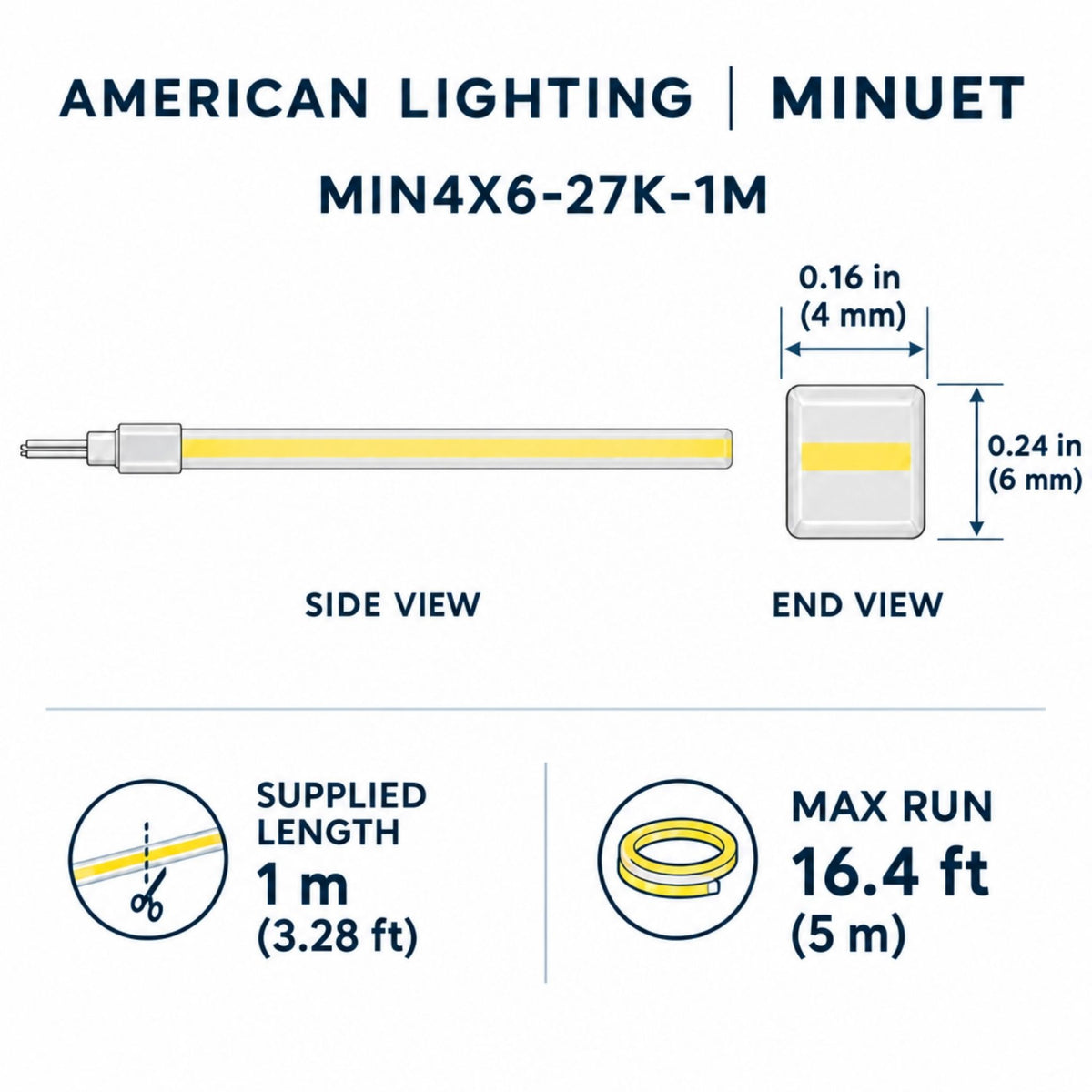

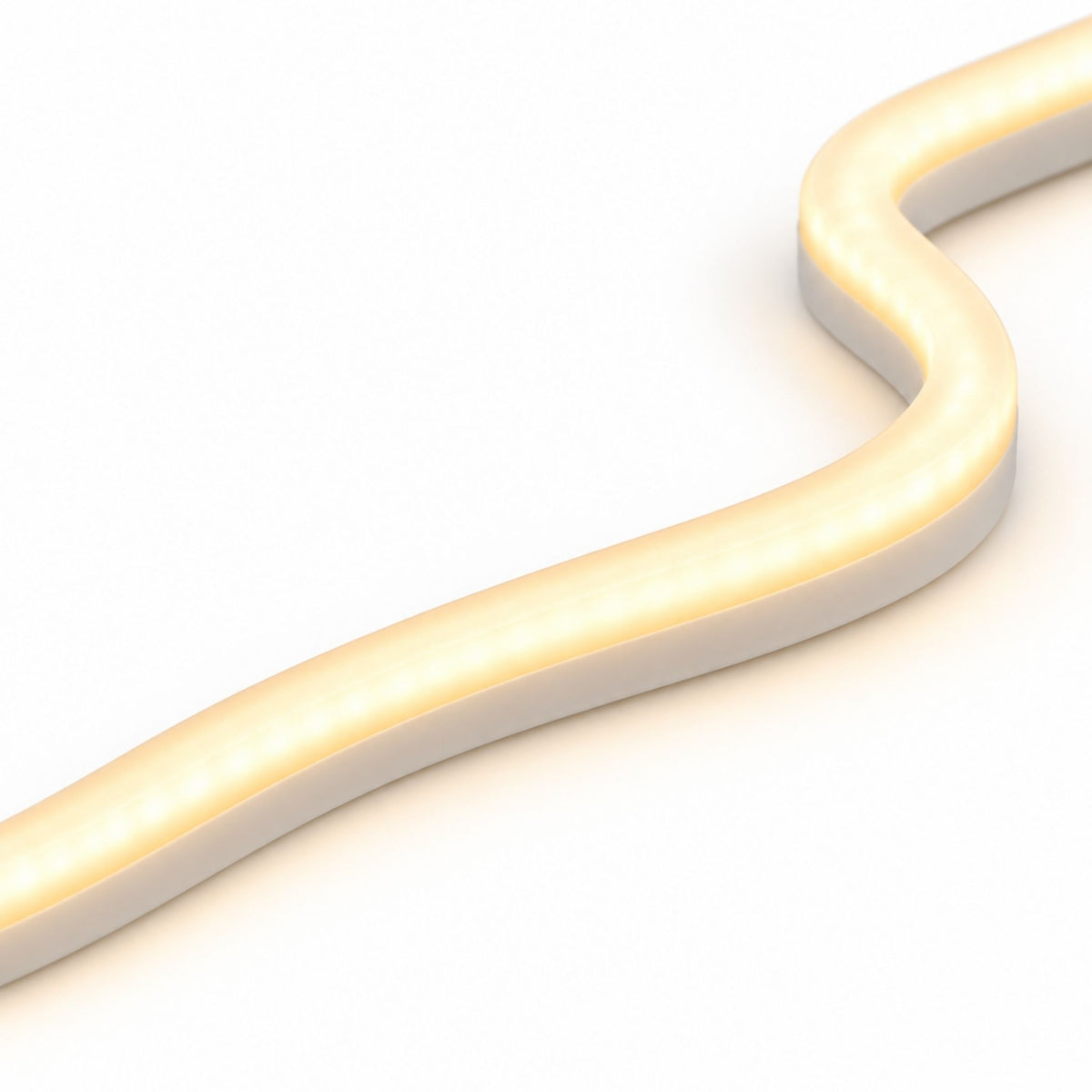

- 4×6 mm side-bend profile creates a slim, flexible line of light.
- 2700K warm white output at 93 lumens per foot.
- 3.28 ft (1 m) supplied length; up to 16.4 ft maximum run.
- 24V DC, 2.43W/ft, and 5–100% TRIAC/ELV/CL dimming specified.
- cULus wet-location listed, IP67 uncut; IP65 after field cutting.
We process payments securely and do not store credit card information.
Description
Description
American Lighting Minuet 4×6 Side-Bend LED Neon Strip, 2700K Warm White, 3.28 ft (1 m)

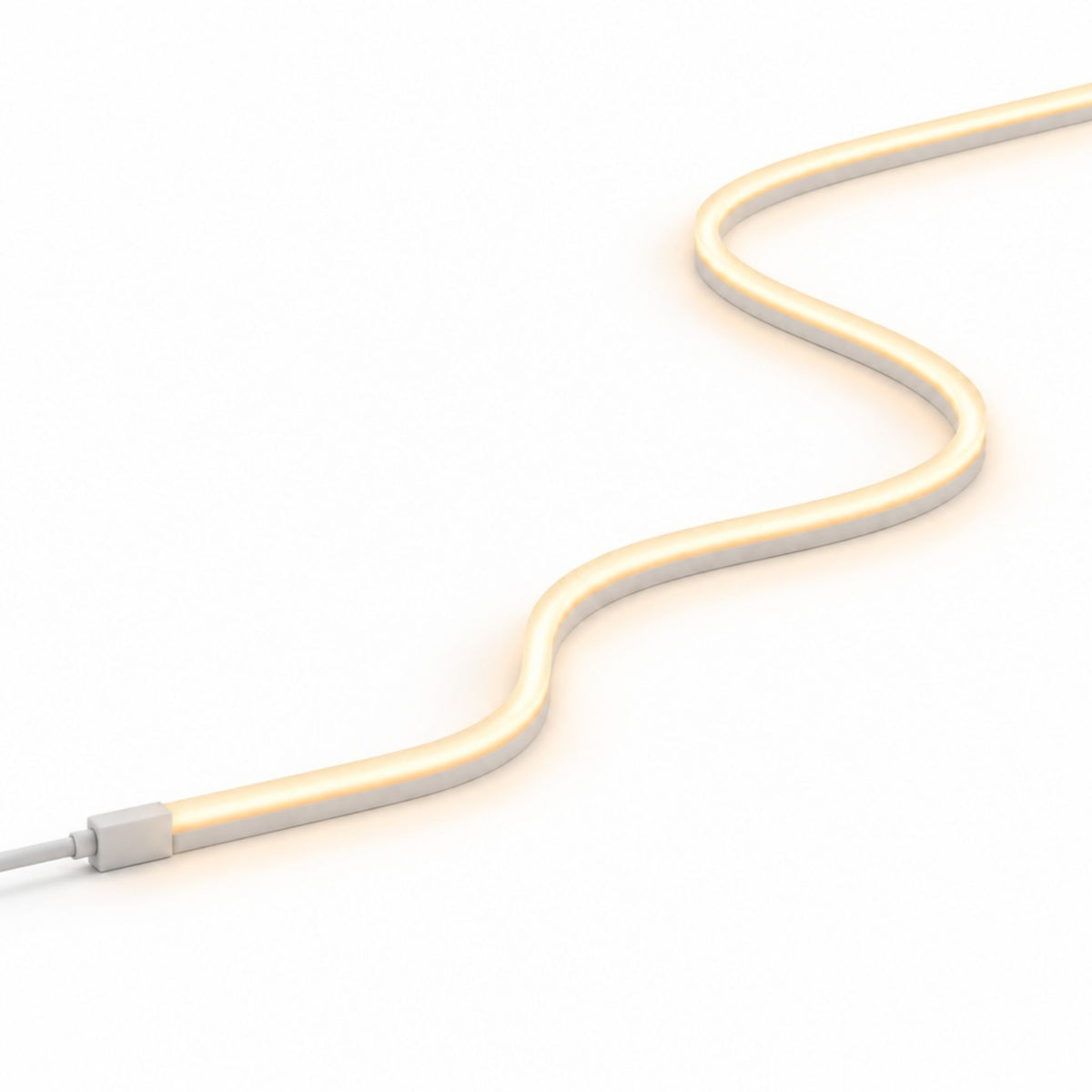

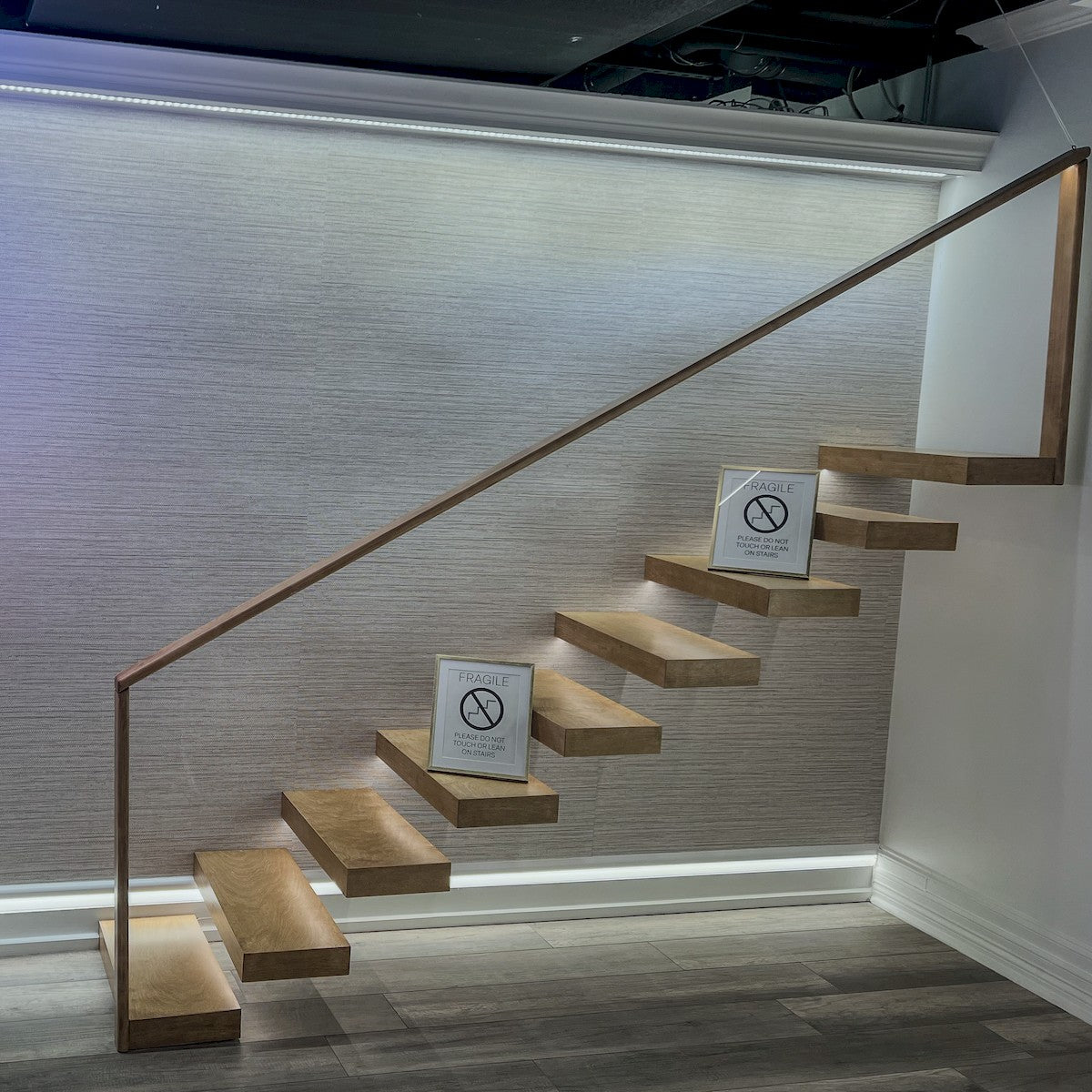

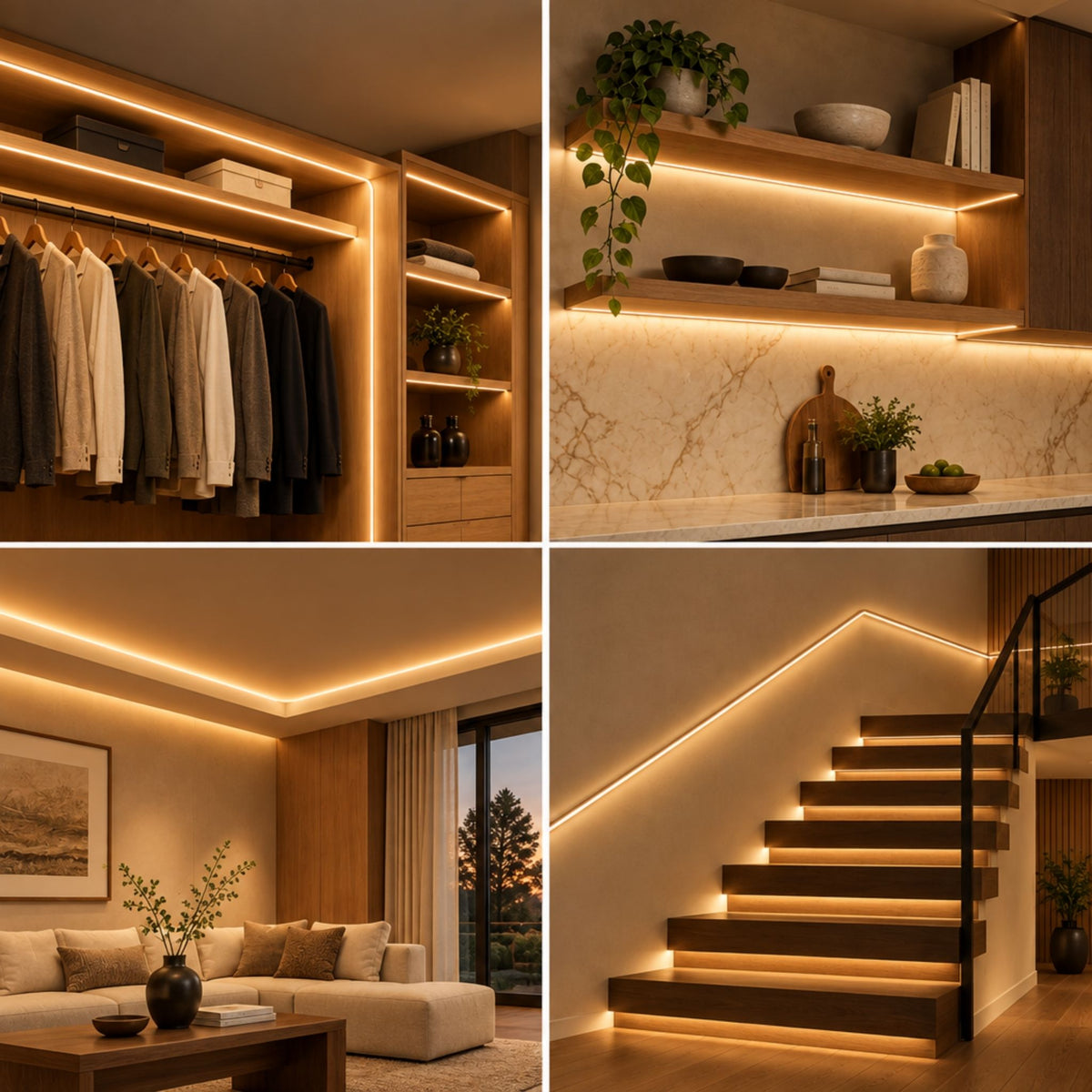

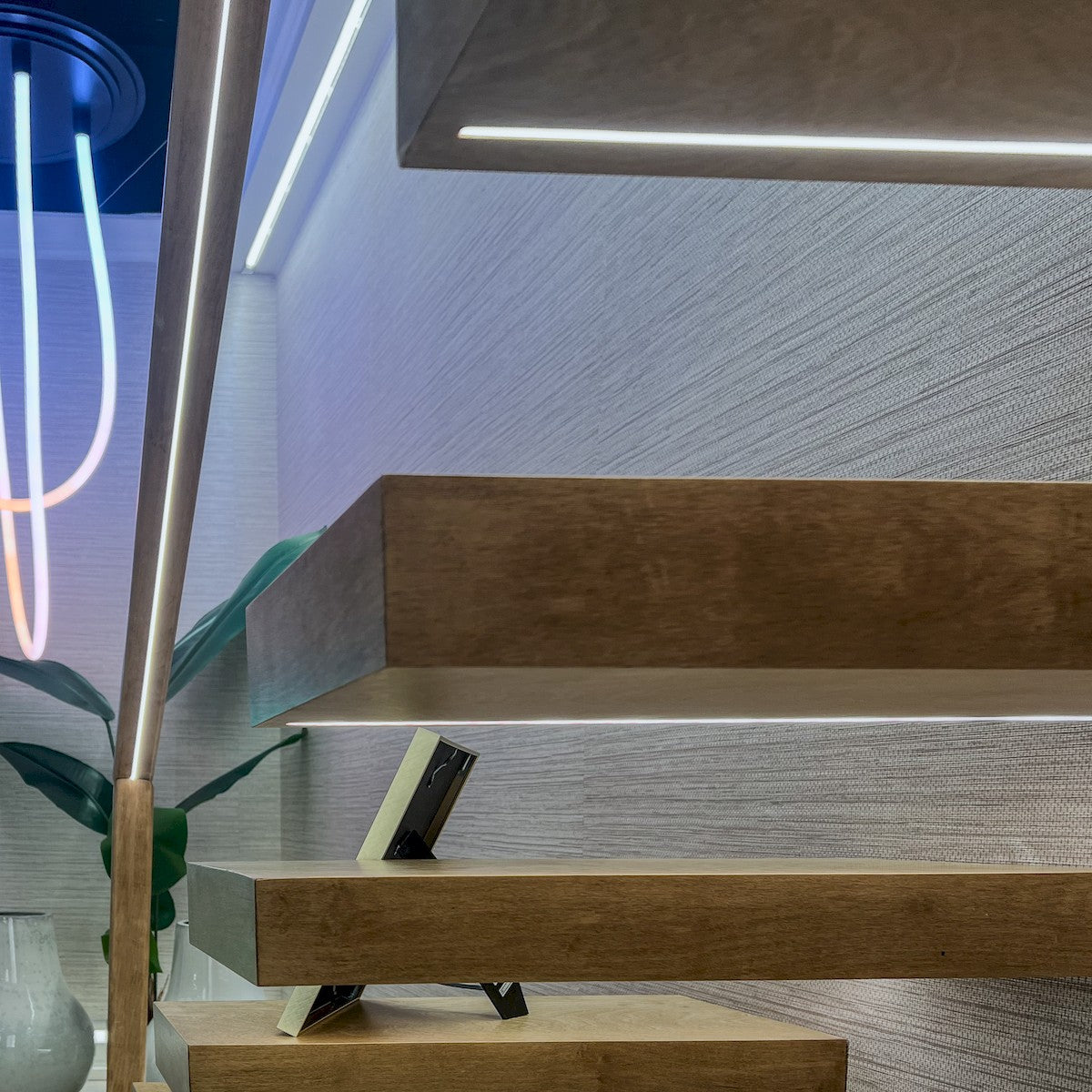

Bring a warm, evenly diffused line of light to cabinetry, coves, woodwork, frames, bars, or rails with this flexible American Lighting Minuet neon strip. This item is the 4×6 mm side-bend profile in 2700K warm white.
Performance
- 2700K warm white; 93 lumens per foot.
- 3.28 ft (1 m) supplied length; maximum run 16.4 ft (5 m).
- 24V DC, 2.43W per foot, 120° beam angle.
- Cuttable anywhere; listed dimming range is 5–100% with TRIAC, ELV, or CL dimmers.

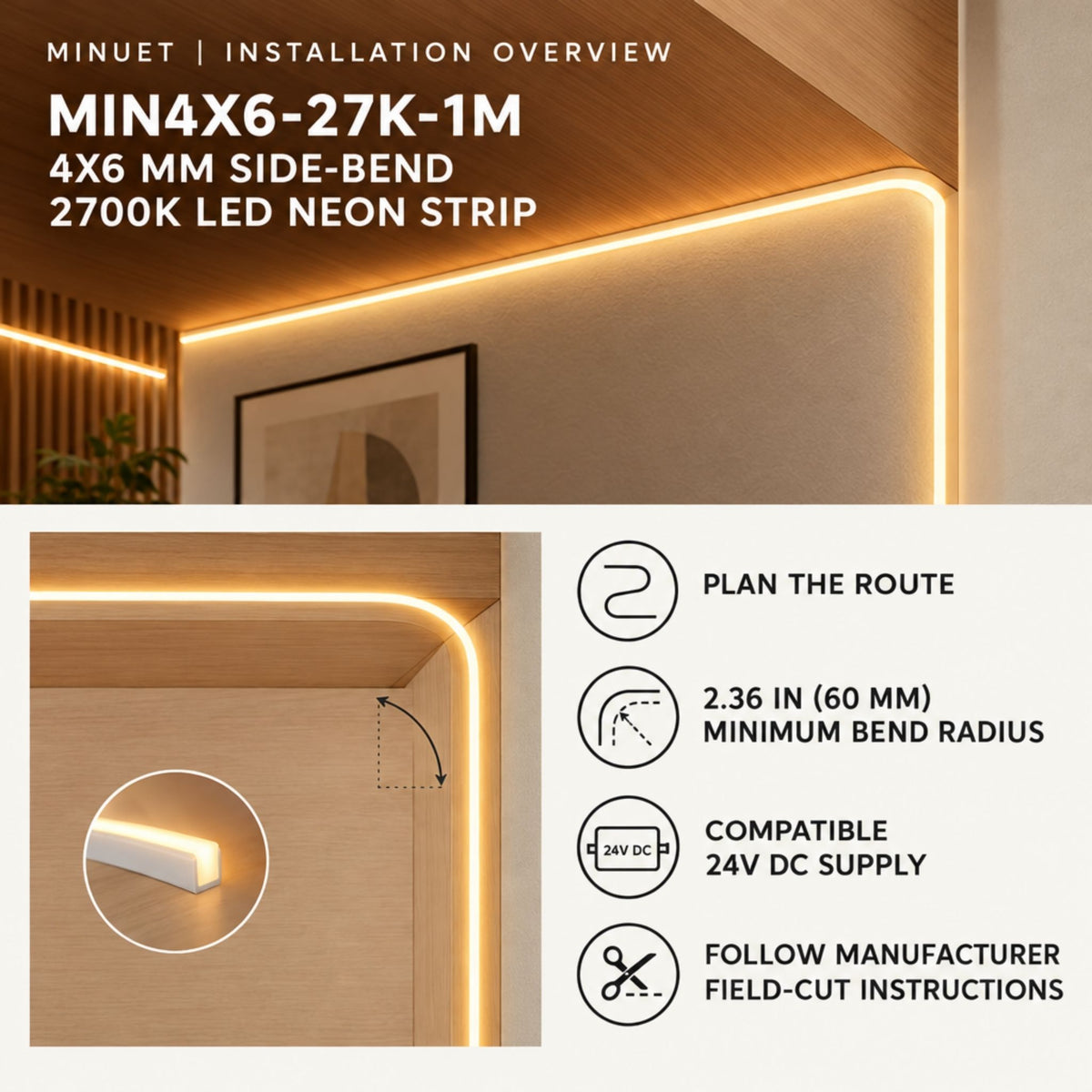

- Listed bending radius: 2.36 in (60 mm).
Location and safety
The spec sheet lists cULus wet-location suitability and IP67. It states that field cutting reduces the rating to IP65. Do not install in inclement weather or extreme conditions, including −25°C (−13°F) and below. Closet use is subject to the cited NFPA 70 / NEC provisions; confirm code requirements for your project.
Power and package details
Requires a compatible 24V DC power supply. The manufacturer sheet lists recommended supplies and states that each neon includes a 6 ft lead wire and a 6 ft tail wire. Mounting channels, raceway, splice terminal block, and power supplies are also listed as accessories; confirm package contents for this item. Follow the manufacturer's installation and field-cut instructions.
More specifications
- Operating temperature: −40°C to 55°C (−40°F to 131°F).
- Rated life: 50,000 hours; RoHS compliant.
