Micro DR 60W LED Driver 12V DC, Dimmable, 120-277V
Out of stock
About this item
About this item
- Output Power: Provides a reliable 12V DC output at 60W, ideal for LED lighting applications.
- Dimming Capability: Features dimming functionality for customizable lighting levels.
- Input Voltage: Operates efficiently across a wide range of 120-277V input voltages.
- Compact Design: Features a sleek, space-saving design ideal for tight installations.
- Class 2 Rating: Ensures safe operation with Class 2 compliance for indoor use.
We process payments securely and do not store credit card information.
Description
Description

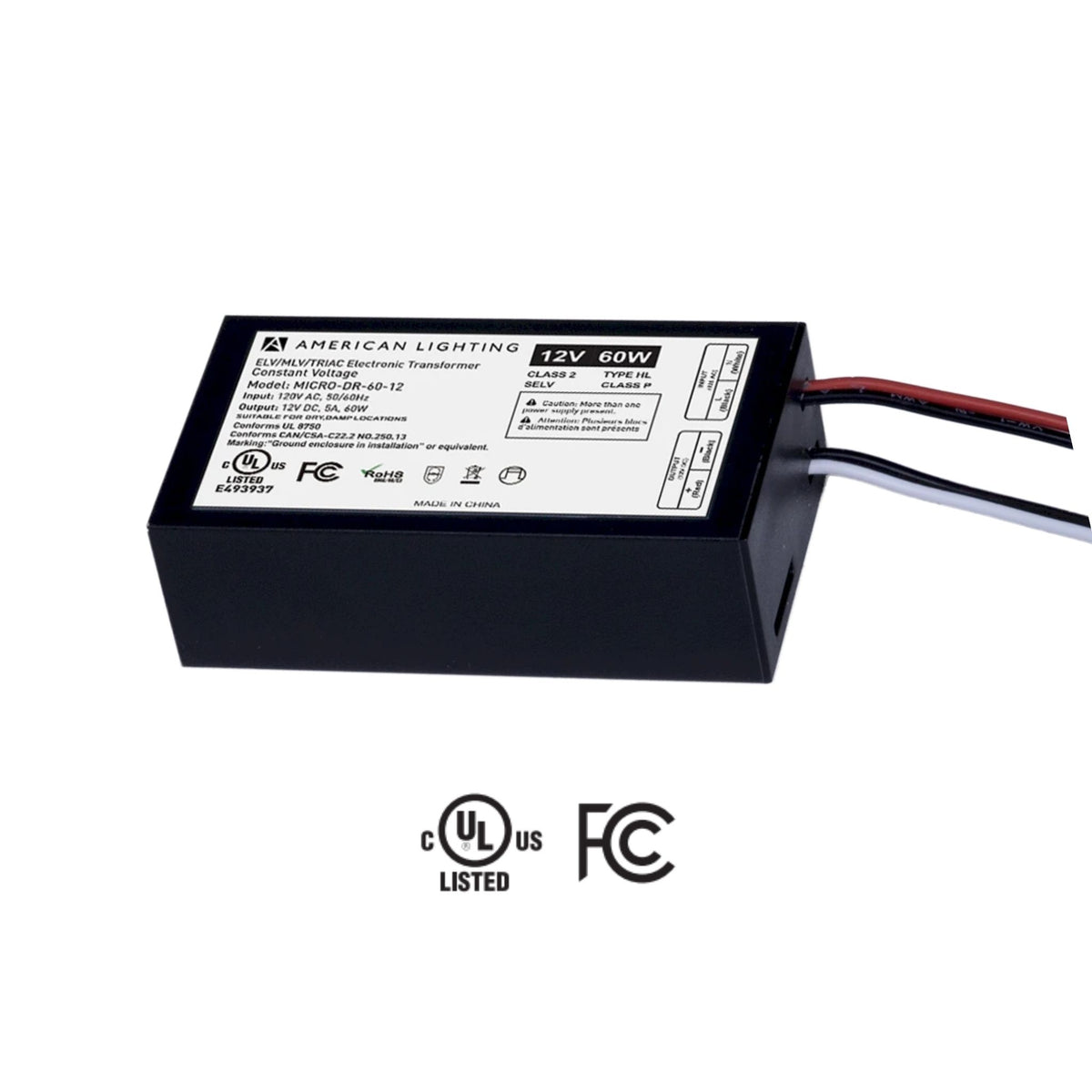

Micro DR MICRO-DR-60-12 60W LED Driver — 12V DC
The Micro DR MICRO-DR-60-12 is a versatile 60W LED Driver designed to deliver a consistent 12V DC output. With its wide input voltage range of 120-277V, this driver is ideal for various LED lighting applications. It features Constant Voltage output and supports dimming for enhanced lighting control. The driver is Class 2 rated and features a compact design, ensuring easy integration into any project.
Key Features
- Power Output: Delivers a stable 60W power output for LED systems.
- Output Voltage: Provides a 12V DC output suitable for LED applications.
- Dimming Functionality: Supports dimming for adjustable lighting levels.
- Input Voltage Range: Compatible with 120-277V AC input for flexible installation.

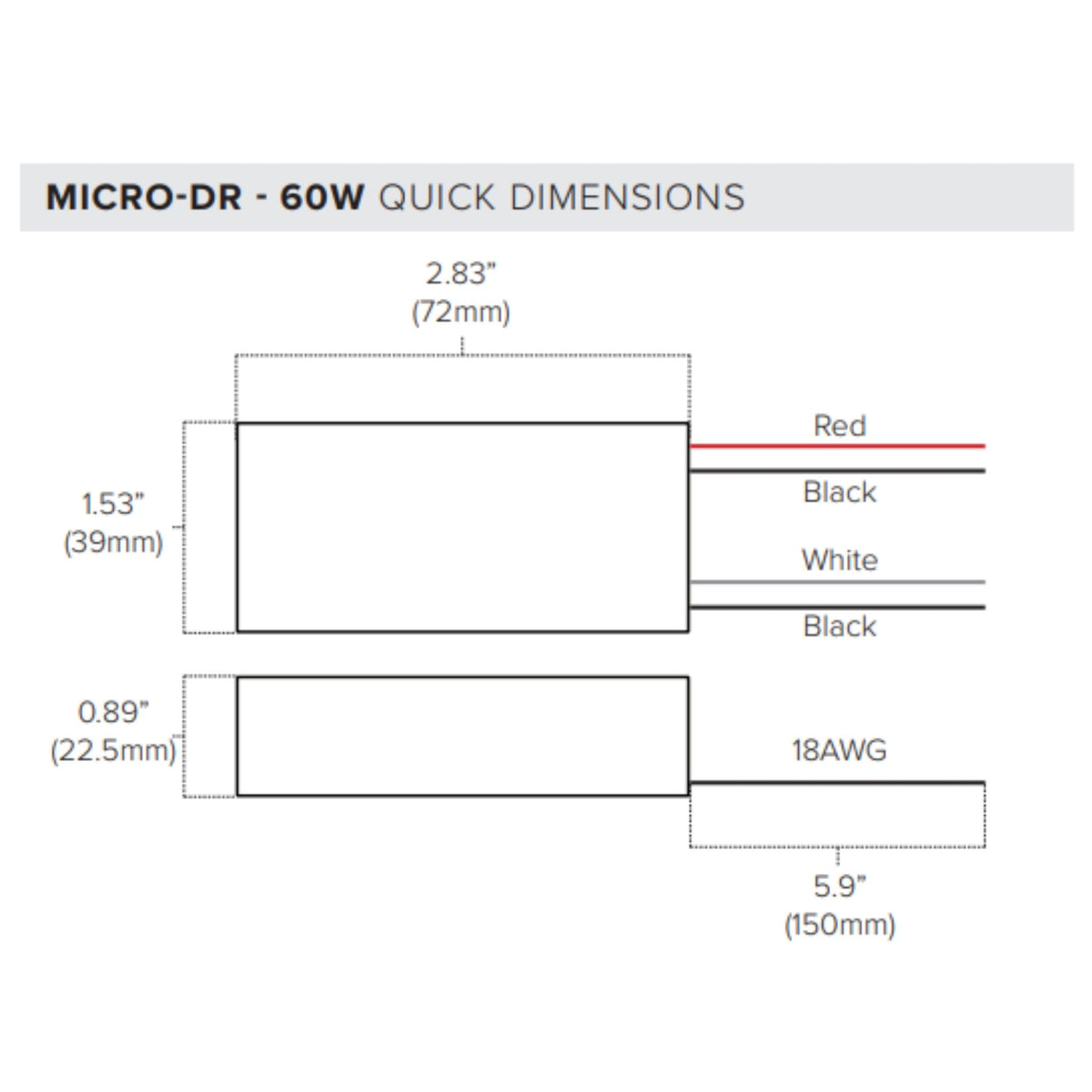

- Dimensions: Compact size of 2.83 in. L x 1.53 in. W x 0.89 in. H for easy integration.
- Enclosure Type: Compact design suitable for indoor use.
- Class 2 Compliance: Ensures safety with Class 2 rating for indoor use.
- Certifications: Meets industry standards for performance and safety.
Physical Design & Installation
The driver features a compact design, making it ideal for installations where space is limited. It is designed for indoor use, ensuring easy integration into various lighting projects.

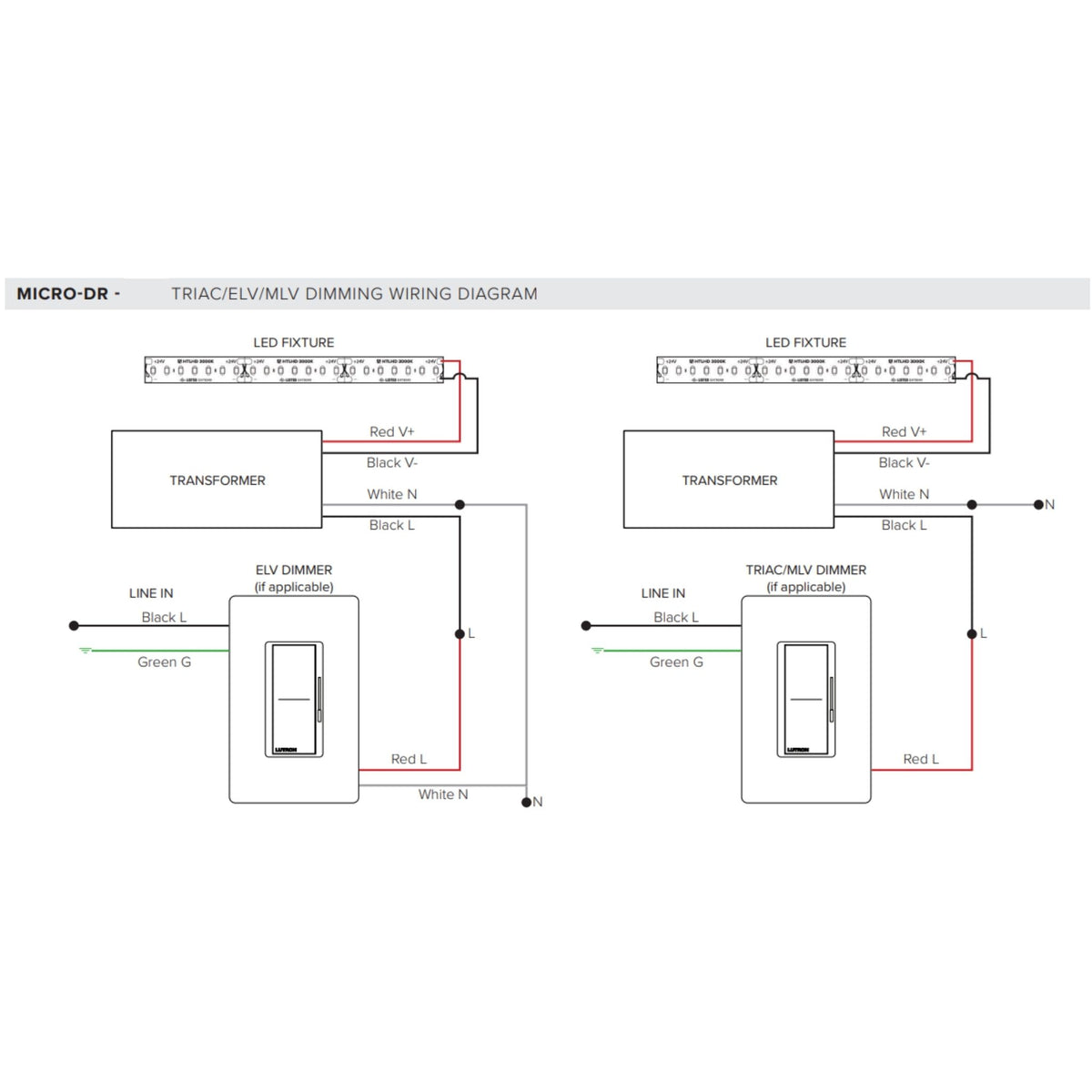

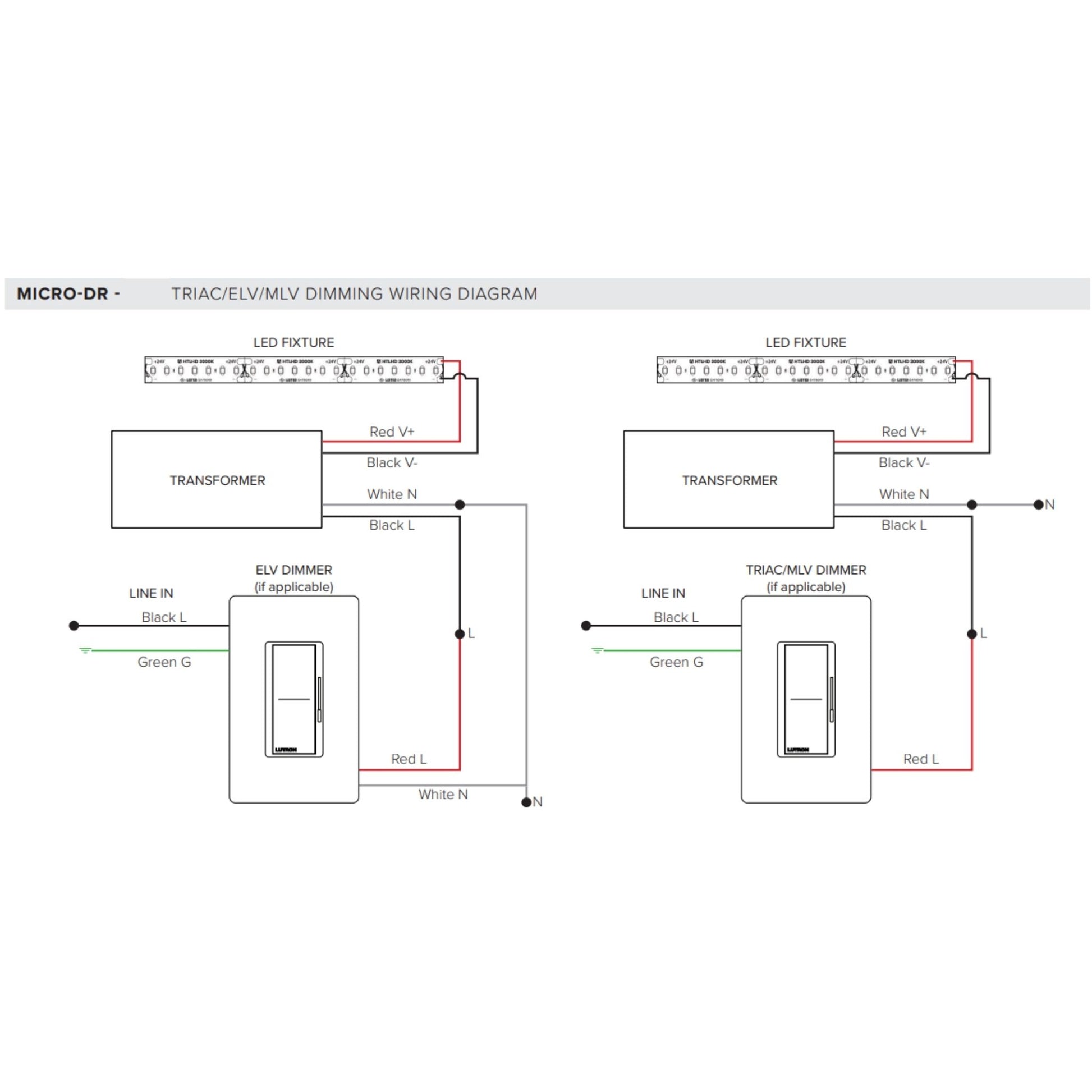

Dimming & Controls
Compatible with various dimming systems, the driver allows for adjustable lighting levels. It operates efficiently with a minimum load requirement, ensuring optimal performance.
Performance & Build
Built to meet Class 2 standards, this driver includes protections against short circuit and over-voltage, ensuring reliable operation in damp-rated environments.
Typical Applications
- Commercial LED lighting
- Residential LED installations
- Architectural lighting projects
- Indoor damp environments
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
