American Lighting LED-DRJ 300W LED Driver 24V Non-Dimming, Wet Rated, 120-277V
Available in stock (518)
About this item
About this item
- Output Power: Delivers a robust 300W at 24V DC for consistent lighting performance.
- Dimming: Designed for non-dimming applications, ensuring stable output.
- Input Voltage: Operates efficiently with a wide range of 120-277V AC input.
- Enclosure: Features a durable aluminum housing with an integrated junction box for easy installation.
- Protection: Includes built-in short circuit, over-current, and over-temperature protections for enhanced safety.
We process payments securely and do not store credit card information.
Description
Description

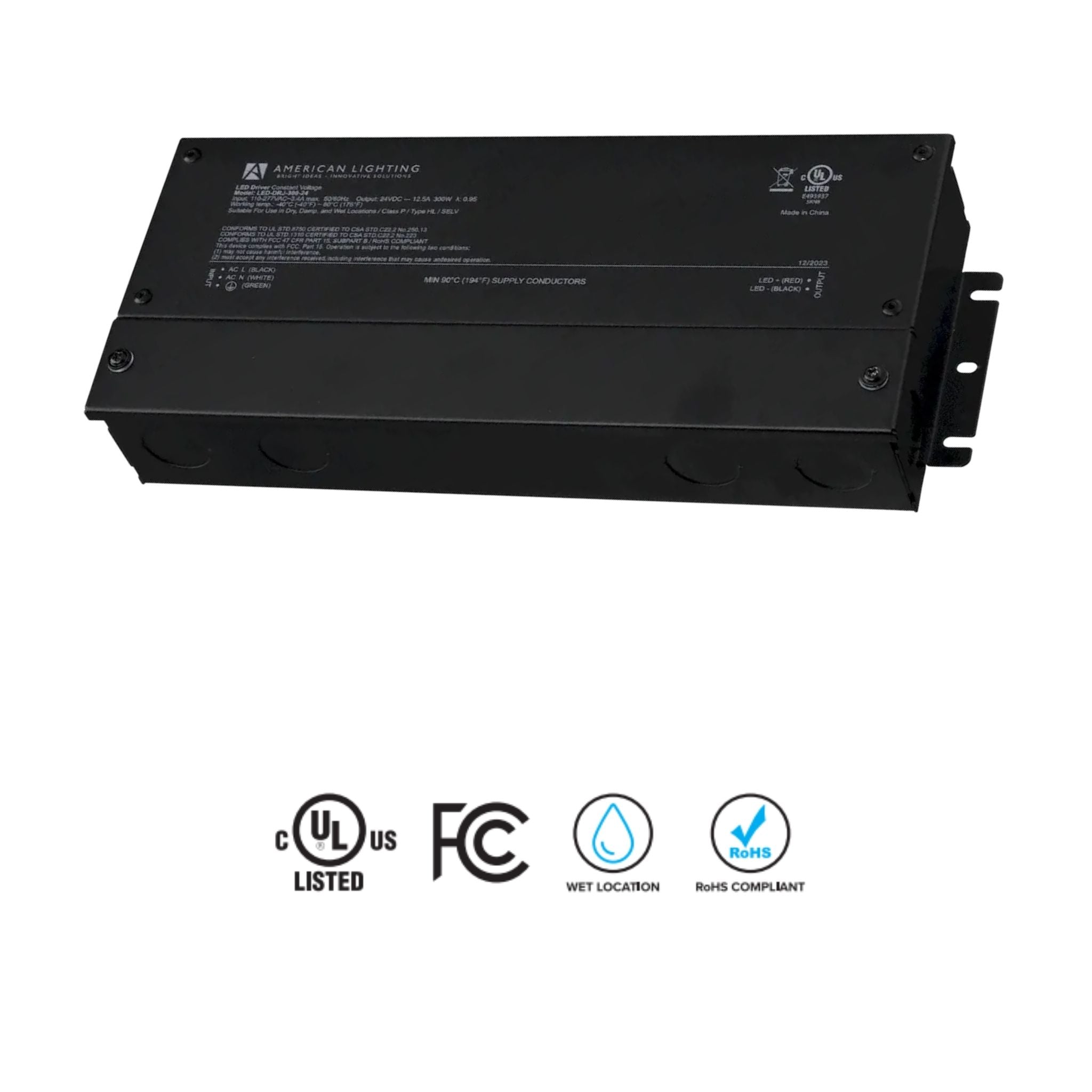

American Lighting LED-DRJ LED-DRJ-300-24 300W LED Driver — 24V DC
The American Lighting LED-DRJ-300-24 is a high-performance 300W LED Driver designed for both indoor and outdoor applications. With an output voltage of 24V DC, this driver is ideal for powering LED fixtures in wet locations. It operates on a wide input voltage range of 120-277V AC, providing flexibility and reliability in various settings. The driver is a constant voltage type, ensuring consistent power delivery. Although it is non-dimmable, it is perfect for installations where primary side dimming is not required. The driver features a rugged aluminum housing with an Integrated Junction Box for streamlined installation.
Key Features
- Power Output: Provides a maximum power output of 300W, suitable for large-scale LED installations.
- Output Voltage: Supplies a steady 24V DC output for optimal LED performance.
- Input Voltage Range: Compatible with 120-277V AC, accommodating various electrical systems.
- Dimming Capability: Non-dimmable, designed for stable, consistent lighting applications.
- Minimum Load: Requires a minimum load of 30W for efficient operation.

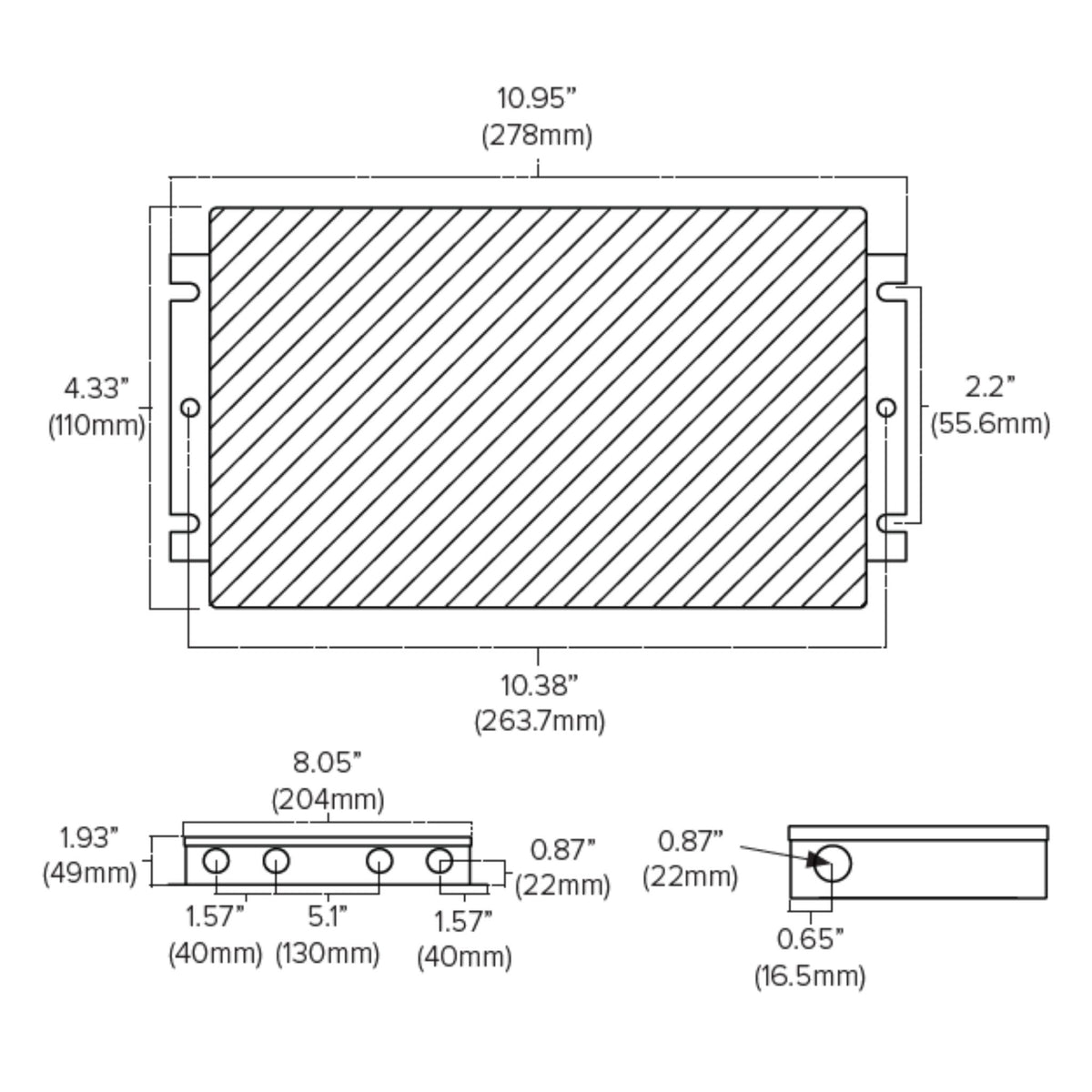

- Dimensions: Compact design measuring 10.95 in. L x 4.33 in. W x 1.93 in. H for versatile installation.
- Enclosure Type: Sturdy aluminum housing with integrated junction box for easy wiring.
- IP Rating: Wet rated, suitable for outdoor and indoor use.
- Certifications: cULus Listed, Class 1, Class P, Type HL, FCC compliant for assured quality and safety.
Physical Design & Installation
The driver features a robust aluminum enclosure with an integrated junction box, simplifying installation and ensuring durability in wet conditions.
Dimming & Controls
This non-dimmable driver is optimized for applications where dimming is not necessary, providing a stable output without the need for additional controls.
Performance & Build
Equipped with short circuit, over-voltage, and thermal protection features, this driver ensures reliable performance and safety. It is Class 1 compliant and wet rated for versatile use.
Typical Applications
- Outdoor architectural lighting
- Commercial signage
- Industrial lighting systems
- Residential landscape lighting
Specifications
Specifications
Dimensions
Documents
Style & Materials
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Is the LED-DRJ-300-24 driver dimmable?
Is the LED-DRJ-300-24 driver dimmable?
What is the input voltage range for this driver?
What is the input voltage range for this driver?
Does the driver include an integrated junction box?
Does the driver include an integrated junction box?
What is the minimum load requirement for this driver?
What is the minimum load requirement for this driver?
What is the IP rating of the LED-DRJ-300-24 driver?
What is the IP rating of the LED-DRJ-300-24 driver?
