American Lighting LED-DRJ LED-DRJ-30-12 30W LED Driver

American Lighting LED-DRJ 30W LED Driver 12V DC - Non-Dimmable, Integrated Junction Box - 120-277V

$54.54

~~$0.00~~

Description

American Lighting LED-DRJ LED-DRJ-30-12 30W LED Driver — 12V DC

The American Lighting LED-DRJ-30-12 is a robust 30W LED Driver designed to provide a reliable 12V DC output for LED lighting systems. This driver operates on a wide 120-277V AC input, making it versatile for various installations. As a Constant Voltage driver, it ensures consistent power delivery, ideal for non-dimmable applications. The driver is Class 2 rated and features a durable aluminum housing with an Integrated Junction Box, suitable for both indoor and outdoor use.

Key Features

Power Output: Provides a maximum power output of 30W, ensuring efficient LED operation.
Input Voltage: Compatible with 120-277V AC, offering flexibility in installation environments.
Output Voltage: Supplies a steady 12V DC output for optimal LED performance.
Dimming: Non-dimmable design for straightforward, reliable installations.
Minimum Load: Requires a minimum load of 3W for proper operation.

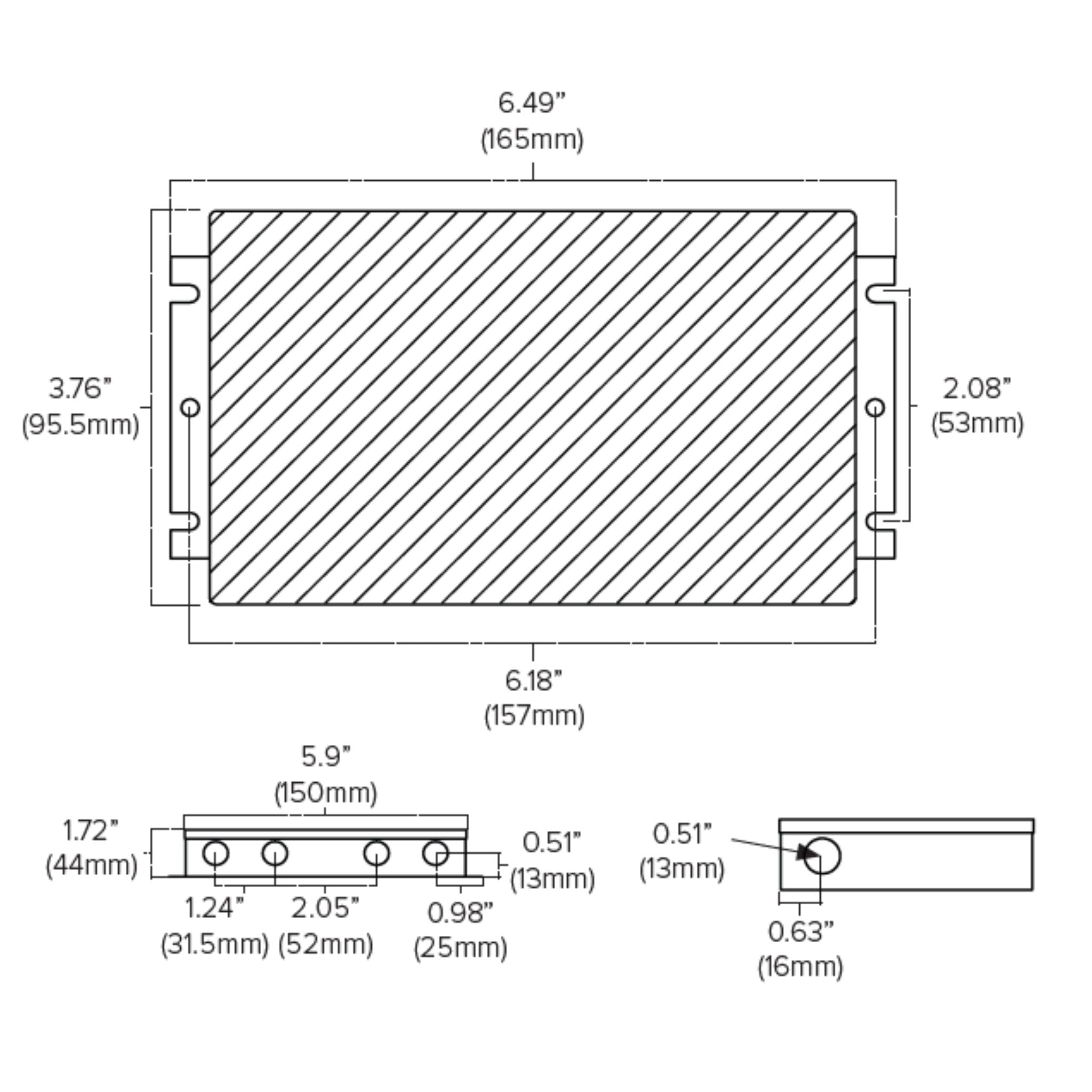

Dimensions: Compact size of 6.49 in. L x 3.76 in. W x 1.72 in. H for easy integration into various setups.
Enclosure Type: Sturdy aluminum housing with integrated junction box for secure and safe installations.
IP Rating: Wet location rated, suitable for both indoor and outdoor applications.
Certifications: cULus Listed, ensuring compliance with safety standards.

Physical Design & Installation

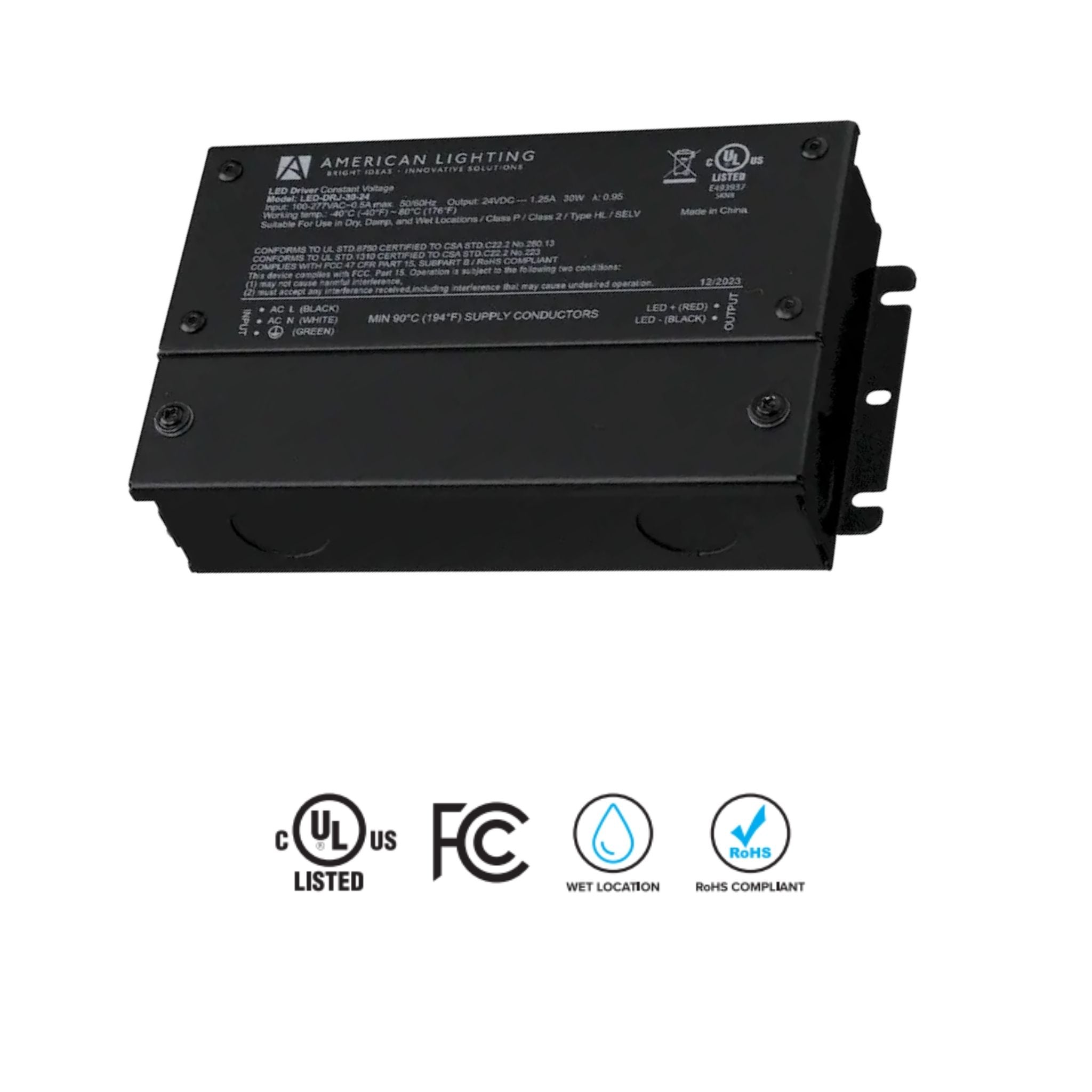

The driver features a compact aluminum enclosure with an integrated junction box, facilitating easy and secure wiring connections.

Dimming & Controls

Designed for non-dimmable applications, this driver simplifies installation by eliminating the need for dimming controls. It requires a minimum load of 3W.

Performance & Build

Equipped with short circuit, over-current, over-voltage, and over-temperature protections, this Class 2 driver ensures safe and reliable operation. It is wet location rated, making it suitable for diverse environments.

Typical Applications

Outdoor LED lighting installations
Indoor commercial lighting systems
Architectural lighting projects
Signage and display lighting

Specifications

Dimensions

Length/Depth

6.49 in

Width/Diameter

3.76 in

Height

1.72 in

Weight

2.09 lb

Documents

Specification

Style & Materials

Material

Aluminum

Electrical Information

Voltage

120-277V

Output Voltage

12V DC

Wattage Rating

30.0W

Amps Rating

2.5 A

Item Details

MPN

LED-DRJ-30-12

Brand

American Lighting

UPC

714176073255

Warranty & Certifications

Product Warranty

2 Years

Product Rating

Class 2, Wet Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Is the LED-DRJ-30-12 driver dimmable?

No, the LED-DRJ-30-12 driver is designed for non-dimmable applications.

What is the input voltage range for the LED-DRJ-30-12?

The input voltage range for the LED-DRJ-30-12 is 120-277V AC.

Does the LED-DRJ-30-12 include an integrated junction box?

Yes, the LED-DRJ-30-12 features an integrated junction box for easy installation.

What is the minimum load requirement for the LED-DRJ-30-12?

The minimum load requirement for the LED-DRJ-30-12 is 3W.

What is the IP rating of the LED-DRJ-30-12 driver?

The LED-DRJ-30-12 driver is wet location rated, suitable for both indoor and outdoor use.
