American Lighting LED-DRJ LED-DRJ-200-24 200W LED Driver

American Lighting LED-DRJ 200W LED Driver 24V DC, Non-Dimming, Wet Rated, 120-277V

$153.54

~~$0.00~~

Description

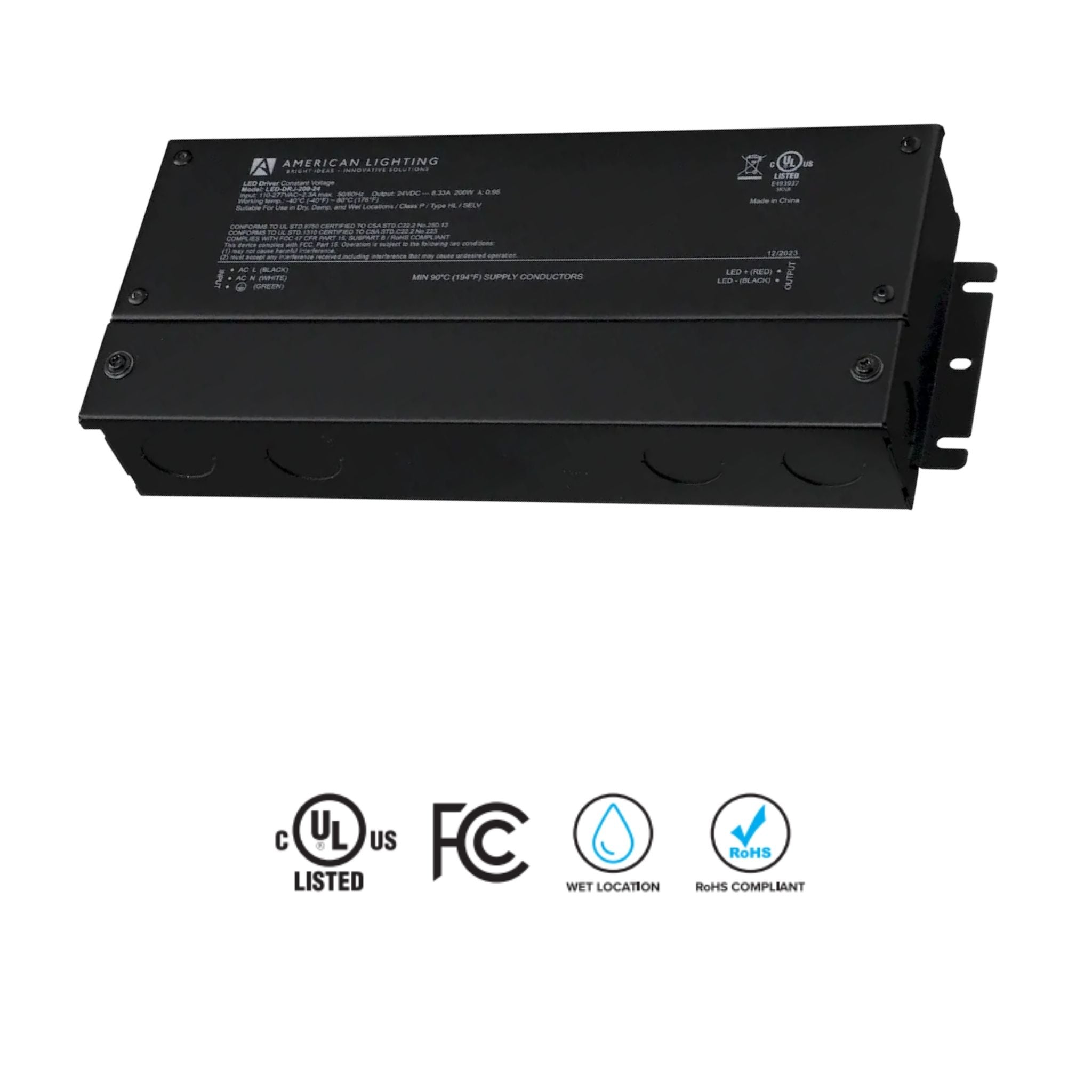

American Lighting LED-DRJ LED-DRJ-200-24 200W LED Driver — 24V DC

The American Lighting LED-DRJ-200-24 is a high-performance LED Driver designed to provide a constant voltage of 24V DC with a power output of 200W. This driver is ideal for both indoor and outdoor applications, thanks to its wet location rating. With an input voltage range of 120-277V AC, it ensures compatibility with various electrical systems. The driver features a non-dimming design, making it perfect for installations where consistent light output is required. Its durable aluminum housing includes an Integrated Junction Box, simplifying installation and ensuring long-lasting performance.

Key Features

Power Output: Provides a reliable 200W power output for demanding LED applications.
Output Voltage: Consistent 24V DC output for optimal LED performance.
Input Voltage Range: Compatible with 120-277V AC for versatile installation options.
Dimming Capability: Non-dimming design for steady light output.
Minimum Load: Requires a minimum load of 30W for efficient operation.

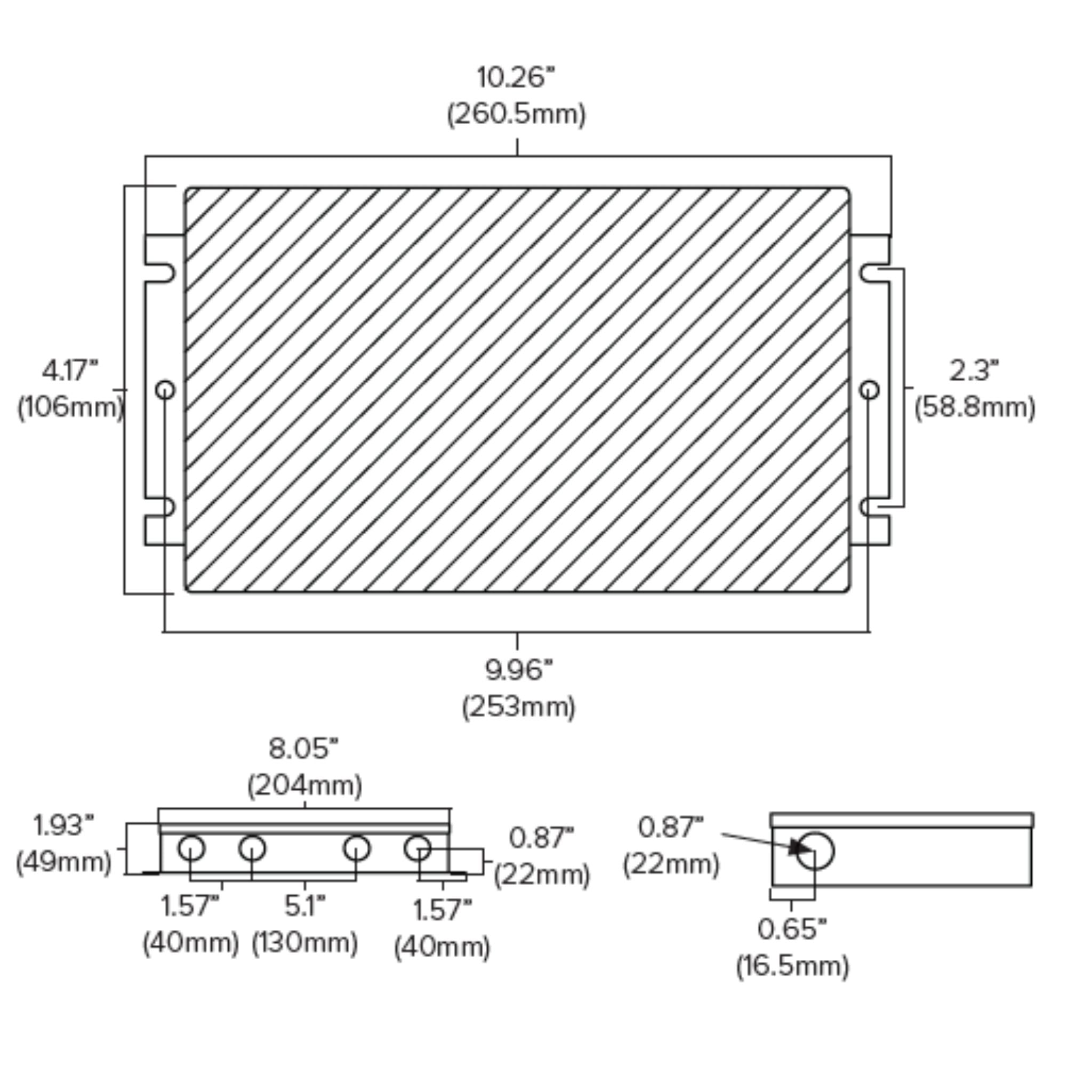

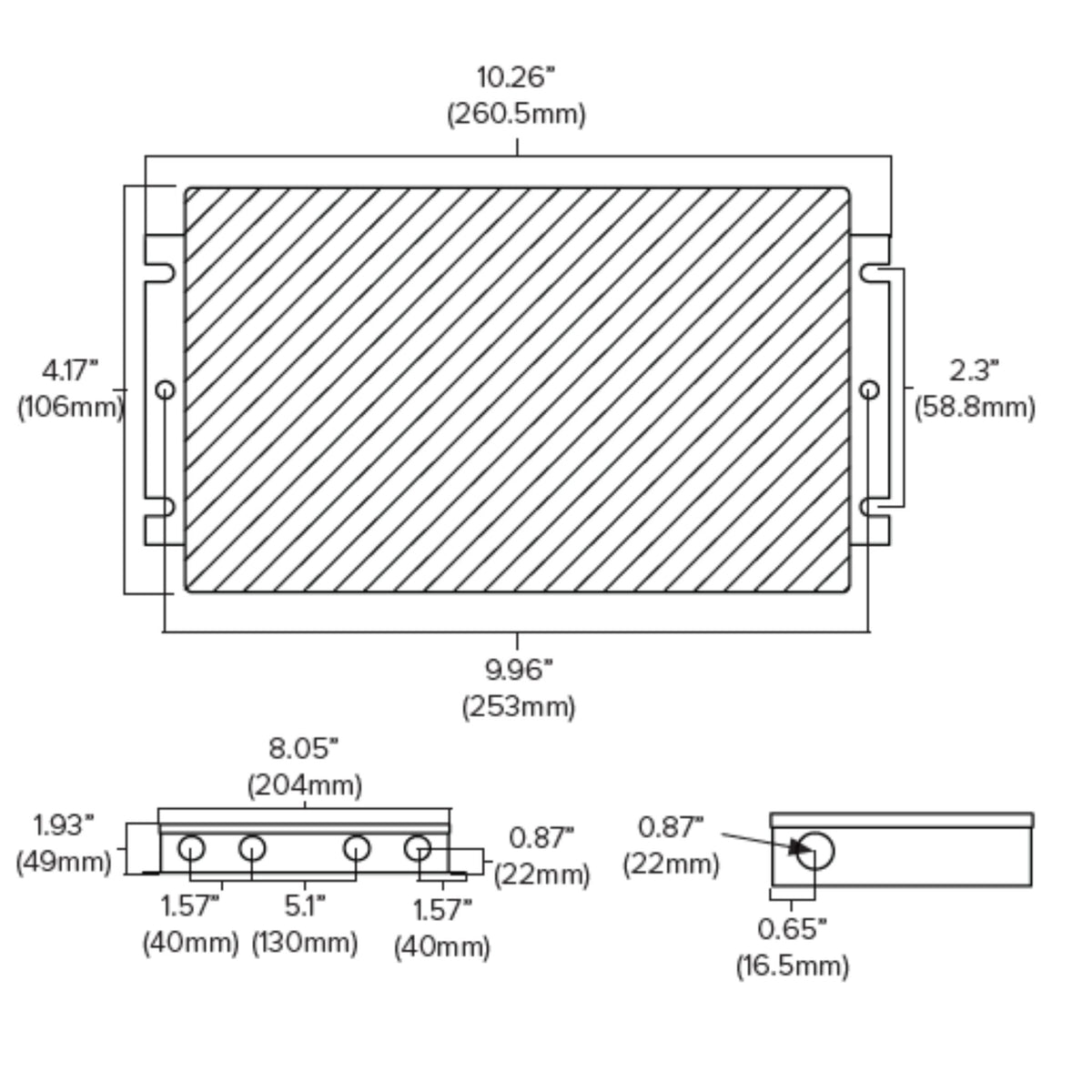

Dimensions: Compact size of 10.26 in. L x 4.17 in. W x 1.93 in. H for easy integration.
Enclosure Type: Sturdy aluminum housing with integrated junction box for secure wiring.
IP Rating: Wet rated for reliable outdoor use.
Certifications: cULus Listed, Class 1, Class P, Type HL, FCC compliant for safety and performance.

Physical Design & Installation

The driver features a compact aluminum housing with an integrated junction box, allowing for streamlined installation and robust protection against environmental factors.

Dimming & Controls

This driver is designed for non-dimming applications, ensuring consistent light output without the need for additional dimming controls. It requires a minimum load of 30W for optimal performance.

Performance & Build

Equipped with short circuit, over-current, and over-temperature protections, this driver ensures safe operation. It is Class 1, Class P, Type HL, and FCC compliant, making it suitable for a wide range of applications.

Typical Applications

Outdoor lighting installations
Commercial LED lighting systems
Residential LED strip lighting
Architectural lighting projects

Specifications

Dimensions

Length/Depth

10.26 in

Width/Diameter

4.17 in

Height

1.93 in

Weight

4.17 lb

Documents

Specification

Style & Materials

Material

Aluminum

Electrical Information

Voltage

120-277V

Output Voltage

24V DC

Wattage Rating

200.0W

Amps Rating

8.33 A

Item Details

MPN

LED-DRJ-200-24

Brand

American Lighting

UPC

714176073323

Warranty & Certifications

Product Warranty

2 Years

Product Rating

Wet Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Is the LED-DRJ-200-24 driver dimmable?

No, the LED-DRJ-200-24 is designed for non-dimming applications.

What is the minimum load requirement for this driver?

The minimum load requirement for the LED-DRJ-200-24 is 30W.

Does this driver include an integrated junction box?

Yes, the LED-DRJ-200-24 features an integrated junction box for easy installation.

What input voltage range does this driver support?

The LED-DRJ-200-24 supports an input voltage range of 120-277V AC.

Is the LED-DRJ-200-24 suitable for outdoor use?

Yes, it is wet rated, making it suitable for outdoor applications.
